Collaboration diagram for TimerImpl Implementation:

Files
file	timer-impl.h
	ns3::TimerImpl declaration and implementation.

Classes
struct	ns3::TimerImplFive< T1, T2, T3, T4, T5 >
	TimerImpl specialization class for varying numbers of arguments. More...

struct	ns3::TimerImplFour< T1, T2, T3, T4 >
	TimerImpl specialization class for varying numbers of arguments. More...

struct	ns3::TimerImplMemberTraits< T >
	Helper for the MakeTimerImpl functions which take a class method. More...

struct	ns3::TimerImplMemberTraits< T * >
	Helper for the MakeTimerImpl functions which take a class method. More...

struct	ns3::TimerImplOne< T1 >
	TimerImpl specialization class for varying numbers of arguments. More...

struct	ns3::TimerImplSix< T1, T2, T3, T4, T5, T6 >
	TimerImpl specialization class for varying numbers of arguments. More...

struct	ns3::TimerImplThree< T1, T2, T3 >
	TimerImpl specialization class for varying numbers of arguments. More...

struct	ns3::TimerImplTwo< T1, T2 >
	TimerImpl specialization class for varying numbers of arguments. More...

struct	ns3::TimerTraits< T >
	Type and reference traits for TimerImpl arguments. More...

Functions
template<typename FN >
TimerImpl *	ns3::MakeTimerImpl (FN fn)
	Make a TimerImpl from a function pointer taking varying numbers of arguments. More...

template<typename FN >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 0 >, FN fn)
	Make a TimerImpl from a function pointer taking zero arguments. More...

template<typename FN >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 1 >, FN fn)
	Make a TimerImpl from a function pointer taking one argument. More...

template<typename FN >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 2 >, FN fn)
	Make a TimerImpl from a function pointer taking two arguments. More...

template<typename FN >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 3 >, FN fn)
	Make a TimerImpl from a function pointer taking three arguments. More...

template<typename FN >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 4 >, FN fn)
	Make a TimerImpl from a function pointer taking four arguments. More...

template<typename FN >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 5 >, FN fn)
	Make a TimerImpl from a function pointer taking five arguments. More...

template<typename FN >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 6 >, FN fn)
	Make a TimerImpl from a function pointer taking six arguments. More...

template<typename MEM_PTR , typename OBJ_PTR >
TimerImpl *	ns3::MakeTimerImpl (MEM_PTR memPtr, OBJ_PTR objPtr)
	Make a TimerImpl from a class method pointer taking a varying number of arguments. More...

template<typename MEM_PTR , typename OBJ_PTR >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 0 >, MEM_PTR memPtr, OBJ_PTR objPtr)
	Make a TimerImpl from a function pointer taking zero arguments. More...

template<typename MEM_PTR , typename OBJ_PTR >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 1 >, MEM_PTR memPtr, OBJ_PTR objPtr)
	Make a TimerImpl from a function pointer taking one argument. More...

template<typename MEM_PTR , typename OBJ_PTR >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 2 >, MEM_PTR memPtr, OBJ_PTR objPtr)
	Make a TimerImpl from a function pointer taking two arguments. More...

template<typename MEM_PTR , typename OBJ_PTR >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 3 >, MEM_PTR memPtr, OBJ_PTR objPtr)
	Make a TimerImpl from a function pointer taking three arguments. More...

template<typename MEM_PTR , typename OBJ_PTR >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 4 >, MEM_PTR memPtr, OBJ_PTR objPtr)
	Make a TimerImpl from a function pointer taking four arguments. More...

template<typename MEM_PTR , typename OBJ_PTR >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 5 >, MEM_PTR memPtr, OBJ_PTR objPtr)
	Make a TimerImpl from a function pointer taking five arguments. More...

template<typename MEM_PTR , typename OBJ_PTR >
TimerImpl *	ns3::MakeTimerImpl (IntToType< 6 >, MEM_PTR memPtr, OBJ_PTR objPtr)
	Make a TimerImpl from a function pointer taking six arguments. More...

Detailed Description

Function Documentation

template<typename FN >

TimerImpl* ns3::MakeTimerImpl ( FN fn )

Make a TimerImpl from a function pointer taking varying numbers of arguments.

Template Parameters

FN	Function signature type of the callback function.

Parameters

fn	The function pointer to invoke when the timer expires.

Returns: The TimerImpl.

Definition at line 253 of file timer-impl.h.

References NS_ASSERT.

Referenced by ns3::MakeTimerImpl(), ns3::Watchdog::SetFunction(), and ns3::Timer::SetFunction().

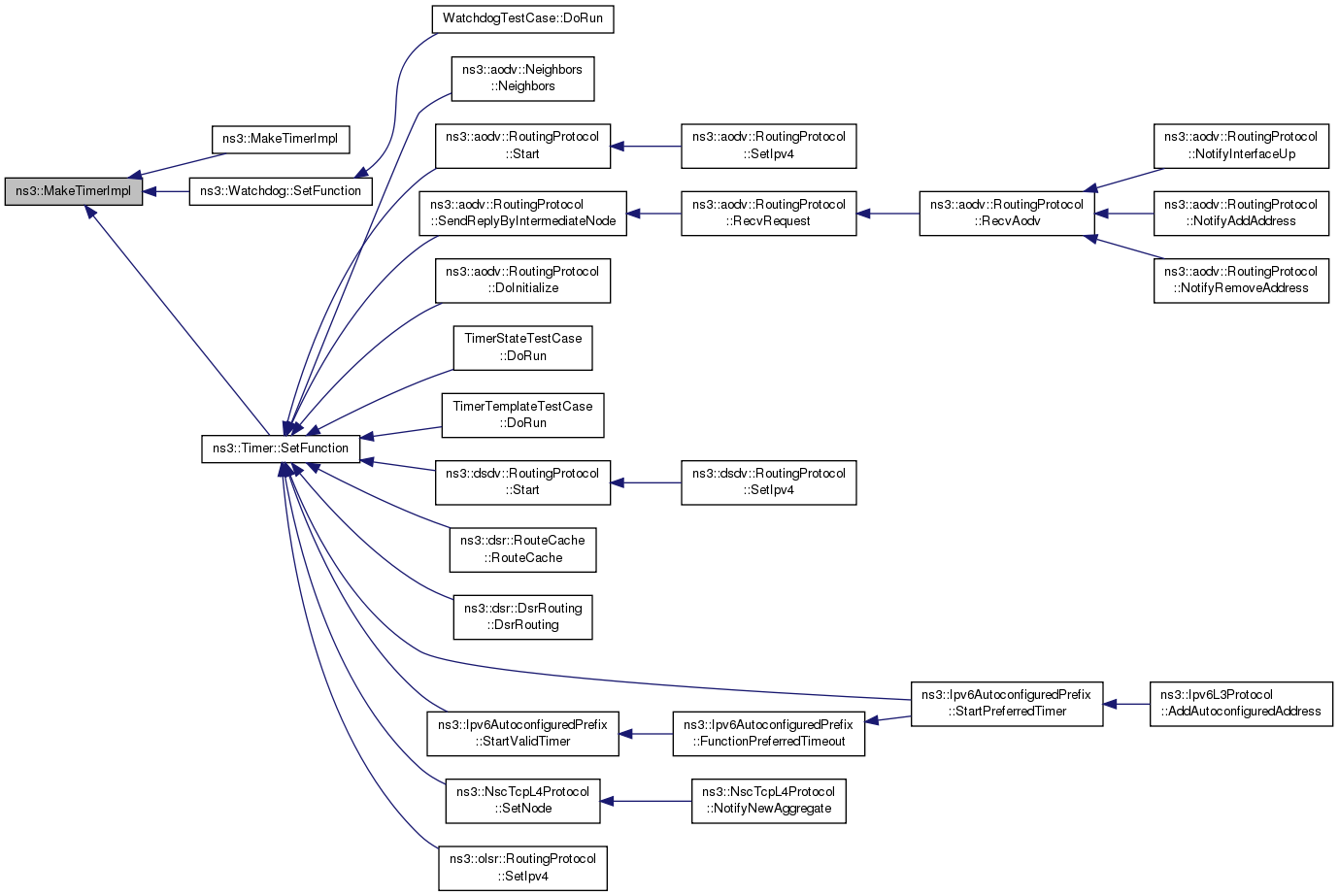

Here is the caller graph for this function:

template<typename FN >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 0 >	,
		FN	fn
	)

Make a TimerImpl from a function pointer taking zero arguments.

Template Parameters

FN	Function signature type of the callback function.

Parameters

fn	The function pointer to invoke when the timer expires.

Returns: The TimerImpl.

Definition at line 265 of file timer-impl.h.

References ns3::Simulator::Schedule().

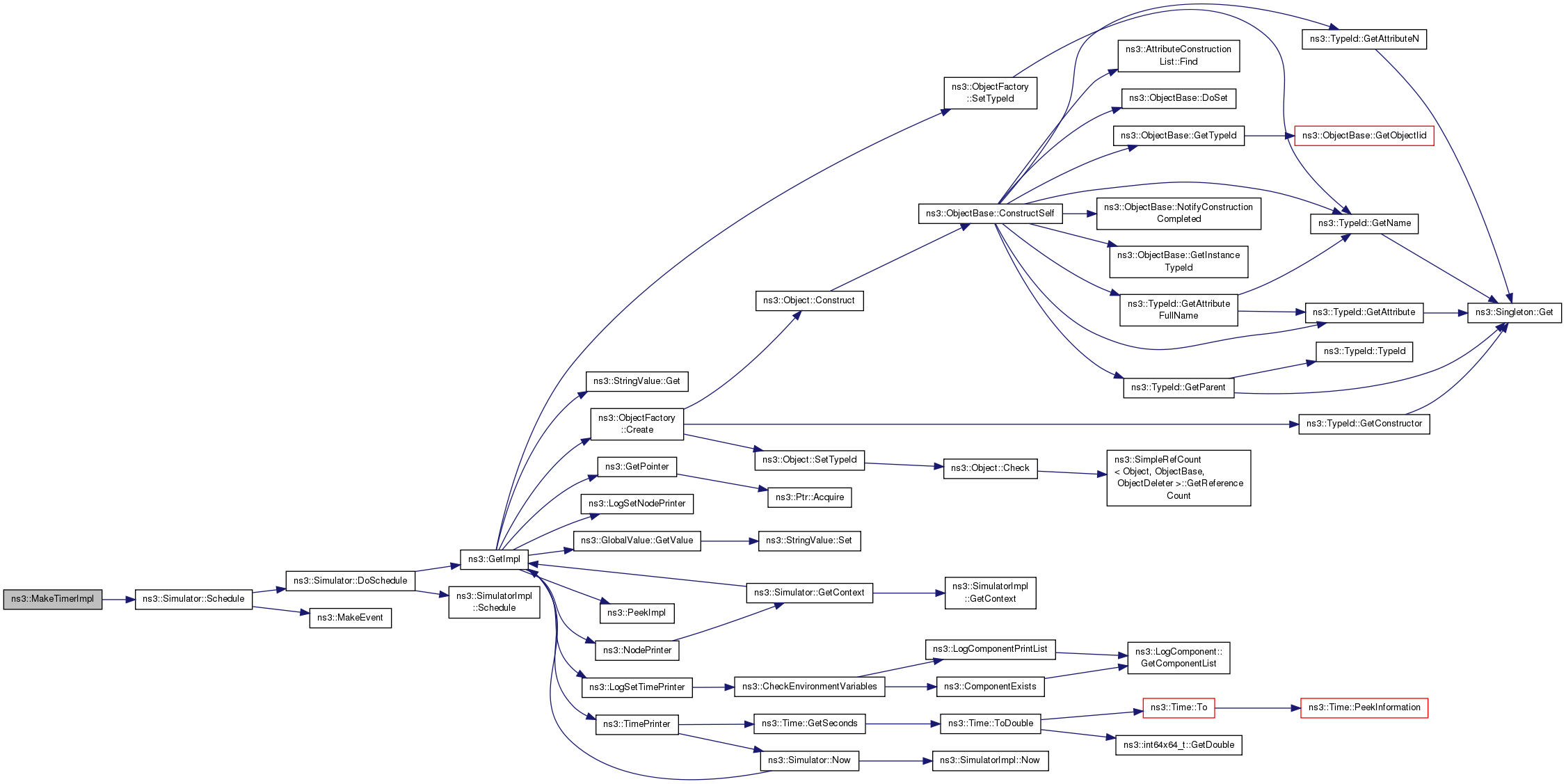

Here is the call graph for this function:

template<typename FN >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 1 >	,
		FN	fn
	)

Make a TimerImpl from a function pointer taking one argument.

Template Parameters

FN	Function signature type of the callback function.

Parameters

fn	The function pointer to invoke when the timer expires.

Returns: The TimerImpl.

Definition at line 292 of file timer-impl.h.

References ns3::Simulator::Schedule().

Here is the call graph for this function:

template<typename FN >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 2 >	,
		FN	fn
	)

Make a TimerImpl from a function pointer taking two arguments.

Template Parameters

FN	Function signature type of the callback function.

Parameters

fn	The function pointer to invoke when the timer expires.

Returns: The TimerImpl.

Definition at line 328 of file timer-impl.h.

References ns3::Simulator::Schedule().

Here is the call graph for this function:

template<typename FN >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 3 >	,
		FN	fn
	)

Make a TimerImpl from a function pointer taking three arguments.

Template Parameters

FN	Function signature type of the callback function.

Parameters

fn	The function pointer to invoke when the timer expires.

Returns: The TimerImpl.

Definition at line 369 of file timer-impl.h.

References ns3::Simulator::Schedule().

Here is the call graph for this function:

template<typename FN >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 4 >	,
		FN	fn
	)

Make a TimerImpl from a function pointer taking four arguments.

Template Parameters

FN	Function signature type of the callback function.

Parameters

fn	The function pointer to invoke when the timer expires.

Returns: The TimerImpl.

Definition at line 415 of file timer-impl.h.

References ns3::Simulator::Schedule().

Here is the call graph for this function:

template<typename FN >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 5 >	,
		FN	fn
	)

Make a TimerImpl from a function pointer taking five arguments.

Template Parameters

FN	Function signature type of the callback function.

Parameters

fn	The function pointer to invoke when the timer expires.

Returns: The TimerImpl.

Definition at line 466 of file timer-impl.h.

References ns3::Simulator::Schedule().

Here is the call graph for this function:

template<typename FN >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 6 >	,
		FN	fn
	)

Make a TimerImpl from a function pointer taking six arguments.

Template Parameters

FN	Function signature type of the callback function.

Parameters

fn	The function pointer to invoke when the timer expires.

Returns: The TimerImpl.

Definition at line 522 of file timer-impl.h.

References ns3::Simulator::Schedule().

Here is the call graph for this function:

template<typename MEM_PTR , typename OBJ_PTR >

TimerImpl* ns3::MakeTimerImpl	(	MEM_PTR	memPtr,
		OBJ_PTR	objPtr
	)

Make a TimerImpl from a class method pointer taking a varying number of arguments.

Template Parameters

MEM_PTR	Class method function signature type.
OBJ_PTR	Class type.

Parameters

memPtr	Class method to invoke when the timer expires.
objPtr	Object instance pointer.

Returns: The TimerImpl.

Definition at line 627 of file timer-impl.h.

References ns3::MakeTimerImpl(), and NS_ASSERT.

Here is the call graph for this function:

template<typename MEM_PTR , typename OBJ_PTR >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 0 >	,
		MEM_PTR	memPtr,
		OBJ_PTR	objPtr
	)

Make a TimerImpl from a function pointer taking zero arguments.

Template Parameters

MEM_PTR	Class method function signature type.
OBJ_PTR	Class type.

Parameters

memPtr	Class method to invoke when the timer expires.
objPtr	Object instance pointer.

Returns: The TimerImpl.

Definition at line 639 of file timer-impl.h.

References ns3::Simulator::Schedule().

Here is the call graph for this function:

template<typename MEM_PTR , typename OBJ_PTR >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 1 >	,
		MEM_PTR	memPtr,
		OBJ_PTR	objPtr
	)

Make a TimerImpl from a function pointer taking one argument.

Template Parameters

MEM_PTR	Class method function signature type.
OBJ_PTR	Class type.

Parameters

memPtr	Class method to invoke when the timer expires.
objPtr	Object instance pointer.

Returns: The TimerImpl.

Definition at line 668 of file timer-impl.h.

References ns3::Simulator::Schedule().

Here is the call graph for this function:

template<typename MEM_PTR , typename OBJ_PTR >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 2 >	,
		MEM_PTR	memPtr,
		OBJ_PTR	objPtr
	)

Make a TimerImpl from a function pointer taking two arguments.

Template Parameters

MEM_PTR	Class method function signature type.
OBJ_PTR	Class type.

Parameters

memPtr	Class method to invoke when the timer expires.
objPtr	Object instance pointer.

Returns: The TimerImpl.

Definition at line 706 of file timer-impl.h.

References ns3::Simulator::Schedule().

Here is the call graph for this function:

template<typename MEM_PTR , typename OBJ_PTR >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 3 >	,
		MEM_PTR	memPtr,
		OBJ_PTR	objPtr
	)

Make a TimerImpl from a function pointer taking three arguments.

Template Parameters

MEM_PTR	Class method function signature type.
OBJ_PTR	Class type.

Parameters

memPtr	Class method to invoke when the timer expires.
objPtr	Object instance pointer.

Returns: The TimerImpl.

Definition at line 749 of file timer-impl.h.

References ns3::Simulator::Schedule().

Here is the call graph for this function:

template<typename MEM_PTR , typename OBJ_PTR >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 4 >	,
		MEM_PTR	memPtr,
		OBJ_PTR	objPtr
	)

Make a TimerImpl from a function pointer taking four arguments.

Template Parameters

MEM_PTR	Class method function signature type.
OBJ_PTR	Class type.

Parameters

memPtr	Class method to invoke when the timer expires.
objPtr	Object instance pointer.

Returns: The TimerImpl.

Definition at line 797 of file timer-impl.h.

References ns3::Simulator::Schedule().

Here is the call graph for this function:

template<typename MEM_PTR , typename OBJ_PTR >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 5 >	,
		MEM_PTR	memPtr,
		OBJ_PTR	objPtr
	)

Make a TimerImpl from a function pointer taking five arguments.

Template Parameters

MEM_PTR	Class method function signature type.
OBJ_PTR	Class type.

Parameters

memPtr	Class method to invoke when the timer expires.
objPtr	Object instance pointer.

Returns: The TimerImpl.

Definition at line 850 of file timer-impl.h.

References ns3::Simulator::Schedule().

Here is the call graph for this function:

template<typename MEM_PTR , typename OBJ_PTR >

TimerImpl* ns3::MakeTimerImpl	(	IntToType< 6 >	,
		MEM_PTR	memPtr,
		OBJ_PTR	objPtr
	)

Make a TimerImpl from a function pointer taking six arguments.

Template Parameters

MEM_PTR	Class method function signature type.
OBJ_PTR	Class type.

Parameters

memPtr	Class method to invoke when the timer expires.
objPtr	Object instance pointer.

Returns: The TimerImpl.

Definition at line 908 of file timer-impl.h.

References ns3::Simulator::Schedule().

Here is the call graph for this function:

Files

Classes

Functions

Detailed Description

Function Documentation
