ns3::olsr Namespace Reference

Namespaces
	anonymous_namespace{olsr-routing-protocol.cc}

Classes
struct	Association
	Association. More...
struct	AssociationTuple
	An Association Tuple. More...
class	Bug780Test
	See Bug 780 More...
struct	DuplicateTuple
	The type "list of interface addresses". More...
class	HelloRegressionTest
	Trivial (still useful) test of OLSR operation. More...
struct	IfaceAssocTuple
	An Interface Association Tuple. More...
struct	LinkTuple
	A Link Tuple. More...
class	MessageHeader
	Introspection did not find any typical Config paths. More...
struct	MprSelectorTuple
	An MPR-Selector Tuple. More...
struct	NeighborTuple
	A Neighbor Tuple. More...
class	OlsrState
	This class encapsulates all data structures needed for maintaining internal state of an OLSR node. More...
class	PacketHeader
	Introspection did not find any typical Config paths. More...
class	RoutingProtocol
	OLSR routing protocol for IPv4. More...
struct	RoutingTableEntry
	An OLSR's routing table entry. More...
class	TcRegressionTest
	Less trivial test of OLSR Topology Control message generation. More...
struct	TopologyTuple
	A Topology Tuple. More...
struct	TwoHopNeighborTuple
	A 2-hop Tuple. More...

Typedefs
typedef std::vector< Association >	Associations
	Association Set type. More...
typedef std::vector< AssociationTuple >	AssociationSet
	Association Set type. More...
typedef std::vector< DuplicateTuple >	DuplicateSet
	Duplicate Set type. More...
typedef std::vector< IfaceAssocTuple >	IfaceAssocSet
	Interface Association Set type. More...
typedef std::vector< LinkTuple >	LinkSet
	Link Set type. More...
typedef std::vector< MessageHeader >	MessageList
typedef std::vector< MprSelectorTuple >	MprSelectorSet
	MPR Selector Set type. More...
typedef std::set< Ipv4Address >	MprSet
	MPR Set type. More...
typedef std::vector< NeighborTuple >	NeighborSet
	Neighbor Set type. More...
typedef std::vector< TopologyTuple >	TopologySet
	Topology Set type. More...
typedef std::vector< TwoHopNeighborTuple >	TwoHopNeighborSet
	2-hop Neighbor Set type. More...

Functions
double	EmfToSeconds (uint8_t olsrFormat)
	Converts a number of seconds in the mantissa/exponent format to a decimal number. More...
static std::ostream &	operator<< (std::ostream &os, const IfaceAssocTuple &tuple)
static std::ostream &	operator<< (std::ostream &os, const LinkTuple &tuple)
static std::ostream &	operator<< (std::ostream &os, const NeighborTuple &tuple)
static std::ostream &	operator<< (std::ostream &os, const TwoHopNeighborTuple &tuple)
static std::ostream &	operator<< (std::ostream &os, const TopologyTuple &tuple)
static std::ostream &	operator<< (std::ostream &os, const Association &tuple)
static std::ostream &	operator<< (std::ostream &os, const AssociationTuple &tuple)
static std::ostream &	operator<< (std::ostream &os, const PacketHeader &packet)
static std::ostream &	operator<< (std::ostream &os, const MessageHeader &message)
static std::ostream &	operator<< (std::ostream &os, const MessageList &messages)
static bool	operator== (const IfaceAssocTuple &a, const IfaceAssocTuple &b)
static bool	operator== (const LinkTuple &a, const LinkTuple &b)
static bool	operator== (const NeighborTuple &a, const NeighborTuple &b)
static bool	operator== (const TwoHopNeighborTuple &a, const TwoHopNeighborTuple &b)
static bool	operator== (const MprSelectorTuple &a, const MprSelectorTuple &b)
static bool	operator== (const DuplicateTuple &a, const DuplicateTuple &b)
static bool	operator== (const TopologyTuple &a, const TopologyTuple &b)
static bool	operator== (const Association &a, const Association &b)
static bool	operator== (const AssociationTuple &a, const AssociationTuple &b)
uint8_t	SecondsToEmf (double seconds)
	Converts a decimal number of seconds to the mantissa/exponent format. More...
static void	SetVelocity (Ptr< Node > node, Vector vel)

Typedef Documentation

typedef std::vector<Association> ns3::olsr::Associations

Association Set type.

Definition at line 298 of file olsr-repositories.h.

typedef std::vector<AssociationTuple> ns3::olsr::AssociationSet

Association Set type.

Definition at line 297 of file olsr-repositories.h.

typedef std::vector<DuplicateTuple> ns3::olsr::DuplicateSet

Duplicate Set type.

Definition at line 295 of file olsr-repositories.h.

typedef std::vector<IfaceAssocTuple> ns3::olsr::IfaceAssocSet

Interface Association Set type.

Definition at line 296 of file olsr-repositories.h.

typedef std::vector<LinkTuple> ns3::olsr::LinkSet

Link Set type.

Definition at line 291 of file olsr-repositories.h.

typedef std::vector<MessageHeader> ns3::olsr::MessageList

Definition at line 450 of file olsr-header.h.

typedef std::vector<MprSelectorTuple> ns3::olsr::MprSelectorSet

MPR Selector Set type.

Definition at line 290 of file olsr-repositories.h.

typedef std::set<Ipv4Address> ns3::olsr::MprSet

MPR Set type.

Definition at line 289 of file olsr-repositories.h.

typedef std::vector<NeighborTuple> ns3::olsr::NeighborSet

Neighbor Set type.

Definition at line 292 of file olsr-repositories.h.

typedef std::vector<TopologyTuple> ns3::olsr::TopologySet

Topology Set type.

Definition at line 294 of file olsr-repositories.h.

typedef std::vector<TwoHopNeighborTuple> ns3::olsr::TwoHopNeighborSet

2-hop Neighbor Set type.

Definition at line 293 of file olsr-repositories.h.

Function Documentation

double ns3::olsr::EmfToSeconds

(

uint8_t

olsrFormat

)

Converts a number of seconds in the mantissa/exponent format to a decimal number.

Parameters

olsr_format

number of seconds in mantissa/exponent format.

Returns

the decimal number of seconds.

Definition at line 88 of file olsr-header.cc.

References OLSR_C.

Referenced by OlsrEmfTestCase::DoRun(), ns3::olsr::MessageHeader::Hello::GetHTime(), and ns3::olsr::MessageHeader::GetVTime().

Here is the caller graph for this function:

static std::ostream& ns3::olsr::operator<< ( std::ostream &  os, const IfaceAssocTuple &  tuple  )

inlinestatic

Definition at line 59 of file olsr-repositories.h.

References ns3::olsr::IfaceAssocTuple::ifaceAddr, ns3::olsr::IfaceAssocTuple::mainAddr, and ns3::olsr::IfaceAssocTuple::time.

static std::ostream& ns3::olsr::operator<< ( std::ostream &  os, const LinkTuple &  tuple  )

inlinestatic

Definition at line 90 of file olsr-repositories.h.

References ns3::olsr::LinkTuple::asymTime, ns3::olsr::LinkTuple::localIfaceAddr, ns3::olsr::LinkTuple::neighborIfaceAddr, ns3::olsr::LinkTuple::symTime, and ns3::olsr::LinkTuple::time.

static std::ostream& ns3::olsr::operator<< ( std::ostream &  os, const NeighborTuple &  tuple  )

inlinestatic

Definition at line 124 of file olsr-repositories.h.

References ns3::olsr::NeighborTuple::neighborMainAddr, ns3::olsr::NeighborTuple::status, ns3::olsr::NeighborTuple::STATUS_SYM, and ns3::olsr::NeighborTuple::willingness.

static std::ostream& ns3::olsr::operator<< ( std::ostream &  os, const TwoHopNeighborTuple &  tuple  )

inlinestatic

Definition at line 144 of file olsr-repositories.h.

References ns3::olsr::TwoHopNeighborTuple::expirationTime, ns3::olsr::TwoHopNeighborTuple::neighborMainAddr, and ns3::olsr::TwoHopNeighborTuple::twoHopNeighborAddr.

static std::ostream& ns3::olsr::operator<< ( std::ostream &  os, const TopologyTuple &  tuple  )

inlinestatic

Definition at line 223 of file olsr-repositories.h.

References ns3::olsr::TopologyTuple::destAddr, ns3::olsr::TopologyTuple::expirationTime, ns3::olsr::TopologyTuple::lastAddr, and ns3::olsr::TopologyTuple::sequenceNumber.

static std::ostream& ns3::olsr::operator<< ( std::ostream &  os, const Association &  tuple  )

inlinestatic

Definition at line 248 of file olsr-repositories.h.

References ns3::olsr::Association::netmask, and ns3::olsr::Association::networkAddr.

static std::ostream& ns3::olsr::operator<< ( std::ostream &  os, const AssociationTuple &  tuple  )

inlinestatic

Definition at line 278 of file olsr-repositories.h.

References ns3::olsr::AssociationTuple::expirationTime, ns3::olsr::AssociationTuple::gatewayAddr, ns3::olsr::AssociationTuple::netmask, and ns3::olsr::AssociationTuple::networkAddr.

static std::ostream& ns3::olsr::operator<< ( std::ostream &  os, const PacketHeader &  packet  )

inlinestatic

Definition at line 438 of file olsr-header.h.

References ns3::olsr::PacketHeader::Print().

Here is the call graph for this function:

static std::ostream& ns3::olsr::operator<< ( std::ostream &  os, const MessageHeader &  message  )

inlinestatic

Definition at line 444 of file olsr-header.h.

References ns3::olsr::MessageHeader::Print().

Here is the call graph for this function:

static std::ostream& ns3::olsr::operator<< ( std::ostream &  os, const MessageList &  messages  )

inlinestatic

Definition at line 452 of file olsr-header.h.

static bool ns3::olsr::operator== ( const IfaceAssocTuple &  a, const IfaceAssocTuple &  b  )

inlinestatic

Definition at line 52 of file olsr-repositories.h.

References ns3::olsr::IfaceAssocTuple::ifaceAddr, and ns3::olsr::IfaceAssocTuple::mainAddr.

static bool ns3::olsr::operator== ( const LinkTuple &  a, const LinkTuple &  b  )

inlinestatic

Definition at line 83 of file olsr-repositories.h.

References ns3::olsr::LinkTuple::localIfaceAddr, and ns3::olsr::LinkTuple::neighborIfaceAddr.

static bool ns3::olsr::operator== ( const NeighborTuple &  a, const NeighborTuple &  b  )

inlinestatic

Definition at line 116 of file olsr-repositories.h.

References ns3::olsr::NeighborTuple::neighborMainAddr, ns3::olsr::NeighborTuple::status, and ns3::olsr::NeighborTuple::willingness.

static bool ns3::olsr::operator== ( const TwoHopNeighborTuple &  a, const TwoHopNeighborTuple &  b  )

inlinestatic

Definition at line 154 of file olsr-repositories.h.

References ns3::olsr::TwoHopNeighborTuple::neighborMainAddr, and ns3::olsr::TwoHopNeighborTuple::twoHopNeighborAddr.

static bool ns3::olsr::operator== ( const MprSelectorTuple &  a, const MprSelectorTuple &  b  )

inlinestatic

Definition at line 170 of file olsr-repositories.h.

References ns3::olsr::MprSelectorTuple::mainAddr.

static bool ns3::olsr::operator== ( const DuplicateTuple &  a, const DuplicateTuple &  b  )

inlinestatic

Definition at line 195 of file olsr-repositories.h.

References ns3::olsr::DuplicateTuple::address, and ns3::olsr::DuplicateTuple::sequenceNumber.

static bool ns3::olsr::operator== ( const TopologyTuple &  a, const TopologyTuple &  b  )

inlinestatic

Definition at line 215 of file olsr-repositories.h.

References ns3::olsr::TopologyTuple::destAddr, ns3::olsr::TopologyTuple::lastAddr, and ns3::olsr::TopologyTuple::sequenceNumber.

static bool ns3::olsr::operator== ( const Association &  a, const Association &  b  )

inlinestatic

Definition at line 241 of file olsr-repositories.h.

References ns3::olsr::Association::netmask, and ns3::olsr::Association::networkAddr.

static bool ns3::olsr::operator== ( const AssociationTuple &  a, const AssociationTuple &  b  )

inlinestatic

Definition at line 270 of file olsr-repositories.h.

References ns3::olsr::AssociationTuple::gatewayAddr, ns3::olsr::AssociationTuple::netmask, and ns3::olsr::AssociationTuple::networkAddr.

uint8_t ns3::olsr::SecondsToEmf

(

double

seconds

)

Converts a decimal number of seconds to the mantissa/exponent format.

Parameters

seconds

decimal number of seconds we want to convert.

Returns

the number of seconds in mantissa/exponent format.

Definition at line 49 of file olsr-header.cc.

References NS_ASSERT, and OLSR_C.

Referenced by OlsrEmfTestCase::DoRun(), ns3::olsr::MessageHeader::Hello::SetHTime(), and ns3::olsr::MessageHeader::SetVTime().

Here is the caller graph for this function:

static void ns3::olsr::SetVelocity ( Ptr< Node >  node, Vector  vel  )

static

Definition at line 60 of file bug780-test.cc.

References ns3::Object::GetObject().

Referenced by ns3::olsr::Bug780Test::CreateNodes(), and LteX2HandoverMeasuresTestCase::DoRun().

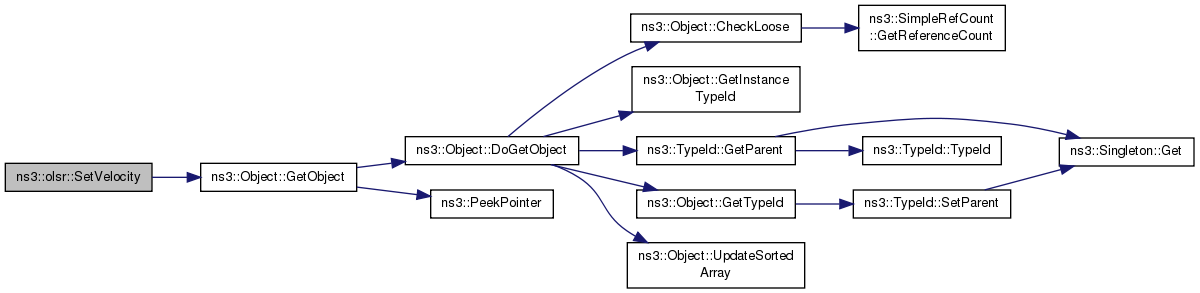

Here is the call graph for this function:

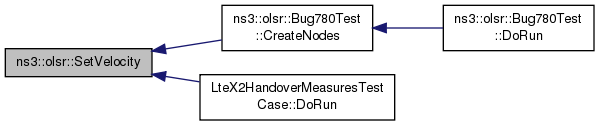

Here is the caller graph for this function:
