nstime.h File Reference

Declaration of classes ns3::Time and ns3::TimeWithUnit, and the TimeValue implementation classes. More...

#include "assert.h"
#include "attribute.h"
#include "attribute-helper.h"
#include "int64x64.h"
#include "unused.h"
#include <stdint.h>
#include <limits>
#include <cmath>
#include <ostream>
#include <set>

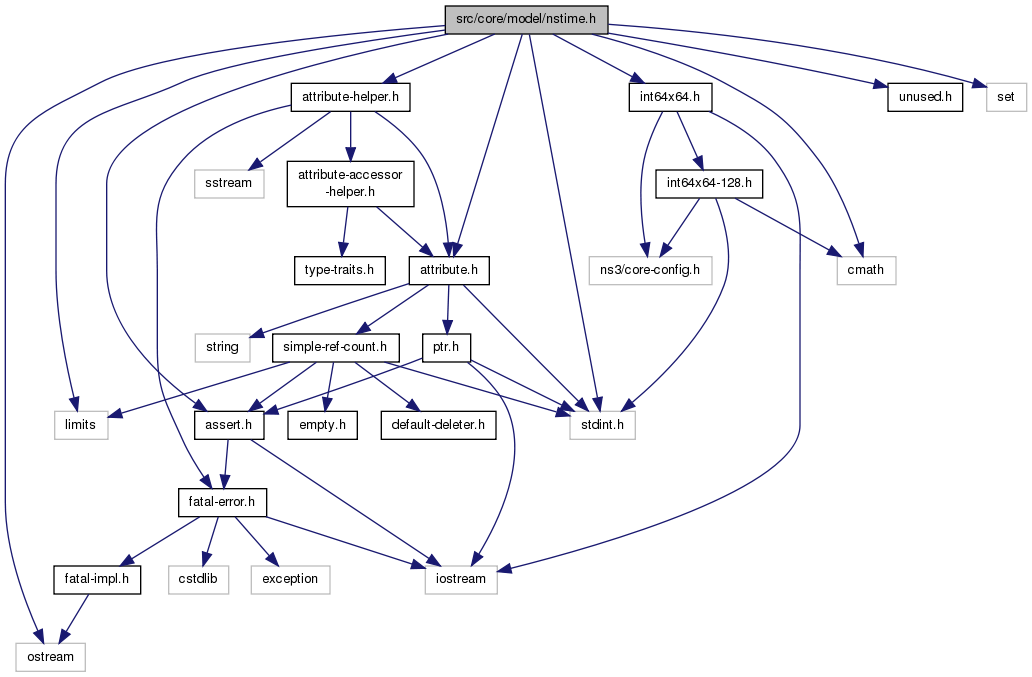

Include dependency graph for nstime.h:

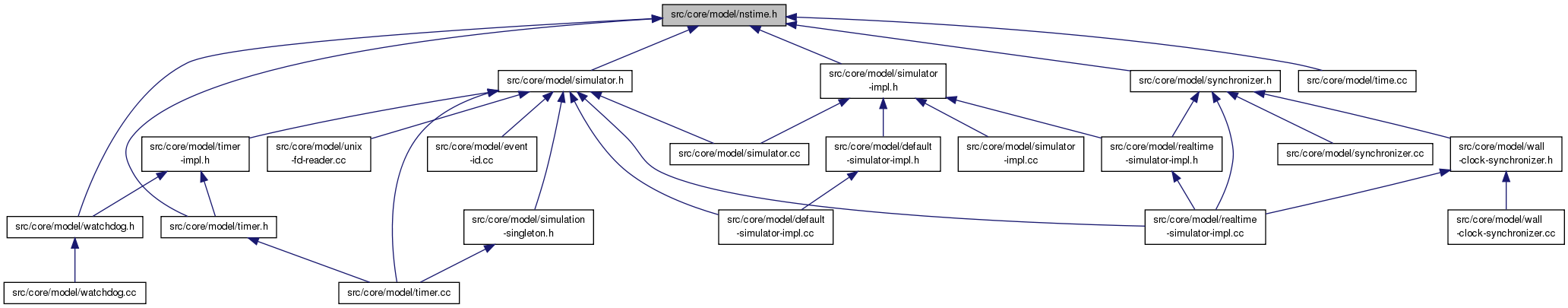

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::Time::Information
	How to convert between other units and the current unit. More...
struct	ns3::Time::Resolution
	Current time unit, and conversion info. More...
class	ns3::Time
	Simulation virtual time values and global simulation resolution. More...
class	ns3::TimeValue
	AttributeValue implementation for Time. More...
class	ns3::TimeWithUnit
	A Time with attached unit, to facilitate output in that unit. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Functions
Time	ns3::Abs (const Time &time)
template<typename T1 >
Ptr< const AttributeAccessor >	ns3::MakeTimeAccessor (T1 a1)
	Create an AttributeAccessor for a class data member, or a lone class get functor or set method. More...
template<typename T1 , typename T2 >
Ptr< const AttributeAccessor >	ns3::MakeTimeAccessor (T1 a1, T2 a2)
	Create an AttributeAccessor using a pair of get functor and set methods from a class. More...
Ptr< const AttributeChecker >	ns3::MakeTimeChecker (const Time min, const Time max)
	Helper to make a Time checker with bounded range. More...
Ptr< const AttributeChecker >	ns3::MakeTimeChecker (void)
	Helper to make an unbounded Time checker. More...
Ptr< const AttributeChecker >	ns3::MakeTimeChecker (const Time min)
	Helper to make a Time checker with a lower bound. More...
Time	ns3::Max (const Time &ta, const Time &tb)
Time	ns3::Min (const Time &ta, const Time &tb)
static bool	ns3::NS_UNUSED_GLOBAL (g_TimeStaticInit)
	Force static initialization of Time. More...
bool	ns3::operator!= (const Time &lhs, const Time &rhs)
Time	ns3::operator* (const Time &lhs, const int64_t &rhs)
Time	ns3::operator* (const int64_t &lhs, const Time &rhs)
Time	ns3::operator+ (const Time &lhs, const Time &rhs)
Time &	ns3::operator+= (Time &lhs, const Time &rhs)
Time	ns3::operator- (const Time &lhs, const Time &rhs)
Time &	ns3::operator-= (Time &lhs, const Time &rhs)
int64_t	ns3::operator/ (const Time &lhs, const Time &rhs)
Time	ns3::operator/ (const Time &lhs, const int64_t &rhs)
bool	ns3::operator< (const Time &lhs, const Time &rhs)
std::ostream &	ns3::operator<< (std::ostream &os, const Time &time)
	Time output streamer. More...
bool	ns3::operator<= (const Time &lhs, const Time &rhs)
bool	ns3::operator== (const Time &lhs, const Time &rhs)
bool	ns3::operator> (const Time &lhs, const Time &rhs)
bool	ns3::operator>= (const Time &lhs, const Time &rhs)
std::istream &	ns3::operator>> (std::istream &is, Time &time)
	Time input streamer. More...
Time	ns3::TimeStep (uint64_t ts)
Time	ns3::Years (double value)
	Construct a Time in the indicated unit. More...
Time	ns3::Years (int64x64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::Days (double value)
	Construct a Time in the indicated unit. More...
Time	ns3::Days (int64x64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::Hours (double value)
	Construct a Time in the indicated unit. More...
Time	ns3::Hours (int64x64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::Minutes (double value)
	Construct a Time in the indicated unit. More...
Time	ns3::Minutes (int64x64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::Seconds (double value)
	Construct a Time in the indicated unit. More...
Time	ns3::Seconds (int64x64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::MilliSeconds (uint64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::MilliSeconds (int64x64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::MicroSeconds (uint64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::MicroSeconds (int64x64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::NanoSeconds (uint64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::NanoSeconds (int64x64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::PicoSeconds (uint64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::PicoSeconds (int64x64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::FemtoSeconds (uint64_t value)
	Construct a Time in the indicated unit. More...
Time	ns3::FemtoSeconds (int64x64_t value)
	Construct a Time in the indicated unit. More...

Detailed Description

Declaration of classes ns3::Time and ns3::TimeWithUnit, and the TimeValue implementation classes.

Definition in file nstime.h.
