Struct interface to NSC Stream (i.e., TCP) Sockets. More...

#include <sim_interface.h>

Public Member Functions
virtual	~INetStreamSocket ()

virtual int	accept (INetStreamSocket **)=0
	Accept an incoming connection. More...

virtual void	connect (const char *, int)=0
	Connect to a remote peer. More...

virtual void	disconnect ()=0
	Disconnect from a remote peer. More...

virtual bool	get_var (const char var, char result, int result_len)
	Optional function used to get variables for this TCP connection. More...

virtual int	getpeername (struct sockaddr sa, size_t salen)
	Get the peer name. More...

virtual int	getsockname (struct sockaddr sa, size_t salen)
	Get the socket local name. More...

virtual bool	is_connected ()=0
	Check the connection state. More...

virtual bool	is_listening ()=0
	Check the listening state. More...

virtual void	listen (int)=0
	Put the socket in Listening state on a port. More...

virtual void	print_state (FILE *)=0
	Print the socket state. More...

virtual int	read_data (void buf, int buflen)=0
	Read some data. More...

virtual int	send_data (const void *data, int datalen)=0
	Send some data. More...

virtual bool	set_var (const char var, const char val)
	Optional function used to set variables for this TCP connection. More...

virtual int	setsockopt (char optname, void val, size_t valsize)=0
	Set the socket options. More...

Detailed Description

Struct interface to NSC Stream (i.e., TCP) Sockets.

Definition at line 255 of file sim_interface.h.

Constructor & Destructor Documentation

virtual INetStreamSocket::~INetStreamSocket ( )

inlinevirtual

Definition at line 257 of file sim_interface.h.

Member Function Documentation

virtual int INetStreamSocket::accept ( INetStreamSocket ** )

pure virtual

Accept an incoming connection.

Referenced by ns3::NscTcpSocketImpl::Accept().

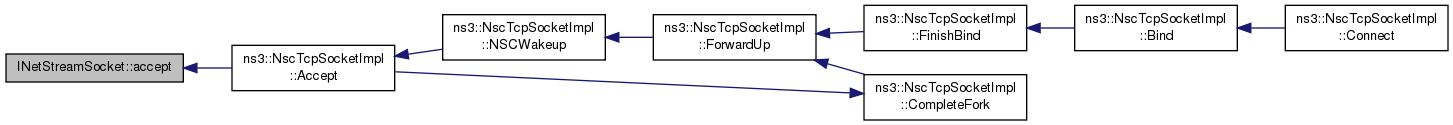

Here is the caller graph for this function:

virtual void INetStreamSocket::connect	(	const char *	,
		int
	)

pure virtual

Connect to a remote peer.

Referenced by ns3::NscTcpSocketImpl::Connect().

Here is the caller graph for this function:

virtual void INetStreamSocket::disconnect ( )

pure virtual

Disconnect from a remote peer.

Referenced by ns3::NscTcpSocketImpl::Close(), and ns3::NscTcpSocketImpl::SendPendingData().

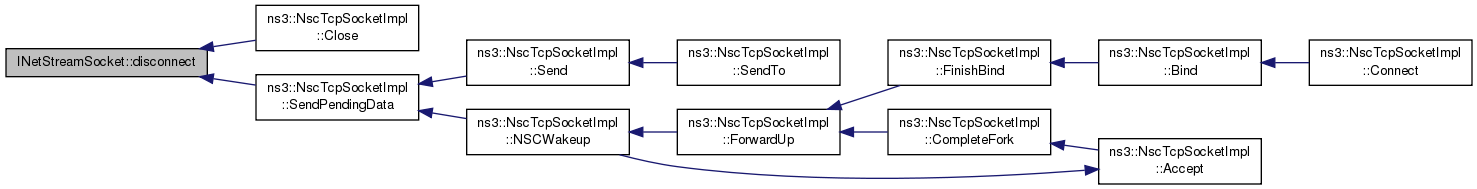

Here is the caller graph for this function:

virtual bool INetStreamSocket::get_var	(	const char *	var,
		char *	result,
		int	result_len
	)

inlinevirtual

Optional function used to get variables for this TCP connection.

Note: not implemented

Parameters

var	variable requested
result	result result
result_len	result length

Returns: always false

Definition at line 350 of file sim_interface.h.

virtual int INetStreamSocket::getpeername	(	struct sockaddr *	sa,
		size_t *	salen
	)

inlinevirtual

Get the peer name.

Note: not implemented

Parameters

sa	sockaddr structure to fill
salen	sockaddr structure length

Returns: -1 on error (always returns -1)

Definition at line 325 of file sim_interface.h.

Referenced by ns3::NscTcpSocketImpl::CompleteFork().

Here is the caller graph for this function:

virtual int INetStreamSocket::getsockname	(	struct sockaddr *	sa,
		size_t *	salen
	)

inlinevirtual

Get the socket local name.

Note: not implemented

Parameters

sa	sockaddr structure to fill
salen	sockaddr structure length

Returns: -1 on error (always returns -1)

Definition at line 337 of file sim_interface.h.

Referenced by ns3::NscTcpSocketImpl::CompleteFork(), and ns3::NscTcpSocketImpl::ConnectionSucceeded().

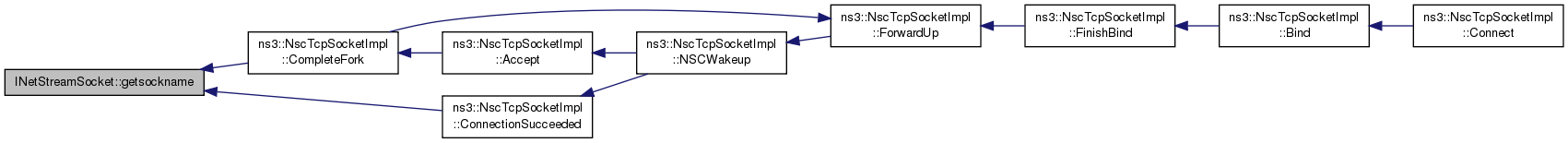

Here is the caller graph for this function:

virtual bool INetStreamSocket::is_connected ( )

pure virtual

Check the connection state.

Returns: true if socket is in connected state

Referenced by ns3::NscTcpSocketImpl::NSCWakeup().

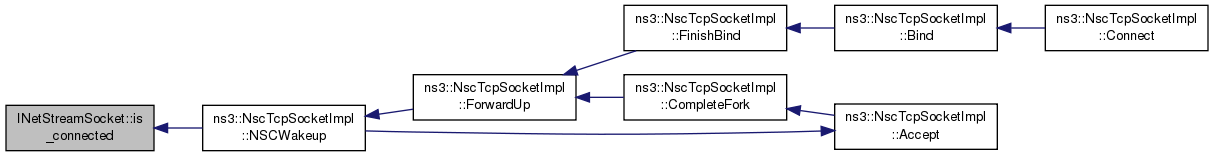

Here is the caller graph for this function:

virtual bool INetStreamSocket::is_listening ( )

pure virtual

Check the listening state.

Returns: true if socket is in listening state

Referenced by ns3::NscTcpSocketImpl::Accept().

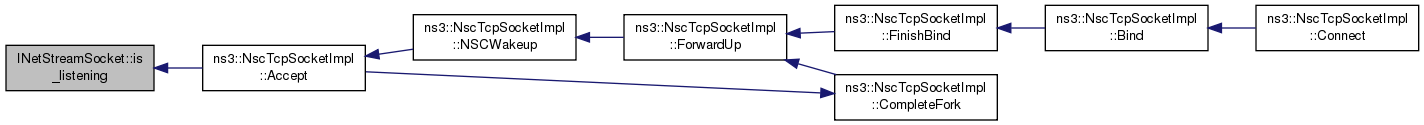

Here is the caller graph for this function:

virtual void INetStreamSocket::listen ( int )

pure virtual

Put the socket in Listening state on a port.

Referenced by ns3::NscTcpSocketImpl::Listen().

Here is the caller graph for this function:

virtual void INetStreamSocket::print_state ( FILE * )

pure virtual

Print the socket state.

virtual int INetStreamSocket::read_data	(	void *	buf,
		int *	buflen
	)

pure virtual

Read some data.

Parameters

buf	the buffer to store the data
buflen	buffer length

Returns: the number of data read or -1 on error

Referenced by ns3::NscTcpSocketImpl::ReadPendingData().

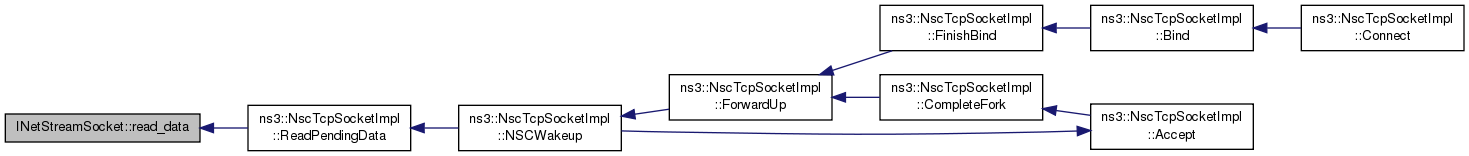

Here is the caller graph for this function:

virtual int INetStreamSocket::send_data	(	const void *	data,
		int	datalen
	)

pure virtual

Send some data.

Parameters

data	the data
datalen	data length

Returns: the number of data sent or -1 on error

Referenced by ns3::NscTcpSocketImpl::SendPendingData().

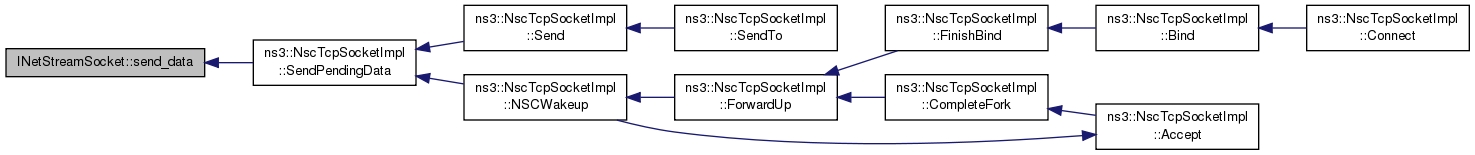

Here is the caller graph for this function:

virtual bool INetStreamSocket::set_var	(	const char *	var,
		const char *	val
	)

inlinevirtual

Optional function used to set variables for this TCP connection.

Note: not implemented

Parameters

var	variable to set
val	value to set

Returns: always false

Definition at line 363 of file sim_interface.h.

virtual int INetStreamSocket::setsockopt	(	char *	optname,
		void *	val,
		size_t	valsize
	)

pure virtual

Set the socket options.

We need to pass the option name in as a string here. The reason for this is that different operating systems you compile on will have different numbers defined for the constants SO_SNDBUF and so on.

Parameters

optname	name of the option
val	option value
valsize	size of the option value

Returns

The documentation for this struct was generated from the following file:

src/internet/model/sim_interface.h
