ns3::ArfWifiRemoteStation Struct Reference

hold per-remote-station state for ARF Wifi manager. More...

Inheritance diagram for ns3::ArfWifiRemoteStation:

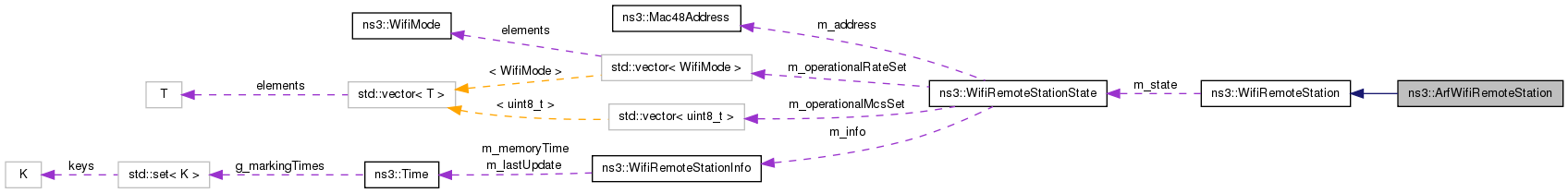

Collaboration diagram for ns3::ArfWifiRemoteStation:

Public Attributes
uint32_t	m_failed
uint32_t	m_rate
bool	m_recovery
uint32_t	m_retry
uint32_t	m_success
uint32_t	m_successThreshold
uint32_t	m_timer
uint32_t	m_timerTimeout
Public Attributes inherited from ns3::WifiRemoteStation
uint32_t	m_slrc
	STA long retry count. More...
uint32_t	m_ssrc
	STA short retry count. More...
WifiRemoteStationState *	m_state
	Remote station state. More...
uint8_t	m_tid
	traffic ID More...

Additional Inherited Members
Public Member Functions inherited from ns3::WifiRemoteStation
virtual	~WifiRemoteStation ()

Detailed Description

hold per-remote-station state for ARF Wifi manager.

This struct extends from WifiRemoteStation struct to hold additional information required by the ARF Wifi manager

Definition at line 38 of file arf-wifi-manager.cc.

Member Data Documentation

uint32_t ns3::ArfWifiRemoteStation::m_failed

Definition at line 42 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation(), ns3::ArfWifiManager::DoReportDataFailed(), and ns3::ArfWifiManager::DoReportDataOk().

uint32_t ns3::ArfWifiRemoteStation::m_rate

Definition at line 49 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation(), ns3::ArfWifiManager::DoGetDataTxVector(), ns3::ArfWifiManager::DoReportDataFailed(), and ns3::ArfWifiManager::DoReportDataOk().

bool ns3::ArfWifiRemoteStation::m_recovery

Definition at line 43 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation(), ns3::ArfWifiManager::DoReportDataFailed(), and ns3::ArfWifiManager::DoReportDataOk().

uint32_t ns3::ArfWifiRemoteStation::m_retry

Definition at line 44 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation(), ns3::ArfWifiManager::DoReportDataFailed(), and ns3::ArfWifiManager::DoReportDataOk().

uint32_t ns3::ArfWifiRemoteStation::m_success

Definition at line 41 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation(), ns3::ArfWifiManager::DoReportDataFailed(), and ns3::ArfWifiManager::DoReportDataOk().

uint32_t ns3::ArfWifiRemoteStation::m_successThreshold

Definition at line 47 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation().

uint32_t ns3::ArfWifiRemoteStation::m_timer

Definition at line 40 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation(), ns3::ArfWifiManager::DoReportDataFailed(), and ns3::ArfWifiManager::DoReportDataOk().

uint32_t ns3::ArfWifiRemoteStation::m_timerTimeout

Definition at line 46 of file arf-wifi-manager.cc.

Referenced by ns3::ArfWifiManager::DoCreateStation().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/arf-wifi-manager.cc
