ns3::Ipv4RawSocketImpl::Data Struct Reference

IPv4 raw data and additional information. More...

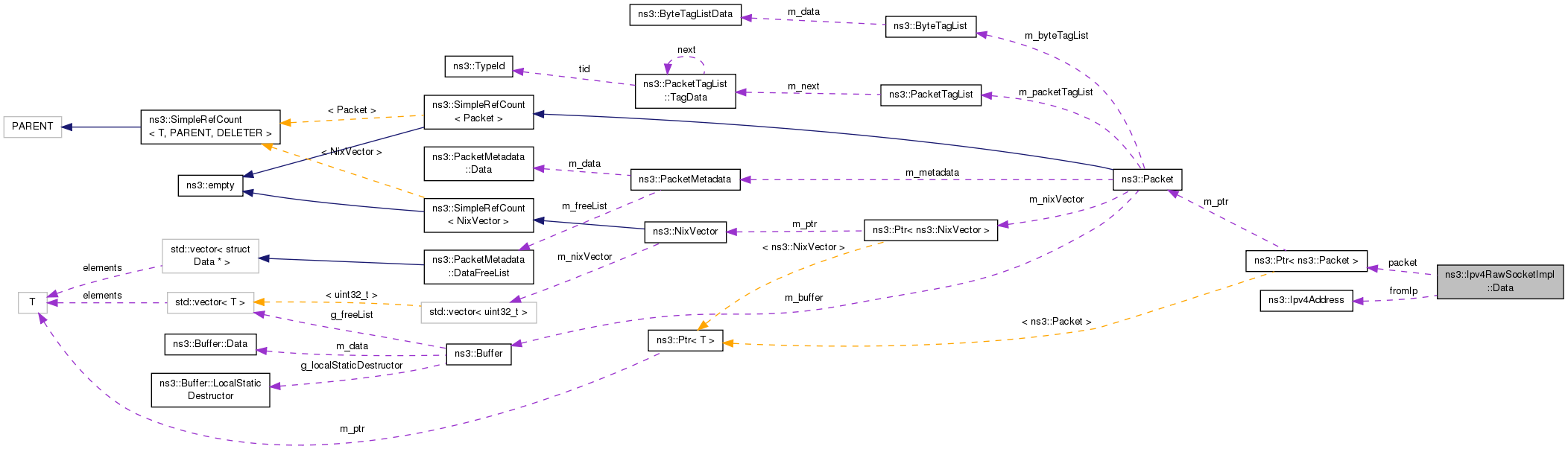

Collaboration diagram for ns3::Ipv4RawSocketImpl::Data:

Public Attributes
Ipv4Address	fromIp
	Source address. More...
uint16_t	fromProtocol
	Protocol used. More...
Ptr< Packet >	packet
	Packet data. More...

Detailed Description

IPv4 raw data and additional information.

Definition at line 95 of file ipv4-raw-socket-impl.h.

Member Data Documentation

Ipv4Address ns3::Ipv4RawSocketImpl::Data::fromIp

Source address.

Definition at line 97 of file ipv4-raw-socket-impl.h.

Referenced by ns3::Ipv4RawSocketImpl::ForwardUp(), and ns3::Ipv4RawSocketImpl::RecvFrom().

uint16_t ns3::Ipv4RawSocketImpl::Data::fromProtocol

Protocol used.

Definition at line 98 of file ipv4-raw-socket-impl.h.

Referenced by ns3::Ipv4RawSocketImpl::ForwardUp(), and ns3::Ipv4RawSocketImpl::RecvFrom().

Ptr<Packet> ns3::Ipv4RawSocketImpl::Data::packet

Packet data.

Definition at line 96 of file ipv4-raw-socket-impl.h.

Referenced by ns3::Ipv4RawSocketImpl::ForwardUp(), and ns3::Ipv4RawSocketImpl::RecvFrom().

---

The documentation for this struct was generated from the following file:

• src/internet/model/ipv4-raw-socket-impl.h
