ns3::LrWpanSpectrumSignalParameters Struct Reference

Signal parameters for LrWpan. More...

#include <lr-wpan-spectrum-signal-parameters.h>

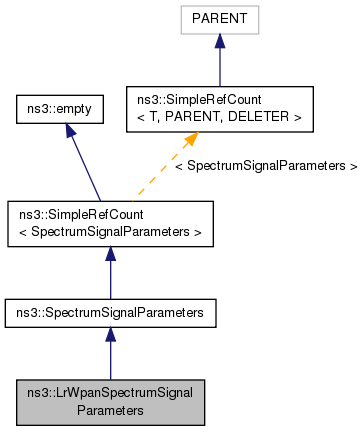

Inheritance diagram for ns3::LrWpanSpectrumSignalParameters:

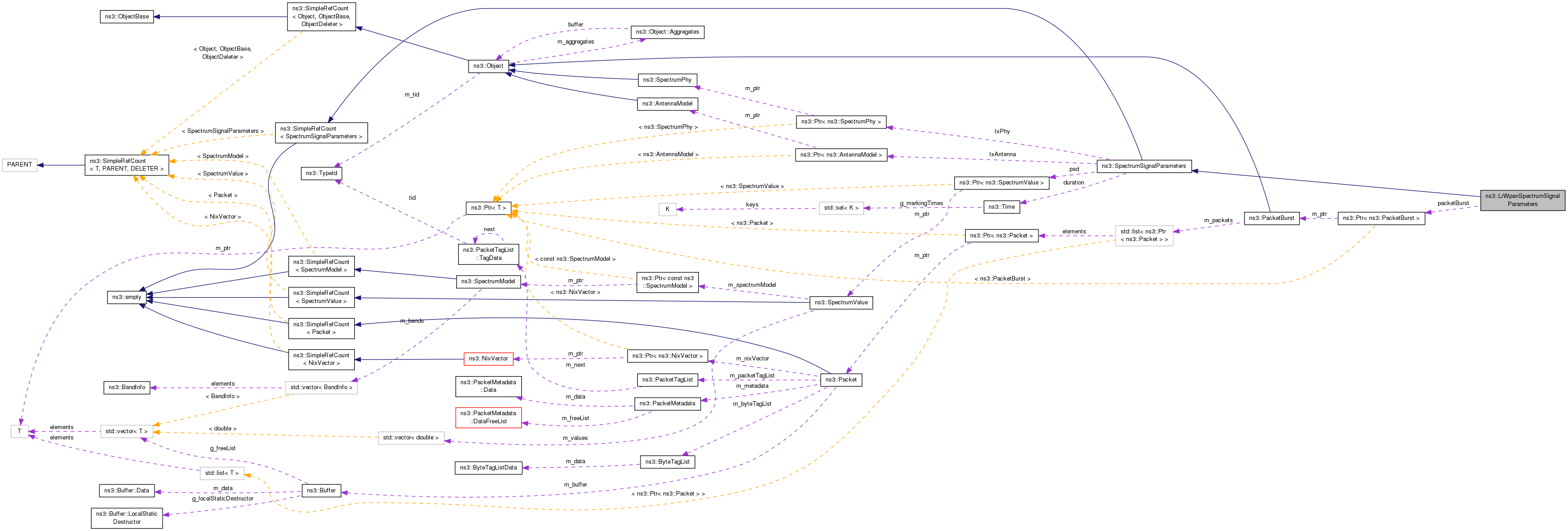

Collaboration diagram for ns3::LrWpanSpectrumSignalParameters:

Public Member Functions
	LrWpanSpectrumSignalParameters (void)
	default constructor More...
	LrWpanSpectrumSignalParameters (const LrWpanSpectrumSignalParameters &p)
	copy constructor More...
virtual Ptr< SpectrumSignalParameters >	Copy (void)
	make a "virtual" copy of this class, where "virtual" refers to the fact that if the actual object is a derived class of SpectrumSignalParameters, then the copy is also a derived class of the same type. More...
Public Member Functions inherited from ns3::SpectrumSignalParameters
	SpectrumSignalParameters ()
	default constructor More...
	SpectrumSignalParameters (const SpectrumSignalParameters &p)
	copy constructor More...
virtual	~SpectrumSignalParameters ()
	destructor More...
Public Member Functions inherited from ns3::SimpleRefCount< SpectrumSignalParameters >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Public Attributes
Ptr< PacketBurst >	packetBurst
	The packet burst being transmitted with this signal. More...
Public Attributes inherited from ns3::SpectrumSignalParameters
Time	duration
	The duration of the packet transmission. More...
Ptr< SpectrumValue >	psd
	The Power Spectral Density of the waveform, in linear units. More...
Ptr< AntennaModel >	txAntenna
	The AntennaModel instance that was used to transmit this signal. More...
Ptr< SpectrumPhy >	txPhy
	The SpectrumPhy instance that is making the transmission. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< SpectrumSignalParameters >
static void	Cleanup (void)
	Noop. More...

Detailed Description

Signal parameters for LrWpan.

Definition at line 36 of file lr-wpan-spectrum-signal-parameters.h.

Constructor & Destructor Documentation

ns3::LrWpanSpectrumSignalParameters::LrWpanSpectrumSignalParameters

(

void

)

default constructor

Definition at line 29 of file lr-wpan-spectrum-signal-parameters.cc.

References NS_LOG_FUNCTION.

ns3::LrWpanSpectrumSignalParameters::LrWpanSpectrumSignalParameters

(

const LrWpanSpectrumSignalParameters &

p

)

copy constructor

Definition at line 34 of file lr-wpan-spectrum-signal-parameters.cc.

References NS_LOG_FUNCTION, and packetBurst.

Member Function Documentation

Ptr< SpectrumSignalParameters > ns3::LrWpanSpectrumSignalParameters::Copy ( void  )

virtual

make a "virtual" copy of this class, where "virtual" refers to the fact that if the actual object is a derived class of SpectrumSignalParameters, then the copy is also a derived class of the same type.

Each class inheriting from SpectrumSignalParameters should override this method and use it to call the copy constructor of the derived class.

Returns

a copy of the (possibly derived) class

Reimplemented from ns3::SpectrumSignalParameters.

Definition at line 42 of file lr-wpan-spectrum-signal-parameters.cc.

References NS_LOG_FUNCTION.

Member Data Documentation

Ptr<PacketBurst> ns3::LrWpanSpectrumSignalParameters::packetBurst

The packet burst being transmitted with this signal.

Definition at line 55 of file lr-wpan-spectrum-signal-parameters.h.

Referenced by LrWpanSpectrumSignalParameters().

---

The documentation for this struct was generated from the following files:

• src/lr-wpan/model/lr-wpan-spectrum-signal-parameters.h
• src/lr-wpan/model/lr-wpan-spectrum-signal-parameters.cc
