ns3::UlCqi_s Struct Reference

See section 4.3.29 ulCQI. More...

#include <ff-mac-common.h>

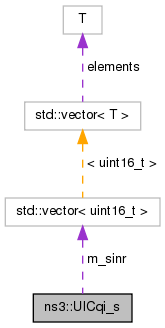

Collaboration diagram for ns3::UlCqi_s:

Public Types
enum	Type_e {   SRS, PUSCH, PUCCH_1, PUCCH_2,   PRACH }

Public Attributes
std::vector< uint16_t >	m_sinr
enum ns3::UlCqi_s::Type_e	m_type

Detailed Description

See section 4.3.29 ulCQI.

Definition at line 476 of file ff-mac-common.h.

Member Enumeration Documentation

enum ns3::UlCqi_s::Type_e

Enumerator
SRS
PUSCH
PUCCH_1
PUCCH_2
PRACH

Definition at line 479 of file ff-mac-common.h.

Member Data Documentation

std::vector<uint16_t> ns3::UlCqi_s::m_sinr

Definition at line 478 of file ff-mac-common.h.

Referenced by ns3::LteEnbPhy::CreatePuschCqiReport(), ns3::LteEnbPhy::CreateSrsCqiReport(), ns3::LteFfrEnhancedAlgorithm::DoReportUlCqiInfo(), ns3::RrFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdMtFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdMtFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TtaFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::PfFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdBetFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdBetFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::CqaFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdTbfqFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdTbfqFfMacScheduler::DoSchedUlCqiInfoReq(), and ns3::PssFfMacScheduler::DoSchedUlCqiInfoReq().

enum ns3::UlCqi_s::Type_e ns3::UlCqi_s::m_type

Referenced by ns3::LteEnbPhy::CreatePuschCqiReport(), ns3::LteEnbPhy::CreateSrsCqiReport(), ns3::LteFfrEnhancedAlgorithm::DoReportUlCqiInfo(), ns3::RrFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TtaFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdMtFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdMtFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::PfFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdBetFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdBetFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::CqaFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::TdTbfqFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::FdTbfqFfMacScheduler::DoSchedUlCqiInfoReq(), ns3::PssFfMacScheduler::DoSchedUlCqiInfoReq(), and ns3::LteEnbMac::DoUlCqiReport().

---

The documentation for this struct was generated from the following file:

• src/lte/model/ff-mac-common.h
