ns3::WimaxMacQueue::QueueElement Struct Reference

#include <wimax-mac-queue.h>

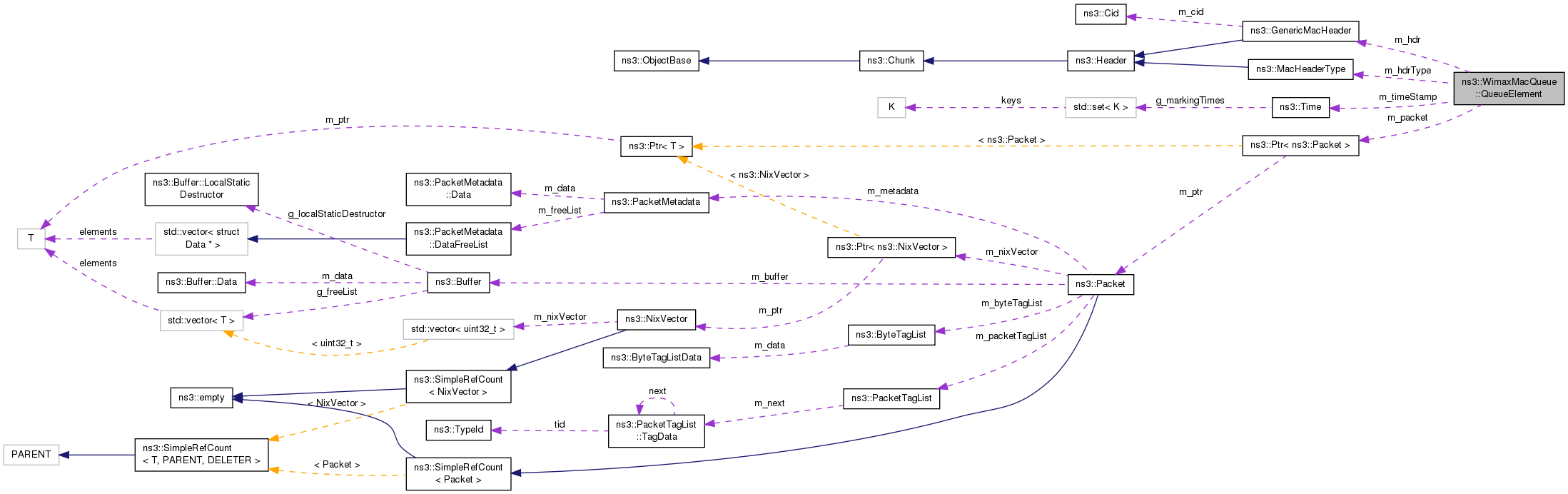

Collaboration diagram for ns3::WimaxMacQueue::QueueElement:

Public Member Functions
	QueueElement (void)
	QueueElement (Ptr< Packet > packet, const MacHeaderType &hdrType, const GenericMacHeader &hdr, Time timeStamp)
uint32_t	GetSize (void) const
void	SetFragmentation (void)
void	SetFragmentNumber (void)
void	SetFragmentOffset (uint32_t offset)

Public Attributes
bool	m_fragmentation
uint32_t	m_fragmentNumber
uint32_t	m_fragmentOffset
GenericMacHeader	m_hdr
MacHeaderType	m_hdrType
Ptr< Packet >	m_packet
Time	m_timeStamp

Detailed Description

Definition at line 121 of file wimax-mac-queue.h.

Constructor & Destructor Documentation

ns3::WimaxMacQueue::QueueElement::QueueElement

(

void

)

Definition at line 36 of file wimax-mac-queue.cc.

ns3::WimaxMacQueue::QueueElement::QueueElement	(	Ptr< Packet >	packet,
		const MacHeaderType &	hdrType,
		const GenericMacHeader &	hdr,
		Time	timeStamp
	)

Definition at line 48 of file wimax-mac-queue.cc.

Member Function Documentation

uint32_t ns3::WimaxMacQueue::QueueElement::GetSize

(

void

)

const

Definition at line 62 of file wimax-mac-queue.cc.

References ns3::MacHeaderType::HEADER_TYPE_GENERIC.

Referenced by ns3::WimaxMacQueue::Dequeue(), and ns3::WimaxMacQueue::Enqueue().

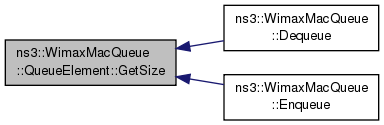

Here is the caller graph for this function:

void ns3::WimaxMacQueue::QueueElement::SetFragmentation

(

void

)

Definition at line 644 of file wimax-mac-queue.cc.

References m_fragmentation.

void ns3::WimaxMacQueue::QueueElement::SetFragmentNumber

(

void

)

Definition at line 650 of file wimax-mac-queue.cc.

void ns3::WimaxMacQueue::QueueElement::SetFragmentOffset

(

uint32_t

offset

)

Definition at line 656 of file wimax-mac-queue.cc.

Member Data Documentation

bool ns3::WimaxMacQueue::QueueElement::m_fragmentation

Definition at line 140 of file wimax-mac-queue.h.

Referenced by ns3::WimaxMacQueue::CheckForFragmentation(), ns3::WimaxMacQueue::Dequeue(), and SetFragmentation().

uint32_t ns3::WimaxMacQueue::QueueElement::m_fragmentNumber

Definition at line 141 of file wimax-mac-queue.h.

Referenced by ns3::WimaxMacQueue::Dequeue().

uint32_t ns3::WimaxMacQueue::QueueElement::m_fragmentOffset

Definition at line 142 of file wimax-mac-queue.h.

Referenced by ns3::WimaxMacQueue::Dequeue(), and ns3::WimaxMacQueue::GetFirstPacketPayloadSize().

GenericMacHeader ns3::WimaxMacQueue::QueueElement::m_hdr

Definition at line 131 of file wimax-mac-queue.h.

Referenced by ns3::WimaxMacQueue::Dequeue(), ns3::WimaxMacQueue::GetFirstPacketHdrSize(), and ns3::WimaxMacQueue::Peek().

MacHeaderType ns3::WimaxMacQueue::QueueElement::m_hdrType

Definition at line 130 of file wimax-mac-queue.h.

Referenced by ns3::WimaxMacQueue::CheckForFragmentation(), ns3::WimaxMacQueue::Dequeue(), ns3::WimaxMacQueue::Front(), ns3::WimaxMacQueue::GetFirstPacketHdrSize(), ns3::WimaxMacQueue::GetFirstPacketPayloadSize(), ns3::WimaxMacQueue::Peek(), and ns3::WimaxMacQueue::Pop().

Ptr<Packet> ns3::WimaxMacQueue::QueueElement::m_packet

Definition at line 129 of file wimax-mac-queue.h.

Referenced by ns3::WimaxMacQueue::Dequeue(), ns3::WimaxMacQueue::GetFirstPacketPayloadSize(), and ns3::WimaxMacQueue::Peek().

Time ns3::WimaxMacQueue::QueueElement::m_timeStamp

Definition at line 132 of file wimax-mac-queue.h.

Referenced by ns3::WimaxMacQueue::Peek().

---

The documentation for this struct was generated from the following files:

• src/wimax/model/wimax-mac-queue.h
• src/wimax/model/wimax-mac-queue.cc
