ns3::ofi::Port Struct Reference

Port and its metadata. More...

#include <openflow-interface.h>

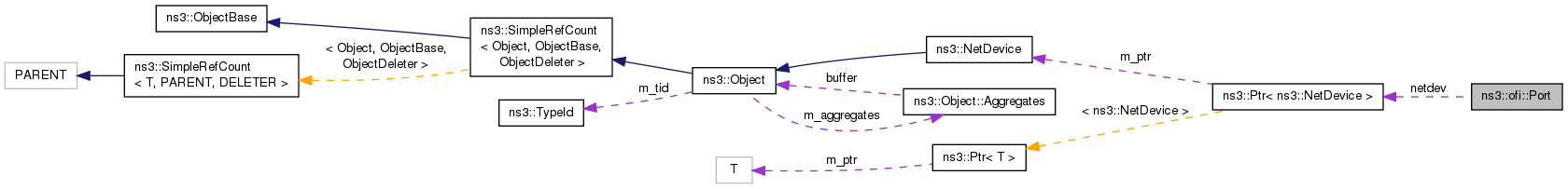

Collaboration diagram for ns3::ofi::Port:

Public Member Functions
	Port ()

Public Attributes
uint32_t	config
	Some subset of OFPPC_* flags. More...
unsigned long long int	mpls_ttl0_dropped
Ptr< NetDevice >	netdev
unsigned long long int	rx_bytes
unsigned long long int	rx_packets
uint32_t	state
	Some subset of OFPPS_* flags. More...
unsigned long long int	tx_bytes
unsigned long long int	tx_dropped
unsigned long long int	tx_packets

Detailed Description

Port and its metadata.

We need to store port metadata, because OpenFlow dictates that there exists a type of request where the Controller asks for data about a port, or multiple ports. Otherwise, we'd refer to it via Ptr<NetDevice> everywhere.

Definition at line 122 of file openflow-interface.h.

Constructor & Destructor Documentation

ns3::ofi::Port::Port ( )

inline

Definition at line 124 of file openflow-interface.h.

Member Data Documentation

uint32_t ns3::ofi::Port::config

Some subset of OFPPC_* flags.

Definition at line 136 of file openflow-interface.h.

unsigned long long int ns3::ofi::Port::mpls_ttl0_dropped

Definition at line 142 of file openflow-interface.h.

Ptr<NetDevice> ns3::ofi::Port::netdev

Definition at line 138 of file openflow-interface.h.

unsigned long long int ns3::ofi::Port::rx_bytes

Definition at line 140 of file openflow-interface.h.

unsigned long long int ns3::ofi::Port::rx_packets

Definition at line 139 of file openflow-interface.h.

uint32_t ns3::ofi::Port::state

Some subset of OFPPS_* flags.

Definition at line 137 of file openflow-interface.h.

unsigned long long int ns3::ofi::Port::tx_bytes

Definition at line 140 of file openflow-interface.h.

unsigned long long int ns3::ofi::Port::tx_dropped

Definition at line 141 of file openflow-interface.h.

unsigned long long int ns3::ofi::Port::tx_packets

Definition at line 139 of file openflow-interface.h.

---

The documentation for this struct was generated from the following file:

• src/openflow/model/openflow-interface.h
