wifi-mode.h File Reference

#include <stdint.h>
#include <string>
#include <vector>
#include <ostream>
#include "ns3/attribute-helper.h"
#include "ns3/wifi-phy-standard.h"

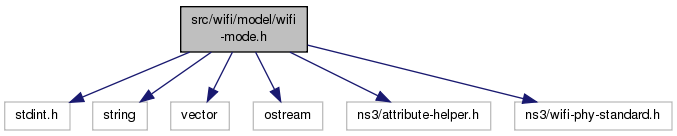

Include dependency graph for wifi-mode.h:

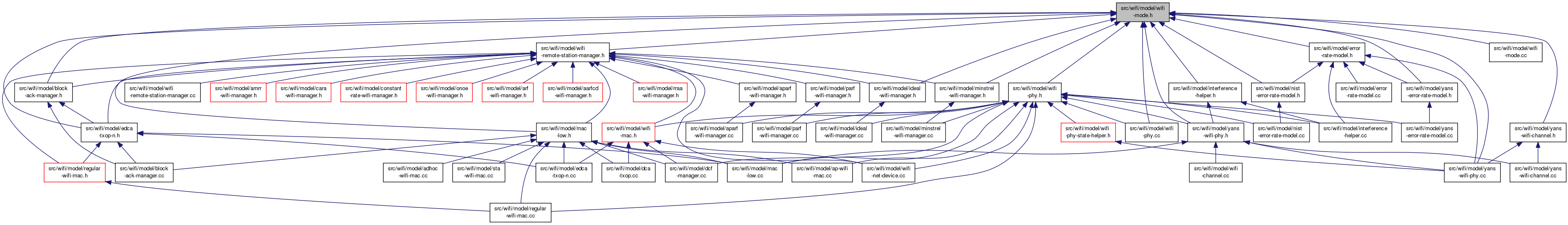

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ns3::WifiMode
	represent a single transmission modeA WifiMode is implemented by a single integer which is used to lookup in a global array the characteristics of the associated transmission mode. More...
class	ns3::WifiModeChecker
	AttributeChecker implementation for WifiModeValue. More...
class	ns3::WifiModeFactory
	create WifiMode class instances and keep track of them. More...
struct	ns3::WifiModeFactory::WifiModeItem
	This is the data associated to a unique WifiMode. More...
class	ns3::WifiModeValue
	AttributeValue implementation for WifiMode. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Typedefs
typedef std::vector< uint8_t >	ns3::WifiMcsList
	A list of Wi-Fi Modulation and Coding Scheme (MCS). More...
typedef WifiMcsList::const_iterator	ns3::WifiMcsListIterator
	An iterator for WifiMcsList vector. More...
typedef std::vector< WifiMode >	ns3::WifiModeList
	In various parts of the code, folk are interested in maintaining a list of transmission modes. More...
typedef WifiModeList::const_iterator	ns3::WifiModeListIterator
	An iterator for WifiModeList vector. More...

Enumerations
enum	ns3::WifiCodeRate {   ns3::WIFI_CODE_RATE_UNDEFINED, ns3::WIFI_CODE_RATE_3_4, ns3::WIFI_CODE_RATE_2_3, ns3::WIFI_CODE_RATE_1_2,   ns3::WIFI_CODE_RATE_5_6 }
	This enumeration defines the various convolutional coding rates used for the OFDM transmission modes in the IEEE 802.11 standard. More...
enum	ns3::WifiModulationClass {   ns3::WIFI_MOD_CLASS_UNKNOWN = 0, ns3::WIFI_MOD_CLASS_IR, ns3::WIFI_MOD_CLASS_FHSS, ns3::WIFI_MOD_CLASS_DSSS,   ns3::WIFI_MOD_CLASS_ERP_PBCC, ns3::WIFI_MOD_CLASS_DSSS_OFDM, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_OFDM,   ns3::WIFI_MOD_CLASS_HT }
	This enumeration defines the modulation classes per (Table 9-4 "Modulation classes"; IEEE 802.11-2012). More...

Functions
template<typename T1 >
Ptr< const AttributeAccessor >	ns3::MakeWifiModeAccessor (T1 a1)
	Create an AttributeAccessor for a class data member, or a lone class get functor or set method. More...
template<typename T1 , typename T2 >
Ptr< const AttributeAccessor >	ns3::MakeWifiModeAccessor (T1 a1, T2 a2)
	Create an AttributeAccessor using a pair of get functor and set methods from a class. More...
Ptr< const AttributeChecker >	ns3::MakeWifiModeChecker (void)
std::ostream &	ns3::operator<< (std::ostream &os, const WifiMode &mode)
	Serialize WifiMode to ostream (human-readable). More...
bool	ns3::operator== (const WifiMode &a, const WifiMode &b)
	Check if the two WifiModes are identical. More...
std::istream &	ns3::operator>> (std::istream &is, WifiMode &mode)
	Serialize WifiMode from istream (human-readable). More...
