ns3::AnimationInterface Class Reference

Interface to network animator. More...

#include <animation-interface.h>

Collaboration diagram for ns3::AnimationInterface:

Classes
class	AnimPacketInfo
class	AnimXmlElement
struct	Ipv4RoutePathElement
struct	Ipv4RouteTrackElement
struct	LinkPairCompare
struct	LinkProperties
struct	NodeSize
struct	P2pLinkNodeIdPair
struct	Rgb

Public Types
typedef void(*	AnimWriteCallback) (const char *str)
	typedef for WriteCallBack used for listening to AnimationInterface write messages More...
enum	CounterType { UINT32_COUNTER, DOUBLE_COUNTER }
	Counter Types. More...

Public Member Functions

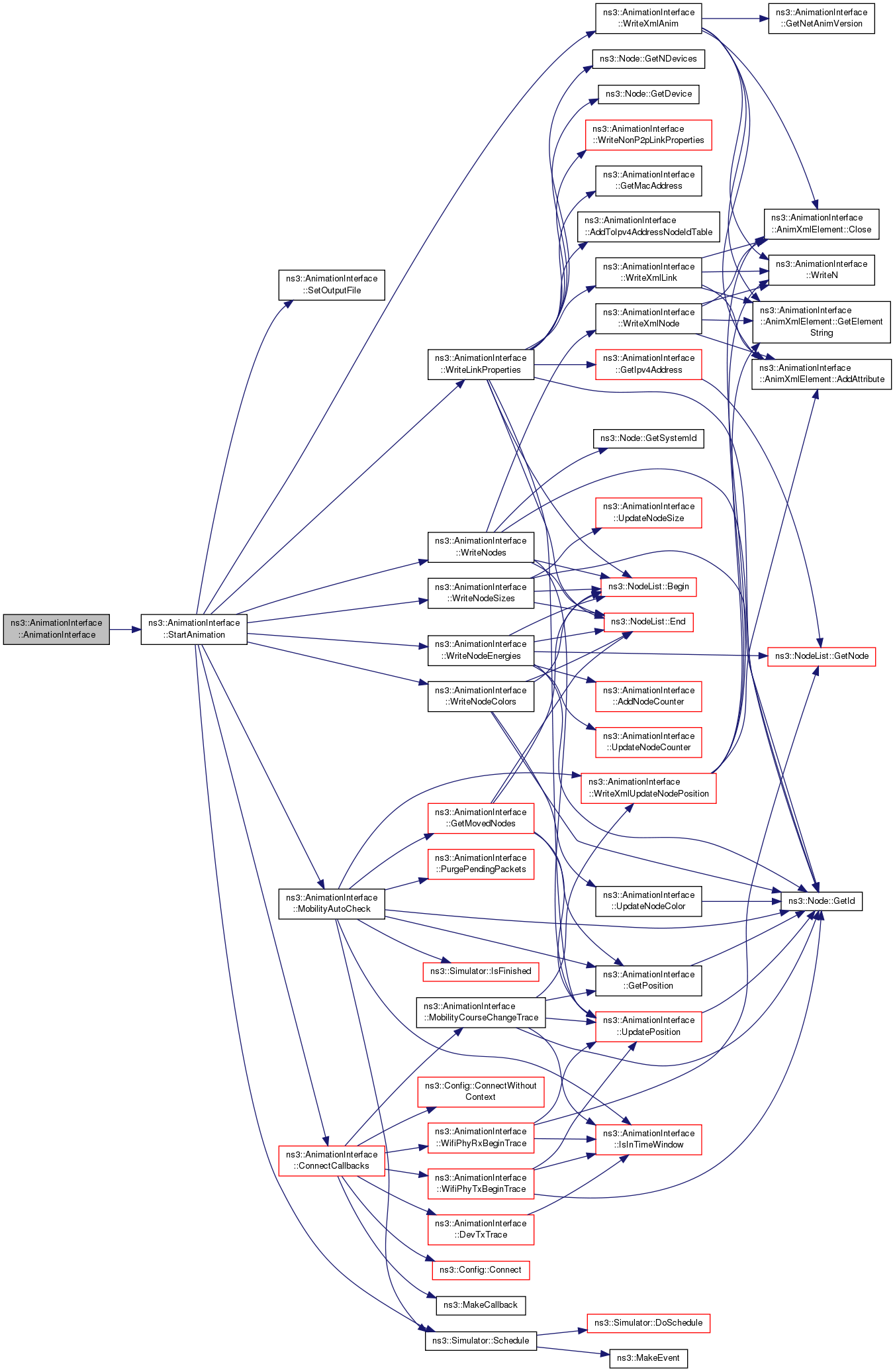

	AnimationInterface (const std::string filename)
	Constructor. More...

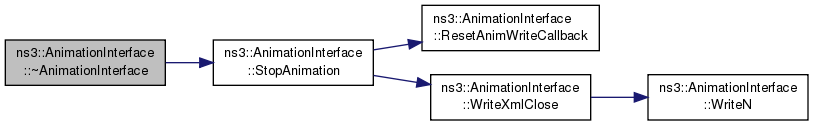

	~AnimationInterface ()
	Destructor for the animator interface. More...

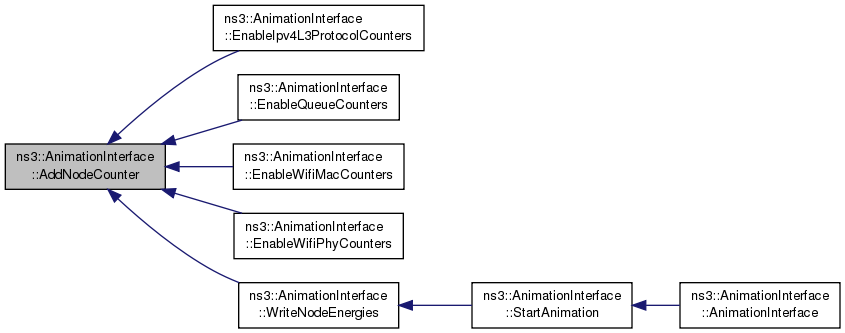

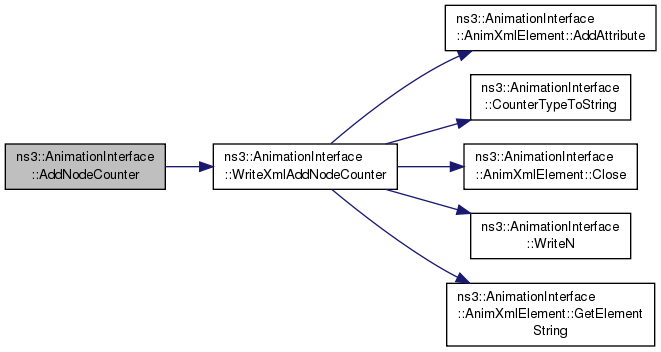

uint32_t	AddNodeCounter (std::string counterName, CounterType counterType)
	Setup a node counter. More...
uint32_t	AddResource (std::string resourcePath)
	Add a resource such as the path to an image file. More...
AnimationInterface &	AddSourceDestination (uint32_t fromNodeId, std::string destinationIpv4Address)
	Helper function to print the routing path from a source node to destination IP. More...

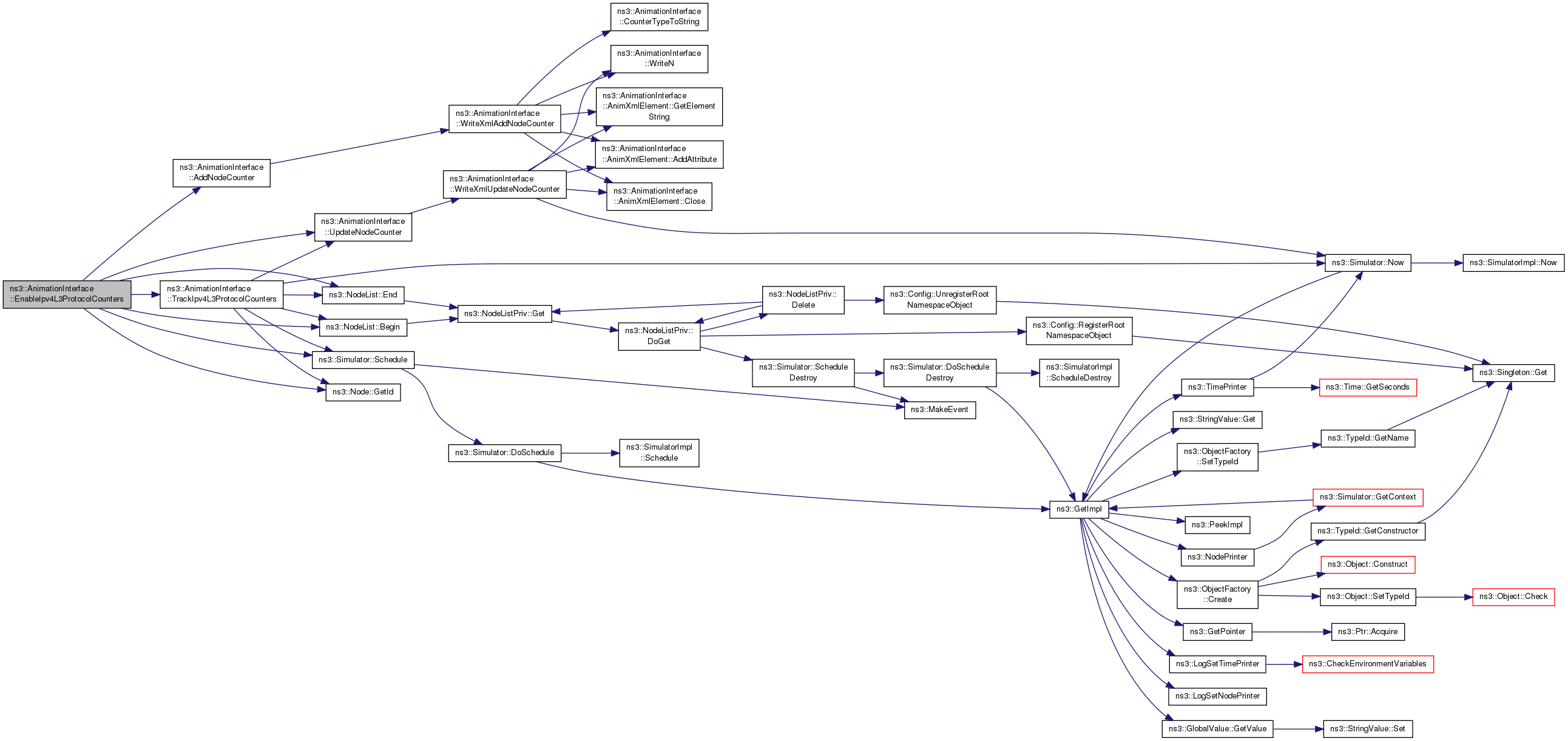

void	EnableIpv4L3ProtocolCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Ipv4 L3 Protocol Counters such as Tx, Rx, Drop. More...

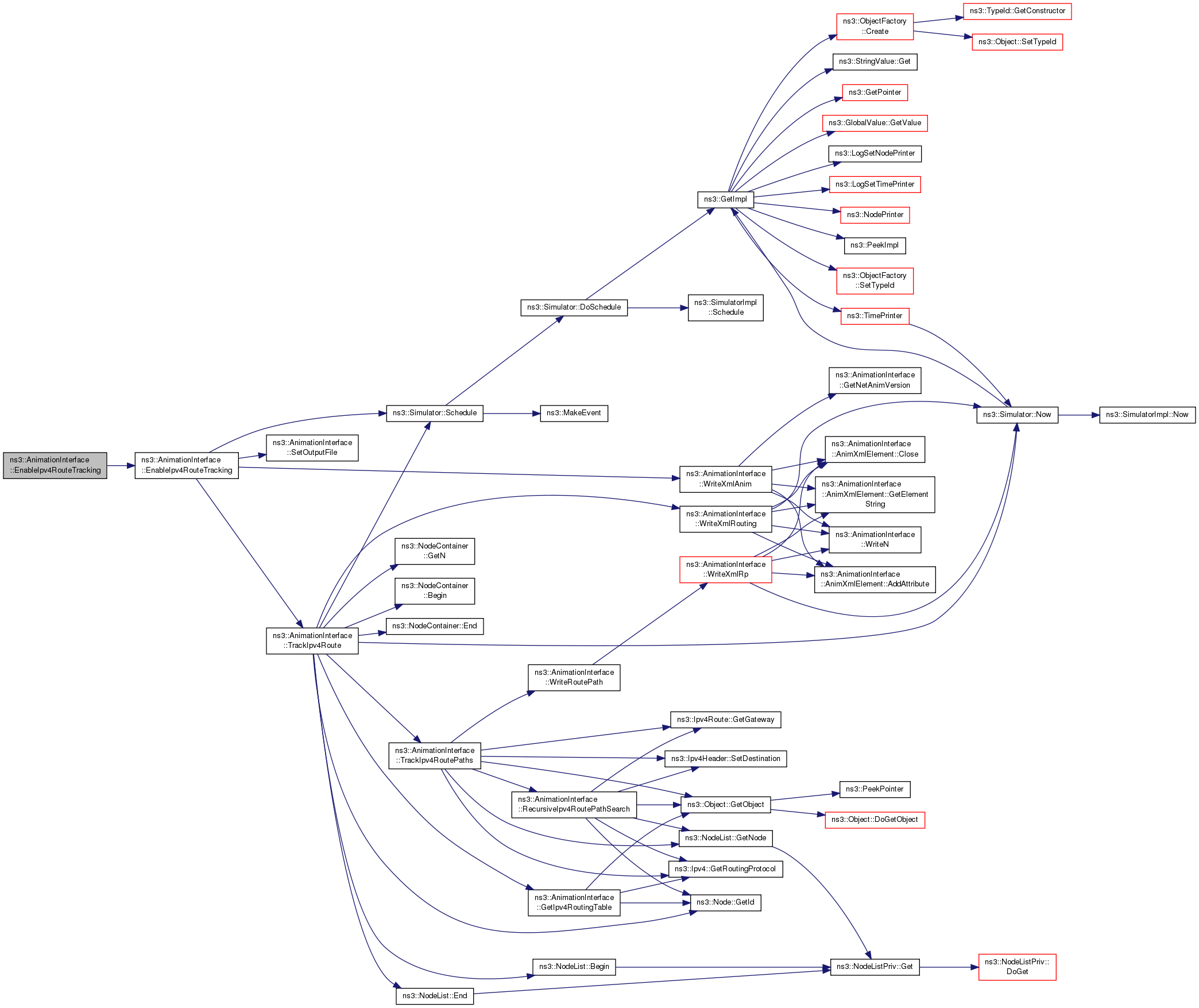

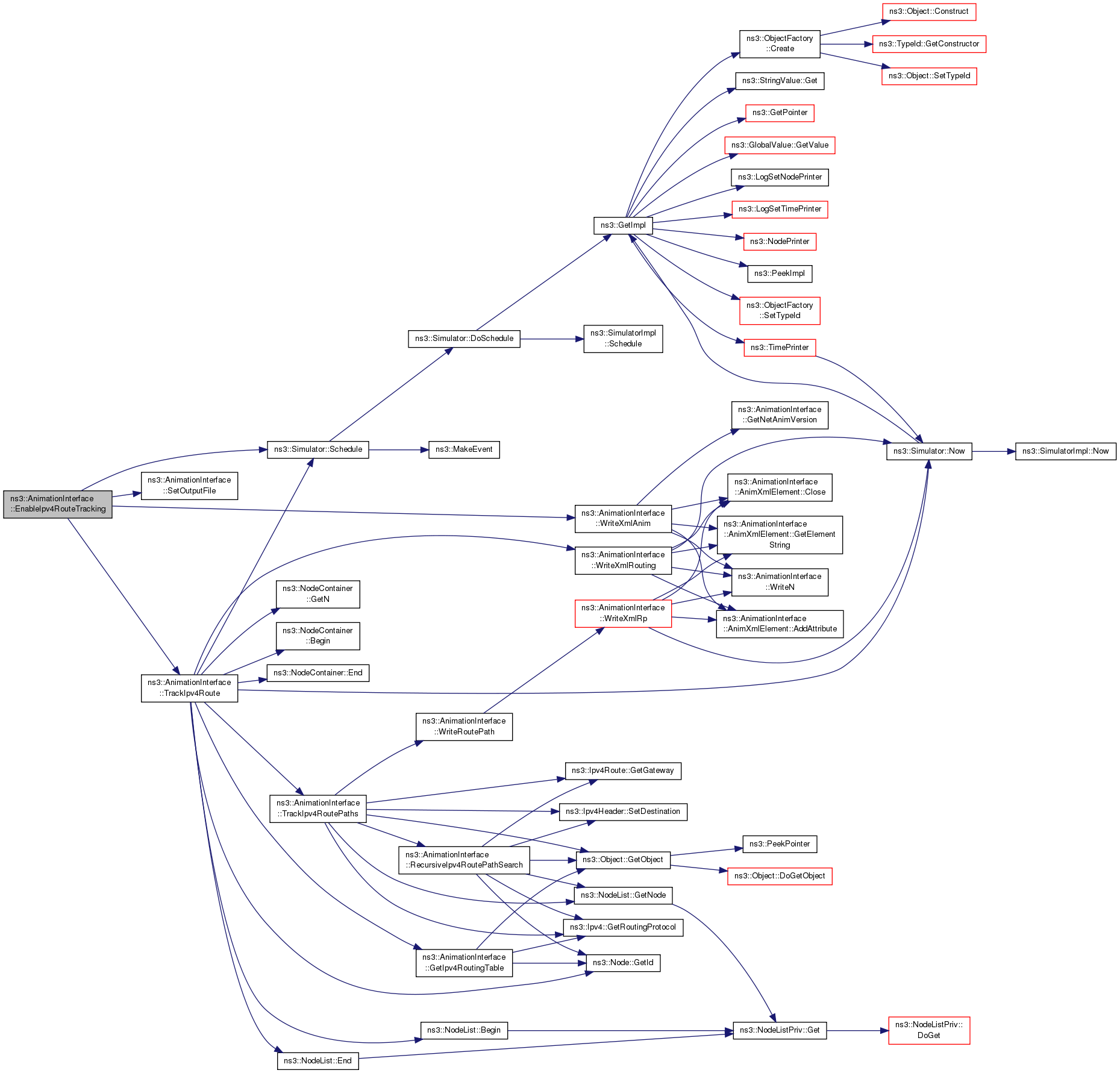

AnimationInterface &	EnableIpv4RouteTracking (std::string fileName, Time startTime, Time stopTime, Time pollInterval=Seconds(5))
	Enable tracking of the Ipv4 routing table for all Nodes. More...
AnimationInterface &	EnableIpv4RouteTracking (std::string fileName, Time startTime, Time stopTime, NodeContainer nc, Time pollInterval=Seconds(5))
	Enable tracking of the Ipv4 routing table for a set of Nodes. More...
void	EnablePacketMetadata (bool enable=true)
	Enable Packet metadata. More...
void	EnableQueueCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Queue Counters such as Enqueue, Dequeue, Queue Drops. More...
void	EnableWifiMacCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Wifi Mac Counters such as Tx, TxDrop, Rx, RxDrop. More...
void	EnableWifiPhyCounters (Time startTime, Time stopTime, Time pollInterval=Seconds(1))
	Enable tracking of Wifi Phy Counters such as TxDrop, RxDrop. More...
double	GetNodeEnergyFraction (Ptr< const Node > node) const
	Get node's energy fraction (This used only for testing) More...
uint64_t	GetTracePktCount ()
	Get trace file packet count (This used only for testing) More...
bool	IsStarted (void)
	Is AnimationInterface started. More...

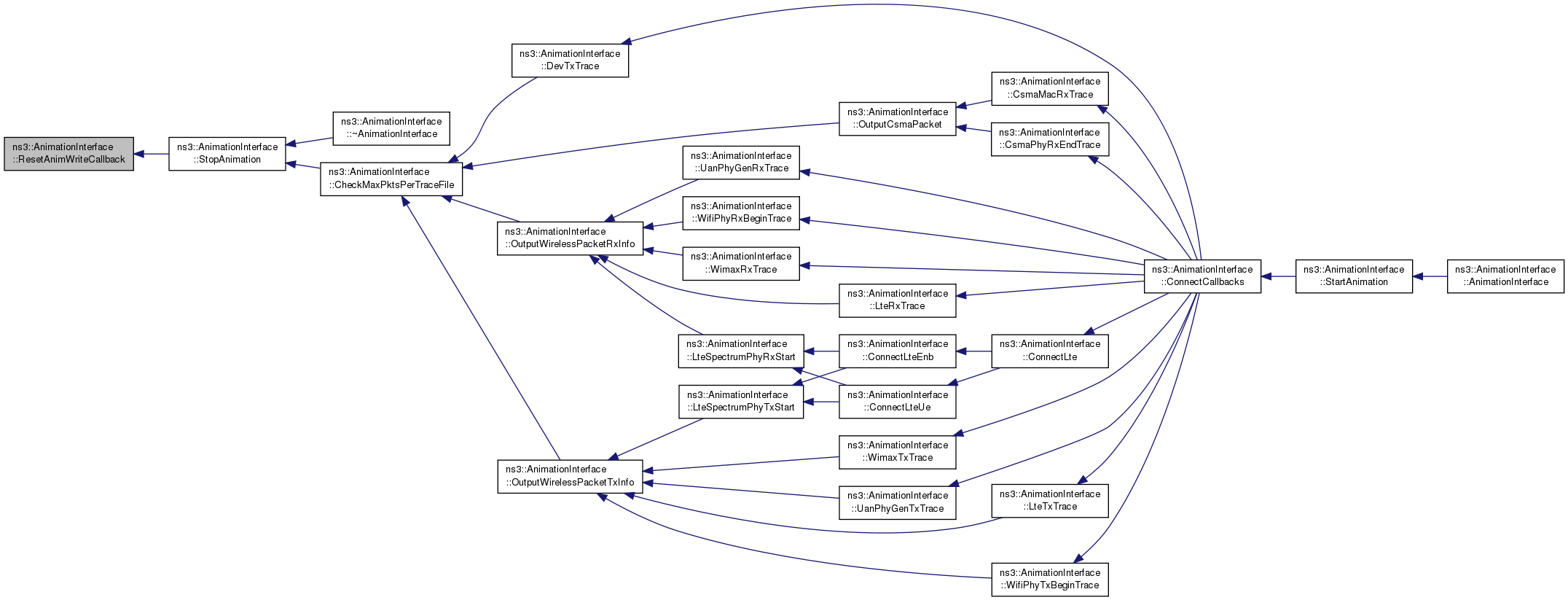

void	ResetAnimWriteCallback ()
	Reset the write callback function. More...
void	SetAnimWriteCallback (AnimWriteCallback cb)
	Set a callback function to listen to AnimationInterface write events. More...

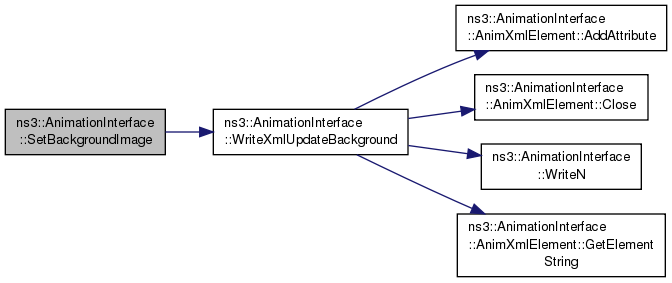

void	SetBackgroundImage (std::string fileName, double x, double y, double scaleX, double scaleY, double opacity)
	Helper function to set the background image. More...
void	SetMaxPktsPerTraceFile (uint64_t maxPktsPerFile)
	Set Max packets per trace file. More...
void	SetMobilityPollInterval (Time t)
	Set mobility poll interval:WARNING: setting a low interval can cause slowness. More...
void	SetStartTime (Time t)
	Specify the time at which capture should start. More...
void	SetStopTime (Time t)
	Specify the time at which capture should stop. More...
void	SkipPacketTracing ()
	Do not trace packets. More...

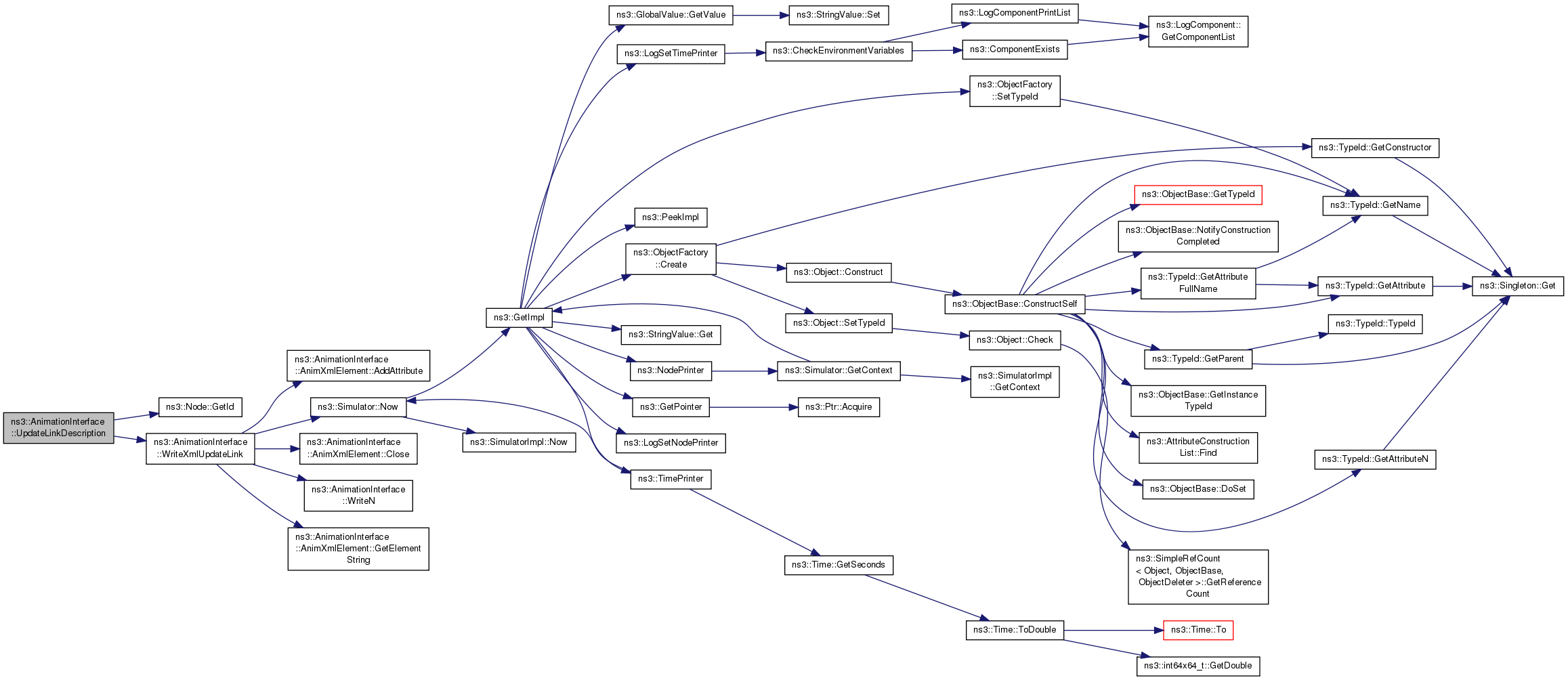

void	UpdateLinkDescription (uint32_t fromNode, uint32_t toNode, std::string linkDescription)
	Helper function to update the description for a link. More...
void	UpdateLinkDescription (Ptr< Node > fromNode, Ptr< Node > toNode, std::string linkDescription)
	Helper function to update the description for a link. More...

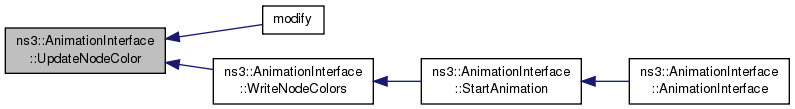

void	UpdateNodeColor (Ptr< Node > n, uint8_t r, uint8_t g, uint8_t b)
	Helper function to update the node color. More...

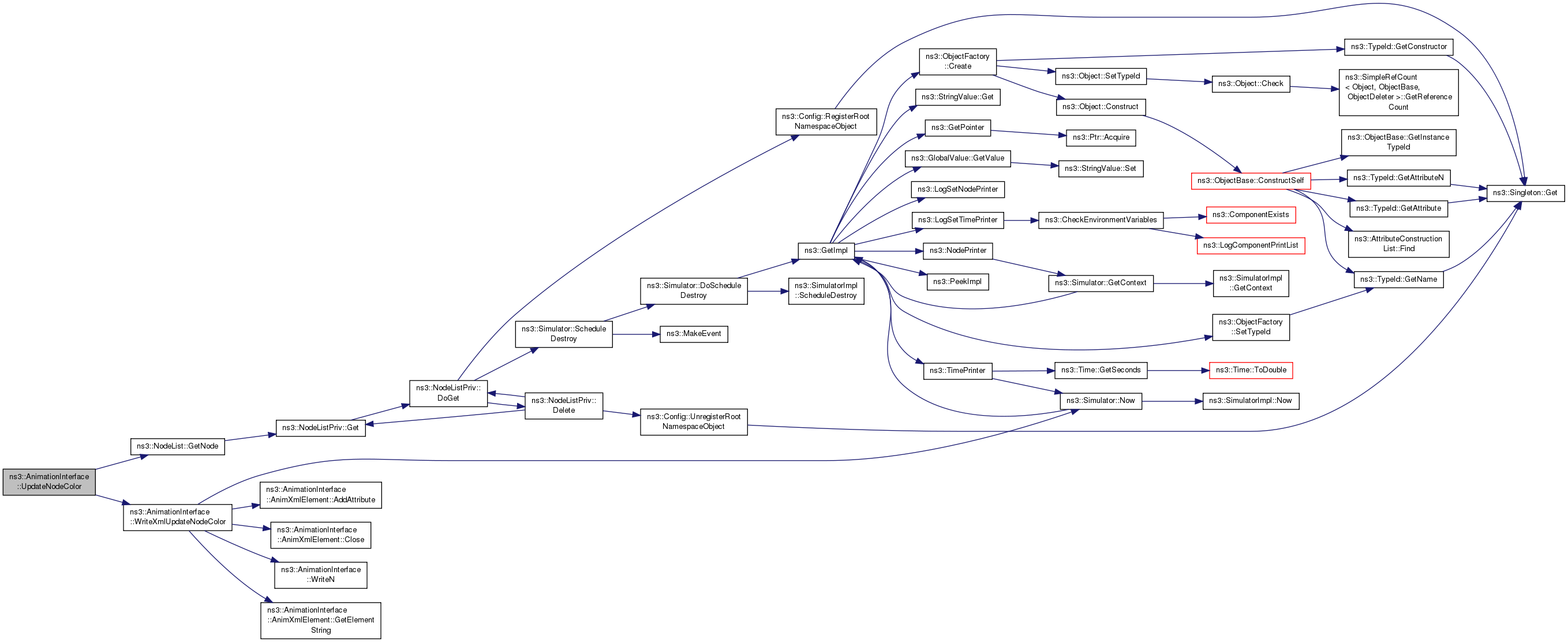

void	UpdateNodeColor (uint32_t nodeId, uint8_t r, uint8_t g, uint8_t b)
	Helper function to update the node color. More...

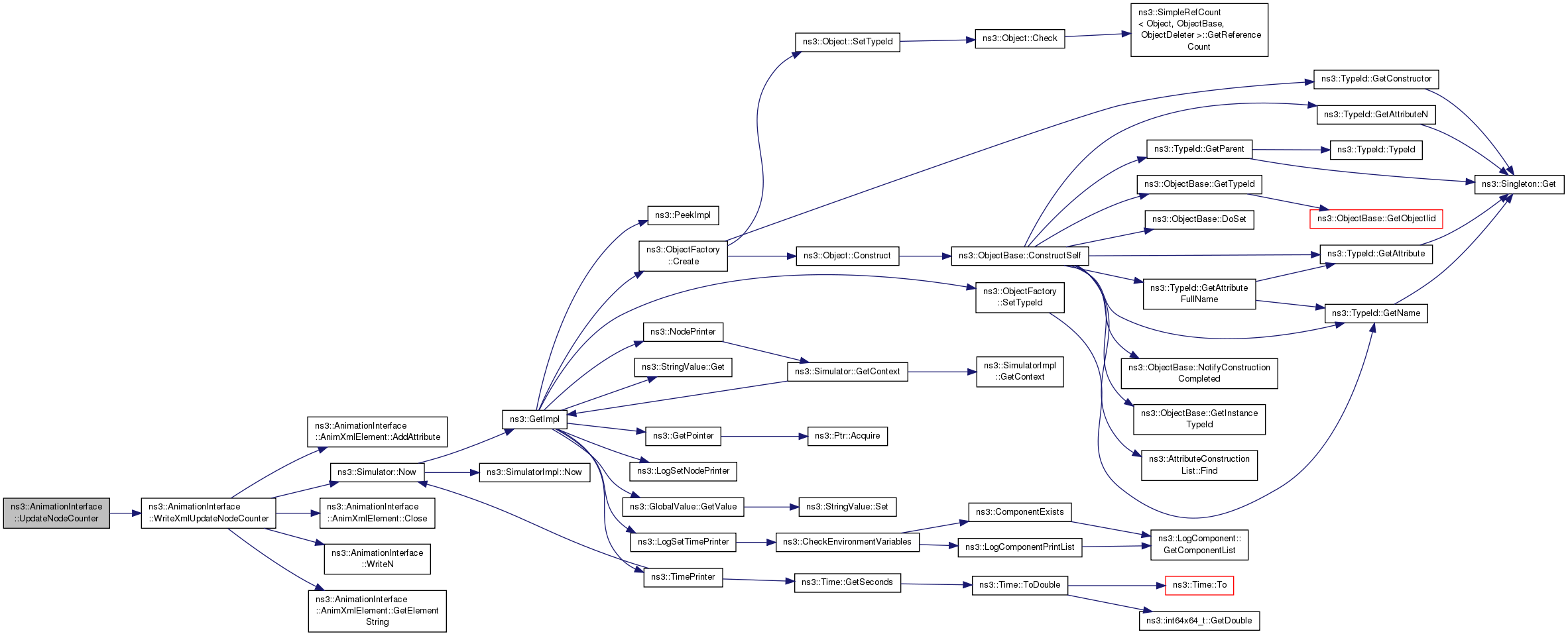

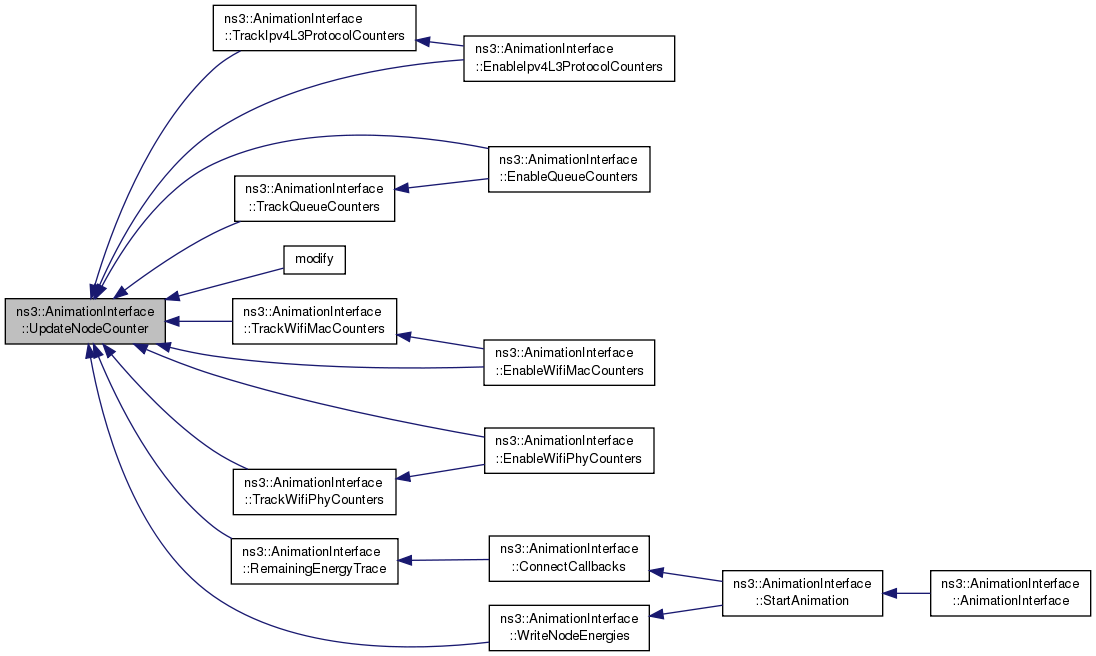

void	UpdateNodeCounter (uint32_t nodeCounterId, uint32_t nodeId, double counter)
	Helper function to update a node's counter referenced by the nodeCounterId. More...

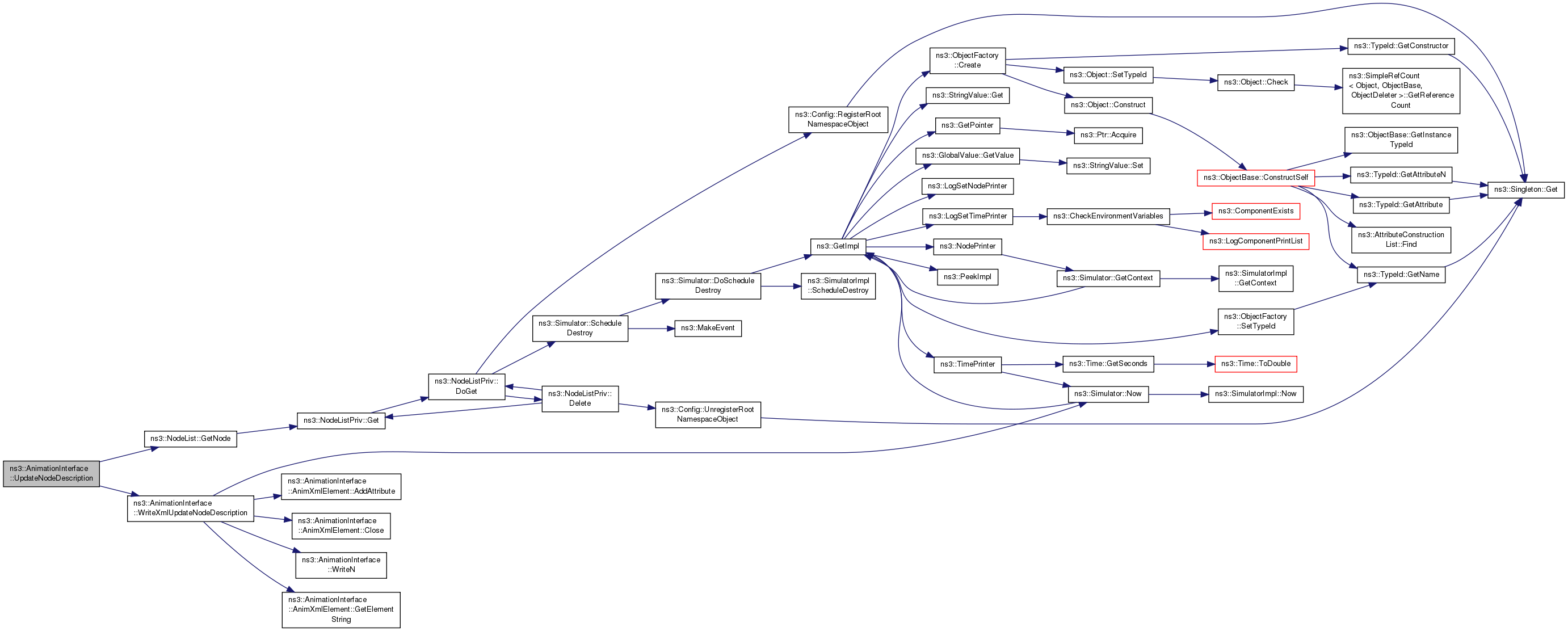

void	UpdateNodeDescription (Ptr< Node > n, std::string descr)
	Helper function to update the description for a given node. More...
void	UpdateNodeDescription (uint32_t nodeId, std::string descr)
	Helper function to update the description for a given node. More...

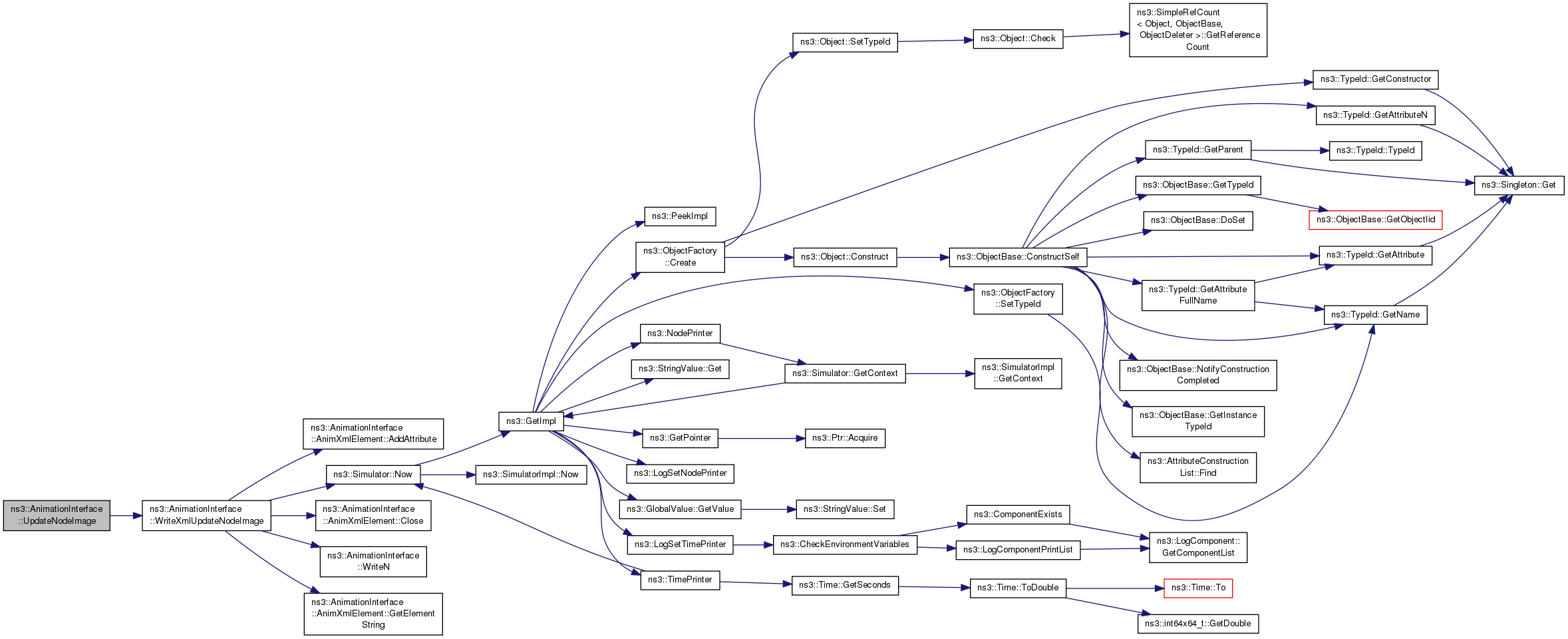

void	UpdateNodeImage (uint32_t nodeId, uint32_t resourceId)
	Helper function to update the image of a node. More...

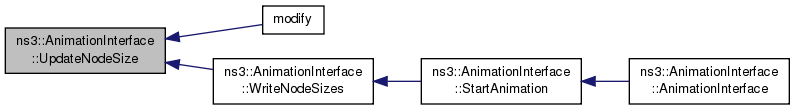

void	UpdateNodeSize (uint32_t nodeId, double width, double height)
	Helper function to update the size of a node. More...

Static Public Member Functions
static bool	IsInitialized (void)
	Check if AnimationInterface is initialized. More...
static void	SetConstantPosition (Ptr< Node > n, double x, double y, double z=0)
	Helper function to set Constant Position for a given node. More...

Private Types
typedef std::map< uint64_t, AnimPacketInfo >	AnimUidPacketInfoMap
typedef std::map< uint32_t, double >	EnergyFractionMap
typedef std::vector< Ipv4RoutePathElement >	Ipv4RoutePathElements
typedef std::map< P2pLinkNodeIdPair, LinkProperties, LinkPairCompare >	LinkPropertiesMap
typedef std::map< uint32_t, Rgb >	NodeColorsMap
typedef std::map< uint32_t, uint64_t >	NodeCounterMap64
typedef std::map< uint32_t, std::string >	NodeDescriptionsMap
enum	ProtocolType {   UAN, LTE, WIFI, WIMAX,   CSMA }

Private Member Functions

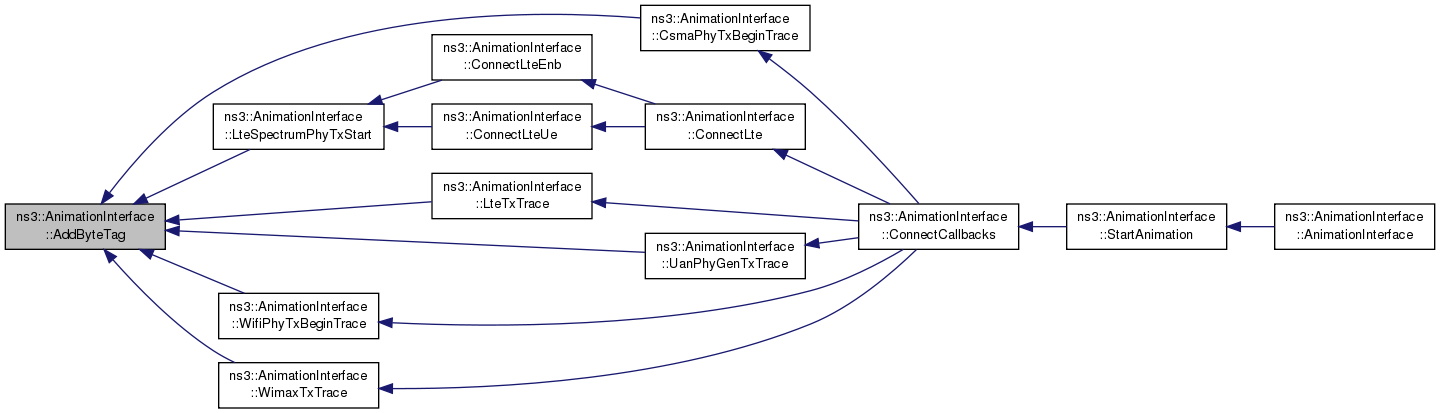

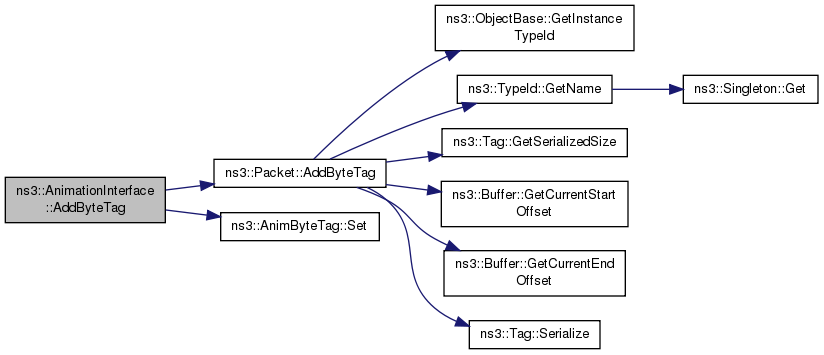

void	AddByteTag (uint64_t animUid, Ptr< const Packet > p)

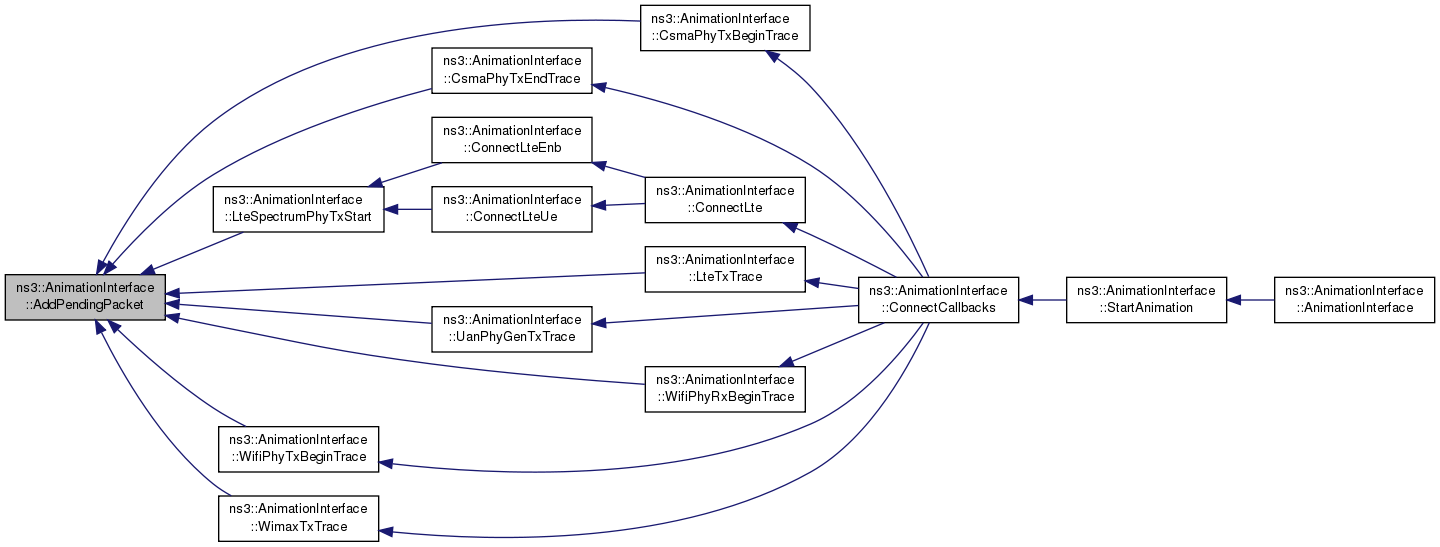

void	AddPendingPacket (ProtocolType protocolType, uint64_t animUid, AnimPacketInfo pktInfo)
void	AddToIpv4AddressNodeIdTable (std::string, uint32_t)

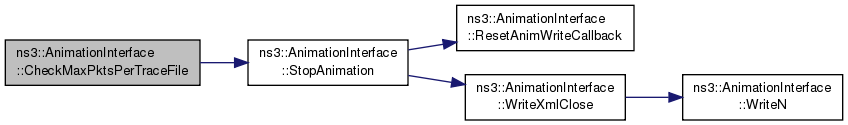

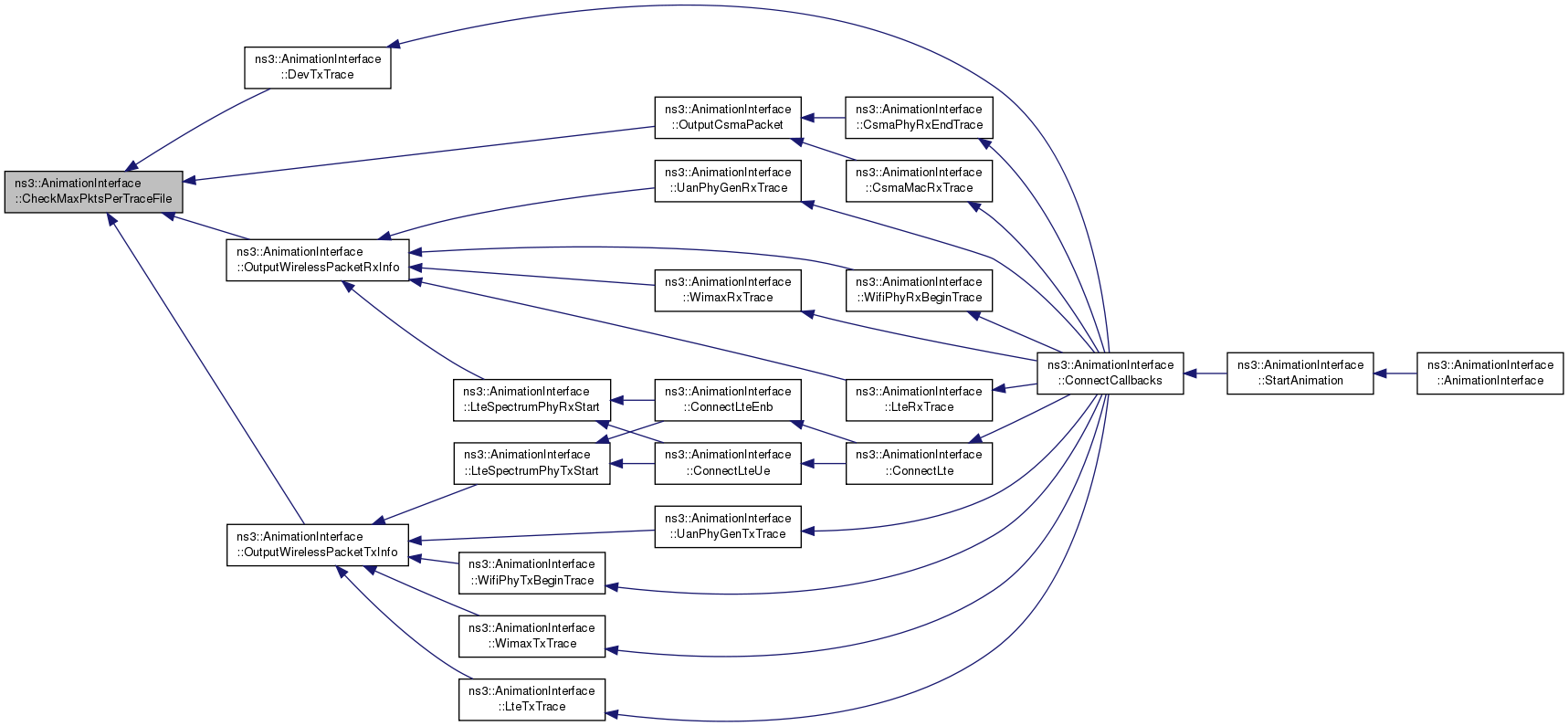

void	CheckMaxPktsPerTraceFile ()

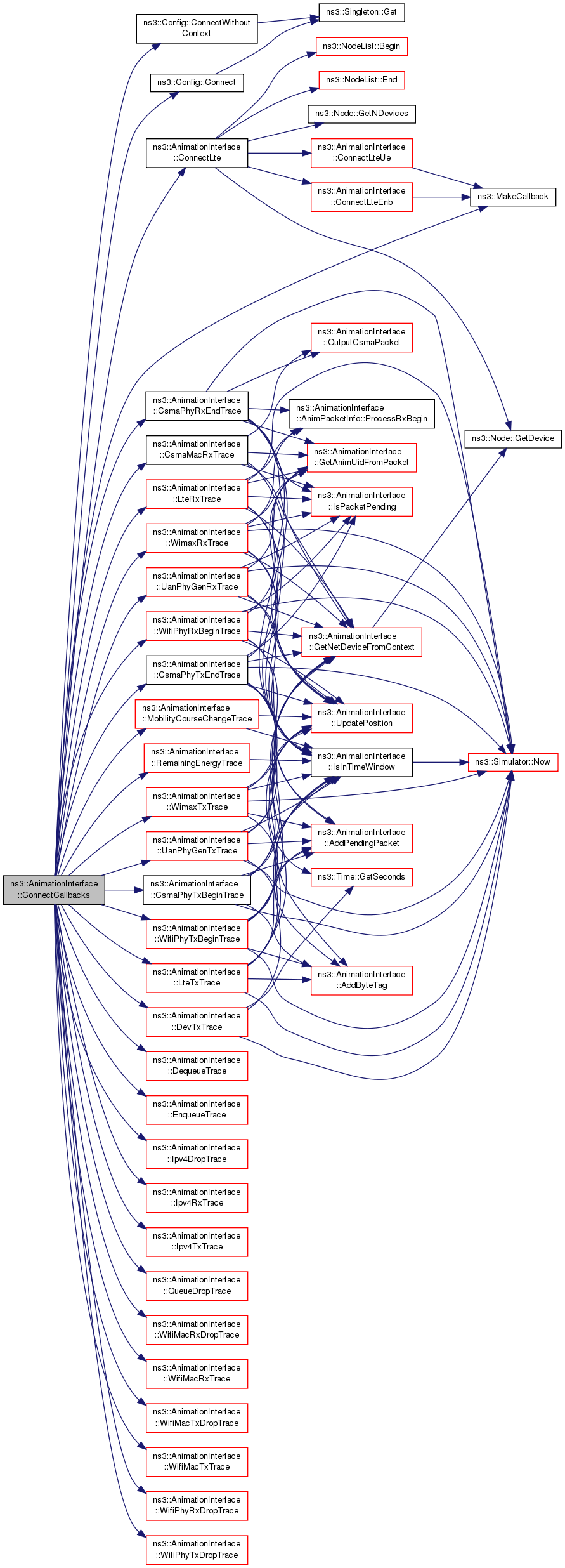

void	ConnectCallbacks ()

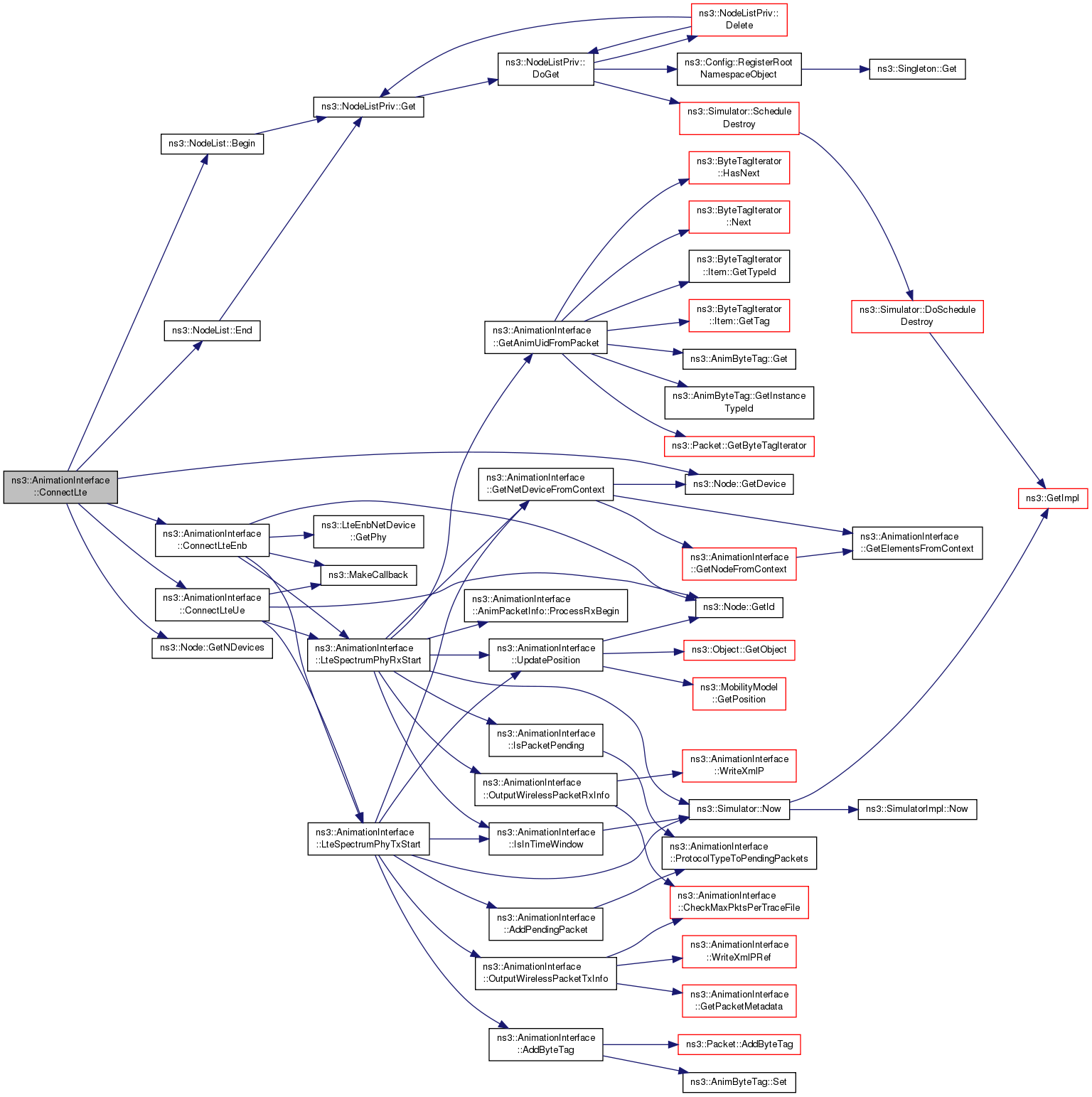

void	ConnectLte ()
void	ConnectLteEnb (Ptr< Node > n, Ptr< LteEnbNetDevice > nd, uint32_t devIndex)

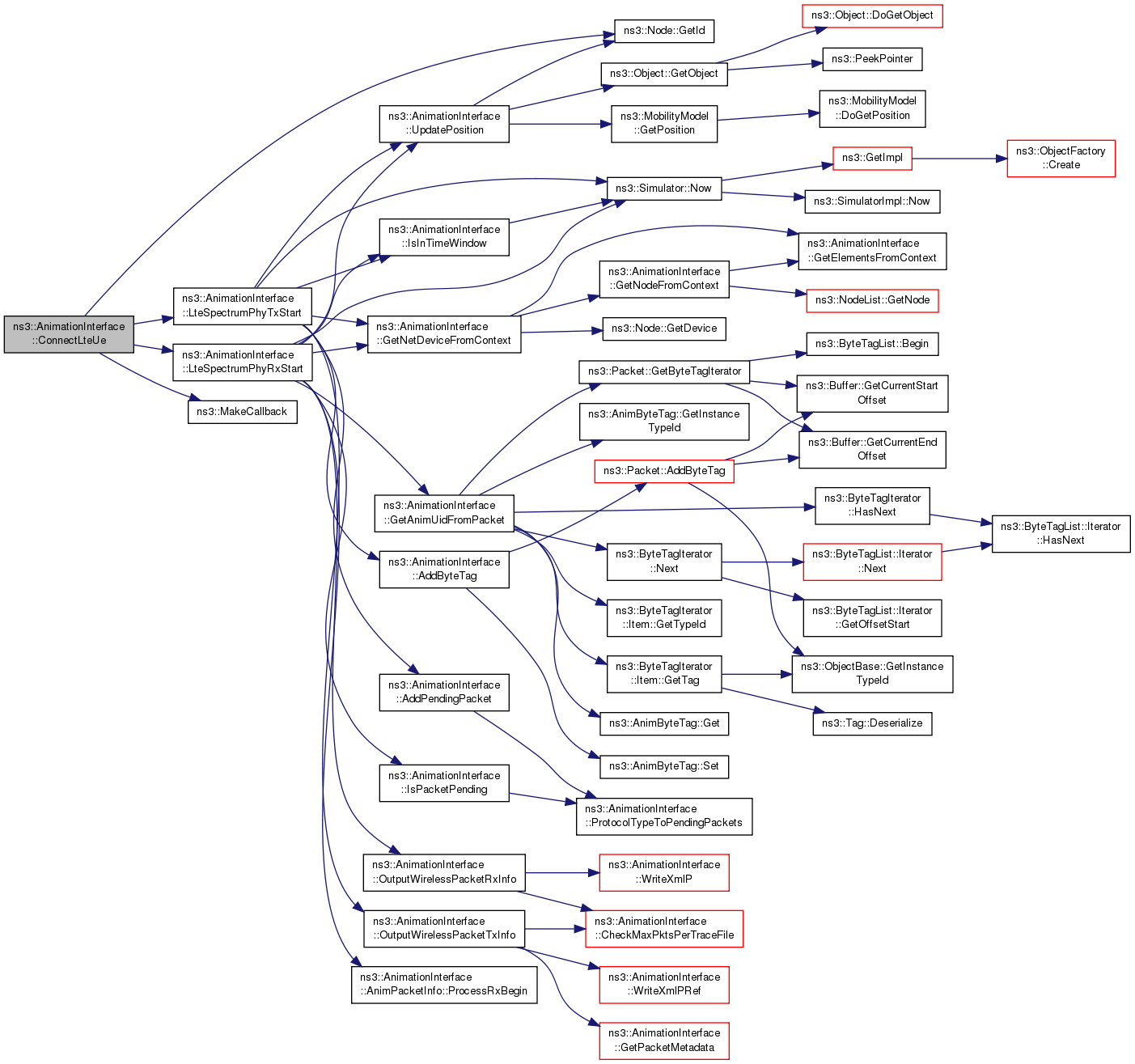

void	ConnectLteUe (Ptr< Node > n, Ptr< LteUeNetDevice > nd, uint32_t devIndex)

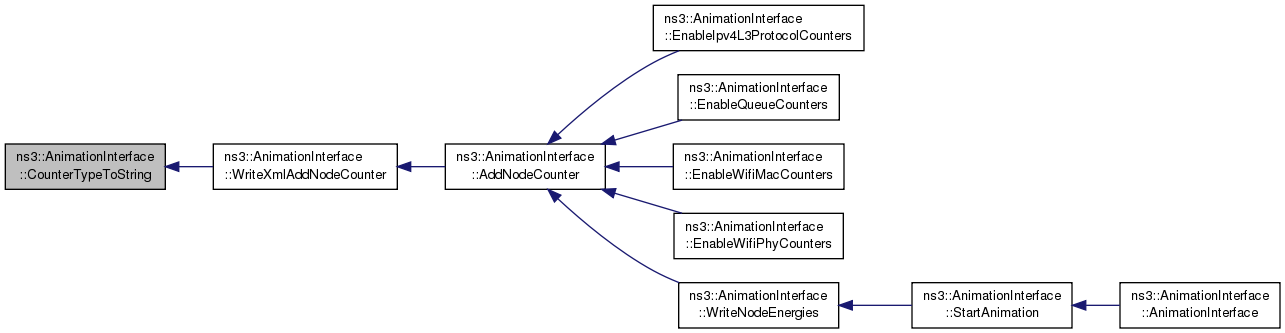

std::string	CounterTypeToString (CounterType counterType)

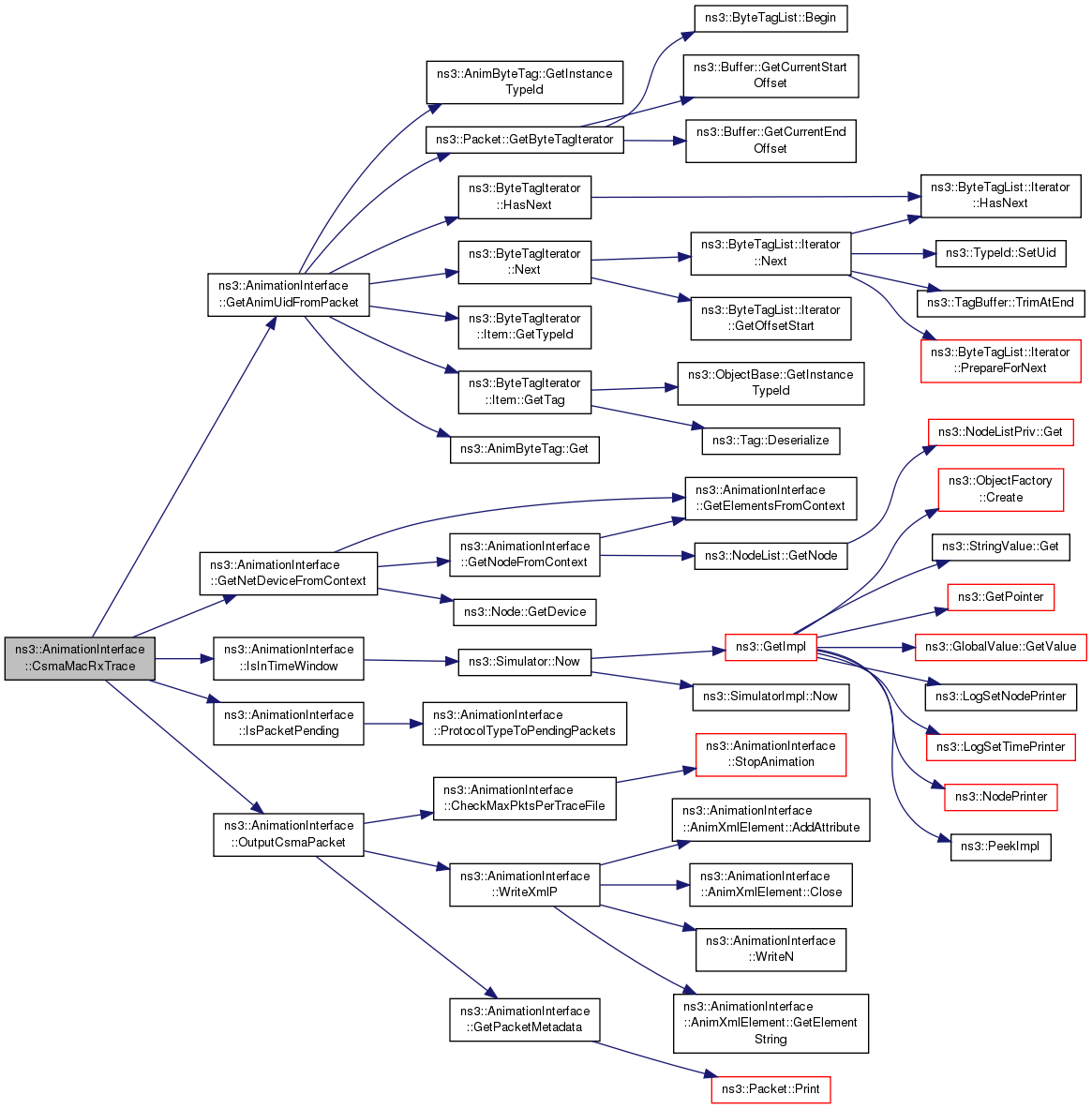

void	CsmaMacRxTrace (std::string context, Ptr< const Packet > p)

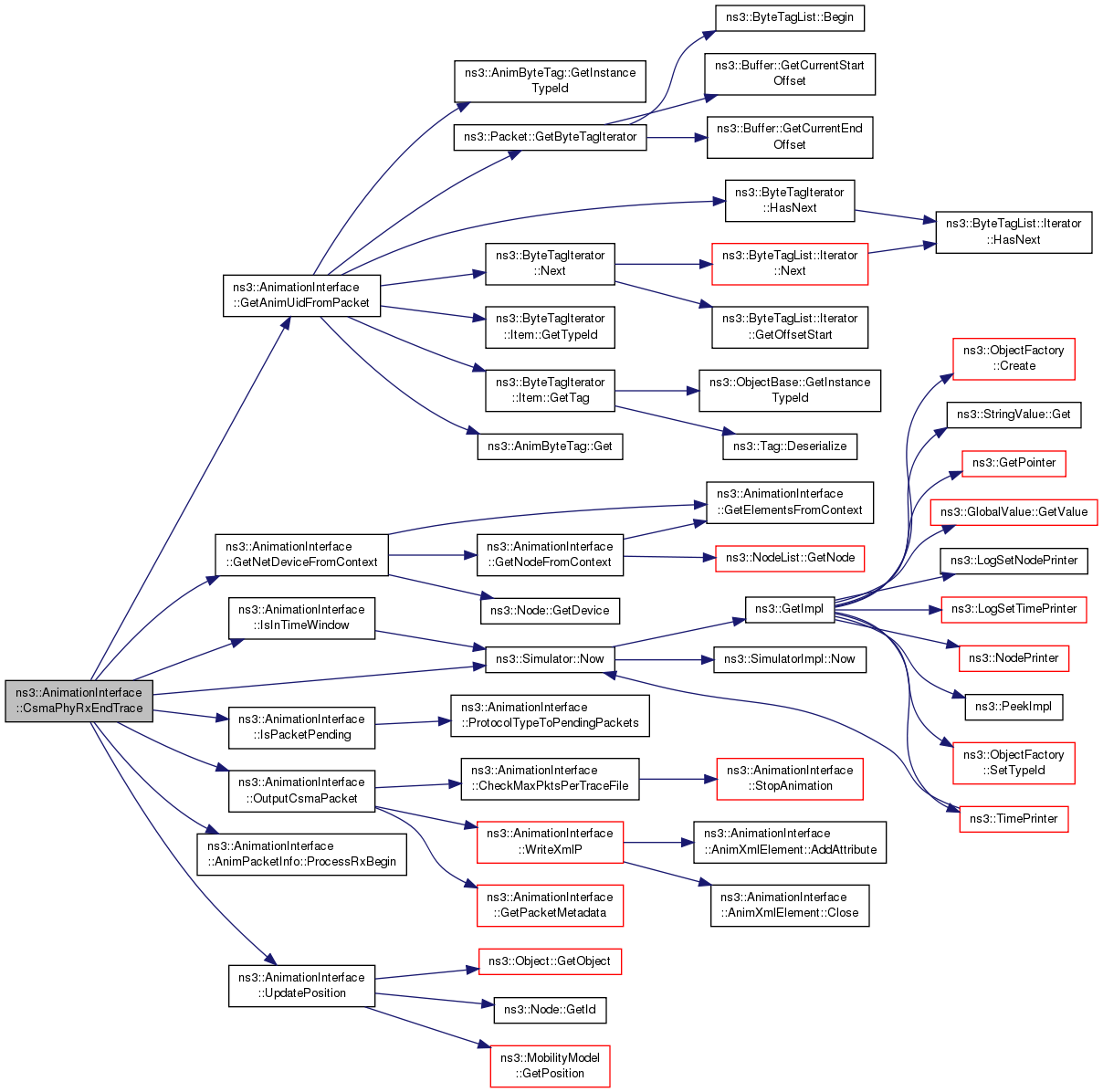

void	CsmaPhyRxEndTrace (std::string context, Ptr< const Packet > p)

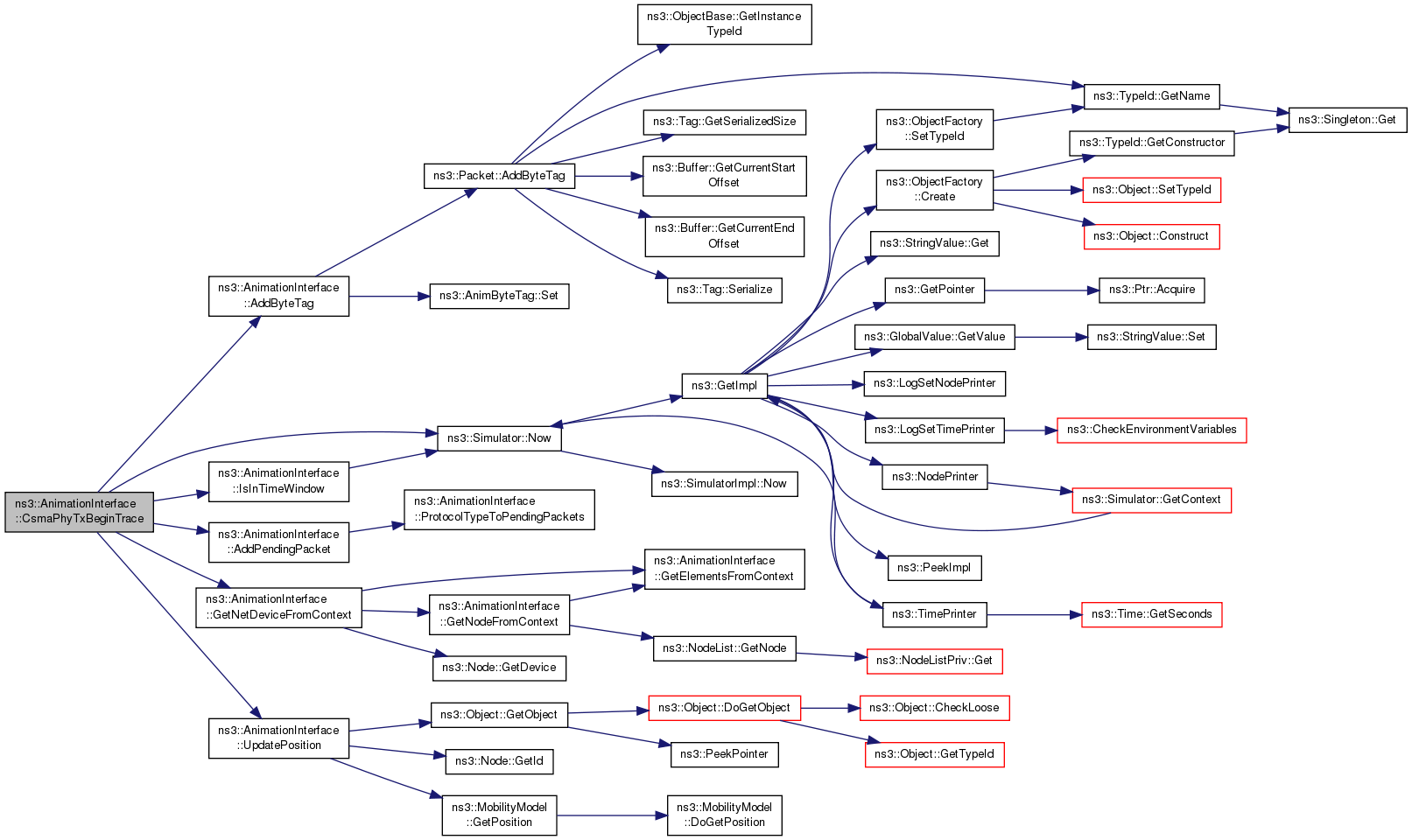

void	CsmaPhyTxBeginTrace (std::string context, Ptr< const Packet > p)
void	CsmaPhyTxEndTrace (std::string context, Ptr< const Packet > p)
void	DequeueTrace (std::string context, Ptr< const Packet >)

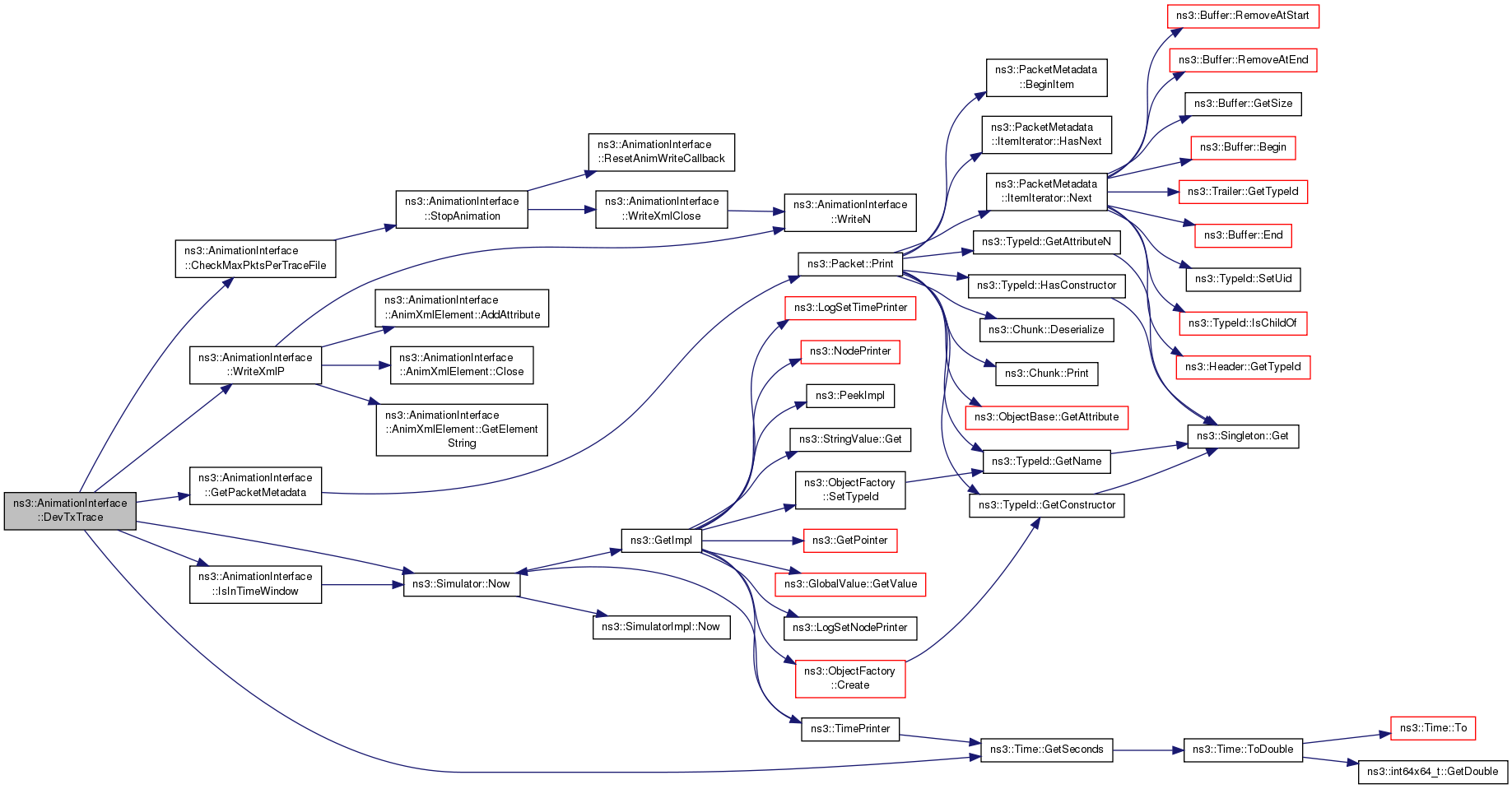

void	DevTxTrace (std::string context, Ptr< const Packet > p, Ptr< NetDevice > tx, Ptr< NetDevice > rx, Time txTime, Time rxTime)
void	EnqueueTrace (std::string context, Ptr< const Packet >)

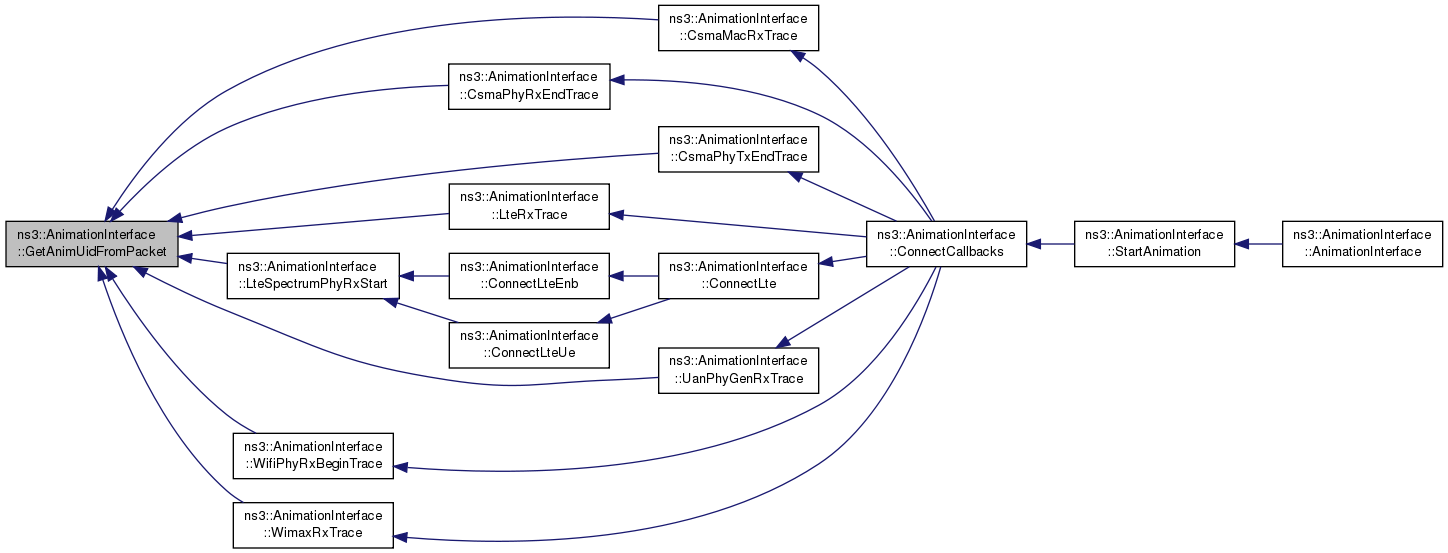

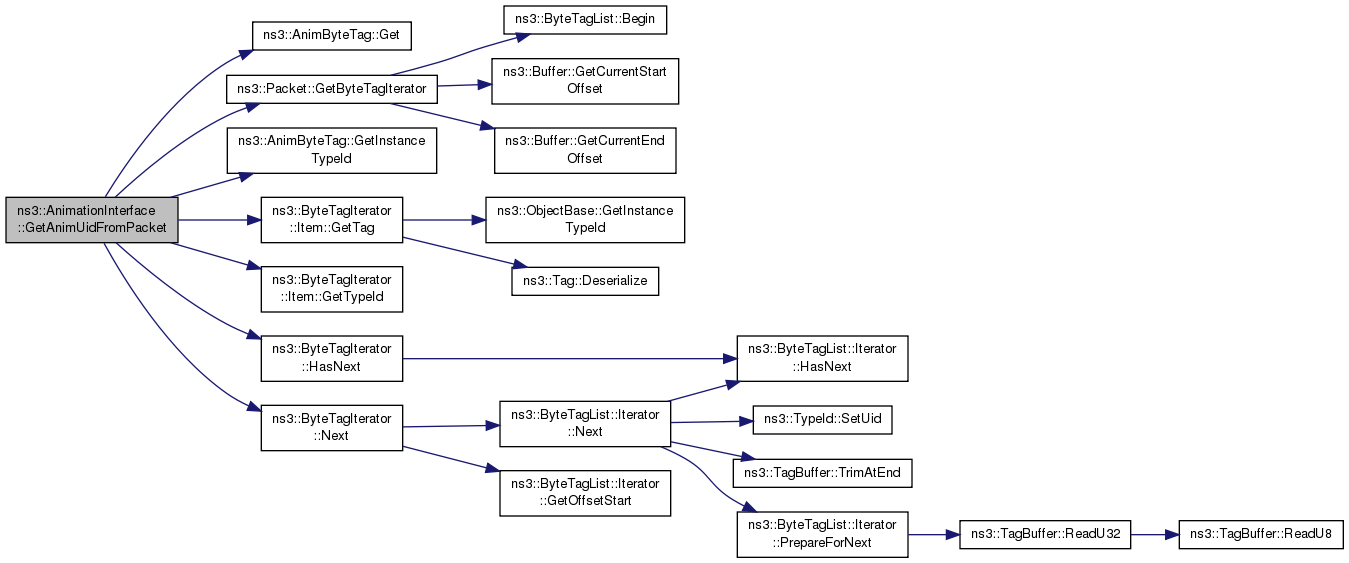

uint64_t	GetAnimUidFromPacket (Ptr< const Packet >)

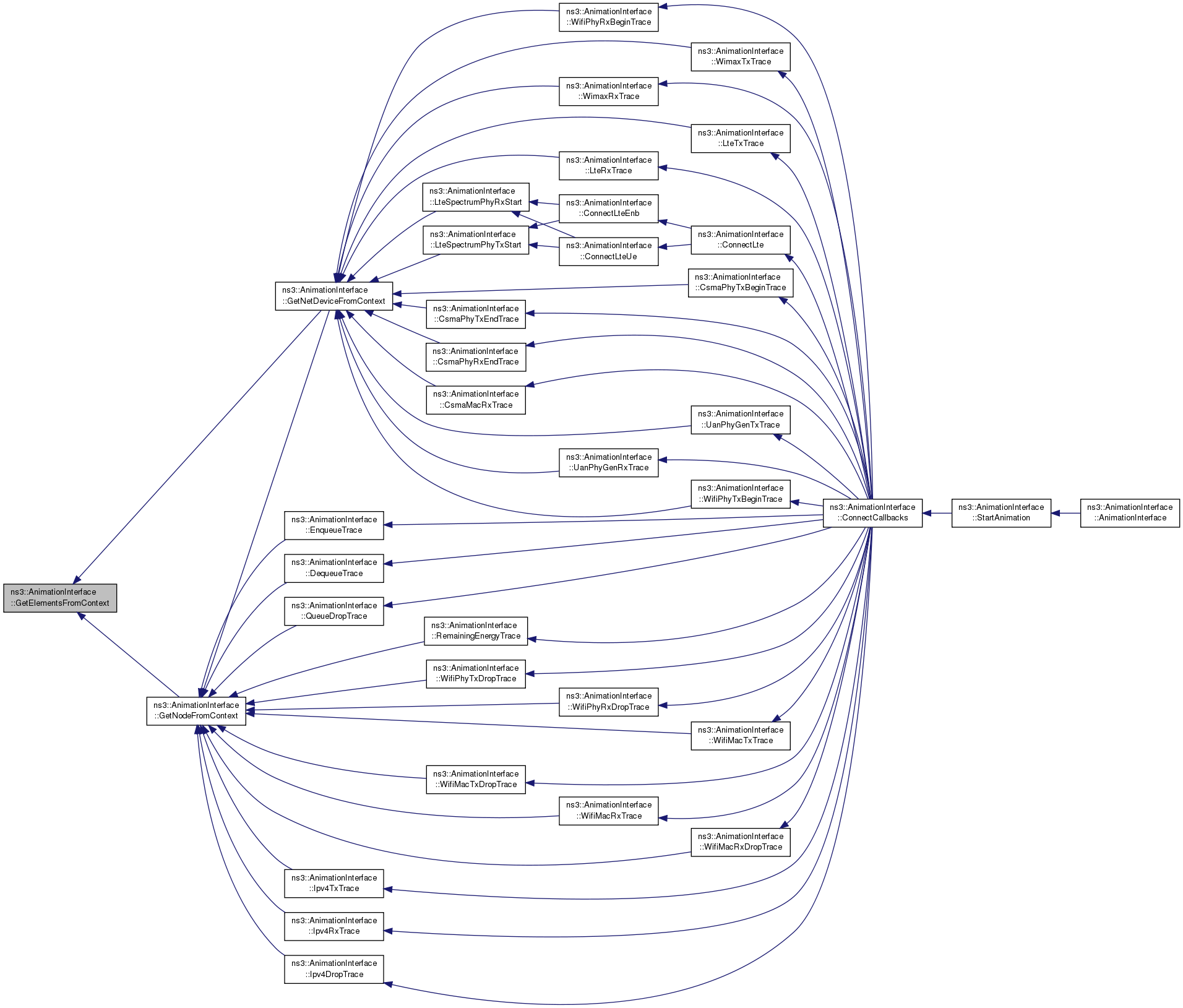

const std::vector< std::string >	GetElementsFromContext (const std::string &context) const
std::string	GetIpv4Address (Ptr< NetDevice > nd)

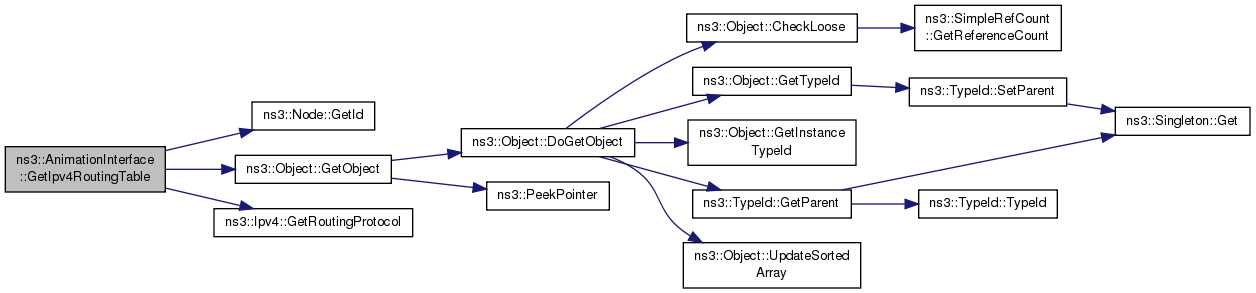

std::string	GetIpv4RoutingTable (Ptr< Node > n)
std::string	GetMacAddress (Ptr< NetDevice > nd)

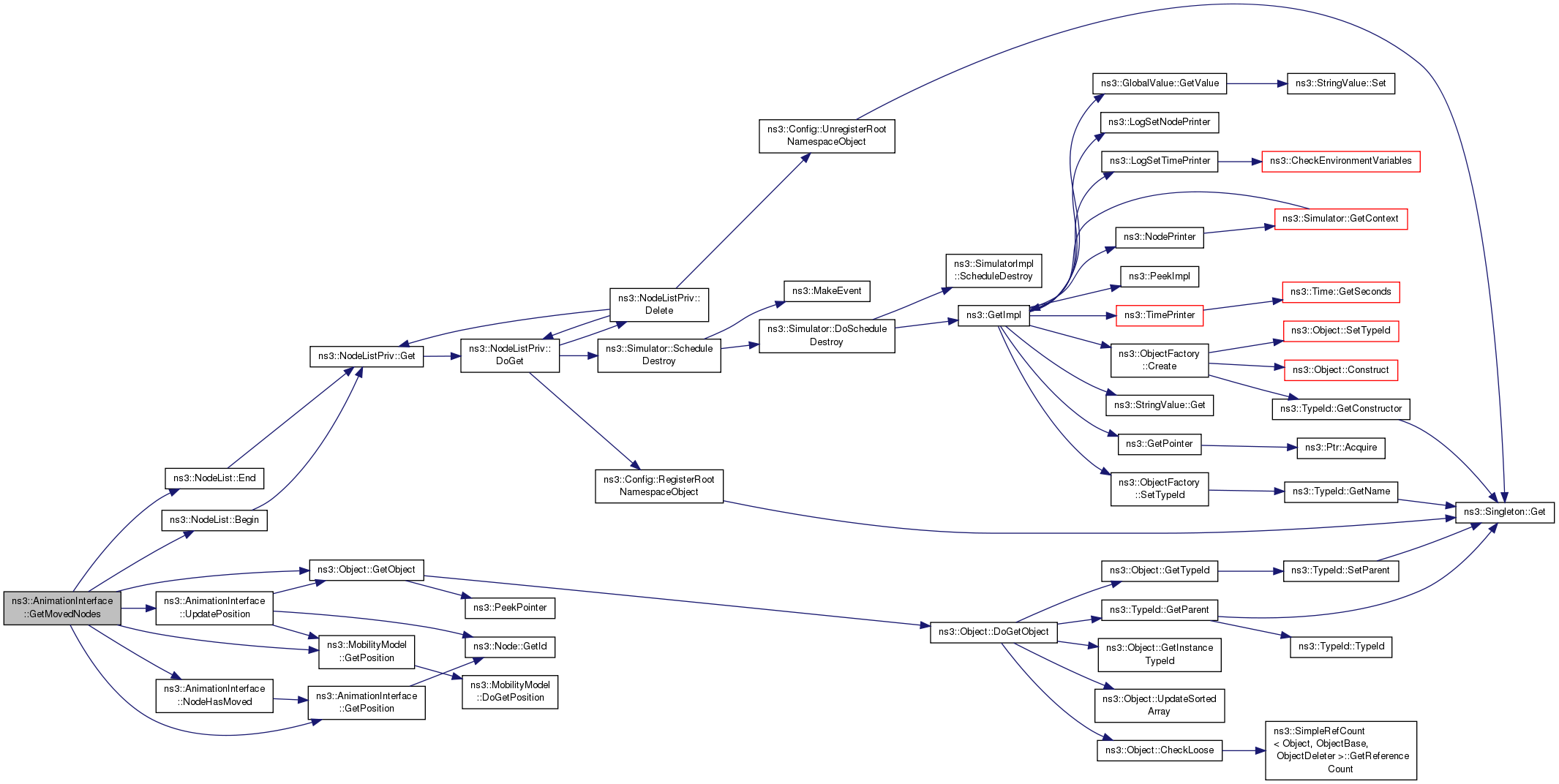

std::vector< Ptr< Node > >	GetMovedNodes ()

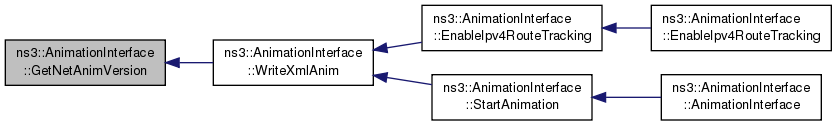

std::string	GetNetAnimVersion ()

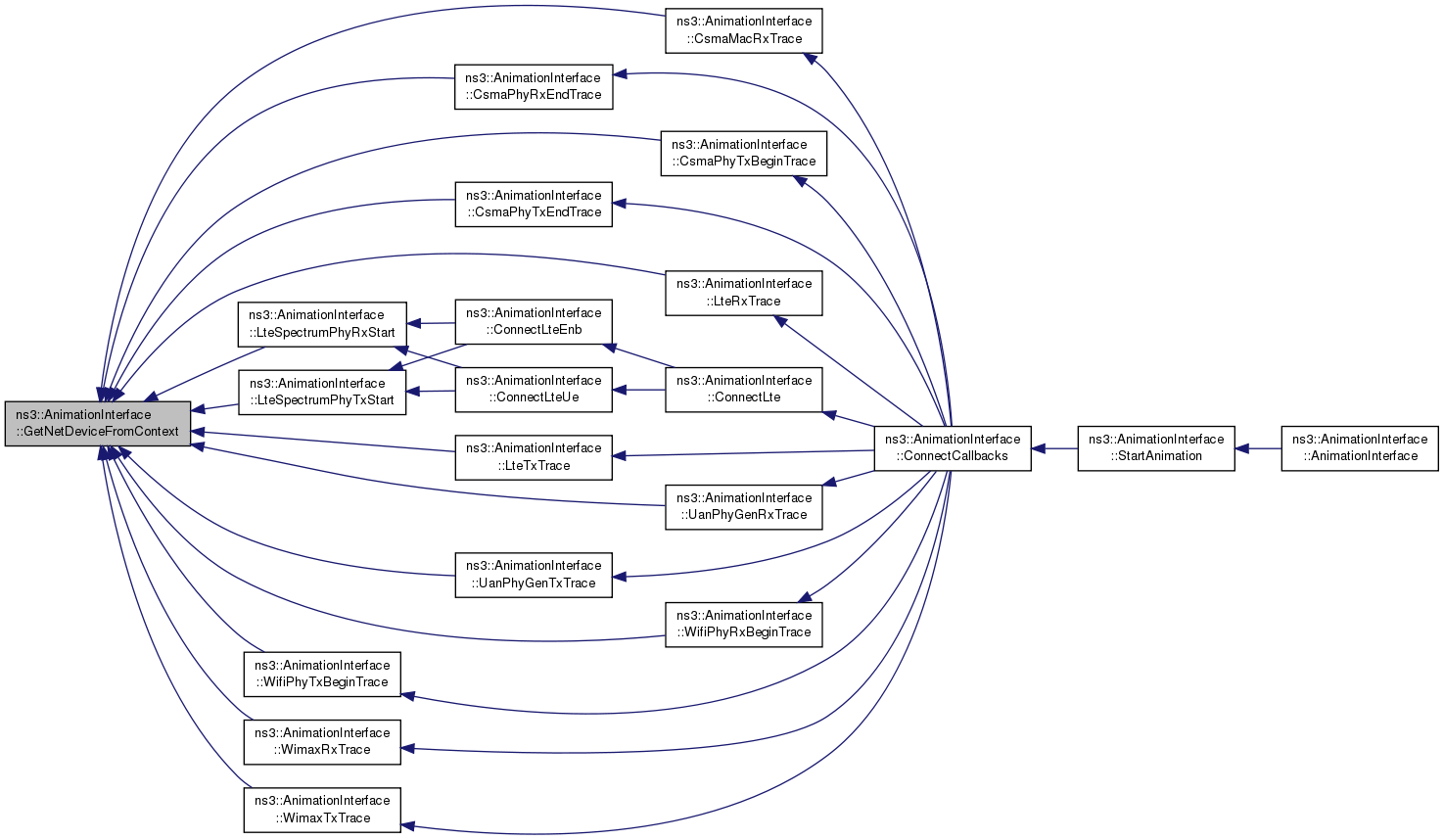

Ptr< NetDevice >	GetNetDeviceFromContext (std::string context)

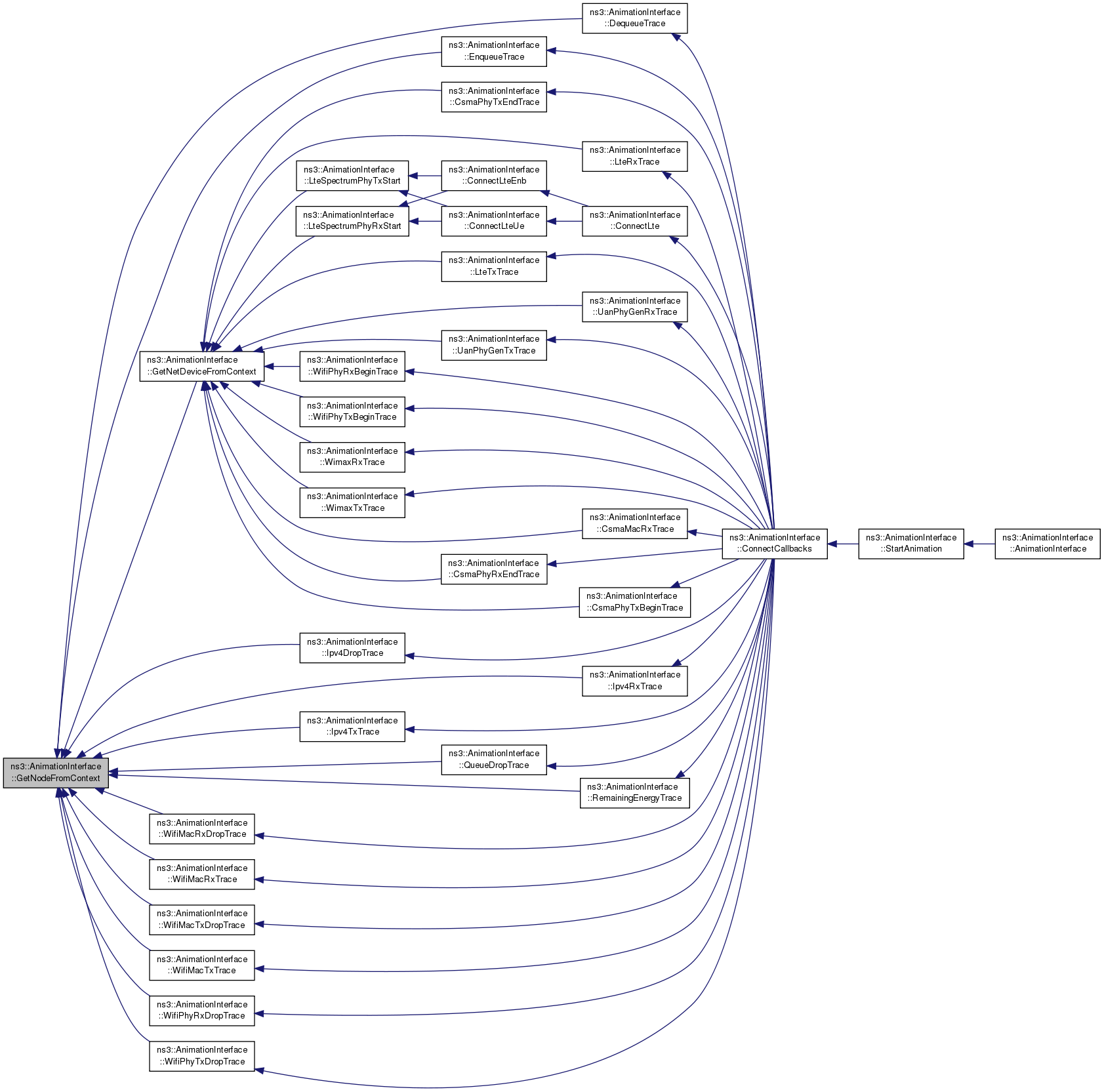

Ptr< Node >	GetNodeFromContext (const std::string &context) const

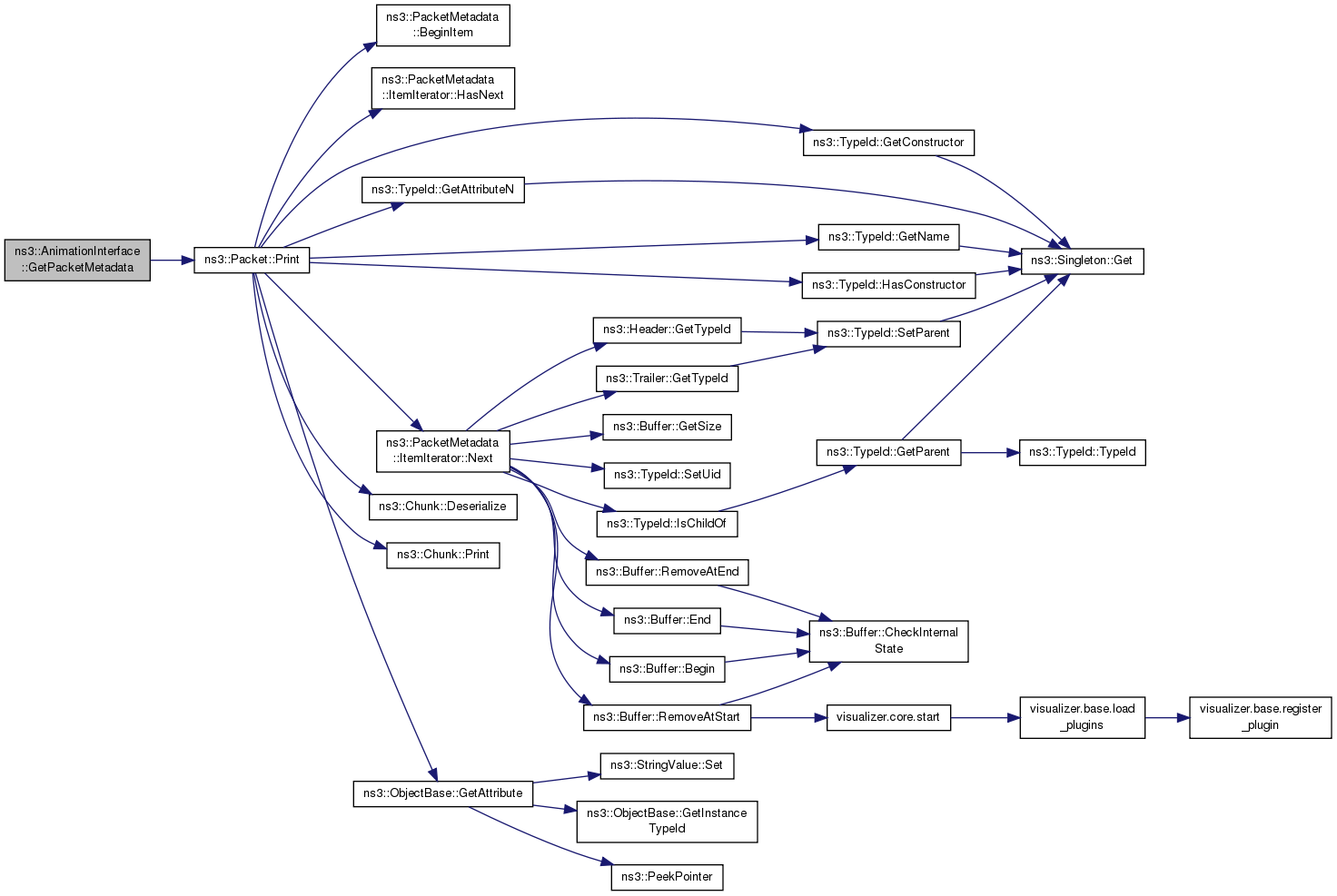

std::string	GetPacketMetadata (Ptr< const Packet > p)

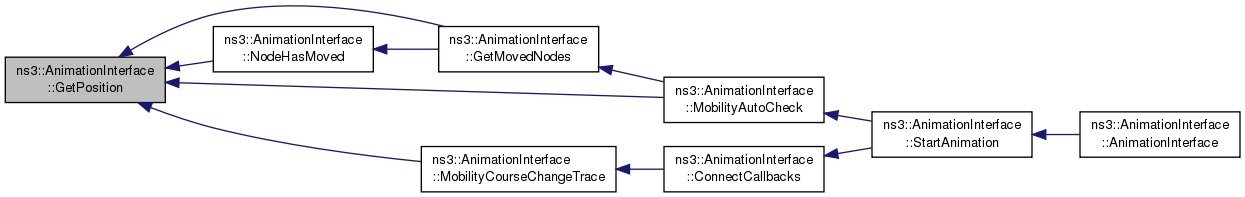

Vector	GetPosition (Ptr< Node > n)
void	Ipv4DropTrace (std::string context, const Ipv4Header &, Ptr< const Packet >, Ipv4L3Protocol::DropReason, Ptr< Ipv4 >, uint32_t)
void	Ipv4RxTrace (std::string context, Ptr< const Packet >, Ptr< Ipv4 >, uint32_t)
void	Ipv4TxTrace (std::string context, Ptr< const Packet >, Ptr< Ipv4 >, uint32_t)

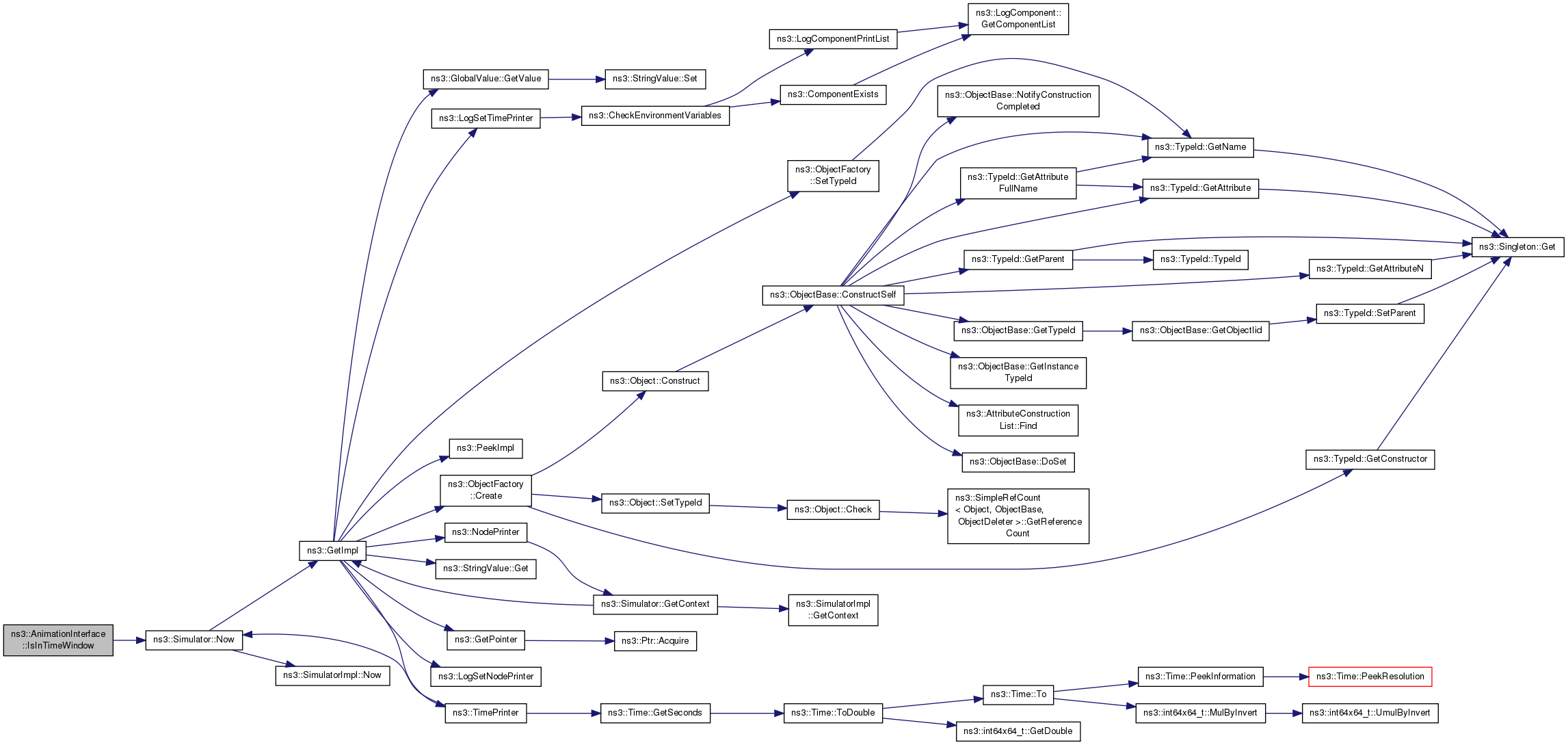

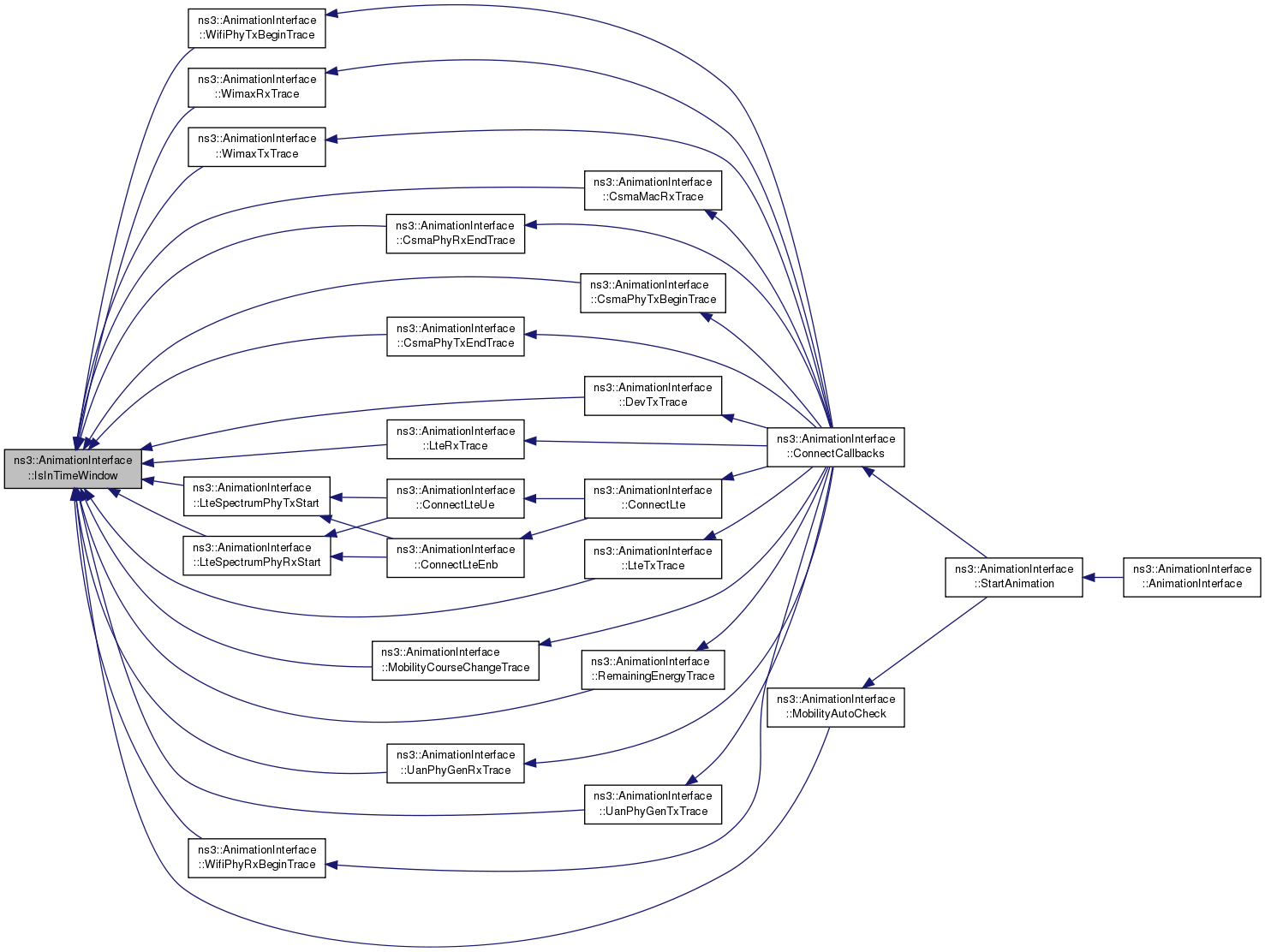

bool	IsInTimeWindow ()
bool	IsPacketPending (uint64_t animUid, ProtocolType protocolType)

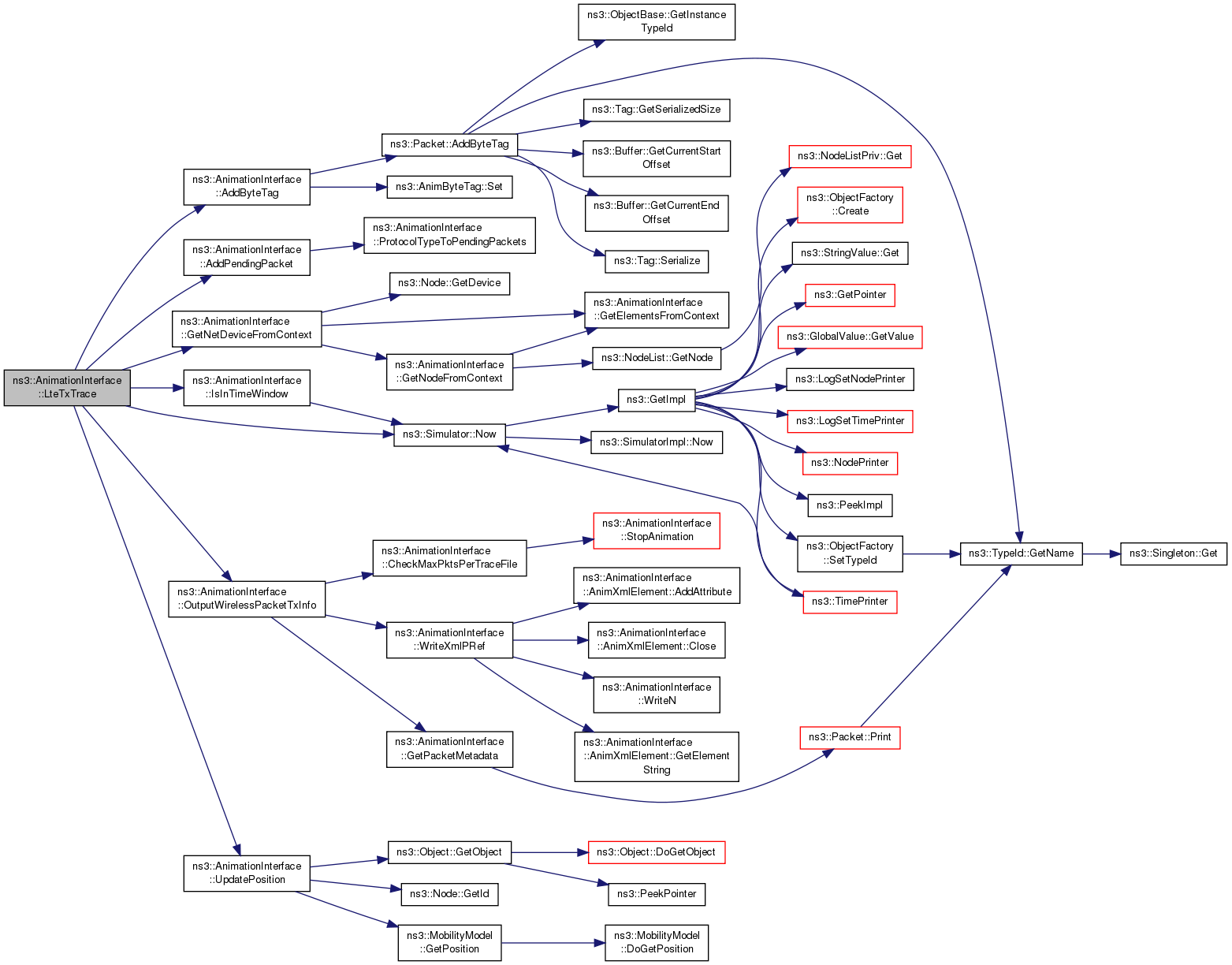

void	LteRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

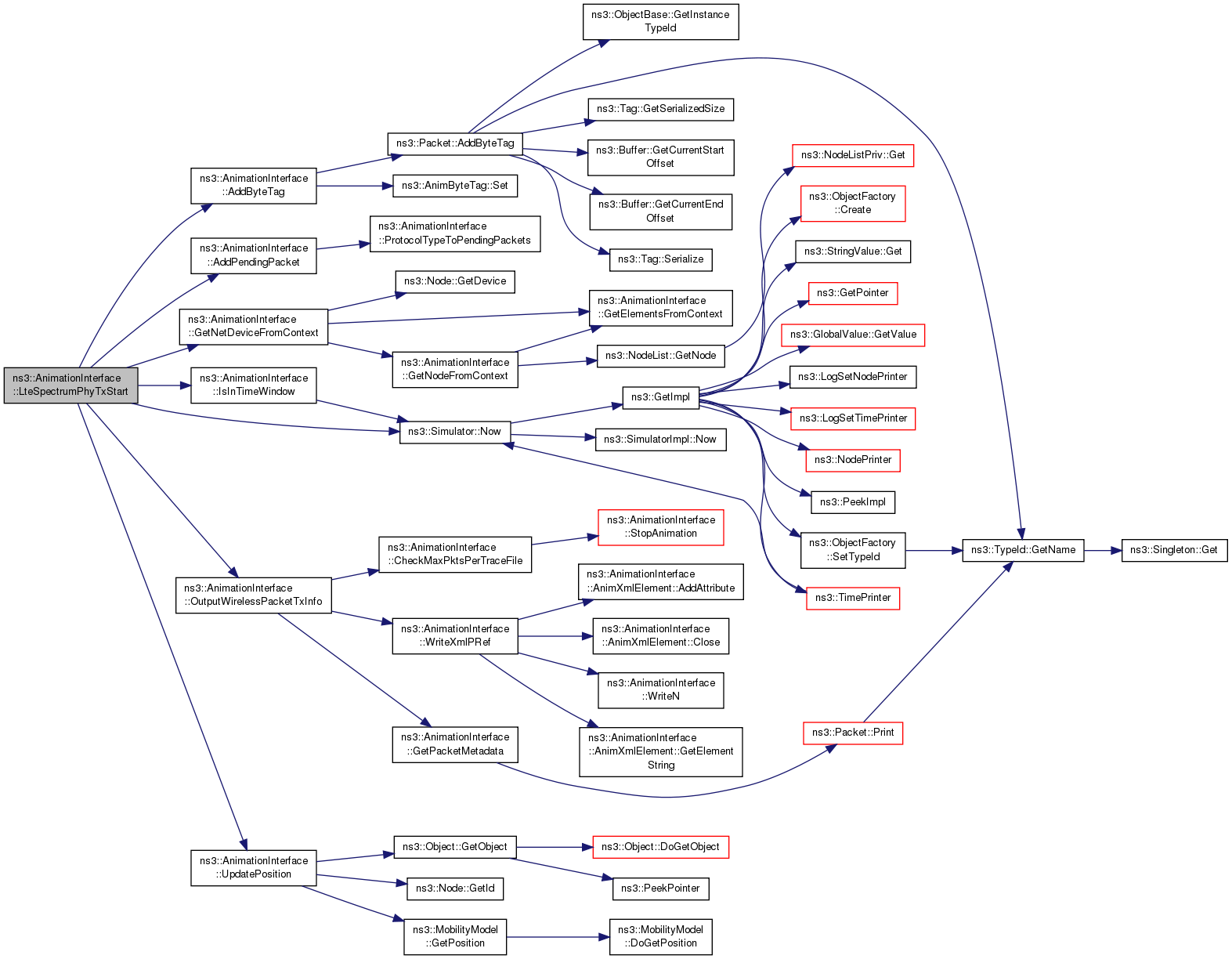

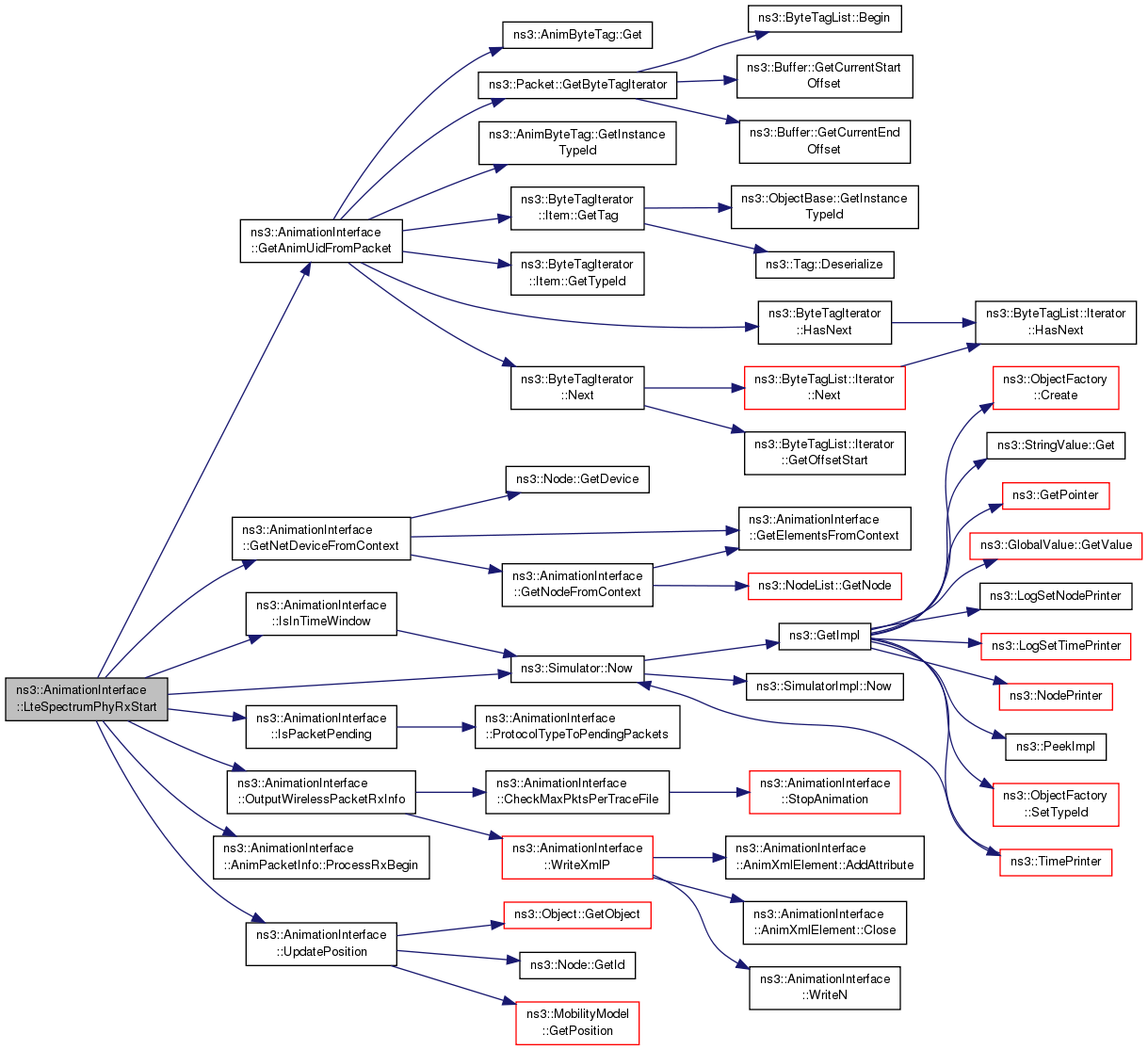

void	LteSpectrumPhyRxStart (std::string context, Ptr< const PacketBurst > pb)

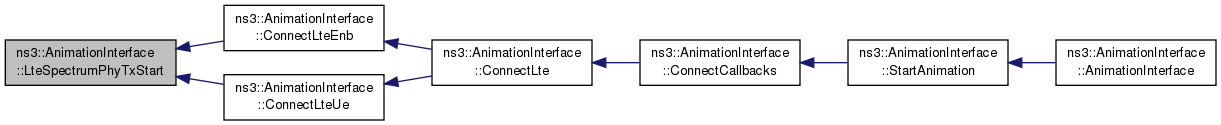

void	LteSpectrumPhyTxStart (std::string context, Ptr< const PacketBurst > pb)
void	LteTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

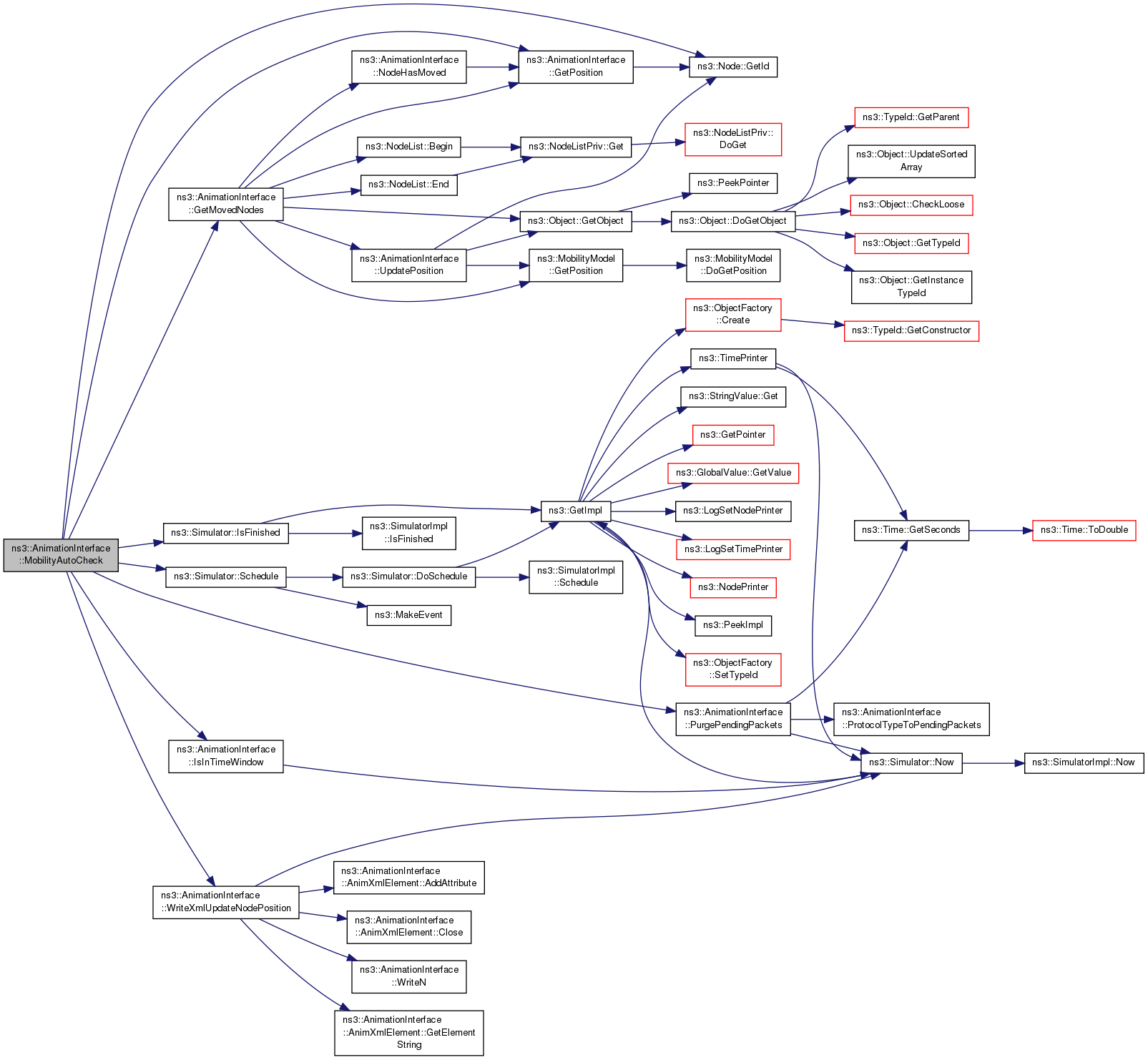

void	MobilityAutoCheck ()
void	MobilityCourseChangeTrace (Ptr< const MobilityModel > mob)
bool	NodeHasMoved (Ptr< Node > n, Vector newLocation)

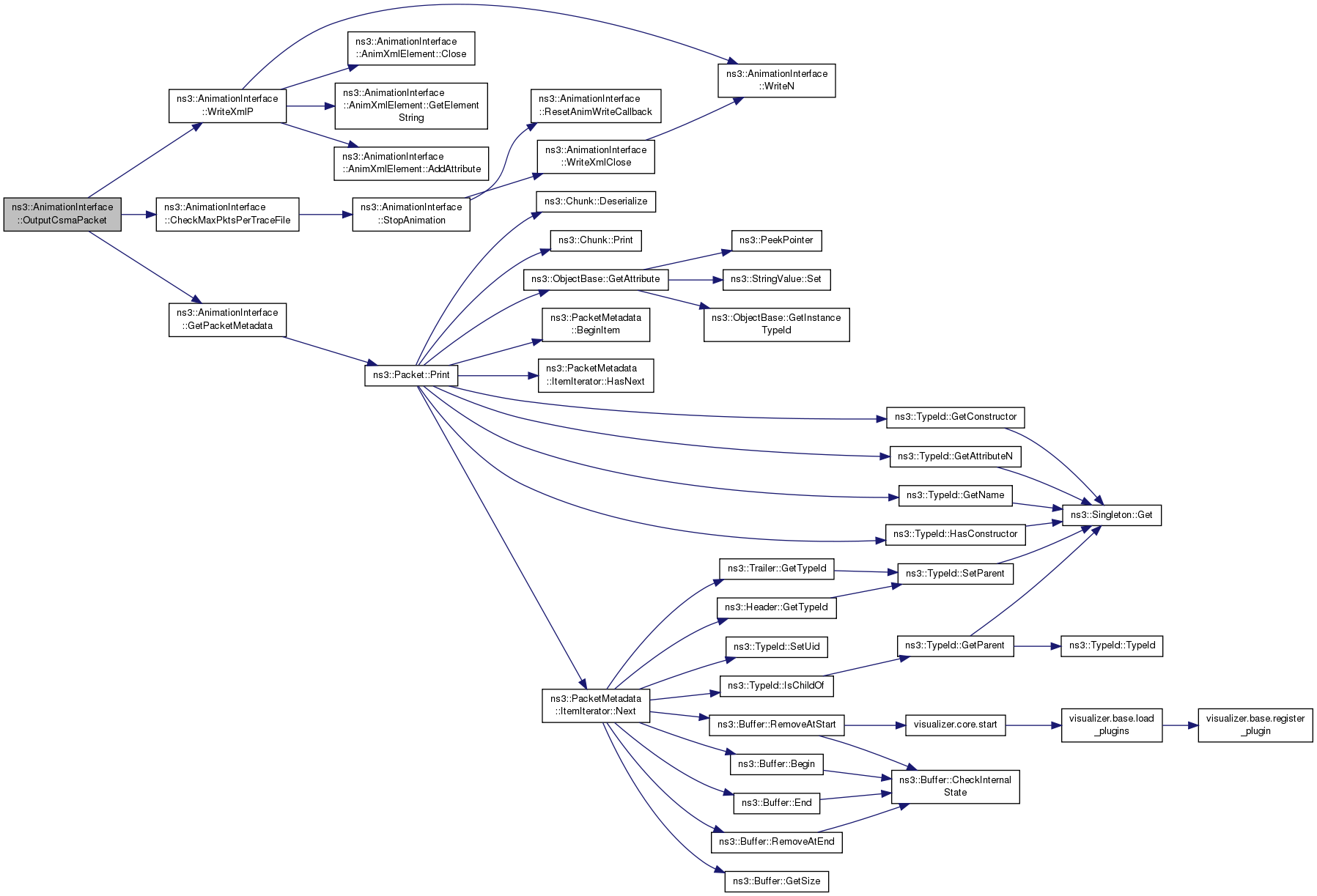

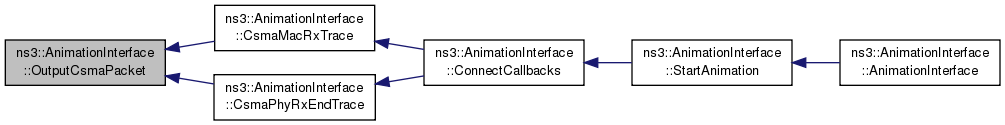

void	OutputCsmaPacket (Ptr< const Packet > p, AnimPacketInfo &pktInfo)

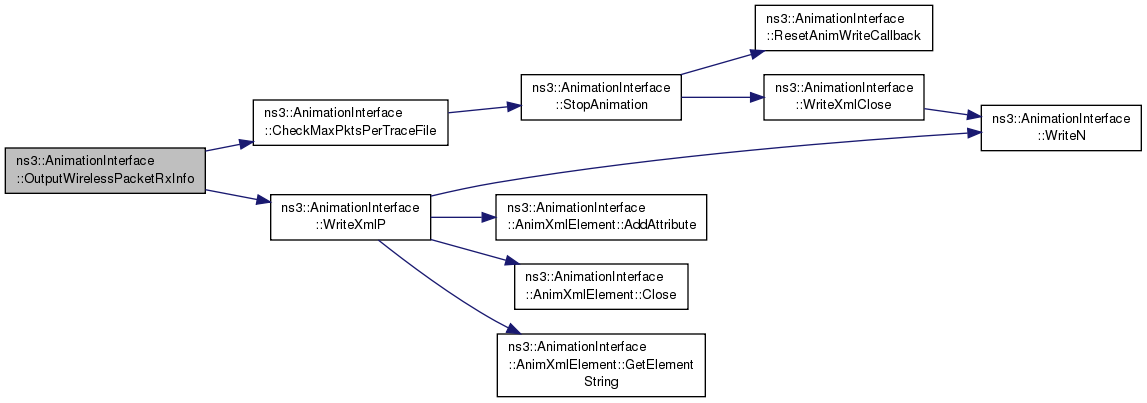

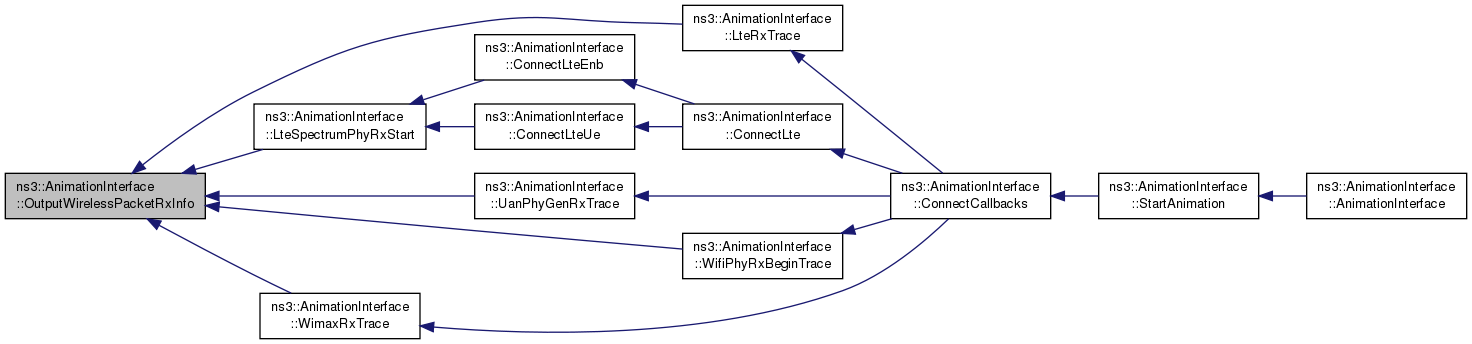

void	OutputWirelessPacketRxInfo (Ptr< const Packet > p, AnimPacketInfo &pktInfo, uint64_t animUid)

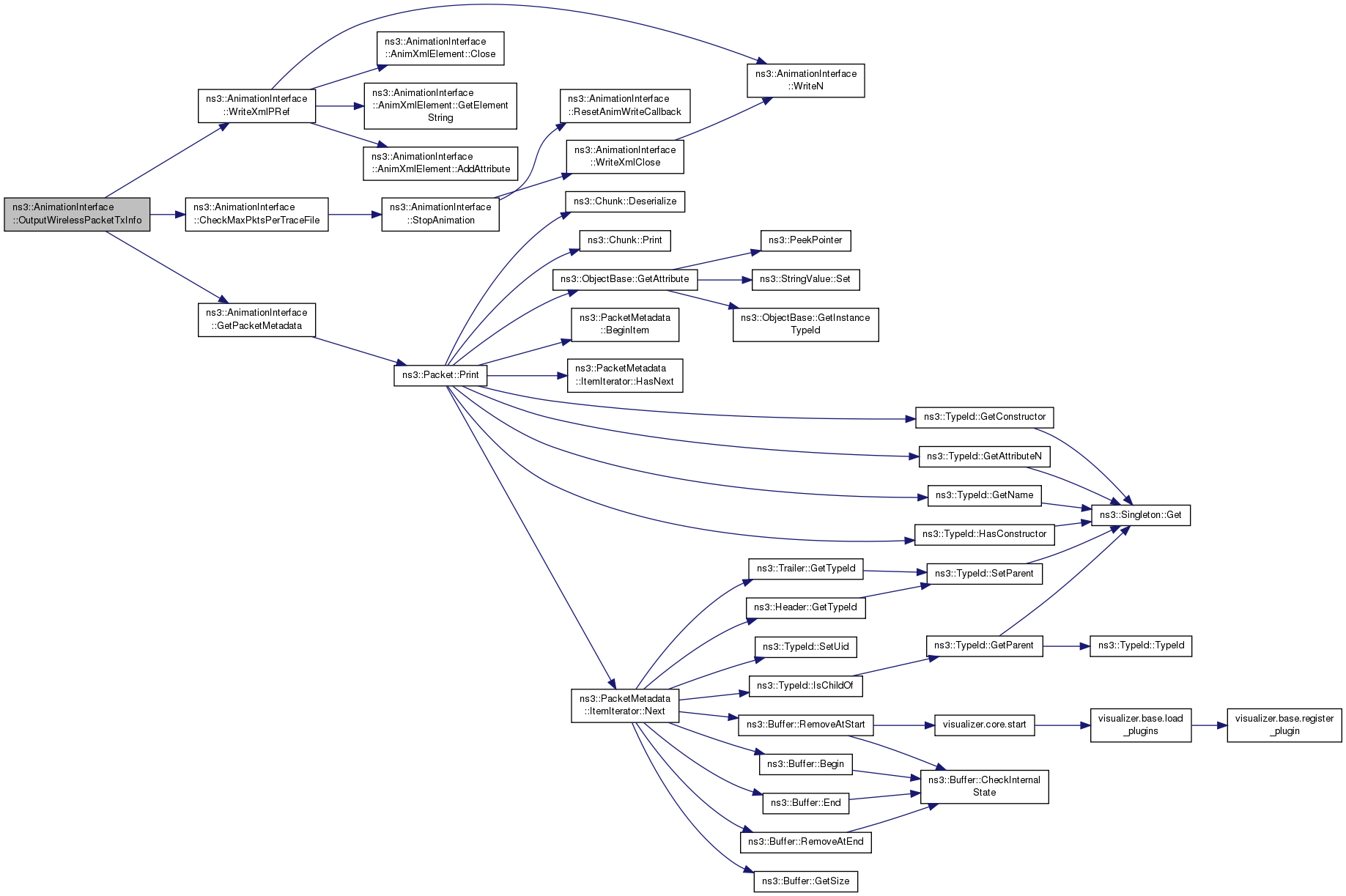

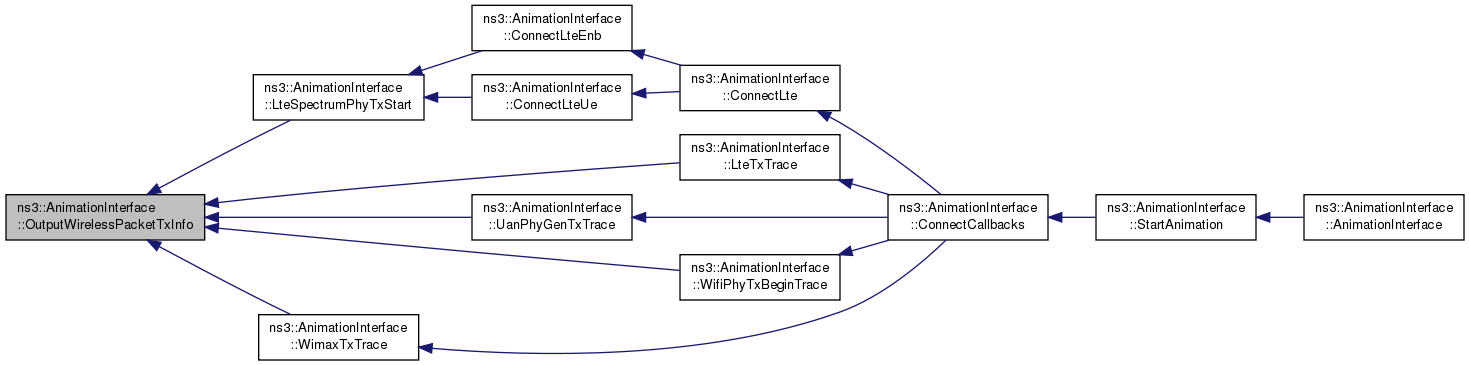

void	OutputWirelessPacketTxInfo (Ptr< const Packet > p, AnimPacketInfo &pktInfo, uint64_t animUid)

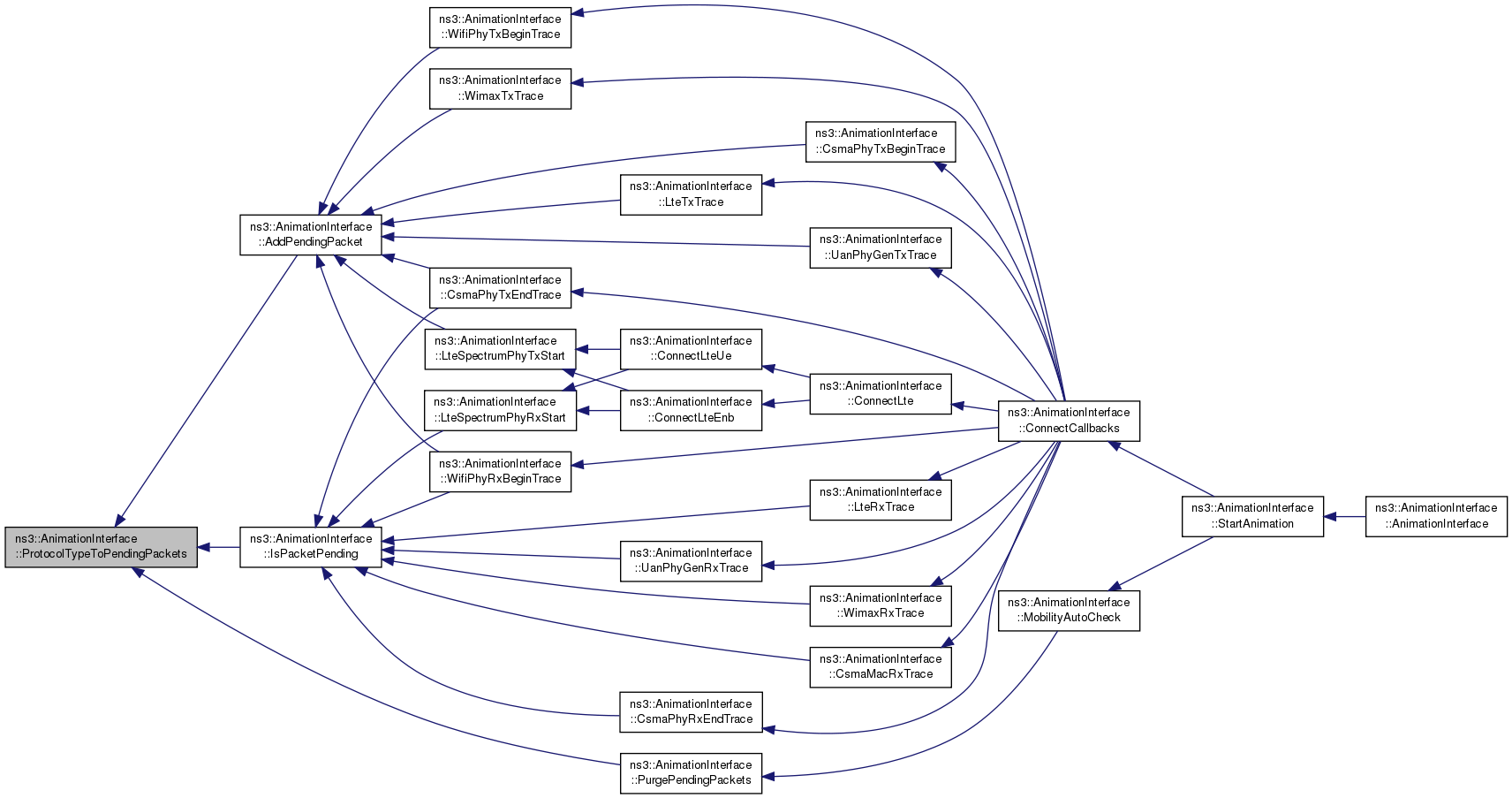

AnimUidPacketInfoMap *	ProtocolTypeToPendingPackets (ProtocolType protocolType)

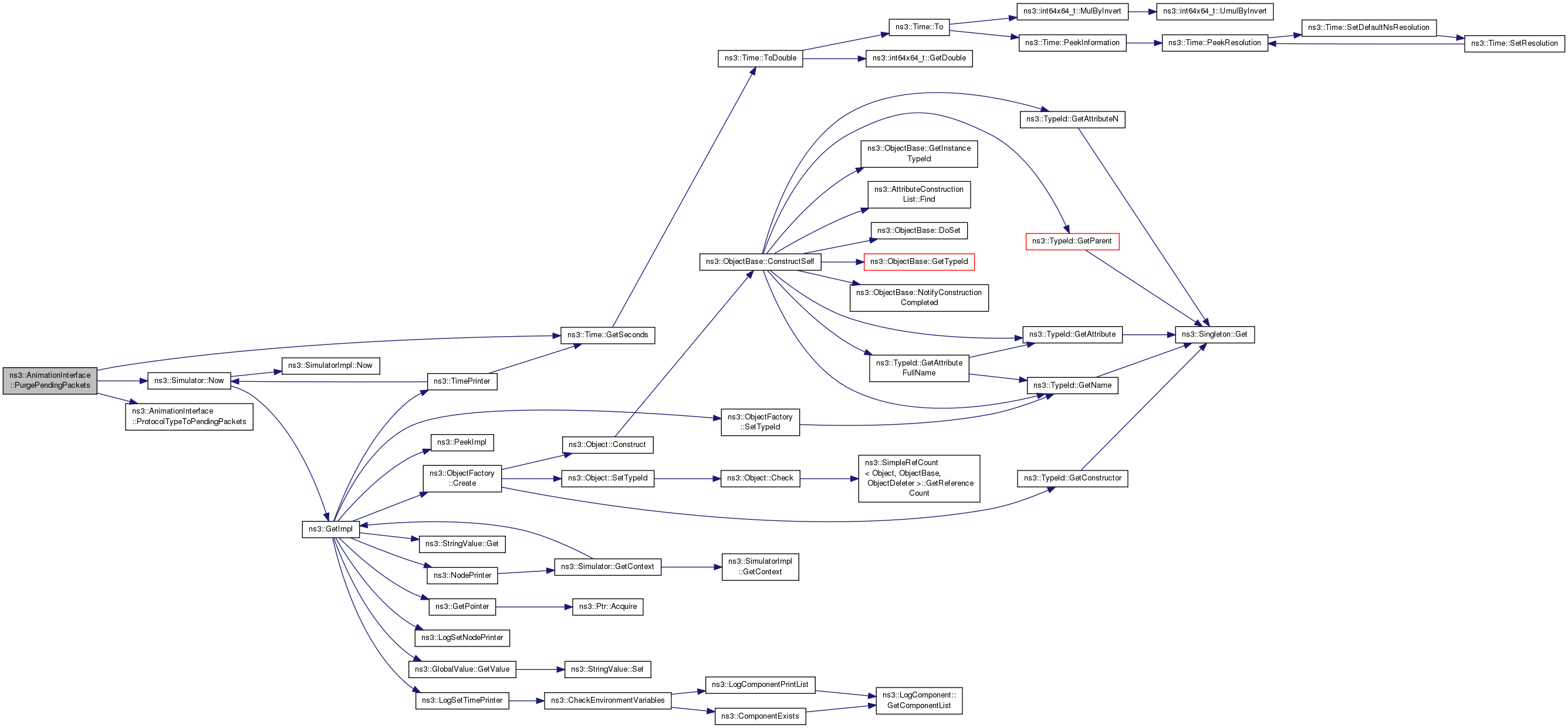

void	PurgePendingPackets (ProtocolType protocolType)
void	QueueDropTrace (std::string context, Ptr< const Packet >)

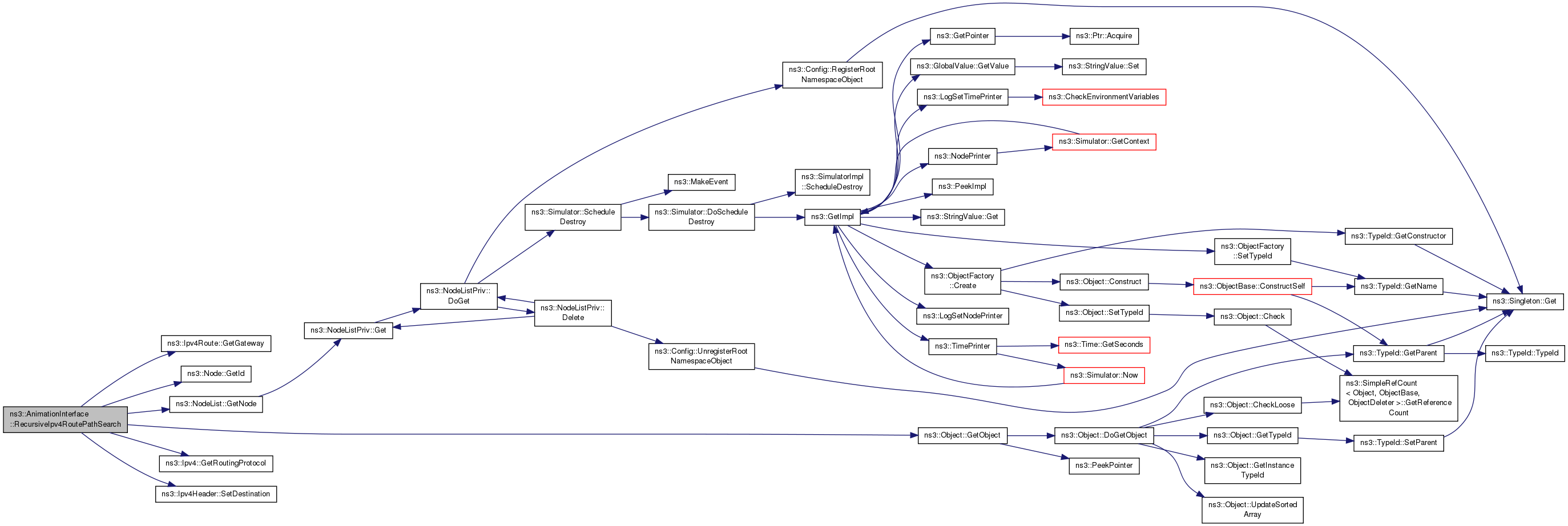

void	RecursiveIpv4RoutePathSearch (std::string fromIpv4, std::string toIpv4, Ipv4RoutePathElements &)
void	RemainingEnergyTrace (std::string context, double previousEnergy, double currentEnergy)

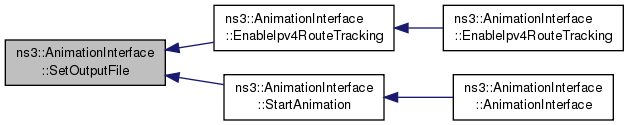

void	SetOutputFile (const std::string &fn, bool routing=false)

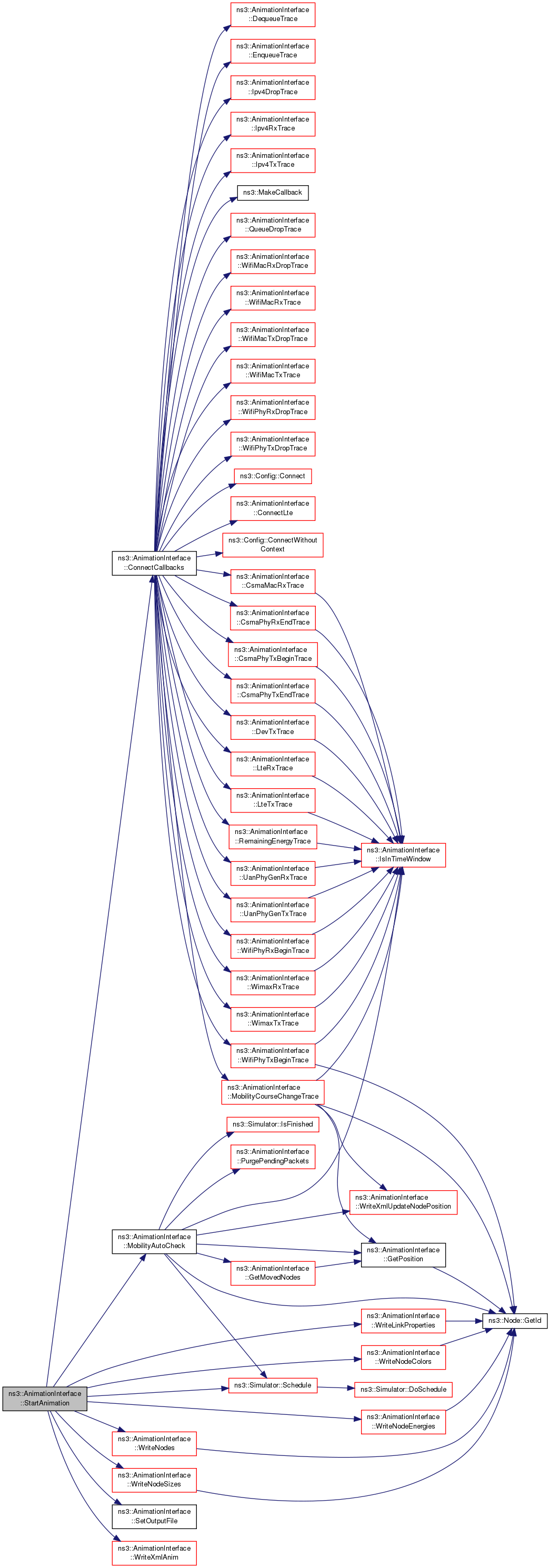

void	StartAnimation (bool restart=false)

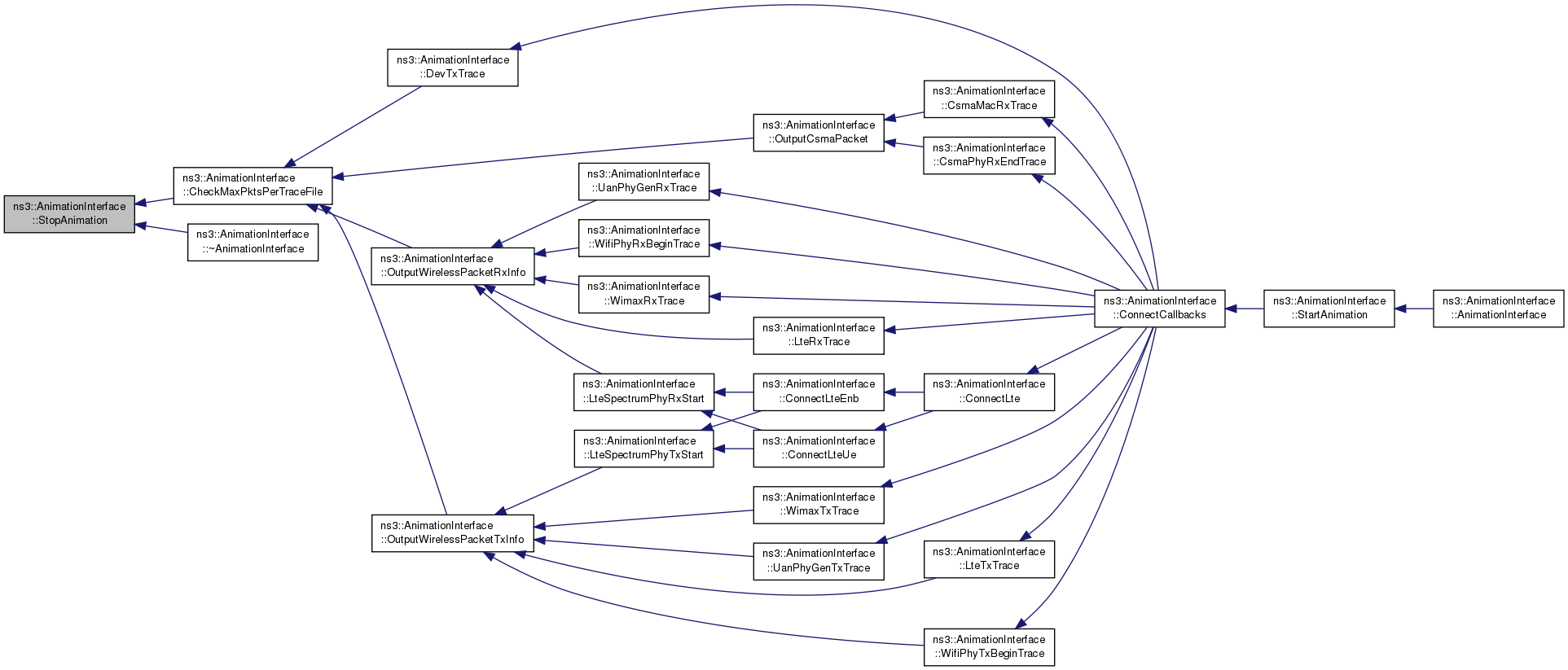

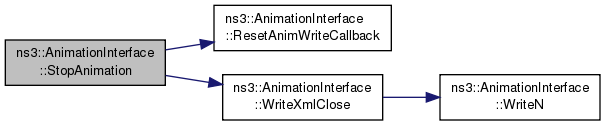

void	StopAnimation (bool onlyAnimation=false)

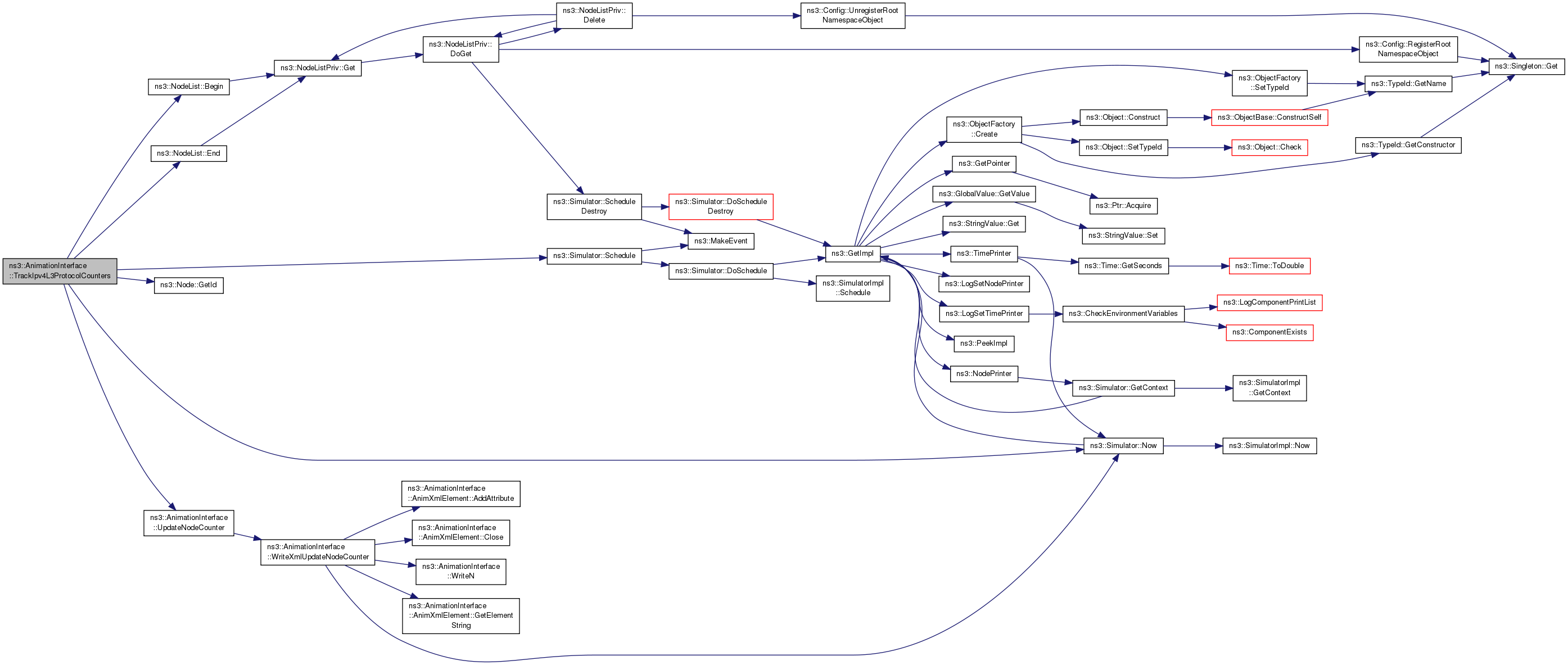

void	TrackIpv4L3ProtocolCounters ()
void	TrackIpv4Route ()

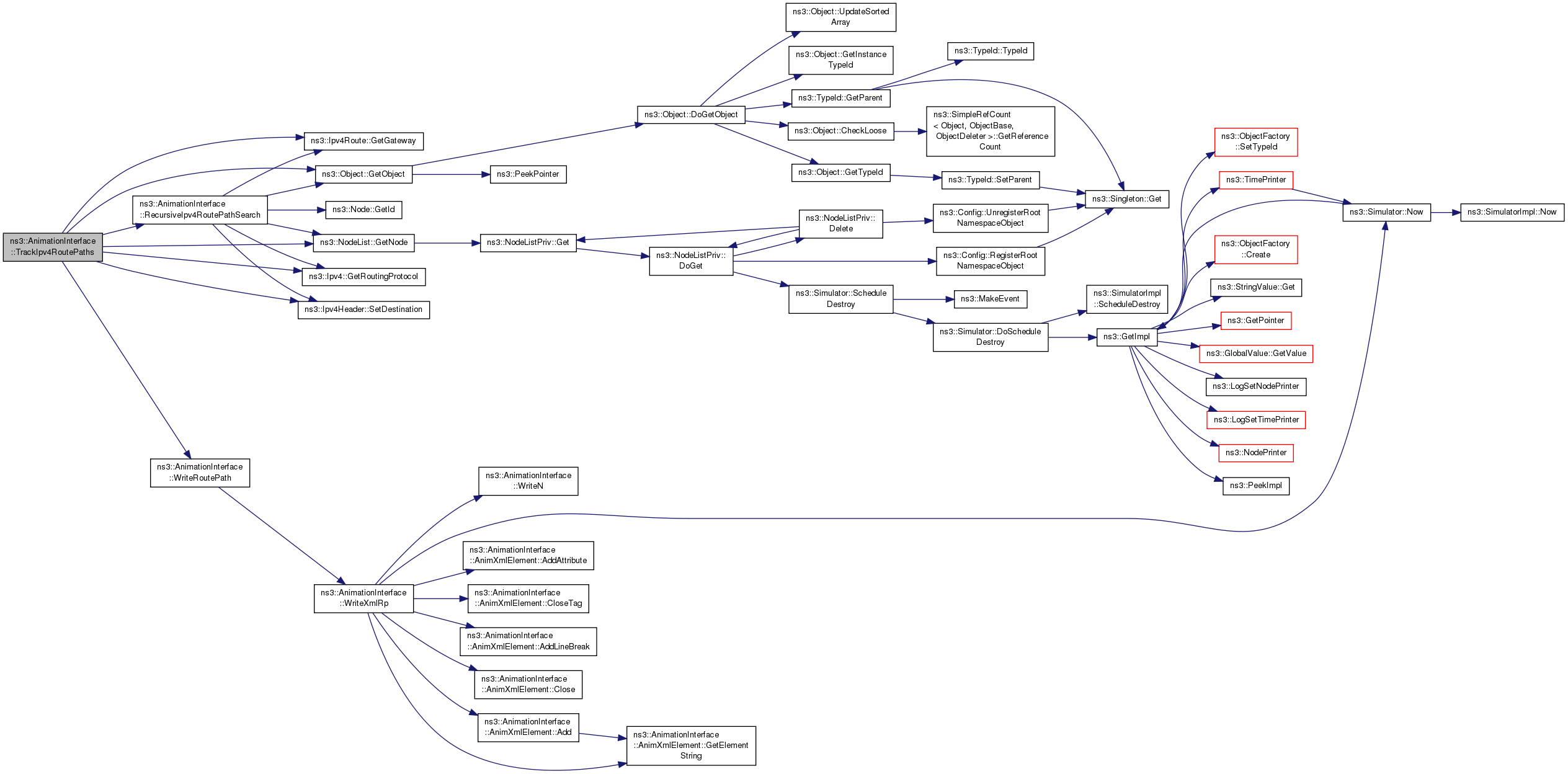

void	TrackIpv4RoutePaths ()
void	TrackQueueCounters ()

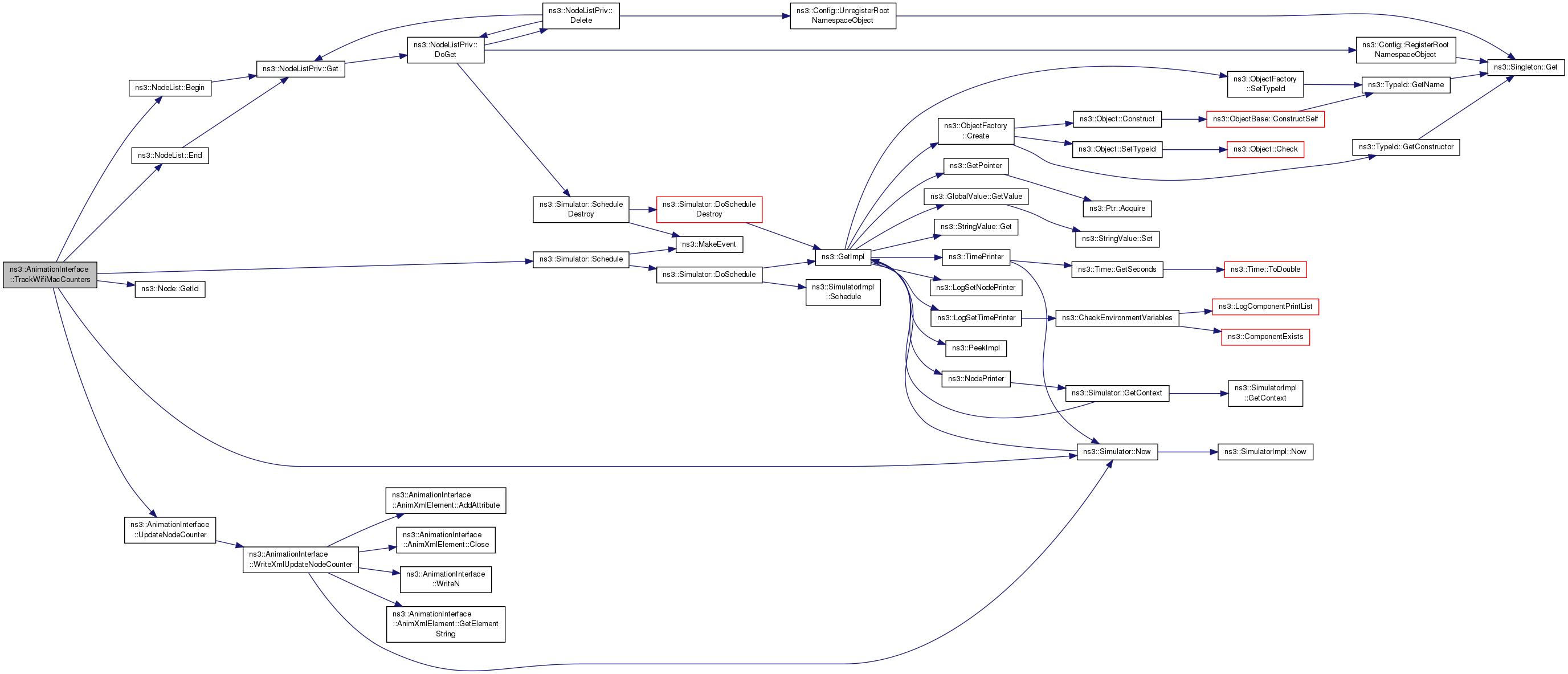

void	TrackWifiMacCounters ()
void	TrackWifiPhyCounters ()

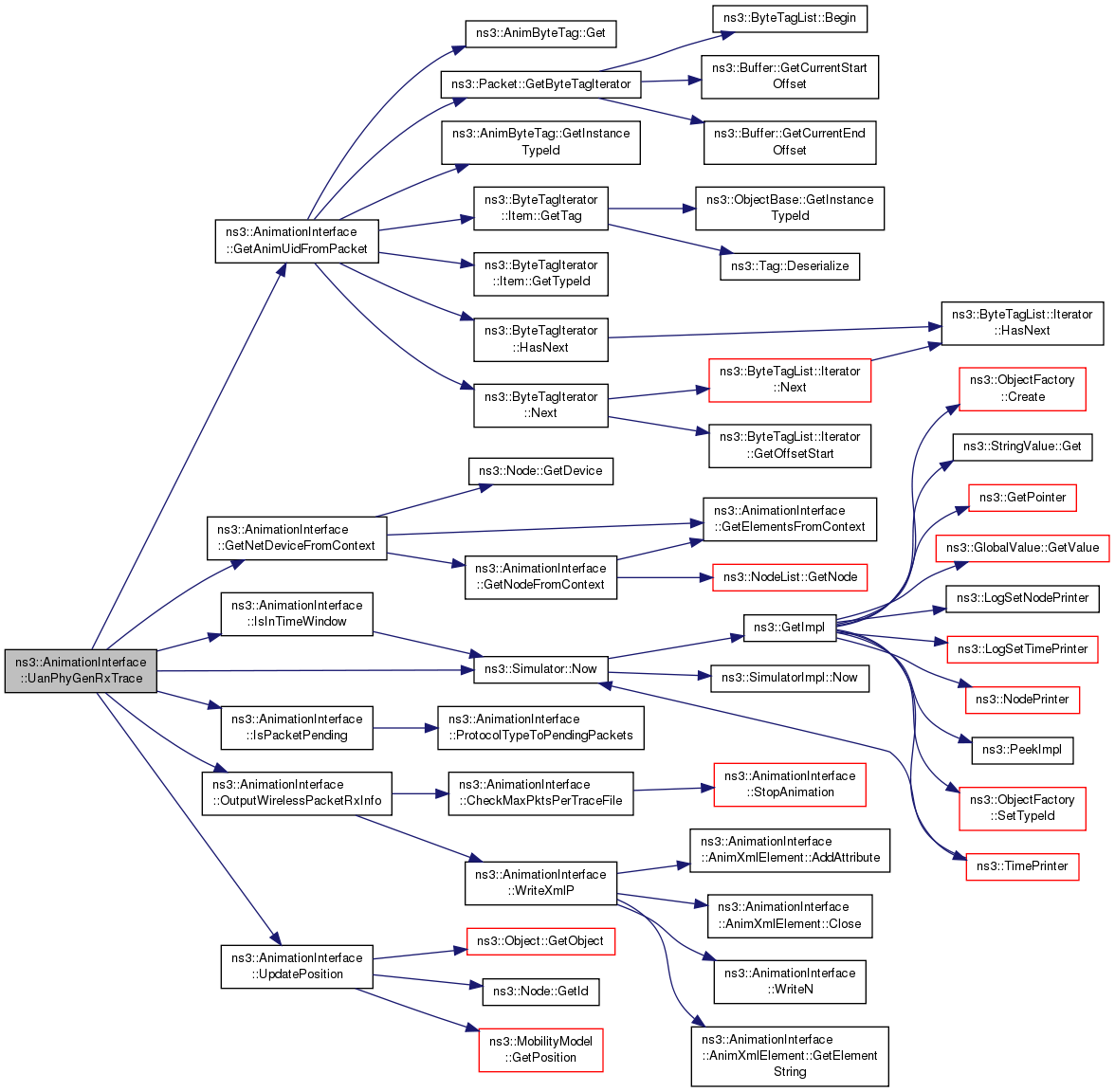

void	UanPhyGenRxTrace (std::string context, Ptr< const Packet >)

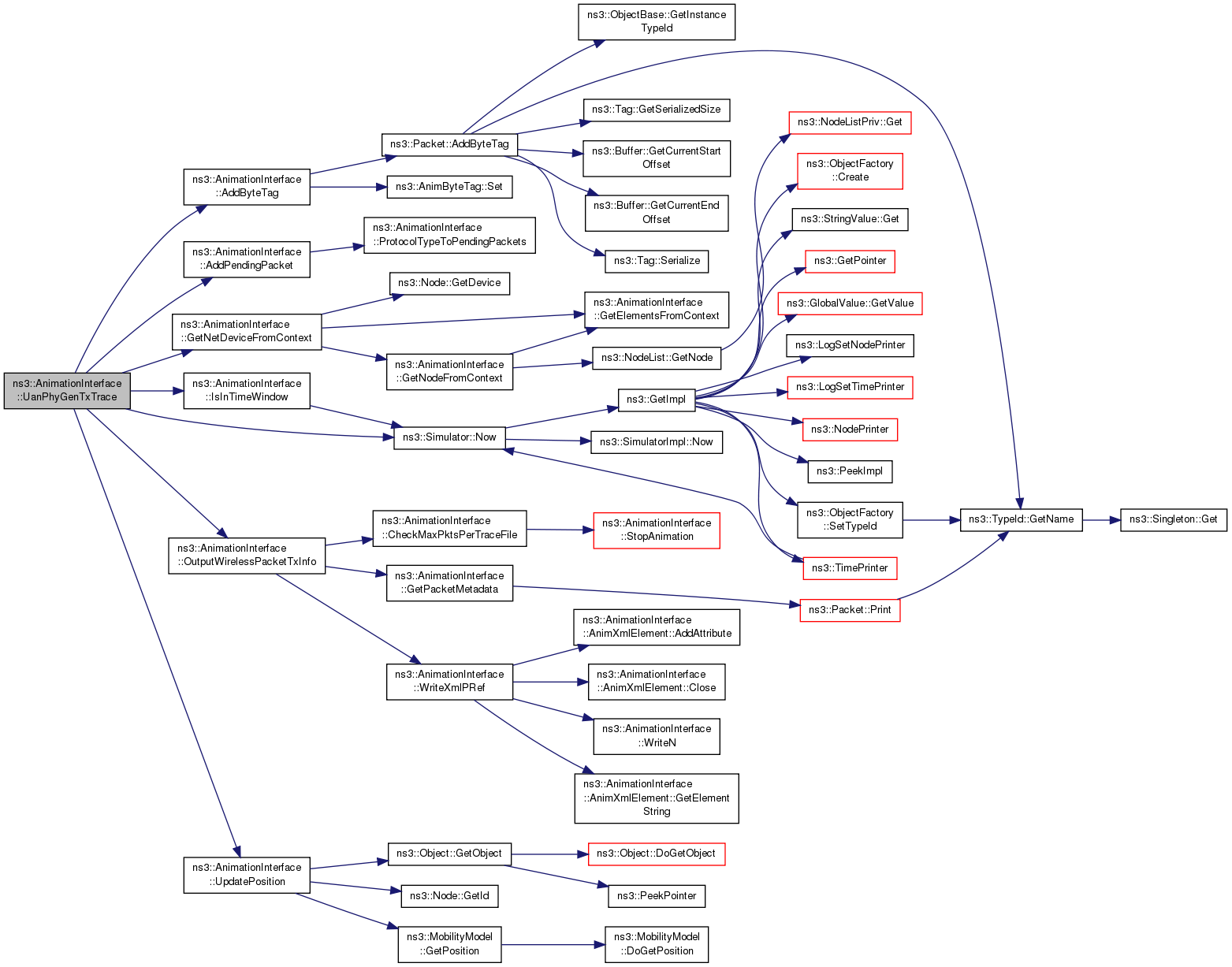

void	UanPhyGenTxTrace (std::string context, Ptr< const Packet >)

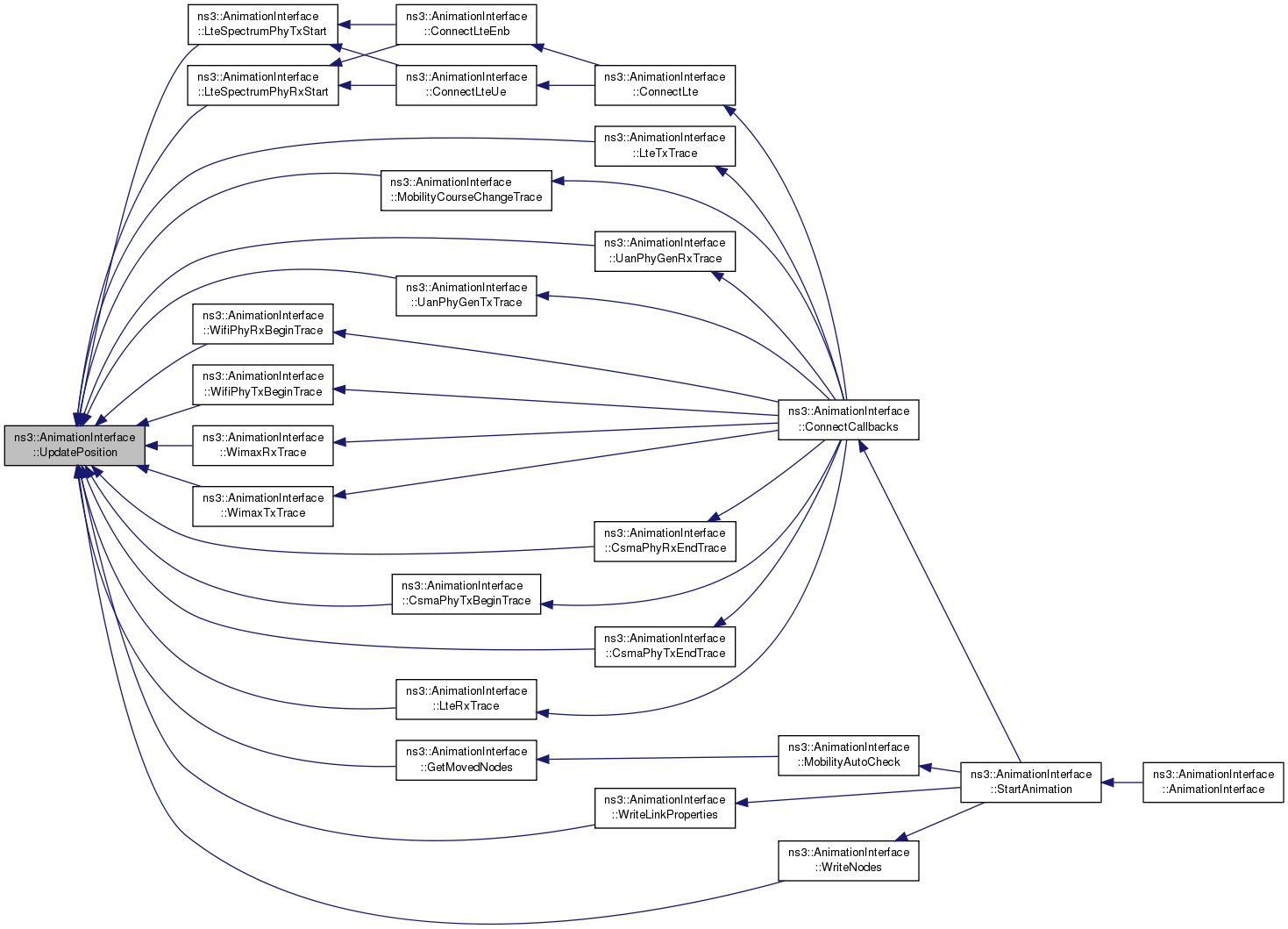

Vector	UpdatePosition (Ptr< Node > n)
Vector	UpdatePosition (Ptr< Node > n, Vector v)
void	WifiMacRxDropTrace (std::string context, Ptr< const Packet >)
void	WifiMacRxTrace (std::string context, Ptr< const Packet >)
void	WifiMacTxDropTrace (std::string context, Ptr< const Packet >)
void	WifiMacTxTrace (std::string context, Ptr< const Packet >)
void	WifiPhyRxBeginTrace (std::string context, Ptr< const Packet > p)
void	WifiPhyRxDropTrace (std::string context, Ptr< const Packet >)

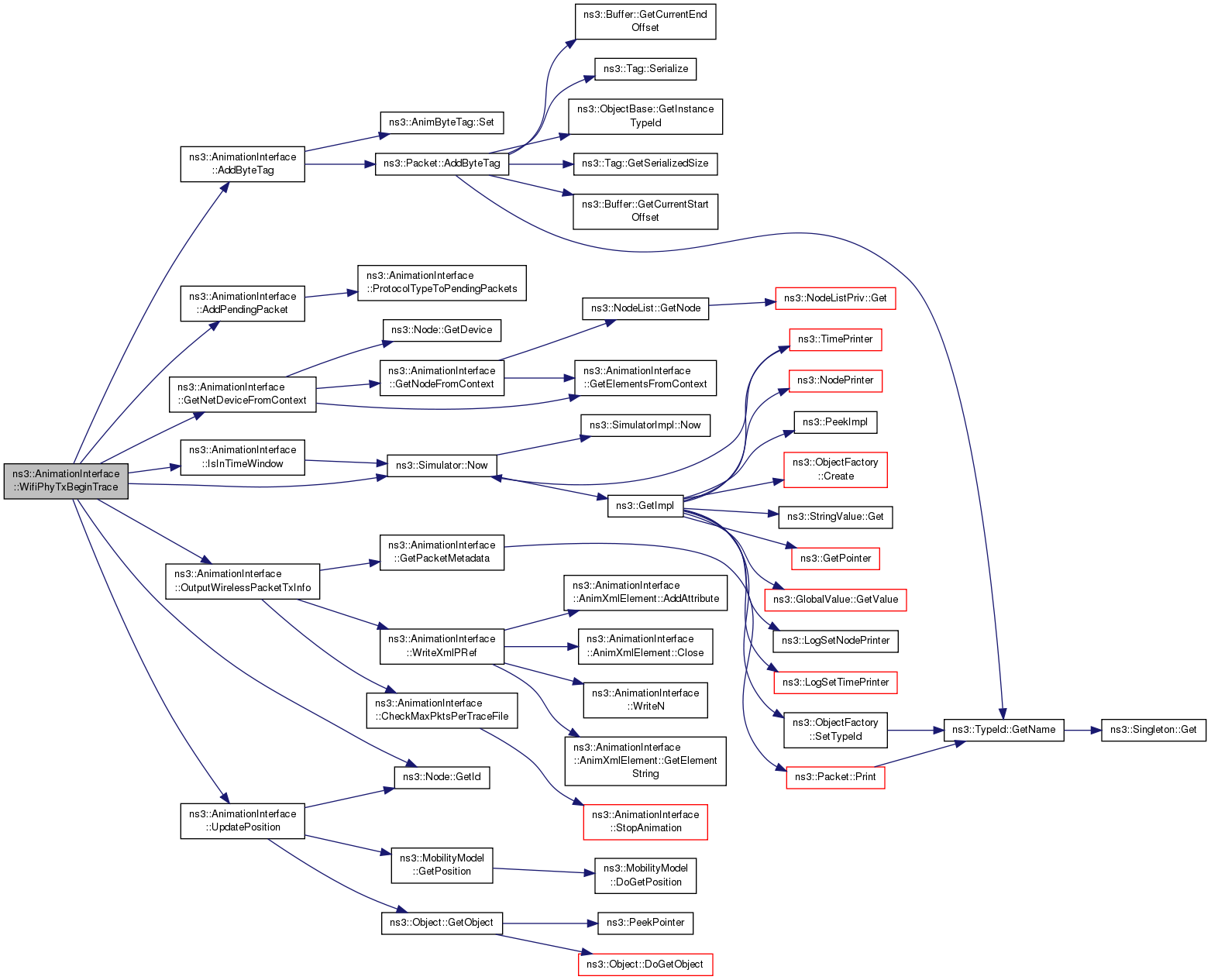

void	WifiPhyTxBeginTrace (std::string context, Ptr< const Packet > p)
void	WifiPhyTxDropTrace (std::string context, Ptr< const Packet >)

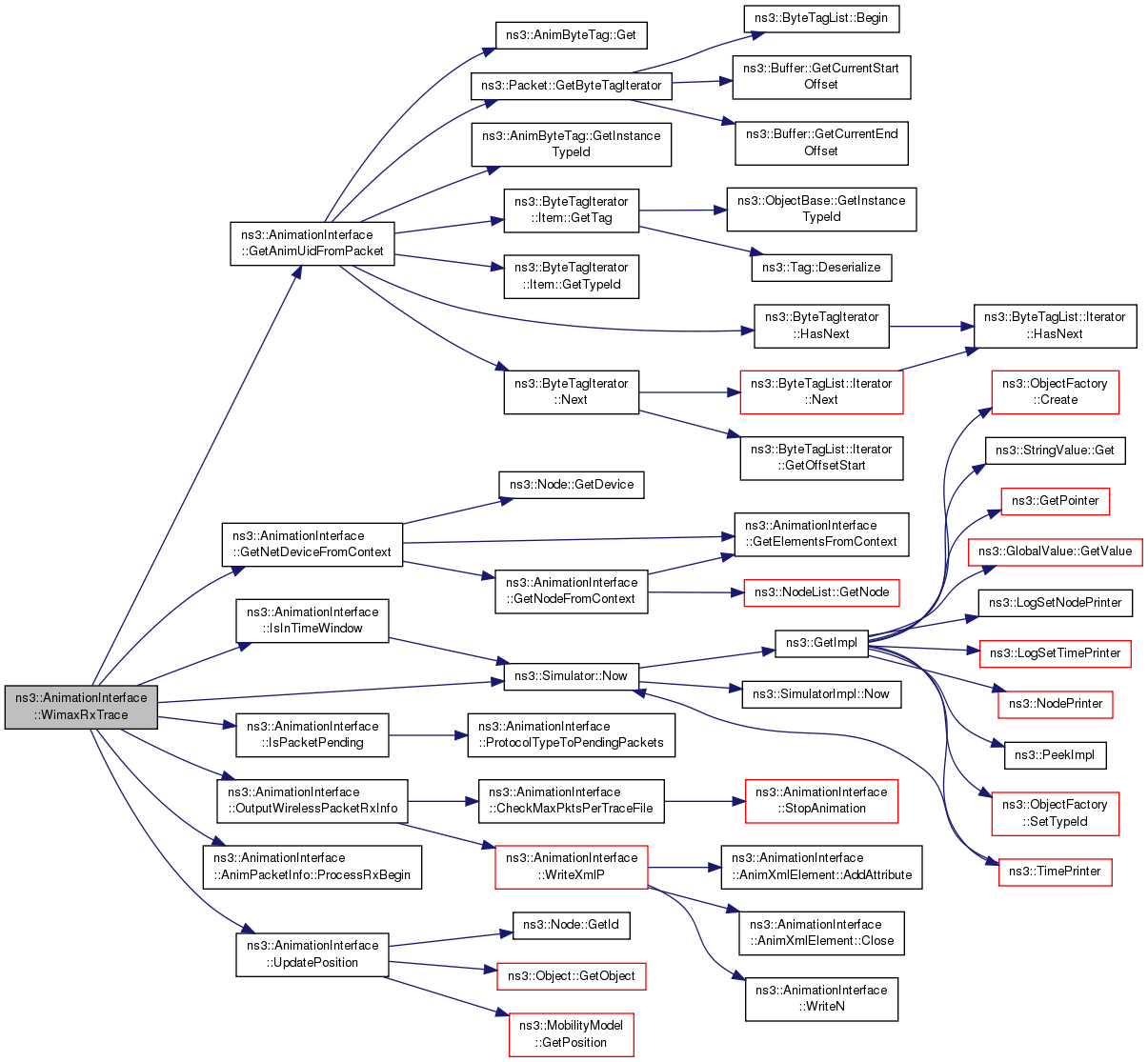

void	WimaxRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

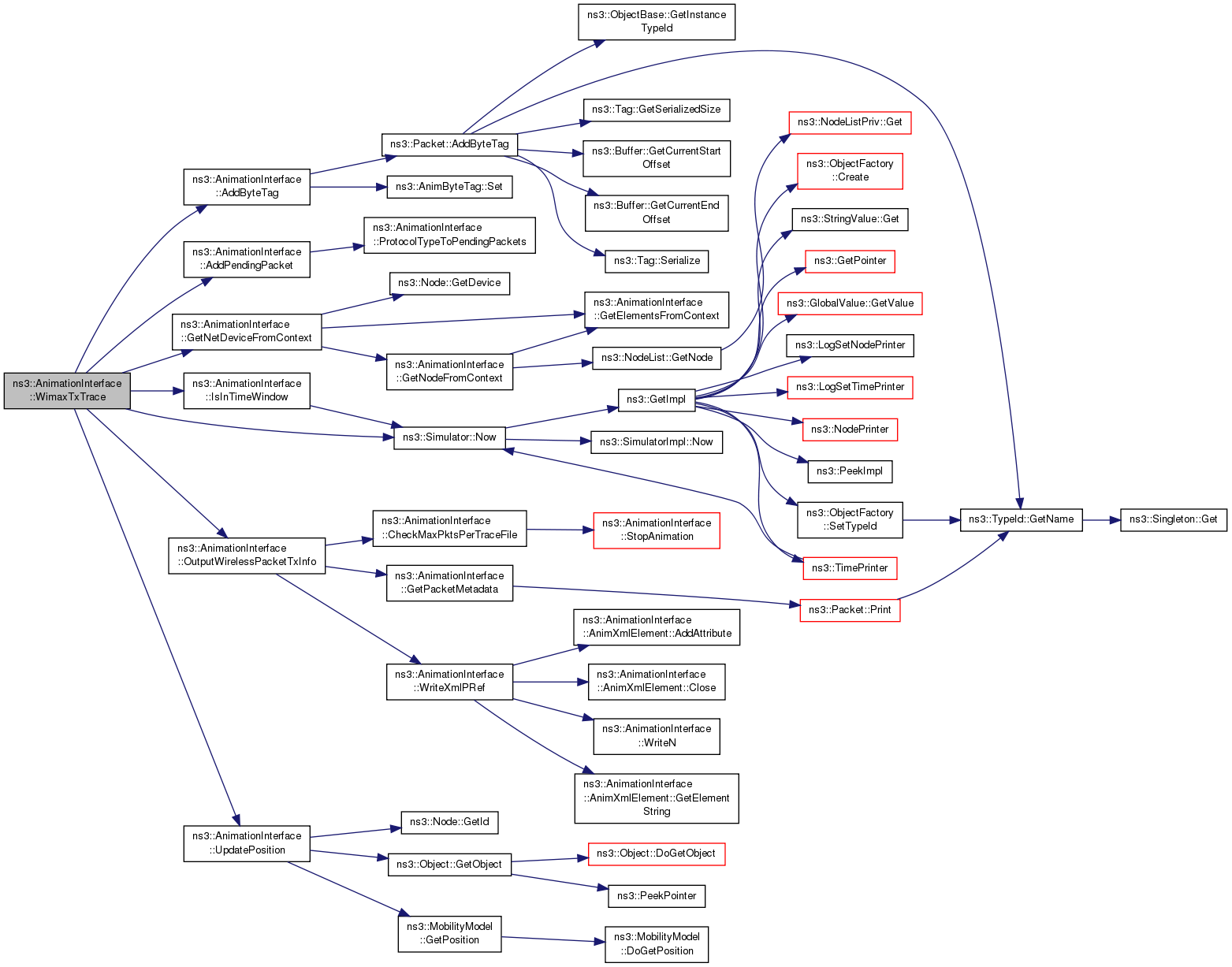

void	WimaxTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

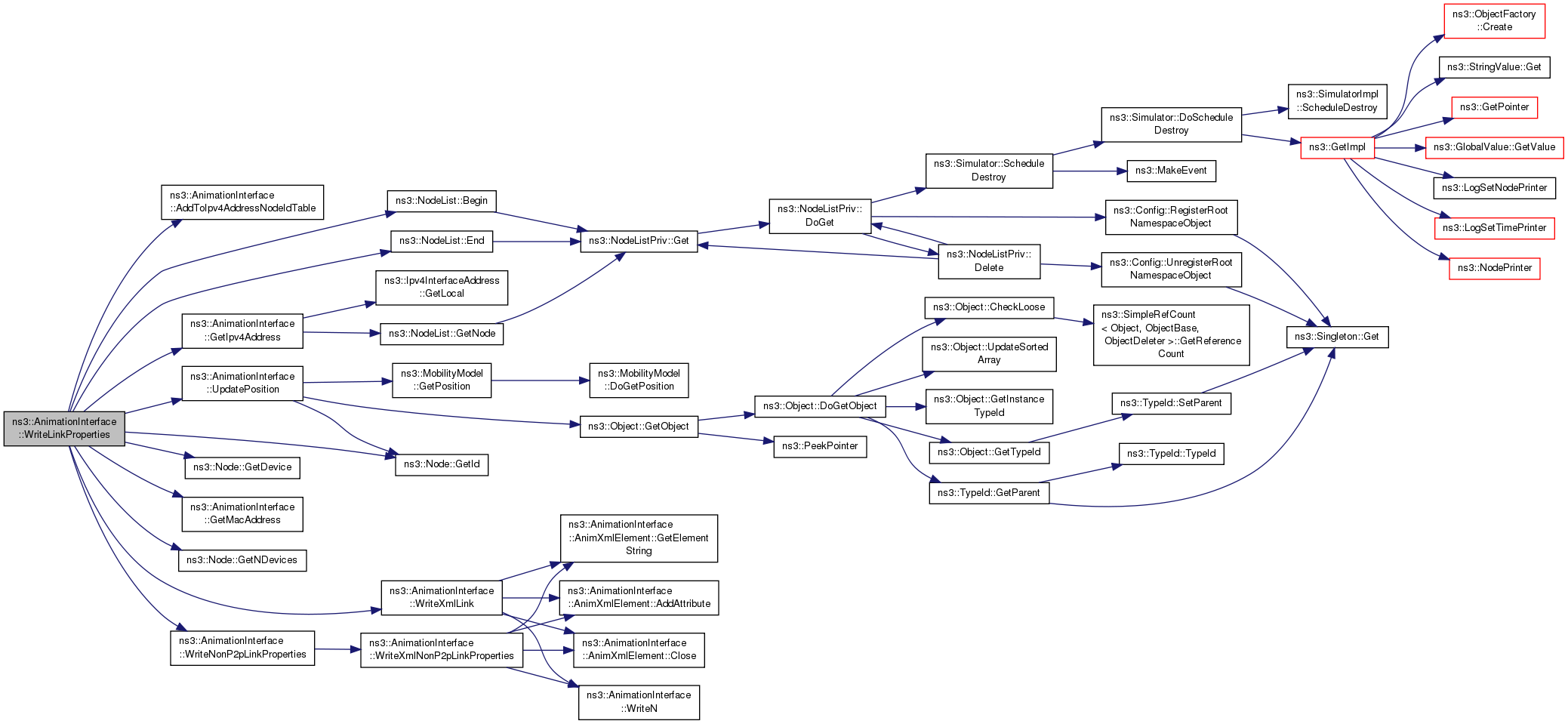

void	WriteLinkProperties ()

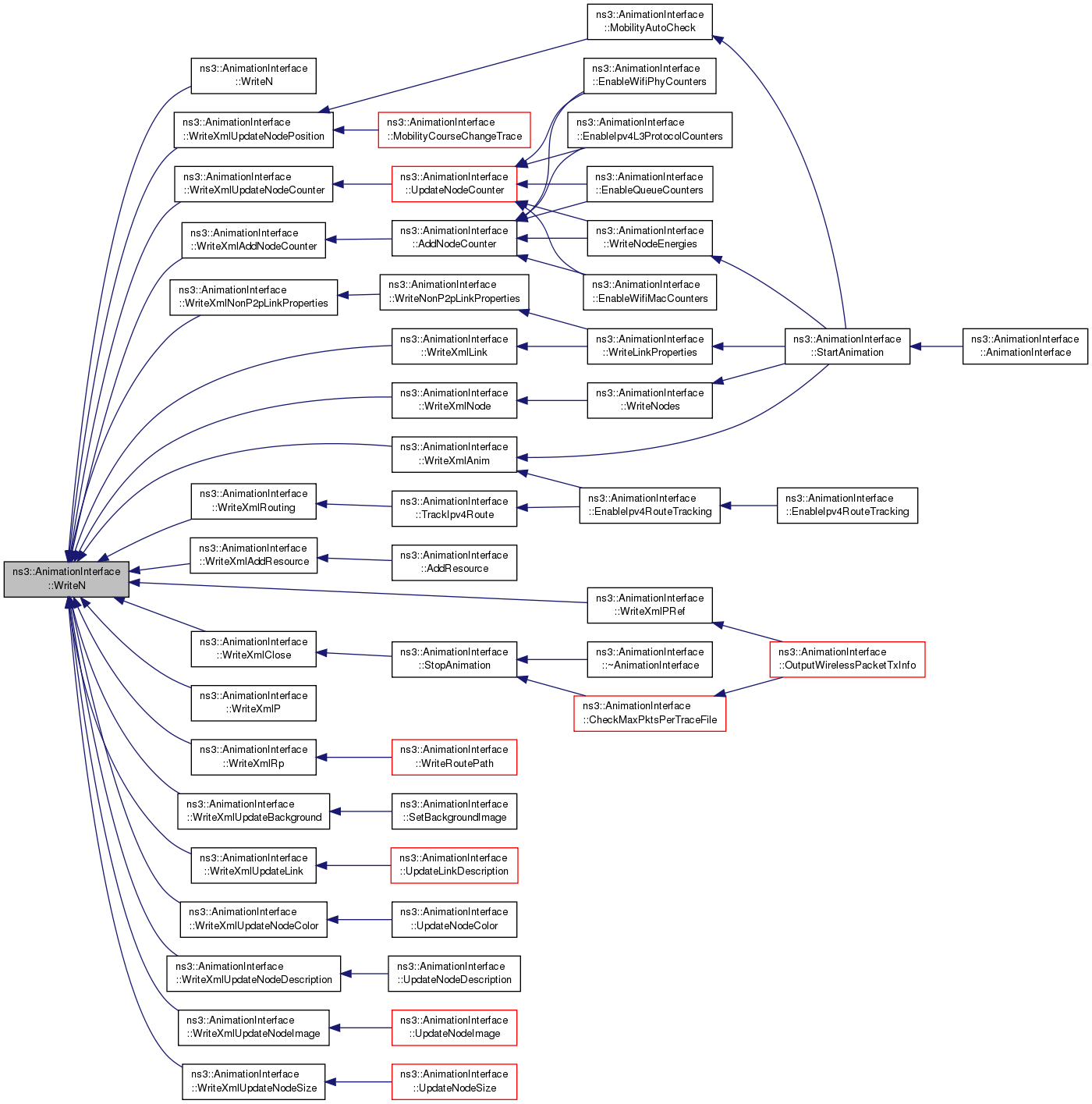

int	WriteN (const char *, uint32_t, FILE *f)
int	WriteN (const std::string &, FILE *f)
void	WriteNodeColors ()
void	WriteNodeEnergies ()

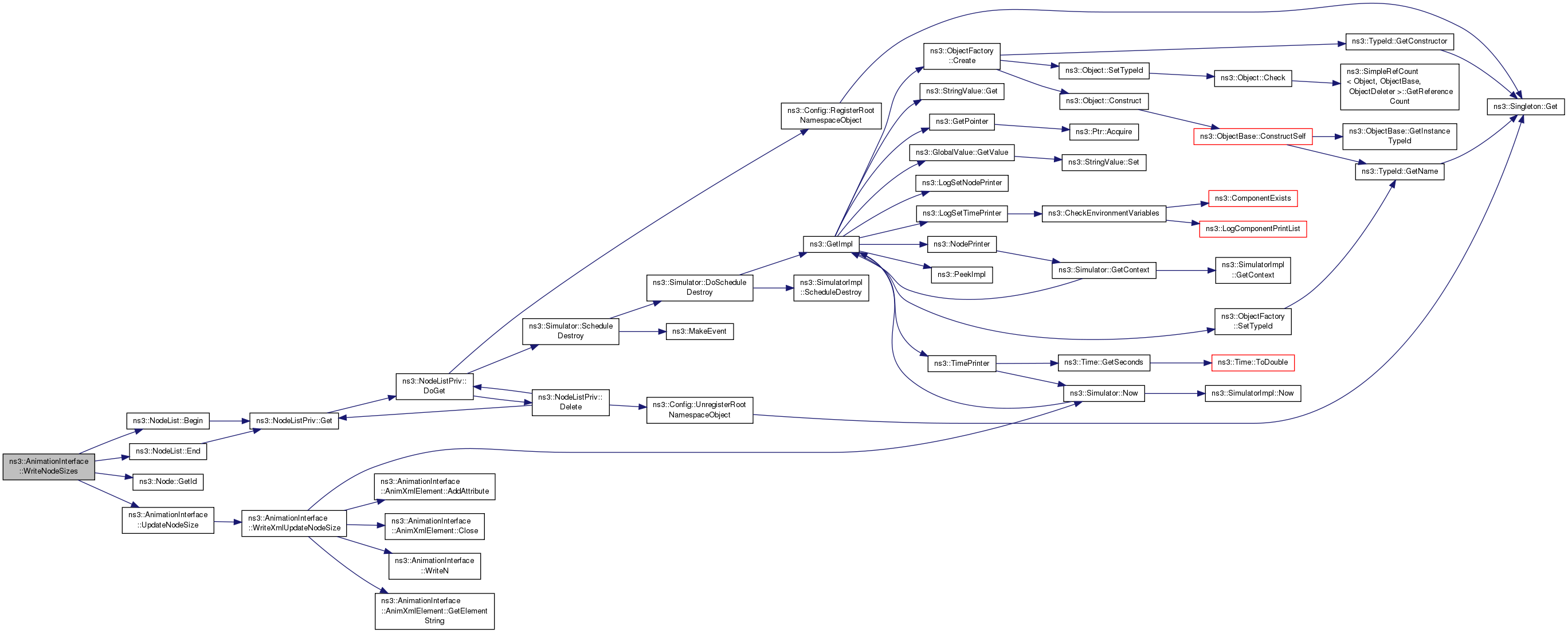

void	WriteNodes ()
void	WriteNodeSizes ()
void	WriteNodeUpdate (uint32_t nodeId)

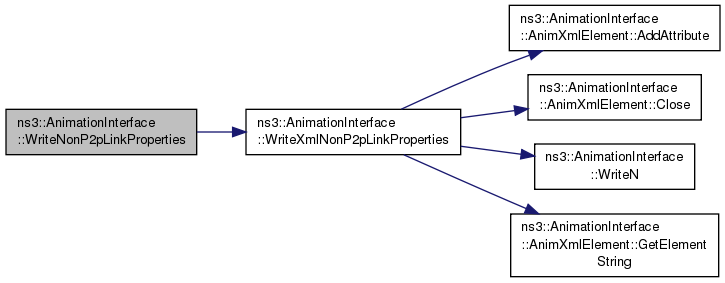

void	WriteNonP2pLinkProperties (uint32_t id, std::string ipv4Address, std::string channelType)
void	WriteRoutePath (uint32_t nodeId, std::string destination, Ipv4RoutePathElements rpElements)

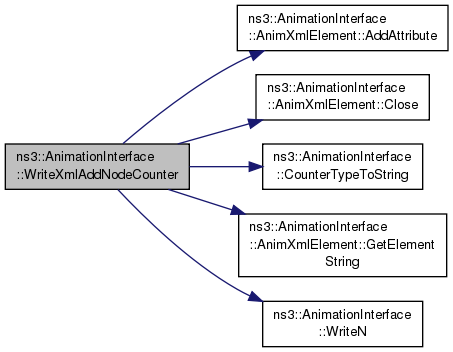

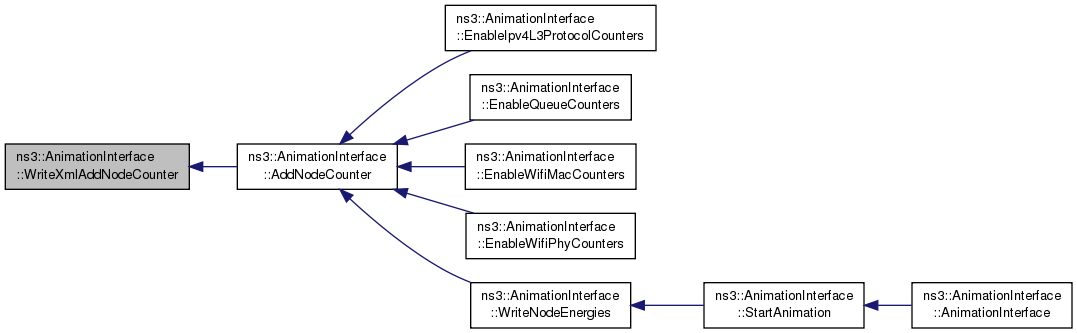

void	WriteXmlAddNodeCounter (uint32_t counterId, std::string counterName, CounterType counterType)

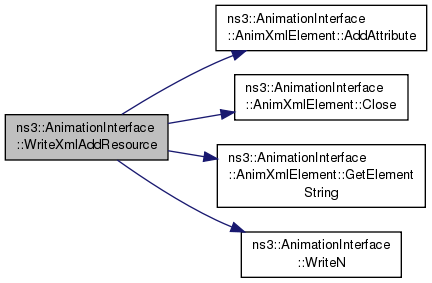

void	WriteXmlAddResource (uint32_t resourceId, std::string resourcePath)

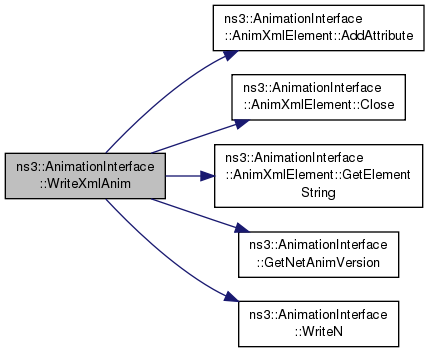

void	WriteXmlAnim (bool routing=false)
void	WriteXmlClose (std::string name, bool routing=false)

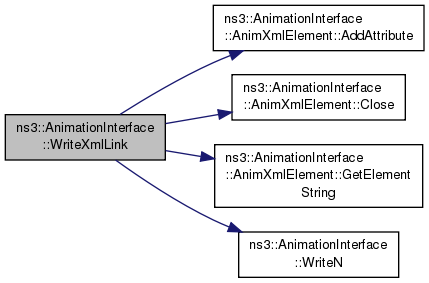

void	WriteXmlLink (uint32_t fromId, uint32_t toLp, uint32_t toId)
void	WriteXmlNode (uint32_t id, uint32_t sysId, double locX, double locY)

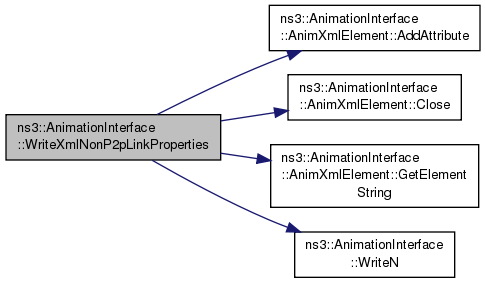

void	WriteXmlNonP2pLinkProperties (uint32_t id, std::string ipv4Address, std::string channelType)

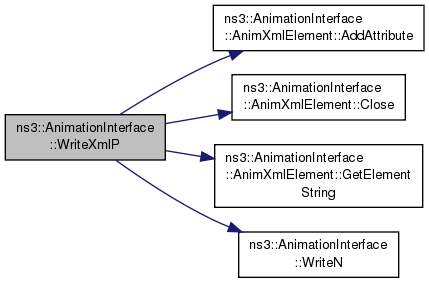

void	WriteXmlP (std::string pktType, uint32_t fId, double fbTx, double lbTx, uint32_t tId, double fbRx, double lbRx, std::string metaInfo="")
void	WriteXmlP (uint64_t animUid, std::string pktType, uint32_t fId, double fbTx, double lbTx)

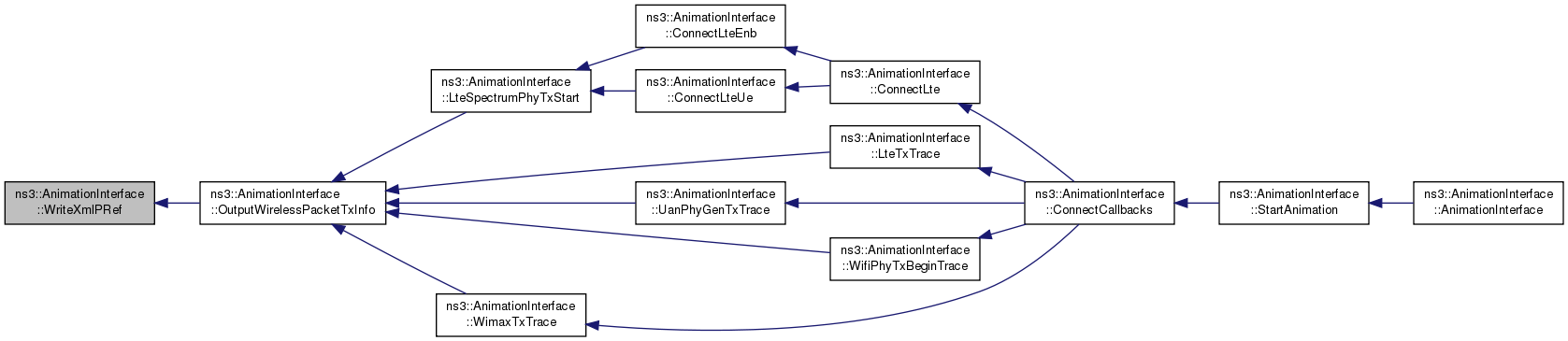

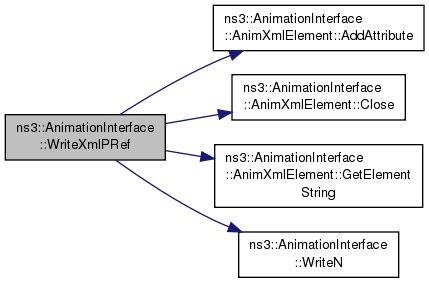

void	WriteXmlPRef (uint64_t animUid, uint32_t fId, double fbTx, std::string metaInfo="")

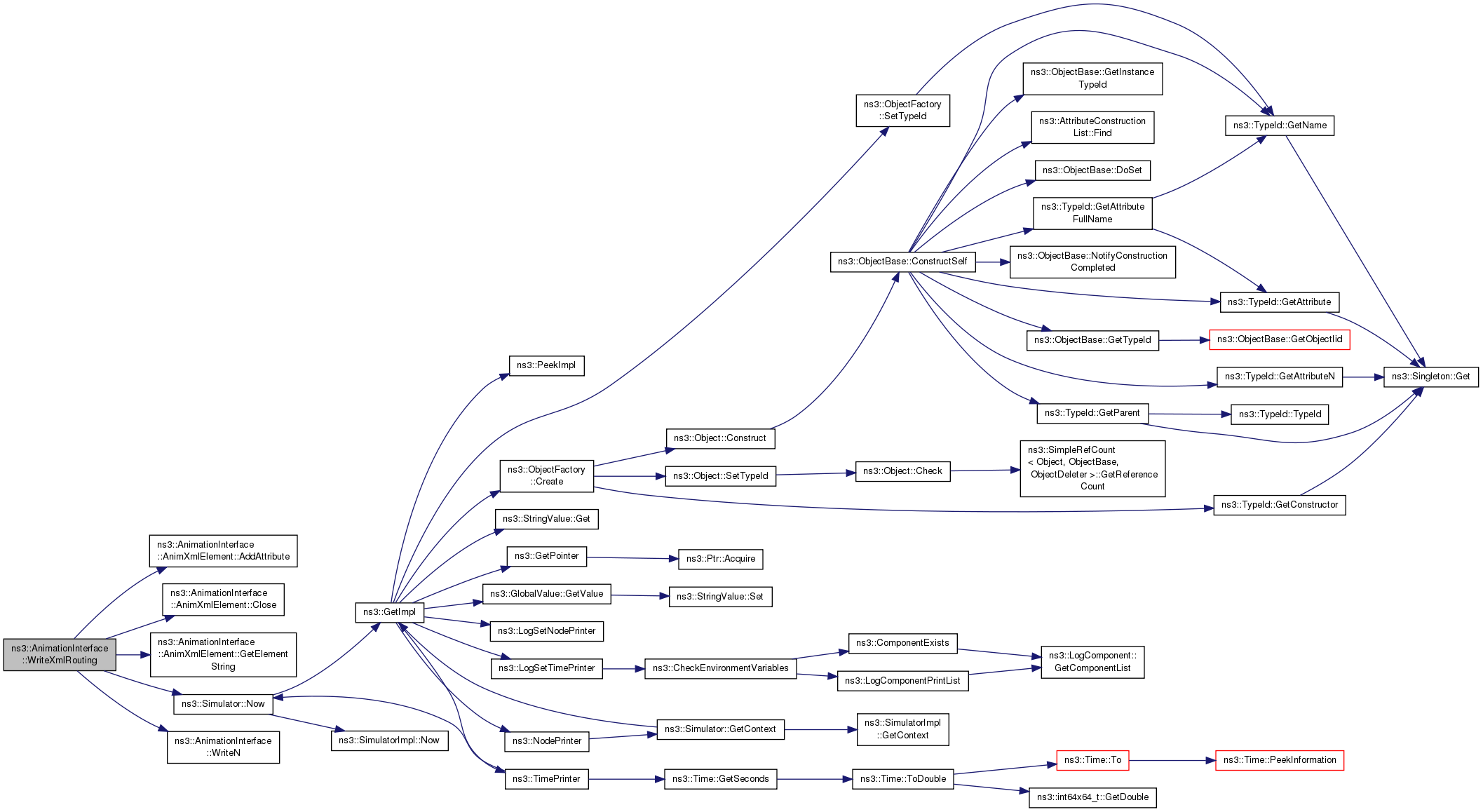

void	WriteXmlRouting (uint32_t id, std::string routingInfo)
void	WriteXmlRp (uint32_t nodeId, std::string destination, Ipv4RoutePathElements rpElements)
void	WriteXmlUpdateBackground (std::string fileName, double x, double y, double scaleX, double scaleY, double opacity)
void	WriteXmlUpdateLink (uint32_t fromId, uint32_t toId, std::string)
void	WriteXmlUpdateNodeColor (uint32_t nodeId, uint8_t r, uint8_t g, uint8_t b)

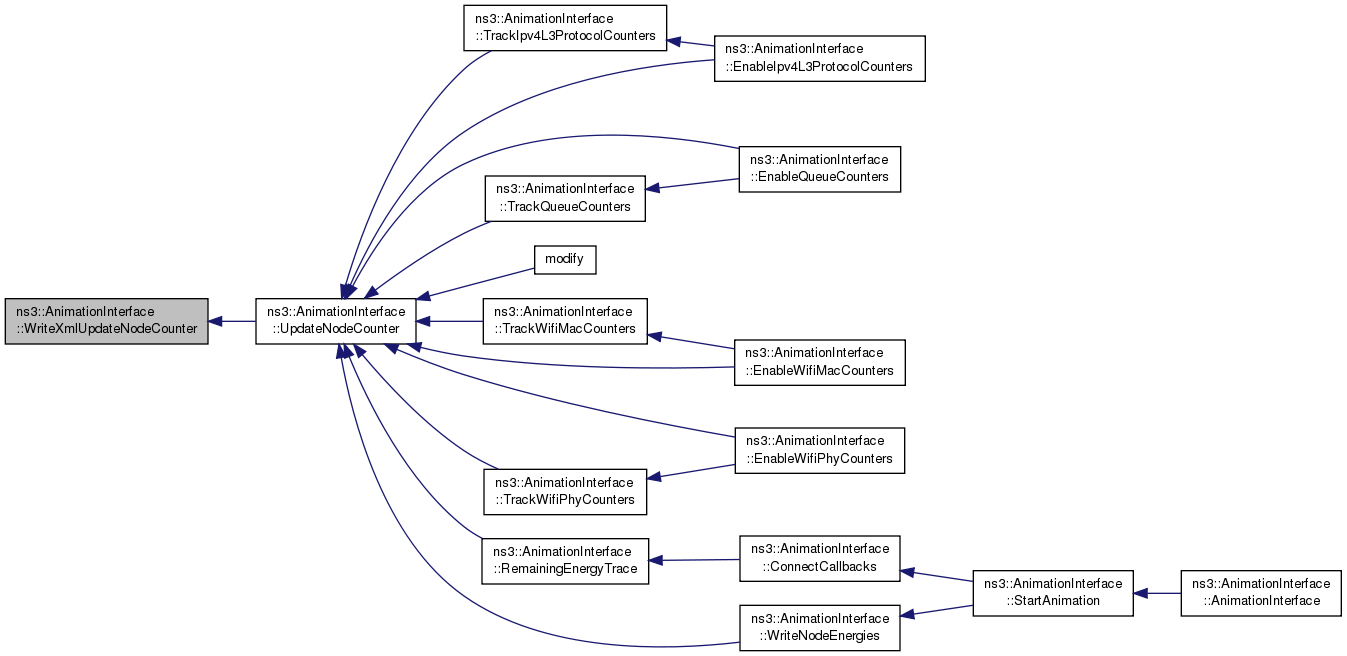

void	WriteXmlUpdateNodeCounter (uint32_t counterId, uint32_t nodeId, double value)

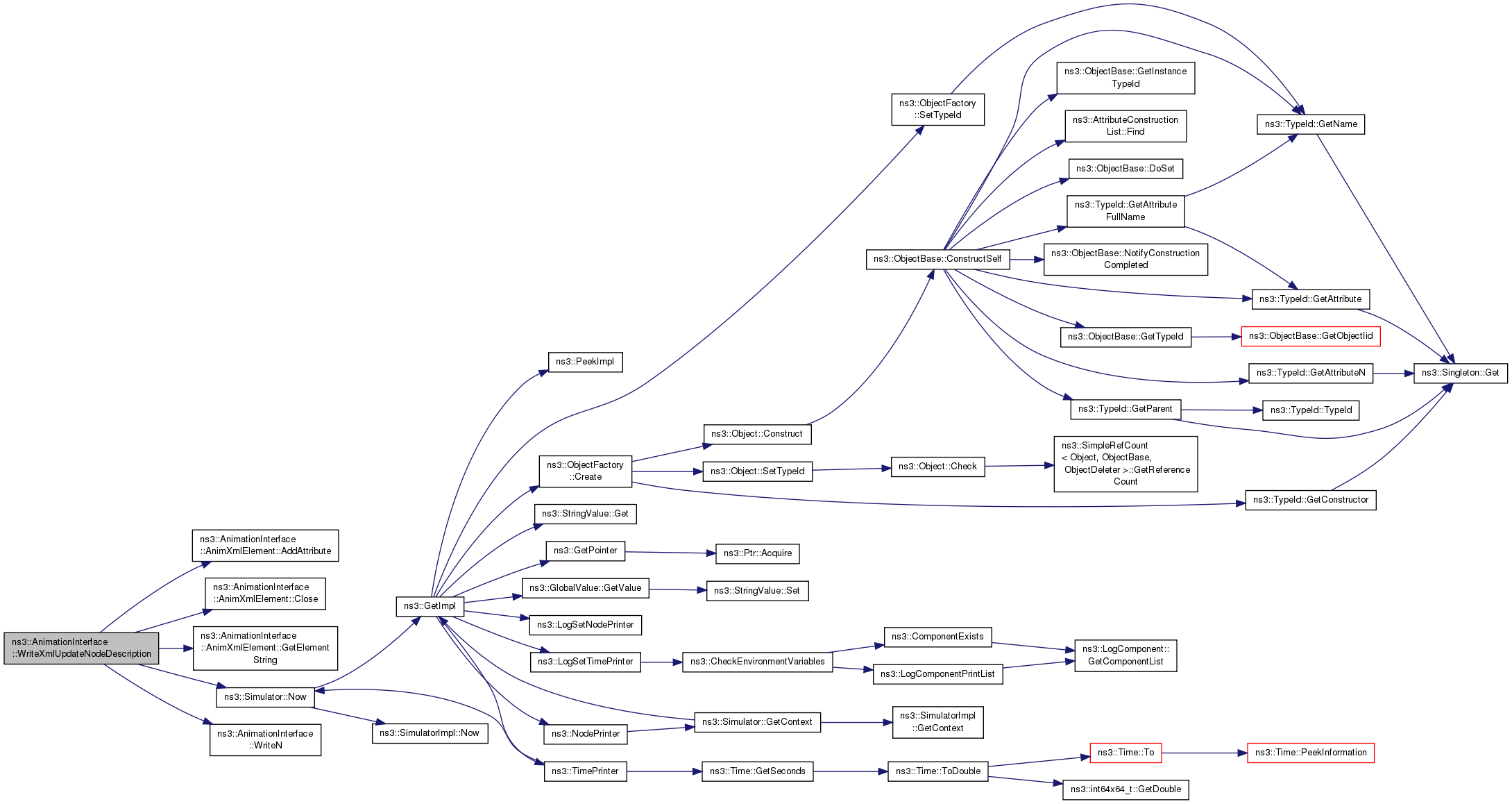

void	WriteXmlUpdateNodeDescription (uint32_t nodeId)
void	WriteXmlUpdateNodeImage (uint32_t nodeId, uint32_t resourceId)

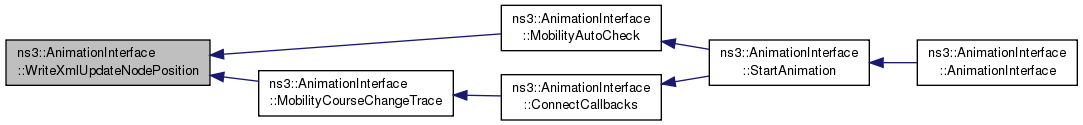

void	WriteXmlUpdateNodePosition (uint32_t nodeId, double x, double y)

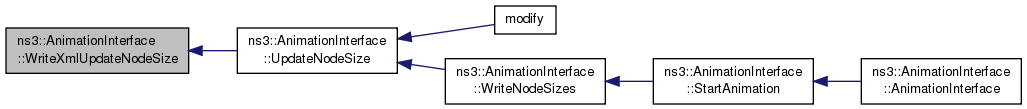

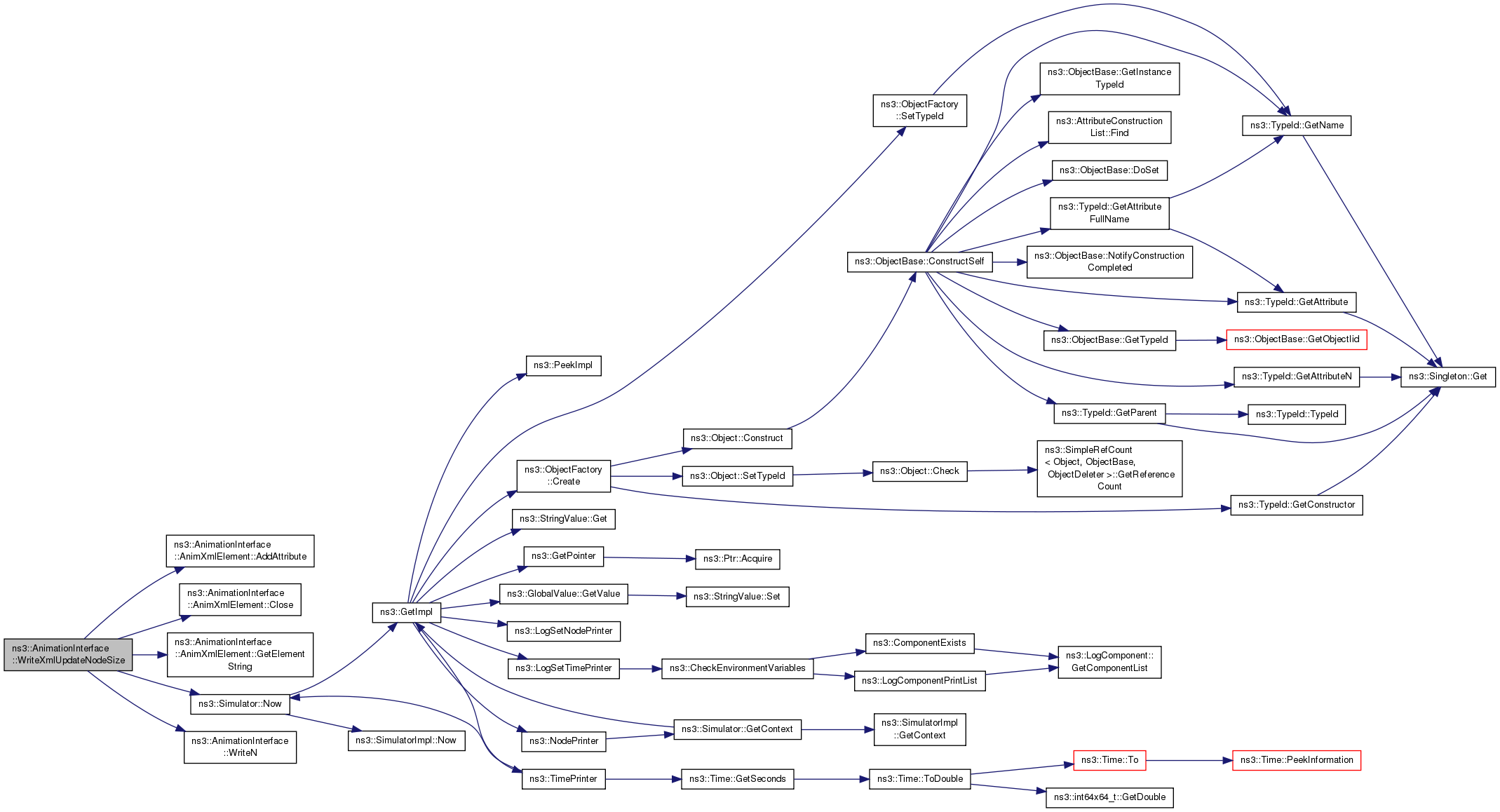

void	WriteXmlUpdateNodeSize (uint32_t nodeId, double width, double height)

Private Attributes
uint64_t	gAnimUid
uint64_t	m_currentPktCount
bool	m_enablePacketMetadata
FILE *	m_f
Time	m_ipv4L3ProtocolCountersPollInterval
Time	m_ipv4L3ProtocolCountersStopTime
uint32_t	m_ipv4L3ProtocolDropCounterId
uint32_t	m_ipv4L3ProtocolRxCounterId
uint32_t	m_ipv4L3ProtocolTxCounterId
std::vector< Ipv4RouteTrackElement >	m_ipv4RouteTrackElements
std::map< std::string, uint32_t >	m_ipv4ToNodeIdMap
LinkPropertiesMap	m_linkProperties
std::map< std::string, uint32_t >	m_macToNodeIdMap
uint64_t	m_maxPktsPerFile
Time	m_mobilityPollInterval
NodeColorsMap	m_nodeColors
std::vector< std::string >	m_nodeCounters
NodeDescriptionsMap	m_nodeDescriptions
EnergyFractionMap	m_nodeEnergyFraction
NodeCounterMap64	m_nodeIpv4Drop
NodeCounterMap64	m_nodeIpv4Rx
NodeCounterMap64	m_nodeIpv4Tx
std::map< uint32_t, Vector >	m_nodeLocation
NodeCounterMap64	m_nodeQueueDequeue
NodeCounterMap64	m_nodeQueueDrop
NodeCounterMap64	m_nodeQueueEnqueue
std::map< uint32_t, NodeSize >	m_nodeSizes
NodeCounterMap64	m_nodeWifiMacRx
NodeCounterMap64	m_nodeWifiMacRxDrop
NodeCounterMap64	m_nodeWifiMacTx
NodeCounterMap64	m_nodeWifiMacTxDrop
NodeCounterMap64	m_nodeWifiPhyRxDrop
NodeCounterMap64	m_nodeWifiPhyTxDrop
std::string	m_originalFileName
std::string	m_outputFileName
AnimUidPacketInfoMap	m_pendingCsmaPackets
AnimUidPacketInfoMap	m_pendingLtePackets
AnimUidPacketInfoMap	m_pendingUanPackets
AnimUidPacketInfoMap	m_pendingWifiPackets
AnimUidPacketInfoMap	m_pendingWimaxPackets
Time	m_queueCountersPollInterval
Time	m_queueCountersStopTime
uint32_t	m_queueDequeueCounterId
uint32_t	m_queueDropCounterId
uint32_t	m_queueEnqueueCounterId
uint32_t	m_remainingEnergyCounterId
std::vector< std::string >	m_resources
FILE *	m_routingF
std::string	m_routingFileName
NodeContainer	m_routingNc
Time	m_routingPollInterval
Time	m_routingStopTime
bool	m_started
Time	m_startTime
Time	m_stopTime
bool	m_trackPackets
Time	m_wifiMacCountersPollInterval
Time	m_wifiMacCountersStopTime
uint32_t	m_wifiMacRxCounterId
uint32_t	m_wifiMacRxDropCounterId
uint32_t	m_wifiMacTxCounterId
uint32_t	m_wifiMacTxDropCounterId
Time	m_wifiPhyCountersPollInterval
Time	m_wifiPhyCountersStopTime
uint32_t	m_wifiPhyRxDropCounterId
uint32_t	m_wifiPhyTxDropCounterId
AnimWriteCallback	m_writeCallback

Static Private Attributes
static Rectangle *	userBoundary

Detailed Description

Interface to network animator.

Provides functions that facilitate communications with an external or internal network animator.

Definition at line 69 of file animation-interface.h.

Member Typedef Documentation

typedef std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::AnimUidPacketInfoMap

private

Definition at line 508 of file animation-interface.h.

typedef void(* ns3::AnimationInterface::AnimWriteCallback) (const char *str)

typedef for WriteCallBack used for listening to AnimationInterface write messages

Definition at line 94 of file animation-interface.h.

typedef std::map<uint32_t, double> ns3::AnimationInterface::EnergyFractionMap

private

Definition at line 509 of file animation-interface.h.

typedef std::vector<Ipv4RoutePathElement> ns3::AnimationInterface::Ipv4RoutePathElements

private

Definition at line 510 of file animation-interface.h.

typedef std::map<P2pLinkNodeIdPair, LinkProperties, LinkPairCompare> ns3::AnimationInterface::LinkPropertiesMap

private

Definition at line 505 of file animation-interface.h.

typedef std::map<uint32_t, Rgb> ns3::AnimationInterface::NodeColorsMap

private

Definition at line 507 of file animation-interface.h.

typedef std::map<uint32_t, uint64_t> ns3::AnimationInterface::NodeCounterMap64

private

Definition at line 514 of file animation-interface.h.

typedef std::map<uint32_t, std::string> ns3::AnimationInterface::NodeDescriptionsMap

private

Definition at line 506 of file animation-interface.h.

Constructor & Destructor Documentation

ns3::AnimationInterface::AnimationInterface

(

const std::string

filename

)

Constructor.

Parameters

filename

The Filename for the trace file used by the Animator

Definition at line 63 of file animation-interface.cc.

References StartAnimation().

Here is the call graph for this function:

ns3::AnimationInterface::~AnimationInterface

(

)

Destructor for the animator interface.

Definition at line 85 of file animation-interface.cc.

References StopAnimation().

Here is the call graph for this function:

Member Function Documentation

void ns3::AnimationInterface::AddByteTag ( uint64_t  animUid, Ptr< const Packet >  p  )

private

Definition at line 612 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), and ns3::AnimByteTag::Set().

Referenced by CsmaPhyTxBeginTrace(), LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenTxTrace(), WifiPhyTxBeginTrace(), and WimaxTxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::AnimationInterface::AddNodeCounter	(	std::string	counterName,
		CounterType	counterType
	)

Setup a node counter.

Parameters

counterName	A string to identify the counter
counterType	The type of the counter, such as uint32, double etc

returns The id of the counter to be used as a reference for future

Definition at line 226 of file animation-interface.cc.

References m_nodeCounters, and WriteXmlAddNodeCounter().

Referenced by EnableIpv4L3ProtocolCounters(), EnableQueueCounters(), EnableWifiMacCounters(), EnableWifiPhyCounters(), and WriteNodeEnergies().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingPacket ( ProtocolType  protocolType, uint64_t  animUid, AnimPacketInfo  pktInfo  )

private

Definition at line 1145 of file animation-interface.cc.

References NS_ASSERT, and ProtocolTypeToPendingPackets().

Referenced by CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), and WimaxTxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::AnimationInterface::AddResource

(

std::string

resourcePath

)

Add a resource such as the path to an image file.

Parameters

resourcePath

Absolute Path to an image/resource

returns a number identifying the resource

Definition at line 235 of file animation-interface.cc.

References m_resources, and WriteXmlAddResource().

Here is the call graph for this function:

AnimationInterface & ns3::AnimationInterface::AddSourceDestination	(	uint32_t	fromNodeId,
		std::string	destinationIpv4Address
	)

Helper function to print the routing path from a source node to destination IP.

Parameters

fromNodeId	The source node
destinationIpv4Address	The destination Ipv4 Address

Returns

reference to this AnimationInterface object

Definition at line 200 of file animation-interface.cc.

References m_ipv4RouteTrackElements.

void ns3::AnimationInterface::AddToIpv4AddressNodeIdTable ( std::string  ipv4Address, uint32_t  nodeId  )

private

Definition at line 1307 of file animation-interface.cc.

References m_ipv4ToNodeIdMap.

Referenced by WriteLinkProperties().

Here is the caller graph for this function:

void ns3::AnimationInterface::CheckMaxPktsPerTraceFile ( )

private

Definition at line 1703 of file animation-interface.cc.

References m_currentPktCount, m_maxPktsPerFile, NS_LOG_UNCOND, and StopAnimation().

Referenced by DevTxTrace(), OutputCsmaPacket(), OutputWirelessPacketRxInfo(), and OutputWirelessPacketTxInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectCallbacks ( )

private

Definition at line 1389 of file animation-interface.cc.

References ns3::Config::Connect(), ConnectLte(), ns3::Config::ConnectWithoutContext(), CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DequeueTrace(), DevTxTrace(), EnqueueTrace(), Ipv4DropTrace(), Ipv4RxTrace(), Ipv4TxTrace(), LteRxTrace(), LteTxTrace(), ns3::MakeCallback(), MobilityCourseChangeTrace(), QueueDropTrace(), RemainingEnergyTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiMacRxDropTrace(), WifiMacRxTrace(), WifiMacTxDropTrace(), WifiMacTxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxDropTrace(), WifiPhyTxBeginTrace(), WifiPhyTxDropTrace(), WimaxRxTrace(), and WimaxTxTrace().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectLte ( )

private

Definition at line 1361 of file animation-interface.cc.

References ns3::NodeList::Begin(), ConnectLteEnb(), ConnectLteUe(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), and NS_ASSERT.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

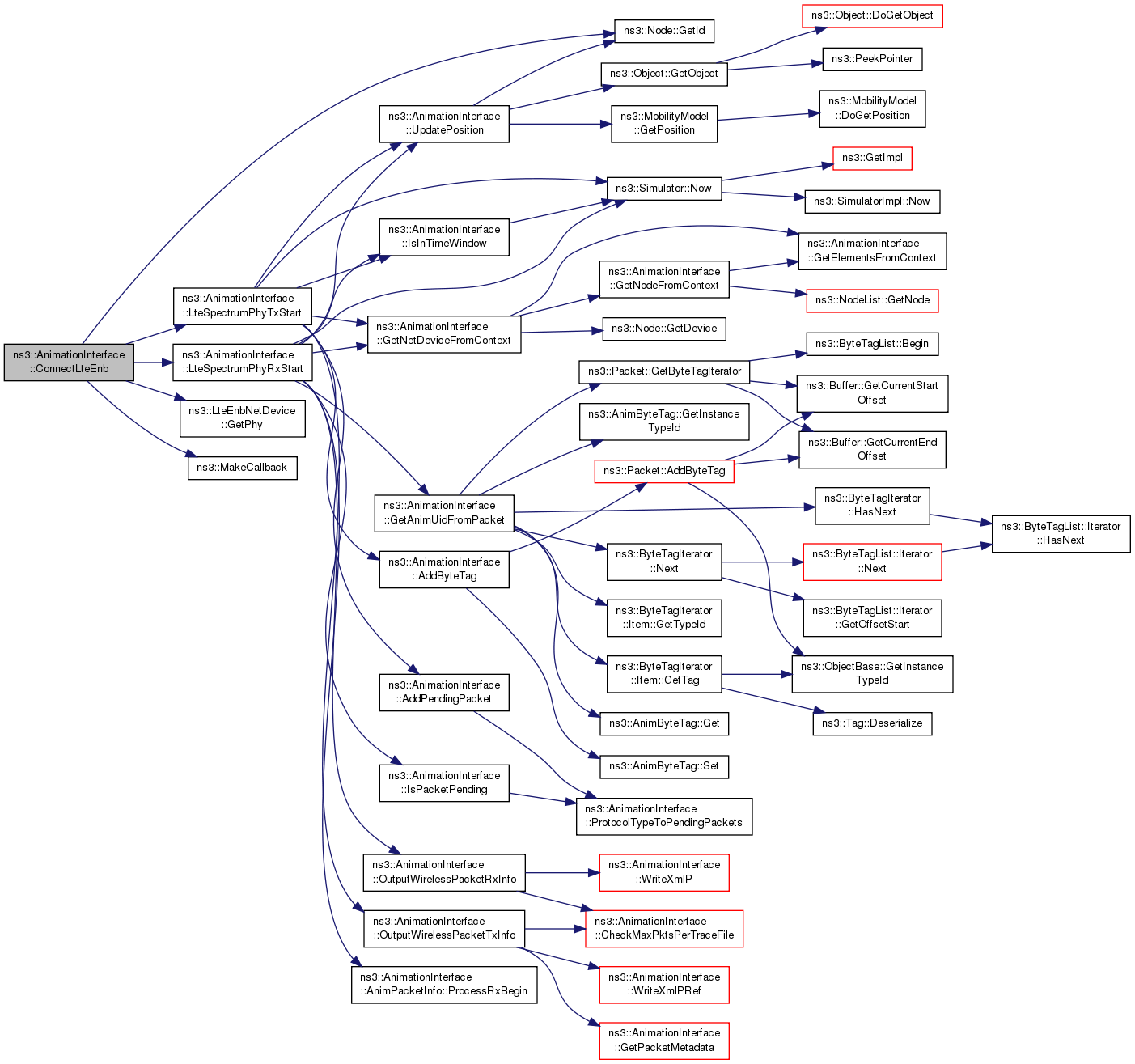

void ns3::AnimationInterface::ConnectLteEnb ( Ptr< Node >  n, Ptr< LteEnbNetDevice >  nd, uint32_t  devIndex  )

private

Definition at line 1315 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::LteEnbNetDevice::GetPhy(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), and ns3::MakeCallback().

Referenced by ConnectLte().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectLteUe ( Ptr< Node >  n, Ptr< LteUeNetDevice >  nd, uint32_t  devIndex  )

private

Definition at line 1339 of file animation-interface.cc.

References ns3::Node::GetId(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), and ns3::MakeCallback().

Referenced by ConnectLte().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::CounterTypeToString ( CounterType  counterType )

private

Definition at line 1227 of file animation-interface.cc.

References DOUBLE_COUNTER, and UINT32_COUNTER.

Referenced by WriteXmlAddNodeCounter().

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaMacRxTrace ( std::string  context, Ptr< const Packet >  p  )

private

Todo:

NS_ASSERT (CsmaPacketIsPending (AnimUid) == true);

Definition at line 1083 of file animation-interface.cc.

References CSMA, GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsInTimeWindow(), IsPacketPending(), m_pendingCsmaPackets, m_started, m_trackPackets, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, and OutputCsmaPacket().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyRxEndTrace ( std::string  context, Ptr< const Packet >  p  )

private

Todo:

NS_ASSERT (CsmaPacketIsPending (AnimUid) == true);

Definition at line 1059 of file animation-interface.cc.

References CSMA, GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsInTimeWindow(), IsPacketPending(), m_pendingCsmaPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputCsmaPacket(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxBegin(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyTxBeginTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 1016 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), CSMA, gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyTxEndTrace ( std::string  context, Ptr< const Packet >  p  )

private

Todo:

NS_ASSERT (IsPacketPending (AnimUid) == true);

Definition at line 1034 of file animation-interface.cc.

References AddPendingPacket(), CSMA, GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::Time::GetSeconds(), IsInTimeWindow(), IsPacketPending(), ns3::AnimationInterface::AnimPacketInfo::m_lbTx, m_pendingCsmaPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_INFO, NS_LOG_WARN, and UpdatePosition().

Referenced by ConnectCallbacks().

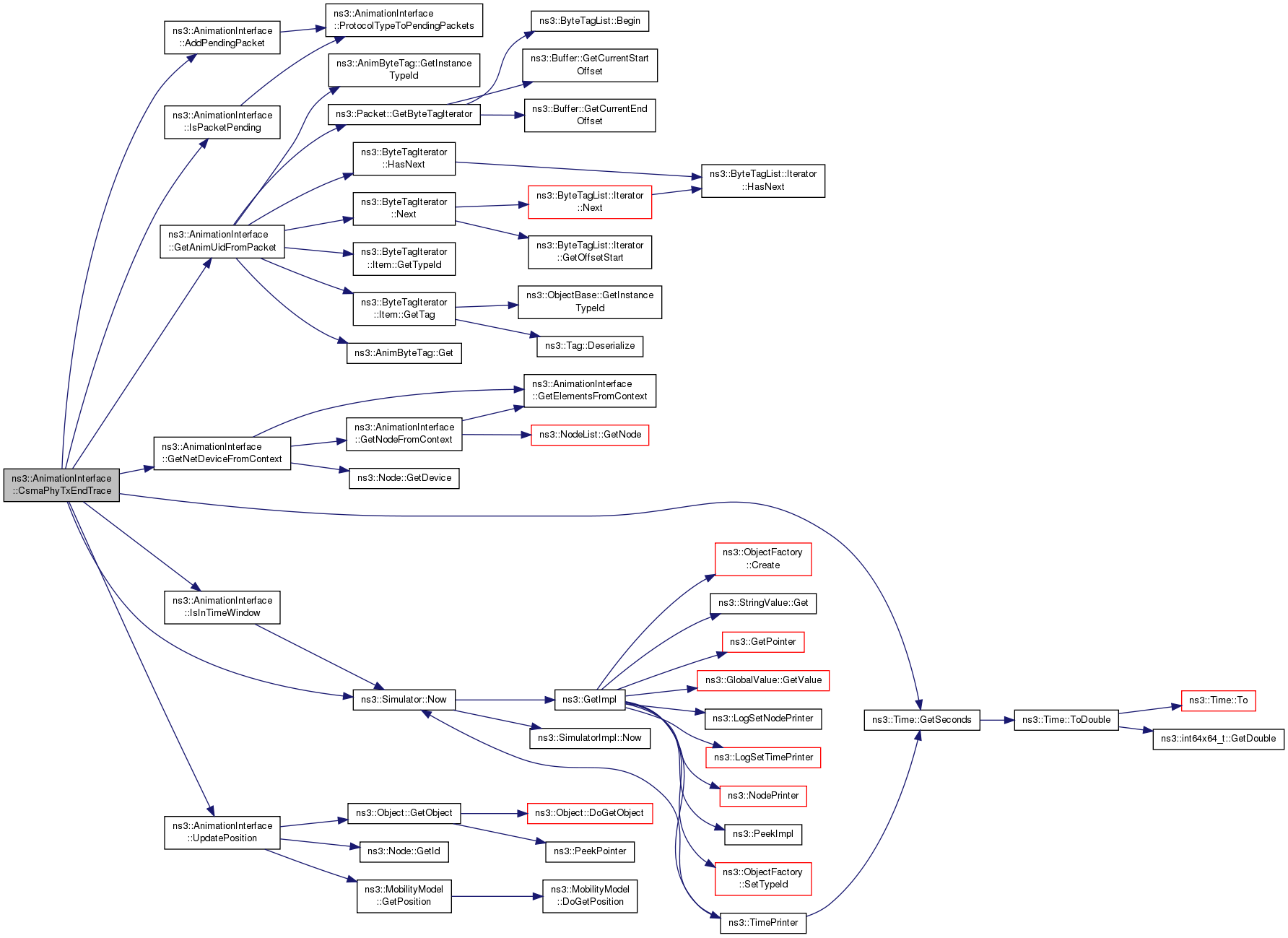

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::DequeueTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 719 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeQueueDequeue.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::DevTxTrace ( std::string  context, Ptr< const Packet >  p, Ptr< NetDevice >  tx, Ptr< NetDevice >  rx, Time  txTime, Time  rxTime  )

private

Definition at line 735 of file animation-interface.cc.

References CheckMaxPktsPerTraceFile(), GetPacketMetadata(), ns3::Time::GetSeconds(), IsInTimeWindow(), m_enablePacketMetadata, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, and WriteXmlP().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::EnableIpv4L3ProtocolCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = Seconds (1)
	)

Enable tracking of Ipv4 L3 Protocol Counters such as Tx, Rx, Drop.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Returns

none

Definition at line 161 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), ns3::Node::GetId(), m_ipv4L3ProtocolCountersPollInterval, m_ipv4L3ProtocolCountersStopTime, m_ipv4L3ProtocolDropCounterId, m_ipv4L3ProtocolRxCounterId, m_ipv4L3ProtocolTxCounterId, m_nodeIpv4Drop, m_nodeIpv4Rx, m_nodeIpv4Tx, ns3::Simulator::Schedule(), stopTime, TrackIpv4L3ProtocolCounters(), and UpdateNodeCounter().

Here is the call graph for this function:

AnimationInterface & ns3::AnimationInterface::EnableIpv4RouteTracking	(	std::string	fileName,
		Time	startTime,
		Time	stopTime,
		Time	pollInterval = Seconds (5)
	)

Enable tracking of the Ipv4 routing table for all Nodes.

Parameters

fileName	Trace file for storing routing table information
startTime	Start time for capture
stopTime	End time for capture
pollInterval	The periodic interval at which routing table information is polled Default: 5s

Returns

reference to this AnimationInterface object

Definition at line 182 of file animation-interface.cc.

References m_routingPollInterval, m_routingStopTime, ns3::Simulator::Schedule(), SetOutputFile(), stopTime, TrackIpv4Route(), and WriteXmlAnim().

Referenced by EnableIpv4RouteTracking().

Here is the call graph for this function:

Here is the caller graph for this function:

AnimationInterface & ns3::AnimationInterface::EnableIpv4RouteTracking	(	std::string	fileName,
		Time	startTime,
		Time	stopTime,
		NodeContainer	nc,
		Time	pollInterval = Seconds (5)
	)

Enable tracking of the Ipv4 routing table for a set of Nodes.

Parameters

fileName	Trace file for storing routing table information
startTime	Start time for capture
stopTime	End time for capture
nc	A NodeContainer containing nodes for which Routing table has to be tracked
pollInterval	The periodic interval at which routing table information is polled Default: 5s

Returns

reference to this AnimationInterface object

Definition at line 193 of file animation-interface.cc.

References EnableIpv4RouteTracking(), and m_routingNc.

Here is the call graph for this function:

void ns3::AnimationInterface::EnablePacketMetadata

(

bool

enable = true

)

Enable Packet metadata.

Parameters

enable

if true enables writing the packet metadata to the XML trace file if false disables writing the packet metadata

Returns

none

Definition at line 244 of file animation-interface.cc.

References ns3::Packet::EnablePrinting(), and m_enablePacketMetadata.

Here is the call graph for this function:

void ns3::AnimationInterface::EnableQueueCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = Seconds (1)
	)

Enable tracking of Queue Counters such as Enqueue, Dequeue, Queue Drops.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Returns

none

Definition at line 140 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), ns3::Node::GetId(), m_nodeQueueDequeue, m_nodeQueueDrop, m_nodeQueueEnqueue, m_queueCountersPollInterval, m_queueCountersStopTime, m_queueDequeueCounterId, m_queueDropCounterId, m_queueEnqueueCounterId, ns3::Simulator::Schedule(), stopTime, TrackQueueCounters(), and UpdateNodeCounter().

Here is the call graph for this function:

void ns3::AnimationInterface::EnableWifiMacCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = Seconds (1)
	)

Enable tracking of Wifi Mac Counters such as Tx, TxDrop, Rx, RxDrop.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Returns

none

Definition at line 116 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), ns3::Node::GetId(), m_nodeWifiMacRx, m_nodeWifiMacRxDrop, m_nodeWifiMacTx, m_nodeWifiMacTxDrop, m_wifiMacCountersPollInterval, m_wifiMacCountersStopTime, m_wifiMacRxCounterId, m_wifiMacRxDropCounterId, m_wifiMacTxCounterId, m_wifiMacTxDropCounterId, ns3::Simulator::Schedule(), stopTime, TrackWifiMacCounters(), and UpdateNodeCounter().

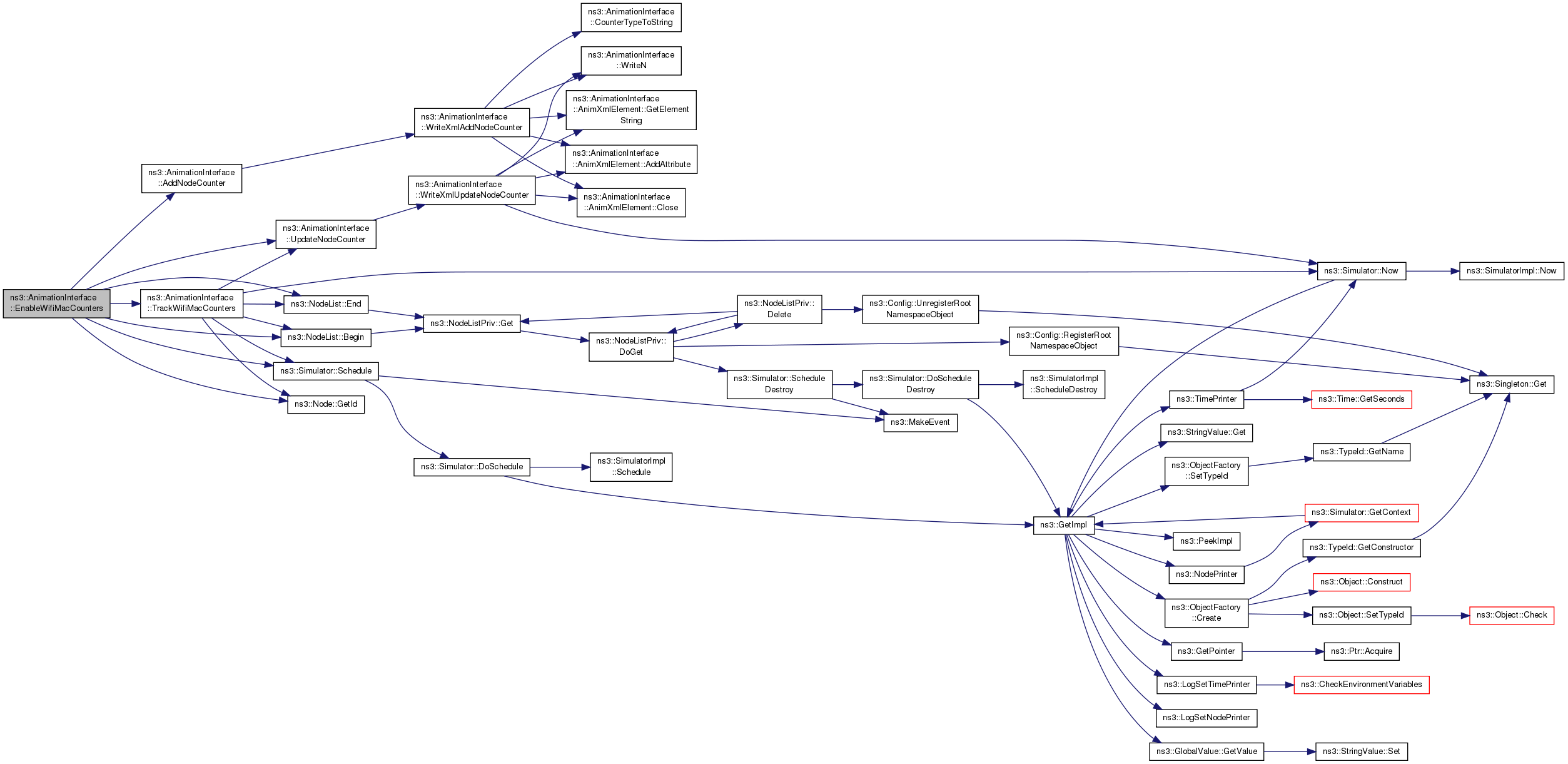

Here is the call graph for this function:

void ns3::AnimationInterface::EnableWifiPhyCounters	(	Time	startTime,
		Time	stopTime,
		Time	pollInterval = Seconds (1)
	)

Enable tracking of Wifi Phy Counters such as TxDrop, RxDrop.

Parameters

startTime	Start Time for capturing values
stopTime	Stop Time for capturing values
pollInterval	The periodic interval at which the counters are written to the trace file Default: 1s

Returns

none

Definition at line 97 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), ns3::Node::GetId(), m_nodeWifiPhyRxDrop, m_nodeWifiPhyTxDrop, m_wifiPhyCountersPollInterval, m_wifiPhyCountersStopTime, m_wifiPhyRxDropCounterId, m_wifiPhyTxDropCounterId, ns3::Simulator::Schedule(), stopTime, TrackWifiPhyCounters(), and UpdateNodeCounter().

Here is the call graph for this function:

void ns3::AnimationInterface::EnqueueTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 711 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeQueueEnqueue.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

uint64_t ns3::AnimationInterface::GetAnimUidFromPacket ( Ptr< const Packet >  p )

private

Definition at line 586 of file animation-interface.cc.

References ns3::AnimByteTag::Get(), ns3::Packet::GetByteTagIterator(), ns3::AnimByteTag::GetInstanceTypeId(), ns3::ByteTagIterator::Item::GetTag(), ns3::ByteTagIterator::Item::GetTypeId(), ns3::ByteTagIterator::HasNext(), and ns3::ByteTagIterator::Next().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), UanPhyGenRxTrace(), WifiPhyRxBeginTrace(), and WimaxRxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

const std::vector< std::string > ns3::AnimationInterface::GetElementsFromContext ( const std::string &  context ) const

private

Definition at line 544 of file animation-interface.cc.

Referenced by GetNetDeviceFromContext(), and GetNodeFromContext().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetIpv4Address ( Ptr< NetDevice >  nd )

private

Definition at line 1521 of file animation-interface.cc.

References ns3::Ipv4InterfaceAddress::GetLocal(), ns3::NodeList::GetNode(), and NS_LOG_WARN.

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetIpv4RoutingTable ( Ptr< Node >  n )

private

Definition at line 1899 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::Object::GetObject(), ns3::Ipv4::GetRoutingProtocol(), NS_ASSERT, and NS_LOG_WARN.

Referenced by TrackIpv4Route().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetMacAddress ( Ptr< NetDevice >  nd )

private

Definition at line 1512 of file animation-interface.cc.

Referenced by WriteLinkProperties().

Here is the caller graph for this function:

std::vector< Ptr< Node > > ns3::AnimationInterface::GetMovedNodes ( )

private

Definition at line 455 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), GetPosition(), NodeHasMoved(), NS_ASSERT, and UpdatePosition().

Referenced by MobilityAutoCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetNetAnimVersion ( )

private

Definition at line 1716 of file animation-interface.cc.

References NETANIM_VERSION.

Referenced by WriteXmlAnim().

Here is the caller graph for this function:

Ptr< NetDevice > ns3::AnimationInterface::GetNetDeviceFromContext ( std::string  context )

private

Definition at line 573 of file animation-interface.cc.

References ns3::Node::GetDevice(), GetElementsFromContext(), and GetNodeFromContext().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), WimaxRxTrace(), and WimaxTxTrace().

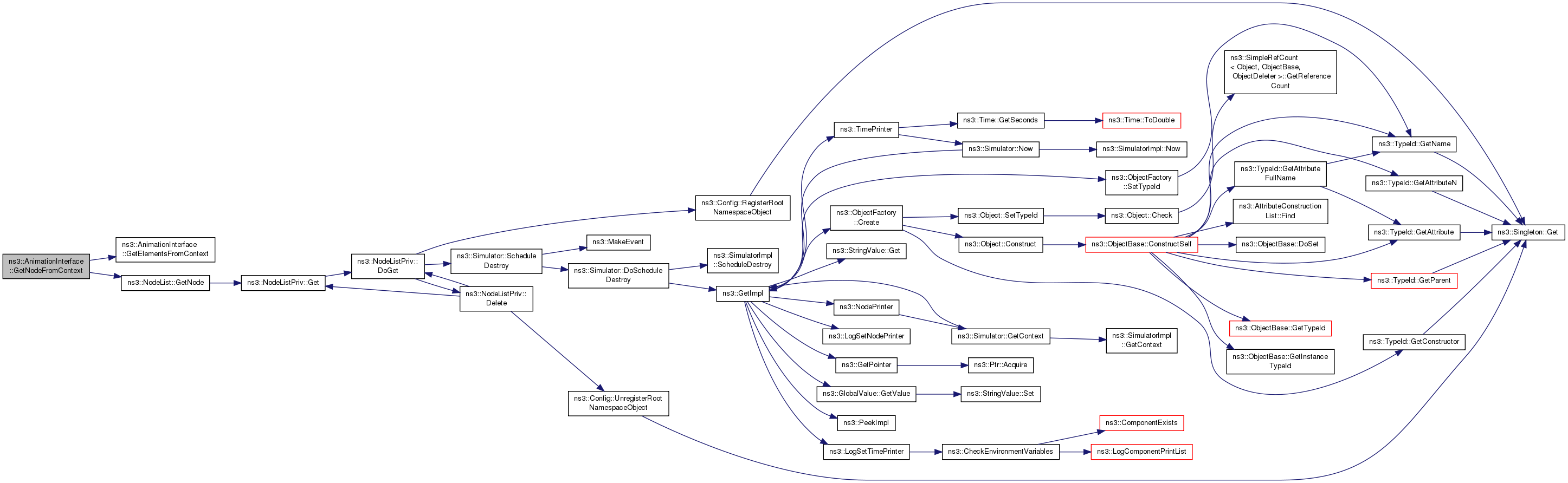

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::AnimationInterface::GetNodeEnergyFraction

(

Ptr< const Node >

node

)

const

Get node's energy fraction (This used only for testing)

returns current node's remaining energy (between [0, 1])

Definition at line 389 of file animation-interface.cc.

References m_nodeEnergyFraction, and NS_ASSERT.

Referenced by AnimationRemainingEnergyTestCase::CheckLogic().

Here is the caller graph for this function:

Ptr< Node > ns3::AnimationInterface::GetNodeFromContext ( const std::string &  context ) const

private

Definition at line 560 of file animation-interface.cc.

References GetElementsFromContext(), ns3::NodeList::GetNode(), and NS_ASSERT.

Referenced by DequeueTrace(), EnqueueTrace(), GetNetDeviceFromContext(), Ipv4DropTrace(), Ipv4RxTrace(), Ipv4TxTrace(), QueueDropTrace(), RemainingEnergyTrace(), WifiMacRxDropTrace(), WifiMacRxTrace(), WifiMacTxDropTrace(), WifiMacTxTrace(), WifiPhyRxDropTrace(), and WifiPhyTxDropTrace().

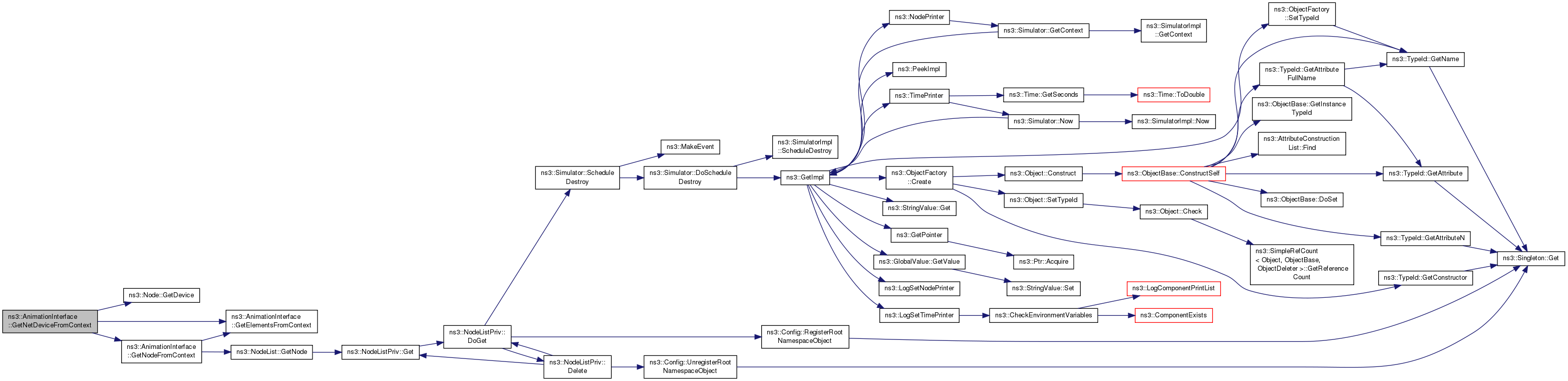

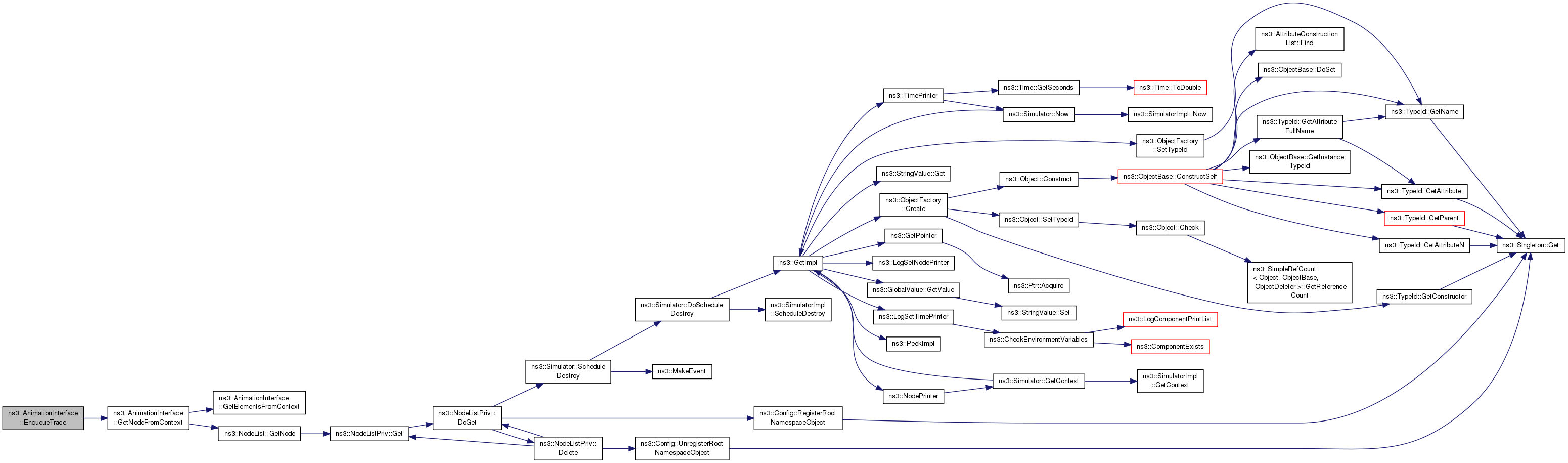

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetPacketMetadata ( Ptr< const Packet >  p )

private

Definition at line 1249 of file animation-interface.cc.

References ns3::Packet::Print().

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacketTxInfo().

Here is the call graph for this function:

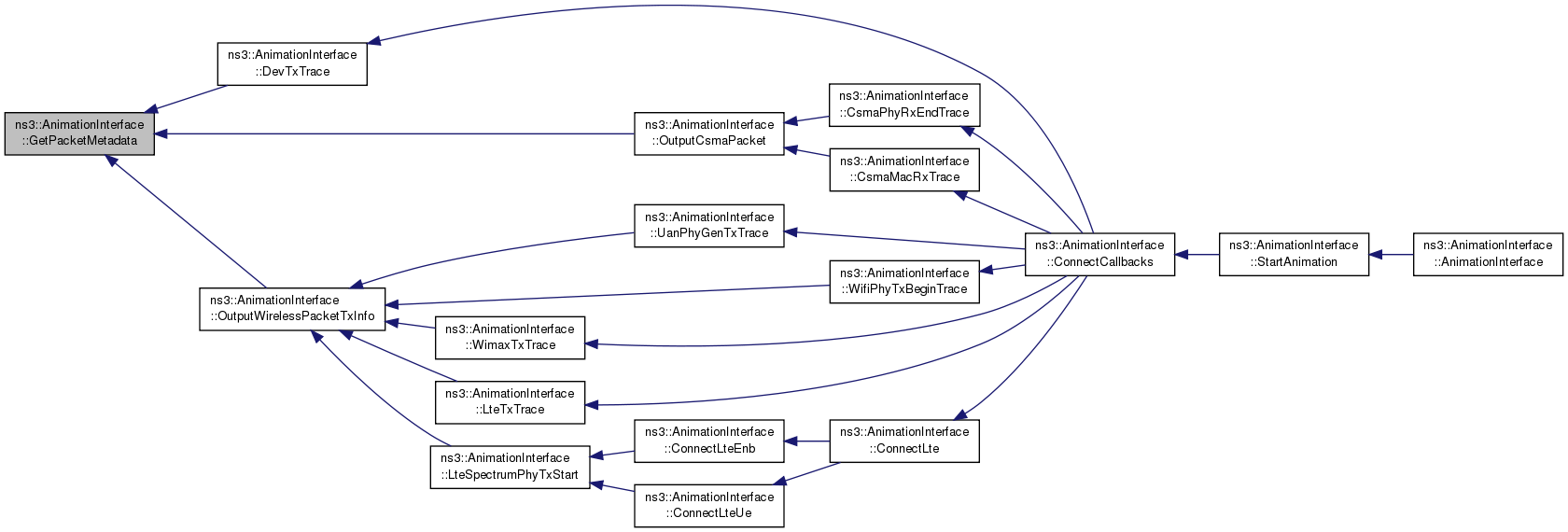

Here is the caller graph for this function:

Vector ns3::AnimationInterface::GetPosition ( Ptr< Node >  n )

private

Definition at line 1501 of file animation-interface.cc.

References ns3::Node::GetId(), m_nodeLocation, and NS_FATAL_ERROR.

Referenced by GetMovedNodes(), MobilityAutoCheck(), MobilityCourseChangeTrace(), and NodeHasMoved().

Here is the call graph for this function:

Here is the caller graph for this function:

uint64_t ns3::AnimationInterface::GetTracePktCount

(

)

Get trace file packet count (This used only for testing)

returns Number of packets recorded in the current trace file

Definition at line 1257 of file animation-interface.cc.

References m_currentPktCount.

Referenced by AnimationInterfaceTestCase::CheckLogic().

Here is the caller graph for this function:

void ns3::AnimationInterface::Ipv4DropTrace ( std::string  context, const Ipv4Header &  ipv4Header, Ptr< const Packet >  p, Ipv4L3Protocol::DropReason  dropReason, Ptr< Ipv4 >  ipv4, uint32_t    )

private

Definition at line 699 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeIpv4Drop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::Ipv4RxTrace ( std::string  context, Ptr< const Packet >  p, Ptr< Ipv4 >  ipv4, uint32_t  interfaceIndex  )

private

Definition at line 692 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeIpv4Rx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::Ipv4TxTrace ( std::string  context, Ptr< const Packet >  p, Ptr< Ipv4 >  ipv4, uint32_t  interfaceIndex  )

private

Definition at line 685 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeIpv4Tx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::AnimationInterface::IsInitialized ( void  )

static

Check if AnimationInterface is initialized.

Returns

true if AnimationInterface was already initialized

Definition at line 254 of file animation-interface.cc.

References ns3::initialized.

bool ns3::AnimationInterface::IsInTimeWindow ( )

private

Definition at line 1659 of file animation-interface.cc.

References m_startTime, m_stopTime, and ns3::Simulator::Now().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DevTxTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), MobilityAutoCheck(), MobilityCourseChangeTrace(), RemainingEnergyTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), WimaxRxTrace(), and WimaxTxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::AnimationInterface::IsPacketPending ( uint64_t  animUid, AnimationInterface::ProtocolType  protocolType  )

private

Definition at line 1153 of file animation-interface.cc.

References NS_ASSERT, and ProtocolTypeToPendingPackets().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), UanPhyGenRxTrace(), WifiPhyRxBeginTrace(), and WimaxRxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::AnimationInterface::IsStarted

(

void

)

Is AnimationInterface started.

Returns

true if AnimationInterface was started

Definition at line 260 of file animation-interface.cc.

References m_started.

void ns3::AnimationInterface::LteRxTrace ( std::string  context, Ptr< const Packet >  p, const Mac48Address &  m  )

private

Definition at line 926 of file animation-interface.cc.

References gAnimUid, GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsInTimeWindow(), IsPacketPending(), LTE, m_pendingLtePackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxBegin(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

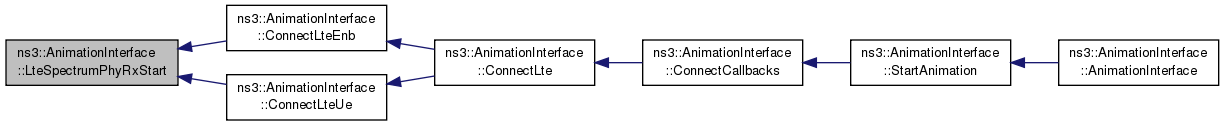

void ns3::AnimationInterface::LteSpectrumPhyRxStart ( std::string  context, Ptr< const PacketBurst >  pb  )

private

Definition at line 980 of file animation-interface.cc.

References gAnimUid, GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsInTimeWindow(), IsPacketPending(), list, LTE, m_pendingLtePackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxBegin(), and UpdatePosition().

Referenced by ConnectLteEnb(), and ConnectLteUe().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::LteSpectrumPhyTxStart ( std::string  context, Ptr< const PacketBurst >  pb  )

private

Definition at line 948 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), list, LTE, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketTxInfo(), and UpdatePosition().

Referenced by ConnectLteEnb(), and ConnectLteUe().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::LteTxTrace ( std::string  context, Ptr< const Packet >  p, const Mac48Address &  m  )

private

Definition at line 907 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), LTE, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, OutputWirelessPacketTxInfo(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::MobilityAutoCheck ( )

private

Definition at line 432 of file animation-interface.cc.

References CSMA, ns3::Node::GetId(), GetMovedNodes(), GetPosition(), ns3::Simulator::IsFinished(), IsInTimeWindow(), LTE, m_mobilityPollInterval, m_started, NS_ASSERT, PurgePendingPackets(), ns3::Simulator::Schedule(), WIFI, WIMAX, and WriteXmlUpdateNodePosition().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::MobilityCourseChangeTrace ( Ptr< const MobilityModel >  mob )

private

Definition at line 397 of file animation-interface.cc.

References ns3::Node::GetId(), GetPosition(), IsInTimeWindow(), m_started, m_trackPackets, NS_ASSERT, UpdatePosition(), and WriteXmlUpdateNodePosition().

Referenced by ConnectCallbacks().

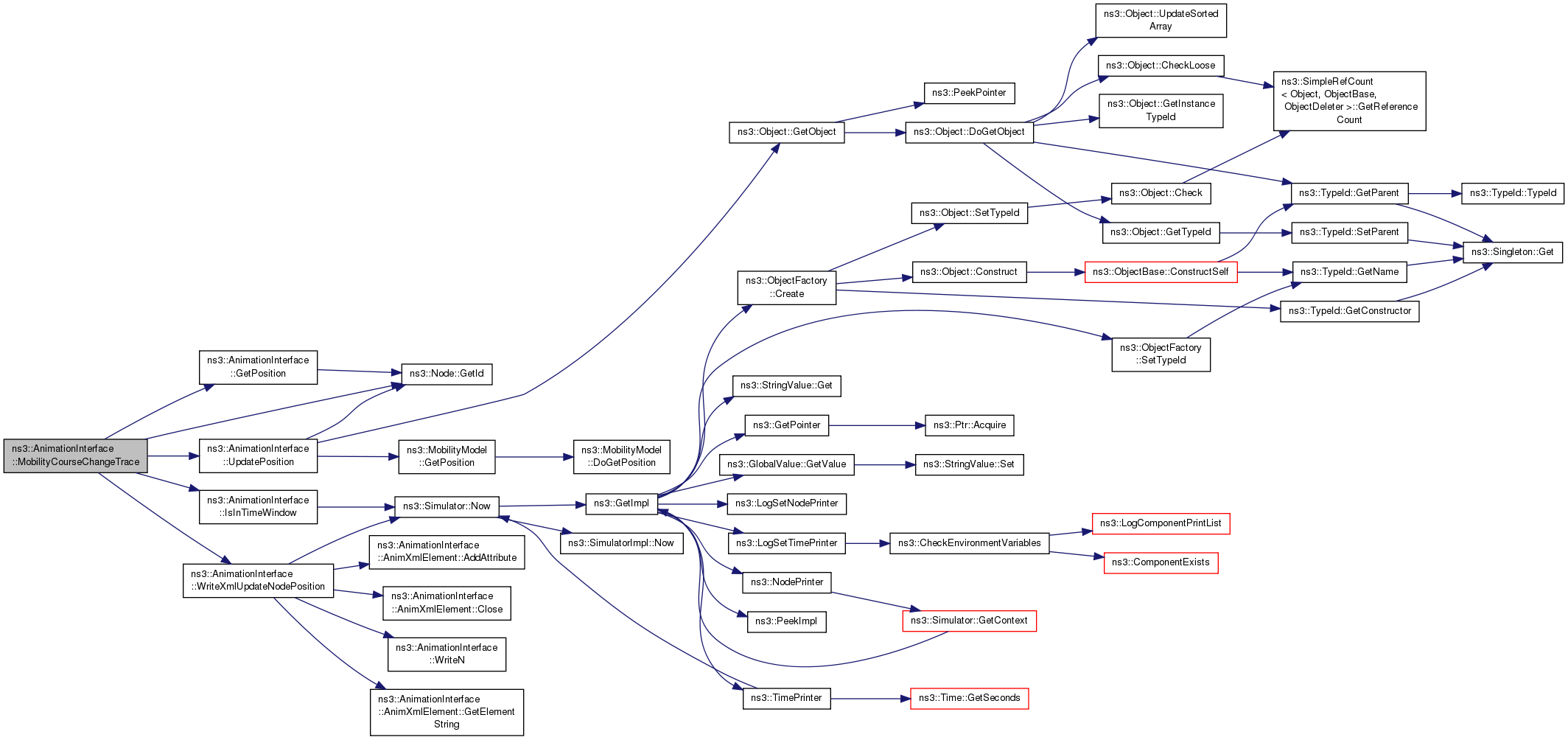

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::AnimationInterface::NodeHasMoved ( Ptr< Node >  n, Vector  newLocation  )

private

Definition at line 417 of file animation-interface.cc.

References GetPosition().

Referenced by GetMovedNodes().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::OutputCsmaPacket ( Ptr< const Packet >  p, AnimPacketInfo &  pktInfo  )

private

Definition at line 1127 of file animation-interface.cc.

References CheckMaxPktsPerTraceFile(), GetPacketMetadata(), m_enablePacketMetadata, ns3::AnimationInterface::AnimPacketInfo::m_fbRx, ns3::AnimationInterface::AnimPacketInfo::m_fbTx, ns3::AnimationInterface::AnimPacketInfo::m_lbRx, ns3::AnimationInterface::AnimPacketInfo::m_lbTx, ns3::AnimationInterface::AnimPacketInfo::m_rxnd, ns3::AnimationInterface::AnimPacketInfo::m_txnd, NS_ASSERT, and WriteXmlP().

Referenced by CsmaMacRxTrace(), and CsmaPhyRxEndTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::OutputWirelessPacketRxInfo ( Ptr< const Packet >  p, AnimPacketInfo &  pktInfo, uint64_t  animUid  )

private

Definition at line 1119 of file animation-interface.cc.

References CheckMaxPktsPerTraceFile(), ns3::AnimationInterface::AnimPacketInfo::m_fbRx, ns3::AnimationInterface::AnimPacketInfo::m_lbRx, ns3::AnimationInterface::AnimPacketInfo::m_rxnd, and WriteXmlP().

Referenced by LteRxTrace(), LteSpectrumPhyRxStart(), UanPhyGenRxTrace(), WifiPhyRxBeginTrace(), and WimaxRxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::OutputWirelessPacketTxInfo ( Ptr< const Packet >  p, AnimPacketInfo &  pktInfo, uint64_t  animUid  )

private

Definition at line 1106 of file animation-interface.cc.

References CheckMaxPktsPerTraceFile(), GetPacketMetadata(), m_enablePacketMetadata, ns3::AnimationInterface::AnimPacketInfo::m_fbTx, ns3::AnimationInterface::AnimPacketInfo::m_txnd, ns3::AnimationInterface::AnimPacketInfo::m_txNodeId, and WriteXmlPRef().

Referenced by LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenTxTrace(), WifiPhyTxBeginTrace(), and WimaxTxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

AnimationInterface::AnimUidPacketInfoMap * ns3::AnimationInterface::ProtocolTypeToPendingPackets ( AnimationInterface::ProtocolType  protocolType )

private

Definition at line 1189 of file animation-interface.cc.

References CSMA, LTE, m_pendingCsmaPackets, m_pendingLtePackets, m_pendingUanPackets, m_pendingWifiPackets, m_pendingWimaxPackets, UAN, WIFI, and WIMAX.

Referenced by AddPendingPacket(), IsPacketPending(), and PurgePendingPackets().

Here is the caller graph for this function:

void ns3::AnimationInterface::PurgePendingPackets ( AnimationInterface::ProtocolType  protocolType )

private

Definition at line 1161 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimationInterface::AnimPacketInfo::m_fbTx, ns3::Simulator::Now(), NS_ASSERT, ProtocolTypeToPendingPackets(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::QueueDropTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 727 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeQueueDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::RecursiveIpv4RoutePathSearch ( std::string  fromIpv4, std::string  toIpv4, Ipv4RoutePathElements &  rpElements  )

private

Definition at line 1917 of file animation-interface.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Ipv4Route::GetGateway(), ns3::Node::GetId(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), ns3::Ipv4::GetRoutingProtocol(), m_ipv4ToNodeIdMap, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_INFO, NS_LOG_WARN, and ns3::Ipv4Header::SetDestination().

Referenced by TrackIpv4RoutePaths().

Here is the call graph for this function:

Here is the caller graph for this function:

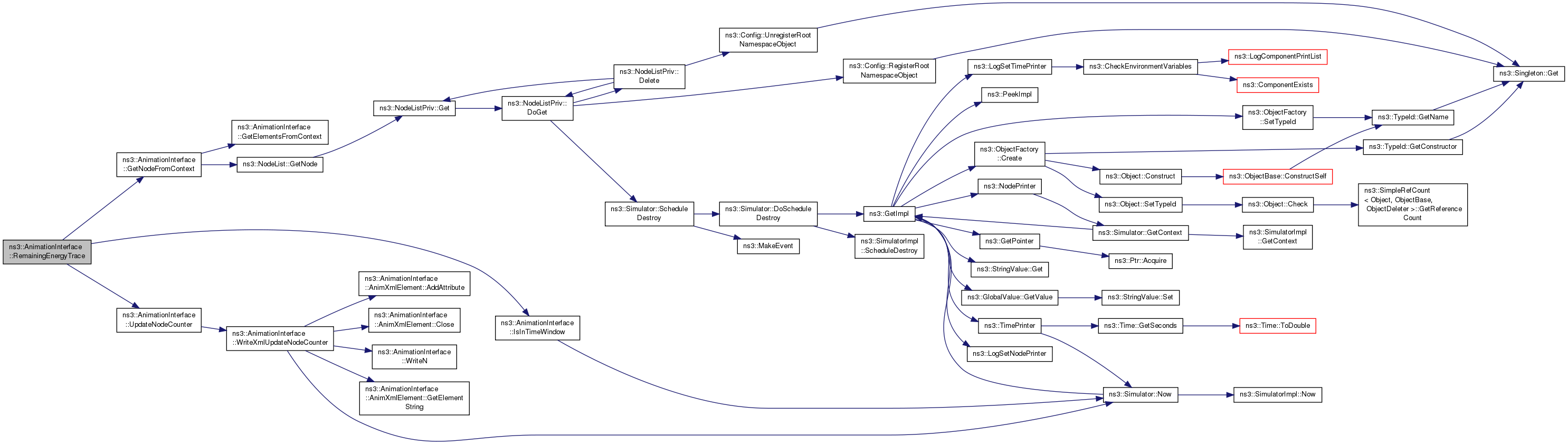

void ns3::AnimationInterface::RemainingEnergyTrace ( std::string  context, double  previousEnergy, double  currentEnergy  )

private

Definition at line 620 of file animation-interface.cc.

References GetNodeFromContext(), IsInTimeWindow(), m_nodeEnergyFraction, m_remainingEnergyCounterId, m_started, NS_ASSERT, NS_LOG_INFO, and UpdateNodeCounter().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ResetAnimWriteCallback

(

)

Reset the write callback function.

Returns

none

Definition at line 272 of file animation-interface.cc.

References m_writeCallback.

Referenced by StopAnimation().

Here is the caller graph for this function:

void ns3::AnimationInterface::SetAnimWriteCallback

(

AnimWriteCallback

cb

)

Set a callback function to listen to AnimationInterface write events.

Parameters

cb	Address of callback function

Returns

none

Definition at line 266 of file animation-interface.cc.

References m_writeCallback.

void ns3::AnimationInterface::SetBackgroundImage	(	std::string	fileName,
		double	x,
		double	y,
		double	scaleX,
		double	scaleY,
		double	opacity
	)

Helper function to set the background image.

Parameters

fileName	File name of the background image
x	X co-ordinate of the image
y	Y co-ordinate of the image
scaleX	X scale of the image
scaleY	Y scale of the image
opacity	Opacity of the background: A value between 0.0 and 1.0. 0.0 is transparent, 1.0 is opaque

Returns

none

Definition at line 322 of file animation-interface.cc.

References NS_FATAL_ERROR, and WriteXmlUpdateBackground().

Here is the call graph for this function:

void ns3::AnimationInterface::SetConstantPosition ( Ptr< Node >  n, double  x, double  y, double  z = 0  )

static

Helper function to set Constant Position for a given node.

Parameters

n	Ptr to the node
x	X co-ordinate of the node
y	Y co-ordinate of the node
z	Z co-ordinate of the node

Returns

none

Definition at line 285 of file animation-interface.cc.

References ns3::Object::AggregateObject(), ns3::Node::GetId(), ns3::Object::GetObject(), NS_ASSERT, and NS_LOG_INFO.

Here is the call graph for this function:

void ns3::AnimationInterface::SetMaxPktsPerTraceFile

(

uint64_t

maxPktsPerFile

)

Set Max packets per trace file.

Parameters

maxPktsPerFile

The maximum number of packets per trace file. AnimationInterface will create trace files with the following filenames : filename, filename-1, filename-2..., filename-N where each file contains packet info for 'maxPktsPerFile' number of packets

Returns

none

Definition at line 220 of file animation-interface.cc.

References m_maxPktsPerFile.

void ns3::AnimationInterface::SetMobilityPollInterval

(

Time

t

)

Set mobility poll interval:WARNING: setting a low interval can cause slowness.

Parameters

t	Time interval between fetching mobility/position information Default: 0.25s

Returns

none

Definition at line 278 of file animation-interface.cc.

References m_mobilityPollInterval.

void ns3::AnimationInterface::SetOutputFile ( const std::string &  fn, bool  routing = false  )

private

Definition at line 1669 of file animation-interface.cc.

References m_f, m_outputFileName, m_routingF, m_routingFileName, NS_FATAL_ERROR, and NS_LOG_INFO.

Referenced by EnableIpv4RouteTracking(), and StartAnimation().

Here is the caller graph for this function:

void ns3::AnimationInterface::SetStartTime

(

Time

t

)

Specify the time at which capture should start.

Parameters

t	The time at which AnimationInterface should begin capture of traffic info

Returns

none

Definition at line 208 of file animation-interface.cc.

References m_startTime.

void ns3::AnimationInterface::SetStopTime

(

Time

t

)

Specify the time at which capture should stop.

Parameters

t	The time at which AnimationInterface should stop capture of traffic info

Returns

none

Definition at line 214 of file animation-interface.cc.

References m_stopTime.

void ns3::AnimationInterface::SkipPacketTracing

(

)

Do not trace packets.

This helps reduce the trace file size if AnimationInterface is solely used for tracking mobility, routing paths and counters

Returns

none

Definition at line 91 of file animation-interface.cc.

References m_trackPackets.

void ns3::AnimationInterface::StartAnimation ( bool  restart = false )

private

Definition at line 1288 of file animation-interface.cc.

References ConnectCallbacks(), m_currentPktCount, m_mobilityPollInterval, m_outputFileName, m_started, MobilityAutoCheck(), ns3::Simulator::Schedule(), SetOutputFile(), WriteLinkProperties(), WriteNodeColors(), WriteNodeEnergies(), WriteNodes(), WriteNodeSizes(), and WriteXmlAnim().

Referenced by AnimationInterface().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::StopAnimation ( bool  onlyAnimation = false )

private

Definition at line 1263 of file animation-interface.cc.

References m_f, m_routingF, m_started, NS_LOG_INFO, ResetAnimWriteCallback(), and WriteXmlClose().

Referenced by CheckMaxPktsPerTraceFile(), and ~AnimationInterface().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackIpv4L3ProtocolCounters ( )

private

Definition at line 1853 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_ipv4L3ProtocolCountersPollInterval, m_ipv4L3ProtocolCountersStopTime, m_ipv4L3ProtocolDropCounterId, m_ipv4L3ProtocolRxCounterId, m_ipv4L3ProtocolTxCounterId, m_nodeIpv4Drop, m_nodeIpv4Rx, m_nodeIpv4Tx, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), and UpdateNodeCounter().

Referenced by EnableIpv4L3ProtocolCounters().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackIpv4Route ( )

private

Definition at line 1871 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeContainer::Begin(), ns3::NodeList::End(), ns3::NodeContainer::End(), ns3::Node::GetId(), GetIpv4RoutingTable(), ns3::NodeContainer::GetN(), m_routingNc, m_routingPollInterval, m_routingStopTime, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), TrackIpv4RoutePaths(), and WriteXmlRouting().

Referenced by EnableIpv4RouteTracking().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackIpv4RoutePaths ( )

private

Definition at line 1725 of file animation-interface.cc.

References ns3::AnimationInterface::Ipv4RouteTrackElement::destination, ns3::AnimationInterface::Ipv4RouteTrackElement::fromNodeId, ns3::Ipv4Route::GetGateway(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), ns3::Ipv4::GetRoutingProtocol(), m_ipv4RouteTrackElements, m_ipv4ToNodeIdMap, NS_FATAL_ERROR, NS_LOG_INFO, NS_LOG_WARN, RecursiveIpv4RoutePathSearch(), ns3::Ipv4Header::SetDestination(), and WriteRoutePath().

Referenced by TrackIpv4Route().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackQueueCounters ( )

private

Definition at line 1799 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_nodeQueueDequeue, m_nodeQueueDrop, m_nodeQueueEnqueue, m_queueCountersPollInterval, m_queueCountersStopTime, m_queueDequeueCounterId, m_queueDropCounterId, m_queueEnqueueCounterId, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), and UpdateNodeCounter().

Referenced by EnableQueueCounters().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackWifiMacCounters ( )

private

Definition at line 1817 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_nodeWifiMacRx, m_nodeWifiMacRxDrop, m_nodeWifiMacTx, m_nodeWifiMacTxDrop, m_wifiMacCountersPollInterval, m_wifiMacCountersStopTime, m_wifiMacRxCounterId, m_wifiMacRxDropCounterId, m_wifiMacTxCounterId, m_wifiMacTxDropCounterId, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), and UpdateNodeCounter().

Referenced by EnableWifiMacCounters().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackWifiPhyCounters ( )

private

Definition at line 1836 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_nodeWifiPhyRxDrop, m_nodeWifiPhyTxDrop, m_wifiPhyCountersPollInterval, m_wifiPhyCountersStopTime, m_wifiPhyRxDropCounterId, m_wifiPhyTxDropCounterId, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), and UpdateNodeCounter().

Referenced by EnableWifiPhyCounters().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UanPhyGenRxTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 781 of file animation-interface.cc.

References GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsInTimeWindow(), IsPacketPending(), m_pendingUanPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), UAN, and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UanPhyGenTxTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 763 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_pendingUanPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, OutputWirelessPacketTxInfo(), UAN, and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateLinkDescription	(	uint32_t	fromNode,
		uint32_t	toNode,
		std::string	linkDescription
	)

Helper function to update the description for a link.

Parameters

fromNode	Node Id of the "from Node" of the p2p link
toNode	Node Id of the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth

Returns

none

Definition at line 356 of file animation-interface.cc.

References WriteXmlUpdateLink().

Referenced by modify().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateLinkDescription	(	Ptr< Node >	fromNode,
		Ptr< Node >	toNode,
		std::string	linkDescription
	)

Helper function to update the description for a link.

Parameters

fromNode	Ptr to the "from Node" of the p2p link
toNode	Ptr to the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth

Returns

none

Definition at line 363 of file animation-interface.cc.

References ns3::Node::GetId(), NS_ASSERT, and WriteXmlUpdateLink().

Here is the call graph for this function:

void ns3::AnimationInterface::UpdateNodeColor	(	Ptr< Node >	n,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Helper function to update the node color.

Parameters

n	Ptr to the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Returns

none

Definition at line 340 of file animation-interface.cc.

References ns3::Node::GetId().

Referenced by modify(), and WriteNodeColors().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeColor	(	uint32_t	nodeId,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Helper function to update the node color.

Parameters

nodeId	Id of the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Returns

none

Definition at line 346 of file animation-interface.cc.

References ns3::NodeList::GetNode(), m_nodeColors, NS_ASSERT, NS_LOG_INFO, and WriteXmlUpdateNodeColor().

Here is the call graph for this function:

void ns3::AnimationInterface::UpdateNodeCounter	(	uint32_t	nodeCounterId,
		uint32_t	nodeId,
		double	counter
	)

Helper function to update a node's counter referenced by the nodeCounterId.

Parameters

nodeCounterId	The counter Id obtained from AddNodeCounter
nodeId	Node Id of the node
counter	Current value of the counter

Returns

none

Definition at line 312 of file animation-interface.cc.

References m_nodeCounters, NS_FATAL_ERROR, and WriteXmlUpdateNodeCounter().

Referenced by EnableIpv4L3ProtocolCounters(), EnableQueueCounters(), EnableWifiMacCounters(), EnableWifiPhyCounters(), modify(), RemainingEnergyTrace(), TrackIpv4L3ProtocolCounters(), TrackQueueCounters(), TrackWifiMacCounters(), TrackWifiPhyCounters(), and WriteNodeEnergies().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeDescription	(	Ptr< Node >	n,
		std::string	descr
	)

Helper function to update the description for a given node.

Parameters

n	Ptr to the node
descr	A string to briefly describe the node

Returns

none

Definition at line 372 of file animation-interface.cc.

References ns3::Node::GetId().

Referenced by modify().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeDescription	(	uint32_t	nodeId,
		std::string	descr
	)

Helper function to update the description for a given node.

Parameters

nodeId	Id of the node
descr	A string to briefly describe the node

Returns

none

Definition at line 378 of file animation-interface.cc.

References ns3::NodeList::GetNode(), m_nodeDescriptions, NS_ASSERT, and WriteXmlUpdateNodeDescription().

Here is the call graph for this function:

void ns3::AnimationInterface::UpdateNodeImage	(	uint32_t	nodeId,
		uint32_t	resourceId
	)

Helper function to update the image of a node.

Parameters

nodeId	Id of the node
resourceId	Id of the image resource that was previously added

Returns

none

Definition at line 301 of file animation-interface.cc.

References m_resources, NS_FATAL_ERROR, NS_LOG_INFO, and WriteXmlUpdateNodeImage().

Referenced by modify().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeSize	(	uint32_t	nodeId,
		double	width,
		double	height
	)

Helper function to update the size of a node.

Parameters

nodeId	Id of the node
width	Width of the node
height	Height of the node

Returns

none

Definition at line 332 of file animation-interface.cc.

References ns3::AnimationInterface::NodeSize::height, m_nodeSizes, ns3::AnimationInterface::NodeSize::width, and WriteXmlUpdateNodeSize().

Referenced by modify(), and WriteNodeSizes().

Here is the call graph for this function:

Here is the caller graph for this function:

Vector ns3::AnimationInterface::UpdatePosition ( Ptr< Node >  n )

private

Definition at line 1478 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), m_nodeLocation, and NS_LOG_UNCOND.

Referenced by CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), GetMovedNodes(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), MobilityCourseChangeTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), WimaxRxTrace(), WimaxTxTrace(), WriteLinkProperties(), and WriteNodes().

Here is the call graph for this function:

Here is the caller graph for this function:

Vector ns3::AnimationInterface::UpdatePosition ( Ptr< Node >  n, Vector  v  )

private

Definition at line 1494 of file animation-interface.cc.

References ns3::Node::GetId(), and m_nodeLocation.

Here is the call graph for this function:

void ns3::AnimationInterface::WifiMacRxDropTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 678 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiMacRxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiMacRxTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 671 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiMacRx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiMacTxDropTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 664 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiMacTxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiMacTxTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 657 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiMacTx.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyRxBeginTrace ( std::string  context, Ptr< const Packet >  p  )

private

Todo:

NS_ASSERT (WifiPacketIsPending (animUid) == true);

Definition at line 828 of file animation-interface.cc.

References AddPendingPacket(), ns3::WifiMacHeader::GetAddr2(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NodeList::GetNode(), IsInTimeWindow(), IsPacketPending(), m_macToNodeIdMap, m_pendingWifiPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacketRxInfo(), ns3::Packet::PeekHeader(), UpdatePosition(), and WIFI.

Referenced by ConnectCallbacks().

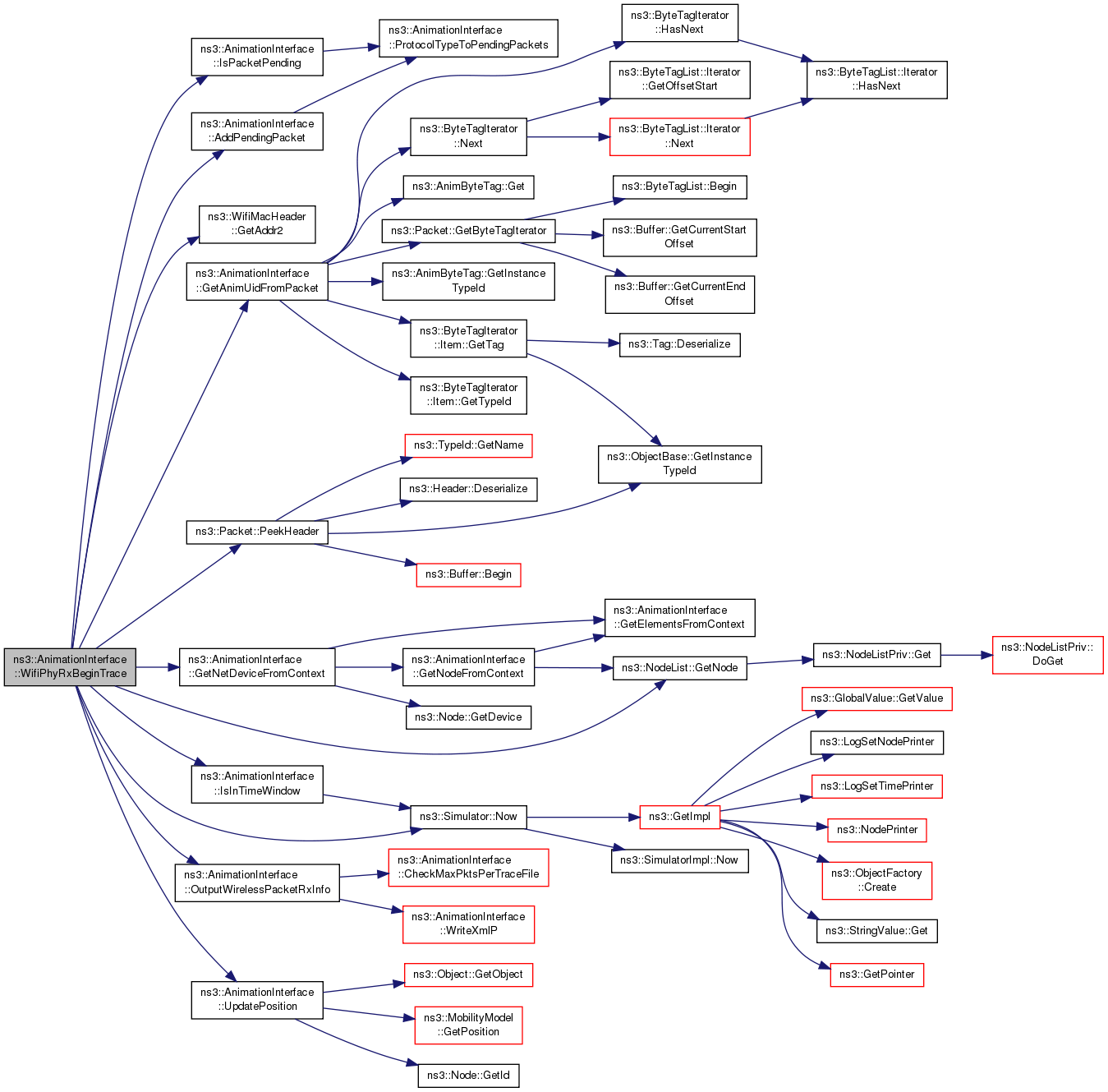

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyRxDropTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 650 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiPhyRxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyTxBeginTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 803 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), gAnimUid, ns3::Node::GetId(), GetNetDeviceFromContext(), IsInTimeWindow(), m_macToNodeIdMap, m_pendingWifiPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, OutputWirelessPacketTxInfo(), UpdatePosition(), and WIFI.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyTxDropTrace ( std::string  context, Ptr< const Packet >  p  )

private

Definition at line 643 of file animation-interface.cc.

References GetNodeFromContext(), and m_nodeWifiPhyTxDrop.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WimaxRxTrace ( std::string  context, Ptr< const Packet >  p, const Mac48Address &  m  )

private

Definition at line 889 of file animation-interface.cc.

References GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsInTimeWindow(), IsPacketPending(), m_pendingWimaxPackets, m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, OutputWirelessPacketRxInfo(), ns3::AnimationInterface::AnimPacketInfo::ProcessRxBegin(), UpdatePosition(), and WIMAX.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WimaxTxTrace ( std::string  context, Ptr< const Packet >  p, const Mac48Address &  m  )

private

Definition at line 870 of file animation-interface.cc.

References AddByteTag(), AddPendingPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_started, m_trackPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, OutputWirelessPacketTxInfo(), UpdatePosition(), and WIMAX.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteLinkProperties ( )

private

Definition at line 1542 of file animation-interface.cc.

References AddToIpv4AddressNodeIdTable(), ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::AnimationInterface::P2pLinkNodeIdPair::fromNode, ns3::Node::GetDevice(), ns3::Node::GetId(), GetIpv4Address(), GetMacAddress(), ns3::Node::GetNDevices(), m_linkProperties, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_INFO, ns3::AnimationInterface::P2pLinkNodeIdPair::toNode, UpdatePosition(), WriteNonP2pLinkProperties(), and WriteXmlLink().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::AnimationInterface::WriteN ( const char *  data, uint32_t  count, FILE *  f  )

private

Definition at line 498 of file animation-interface.cc.

References data.

Referenced by WriteN(), WriteXmlAddNodeCounter(), WriteXmlAddResource(), WriteXmlAnim(), WriteXmlClose(), WriteXmlLink(), WriteXmlNode(), WriteXmlNonP2pLinkProperties(), WriteXmlP(), WriteXmlPRef(), WriteXmlRouting(), WriteXmlRp(), WriteXmlUpdateBackground(), WriteXmlUpdateLink(), WriteXmlUpdateNodeColor(), WriteXmlUpdateNodeCounter(), WriteXmlUpdateNodeDescription(), WriteXmlUpdateNodeImage(), WriteXmlUpdateNodePosition(), and WriteXmlUpdateNodeSize().

Here is the caller graph for this function:

int ns3::AnimationInterface::WriteN ( const std::string &  st, FILE *  f  )

private

Definition at line 486 of file animation-interface.cc.

References m_writeCallback, and WriteN().

Here is the call graph for this function:

void ns3::AnimationInterface::WriteNodeColors ( )

private

Definition at line 1617 of file animation-interface.cc.

References ns3::AnimationInterface::Rgb::b, ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::AnimationInterface::Rgb::g, ns3::Node::GetId(), m_nodeColors, ns3::AnimationInterface::Rgb::r, and UpdateNodeColor().

Referenced by StartAnimation().

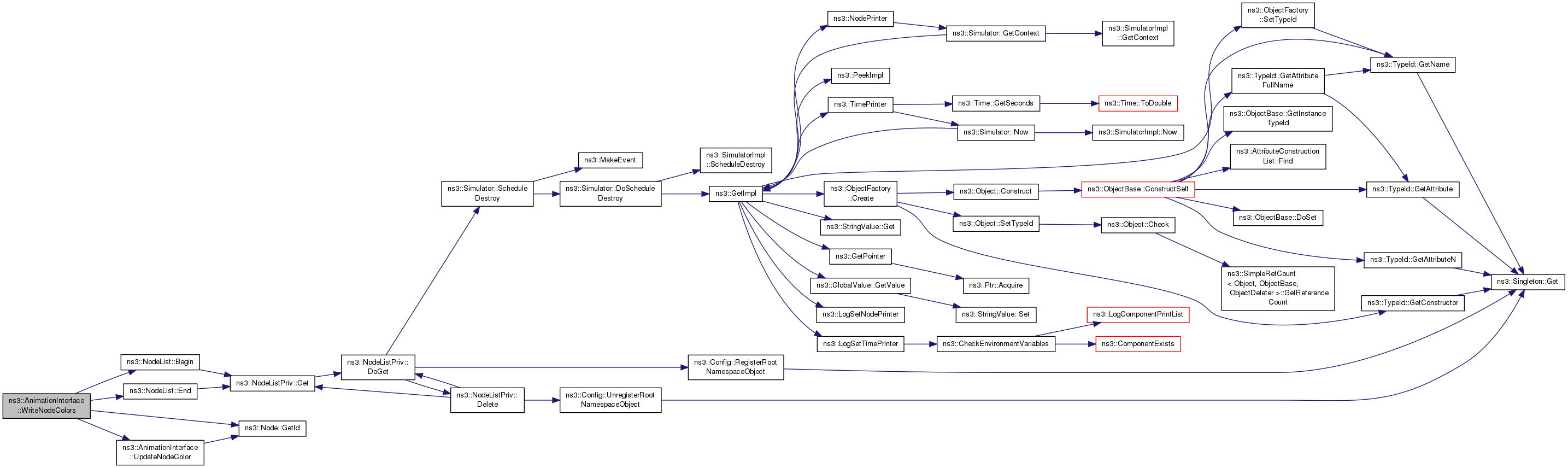

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteNodeEnergies ( )

private

Definition at line 1645 of file animation-interface.cc.

References AddNodeCounter(), ns3::NodeList::Begin(), DOUBLE_COUNTER, ns3::NodeList::End(), ns3::Node::GetId(), ns3::NodeList::GetNode(), m_remainingEnergyCounterId, and UpdateNodeCounter().

Referenced by StartAnimation().

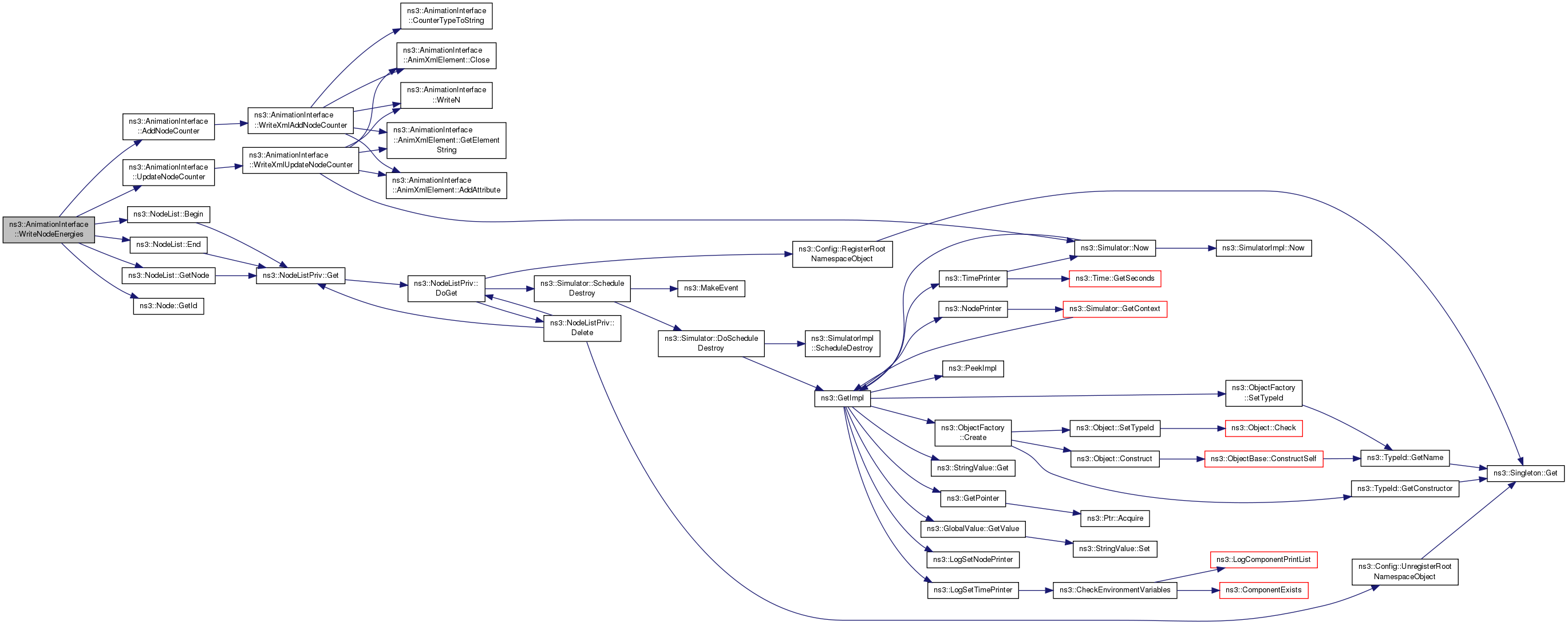

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteNodes ( )

private

Definition at line 1605 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), ns3::Node::GetSystemId(), NS_LOG_INFO, UpdatePosition(), and WriteXmlNode().

Referenced by StartAnimation().

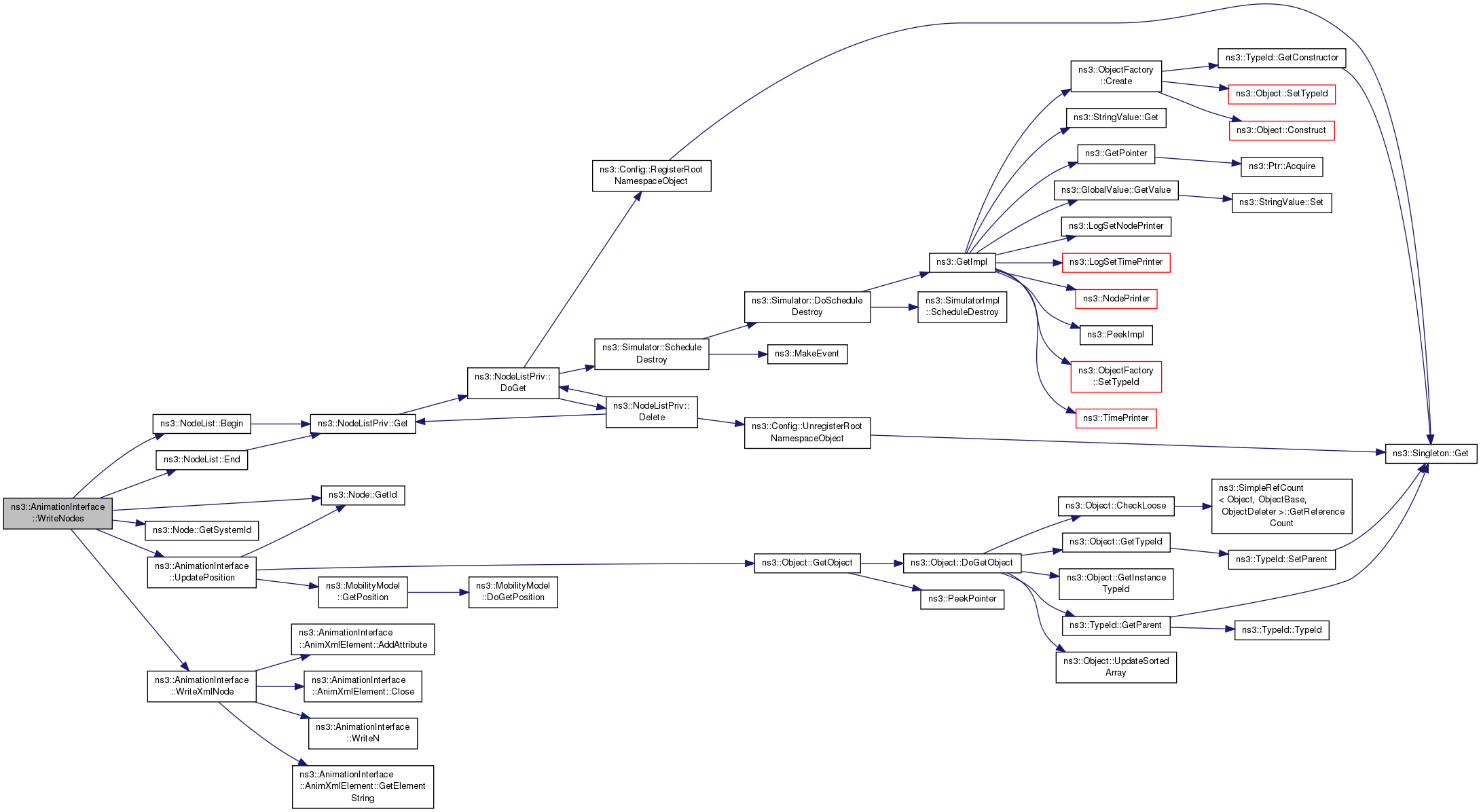

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteNodeSizes ( )

private

Definition at line 1632 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), m_nodeSizes, NS_LOG_INFO, and UpdateNodeSize().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteNodeUpdate ( uint32_t  nodeId )

private

void ns3::AnimationInterface::WriteNonP2pLinkProperties ( uint32_t  id, std::string  ipv4Address, std::string  channelType  )

private

Definition at line 538 of file animation-interface.cc.

References WriteXmlNonP2pLinkProperties().

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteRoutePath ( uint32_t  nodeId, std::string  destination, Ipv4RoutePathElements  rpElements  )

private

Definition at line 521 of file animation-interface.cc.

References NS_LOG_INFO, and WriteXmlRp().

Referenced by TrackIpv4RoutePaths().

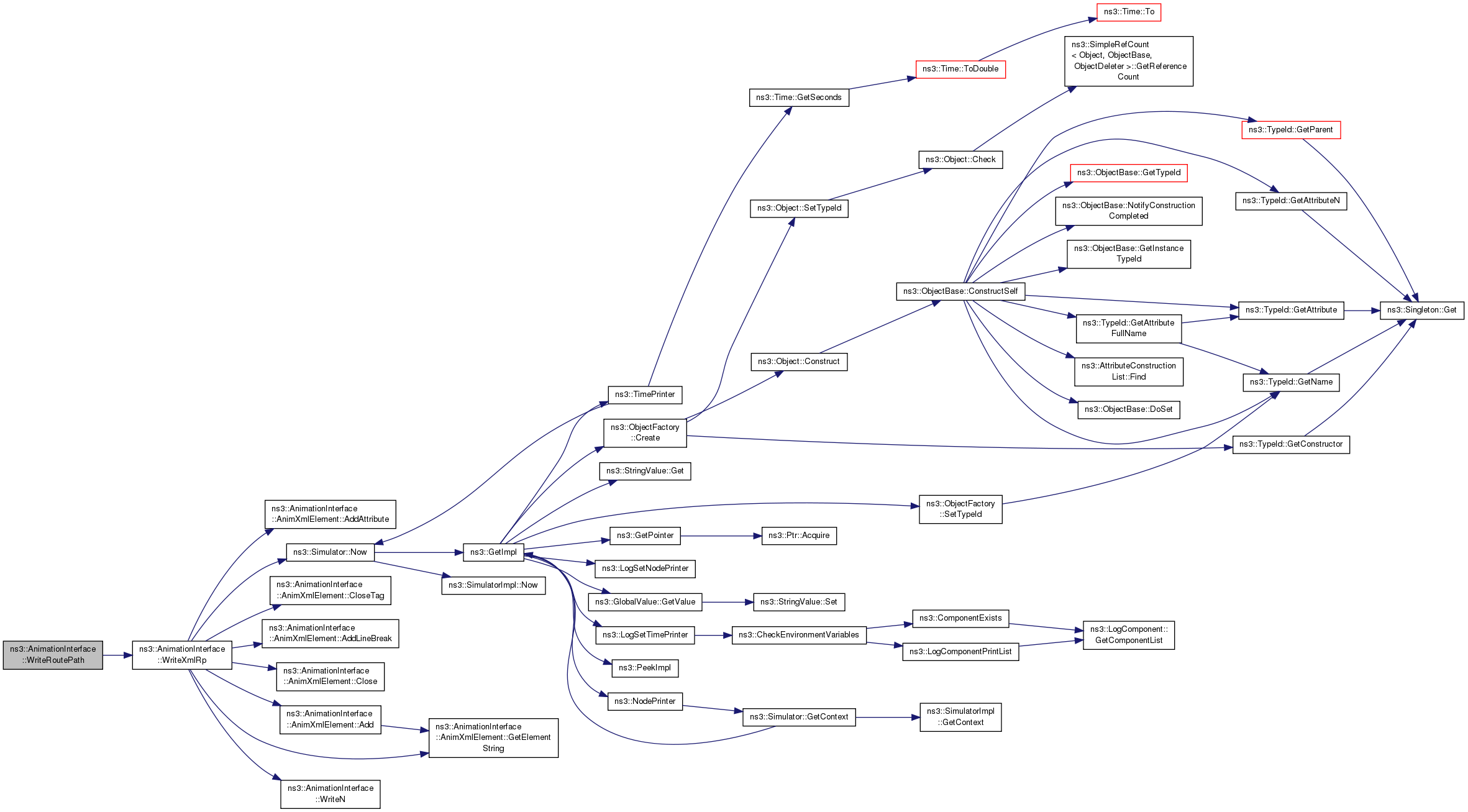

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlAddNodeCounter ( uint32_t  counterId, std::string  counterName, CounterType  counterType  )

private

Definition at line 2207 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), CounterTypeToString(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by AddNodeCounter().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlAddResource ( uint32_t  resourceId, std::string  resourcePath  )

private

Definition at line 2218 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by AddResource().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlAnim ( bool  routing = false )

private

Definition at line 2038 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), GetNetAnimVersion(), m_f, m_routingF, and WriteN().

Referenced by EnableIpv4RouteTracking(), and StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlClose ( std::string  name, bool  routing = false  )

private

Definition at line 2057 of file animation-interface.cc.

References m_f, m_routingF, and WriteN().

Referenced by StopAnimation().

Here is the call graph for this function:

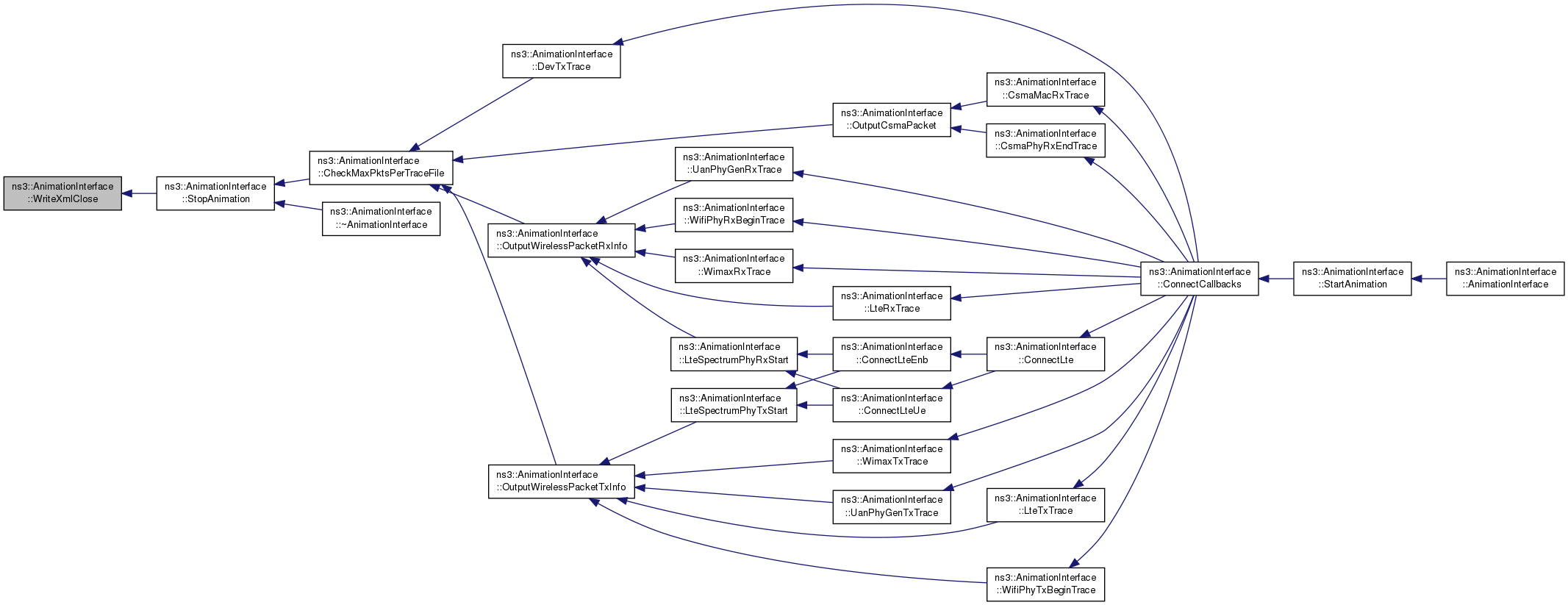

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlLink ( uint32_t  fromId, uint32_t  toLp, uint32_t  toId  )

private

Definition at line 2095 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::LinkProperties::fromNodeDescription, ns3::AnimationInterface::AnimXmlElement::GetElementString(), ns3::AnimationInterface::LinkProperties::linkDescription, m_f, m_linkProperties, ns3::AnimationInterface::LinkProperties::toNodeDescription, and WriteN().

Referenced by WriteLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlNode ( uint32_t  id, uint32_t  sysId, double  locX, double  locY  )

private

Definition at line 2071 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by WriteNodes().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlNonP2pLinkProperties ( uint32_t  id, std::string  ipv4Address, std::string  channelType  )

private

Definition at line 2322 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by WriteNonP2pLinkProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlP ( std::string  pktType, uint32_t  fId, double  fbTx, double  lbTx, uint32_t  tId, double  fbRx, double  lbRx, std::string  metaInfo = ""  )

private

Definition at line 2188 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacketRxInfo().

Here is the call graph for this function:

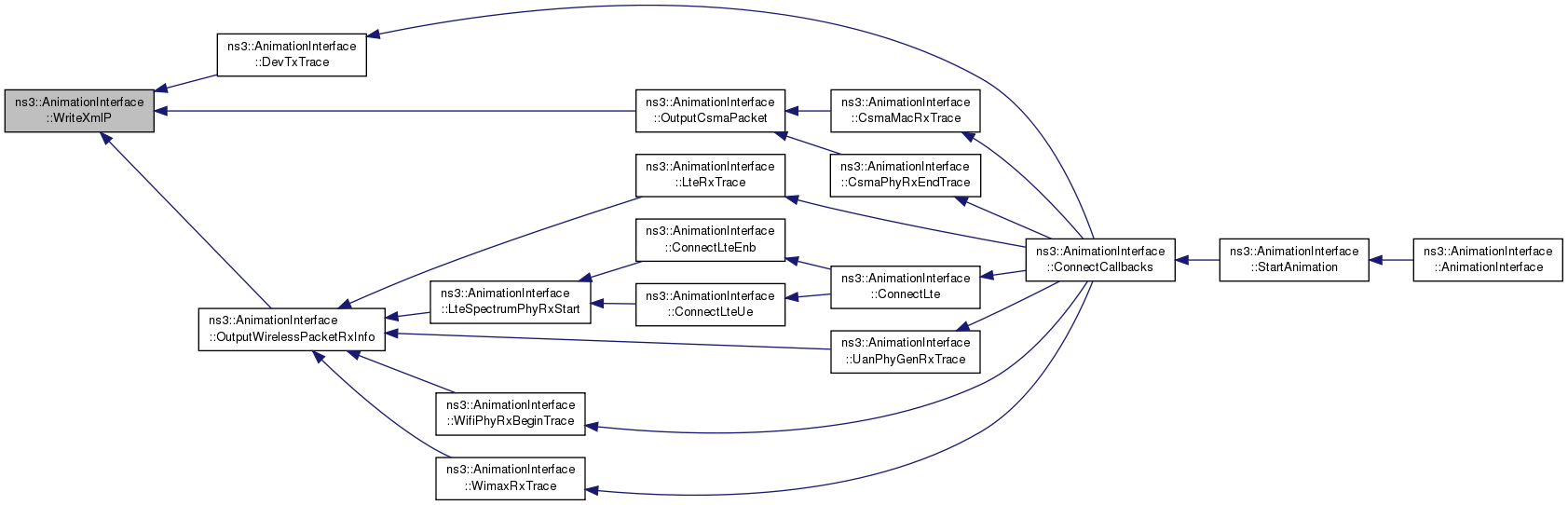

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlP ( uint64_t  animUid, std::string  pktType, uint32_t  fId, double  fbTx, double  lbTx  )

private

Definition at line 2176 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Here is the call graph for this function:

void ns3::AnimationInterface::WriteXmlPRef ( uint64_t  animUid, uint32_t  fId, double  fbTx, std::string  metaInfo = ""  )

private

Definition at line 2161 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by OutputWirelessPacketTxInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlRouting ( uint32_t  id, std::string  routingInfo  )

private

Definition at line 2125 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_routingF, ns3::Simulator::Now(), and WriteN().

Referenced by TrackIpv4Route().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlRp ( uint32_t  nodeId, std::string  destination, Ipv4RoutePathElements  rpElements  )

private

Definition at line 2136 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::Add(), ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::AddLineBreak(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::CloseTag(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_routingF, ns3::AnimationInterface::Ipv4RoutePathElement::nextHop, ns3::AnimationInterface::Ipv4RoutePathElement::nodeId, ns3::Simulator::Now(), and WriteN().

Referenced by WriteRoutePath().

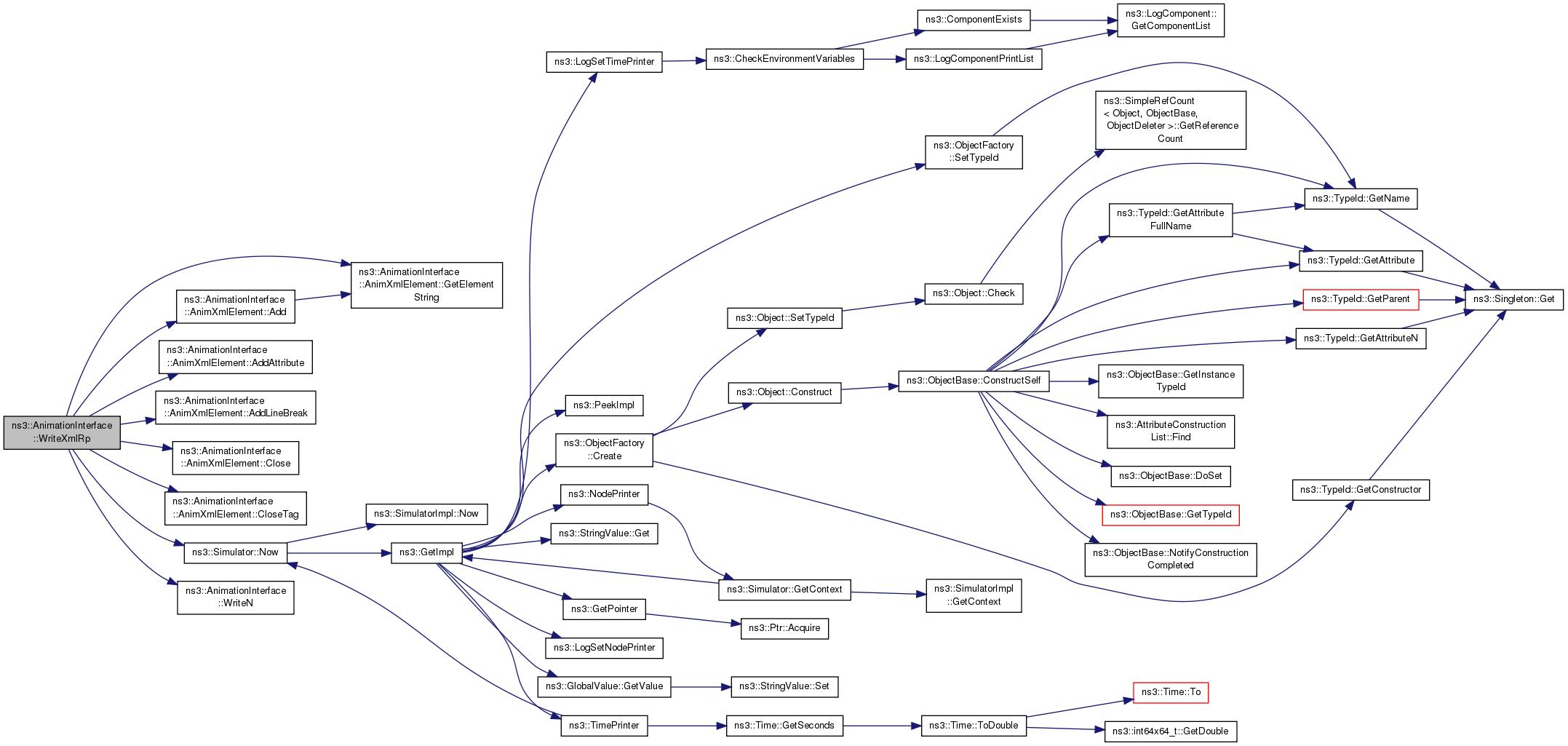

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateBackground ( std::string  fileName, double  x, double  y, double  scaleX, double  scaleY, double  opacity  )

private

Definition at line 2308 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, and WriteN().

Referenced by SetBackgroundImage().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateLink ( uint32_t  fromId, uint32_t  toId, std::string  linkDescription  )

private

Definition at line 2083 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by UpdateLinkDescription().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateNodeColor ( uint32_t  nodeId, uint8_t  r, uint8_t  g, uint8_t  b  )

private

Definition at line 2266 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by UpdateNodeColor().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateNodeCounter ( uint32_t  counterId, uint32_t  nodeId, double  value  )

private

Definition at line 2296 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by UpdateNodeCounter().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateNodeDescription ( uint32_t  nodeId )

private

Definition at line 2280 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, m_nodeDescriptions, ns3::Simulator::Now(), and WriteN().

Referenced by UpdateNodeDescription().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateNodeImage ( uint32_t  nodeId, uint32_t  resourceId  )

private

Definition at line 2228 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by UpdateNodeImage().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateNodePosition ( uint32_t  nodeId, double  x, double  y  )

private

Definition at line 2253 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by MobilityAutoCheck(), and MobilityCourseChangeTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteXmlUpdateNodeSize ( uint32_t  nodeId, double  width, double  height  )

private

Definition at line 2240 of file animation-interface.cc.

References ns3::AnimationInterface::AnimXmlElement::AddAttribute(), ns3::AnimationInterface::AnimXmlElement::Close(), ns3::AnimationInterface::AnimXmlElement::GetElementString(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by UpdateNodeSize().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint64_t ns3::AnimationInterface::gAnimUid

private

Definition at line 541 of file animation-interface.h.

Referenced by CsmaPhyTxBeginTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenTxTrace(), WifiPhyTxBeginTrace(), and WimaxTxTrace().

uint64_t ns3::AnimationInterface::m_currentPktCount

private

Definition at line 595 of file animation-interface.h.

Referenced by CheckMaxPktsPerTraceFile(), GetTracePktCount(), and StartAnimation().

bool ns3::AnimationInterface::m_enablePacketMetadata

private

Definition at line 544 of file animation-interface.h.

Referenced by DevTxTrace(), EnablePacketMetadata(), OutputCsmaPacket(), and OutputWirelessPacketTxInfo().

FILE* ns3::AnimationInterface::m_f

private

Definition at line 537 of file animation-interface.h.

Referenced by SetOutputFile(), StopAnimation(), WriteXmlAddNodeCounter(), WriteXmlAddResource(), WriteXmlAnim(), WriteXmlClose(), WriteXmlLink(), WriteXmlNode(), WriteXmlNonP2pLinkProperties(), WriteXmlP(), WriteXmlPRef(), WriteXmlUpdateBackground(), WriteXmlUpdateLink(), WriteXmlUpdateNodeColor(), WriteXmlUpdateNodeCounter(), WriteXmlUpdateNodeDescription(), WriteXmlUpdateNodeImage(), WriteXmlUpdateNodePosition(), and WriteXmlUpdateNodeSize().

Time ns3::AnimationInterface::m_ipv4L3ProtocolCountersPollInterval

private

Definition at line 554 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

Time ns3::AnimationInterface::m_ipv4L3ProtocolCountersStopTime

private

Definition at line 553 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

uint32_t ns3::AnimationInterface::m_ipv4L3ProtocolDropCounterId

private

Definition at line 569 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

uint32_t ns3::AnimationInterface::m_ipv4L3ProtocolRxCounterId

private

Definition at line 568 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

uint32_t ns3::AnimationInterface::m_ipv4L3ProtocolTxCounterId

private

Definition at line 567 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), and TrackIpv4L3ProtocolCounters().

std::vector<Ipv4RouteTrackElement> ns3::AnimationInterface::m_ipv4RouteTrackElements

private

Definition at line 596 of file animation-interface.h.

Referenced by AddSourceDestination(), and TrackIpv4RoutePaths().

std::map<std::string, uint32_t> ns3::AnimationInterface::m_ipv4ToNodeIdMap

private

Definition at line 590 of file animation-interface.h.

Referenced by AddToIpv4AddressNodeIdTable(), RecursiveIpv4RoutePathSearch(), and TrackIpv4RoutePaths().

LinkPropertiesMap ns3::AnimationInterface::m_linkProperties

private

Definition at line 593 of file animation-interface.h.

Referenced by WriteLinkProperties(), and WriteXmlLink().

std::map<std::string, uint32_t> ns3::AnimationInterface::m_macToNodeIdMap

private

Definition at line 589 of file animation-interface.h.

Referenced by WifiPhyRxBeginTrace(), and WifiPhyTxBeginTrace().

uint64_t ns3::AnimationInterface::m_maxPktsPerFile

private

Definition at line 547 of file animation-interface.h.

Referenced by CheckMaxPktsPerTraceFile(), and SetMaxPktsPerTraceFile().

Time ns3::AnimationInterface::m_mobilityPollInterval

private

Definition at line 539 of file animation-interface.h.

Referenced by MobilityAutoCheck(), SetMobilityPollInterval(), and StartAnimation().

NodeColorsMap ns3::AnimationInterface::m_nodeColors

private

Definition at line 591 of file animation-interface.h.

Referenced by UpdateNodeColor(), and WriteNodeColors().

std::vector<std::string> ns3::AnimationInterface::m_nodeCounters

private

Definition at line 599 of file animation-interface.h.

Referenced by AddNodeCounter(), and UpdateNodeCounter().

NodeDescriptionsMap ns3::AnimationInterface::m_nodeDescriptions

private

Definition at line 592 of file animation-interface.h.

Referenced by UpdateNodeDescription(), and WriteXmlUpdateNodeDescription().

EnergyFractionMap ns3::AnimationInterface::m_nodeEnergyFraction

private

Definition at line 594 of file animation-interface.h.

Referenced by GetNodeEnergyFraction(), and RemainingEnergyTrace().

NodeCounterMap64 ns3::AnimationInterface::m_nodeIpv4Drop

private

Definition at line 602 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), Ipv4DropTrace(), and TrackIpv4L3ProtocolCounters().

NodeCounterMap64 ns3::AnimationInterface::m_nodeIpv4Rx

private

Definition at line 604 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), Ipv4RxTrace(), and TrackIpv4L3ProtocolCounters().

NodeCounterMap64 ns3::AnimationInterface::m_nodeIpv4Tx

private

Definition at line 603 of file animation-interface.h.

Referenced by EnableIpv4L3ProtocolCounters(), Ipv4TxTrace(), and TrackIpv4L3ProtocolCounters().

std::map<uint32_t, Vector> ns3::AnimationInterface::m_nodeLocation

private

Definition at line 588 of file animation-interface.h.

Referenced by GetPosition(), and UpdatePosition().

NodeCounterMap64 ns3::AnimationInterface::m_nodeQueueDequeue

private

Definition at line 606 of file animation-interface.h.

Referenced by DequeueTrace(), EnableQueueCounters(), and TrackQueueCounters().

NodeCounterMap64 ns3::AnimationInterface::m_nodeQueueDrop

private

Definition at line 607 of file animation-interface.h.

Referenced by EnableQueueCounters(), QueueDropTrace(), and TrackQueueCounters().

NodeCounterMap64 ns3::AnimationInterface::m_nodeQueueEnqueue

private

Definition at line 605 of file animation-interface.h.

Referenced by EnableQueueCounters(), EnqueueTrace(), and TrackQueueCounters().

std::map<uint32_t, NodeSize> ns3::AnimationInterface::m_nodeSizes

private

Definition at line 597 of file animation-interface.h.

Referenced by UpdateNodeSize(), and WriteNodeSizes().

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiMacRx

private

Definition at line 610 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), TrackWifiMacCounters(), and WifiMacRxTrace().

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiMacRxDrop

private

Definition at line 611 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), TrackWifiMacCounters(), and WifiMacRxDropTrace().

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiMacTx

private

Definition at line 608 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), TrackWifiMacCounters(), and WifiMacTxTrace().

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiMacTxDrop

private

Definition at line 609 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), TrackWifiMacCounters(), and WifiMacTxDropTrace().

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiPhyRxDrop

private

Definition at line 613 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), TrackWifiPhyCounters(), and WifiPhyRxDropTrace().

NodeCounterMap64 ns3::AnimationInterface::m_nodeWifiPhyTxDrop

private

Definition at line 612 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), TrackWifiPhyCounters(), and WifiPhyTxDropTrace().

std::string ns3::AnimationInterface::m_originalFileName

private

Definition at line 548 of file animation-interface.h.

std::string ns3::AnimationInterface::m_outputFileName

private

Definition at line 540 of file animation-interface.h.

Referenced by SetOutputFile(), and StartAnimation().

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingCsmaPackets

private

Definition at line 586 of file animation-interface.h.

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), and ProtocolTypeToPendingPackets().

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingLtePackets

private

Definition at line 585 of file animation-interface.h.

Referenced by LteRxTrace(), LteSpectrumPhyRxStart(), and ProtocolTypeToPendingPackets().

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingUanPackets

private

Definition at line 587 of file animation-interface.h.

Referenced by ProtocolTypeToPendingPackets(), UanPhyGenRxTrace(), and UanPhyGenTxTrace().

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingWifiPackets

private

Definition at line 583 of file animation-interface.h.

Referenced by ProtocolTypeToPendingPackets(), WifiPhyRxBeginTrace(), and WifiPhyTxBeginTrace().

AnimUidPacketInfoMap ns3::AnimationInterface::m_pendingWimaxPackets

private

Definition at line 584 of file animation-interface.h.

Referenced by ProtocolTypeToPendingPackets(), and WimaxRxTrace().

Time ns3::AnimationInterface::m_queueCountersPollInterval

private

Definition at line 556 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

Time ns3::AnimationInterface::m_queueCountersStopTime

private

Definition at line 555 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

uint32_t ns3::AnimationInterface::m_queueDequeueCounterId

private

Definition at line 572 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

uint32_t ns3::AnimationInterface::m_queueDropCounterId

private

Definition at line 573 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

uint32_t ns3::AnimationInterface::m_queueEnqueueCounterId

private

Definition at line 571 of file animation-interface.h.

Referenced by EnableQueueCounters(), and TrackQueueCounters().

uint32_t ns3::AnimationInterface::m_remainingEnergyCounterId

private

Definition at line 565 of file animation-interface.h.

Referenced by RemainingEnergyTrace(), and WriteNodeEnergies().

std::vector<std::string> ns3::AnimationInterface::m_resources

private

Definition at line 598 of file animation-interface.h.

Referenced by AddResource(), and UpdateNodeImage().

FILE* ns3::AnimationInterface::m_routingF

private

Definition at line 538 of file animation-interface.h.

Referenced by SetOutputFile(), StopAnimation(), WriteXmlAnim(), WriteXmlClose(), WriteXmlRouting(), and WriteXmlRp().

std::string ns3::AnimationInterface::m_routingFileName

private

Definition at line 550 of file animation-interface.h.

Referenced by SetOutputFile().

NodeContainer ns3::AnimationInterface::m_routingNc

private

Definition at line 552 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

Time ns3::AnimationInterface::m_routingPollInterval

private

Definition at line 551 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

Time ns3::AnimationInterface::m_routingStopTime

private

Definition at line 549 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

bool ns3::AnimationInterface::m_started

private

Definition at line 543 of file animation-interface.h.

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DevTxTrace(), IsStarted(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), MobilityAutoCheck(), MobilityCourseChangeTrace(), RemainingEnergyTrace(), StartAnimation(), StopAnimation(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), WimaxRxTrace(), and WimaxTxTrace().

Time ns3::AnimationInterface::m_startTime

private

Definition at line 545 of file animation-interface.h.

Referenced by IsInTimeWindow(), and SetStartTime().

Time ns3::AnimationInterface::m_stopTime

private

Definition at line 546 of file animation-interface.h.

Referenced by IsInTimeWindow(), and SetStopTime().

bool ns3::AnimationInterface::m_trackPackets

private

Definition at line 562 of file animation-interface.h.

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DevTxTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), MobilityCourseChangeTrace(), SkipPacketTracing(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), WimaxRxTrace(), and WimaxTxTrace().

Time ns3::AnimationInterface::m_wifiMacCountersPollInterval

private

Definition at line 558 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

Time ns3::AnimationInterface::m_wifiMacCountersStopTime

private

Definition at line 557 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

uint32_t ns3::AnimationInterface::m_wifiMacRxCounterId

private

Definition at line 577 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

uint32_t ns3::AnimationInterface::m_wifiMacRxDropCounterId

private

Definition at line 578 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

uint32_t ns3::AnimationInterface::m_wifiMacTxCounterId

private

Definition at line 575 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

uint32_t ns3::AnimationInterface::m_wifiMacTxDropCounterId

private

Definition at line 576 of file animation-interface.h.

Referenced by EnableWifiMacCounters(), and TrackWifiMacCounters().

Time ns3::AnimationInterface::m_wifiPhyCountersPollInterval

private

Definition at line 560 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), and TrackWifiPhyCounters().

Time ns3::AnimationInterface::m_wifiPhyCountersStopTime

private

Definition at line 559 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), and TrackWifiPhyCounters().

uint32_t ns3::AnimationInterface::m_wifiPhyRxDropCounterId

private

Definition at line 581 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), and TrackWifiPhyCounters().

uint32_t ns3::AnimationInterface::m_wifiPhyTxDropCounterId

private

Definition at line 580 of file animation-interface.h.

Referenced by EnableWifiPhyCounters(), and TrackWifiPhyCounters().

AnimWriteCallback ns3::AnimationInterface::m_writeCallback

private

Definition at line 542 of file animation-interface.h.

Referenced by ResetAnimWriteCallback(), SetAnimWriteCallback(), and WriteN().

Rectangle* ns3::AnimationInterface::userBoundary

staticprivate

Definition at line 561 of file animation-interface.h.

---

The documentation for this class was generated from the following files:

• src/netanim/model/animation-interface.h
• src/netanim/model/animation-interface.cc
