ns3::TimerImpl Class Reference

The timer implementation underlying Timer and Watchdog. More...

#include <timer-impl.h>

Inheritance diagram for ns3::TimerImpl:

Public Member Functions
virtual	~TimerImpl ()
	Destructor. More...
virtual void	Invoke (void)=0
	Invoke the expire function. More...
virtual EventId	Schedule (const Time &delay)=0
	Schedule the callback for a future time. More...
template<typename T1 >
void	SetArgs (T1 a1)
	Set the arguments to be used when invoking the expire function. More...
template<typename T1 , typename T2 >
void	SetArgs (T1 a1, T2 a2)
template<typename T1 , typename T2 , typename T3 >
void	SetArgs (T1 a1, T2 a2, T3 a3)
template<typename T1 , typename T2 , typename T3 , typename T4 >
void	SetArgs (T1 a1, T2 a2, T3 a3, T4 a4)
template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
void	SetArgs (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
void	SetArgs (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)

Detailed Description

The timer implementation underlying Timer and Watchdog.

Definition at line 42 of file timer-impl.h.

Constructor & Destructor Documentation

virtual ns3::TimerImpl::~TimerImpl ( )

inlinevirtual

Destructor.

Definition at line 46 of file timer-impl.h.

Member Function Documentation

virtual void ns3::TimerImpl::Invoke ( void  )

pure virtual

Invoke the expire function.

Referenced by ns3::Watchdog::Expire().

Here is the caller graph for this function:

virtual EventId ns3::TimerImpl::Schedule ( const Time &  delay )

pure virtual

Schedule the callback for a future time.

Parameters

delay

The amount of time until the timer expires.

Returns

The scheduled EventId.

Referenced by ns3::Timer::Resume(), and ns3::Timer::Schedule().

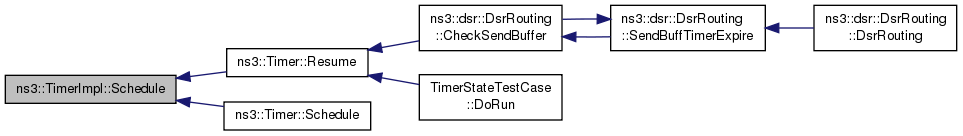

Here is the caller graph for this function:

template<typename T1 >

void ns3::TimerImpl::SetArgs

(

T1

a1

)

Set the arguments to be used when invoking the expire function.

Template Parameters

T1	Type of the first argument.

Parameters

a1	The first argument

Definition at line 974 of file timer-impl.h.

References NS_FATAL_ERROR.

Referenced by ns3::Watchdog::SetArguments(), and ns3::Timer::SetArguments().

Here is the caller graph for this function:

template<typename T1 , typename T2 >

void ns3::TimerImpl::SetArgs	(	T1	a1,
		T2	a2
	)

Template Parameters

T1	Type of the first argument.
T2	Type of the second argument.

Parameters

a1	the first argument
a2	the second argument

Definition at line 990 of file timer-impl.h.

References NS_FATAL_ERROR.

template<typename T1 , typename T2 , typename T3 >

void ns3::TimerImpl::SetArgs	(	T1	a1,
		T2	a2,
		T3	a3
	)

Template Parameters

T1	Type of the first argument.
T2	Type of the second argument.
T3	Type of the third argument.

Parameters

a1	the first argument
a2	the second argument
a3	the third argument

Definition at line 1007 of file timer-impl.h.

References NS_FATAL_ERROR.

template<typename T1 , typename T2 , typename T3 , typename T4 >

void ns3::TimerImpl::SetArgs	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4
	)

Template Parameters

T1	Type of the first argument.
T2	Type of the second argument.
T3	Type of the third argument.
T4	Type of the fourth argument.

Parameters

a1	the first argument
a2	the second argument
a3	the third argument
a4	the fourth argument

Definition at line 1025 of file timer-impl.h.

References NS_FATAL_ERROR.

template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

void ns3::TimerImpl::SetArgs	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5
	)

Template Parameters

T1	Type of the first argument.
T2	Type of the second argument.
T3	Type of the third argument.
T4	Type of the fourth argument.
T5	Type of the fifth argument.

Parameters

a1	the first argument
a2	the second argument
a3	the third argument
a4	the fourth argument
a5	the fifth argument

Definition at line 1044 of file timer-impl.h.

References NS_FATAL_ERROR.

template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

void ns3::TimerImpl::SetArgs	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6
	)

Template Parameters

T1	Type of the first argument.
T2	Type of the second argument.
T3	Type of the third argument.
T4	Type of the fourth argument.
T5	Type of the fifth argument.
T6	Type of the sixth argument.

Parameters

a1	the first argument
a2	the second argument
a3	the third argument
a4	the fourth argument
a5	the fifth argument
a6	the sixth argument

Definition at line 1064 of file timer-impl.h.

References NS_FATAL_ERROR.

---

The documentation for this class was generated from the following file:

• src/core/model/timer-impl.h
