Trace classes with value semantics. More...

#include <traced-value.h>

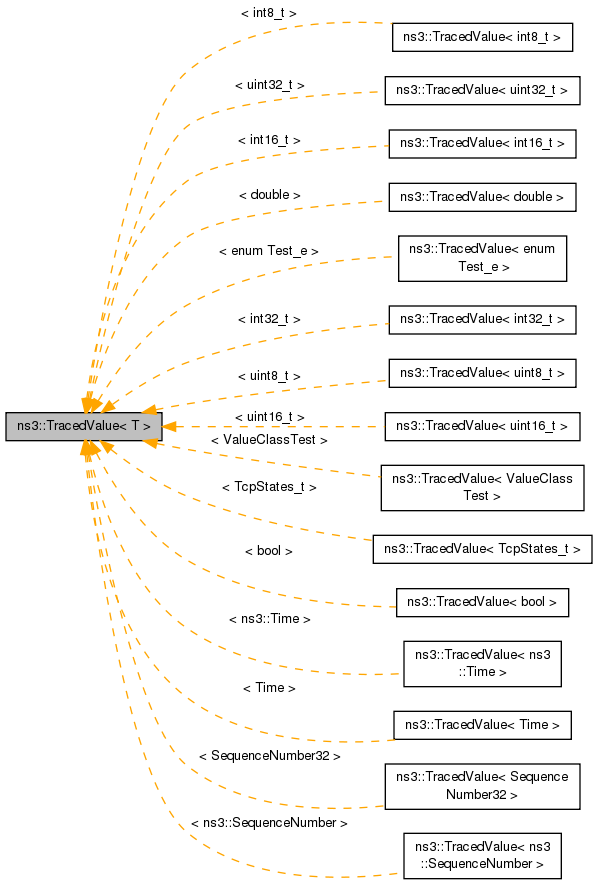

Inheritance diagram for ns3::TracedValue< T >:

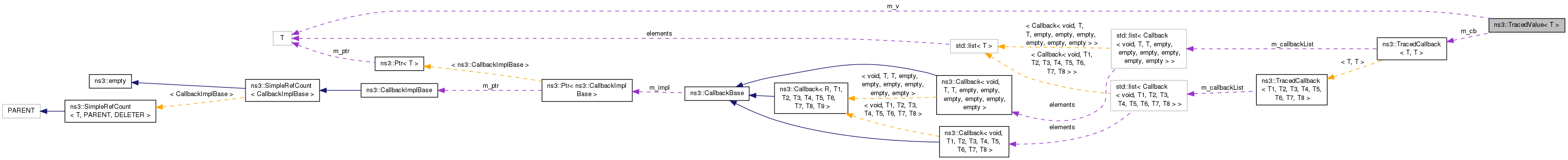

Collaboration diagram for ns3::TracedValue< T >:

Public Types

typedef void(*	BoolCallback) (const bool oldValue, const bool newValue)
	TracedValue Callback signature for POD. More...

typedef void(*	Int8Callback) (const int8_t oldValue, const int8_t newValue)
	TracedValue Callback signature for POD. More...

typedef void(*	Uint8Callback) (const uint8_t oldValue, const uint8_t newValue)
	TracedValue Callback signature for POD. More...

typedef void(*	Int16Callback) (const int16_t oldValue, const int16_t newValue)
	TracedValue Callback signature for POD. More...

typedef void(*	Uint16Callback) (const uint16_t oldValue, const uint16_t newValue)
	TracedValue Callback signature for POD. More...

typedef void(*	Int32Callback) (const int32_t oldValue, const int32_t newValue)
	TracedValue Callback signature for POD. More...

typedef void(*	Uint32Callback) (const uint32_t oldValue, const uint32_t newValue)
	TracedValue Callback signature for POD. More...

typedef void(*	DoubleCallback) (const double oldValue, const double newValue)
	TracedValue Callback signature for POD. More...

Public Member Functions
	TracedValue ()
	Default constructor. More...

	TracedValue (const TracedValue &o)
	Copy constructor. More...

	TracedValue (const T &v)
	Construct from an explicit variable. More...

template<typename U >
	TracedValue (const TracedValue< U > &other)
	Copy from a TracedValue of a compatable type. More...

template<typename U >
	TracedValue (const U &other)
	Copy from a variable type compatible with this underlying type. More...

void	Connect (const CallbackBase &cb, std::string path)
	Connect a Callback with a context string. More...

void	ConnectWithoutContext (const CallbackBase &cb)
	Connect a Callback (without context.) More...

void	Disconnect (const CallbackBase &cb, std::string path)
	Disconnect a Callback which was connected with context. More...

void	DisconnectWithoutContext (const CallbackBase &cb)
	Disconnect a Callback which was connected without context. More...

T	Get (void) const
	Get the underlying value. More...

	operator T () const
	Cast to the underlying type. More...

TracedValue &	operator= (const TracedValue &o)
	Assignment. More...

void	Set (const T &v)
	Set the value of the underlying variable. More...


TracedValue &	operator++ ()
	Pre/post- increment/decrement operator. More...

TracedValue &	operator-- ()
	Pre/post- increment/decrement operator. More...

TracedValue	operator++ (int)
	Pre/post- increment/decrement operator. More...

TracedValue	operator-- (int)
	Pre/post- increment/decrement operator. More...

Private Attributes
TracedCallback< T, T >	m_cb
	The connected Callback. More...

T	m_v
	The underlying value. More...

Detailed Description

template<typename T>
class ns3::TracedValue< T >

Trace classes with value semantics.

If you want to trace the change of value of a class or primitive type which have value semantics (they must support operator !=), you can wrap them in an instance of this template. This instance will behave just like the original class (if it did not export any special method), and will define Connect/DisconnectWithoutContext methods to work with MakeTraceSourceAccessor.

Template Parameters

T	The type of the underlying value being traced.

Definition at line 79 of file traced-value.h.

Member Typedef Documentation

template<typename T>

typedef void(* ns3::TracedValue< T >::BoolCallback) (const bool oldValue, const bool newValue)

TracedValue Callback signature for POD.

Parameters

[in]	oldValue	original value of the traced variable
[in]	newValue	new value of the traced variable

Definition at line 235 of file traced-value.h.

template<typename T>

typedef void(* ns3::TracedValue< T >::DoubleCallback) (const double oldValue, const double newValue)

TracedValue Callback signature for POD.

Parameters

[in]	oldValue	original value of the traced variable
[in]	newValue	new value of the traced variable

Definition at line 242 of file traced-value.h.

template<typename T>

typedef void(* ns3::TracedValue< T >::Int16Callback) (const int16_t oldValue, const int16_t newValue)

TracedValue Callback signature for POD.

Parameters

[in]	oldValue	original value of the traced variable
[in]	newValue	new value of the traced variable

Definition at line 238 of file traced-value.h.

template<typename T>

typedef void(* ns3::TracedValue< T >::Int32Callback) (const int32_t oldValue, const int32_t newValue)

TracedValue Callback signature for POD.

Parameters

[in]	oldValue	original value of the traced variable
[in]	newValue	new value of the traced variable

Definition at line 240 of file traced-value.h.

template<typename T>

typedef void(* ns3::TracedValue< T >::Int8Callback) (const int8_t oldValue, const int8_t newValue)

TracedValue Callback signature for POD.

Parameters

[in]	oldValue	original value of the traced variable
[in]	newValue	new value of the traced variable

Definition at line 236 of file traced-value.h.

template<typename T>

typedef void(* ns3::TracedValue< T >::Uint16Callback) (const uint16_t oldValue, const uint16_t newValue)

TracedValue Callback signature for POD.

Parameters

[in]	oldValue	original value of the traced variable
[in]	newValue	new value of the traced variable

Definition at line 239 of file traced-value.h.

template<typename T>

typedef void(* ns3::TracedValue< T >::Uint32Callback) (const uint32_t oldValue, const uint32_t newValue)

TracedValue Callback signature for POD.

Parameters

[in]	oldValue	original value of the traced variable
[in]	newValue	new value of the traced variable

Definition at line 241 of file traced-value.h.

template<typename T>

typedef void(* ns3::TracedValue< T >::Uint8Callback) (const uint8_t oldValue, const uint8_t newValue)

TracedValue Callback signature for POD.

Parameters

[in]	oldValue	original value of the traced variable
[in]	newValue	new value of the traced variable

Definition at line 237 of file traced-value.h.

Constructor & Destructor Documentation

template<typename T>

ns3::TracedValue< T >::TracedValue ( )

inline

Default constructor.

Definition at line 83 of file traced-value.h.

template<typename T>

ns3::TracedValue< T >::TracedValue ( const TracedValue< T > & o )

inline

Copy constructor.

Parameters

o	The value to copy.

Definition at line 89 of file traced-value.h.

template<typename T>

ns3::TracedValue< T >::TracedValue ( const T & v )

inline

Construct from an explicit variable.

Parameters

v	The variable to trace.

Definition at line 95 of file traced-value.h.

template<typename T>

template<typename U >

ns3::TracedValue< T >::TracedValue ( const TracedValue< U > & other )

inline

Copy from a TracedValue of a compatable type.

Template Parameters

U	The underlying type of the other TracedValue.

Parameters

other The other TracedValuet to copy.

Definition at line 120 of file traced-value.h.

template<typename T>

template<typename U >

ns3::TracedValue< T >::TracedValue ( const U & other )

inline

Copy from a variable type compatible with this underlying type.

Template Parameters

U	Type of the other variable.

Parameters

other The other variable to copy.

Definition at line 129 of file traced-value.h.

Member Function Documentation

template<typename T>

void ns3::TracedValue< T >::Connect	(	const CallbackBase &	cb,
		std::string	path
	)

inline

Connect a Callback with a context string.

The context string will be provided as the first argument to the Callback function.

Parameters

cb	The Callback to connect to the target trace source.
path	The context to bind to the user callback.

Definition at line 149 of file traced-value.h.

template<typename T>

void ns3::TracedValue< T >::ConnectWithoutContext ( const CallbackBase & cb )

inline

Connect a Callback (without context.)

Parameters

cb	The callback to connect.

Definition at line 137 of file traced-value.h.

template<typename T>

void ns3::TracedValue< T >::Disconnect	(	const CallbackBase &	cb,
		std::string	path
	)

inline

Disconnect a Callback which was connected with context.

Parameters

cb	The Callback to disconnect.
path	The context to bind to the user callback.

Definition at line 166 of file traced-value.h.

template<typename T>

void ns3::TracedValue< T >::DisconnectWithoutContext ( const CallbackBase & cb )

inline

Disconnect a Callback which was connected without context.

Parameters

cb	The Callback to disconnect.

Definition at line 157 of file traced-value.h.

template<typename T>

T ns3::TracedValue< T >::Get ( void ) const

inline

Get the underlying value.

Returns: The value.

Definition at line 186 of file traced-value.h.

Referenced by ns3::TcpSocketBase::BytesInFlight(), ns3::TcpTxBuffer::CopyFromSequence(), ns3::TcpTxBuffer::DiscardUpTo(), ns3::TcpSocketBase::DoForwardUp(), ns3::TcpNewReno::NewAck(), ns3::TcpReno::NewAck(), ns3::TcpTahoe::NewAck(), ns3::TcpWestwood::NewAck(), ns3::TcpSocketBase::NewAck(), ns3::operator!(), ns3::operator!=(), ns3::operator%(), ns3::operator%=(), ns3::operator&(), ns3::operator&=(), ns3::operator*(), ns3::operator*=(), ns3::operator+(), ns3::TracedValue< ns3::SequenceNumber >::operator++(), ns3::operator+=(), ns3::operator-(), ns3::TracedValue< ns3::SequenceNumber >::operator--(), ns3::operator-=(), ns3::operator/(), ns3::operator/=(), ns3::operator<<(), ns3::operator<<=(), ns3::operator==(), ns3::operator>(), ns3::operator>=(), ns3::operator>>(), ns3::operator>>=(), ns3::operator^(), ns3::operator^=(), ns3::operator|(), ns3::operator|=(), ns3::operator~(), ns3::TcpWestwood::Retransmit(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpSocketBase::SendEmptyPacket(), ns3::TcpSocketBase::UnAckDataCount(), ns3::TcpNewReno::Window(), ns3::TcpReno::Window(), ns3::TcpTahoe::Window(), and ns3::TcpWestwood::Window().

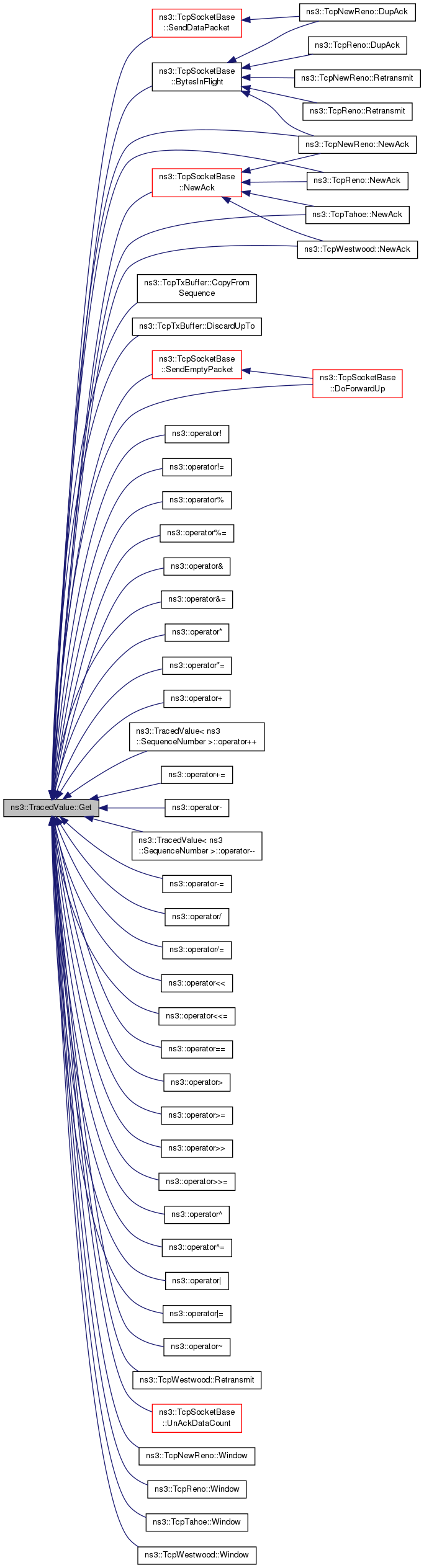

Here is the caller graph for this function:

template<typename T>

ns3::TracedValue< T >::operator T ( ) const

inline

Cast to the underlying type.

Returns: The underlying value.

Definition at line 101 of file traced-value.h.

template<typename T>

TracedValue& ns3::TracedValue< T >::operator++ ( )

inline

Pre/post- increment/decrement operator.

This invokes the Callback.

Returns: This TracedValue.

Definition at line 196 of file traced-value.h.

template<typename T>

TracedValue ns3::TracedValue< T >::operator++ ( int )

inline

Pre/post- increment/decrement operator.

This invokes the Callback.

Returns: This TracedValue.

Definition at line 210 of file traced-value.h.

template<typename T>

TracedValue& ns3::TracedValue< T >::operator-- ( )

inline

Pre/post- increment/decrement operator.

This invokes the Callback.

Returns: This TracedValue.

Definition at line 203 of file traced-value.h.

template<typename T>

TracedValue ns3::TracedValue< T >::operator-- ( int )

inline

Pre/post- increment/decrement operator.

This invokes the Callback.

Returns: This TracedValue.

Definition at line 218 of file traced-value.h.

template<typename T>

TracedValue& ns3::TracedValue< T >::operator= ( const TracedValue< T > & o )

inline

Assignment.

Parameters

o	The value to assign to this instance.

Returns: This TracedValue.

Definition at line 109 of file traced-value.h.

template<typename T>

void ns3::TracedValue< T >::Set ( const T & v )

inline

Set the value of the underlying variable.

If the new value differs from the old, the Callback will be invoked.

Parameters

v	The new value.

Definition at line 175 of file traced-value.h.

Referenced by ns3::operator%=(), ns3::operator&=(), ns3::operator*=(), ns3::TracedValue< ns3::SequenceNumber >::operator++(), ns3::operator+=(), ns3::TracedValue< ns3::SequenceNumber >::operator--(), ns3::operator-=(), ns3::operator/=(), ns3::operator<<=(), ns3::TracedValue< ns3::SequenceNumber >::operator=(), ns3::operator>>=(), ns3::operator^=(), and ns3::operator|=().

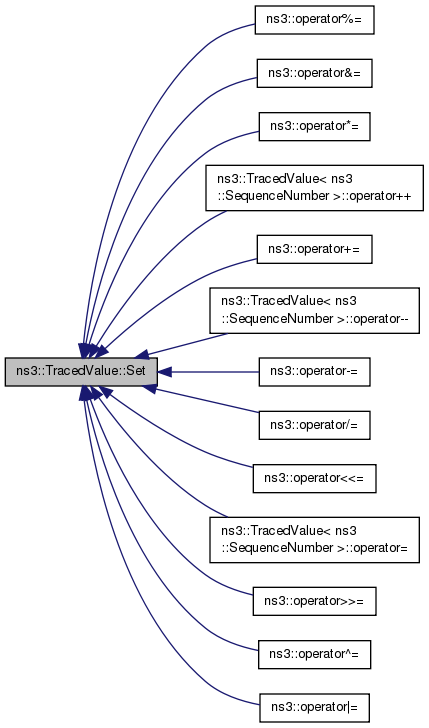

Here is the caller graph for this function:

Member Data Documentation

template<typename T>

TracedCallback<T,T> ns3::TracedValue< T >::m_cb

private

The connected Callback.

Definition at line 249 of file traced-value.h.

Referenced by ns3::TracedValue< ns3::SequenceNumber >::Connect(), ns3::TracedValue< ns3::SequenceNumber >::ConnectWithoutContext(), ns3::TracedValue< ns3::SequenceNumber >::Disconnect(), ns3::TracedValue< ns3::SequenceNumber >::DisconnectWithoutContext(), and ns3::TracedValue< ns3::SequenceNumber >::Set().

template<typename T>

T ns3::TracedValue< T >::m_v

private

The underlying value.

Definition at line 247 of file traced-value.h.

Referenced by ns3::TracedValue< ns3::SequenceNumber >::Get(), ns3::TracedValue< ValueClassTest >::operator ValueClassTest(), ns3::TracedValue< ns3::SequenceNumber >::operator=(), and ns3::TracedValue< ns3::SequenceNumber >::Set().

The documentation for this class was generated from the following file:

src/core/model/traced-value.h
