PowerRateAdaptationTest Class Reference

Inheritance diagram for PowerRateAdaptationTest:

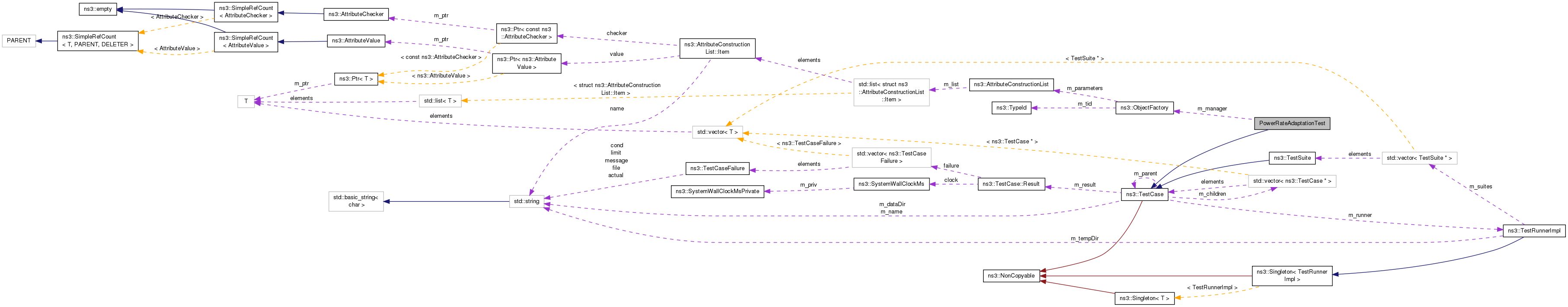

Collaboration diagram for PowerRateAdaptationTest:

Public Member Functions
	PowerRateAdaptationTest ()
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
Ptr< Node >	ConfigureNode ()
void	TestAparf ()
void	TestParf ()

Private Attributes
ObjectFactory	m_manager

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Definition at line 45 of file power-rate-adaptation-test.cc.

Constructor & Destructor Documentation

PowerRateAdaptationTest::PowerRateAdaptationTest

(

)

Definition at line 59 of file power-rate-adaptation-test.cc.

Member Function Documentation

Ptr< Node > PowerRateAdaptationTest::ConfigureNode ( )

private

Definition at line 65 of file power-rate-adaptation-test.cc.

References ns3::Node::AddDevice(), third::channel, ns3::ObjectFactory::Create(), m_manager, third::mac, third::mobility, third::phy, and ns3::WIFI_PHY_STANDARD_80211a.

Referenced by TestAparf(), and TestParf().

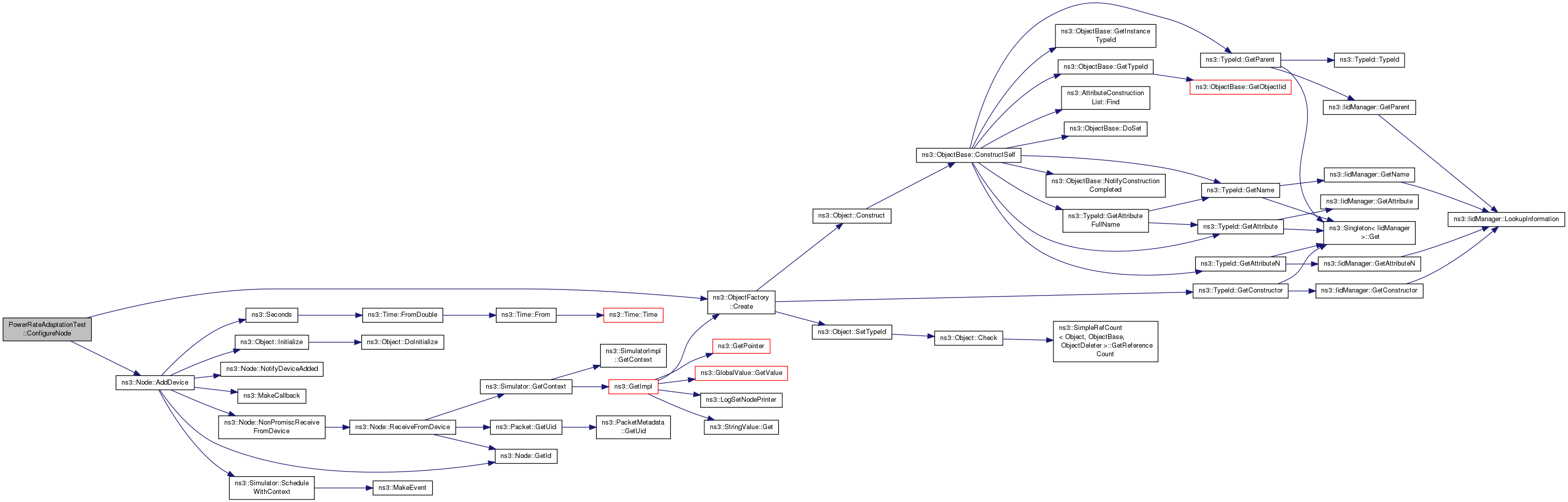

Here is the call graph for this function:

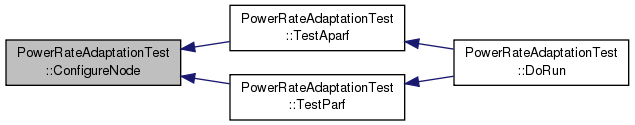

Here is the caller graph for this function:

void PowerRateAdaptationTest::DoRun ( void  )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 581 of file power-rate-adaptation-test.cc.

References TestAparf(), and TestParf().

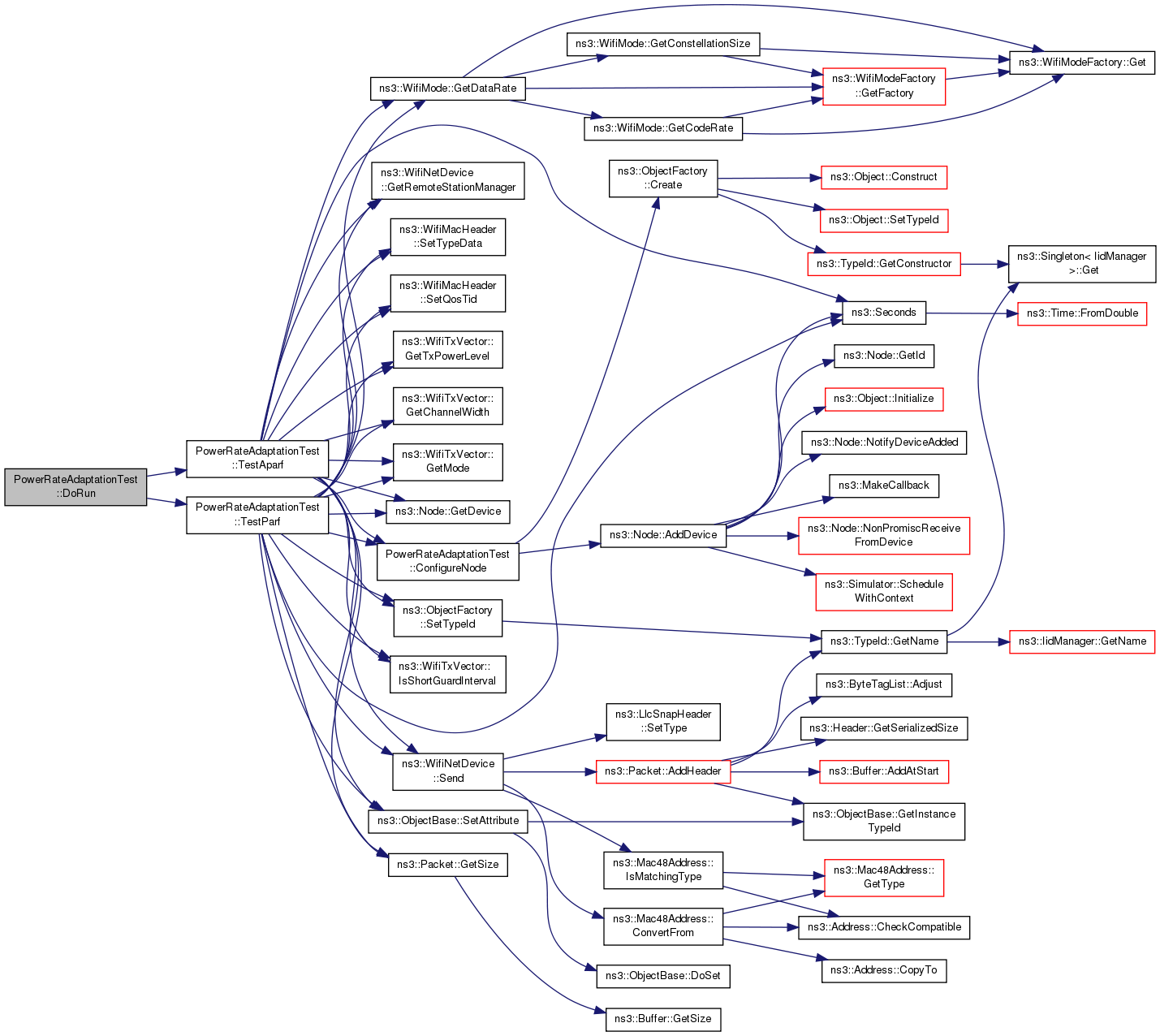

Here is the call graph for this function:

void PowerRateAdaptationTest::TestAparf ( )

private

Definition at line 341 of file power-rate-adaptation-test.cc.

References ConfigureNode(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::Node::GetDevice(), ns3::WifiTxVector::GetMode(), ns3::WifiNetDevice::GetRemoteStationManager(), ns3::Packet::GetSize(), ns3::WifiTxVector::GetTxPowerLevel(), ns3::WifiTxVector::IsShortGuardInterval(), m_manager, NS_TEST_ASSERT_MSG_EQ, ns3::Seconds(), ns3::WifiNetDevice::Send(), ns3::ObjectBase::SetAttribute(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetTypeData(), and ns3::ObjectFactory::SetTypeId().

Referenced by DoRun().

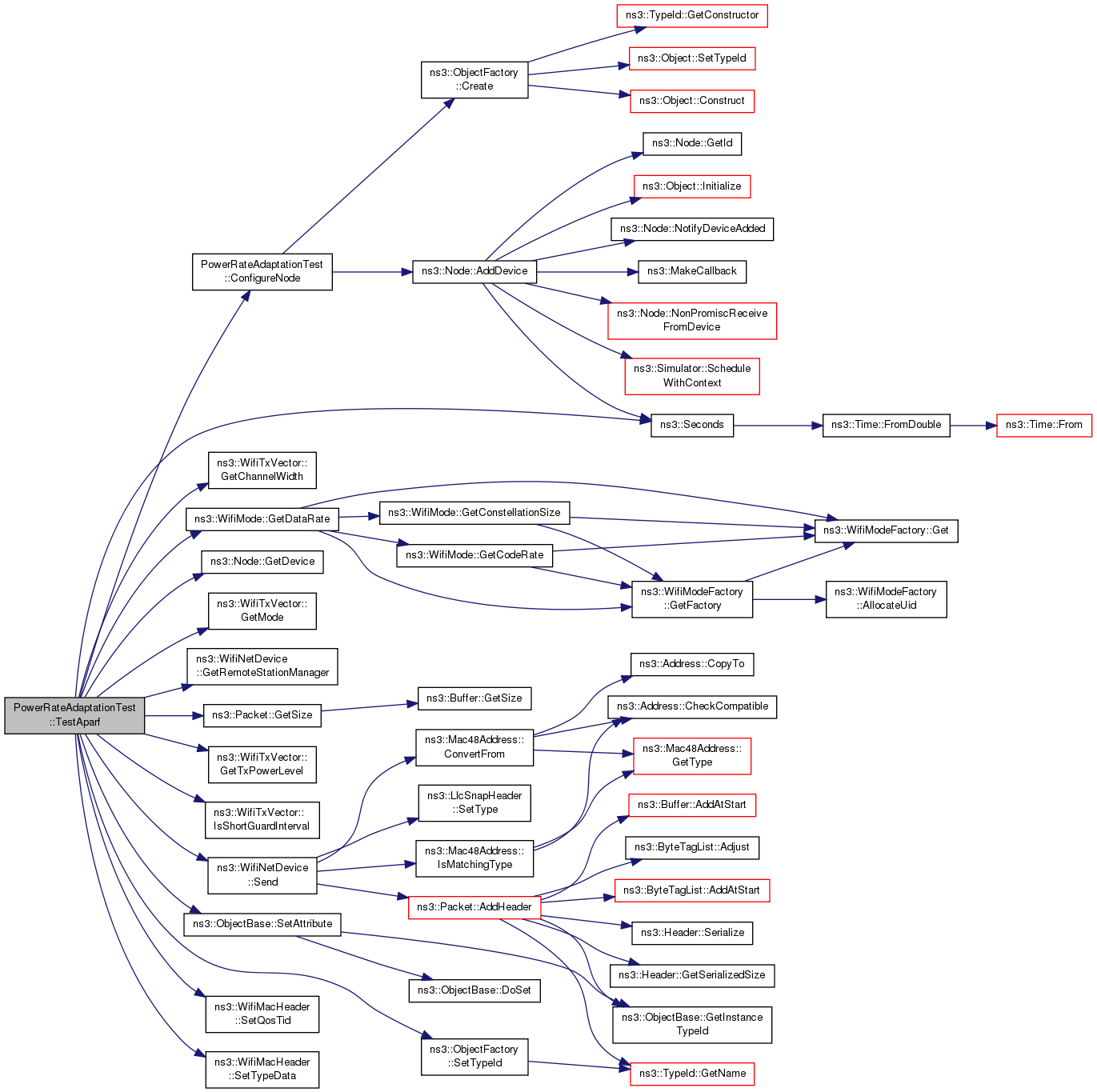

Here is the call graph for this function:

Here is the caller graph for this function:

void PowerRateAdaptationTest::TestParf ( )

private

Definition at line 119 of file power-rate-adaptation-test.cc.

References ConfigureNode(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::Node::GetDevice(), ns3::WifiTxVector::GetMode(), ns3::WifiNetDevice::GetRemoteStationManager(), ns3::Packet::GetSize(), ns3::WifiTxVector::GetTxPowerLevel(), ns3::WifiTxVector::IsShortGuardInterval(), m_manager, NS_TEST_ASSERT_MSG_EQ, ns3::Seconds(), ns3::WifiNetDevice::Send(), ns3::ObjectBase::SetAttribute(), ns3::WifiMacHeader::SetQosTid(), ns3::WifiMacHeader::SetTypeData(), and ns3::ObjectFactory::SetTypeId().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

ObjectFactory PowerRateAdaptationTest::m_manager

private

Definition at line 56 of file power-rate-adaptation-test.cc.

Referenced by ConfigureNode(), TestAparf(), and TestParf().

---

The documentation for this class was generated from the following file:

• src/wifi/test/power-rate-adaptation-test.cc
