ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 > Class Template Reference

The unqualified CallbackImpl class. More...

#include "callback.h"

Inheritance diagram for ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >:

Collaboration diagram for ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >:

Public Member Functions
virtual	~CallbackImpl ()
virtual std::string	GetTypeid (void) const
	Get the type as a string. More...
virtual R	operator() (T1, T2, T3, T4, T5, T6, T7, T8, T9)=0
	Abstract operator. More...
Public Member Functions inherited from ns3::CallbackImplBase
virtual	~CallbackImplBase ()
	Virtual destructor. More...
virtual bool	IsEqual (Ptr< const CallbackImplBase > other) const =0
	Equality test. More...
Public Member Functions inherited from ns3::SimpleRefCount< CallbackImplBase >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Static Public Member Functions
static std::string	DoGetTypeid (void)
Static Public Member Functions inherited from ns3::SimpleRefCount< CallbackImplBase >
static void	Cleanup (void)
	Noop. More...

Additional Inherited Members
Static Protected Member Functions inherited from ns3::CallbackImplBase
static std::string	Demangle (const std::string &mangled)
template<typename T >
static std::string	GetCppTypeid (void)
	Helper to get the C++ typeid as a string. More...

Detailed Description

template<typename R, typename T1, typename T2, typename T3, typename T4, typename T5, typename T6, typename T7, typename T8, typename T9>
class ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >

The unqualified CallbackImpl class.

CallbackImpl class with nine arguments.

Definition at line 189 of file callback.h.

Constructor & Destructor Documentation

template<typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

virtual ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::~CallbackImpl ( )

inlinevirtual

Definition at line 399 of file callback.h.

Member Function Documentation

template<typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

static std::string ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::DoGetTypeid ( void  )

inlinestatic

Definition at line 405 of file callback.h.

Referenced by ns3::Callback< void, int8_t >::DoAssign(), ns3::CallbackImpl< R, empty, empty, empty, empty, empty, empty, empty, empty, empty >::GetTypeid(), ns3::CallbackImpl< R, T1, empty, empty, empty, empty, empty, empty, empty, empty >::GetTypeid(), ns3::CallbackImpl< R, T1, T2, empty, empty, empty, empty, empty, empty, empty >::GetTypeid(), ns3::CallbackImpl< R, T1, T2, T3, empty, empty, empty, empty, empty, empty >::GetTypeid(), ns3::CallbackImpl< R, T1, T2, T3, T4, empty, empty, empty, empty, empty >::GetTypeid(), ns3::CallbackImpl< R, T1, T2, T3, T4, T5, empty, empty, empty, empty >::GetTypeid(), ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, empty, empty, empty >::GetTypeid(), ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, empty, empty >::GetTypeid(), ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, empty >::GetTypeid(), and ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::GetTypeid().

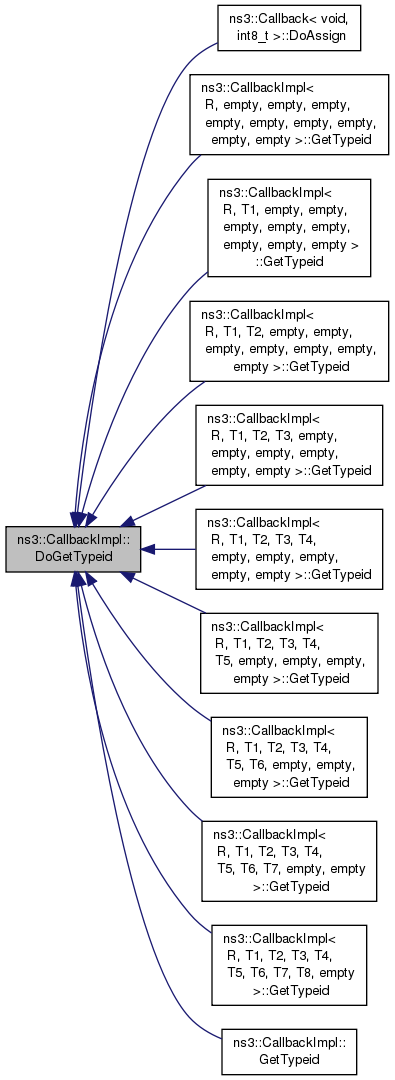

Here is the caller graph for this function:

template<typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

virtual std::string ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::GetTypeid ( void  ) const

inlinevirtual

Get the type as a string.

Implements ns3::CallbackImplBase.

Definition at line 401 of file callback.h.

References ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::DoGetTypeid().

Here is the call graph for this function:

template<typename R , typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 , typename T7 , typename T8 , typename T9 >

virtual R ns3::CallbackImpl< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::operator() ( T1  , T2  , T3  , T4  , T5  , T6  , T7  , T8  , T9    )

pure virtual

Abstract operator.

Implemented in ns3::MemPtrCallbackImpl< OBJ_PTR, MEM_PTR, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >, and ns3::FunctorCallbackImpl< T, R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >.

---

The documentation for this class was generated from the following file:

• src/core/model/callback.h
