Introspection did not find any typical Config paths. More...

#include "config-store.h"

Inheritance diagram for ns3::ConfigStore:

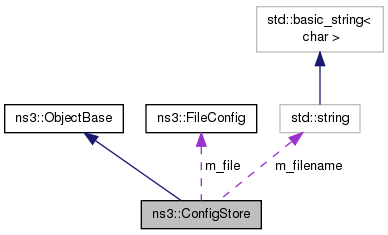

Collaboration diagram for ns3::ConfigStore:

Public Types
enum	FileFormat { XML, RAW_TEXT }

enum	Mode { LOAD, SAVE, NONE }

Public Member Functions
	ConfigStore ()

	~ConfigStore ()

void	ConfigureAttributes (void)

void	ConfigureDefaults (void)

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

void	SetFileFormat (enum FileFormat format)

void	SetFilename (std::string filename)

void	SetMode (enum Mode mode)

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
FileConfig *	m_file

enum FileFormat	m_fileFormat

std::string	m_filename

enum Mode	m_mode

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Introspection did not find any typical Config paths.

Attributes

Mode: Configuration mode
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: None
- Flags: construct write
Filename: The file where the configuration should be saved to or loaded from.
- Set with class: StringValue
- Underlying type:
- Initial value:
- Flags: construct write
FileFormat: Type of file format
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: RawText
- Flags: construct write

No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 54 of file config-store.h.

Constructor & Destructor Documentation

ns3::ConfigStore::ConfigStore ( )

Definition at line 81 of file config-store.cc.

References ns3::ObjectBase::ConstructSelf(), LOAD, m_file, m_fileFormat, m_filename, m_mode, NS_ABORT_MSG, RAW_TEXT, SAVE, ns3::FileConfig::SetFilename(), and XML.

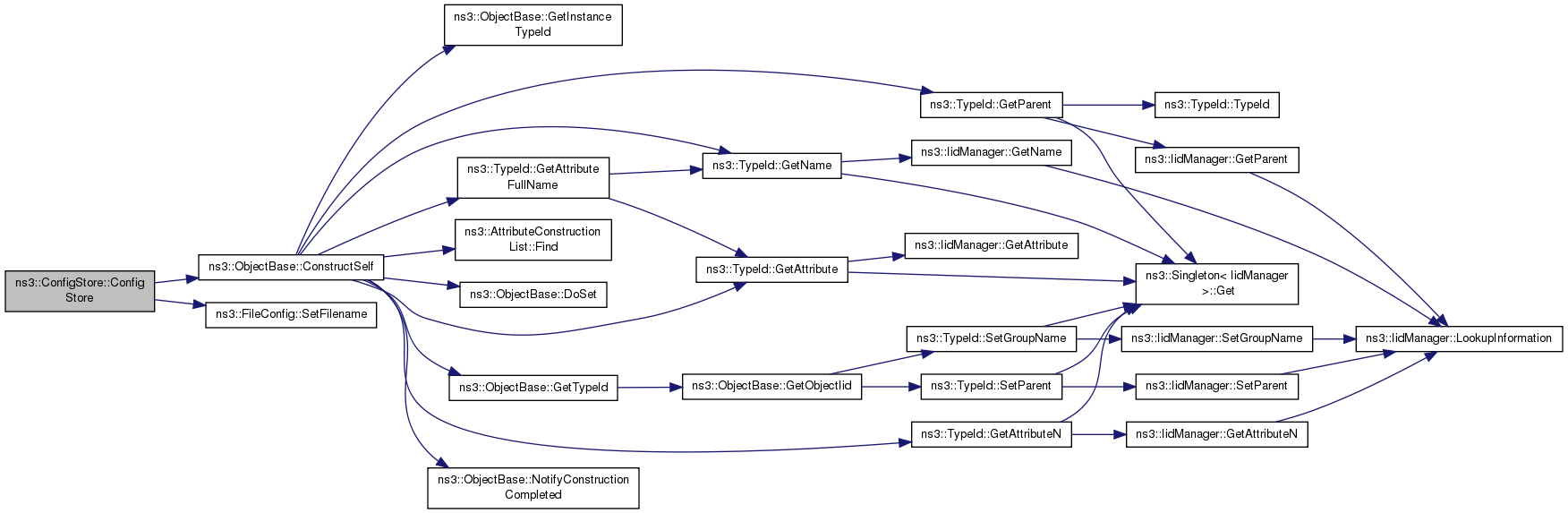

Here is the call graph for this function:

ns3::ConfigStore::~ConfigStore ( )

Definition at line 133 of file config-store.cc.

References m_file.

Member Function Documentation

void ns3::ConfigStore::ConfigureAttributes ( void )

Definition at line 156 of file config-store.cc.

References ns3::FileConfig::Attributes(), and m_file.

Here is the call graph for this function:

void ns3::ConfigStore::ConfigureDefaults ( void )

Definition at line 162 of file config-store.cc.

References ns3::FileConfig::Default(), ns3::FileConfig::Global(), and m_file.

Referenced by ConfigStoreHelper::LoadConfig(), and ConfigStoreHelper::SaveConfig().

Here is the call graph for this function:

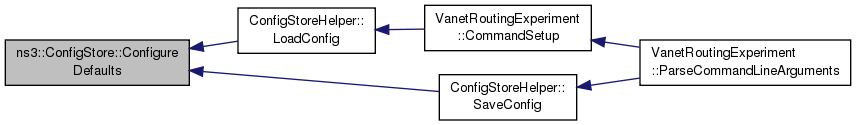

Here is the caller graph for this function:

TypeId ns3::ConfigStore::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
