Mobility model for which the current acceleration does not change once it has been set and until it is set again explicitely to a new value. More...

#include "constant-acceleration-mobility-model.h"

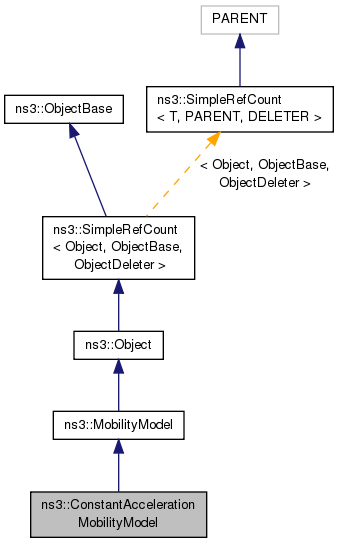

Inheritance diagram for ns3::ConstantAccelerationMobilityModel:

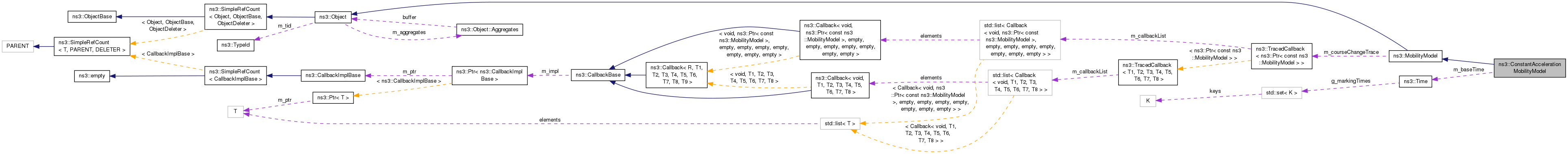

Collaboration diagram for ns3::ConstantAccelerationMobilityModel:

Public Member Functions
	ConstantAccelerationMobilityModel ()
	Create position located at coordinates (0,0,0) with speed (0,0,0). More...

virtual	~ConstantAccelerationMobilityModel ()

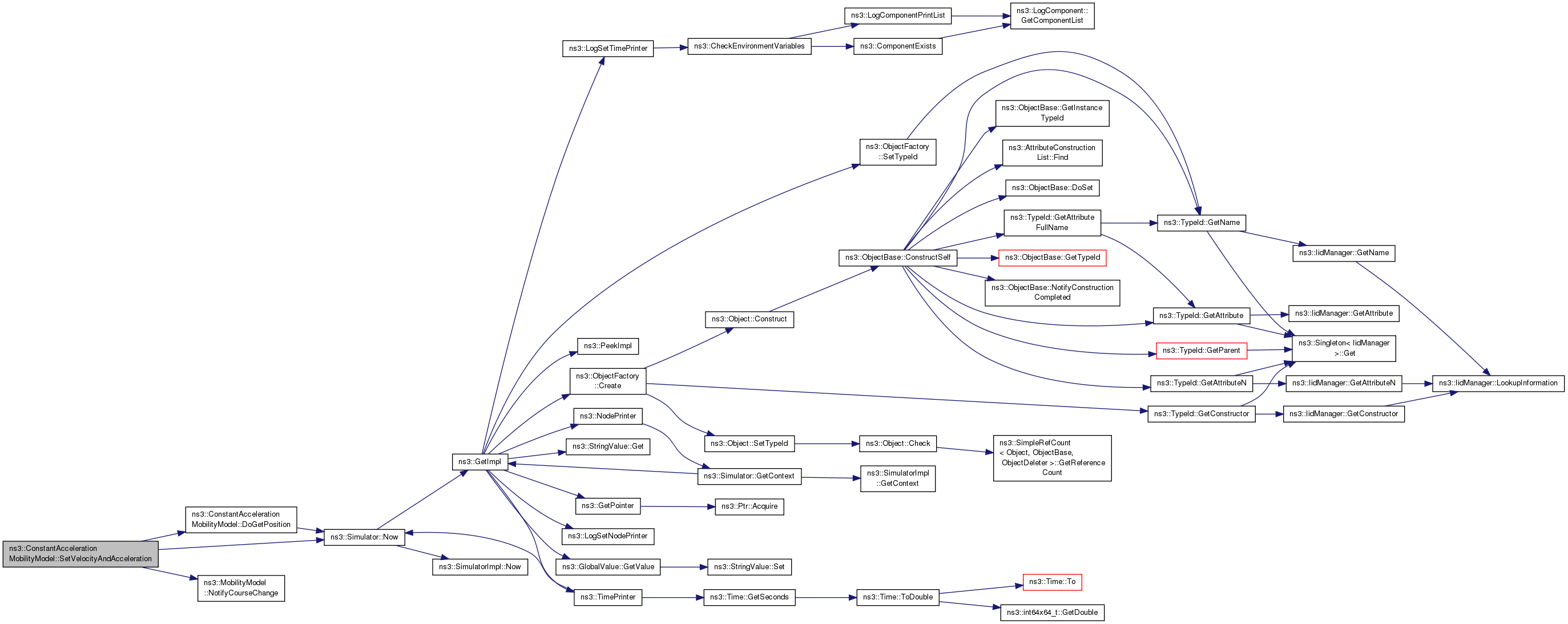

void	SetVelocityAndAcceleration (const Vector &velocity, const Vector &acceleration)
	Set the model's velocity and acceleration. More...

Public Member Functions inherited from ns3::MobilityModel
	MobilityModel ()

virtual	~MobilityModel ()=0

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

double	GetDistanceFrom (Ptr< const MobilityModel > position) const

Vector	GetPosition (void) const

double	GetRelativeSpeed (Ptr< const MobilityModel > other) const

Vector	GetVelocity (void) const

void	SetPosition (const Vector &position)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

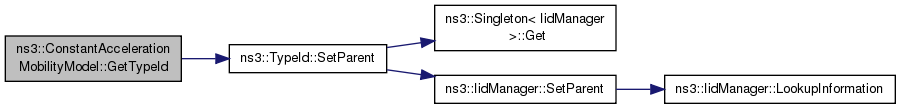

static TypeId	GetTypeId (void)
	Register this type with the TypeId system. More...

Static Public Member Functions inherited from ns3::MobilityModel
static TypeId	GetTypeId (void)
	Register this type with the TypeId system. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions

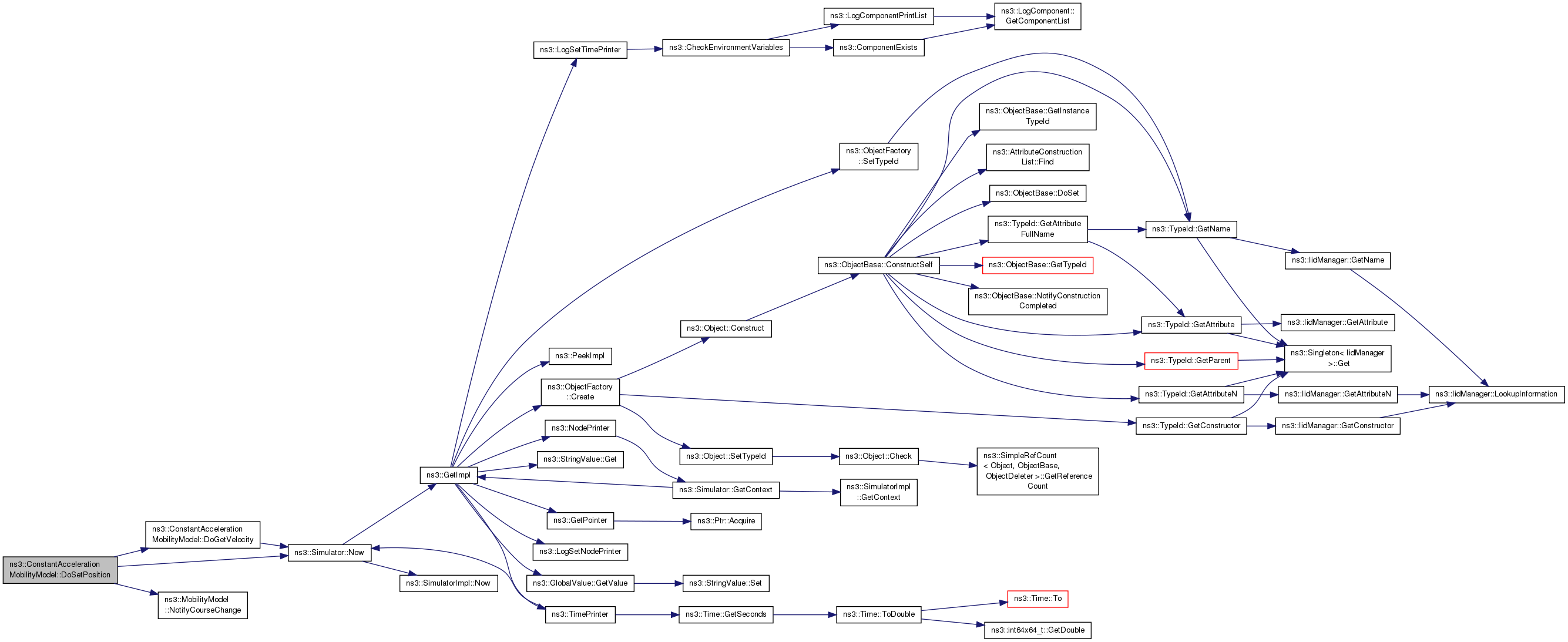

virtual Vector	DoGetPosition (void) const

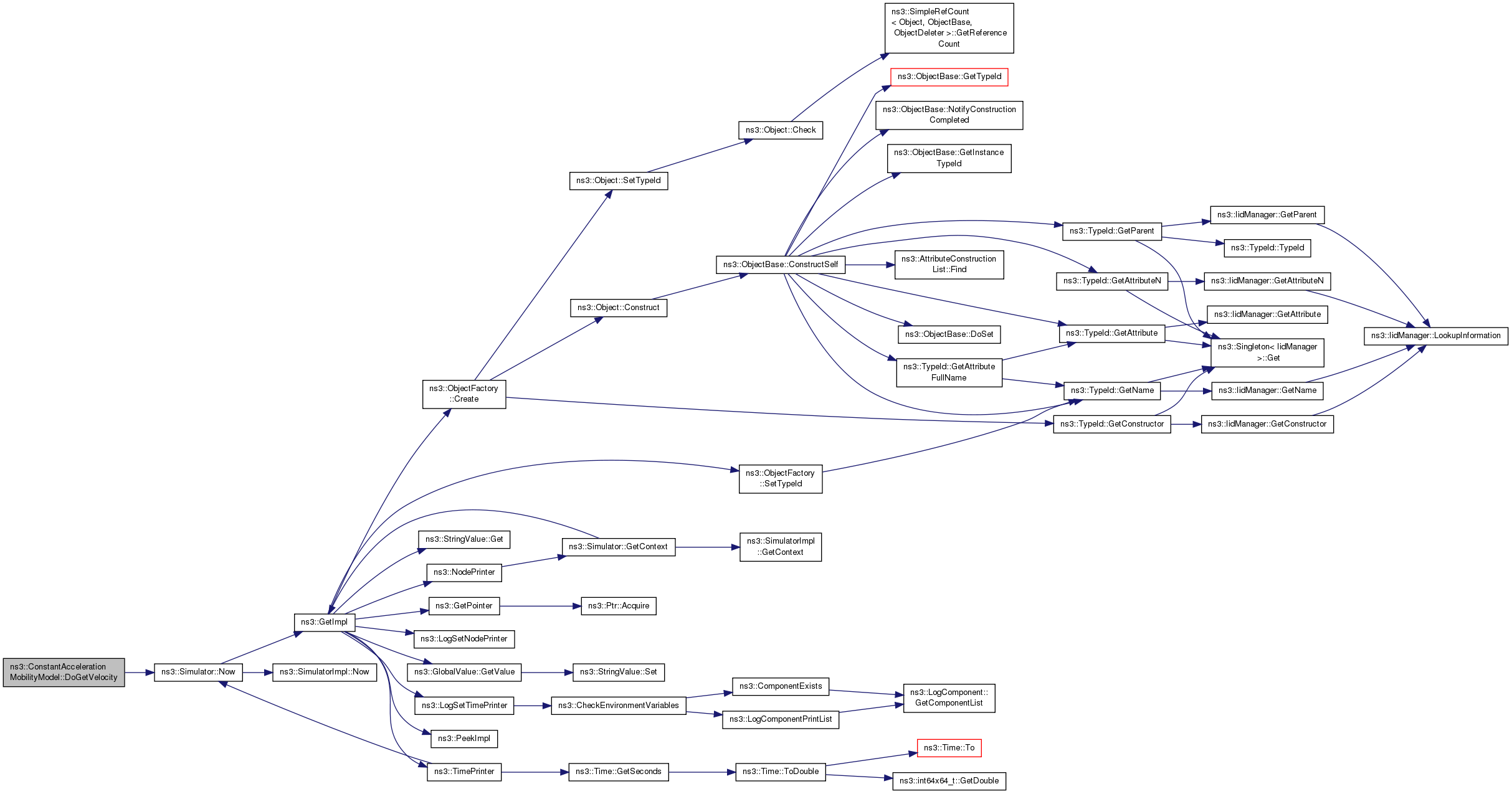

virtual Vector	DoGetVelocity (void) const

virtual void	DoSetPosition (const Vector &position)

Private Attributes
Vector	m_acceleration
	the acceleration More...

Vector	m_basePosition
	the base position More...

Time	m_baseTime
	the base time More...

Vector	m_baseVelocity
	the base velocity More...

Additional Inherited Members
Public Types inherited from ns3::MobilityModel
typedef void(*	TracedCallback) (Ptr< const MobilityModel > model)
	TracedCallback signature. More...

Protected Member Functions inherited from ns3::MobilityModel
void	NotifyCourseChange (void) const
	Must be invoked by subclasses when the course of the position changes to notify course change listeners. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Mobility model for which the current acceleration does not change once it has been set and until it is set again explicitely to a new value.

Config Paths

ns3::ConstantAccelerationMobilityModel is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/$ns3::MobilityModel/$ns3::ConstantAccelerationMobilityModel"

No Attributes are defined for this type.

Attributes defined in parent class ns3::MobilityModel

Position: The current position of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: write read
Velocity: The current velocity of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: read
