Introspection did not find any typical Config paths. More...

#include "icmpv4.h"

Inheritance diagram for ns3::Icmpv4Header:

Collaboration diagram for ns3::Icmpv4Header:

Public Types
enum	{ ECHO_REPLY = 0, DEST_UNREACH = 3, ECHO = 8, TIME_EXCEEDED = 11 }

Public Member Functions
	Icmpv4Header ()

virtual	~Icmpv4Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

void	EnableChecksum (void)
	Enables ICMP Checksum calculation. More...

uint8_t	GetCode (void) const
	Get ICMP code. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

virtual uint32_t	GetSerializedSize (void) const

uint8_t	GetType (void) const
	Get ICMP type. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetCode (uint8_t code)
	Set ICMP code. More...

void	SetType (uint8_t type)
	Set ICMP type. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
bool	m_calcChecksum
	true if checksum is calculated More...

uint8_t	m_code
	ICMP code. More...

uint8_t	m_type
	ICMP type. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 33 of file icmpv4.h.

Member Enumeration Documentation

anonymous enum

Enumerator
ECHO_REPLY
DEST_UNREACH
ECHO
TIME_EXCEEDED

Definition at line 36 of file icmpv4.h.

Constructor & Destructor Documentation

ns3::Icmpv4Header::Icmpv4Header ( )

Definition at line 45 of file icmpv4.cc.

References NS_LOG_FUNCTION.

ns3::Icmpv4Header::~Icmpv4Header ( )

virtual

Definition at line 52 of file icmpv4.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::Icmpv4Header::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 93 of file icmpv4.cc.

References m_code, m_type, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, and ns3::Buffer::Iterator::ReadU8().

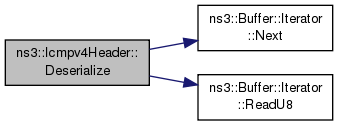

Here is the call graph for this function:

void ns3::Icmpv4Header::EnableChecksum ( void )

Enables ICMP Checksum calculation.

Definition at line 57 of file icmpv4.cc.

References m_calcChecksum, and NS_LOG_FUNCTION.

Referenced by ns3::V4Ping::Send(), ns3::Icmpv4L4Protocol::SendMessage(), ns3::olsr::Bug780Test::SendPing(), and ChainRegressionTest::SendPing().

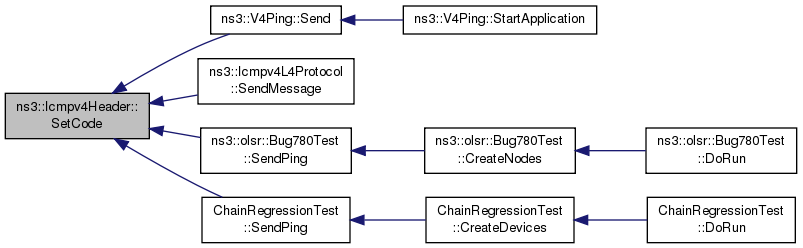

Here is the caller graph for this function:

uint8_t ns3::Icmpv4Header::GetCode ( void ) const

Get ICMP code.

Returns: the ICMP code

Definition at line 127 of file icmpv4.cc.

References m_code, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv4L4Protocol::Forward().

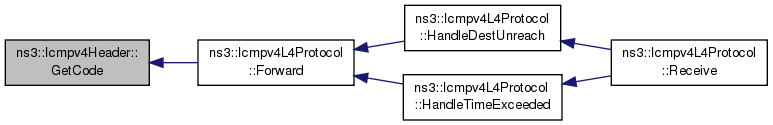

Here is the caller graph for this function:

TypeId ns3::Icmpv4Header::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 63 of file icmpv4.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

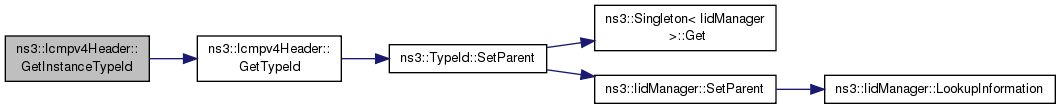

Here is the call graph for this function:

uint32_t ns3::Icmpv4Header::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 69 of file icmpv4.cc.

References NS_LOG_FUNCTION.

uint8_t ns3::Icmpv4Header::GetType ( void ) const

Get ICMP type.

Returns: the ICMP type

Definition at line 121 of file icmpv4.cc.

References m_type, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv4L4Protocol::Forward(), ns3::Ipv4RawSocketImpl::ForwardUp(), and ns3::Icmpv4L4Protocol::Receive().

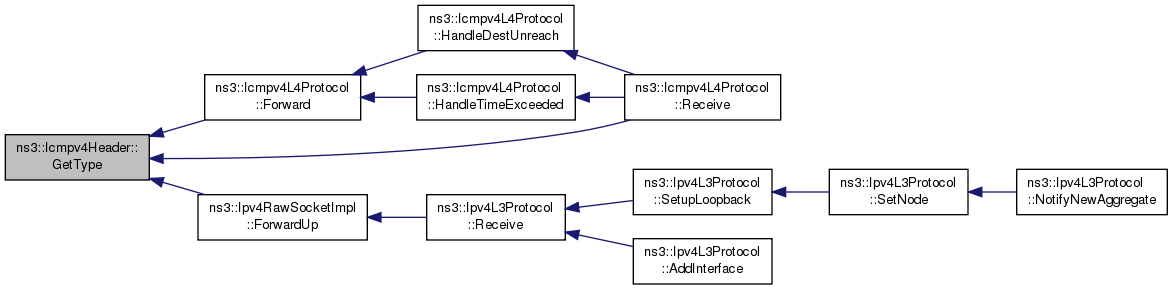

Here is the caller graph for this function:

TypeId ns3::Icmpv4Header::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 36 of file icmpv4.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

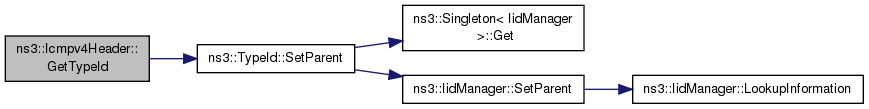

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv4Header::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 102 of file icmpv4.cc.

References m_code, m_type, and NS_LOG_FUNCTION.

void ns3::Icmpv4Header::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 75 of file icmpv4.cc.

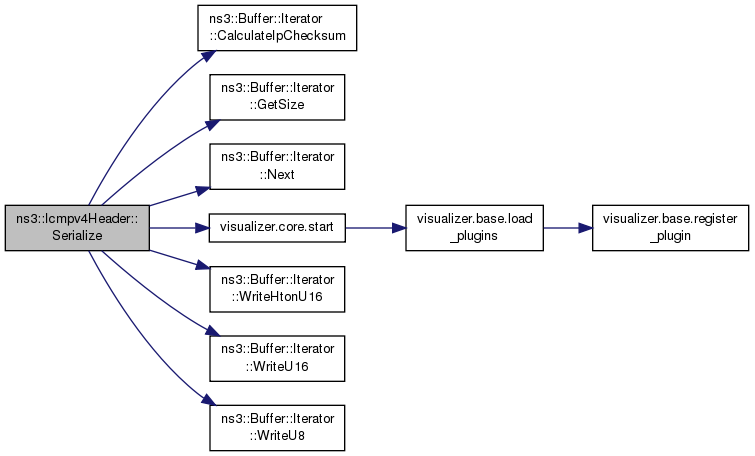

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Buffer::Iterator::GetSize(), m_calcChecksum, m_code, m_type, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().
