LTE_RLC Saturation Mode (SM): simulation-specific mode used for experiments that do not need to consider the layers above the LTE_RLC. More...

#include "lte-rlc.h"

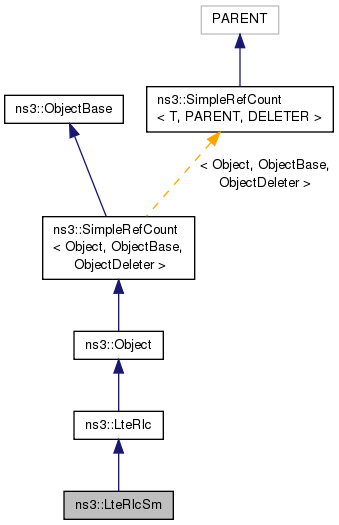

Inheritance diagram for ns3::LteRlcSm:

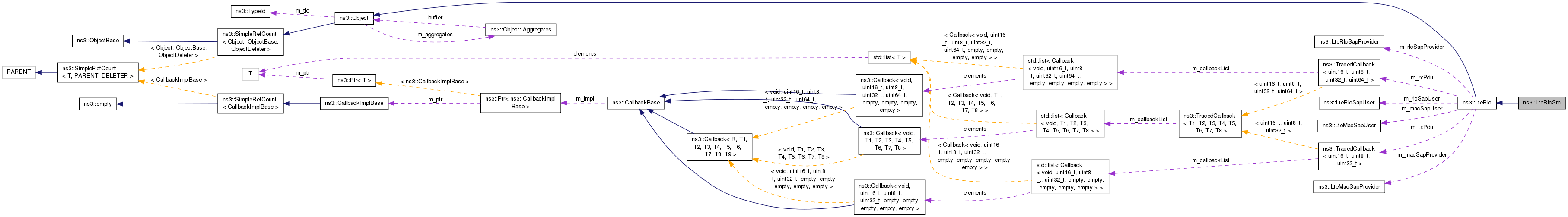

Collaboration diagram for ns3::LteRlcSm:

Public Member Functions
	LteRlcSm ()

virtual	~LteRlcSm ()

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	DoNotifyHarqDeliveryFailure ()

virtual void	DoNotifyTxOpportunity (uint32_t bytes, uint8_t layer, uint8_t harqId)

virtual void	DoReceivePdu (Ptr< Packet > p)

virtual void	DoTransmitPdcpPdu (Ptr< Packet > p)

Public Member Functions inherited from ns3::LteRlc
	LteRlc ()

virtual	~LteRlc ()

LteMacSapUser *	GetLteMacSapUser ()

LteRlcSapProvider *	GetLteRlcSapProvider ()

void	SetLcId (uint8_t lcId)

void	SetLteMacSapProvider (LteMacSapProvider *s)

void	SetLteRlcSapUser (LteRlcSapUser *s)

void	SetRnti (uint16_t rnti)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::LteRlc
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	ReportBufferStatus ()

Additional Inherited Members
Public Types inherited from ns3::LteRlc
typedef void(*	NotifyTxTracedCallback) (uint16_t rnti, uint8_t lcid, uint32_t bytes)
	TracedCallback signature for NotifyTxOpportunity events. More...

typedef void(*	ReceiveTracedCallback) (uint16_t rnti, uint8_t lcid, uint32_t bytes, uint64_t delay)
	TracedCallback signature for. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::LteRlc
uint8_t	m_lcid

LteMacSapProvider *	m_macSapProvider

LteMacSapUser *	m_macSapUser

LteRlcSapProvider *	m_rlcSapProvider

LteRlcSapUser *	m_rlcSapUser

uint16_t	m_rnti

TracedCallback< uint16_t, uint8_t, uint32_t, uint64_t >	m_rxPdu
	Used to inform of a PDU reception from the MAC SAP user. More...

TracedCallback< uint16_t, uint8_t, uint32_t >	m_txPdu
	Used to inform of a PDU delivery to the MAC SAP provider. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

LTE_RLC Saturation Mode (SM): simulation-specific mode used for experiments that do not need to consider the layers above the LTE_RLC.

The LTE_RLC SM, unlike the standard LTE_RLC modes, it does not provide data delivery services to upper layers; rather, it just generates a new LTE_RLC PDU whenever the MAC notifies a transmission opportunity.

Config Paths

ns3::LteRlcSm is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcSm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb0/LteRlc/$ns3::LteRlcSm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb1/LteRlc/$ns3::LteRlcSm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcSm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb0/LteRlc/$ns3::LteRlcSm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb1/LteRlc/$ns3::LteRlcSm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcSm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0/LteRlc/$ns3::LteRlcSm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1/LteRlc/$ns3::LteRlcSm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcSm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0/LteRlc/$ns3::LteRlcSm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1/LteRlc/$ns3::LteRlcSm"

No Attributes are defined for this type.
No TraceSources are defined for this type.

TraceSources defined in parent class ns3::LteRlc

TxPDU: PDU transmission notified to the MAC.
Callback signature: ns3::LteRlc::NotifyTxTracedCallback
RxPDU: PDU received.
Callback signature: ns3::LteRlc::ReceiveTracedCallback

Size of this type is 104 bytes (on a 64-bit architecture).

Definition at line 168 of file lte-rlc.h.

Constructor & Destructor Documentation

ns3::LteRlcSm::LteRlcSm ( )

Definition at line 174 of file lte-rlc.cc.

References NS_LOG_FUNCTION.

ns3::LteRlcSm::~LteRlcSm ( )

virtual

Definition at line 179 of file lte-rlc.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteRlcSm::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::LteRlc.

Definition at line 203 of file lte-rlc.cc.

References ns3::LteRlc::DoDispose(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteRlcSm::DoInitialize ( void )

virtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 196 of file lte-rlc.cc.

References NS_LOG_FUNCTION, and ReportBufferStatus().

Here is the call graph for this function:
