#include "lte-ue-mac.h"

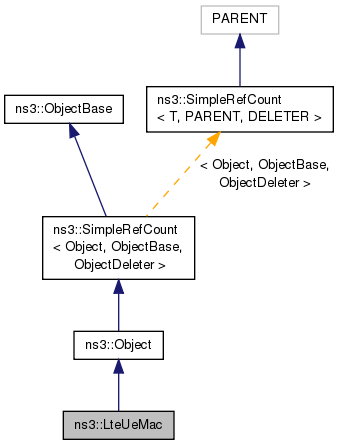

Inheritance diagram for ns3::LteUeMac:

Collaboration diagram for ns3::LteUeMac:

Classes
struct	LcInfo

Public Member Functions
	LteUeMac ()

virtual	~LteUeMac ()

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

void	DoSubframeIndication (uint32_t frameNo, uint32_t subframeNo)
	Forwarded from LteUePhySapUser: trigger the start from a new frame. More...

LteMacSapProvider *	GetLteMacSapProvider (void)

LteUeCmacSapProvider *	GetLteUeCmacSapProvider (void)

LteUePhySapUser *	GetLteUePhySapUser ()
	Get the PHY SAP user. More...

void	SetLteUeCmacSapUser (LteUeCmacSapUser *s)

void	SetLteUePhySapProvider (LteUePhySapProvider *s)
	Set the PHY SAP Provider. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

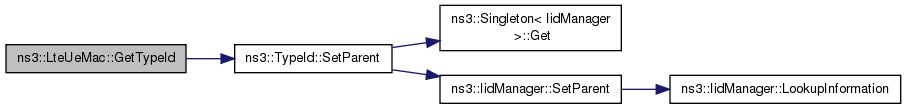

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoAddLc (uint8_t lcId, LteUeCmacSapProvider::LogicalChannelConfig lcConfig, LteMacSapUser *msu)

void	DoConfigureRach (LteUeCmacSapProvider::RachConfig rc)

void	DoReceiveLteControlMessage (Ptr< LteControlMessage > msg)

void	DoReceivePhyPdu (Ptr< Packet > p)

void	DoRemoveLc (uint8_t lcId)

void	DoReportBufferStatus (LteMacSapProvider::ReportBufferStatusParameters params)

void	DoReset ()

void	DoStartContentionBasedRandomAccessProcedure ()

void	DoStartNonContentionBasedRandomAccessProcedure (uint16_t rnti, uint8_t rapId, uint8_t prachMask)

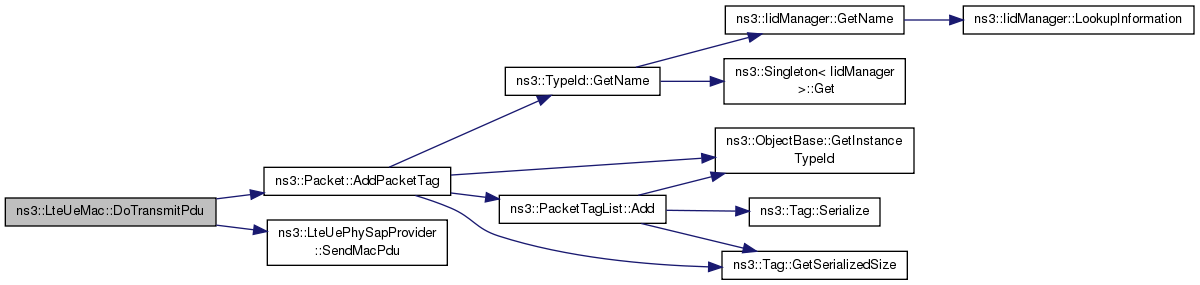

void	DoTransmitPdu (LteMacSapProvider::TransmitPduParameters params)

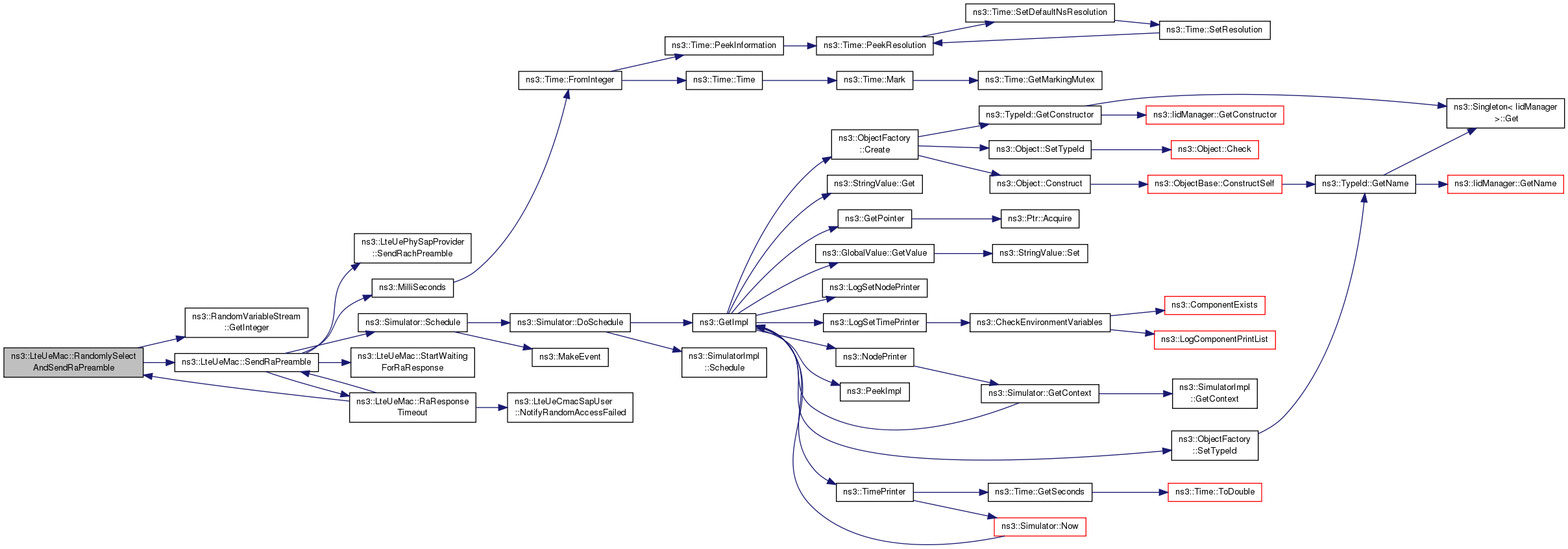

void	RandomlySelectAndSendRaPreamble ()

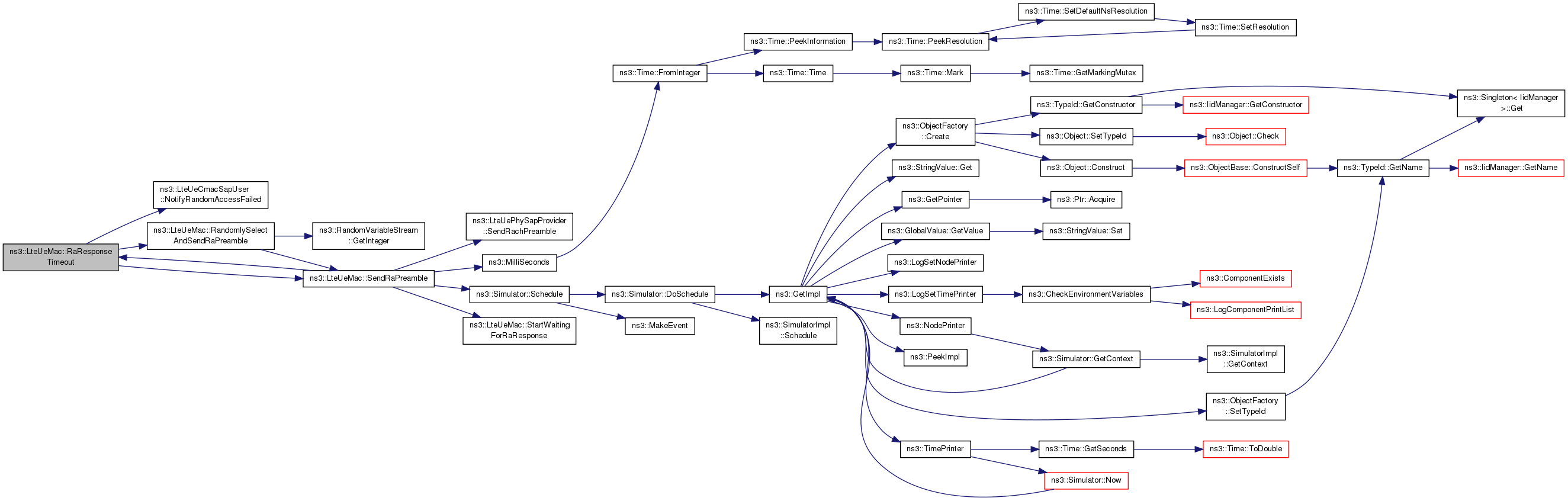

void	RaResponseTimeout (bool contention)

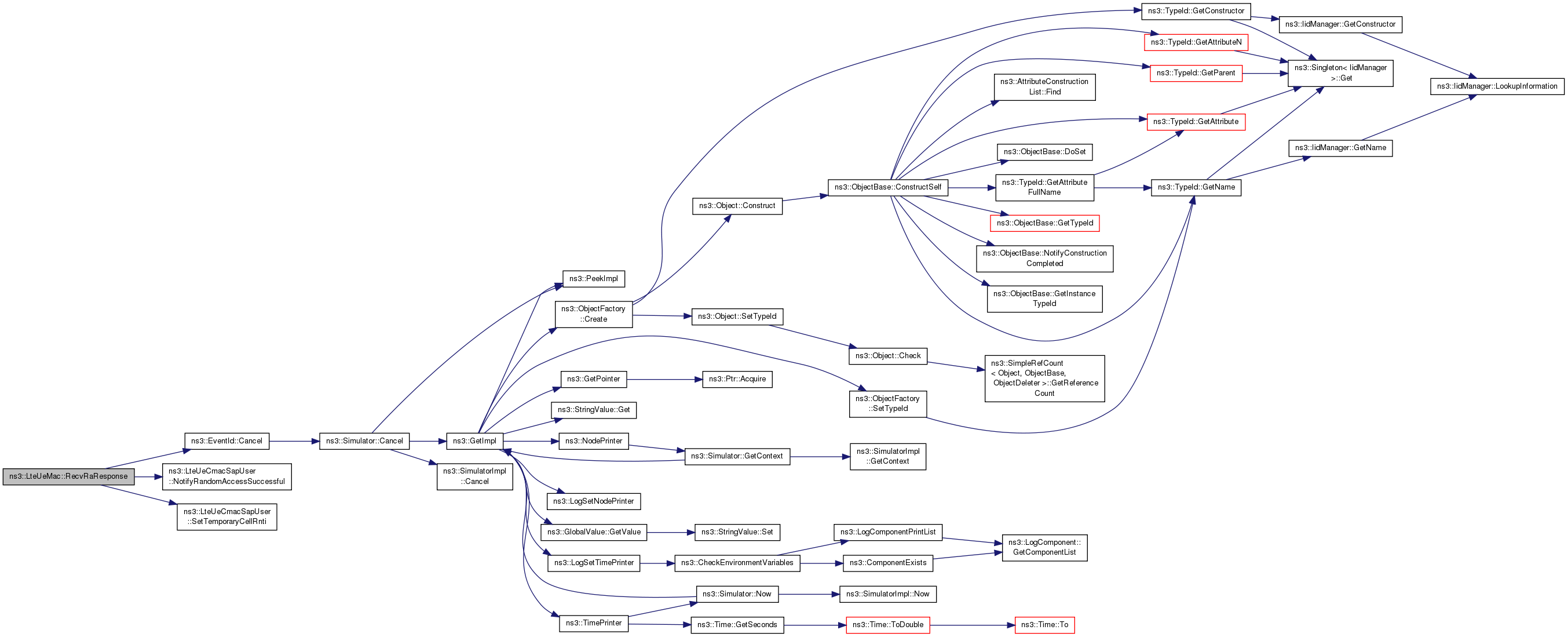

void	RecvRaResponse (BuildRarListElement_s raResponse)

void	RefreshHarqProcessesPacketBuffer (void)

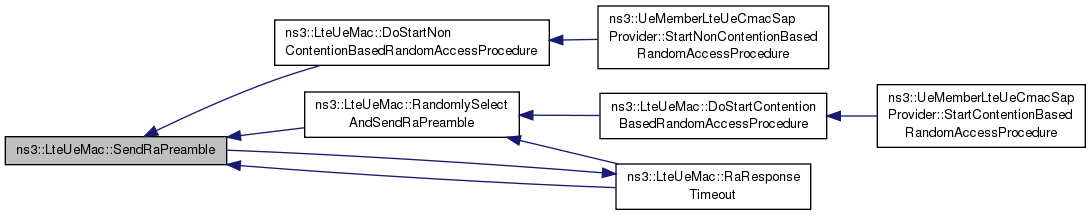

void	SendRaPreamble (bool contention)

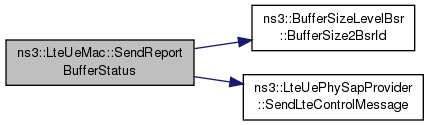

void	SendReportBufferStatus (void)

void	StartWaitingForRaResponse ()

Private Attributes
uint16_t	m_backoffParameter

Time	m_bsrLast

Time	m_bsrPeriodicity

LteUeCmacSapProvider *	m_cmacSapProvider

LteUeCmacSapUser *	m_cmacSapUser

uint32_t	m_frameNo

bool	m_freshUlBsr

uint8_t	m_harqProcessId

std::map< uint8_t, LcInfo >	m_lcInfoMap

LteMacSapProvider *	m_macSapProvider

std::vector< Ptr< PacketBurst > >	m_miUlHarqProcessesPacket

std::vector< uint8_t >	m_miUlHarqProcessesPacketTimer

EventId	m_noRaResponseReceivedEvent

uint8_t	m_preambleTransmissionCounter

LteUeCmacSapProvider::RachConfig	m_rachConfig

bool	m_rachConfigured

uint8_t	m_raPreambleId

Ptr< UniformRandomVariable >	m_raPreambleUniformVariable

uint8_t	m_raRnti

uint16_t	m_rnti

uint32_t	m_subframeNo

LteUePhySapProvider *	m_uePhySapProvider

LteUePhySapUser *	m_uePhySapUser

std::map< uint8_t, LteMacSapProvider::ReportBufferStatusParameters >	m_ulBsrReceived

bool	m_waitingForRaResponse

Friends
class	UeMemberLteMacSapProvider

class	UeMemberLteUeCmacSapProvider

class	UeMemberLteUePhySapUser

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Config Paths

ns3::LteUeMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeMac"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeMac"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 304 bytes (on a 64-bit architecture).

Definition at line 43 of file lte-ue-mac.h.

Constructor & Destructor Documentation

ns3::LteUeMac::LteUeMac ( )

Definition at line 204 of file lte-ue-mac.cc.

References HARQ_PERIOD, m_cmacSapProvider, m_macSapProvider, m_miUlHarqProcessesPacket, m_miUlHarqProcessesPacketTimer, m_raPreambleUniformVariable, m_uePhySapUser, NS_LOG_FUNCTION, UeMemberLteMacSapProvider, UeMemberLteUeCmacSapProvider, and UeMemberLteUePhySapUser.

ns3::LteUeMac::~LteUeMac ( )

virtual

Definition at line 230 of file lte-ue-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::LteUeMac::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 791 of file lte-ue-mac.cc.

References m_raPreambleUniformVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

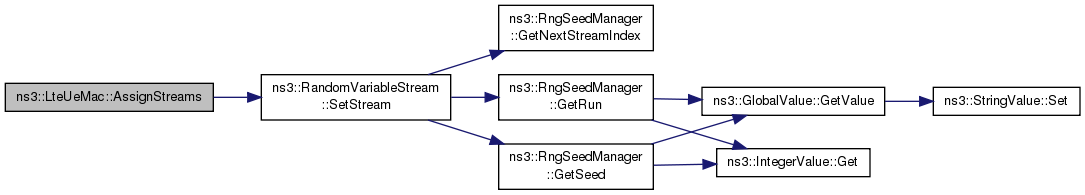

Here is the call graph for this function:

void ns3::LteUeMac::DoAddLc	(	uint8_t	lcId,
		LteUeCmacSapProvider::LogicalChannelConfig	lcConfig,
		LteMacSapUser *	msu
	)

private

Definition at line 494 of file lte-ue-mac.cc.

References ns3::LteUeMac::LcInfo::lcConfig, m_lcInfoMap, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::AddLc().

Here is the caller graph for this function:

void ns3::LteUeMac::DoConfigureRach ( LteUeCmacSapProvider::RachConfig rc )

private

Definition at line 463 of file lte-ue-mac.cc.

References m_rachConfig, m_rachConfigured, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::ConfigureRach().

Here is the caller graph for this function:

void ns3::LteUeMac::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 236 of file lte-ue-mac.cc.

References ns3::Object::DoDispose(), m_cmacSapProvider, m_macSapProvider, m_miUlHarqProcessesPacket, m_uePhySapUser, and NS_LOG_FUNCTION.

Here is the call graph for this function:

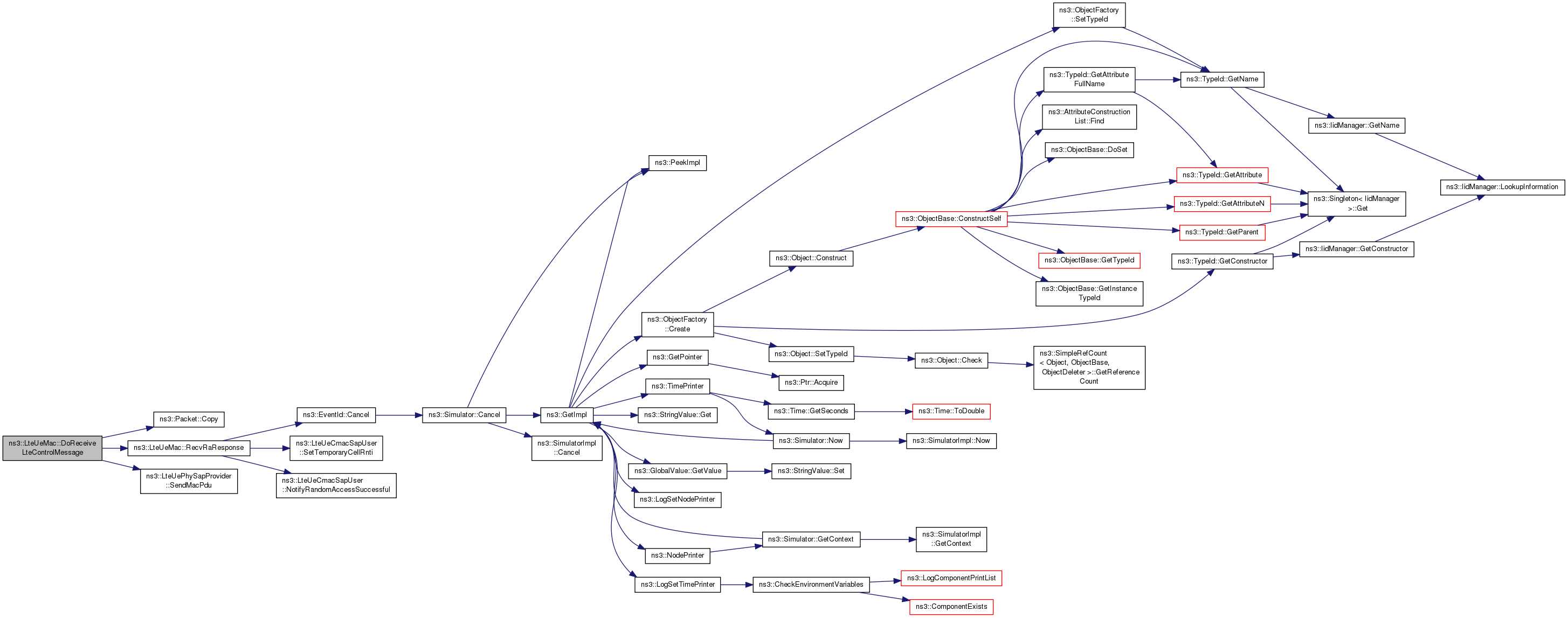

void ns3::LteUeMac::DoReceiveLteControlMessage ( Ptr< LteControlMessage > msg )

private

Todo:: RRC generates the RecvRaResponse messaged for avoiding holes in transmission at PHY layer (which produce erroneous UL CQI evaluation)

Definition at line 560 of file lte-ue-mac.cc.

References ns3::Packet::Copy(), HARQ_PERIOD, list, m_freshUlBsr, m_harqProcessId, m_lcInfoMap, m_miUlHarqProcessesPacket, m_miUlHarqProcessesPacketTimer, m_raPreambleId, m_raRnti, m_rnti, m_uePhySapProvider, m_ulBsrReceived, m_waitingForRaResponse, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::LteControlMessage::RAR, RecvRaResponse(), ns3::LteUePhySapProvider::SendMacPdu(), and ns3::LteControlMessage::UL_DCI.

Referenced by ns3::UeMemberLteUePhySapUser::ReceiveLteControlMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::DoReceivePhyPdu ( Ptr< Packet > p )

private

Definition at line 539 of file lte-ue-mac.cc.

References ns3::LteRadioBearerTag::GetLcid(), ns3::LteRadioBearerTag::GetRnti(), m_lcInfoMap, m_rnti, NS_LOG_WARN, and ns3::Packet::RemovePacketTag().

Referenced by ns3::UeMemberLteUePhySapUser::ReceivePhyPdu().

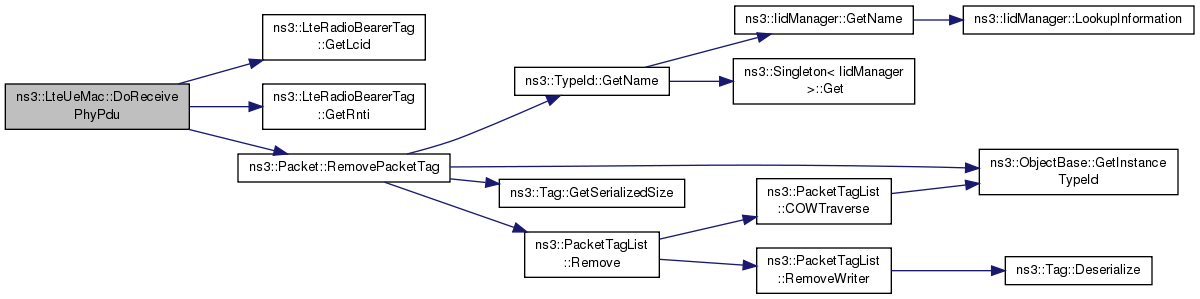

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::DoRemoveLc ( uint8_t lcId )

private

Definition at line 506 of file lte-ue-mac.cc.

References m_lcInfoMap, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::RemoveLc().

Here is the caller graph for this function:

void ns3::LteUeMac::DoReportBufferStatus ( LteMacSapProvider::ReportBufferStatusParameters params )

private

Definition at line 293 of file lte-ue-mac.cc.

References ns3::LteMacSapProvider::ReportBufferStatusParameters::lcid, m_freshUlBsr, m_ulBsrReceived, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteMacSapProvider::ReportBufferStatus().

Here is the caller graph for this function:

void ns3::LteUeMac::DoReset ( void )

private

Definition at line 514 of file lte-ue-mac.cc.

References ns3::EventId::Cancel(), m_freshUlBsr, m_lcInfoMap, m_noRaResponseReceivedEvent, m_rachConfigured, m_ulBsrReceived, and NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapProvider::Reset().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::DoStartContentionBasedRandomAccessProcedure ( )

private

Definition at line 471 of file lte-ue-mac.cc.

References m_backoffParameter, m_preambleTransmissionCounter, m_rachConfigured, NS_ASSERT_MSG, NS_LOG_FUNCTION, and RandomlySelectAndSendRaPreamble().

Referenced by ns3::UeMemberLteUeCmacSapProvider::StartContentionBasedRandomAccessProcedure().

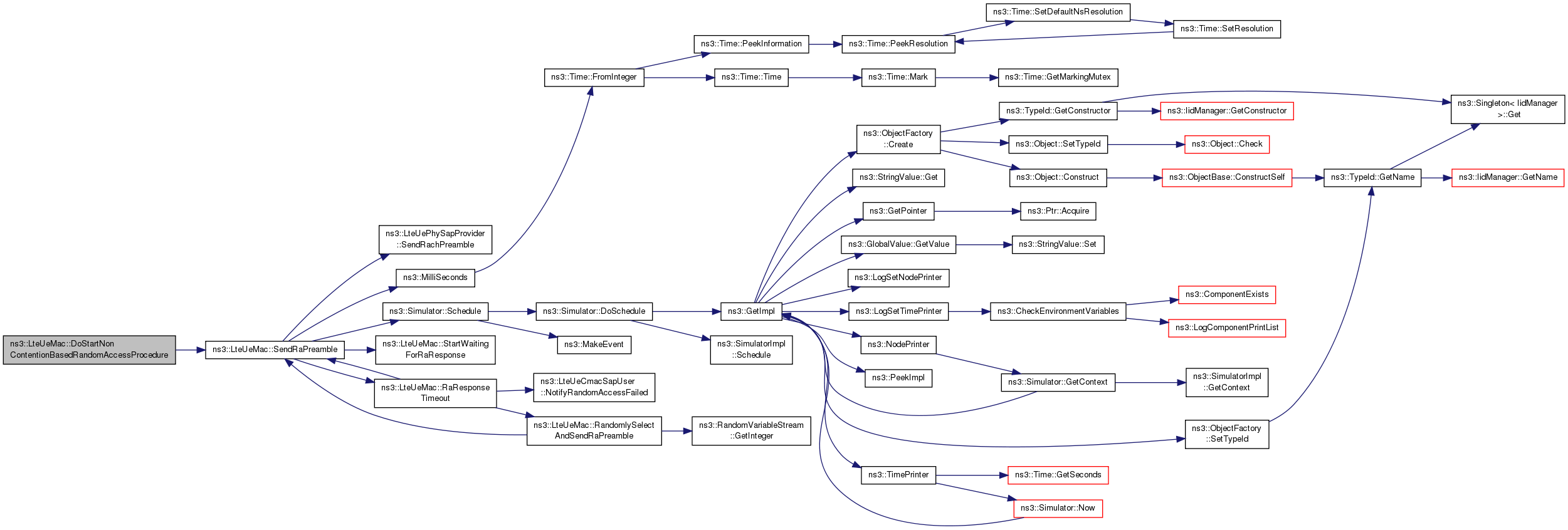

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::DoStartNonContentionBasedRandomAccessProcedure	(	uint16_t	rnti,
		uint8_t	rapId,
		uint8_t	prachMask
	)

private

Definition at line 483 of file lte-ue-mac.cc.

References m_raPreambleId, m_rnti, NS_ASSERT_MSG, NS_LOG_FUNCTION, and SendRaPreamble().

Referenced by ns3::UeMemberLteUeCmacSapProvider::StartNonContentionBasedRandomAccessProcedure().

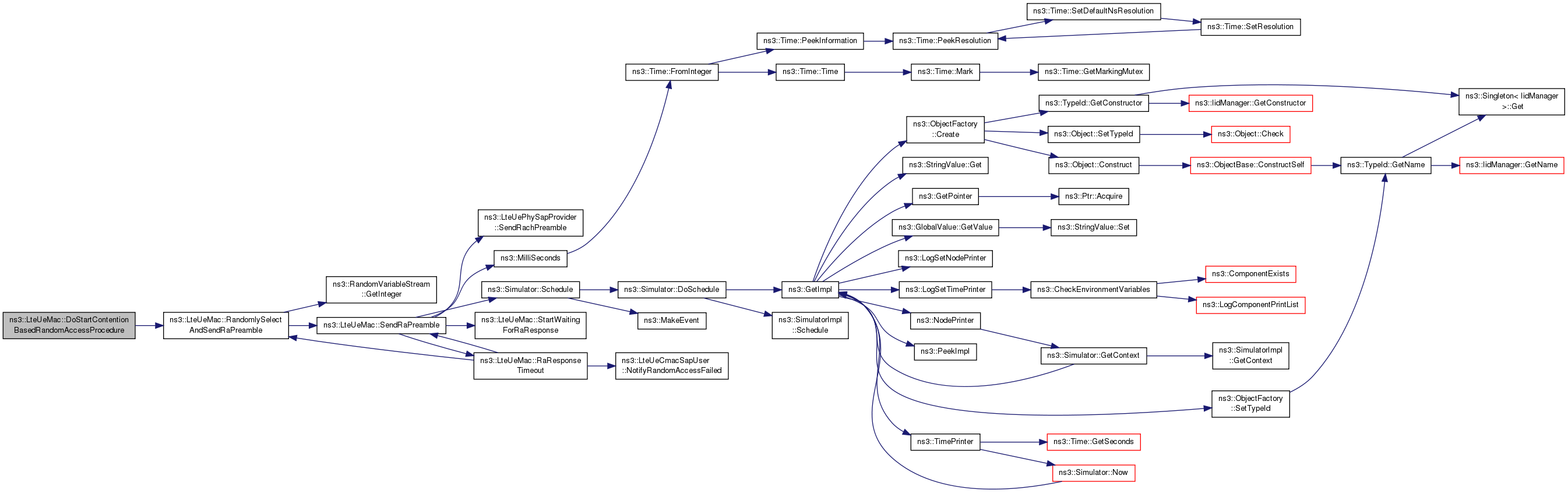

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::DoSubframeIndication	(	uint32_t	frameNo,
		uint32_t	subframeNo
	)

Forwarded from LteUePhySapUser: trigger the start from a new frame.

Parameters

frameNo	frame number
subframeNo	subframe number

Definition at line 775 of file lte-ue-mac.cc.

References HARQ_PERIOD, m_bsrLast, m_bsrPeriodicity, m_frameNo, m_freshUlBsr, m_harqProcessId, m_subframeNo, ns3::Simulator::Now(), NS_LOG_FUNCTION, RefreshHarqProcessesPacketBuffer(), and SendReportBufferStatus().

Referenced by ns3::UeMemberLteUePhySapUser::SubframeIndication().

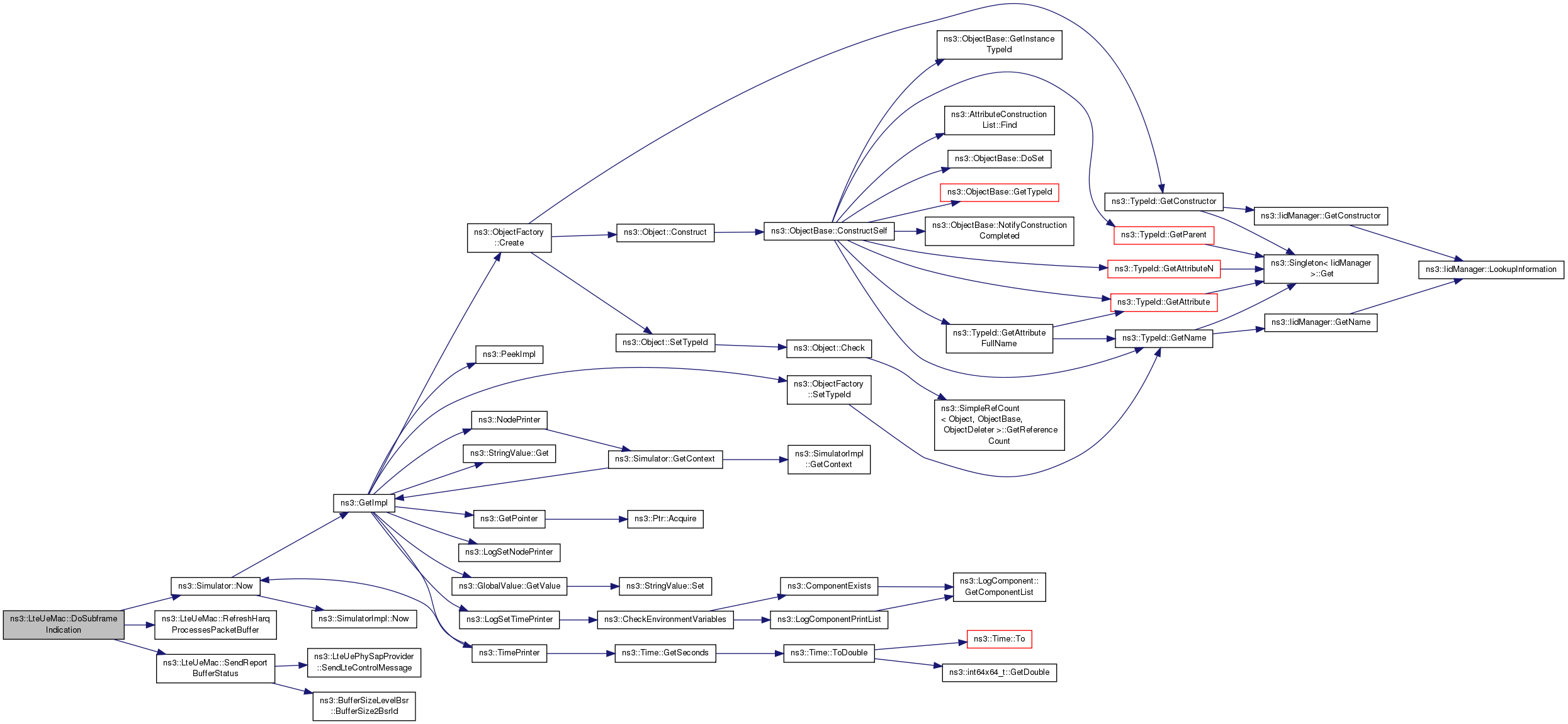

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::DoTransmitPdu ( LteMacSapProvider::TransmitPduParameters params )

private

Definition at line 280 of file lte-ue-mac.cc.

References ns3::Packet::AddPacketTag(), HARQ_PERIOD, ns3::LteMacSapProvider::TransmitPduParameters::lcid, m_harqProcessId, m_miUlHarqProcessesPacket, m_miUlHarqProcessesPacketTimer, m_rnti, m_uePhySapProvider, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::LteMacSapProvider::TransmitPduParameters::pdu, ns3::LteMacSapProvider::TransmitPduParameters::rnti, and ns3::LteUePhySapProvider::SendMacPdu().

Referenced by ns3::UeMemberLteMacSapProvider::TransmitPdu().

Here is the call graph for this function:

Here is the caller graph for this function:

LteMacSapProvider * ns3::LteUeMac::GetLteMacSapProvider ( void )

Definition at line 261 of file lte-ue-mac.cc.

References m_macSapProvider.

LteUeCmacSapProvider * ns3::LteUeMac::GetLteUeCmacSapProvider ( void )

Definition at line 273 of file lte-ue-mac.cc.

References m_cmacSapProvider.

LteUePhySapUser * ns3::LteUeMac::GetLteUePhySapUser ( void )

Get the PHY SAP user.

Returns: a pointer to the SAP user of the PHY

Definition at line 248 of file lte-ue-mac.cc.

References m_uePhySapUser.

TypeId ns3::LteUeMac::GetTypeId ( void )

static

Definition at line 194 of file lte-ue-mac.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::LteUeMac::RandomlySelectAndSendRaPreamble ( )

private

Definition at line 365 of file lte-ue-mac.cc.

References ns3::RandomVariableStream::GetInteger(), m_rachConfig, m_rachConfigured, m_raPreambleId, m_raPreambleUniformVariable, NS_ASSERT_MSG, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::RachConfig::numberOfRaPreambles, and SendRaPreamble().

Referenced by DoStartContentionBasedRandomAccessProcedure(), and RaResponseTimeout().

Here is the call graph for this function:

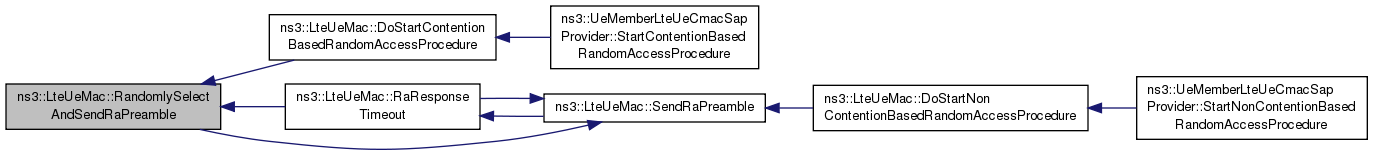

Here is the caller graph for this function:

void ns3::LteUeMac::RaResponseTimeout ( bool contention )

private

Definition at line 437 of file lte-ue-mac.cc.

References m_cmacSapUser, m_preambleTransmissionCounter, m_rachConfig, m_waitingForRaResponse, ns3::LteUeCmacSapUser::NotifyRandomAccessFailed(), NS_LOG_FUNCTION, NS_LOG_INFO, ns3::LteUeCmacSapProvider::RachConfig::preambleTransMax, RandomlySelectAndSendRaPreamble(), and SendRaPreamble().

Referenced by SendRaPreamble().

Here is the call graph for this function:

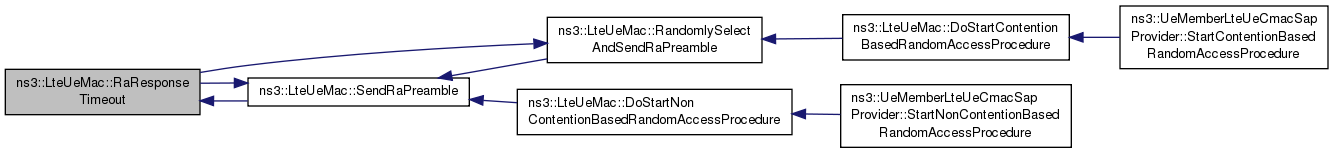

Here is the caller graph for this function:

void ns3::LteUeMac::RecvRaResponse ( BuildRarListElement_s raResponse )

private

Definition at line 406 of file lte-ue-mac.cc.

References ns3::EventId::Cancel(), m_cmacSapUser, ns3::BuildRarListElement_s::m_grant, m_lcInfoMap, m_noRaResponseReceivedEvent, m_raPreambleId, m_rnti, ns3::BuildRarListElement_s::m_rnti, ns3::UlGrant_s::m_tbSize, m_ulBsrReceived, m_waitingForRaResponse, ns3::LteUeCmacSapUser::NotifyRandomAccessSuccessful(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::LteUeCmacSapUser::SetTemporaryCellRnti().

Referenced by DoReceiveLteControlMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::RefreshHarqProcessesPacketBuffer ( void )

private

Definition at line 750 of file lte-ue-mac.cc.

References m_miUlHarqProcessesPacket, m_miUlHarqProcessesPacketTimer, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by DoSubframeIndication().

Here is the caller graph for this function:

void ns3::LteUeMac::SendRaPreamble ( bool contention )

private

Definition at line 377 of file lte-ue-mac.cc.

References m_noRaResponseReceivedEvent, m_rachConfig, m_raPreambleId, m_raRnti, m_subframeNo, m_uePhySapProvider, ns3::MilliSeconds(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, RaResponseTimeout(), ns3::LteUeCmacSapProvider::RachConfig::raResponseWindowSize, ns3::Simulator::Schedule(), ns3::LteUePhySapProvider::SendRachPreamble(), and StartWaitingForRaResponse().

Referenced by DoStartNonContentionBasedRandomAccessProcedure(), RandomlySelectAndSendRaPreamble(), and RaResponseTimeout().

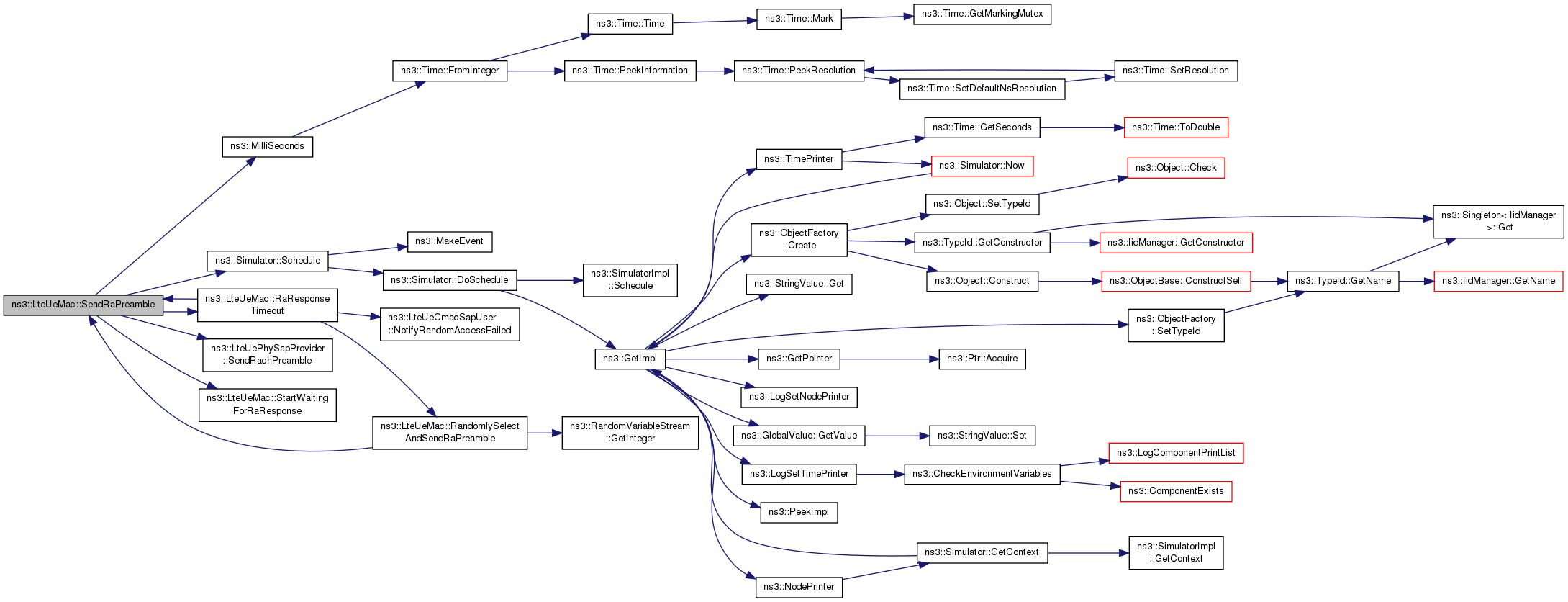

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::SendReportBufferStatus ( void )

private

Definition at line 315 of file lte-ue-mac.cc.

References ns3::MacCeListElement_s::BSR, ns3::BufferSizeLevelBsr::BufferSize2BsrId(), ns3::MacCeValue_u::m_bufferStatus, m_lcInfoMap, ns3::MacCeListElement_s::m_macCeType, ns3::MacCeListElement_s::m_macCeValue, m_rnti, ns3::MacCeListElement_s::m_rnti, m_uePhySapProvider, m_ulBsrReceived, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::LteUePhySapProvider::SendLteControlMessage().

Referenced by DoSubframeIndication().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeMac::SetLteUeCmacSapUser ( LteUeCmacSapUser * s )

Definition at line 267 of file lte-ue-mac.cc.

References m_cmacSapUser.

void ns3::LteUeMac::SetLteUePhySapProvider ( LteUePhySapProvider * s )

Set the PHY SAP Provider.

Parameters

s	a pointer to the PHY SAP Provider

Definition at line 254 of file lte-ue-mac.cc.

References m_uePhySapProvider.

void ns3::LteUeMac::StartWaitingForRaResponse ( )

private

Definition at line 399 of file lte-ue-mac.cc.

References m_waitingForRaResponse, and NS_LOG_FUNCTION.

Referenced by SendRaPreamble().

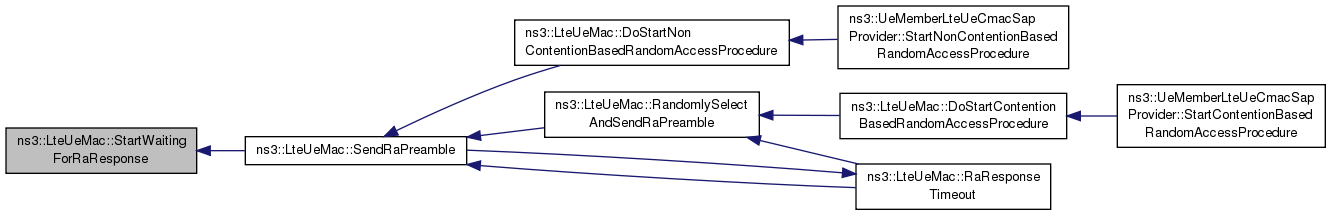

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class UeMemberLteMacSapProvider

friend

Definition at line 46 of file lte-ue-mac.h.

Referenced by LteUeMac().

friend class UeMemberLteUeCmacSapProvider

friend

Definition at line 45 of file lte-ue-mac.h.

Referenced by LteUeMac().

friend class UeMemberLteUePhySapUser

friend

Definition at line 47 of file lte-ue-mac.h.

Referenced by LteUeMac().

Member Data Documentation

uint16_t ns3::LteUeMac::m_backoffParameter

private

Definition at line 152 of file lte-ue-mac.h.

Referenced by DoStartContentionBasedRandomAccessProcedure().

Time ns3::LteUeMac::m_bsrLast

private

Definition at line 138 of file lte-ue-mac.h.

Referenced by DoSubframeIndication().

Time ns3::LteUeMac::m_bsrPeriodicity

private

Definition at line 137 of file lte-ue-mac.h.

Referenced by DoSubframeIndication().

LteUeCmacSapProvider* ns3::LteUeMac::m_cmacSapProvider

private

Definition at line 129 of file lte-ue-mac.h.

Referenced by DoDispose(), GetLteUeCmacSapProvider(), and LteUeMac().

LteUeCmacSapUser* ns3::LteUeMac::m_cmacSapUser

private

Definition at line 128 of file lte-ue-mac.h.

Referenced by RaResponseTimeout(), RecvRaResponse(), and SetLteUeCmacSapUser().

uint32_t ns3::LteUeMac::m_frameNo

private

Definition at line 156 of file lte-ue-mac.h.

Referenced by DoSubframeIndication().

bool ns3::LteUeMac::m_freshUlBsr

private

Definition at line 140 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoReportBufferStatus(), DoReset(), and DoSubframeIndication().

uint8_t ns3::LteUeMac::m_harqProcessId

private

Definition at line 142 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoSubframeIndication(), and DoTransmitPdu().

std::map<uint8_t, LcInfo> ns3::LteUeMac::m_lcInfoMap

private

Definition at line 124 of file lte-ue-mac.h.

Referenced by DoAddLc(), DoReceiveLteControlMessage(), DoReceivePhyPdu(), DoRemoveLc(), DoReset(), RecvRaResponse(), and SendReportBufferStatus().

LteMacSapProvider* ns3::LteUeMac::m_macSapProvider

private

Definition at line 126 of file lte-ue-mac.h.

Referenced by DoDispose(), GetLteMacSapProvider(), and LteUeMac().

std::vector< Ptr<PacketBurst> > ns3::LteUeMac::m_miUlHarqProcessesPacket

private

Definition at line 143 of file lte-ue-mac.h.

Referenced by DoDispose(), DoReceiveLteControlMessage(), DoTransmitPdu(), LteUeMac(), and RefreshHarqProcessesPacketBuffer().

std::vector< uint8_t > ns3::LteUeMac::m_miUlHarqProcessesPacketTimer

private

Definition at line 144 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoTransmitPdu(), LteUeMac(), and RefreshHarqProcessesPacketBuffer().

EventId ns3::LteUeMac::m_noRaResponseReceivedEvent

private

Definition at line 153 of file lte-ue-mac.h.

Referenced by DoReset(), RecvRaResponse(), and SendRaPreamble().

uint8_t ns3::LteUeMac::m_preambleTransmissionCounter

private

Definition at line 151 of file lte-ue-mac.h.

Referenced by DoStartContentionBasedRandomAccessProcedure(), and RaResponseTimeout().

LteUeCmacSapProvider::RachConfig ns3::LteUeMac::m_rachConfig

private

Definition at line 149 of file lte-ue-mac.h.

Referenced by DoConfigureRach(), RandomlySelectAndSendRaPreamble(), RaResponseTimeout(), and SendRaPreamble().

bool ns3::LteUeMac::m_rachConfigured

private

Definition at line 148 of file lte-ue-mac.h.

Referenced by DoConfigureRach(), DoReset(), DoStartContentionBasedRandomAccessProcedure(), and RandomlySelectAndSendRaPreamble().

uint8_t ns3::LteUeMac::m_raPreambleId

private

Definition at line 150 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoStartNonContentionBasedRandomAccessProcedure(), RandomlySelectAndSendRaPreamble(), RecvRaResponse(), and SendRaPreamble().

Ptr<UniformRandomVariable> ns3::LteUeMac::m_raPreambleUniformVariable

private

Definition at line 154 of file lte-ue-mac.h.

Referenced by AssignStreams(), LteUeMac(), and RandomlySelectAndSendRaPreamble().

uint8_t ns3::LteUeMac::m_raRnti

private

Definition at line 158 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), and SendRaPreamble().

uint16_t ns3::LteUeMac::m_rnti

private

Definition at line 146 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoReceivePhyPdu(), DoStartNonContentionBasedRandomAccessProcedure(), DoTransmitPdu(), RecvRaResponse(), and SendReportBufferStatus().

uint32_t ns3::LteUeMac::m_subframeNo

private

Definition at line 157 of file lte-ue-mac.h.

Referenced by DoSubframeIndication(), and SendRaPreamble().

LteUePhySapProvider* ns3::LteUeMac::m_uePhySapProvider

private

Definition at line 131 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoTransmitPdu(), SendRaPreamble(), SendReportBufferStatus(), and SetLteUePhySapProvider().

LteUePhySapUser* ns3::LteUeMac::m_uePhySapUser

private

Definition at line 132 of file lte-ue-mac.h.

Referenced by DoDispose(), GetLteUePhySapUser(), and LteUeMac().

std::map<uint8_t, LteMacSapProvider::ReportBufferStatusParameters> ns3::LteUeMac::m_ulBsrReceived

private

Definition at line 134 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), DoReportBufferStatus(), DoReset(), RecvRaResponse(), and SendReportBufferStatus().

bool ns3::LteUeMac::m_waitingForRaResponse

private

Definition at line 159 of file lte-ue-mac.h.

Referenced by DoReceiveLteControlMessage(), RaResponseTimeout(), RecvRaResponse(), and StartWaitingForRaResponse().

The documentation for this class was generated from the following files:

src/lte/model/lte-ue-mac.h
src/lte/model/lte-ue-mac.cc

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
