Introspection did not find any typical Config paths. More...

#include "mesh-information-element-vector.h"

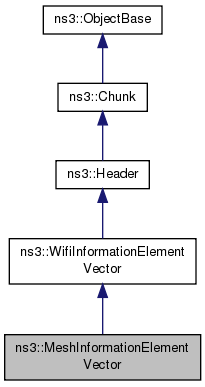

Inheritance diagram for ns3::MeshInformationElementVector:

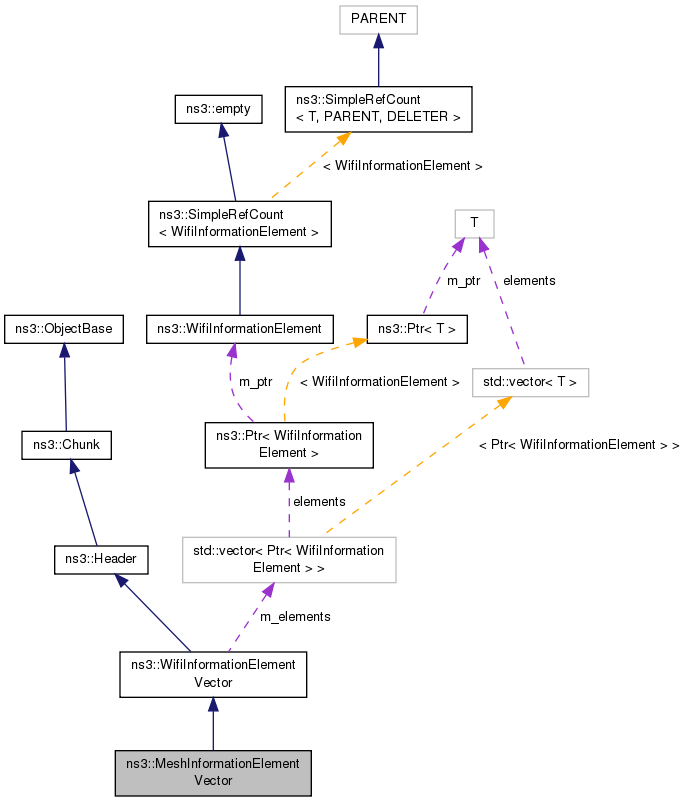

Collaboration diagram for ns3::MeshInformationElementVector:

Public Member Functions
	MeshInformationElementVector ()

	~MeshInformationElementVector ()

virtual uint32_t	DeserializeSingleIe (Buffer::Iterator start)
	Needed when you try to deserialize a lonely IE inside other header. More...

TypeId	GetInstanceTypeId () const
	Get the most derived TypeId for this Object. More...

Public Member Functions inherited from ns3::WifiInformationElementVector
	WifiInformationElementVector ()

virtual	~WifiInformationElementVector ()

bool	AddInformationElement (Ptr< WifiInformationElement > element)
	add an IE, if maxSize has exceeded, returns false More...

Iterator	Begin ()
	Returns Begin of the vector. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)

Iterator	End ()
	Returns End of the vector. More...

Ptr< WifiInformationElement >	FindFirst (WifiInformationElementId id) const
	vector of pointers to information elements is the body of IeVector More...

TypeId	GetInstanceTypeId () const
	Get the most derived TypeId for this Object. More...

virtual uint32_t	GetSerializedSize () const

virtual bool	operator== (const WifiInformationElementVector &a) const
	Check if the given WifiInformationElementVectors are equivalent. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetMaxSize (uint16_t size)
	Set maximum size to control overflow of the max packet length. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::WifiInformationElementVector
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Additional Inherited Members
Public Types inherited from ns3::WifiInformationElementVector
typedef std::vector< Ptr< WifiInformationElement > >::iterator	Iterator
	As soon as this is a vector, we define an Iterator. More...

Protected Types inherited from ns3::WifiInformationElementVector
typedef std::vector< Ptr< WifiInformationElement > >	IE_VECTOR
	typedef for a vector of WifiInformationElements. More...

Protected Member Functions inherited from ns3::WifiInformationElementVector
uint32_t	GetSize () const
	Current number of bytes. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::WifiInformationElementVector
IE_VECTOR	m_elements
	Information element vector. More...

uint16_t	m_maxSize
	Size in bytes (actually, max packet length) More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 30 of file mesh-information-element-vector.h.

Constructor & Destructor Documentation

ns3::MeshInformationElementVector::MeshInformationElementVector ( )

Definition at line 41 of file mesh-information-element-vector.cc.

ns3::MeshInformationElementVector::~MeshInformationElementVector ( )

Definition at line 45 of file mesh-information-element-vector.cc.

Member Function Documentation

uint32_t ns3::MeshInformationElementVector::DeserializeSingleIe ( Buffer::Iterator start )

virtual

Needed when you try to deserialize a lonely IE inside other header.

Parameters

start is the start of the buffer

Returns: deserialized bytes

Reimplemented from ns3::WifiInformationElementVector.

Definition at line 67 of file mesh-information-element-vector.cc.

References ns3::WifiInformationElement::DeserializeInformationField(), ns3::WifiInformationElementVector::DeserializeSingleIe(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::WifiInformationElementVector::GetSize(), IE11S_BEACON_TIMING, IE11S_LINK_METRIC_REPORT, IE11S_MESH_CONFIGURATION, IE11S_MESH_ID, IE11S_MESH_PEERING_PROTOCOL_VERSION, IE11S_PEERING_MANAGEMENT, IE11S_PERR, IE11S_PREP, IE11S_PREQ, IE11S_RANN, ns3::WifiInformationElementVector::m_elements, ns3::WifiInformationElementVector::m_maxSize, ns3::Buffer::Iterator::Next(), NS_FATAL_ERROR, ns3::Buffer::Iterator::Prev(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

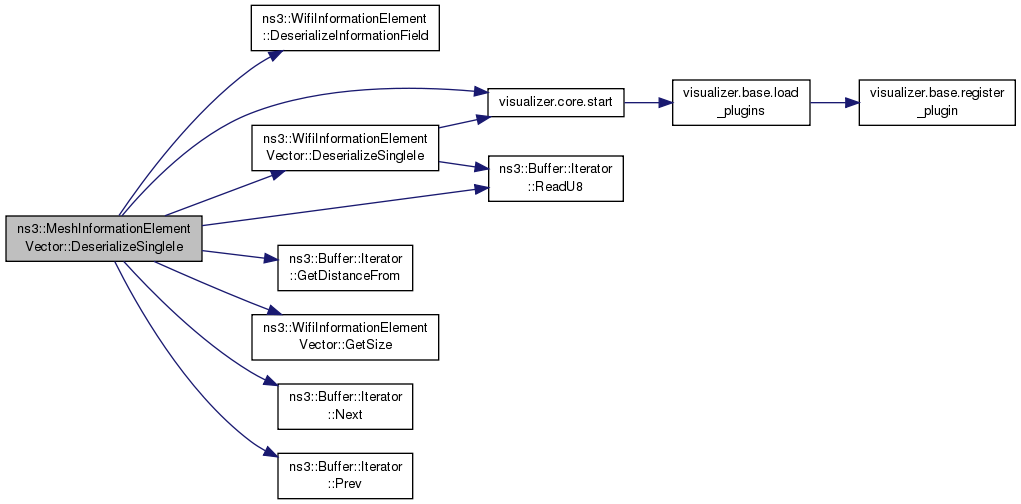

Here is the call graph for this function:

TypeId ns3::MeshInformationElementVector::GetInstanceTypeId ( ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
