ns3::PacketSocketHelper Class Reference

Give ns3::PacketSocket powers to ns3::Node. More...

#include "packet-socket-helper.h"

Public Member Functions
void	Install (Ptr< Node > node) const
	Aggregate an instance of a ns3::PacketSocketFactory onto the provided node. More...
void	Install (std::string nodeName) const
	Aggregate an instance of a ns3::PacketSocketFactory onto the provided node. More...
void	Install (NodeContainer c) const
	For each node in the provided container, aggregate an instance of a ns3::PacketSocketFactory. More...

Detailed Description

Give ns3::PacketSocket powers to ns3::Node.

Definition at line 31 of file packet-socket-helper.h.

Member Function Documentation

void ns3::PacketSocketHelper::Install

(

Ptr< Node >

node

)

const

Aggregate an instance of a ns3::PacketSocketFactory onto the provided node.

Parameters

node	Node on which to aggregate the ns3::PacketSocketFactory.

Definition at line 37 of file packet-socket-helper.cc.

References ns3::Object::AggregateObject().

Referenced by PacketSocketAppsTest::DoRun(), SpectrumIdealPhyTestCase::DoRun(), CsmaPacketSocketTestCase::DoRun(), Install(), OcbWifiMacTestCase::PostDeviceConfiguration(), NetAnimExperiment::Run(), and Experiment::Run().

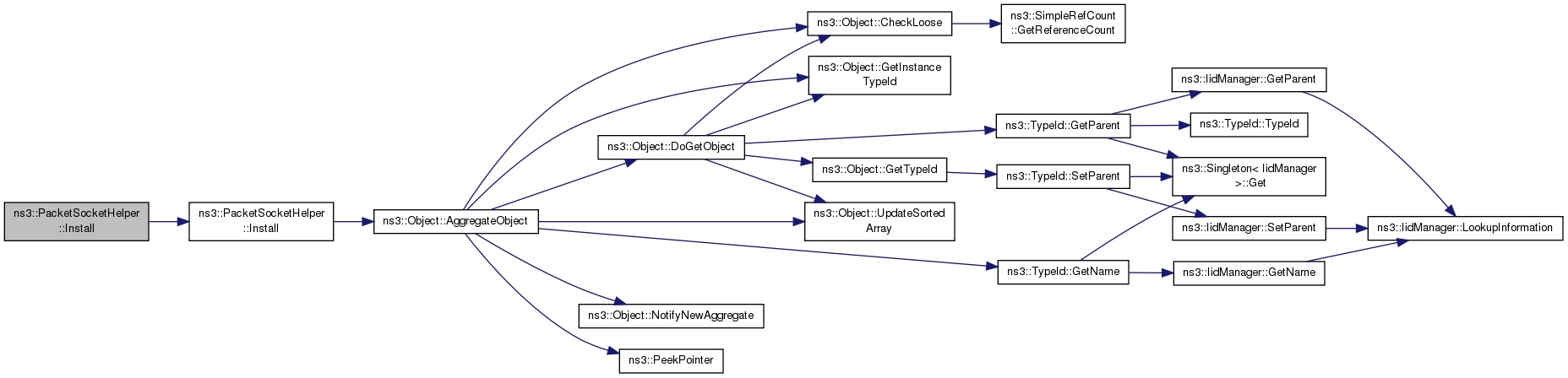

Here is the call graph for this function:

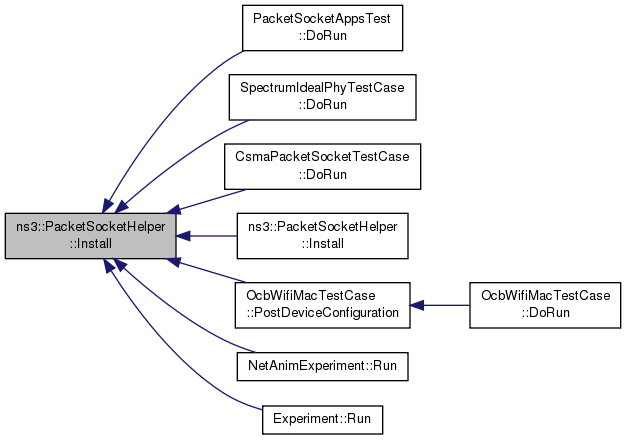

Here is the caller graph for this function:

void ns3::PacketSocketHelper::Install

(

std::string

nodeName

)

const

Aggregate an instance of a ns3::PacketSocketFactory onto the provided node.

Parameters

nodeName

The name of the node on which to aggregate the ns3::PacketSocketFactory.

Definition at line 44 of file packet-socket-helper.cc.

References Install().

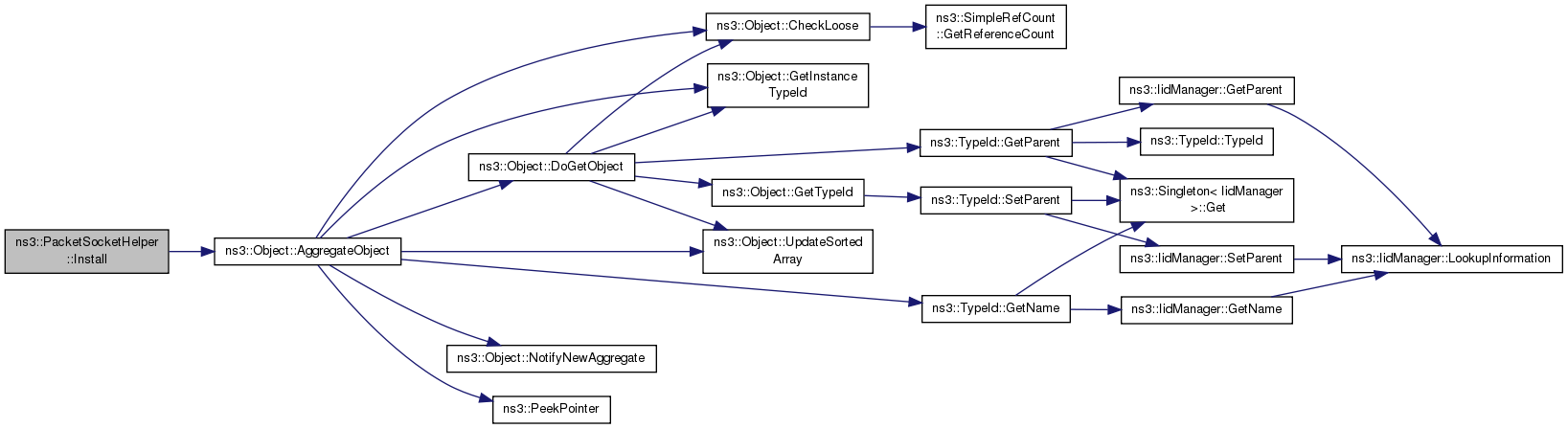

Here is the call graph for this function:

void ns3::PacketSocketHelper::Install

(

NodeContainer

c

)

const

For each node in the provided container, aggregate an instance of a ns3::PacketSocketFactory.

Parameters

c	NodeContainer of the set of nodes to aggregate the ns3::PacketSocketFactory on.

Definition at line 28 of file packet-socket-helper.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and Install().

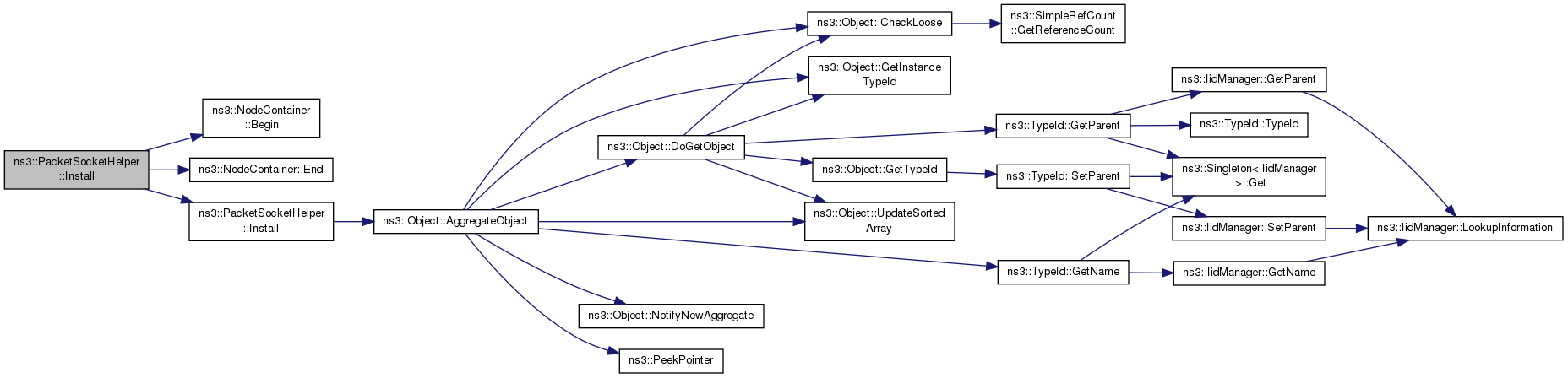

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/network/helper/packet-socket-helper.h
• src/network/helper/packet-socket-helper.cc
