#include "ss-net-device.h"

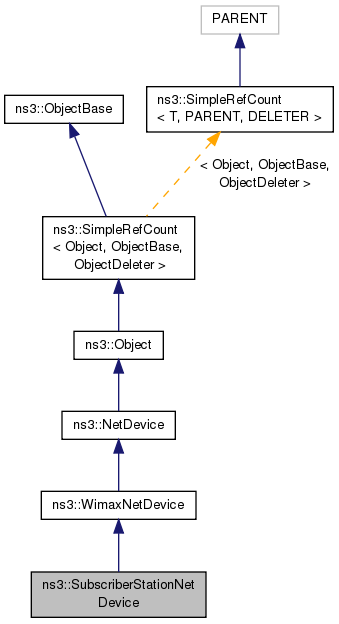

Inheritance diagram for ns3::SubscriberStationNetDevice:

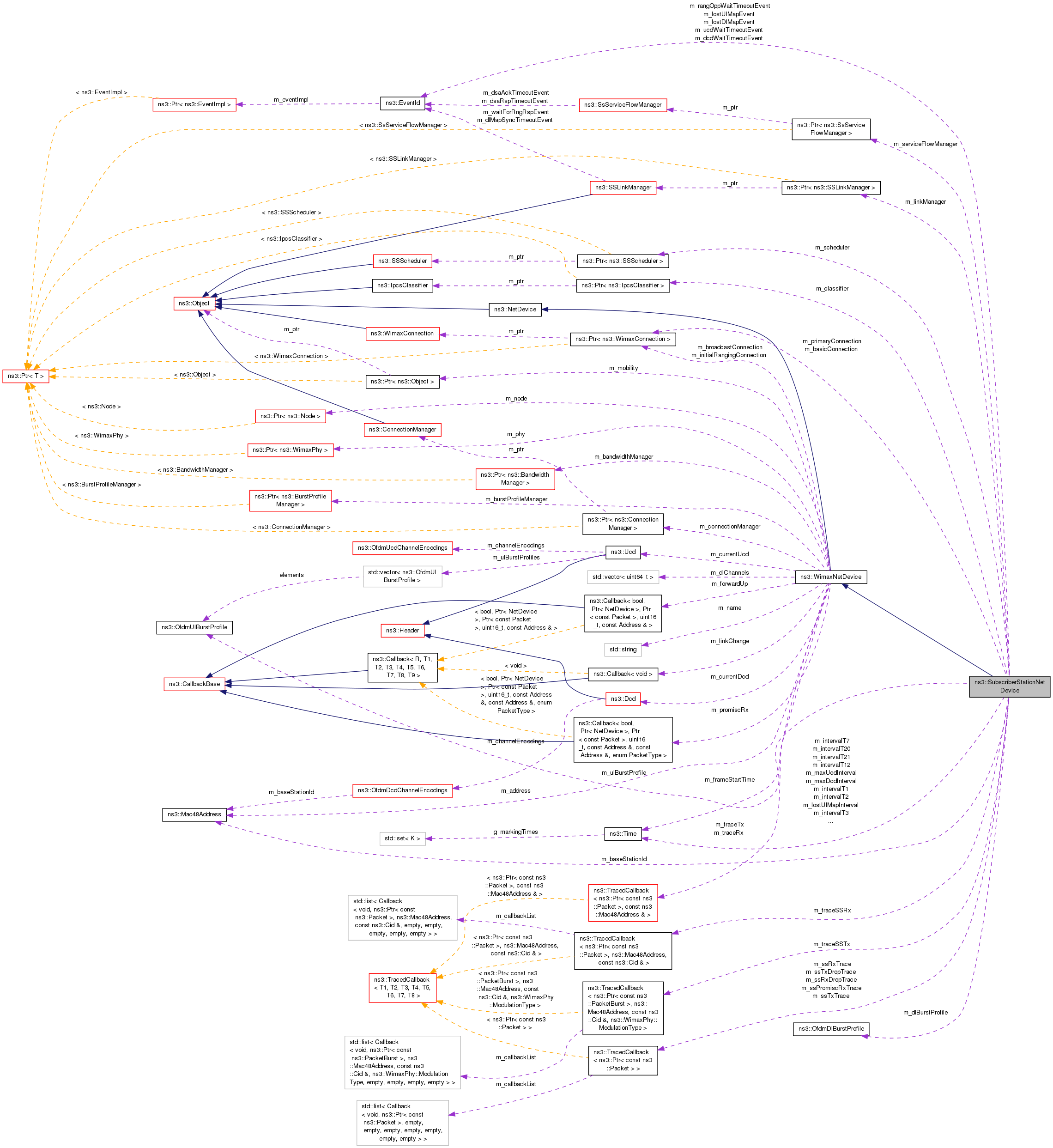

Collaboration diagram for ns3::SubscriberStationNetDevice:

Public Types
enum	EventType { EVENT_NONE, EVENT_WAIT_FOR_RNG_RSP, EVENT_DL_MAP_SYNC_TIMEOUT, EVENT_LOST_DL_MAP, EVENT_LOST_UL_MAP, EVENT_DCD_WAIT_TIMEOUT, EVENT_UCD_WAIT_TIMEOUT, EVENT_RANG_OPP_WAIT_TIMEOUT }

enum	State { SS_STATE_IDLE, SS_STATE_SCANNING, SS_STATE_SYNCHRONIZING, SS_STATE_ACQUIRING_PARAMETERS, SS_STATE_WAITING_REG_RANG_INTRVL, SS_STATE_WAITING_INV_RANG_INTRVL, SS_STATE_WAITING_RNG_RSP, SS_STATE_ADJUSTING_PARAMETERS, SS_STATE_REGISTERED, SS_STATE_TRANSMITTING, SS_STATE_STOPPED }

Public Types inherited from ns3::WimaxNetDevice
enum	Direction { DIRECTION_DOWNLINK, DIRECTION_UPLINK }

enum	RangingStatus { RANGING_STATUS_EXPIRED, RANGING_STATUS_CONTINUE, RANGING_STATUS_ABORT, RANGING_STATUS_SUCCESS }

typedef void(*	TxRxTracedCallback) (Ptr< const Packet > packet, const Mac48Address &mac)
	TracedCallback signature for packet and Mac48Address. More...

Public Types inherited from ns3::NetDevice
typedef void(*	LinkChangeTracedCallback) (void)
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions

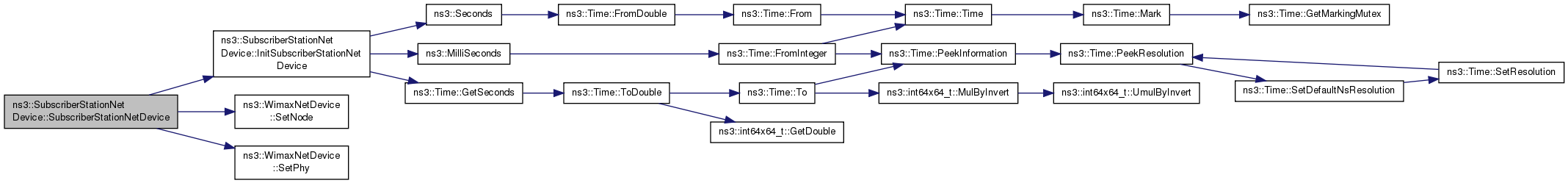

	SubscriberStationNetDevice (void)

	SubscriberStationNetDevice (Ptr< Node >, Ptr< WimaxPhy >)

	~SubscriberStationNetDevice (void)

void	AddServiceFlow (ServiceFlow *sf)
	adds a new service flow More...

void	AddServiceFlow (ServiceFlow sf)
	adds a new service flow More...

bool	Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, Ptr< WimaxConnection > connection)
	Enqueue a packet into a connection queue. More...

bool	GetAreManagementConnectionsAllocated (void) const

bool	GetAreServiceFlowsAllocated (void) const

Cid	GetBasicCid (void) const

Ptr< WimaxConnection >	GetBasicConnection (void) const

Time	GetIntervalT1 (void) const
	returns the wait for DCD timeout More...

Time	GetIntervalT12 (void) const
	returns the wait for UCD descriptor timeout More...

Time	GetIntervalT2 (void) const
	returns the wait for broadcast ranging timeout, i.e., wait for initial ranging opportunity More...

Time	GetIntervalT20 (void) const
	returns the Time the SS searches for preambles on a given channel More...

Time	GetIntervalT21 (void) const
	returns the time the SS searches for (decodable) DL-MAP on a given channel More...

Time	GetIntervalT3 (void) const
	returns the ranging Response reception timeout following the transmission of a ranging request More...

Time	GetIntervalT7 (void) const
	returns the wait for DSA/DSC/DSD Response timeout More...

Ptr< IpcsClassifier >	GetIpcsClassifier () const

Ptr< SSLinkManager >	GetLinkManager (void) const

Time	GetLostDlMapInterval (void) const

Time	GetLostUlMapInterval (void) const
	returns the time since last received UL-MAP before uplink synchronization is considered lost More...

uint8_t	GetMaxContentionRangingRetries (void) const

Time	GetMaxDcdInterval (void) const
	returns the maximum time between transmission of DCD messages More...

Time	GetMaxUcdInterval (void) const
	returns the maximum time between transmission of UCD messages More...

WimaxPhy::ModulationType	GetModulationType (void) const
	returns the most efficient modulation and coding scheme (MCS) supported by the device More...

Cid	GetPrimaryCid (void) const

Ptr< WimaxConnection >	GetPrimaryConnection (void) const
	returns the primary connection currently usde More...

Ptr< SSScheduler >	GetScheduler (void) const

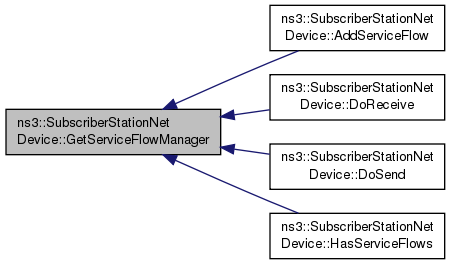

Ptr< SsServiceFlowManager >	GetServiceFlowManager (void) const

Time	GetTimeToAllocation (Time defferTime)

bool	HasServiceFlows (void) const

void	InitSubscriberStationNetDevice (void)
	initializes the net device and sets the parameters to the default values More...

bool	IsRegistered (void) const

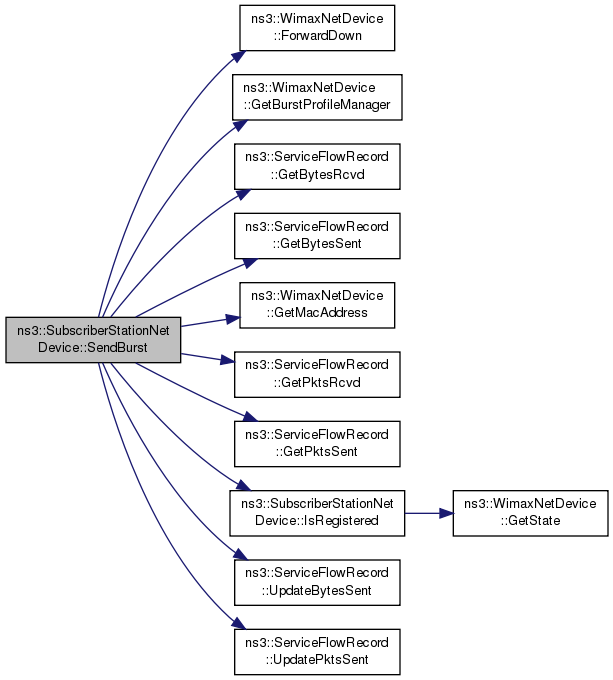

void	SendBurst (uint8_t uiuc, uint16_t nrSymbols, Ptr< WimaxConnection > connection, MacHeaderType::HeaderType packetType=MacHeaderType::HEADER_TYPE_GENERIC)
	Sends a burst on the uplink frame. More...

void	SetAreManagementConnectionsAllocated (bool areManagementConnectionsAllocated)

void	SetAreServiceFlowsAllocated (bool areServiceFlowsAllocated)

void	SetBasicConnection (Ptr< WimaxConnection > basicConnection)

void	SetIntervalT1 (Time interval1)

void	SetIntervalT12 (Time interval12)

void	SetIntervalT2 (Time interval2)

void	SetIntervalT20 (Time interval20)

void	SetIntervalT21 (Time interval21)

void	SetIntervalT3 (Time interval3)

void	SetIntervalT7 (Time interval7)

void	SetIpcsPacketClassifier (Ptr< IpcsClassifier >)
	Sets the packet classifier to be used. More...

void	SetLinkManager (Ptr< SSLinkManager >)
	sets the link manager to be used More...

void	SetLostDlMapInterval (Time lostDlMapInterval)

void	SetLostUlMapInterval (Time lostUlMapInterval)

void	SetMaxContentionRangingRetries (uint8_t maxContentionRangingRetries)

void	SetMaxDcdInterval (Time maxDcdInterval)

void	SetMaxUcdInterval (Time maxUcdInterval)

void	SetModulationType (WimaxPhy::ModulationType modulationType)
	Set the most efficient modulation and coding scheme (MCS) supported by the device. More...

void	SetPrimaryConnection (Ptr< WimaxConnection > primaryConnection)

void	SetScheduler (Ptr< SSScheduler > ssScheduler)

void	SetServiceFlowManager (Ptr< SsServiceFlowManager >)
	Sets the service flow manager to be installed on the device. More...

void	SetTimer (EventId eventId, EventId &event)

void	Start (void)

void	Stop (void)

Public Member Functions inherited from ns3::WimaxNetDevice
	WimaxNetDevice (void)

virtual	~WimaxNetDevice (void)

virtual void	AddLinkChangeCallback (Callback< void > callback)

void	Attach (Ptr< WimaxChannel > channel)

void	CreateDefaultConnections (void)
	Creates the initial ranging and broadcast connections. More...

void	ForwardDown (Ptr< PacketBurst > burst, WimaxPhy::ModulationType modulationType)

void	ForwardUp (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest)

virtual Address	GetAddress (void) const

Ptr< BandwidthManager >	GetBandwidthManager (void) const

virtual Address	GetBroadcast (void) const

Ptr< WimaxConnection >	GetBroadcastConnection (void) const

Ptr< BurstProfileManager >	GetBurstProfileManager (void) const

uint64_t	GetChannel (uint8_t index) const

virtual Ptr< Channel >	GetChannel (void) const

Ptr< ConnectionManager >	GetConnectionManager (void) const

Dcd	GetCurrentDcd (void) const

Ucd	GetCurrentUcd (void) const

virtual uint32_t	GetIfIndex (void) const

Ptr< WimaxConnection >	GetInitialRangingConnection (void) const

Mac48Address	GetMacAddress (void) const

virtual uint16_t	GetMtu (void) const

virtual Address	GetMulticast (void) const

virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...

virtual std::string	GetName (void) const

virtual Ptr< Node >	GetNode (void) const

uint32_t	GetNrFrames (void) const

Ptr< WimaxPhy >	GetPhy (void) const

virtual Ptr< Channel >	GetPhyChannel (void) const

NetDevice::PromiscReceiveCallback	GetPromiscReceiveCallback (void)

uint16_t	GetRtg (void) const

uint8_t	GetState (void) const

uint16_t	GetTtg (void) const

virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...

bool	IsPromisc (void)

virtual Address	MakeMulticastAddress (Ipv4Address multicastGroup) const

virtual bool	NeedsArp (void) const

void	NotifyPromiscTrace (Ptr< Packet > p)

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

virtual void	SetAddress (Address address)
	Set the address of this interface. More...

void	SetBandwidthManager (Ptr< BandwidthManager > bandwidthManager)

void	SetBurstProfileManager (Ptr< BurstProfileManager > burstProfileManager)

void	SetChannel (Ptr< WimaxChannel > wimaxChannel)

virtual void	SetConnectionManager (Ptr< ConnectionManager > connectionManager)

void	SetCurrentDcd (Dcd dcd)

void	SetCurrentUcd (Ucd ucd)

virtual void	SetIfIndex (const uint32_t index)

virtual void	SetLinkChangeCallback (Callback< void > callback)

void	SetMacAddress (Mac48Address address)

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetName (const std::string name)

virtual void	SetNode (Ptr< Node > node)

void	SetNrFrames (uint32_t nrFrames)

void	SetPhy (Ptr< WimaxPhy > phy)

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

void	SetReceiveCallback (void)

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

void	SetRtg (uint16_t rtg)

void	SetState (uint8_t state)

void	SetTtg (uint16_t ttg)

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::WimaxNetDevice
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Public Attributes
Ptr< SSLinkManager >	m_linkManager

Public Attributes inherited from ns3::WimaxNetDevice
TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceRx

TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceTx

Private Member Functions
void	DoDispose (void)
	Destructor implementation. More...

void	DoReceive (Ptr< Packet > packet)

bool	DoSend (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest, uint16_t protocolNumber)

void	ProcessDcd (const Dcd &dcd)

void	ProcessDlMap (const DlMap &dlmap)

void	ProcessUcd (const Ucd &ucd)

void	ProcessUlMap (const UlMap &ulmap)

Static Private Member Functions
static Time	GetDefaultLostDlMapInterval ()

Private Attributes
double	m_allocationStartTime

bool	m_areManagementConnectionsAllocated

bool	m_areServiceFlowsAllocated

Mac48Address	m_baseStationId

Ptr< WimaxConnection >	m_basicConnection

Ptr< IpcsClassifier >	m_classifier

uint8_t	m_dcdCount

EventId	m_dcdWaitTimeoutEvent

OfdmDlBurstProfile *	m_dlBurstProfile

Time	m_intervalT1

Time	m_intervalT12

Time	m_intervalT2

Time	m_intervalT20

Time	m_intervalT21

Time	m_intervalT3

Time	m_intervalT7

EventId	m_lostDlMapEvent

Time	m_lostDlMapInterval

EventId	m_lostUlMapEvent

Time	m_lostUlMapInterval

uint8_t	m_maxContentionRangingRetries

Time	m_maxDcdInterval

Time	m_maxUcdInterval

WimaxPhy::ModulationType	m_modulationType

uint32_t	m_nrDcdRecvd

uint16_t	m_nrDlMapElements

uint32_t	m_nrDlMapRecvd

uint32_t	m_nrUcdRecvd

uint16_t	m_nrUlMapElements

uint32_t	m_nrUlMapRecvd

Ptr< WimaxConnection >	m_primaryConnection

EventId	m_rangOppWaitTimeoutEvent

Ptr< SSScheduler >	m_scheduler

Ptr< SsServiceFlowManager >	m_serviceFlowManager

TracedCallback< Ptr< const Packet > >	m_ssPromiscRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_ssRxDropTrace
	The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception. More...

TracedCallback< Ptr< const Packet > >	m_ssRxTrace
	The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More...

TracedCallback< Ptr< const Packet > >	m_ssTxDropTrace
	The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during transmission. More...

TracedCallback< Ptr< const Packet > >	m_ssTxTrace
	The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission. More...

TracedCallback< Ptr< const Packet >, Mac48Address, const Cid & >	m_traceSSRx

TracedCallback< Ptr< const PacketBurst >, Mac48Address, const Cid &, WimaxPhy::ModulationType >	m_traceSSTx

uint8_t	m_ucdCount

EventId	m_ucdWaitTimeoutEvent

OfdmUlBurstProfile *	m_ulBurstProfile

Additional Inherited Members
Static Public Attributes inherited from ns3::WimaxNetDevice
static uint8_t	m_direction = ~0

static Time	m_frameStartTime = Seconds (0)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Config Paths

ns3::SubscriberStationNetDevice is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice"
"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice"

Attributes

BasicConnection: Basic connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection>
- Initial value: 0
- Flags: construct write read
PrimaryConnection: Primary connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection>
- Initial value: 0
- Flags: construct write read
LostDlMapInterval: Time since last received DL-MAP message before downlink synchronization is considered lost. Maximum is 600ms
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read
LostUlMapInterval: Time since last received UL-MAP before uplink synchronization is considered lost, maximum is 600.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read
MaxDcdInterval: Maximum time between transmission of DCD messages. Maximum is 10s
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +10000000000.0ns
- Flags: construct write read
MaxUcdInterval: Maximum time between transmission of UCD messages. Maximum is 10s
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +10000000000.0ns
- Flags: construct write read
IntervalT1: Wait for DCD timeout. Maximum is 5*maxDcdInterval
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +50000000000.0ns
- Flags: construct write read
IntervalT2: Wait for broadcast ranging timeout, i.e., wait for initial ranging opportunity. Maximum is 5*Ranging interval
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +10000000000.0ns
- Flags: construct write read
IntervalT3: ranging Response reception timeout following the transmission of a ranging request. Maximum is 200ms
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +200000000.0ns
- Flags: construct write read
IntervalT7: wait for DSA/DSC/DSD Response timeout. Maximum is 1s
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +100000000.0ns
- Flags: construct write read
IntervalT12: Wait for UCD descriptor.Maximum is 5*MaxUcdInterval
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +10000000000.0ns
- Flags: construct write read
IntervalT20: Time the SS searches for preambles on a given channel. Minimum is 2 MAC frames
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read
IntervalT21: time the SS searches for (decodable) DL-MAP on a given channel
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +10000000000.0ns
- Flags: construct write read
MaxContentionRangingRetries: Number of retries on contention Ranging Requests
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:16
- Initial value: 16
- Flags: construct write read
SSScheduler: The ss scheduler attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::SSScheduler>
- Initial value: 0
- Flags: construct write read
LinkManager: The ss link manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::SSLinkManager>
- Initial value: 0
- Flags: construct write read
Classifier: The ss classifier attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::IpcsClassifier>
- Initial value: 0
- Flags: construct write read

Attributes defined in parent class ns3::WimaxNetDevice

Mtu: The MAC-level Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:1500
- Initial value: 1400
- Flags: construct write read
Phy: The PHY layer attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxPhy>
- Initial value: 0
- Flags: construct write read
Channel: The channel attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxChannel>
- Initial value: 0
- Flags: construct write read
RTG: receive/transmit transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: construct write read
TTG: transmit/receive transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: construct write read
ConnectionManager: The connection manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ConnectionManager>
- Initial value: 0
- Flags: construct write read
BurstProfileManager: The burst profile manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BurstProfileManager>
- Initial value: 0
- Flags: construct write read
BandwidthManager: The bandwidth manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BandwidthManager>
- Initial value: 0
- Flags: construct write read
InitialRangingConnection: Initial ranging connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection>
- Initial value: 0
- Flags: construct write read
BroadcastConnection: Broadcast connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection>
- Initial value: 0
- Flags: construct write read

TraceSources

SSTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
Callback signature: ns3::Packet::TracedCallback
SSPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
Callback signature: ns3::Packet::TracedCallback
SSRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
Callback signature: ns3::Packet::TracedCallback
SSRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
Callback signature: ns3::Packet::TracedCallback

TraceSources defined in parent class ns3::WimaxNetDevice

Rx: Receive trace
Callback signature: ns3::WimaxNetDevice::TxRxTracedCallback
Tx: Transmit trace
Callback signature: ns3::WimaxNetDevice::TxRxTracedCallback

Size of this type is 824 bytes (on a 64-bit architecture).

Definition at line 47 of file ss-net-device.h.

Constructor & Destructor Documentation

ns3::SubscriberStationNetDevice::SubscriberStationNetDevice ( void )

Definition at line 211 of file ss-net-device.cc.

References InitSubscriberStationNetDevice().

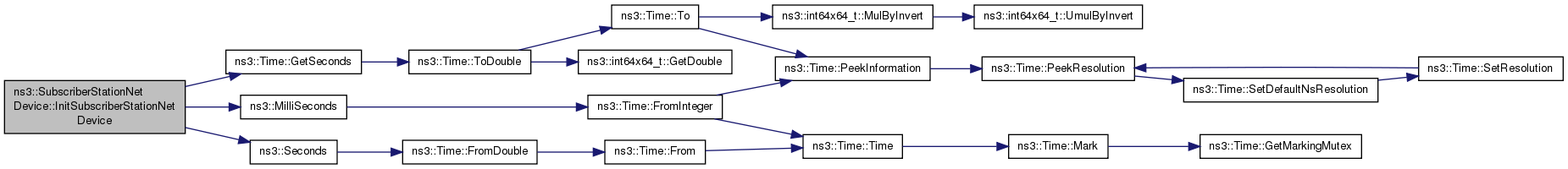

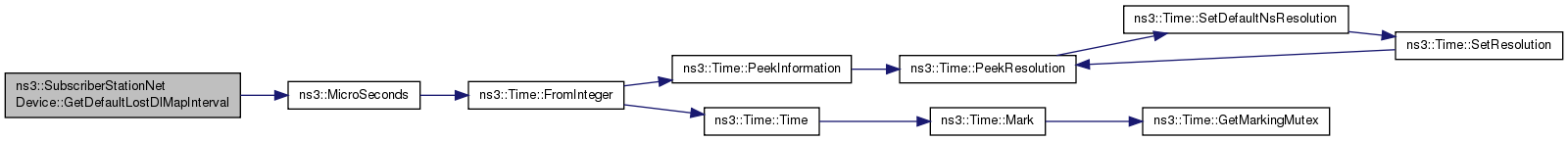

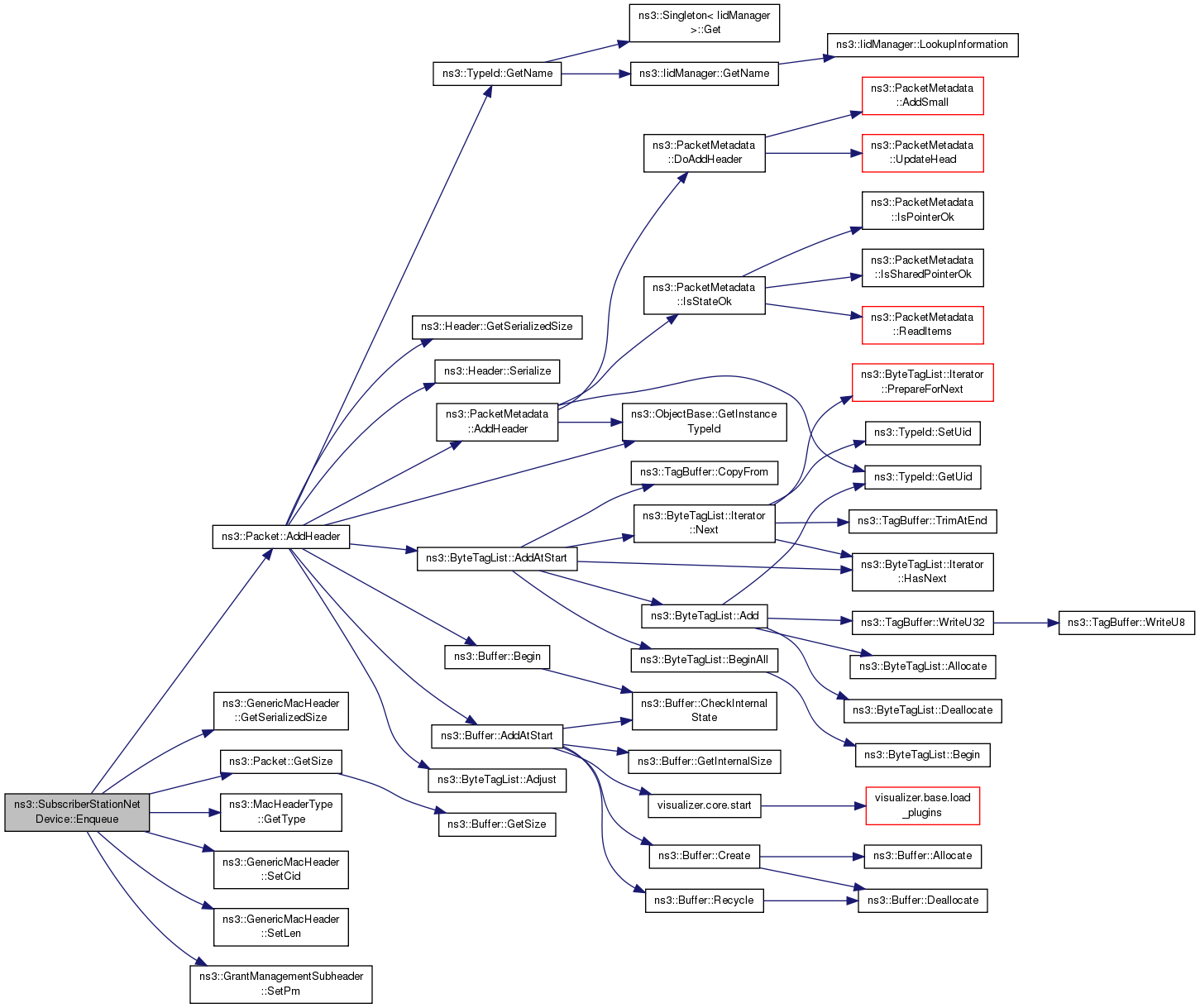

Here is the call graph for this function:

ns3::SubscriberStationNetDevice::SubscriberStationNetDevice	(	Ptr< Node >	node,
		Ptr< WimaxPhy >	phy
	)

Definition at line 257 of file ss-net-device.cc.

References InitSubscriberStationNetDevice(), ns3::WimaxNetDevice::SetNode(), and ns3::WimaxNetDevice::SetPhy().

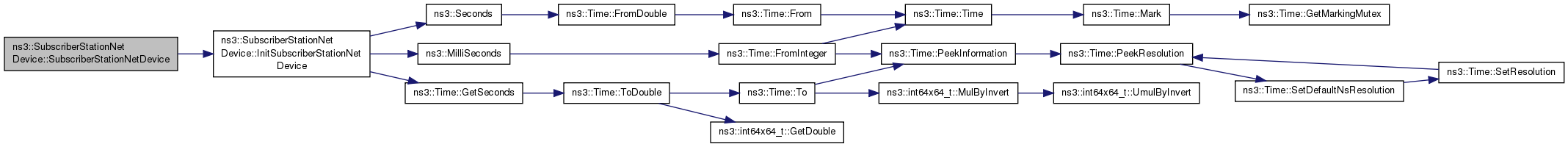

Here is the call graph for this function:

ns3::SubscriberStationNetDevice::~SubscriberStationNetDevice ( void )

Definition at line 264 of file ss-net-device.cc.

Member Function Documentation

void ns3::SubscriberStationNetDevice::AddServiceFlow ( ServiceFlow * sf )

adds a new service flow

Definition at line 583 of file ss-net-device.cc.

References GetServiceFlowManager().

Here is the call graph for this function:

void ns3::SubscriberStationNetDevice::AddServiceFlow ( ServiceFlow sf )

adds a new service flow

Definition at line 577 of file ss-net-device.cc.

References GetServiceFlowManager().

Here is the call graph for this function:

void ns3::SubscriberStationNetDevice::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::WimaxNetDevice.

Definition at line 269 of file ss-net-device.cc.

References ns3::WimaxNetDevice::DoDispose(), m_basicConnection, m_classifier, m_dlBurstProfile, m_linkManager, m_primaryConnection, m_scheduler, m_serviceFlowManager, and m_ulBurstProfile.

Here is the call graph for this function:

void ns3::SubscriberStationNetDevice::DoReceive ( Ptr< Packet > packet )

privatevirtual

Implements ns3::WimaxNetDevice.

Definition at line 741 of file ss-net-device.cc.

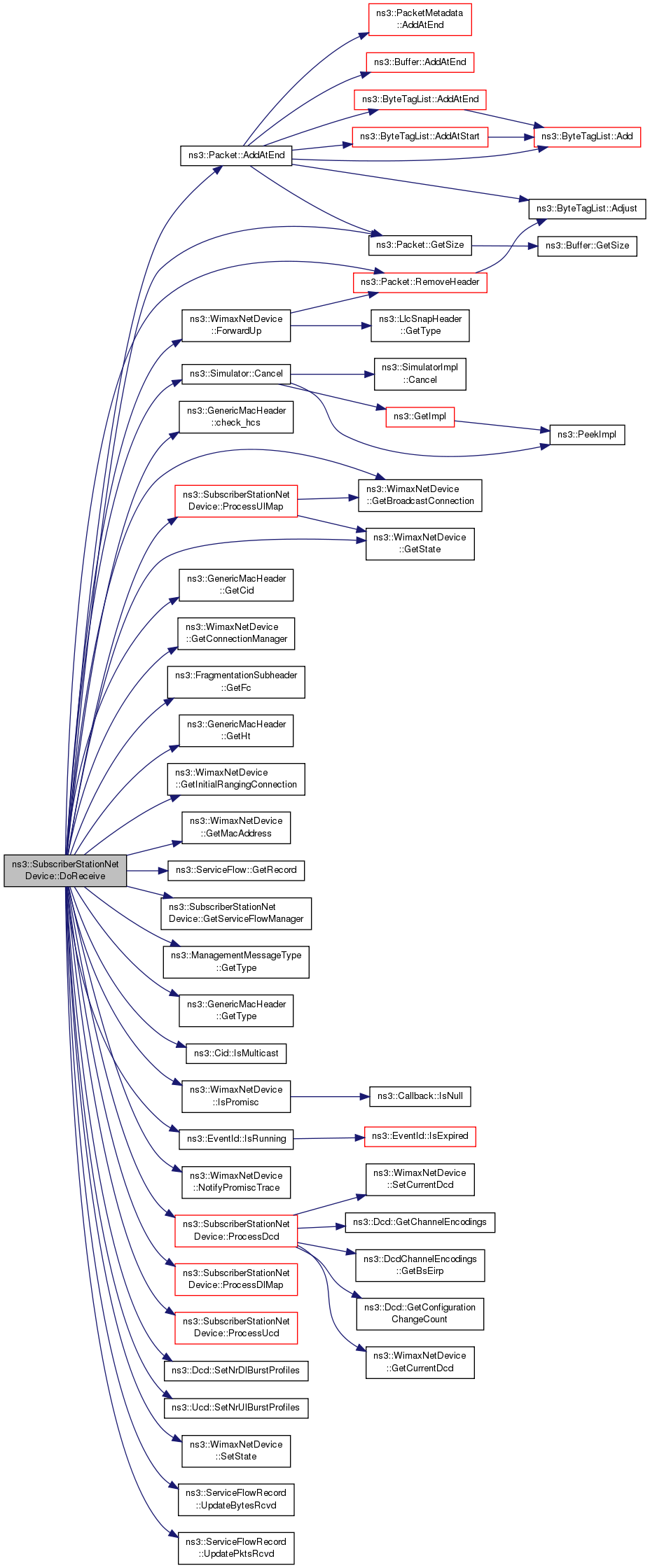

Here is the call graph for this function:

bool ns3::SubscriberStationNetDevice::DoSend	(	Ptr< Packet >	packet,
		const Mac48Address &	source,
		const Mac48Address &	dest,
		uint16_t	protocolNumber
	)

privatevirtual

Implements ns3::WimaxNetDevice.

Definition at line 589 of file ss-net-device.cc.

References Enqueue(), ns3::ServiceFlow::GetCid(), ns3::ServiceFlow::GetConnection(), ns3::ServiceFlow::GetIsEnabled(), ns3::WimaxNetDevice::GetMacAddress(), GetServiceFlowManager(), ns3::ServiceFlow::GetSfid(), ns3::Packet::GetSize(), IsRegistered(), m_basicConnection, m_classifier, m_ssTxDropTrace, m_ssTxTrace, NS_LOG_DEBUG, NS_LOG_INFO, ns3::ServiceFlow::SF_DIRECTION_UP, and ns3::ServiceFlow::SF_TYPE_ALL.

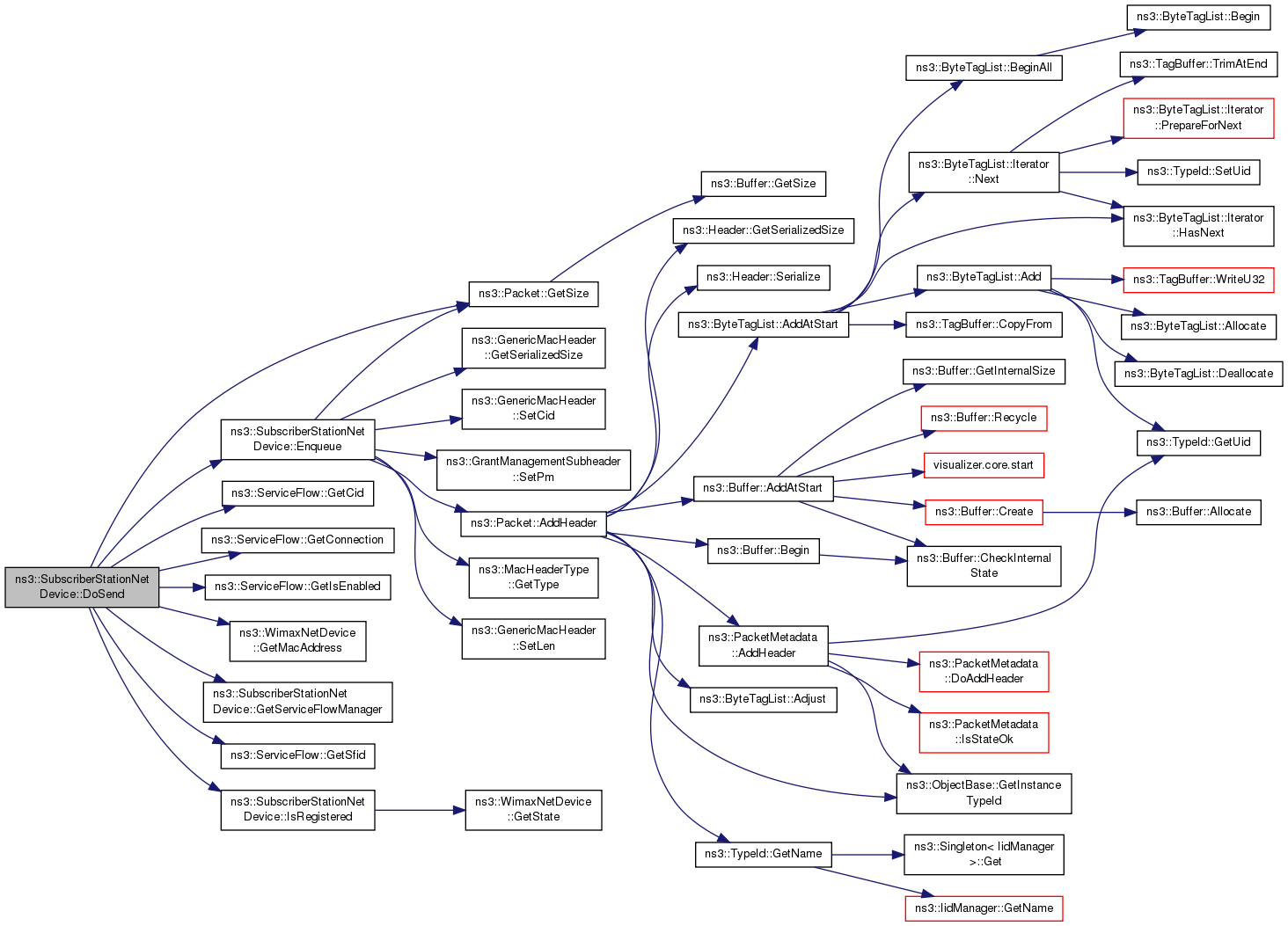

Here is the call graph for this function:

bool ns3::SubscriberStationNetDevice::Enqueue	(	Ptr< Packet >	packet,
		const MacHeaderType &	hdrType,
		Ptr< WimaxConnection >	connection
	)

virtual

Enqueue a packet into a connection queue.

Parameters

packet	the packet to be enqueued
hdrType	the mac header type to be appended to the packet
connection	the connection to be used

Implements ns3::WimaxNetDevice.

Definition at line 658 of file ss-net-device.cc.

References ns3::Packet::AddHeader(), ns3::GenericMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), ns3::MacHeaderType::GetType(), ns3::MacHeaderType::HEADER_TYPE_BANDWIDTH, ns3::MacHeaderType::HEADER_TYPE_GENERIC, m_scheduler, NS_ASSERT_MSG, NS_LOG_INFO, ns3::GenericMacHeader::SetCid(), ns3::GenericMacHeader::SetLen(), ns3::GrantManagementSubheader::SetPm(), ns3::ServiceFlow::SF_TYPE_UGS, and ns3::Cid::TRANSPORT.

Referenced by DoSend().

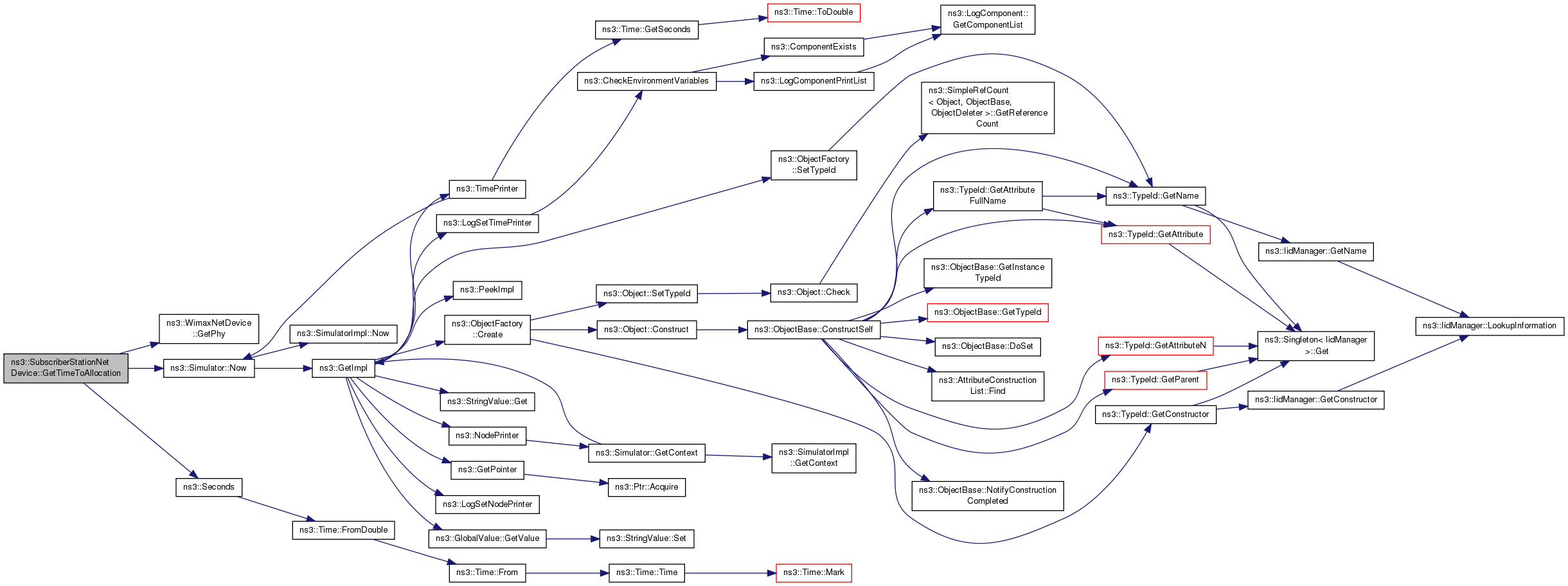

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::SubscriberStationNetDevice::GetAreManagementConnectionsAllocated ( void ) const

Returns: true if the management connections are allocated, false otherwise

Definition at line 485 of file ss-net-device.cc.

References m_areManagementConnectionsAllocated.

bool ns3::SubscriberStationNetDevice::GetAreServiceFlowsAllocated ( void ) const

Returns: true if the service flows are allocated, false otherwise

Definition at line 497 of file ss-net-device.cc.

References m_areServiceFlowsAllocated.

Cid ns3::SubscriberStationNetDevice::GetBasicCid ( void ) const

Returns: the basic CID

Definition at line 455 of file ss-net-device.cc.

References m_basicConnection.

Ptr< WimaxConnection > ns3::SubscriberStationNetDevice::GetBasicConnection ( void ) const

Returns: the basic connection currently in use

Definition at line 437 of file ss-net-device.cc.

References m_basicConnection.

Time ns3::SubscriberStationNetDevice::GetDefaultLostDlMapInterval ( )

staticprivate

Definition at line 51 of file ss-net-device.cc.

References ns3::MicroSeconds().

Here is the call graph for this function:

Time ns3::SubscriberStationNetDevice::GetIntervalT1 ( void ) const

returns the wait for DCD timeout

Definition at line 341 of file ss-net-device.cc.

References m_intervalT1.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetIntervalT12 ( void ) const

returns the wait for UCD descriptor timeout

Definition at line 389 of file ss-net-device.cc.

References m_intervalT12.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetIntervalT2 ( void ) const

returns the wait for broadcast ranging timeout, i.e., wait for initial ranging opportunity

Definition at line 353 of file ss-net-device.cc.

References m_intervalT2.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetIntervalT20 ( void ) const

returns the Time the SS searches for preambles on a given channel

Definition at line 401 of file ss-net-device.cc.

References m_intervalT20.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetIntervalT21 ( void ) const

returns the time the SS searches for (decodable) DL-MAP on a given channel

Definition at line 413 of file ss-net-device.cc.

References m_intervalT21.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetIntervalT3 ( void ) const

returns the ranging Response reception timeout following the transmission of a ranging request

Definition at line 365 of file ss-net-device.cc.

References m_intervalT3.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetIntervalT7 ( void ) const

returns the wait for DSA/DSC/DSD Response timeout

Definition at line 377 of file ss-net-device.cc.

References m_intervalT7.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< IpcsClassifier > ns3::SubscriberStationNetDevice::GetIpcsClassifier ( ) const

Returns: a pointer to the CS packet classifier

Definition at line 521 of file ss-net-device.cc.

References m_classifier.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< SSLinkManager > ns3::SubscriberStationNetDevice::GetLinkManager ( void ) const

Returns: a pointer to the link manger currently used

Definition at line 534 of file ss-net-device.cc.

References m_linkManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetLostDlMapInterval ( void ) const

Definition at line 293 of file ss-net-device.cc.

References m_lostDlMapInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetLostUlMapInterval ( void ) const

returns the time since last received UL-MAP before uplink synchronization is considered lost

Definition at line 305 of file ss-net-device.cc.

References m_lostUlMapInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint8_t ns3::SubscriberStationNetDevice::GetMaxContentionRangingRetries ( void ) const

Returns: the Number of retries on contention Ranging Requests

Definition at line 425 of file ss-net-device.cc.

References m_maxContentionRangingRetries.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetMaxDcdInterval ( void ) const

returns the maximum time between transmission of DCD messages

Definition at line 317 of file ss-net-device.cc.

References m_maxDcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetMaxUcdInterval ( void ) const

returns the maximum time between transmission of UCD messages

Definition at line 329 of file ss-net-device.cc.

References m_maxUcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

WimaxPhy::ModulationType ns3::SubscriberStationNetDevice::GetModulationType ( void ) const

returns the most efficient modulation and coding scheme (MCS) supported by the device

Definition at line 473 of file ss-net-device.cc.

References m_modulationType.

Referenced by ns3::BurstProfileManager::GetBurstProfileToRequest().

Here is the caller graph for this function:

Cid ns3::SubscriberStationNetDevice::GetPrimaryCid ( void ) const

Returns: the primary CID

Definition at line 461 of file ss-net-device.cc.

References m_primaryConnection.

Ptr< WimaxConnection > ns3::SubscriberStationNetDevice::GetPrimaryConnection ( void ) const

returns the primary connection currently usde

Definition at line 449 of file ss-net-device.cc.

References m_primaryConnection.

Ptr< SSScheduler > ns3::SubscriberStationNetDevice::GetScheduler ( void ) const

Returns: the scheduler installed on the device

Definition at line 503 of file ss-net-device.cc.

References m_scheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< SsServiceFlowManager > ns3::SubscriberStationNetDevice::GetServiceFlowManager ( void ) const

Returns: a pointer to the service flow manager installed on the device

Definition at line 546 of file ss-net-device.cc.

References m_serviceFlowManager.

Referenced by AddServiceFlow(), DoReceive(), DoSend(), and HasServiceFlows().

Here is the caller graph for this function:

Time ns3::SubscriberStationNetDevice::GetTimeToAllocation ( Time defferTime )

Definition at line 1267 of file ss-net-device.cc.

References ns3::WimaxNetDevice::GetPhy(), m_allocationStartTime, ns3::WimaxNetDevice::m_frameStartTime, ns3::Simulator::Now(), and ns3::Seconds().

Referenced by ProcessUlMap().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::SubscriberStationNetDevice::GetTypeId ( void )

static

Definition at line 57 of file ss-net-device.cc.

References GetIntervalT1(), GetIntervalT12(), GetIntervalT2(), GetIntervalT20(), GetIntervalT21(), GetIntervalT3(), GetIntervalT7(), GetIpcsClassifier(), GetLinkManager(), GetLostDlMapInterval(), GetLostUlMapInterval(), GetMaxContentionRangingRetries(), GetMaxDcdInterval(), GetMaxUcdInterval(), GetScheduler(), m_basicConnection, m_primaryConnection, m_ssPromiscRxTrace, m_ssRxDropTrace, m_ssRxTrace, m_ssTxDropTrace, ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::MilliSeconds(), ns3::Seconds(), SetIntervalT1(), SetIntervalT12(), SetIntervalT2(), SetIntervalT20(), SetIntervalT21(), SetIntervalT3(), SetIntervalT7(), SetIpcsPacketClassifier(), SetLinkManager(), SetLostDlMapInterval(), SetLostUlMapInterval(), SetMaxContentionRangingRetries(), SetMaxDcdInterval(), SetMaxUcdInterval(), ns3::TypeId::SetParent(), and SetScheduler().

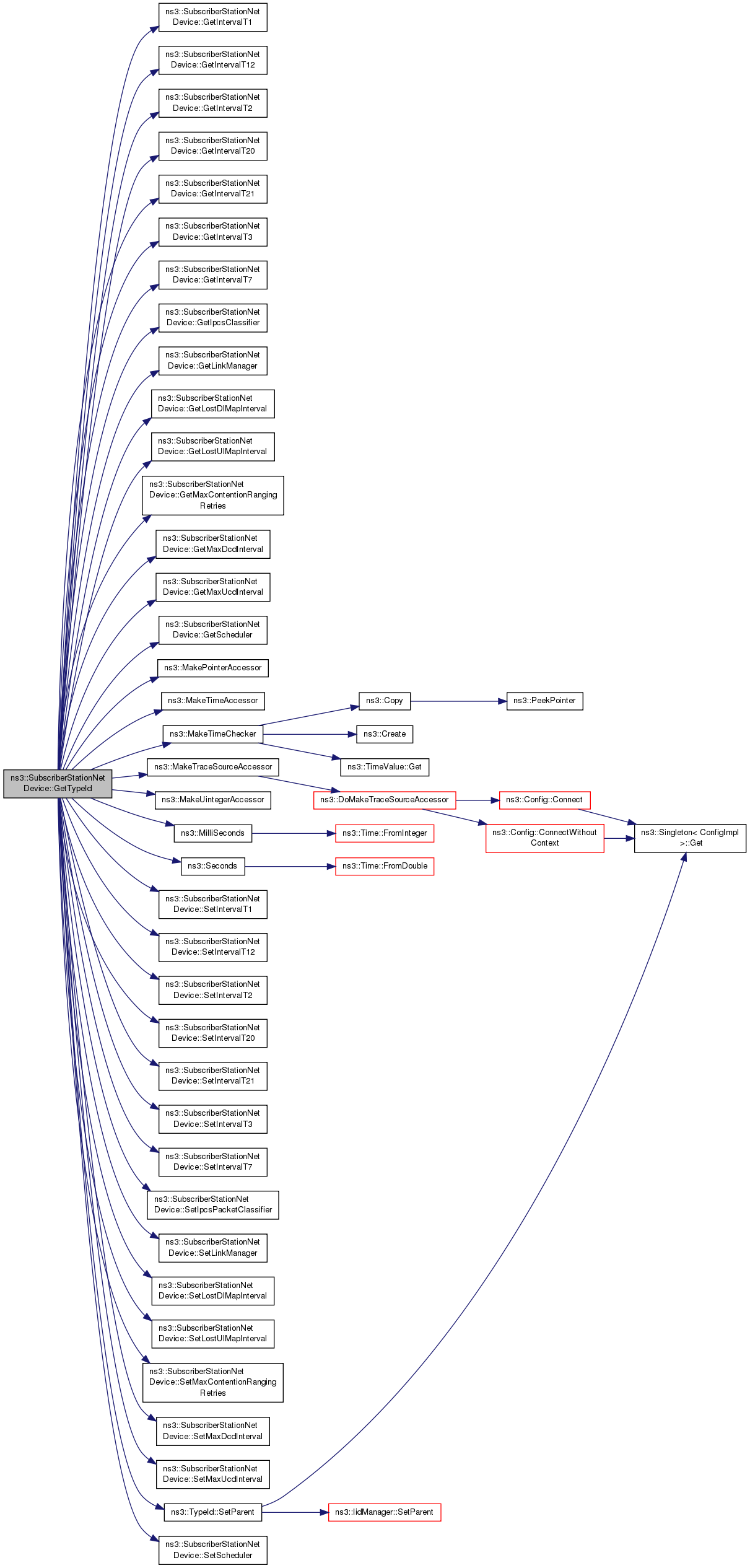

Here is the call graph for this function:

bool ns3::SubscriberStationNetDevice::HasServiceFlows ( void ) const

Returns: true if the device has at least one active service flow, false otherwise

Definition at line 515 of file ss-net-device.cc.

References GetServiceFlowManager(), and ns3::ServiceFlow::SF_TYPE_ALL.

Here is the call graph for this function:

void ns3::SubscriberStationNetDevice::InitSubscriberStationNetDevice ( void )

initializes the net device and sets the parameters to the default values

Definition at line 219 of file ss-net-device.cc.

References ns3::Time::GetSeconds(), m_allocationStartTime, m_areManagementConnectionsAllocated, m_areServiceFlowsAllocated, m_baseStationId, m_basicConnection, m_classifier, m_dcdCount, m_dlBurstProfile, m_intervalT1, m_intervalT12, m_intervalT2, m_intervalT21, m_intervalT3, m_intervalT7, m_linkManager, m_lostDlMapInterval, m_lostUlMapInterval, m_maxContentionRangingRetries, m_maxDcdInterval, m_maxUcdInterval, m_modulationType, m_nrDcdRecvd, m_nrDlMapElements, m_nrDlMapRecvd, m_nrUcdRecvd, m_nrUlMapElements, m_nrUlMapRecvd, m_primaryConnection, m_scheduler, m_serviceFlowManager, m_ucdCount, m_ulBurstProfile, ns3::MilliSeconds(), ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, and ns3::Seconds().

Referenced by SubscriberStationNetDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::SubscriberStationNetDevice::IsRegistered ( void ) const

Returns: true if the SS is registered to a BS, false otherwise

Definition at line 1261 of file ss-net-device.cc.

References ns3::WimaxNetDevice::GetState(), and SS_STATE_REGISTERED.

Referenced by DoSend(), and SendBurst().

Here is the call graph for this function:

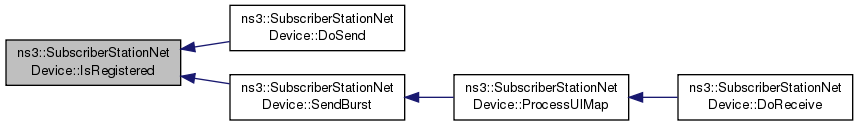

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::ProcessDcd ( const Dcd & dcd )

private

Definition at line 1190 of file ss-net-device.cc.

References ns3::DcdChannelEncodings::GetBsEirp(), ns3::Dcd::GetChannelEncodings(), ns3::Dcd::GetConfigurationChangeCount(), ns3::WimaxNetDevice::GetCurrentDcd(), ns3::OfdmDlBurstProfile::GetDiuc(), ns3::Dcd::GetDlBurstProfiles(), ns3::DcdChannelEncodings::GetEirxPIrMax(), ns3::OfdmDlBurstProfile::GetFecCodeType(), ns3::OfdmDcdChannelEncodings::GetFrameDurationCode(), ns3::WimaxNetDevice::GetPhy(), m_dlBurstProfile, m_linkManager, m_modulationType, m_nrDcdRecvd, ns3::WimaxNetDevice::SetCurrentDcd(), ns3::OfdmDlBurstProfile::SetDiuc(), and ns3::OfdmDlBurstProfile::SetFecCodeType().

Referenced by DoReceive().

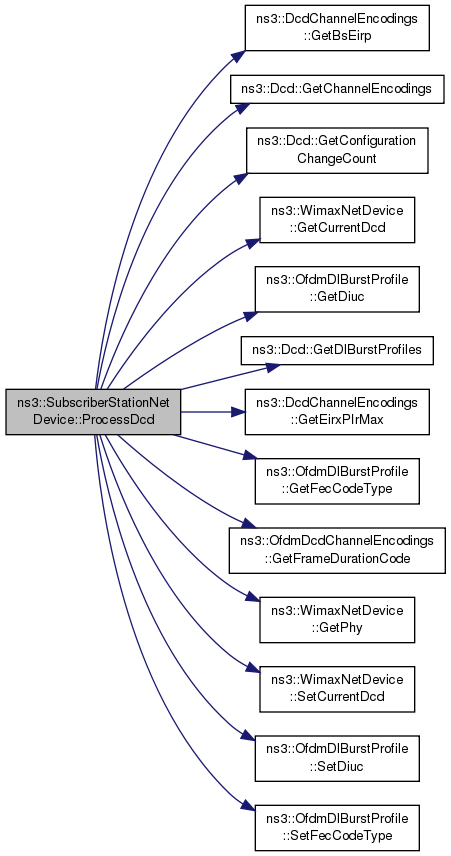

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::ProcessDlMap ( const DlMap & dlmap )

private

Definition at line 1068 of file ss-net-device.cc.

References ns3::OfdmDlBurstProfile::DIUC_END_OF_MAP, ns3::DlMap::GetBaseStationId(), ns3::DlMap::GetDcdCount(), ns3::DlMap::GetDlMapElements(), m_baseStationId, m_basicConnection, m_dcdCount, and m_nrDlMapRecvd.

Referenced by DoReceive().

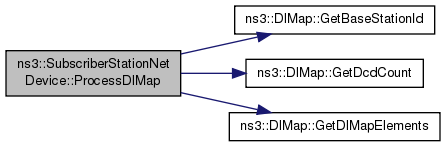

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::ProcessUcd ( const Ucd & ucd )

private

Definition at line 1224 of file ss-net-device.cc.

References EVENT_NONE, ns3::Ucd::GetChannelEncodings(), ns3::Ucd::GetConfigurationChangeCount(), ns3::WimaxNetDevice::GetCurrentUcd(), ns3::OfdmUlBurstProfile::GetFecCodeType(), ns3::Ucd::GetRangingBackoffStart(), ns3::OfdmUlBurstProfile::GetUiuc(), ns3::Ucd::GetUlBurstProfiles(), m_linkManager, m_modulationType, m_nrUcdRecvd, m_ulBurstProfile, ns3::WimaxNetDevice::SetCurrentUcd(), ns3::OfdmUlBurstProfile::SetFecCodeType(), and ns3::OfdmUlBurstProfile::SetUiuc().

Referenced by DoReceive().

Here is the call graph for this function:

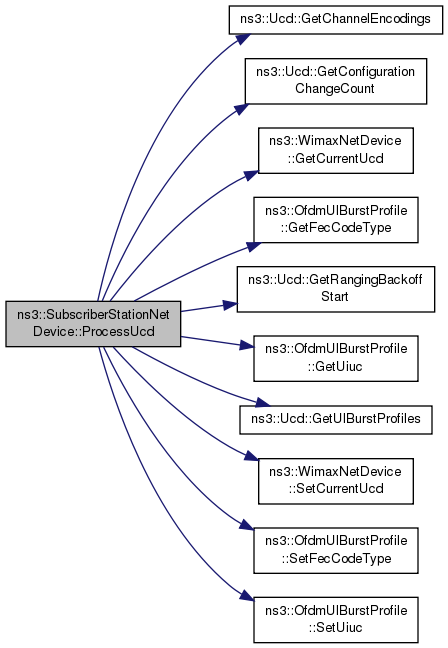

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::ProcessUlMap ( const UlMap & ulmap )

private

Definition at line 1099 of file ss-net-device.cc.

References ns3::UlMap::GetAllocationStartTime(), ns3::WimaxNetDevice::GetBandwidthManager(), ns3::WimaxNetDevice::GetBroadcastConnection(), ns3::Ucd::GetChannelEncodings(), ns3::OfdmUlMapIe::GetCid(), ns3::WimaxNetDevice::GetCurrentUcd(), ns3::OfdmUlMapIe::GetDuration(), ns3::WimaxNetDevice::GetPhy(), ns3::UcdChannelEncodings::GetRangReqOppSize(), ns3::OfdmUlMapIe::GetStartTime(), ns3::WimaxNetDevice::GetState(), GetTimeToAllocation(), ns3::UlMap::GetUcdCount(), ns3::OfdmUlMapIe::GetUiuc(), ns3::UlMap::GetUlMapElements(), ns3::MacHeaderType::HEADER_TYPE_GENERIC, m_allocationStartTime, m_areManagementConnectionsAllocated, m_basicConnection, m_linkManager, m_nrUlMapRecvd, m_ucdCount, NS_ASSERT_MSG, ns3::Simulator::Schedule(), ns3::Seconds(), ns3::BandwidthManager::SendBandwidthRequest(), SendBurst(), ns3::SSLinkManager::SendRangingRequest(), SS_STATE_ADJUSTING_PARAMETERS, SS_STATE_WAITING_INV_RANG_INTRVL, SS_STATE_WAITING_REG_RANG_INTRVL, ns3::OfdmUlBurstProfile::UIUC_END_OF_MAP, ns3::OfdmUlBurstProfile::UIUC_INITIAL_RANGING, and ns3::OfdmUlBurstProfile::UIUC_REQ_REGION_FULL.

Referenced by DoReceive().

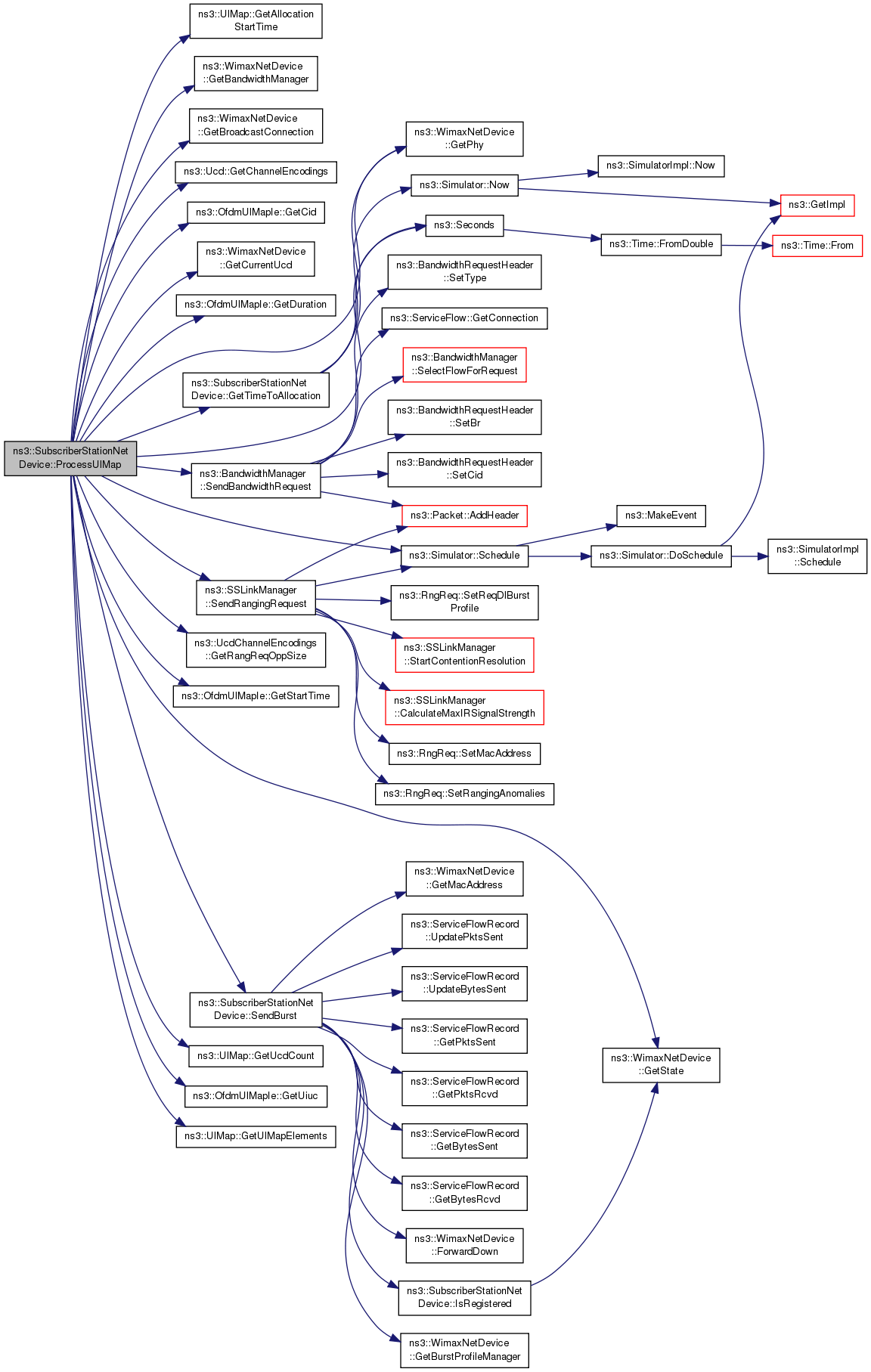

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SendBurst	(	uint8_t	uiuc,
		uint16_t	nrSymbols,
		Ptr< WimaxConnection >	connection,
		MacHeaderType::HeaderType	packetType = `MacHeaderType::HEADER_TYPE_GENERIC`
	)

Sends a burst on the uplink frame.

Definition at line 691 of file ss-net-device.cc.

References ns3::WimaxNetDevice::DIRECTION_UPLINK, ns3::WimaxNetDevice::ForwardDown(), ns3::WimaxNetDevice::GetBurstProfileManager(), ns3::ServiceFlowRecord::GetBytesRcvd(), ns3::ServiceFlowRecord::GetBytesSent(), ns3::WimaxNetDevice::GetMacAddress(), ns3::ServiceFlowRecord::GetPktsRcvd(), ns3::ServiceFlowRecord::GetPktsSent(), IsRegistered(), m_basicConnection, m_scheduler, ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, NS_LOG_DEBUG, ns3::Cid::TRANSPORT, ns3::OfdmUlBurstProfile::UIUC_INITIAL_RANGING, ns3::OfdmUlBurstProfile::UIUC_REQ_REGION_FULL, ns3::ServiceFlowRecord::UpdateBytesSent(), and ns3::ServiceFlowRecord::UpdatePktsSent().

Referenced by ProcessUlMap().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetAreManagementConnectionsAllocated ( bool areManagementConnectionsAllocated )

Parameters

areManagementConnectionsAllocated true if the management connections are allocated, false otherwise

Definition at line 479 of file ss-net-device.cc.

References m_areManagementConnectionsAllocated.

void ns3::SubscriberStationNetDevice::SetAreServiceFlowsAllocated ( bool areServiceFlowsAllocated )

Parameters

areServiceFlowsAllocated true if the service flows are allocated, false otherwise

Definition at line 491 of file ss-net-device.cc.

References m_areServiceFlowsAllocated.

void ns3::SubscriberStationNetDevice::SetBasicConnection ( Ptr< WimaxConnection > basicConnection )

Parameters

basicConnection the basic connection to be used

Definition at line 431 of file ss-net-device.cc.

References m_basicConnection.

void ns3::SubscriberStationNetDevice::SetIntervalT1 ( Time interval1 )

Parameters

interval1 Wait for DCD timeout

Definition at line 335 of file ss-net-device.cc.

References m_intervalT1.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIntervalT12 ( Time interval12 )

Parameters

interval12 the Wait for UCD descriptor timeout

Definition at line 383 of file ss-net-device.cc.

References m_intervalT12.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIntervalT2 ( Time interval2 )

Parameters

interval2 the wait for broadcast ranging timeout, i.e., wait for initial ranging opportunity

Definition at line 347 of file ss-net-device.cc.

References m_intervalT2.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIntervalT20 ( Time interval20 )

Parameters

interval20 the Time the SS searches for preambles on a given channel

Definition at line 395 of file ss-net-device.cc.

References m_intervalT20.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIntervalT21 ( Time interval21 )

Parameters

interval21 the time the SS searches for (decodable) DL-MAP on a given channel

Definition at line 407 of file ss-net-device.cc.

References m_intervalT21.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIntervalT3 ( Time interval3 )

Parameters

interval3 the ranging Response reception timeout following the transmission of a ranging request

Definition at line 359 of file ss-net-device.cc.

References m_intervalT3.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIntervalT7 ( Time interval7 )

Parameters

interval7 the wait for DSA/DSC/DSD Response timeout

Definition at line 371 of file ss-net-device.cc.

References m_intervalT7.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetIpcsPacketClassifier ( Ptr< IpcsClassifier > classifier )

Sets the packet classifier to be used.

Definition at line 528 of file ss-net-device.cc.

References m_classifier.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetLinkManager ( Ptr< SSLinkManager > linkManager )

sets the link manager to be used

Definition at line 540 of file ss-net-device.cc.

References m_linkManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetLostDlMapInterval ( Time lostDlMapInterval )

Parameters

lostDlMapInterval time since last received DL-MAP message before downlink synchronization is considered lost

Definition at line 287 of file ss-net-device.cc.

References m_lostDlMapInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetLostUlMapInterval ( Time lostUlMapInterval )

Parameters

lostUlMapInterval Time since last received UL-MAP before uplink synchronization is considered lost

Definition at line 299 of file ss-net-device.cc.

References m_lostUlMapInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetMaxContentionRangingRetries ( uint8_t maxContentionRangingRetries )

Parameters

maxContentionRangingRetries the Number of retries on contention Ranging Requests

Definition at line 419 of file ss-net-device.cc.

References m_maxContentionRangingRetries.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetMaxDcdInterval ( Time maxDcdInterval )

Parameters

maxDcdInterval Maximum time between transmission of DCD messages

Definition at line 311 of file ss-net-device.cc.

References m_maxDcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetMaxUcdInterval ( Time maxUcdInterval )

Parameters

maxUcdInterval Maximum time between transmission of UCD messages

Definition at line 323 of file ss-net-device.cc.

References m_maxUcdInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetModulationType ( WimaxPhy::ModulationType modulationType )

Set the most efficient modulation and coding scheme (MCS) supported by the device.

Parameters

modulationType the most robust MCS supported

Definition at line 467 of file ss-net-device.cc.

References m_modulationType.

void ns3::SubscriberStationNetDevice::SetPrimaryConnection ( Ptr< WimaxConnection > primaryConnection )

Parameters

primaryConnection the primary connection to be used

Definition at line 443 of file ss-net-device.cc.

References m_primaryConnection.

void ns3::SubscriberStationNetDevice::SetScheduler ( Ptr< SSScheduler > ssScheduler )

Parameters

ssScheduler the scheduler to be installed on the device

Definition at line 509 of file ss-net-device.cc.

References m_scheduler.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::SubscriberStationNetDevice::SetServiceFlowManager ( Ptr< SsServiceFlowManager > sfm )

Sets the service flow manager to be installed on the device.

Definition at line 552 of file ss-net-device.cc.

References m_serviceFlowManager.

void ns3::SubscriberStationNetDevice::SetTimer	(	EventId	eventId,
		EventId &	event
	)

Definition at line 1276 of file ss-net-device.cc.

References ns3::Simulator::Cancel(), ns3::WimaxNetDevice::GetState(), and SS_STATE_STOPPED.

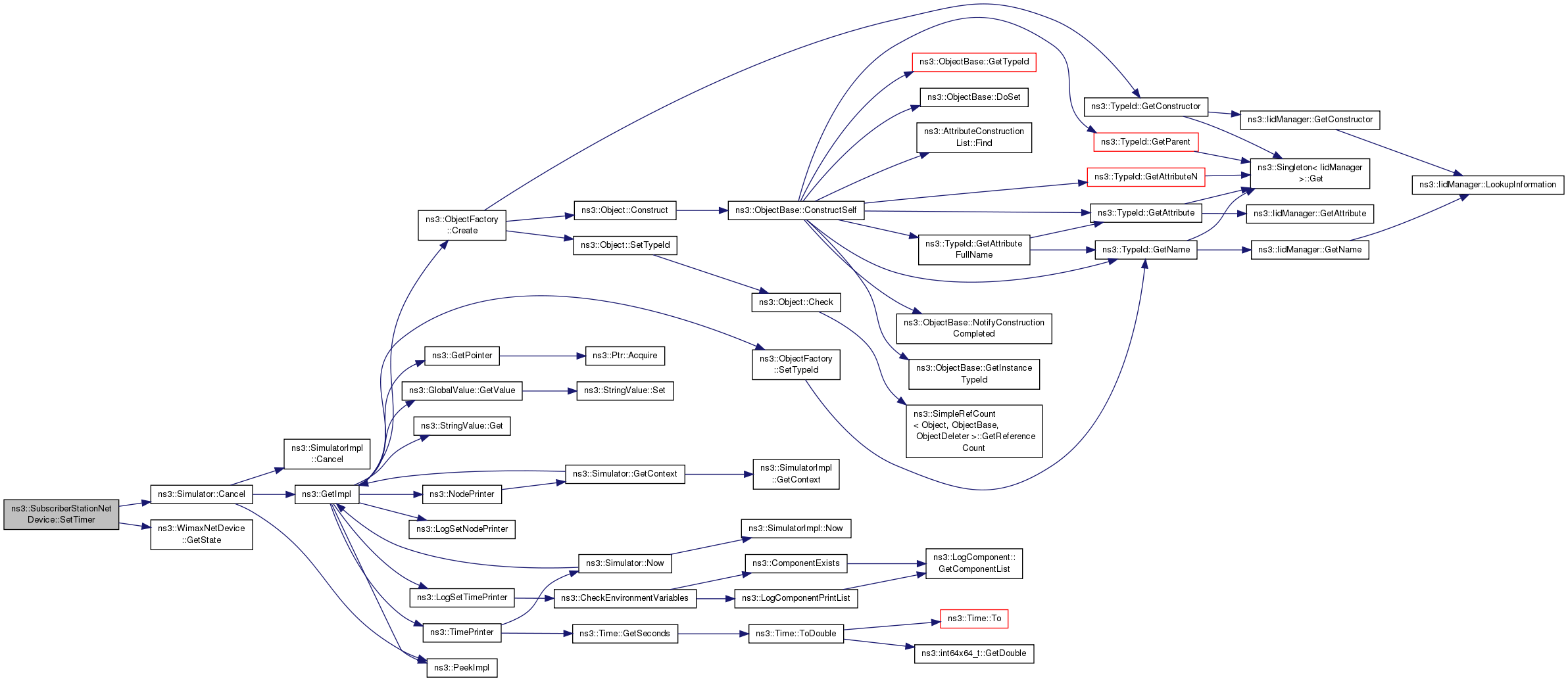

Here is the call graph for this function:

void ns3::SubscriberStationNetDevice::Start ( void )

virtual

Implements ns3::WimaxNetDevice.

Definition at line 558 of file ss-net-device.cc.

References ns3::WimaxNetDevice::CreateDefaultConnections(), EVENT_NONE, ns3::WimaxNetDevice::GetPhy(), m_intervalT20, m_linkManager, ns3::Simulator::ScheduleNow(), ns3::Seconds(), ns3::WimaxNetDevice::SetReceiveCallback(), and ns3::SSLinkManager::StartScanning().

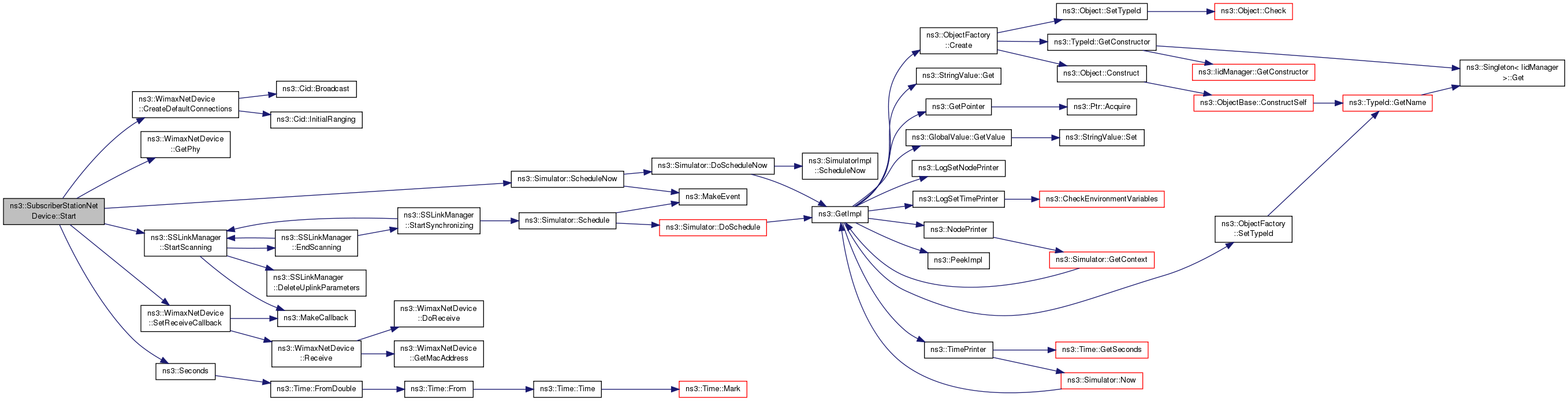

Here is the call graph for this function:

void ns3::SubscriberStationNetDevice::Stop ( void )

virtual

Implements ns3::WimaxNetDevice.

Definition at line 571 of file ss-net-device.cc.

References ns3::WimaxNetDevice::SetState(), and SS_STATE_STOPPED.

Here is the call graph for this function:

Member Data Documentation

double ns3::SubscriberStationNetDevice::m_allocationStartTime

private

Definition at line 323 of file ss-net-device.h.

Referenced by GetTimeToAllocation(), InitSubscriberStationNetDevice(), and ProcessUlMap().

bool ns3::SubscriberStationNetDevice::m_areManagementConnectionsAllocated

private

Definition at line 346 of file ss-net-device.h.

Referenced by GetAreManagementConnectionsAllocated(), InitSubscriberStationNetDevice(), ProcessUlMap(), and SetAreManagementConnectionsAllocated().

bool ns3::SubscriberStationNetDevice::m_areServiceFlowsAllocated

private

Definition at line 347 of file ss-net-device.h.

Referenced by GetAreServiceFlowsAllocated(), InitSubscriberStationNetDevice(), and SetAreServiceFlowsAllocated().

Mac48Address ns3::SubscriberStationNetDevice::m_baseStationId

private

Definition at line 319 of file ss-net-device.h.

Referenced by DoReceive(), InitSubscriberStationNetDevice(), and ProcessDlMap().

Ptr<WimaxConnection> ns3::SubscriberStationNetDevice::m_basicConnection

private

Definition at line 329 of file ss-net-device.h.

Referenced by DoDispose(), DoReceive(), DoSend(), GetBasicCid(), GetBasicConnection(), GetTypeId(), InitSubscriberStationNetDevice(), ProcessDlMap(), ProcessUlMap(), SendBurst(), and SetBasicConnection().

Ptr<IpcsClassifier> ns3::SubscriberStationNetDevice::m_classifier

private

Definition at line 351 of file ss-net-device.h.

Referenced by DoDispose(), DoSend(), GetIpcsClassifier(), InitSubscriberStationNetDevice(), and SetIpcsPacketClassifier().

uint8_t ns3::SubscriberStationNetDevice::m_dcdCount

private

Definition at line 318 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice(), and ProcessDlMap().

EventId ns3::SubscriberStationNetDevice::m_dcdWaitTimeoutEvent

private

Definition at line 332 of file ss-net-device.h.

Referenced by DoReceive().

OfdmDlBurstProfile* ns3::SubscriberStationNetDevice::m_dlBurstProfile

private

Definition at line 339 of file ss-net-device.h.

Referenced by DoDispose(), InitSubscriberStationNetDevice(), and ProcessDcd().

Time ns3::SubscriberStationNetDevice::m_intervalT1

private

Definition at line 308 of file ss-net-device.h.

Referenced by DoReceive(), GetIntervalT1(), InitSubscriberStationNetDevice(), and SetIntervalT1().

Time ns3::SubscriberStationNetDevice::m_intervalT12

private

Definition at line 312 of file ss-net-device.h.

Referenced by DoReceive(), GetIntervalT12(), InitSubscriberStationNetDevice(), and SetIntervalT12().

Time ns3::SubscriberStationNetDevice::m_intervalT2

private

Definition at line 309 of file ss-net-device.h.

Referenced by DoReceive(), GetIntervalT2(), InitSubscriberStationNetDevice(), and SetIntervalT2().

Time ns3::SubscriberStationNetDevice::m_intervalT20

private

Definition at line 313 of file ss-net-device.h.

Referenced by GetIntervalT20(), SetIntervalT20(), and Start().

Time ns3::SubscriberStationNetDevice::m_intervalT21

private

Definition at line 314 of file ss-net-device.h.

Referenced by GetIntervalT21(), InitSubscriberStationNetDevice(), and SetIntervalT21().

Time ns3::SubscriberStationNetDevice::m_intervalT3

private

Definition at line 310 of file ss-net-device.h.

Referenced by GetIntervalT3(), InitSubscriberStationNetDevice(), and SetIntervalT3().

Time ns3::SubscriberStationNetDevice::m_intervalT7

private

Definition at line 311 of file ss-net-device.h.

Referenced by GetIntervalT7(), InitSubscriberStationNetDevice(), and SetIntervalT7().

Ptr<SSLinkManager> ns3::SubscriberStationNetDevice::m_linkManager

Definition at line 265 of file ss-net-device.h.

Referenced by DoDispose(), DoReceive(), GetLinkManager(), InitSubscriberStationNetDevice(), ProcessDcd(), ProcessUcd(), ProcessUlMap(), SetLinkManager(), and Start().

EventId ns3::SubscriberStationNetDevice::m_lostDlMapEvent

private

Definition at line 332 of file ss-net-device.h.

Referenced by DoReceive().

Time ns3::SubscriberStationNetDevice::m_lostDlMapInterval

private

Definition at line 304 of file ss-net-device.h.

Referenced by DoReceive(), GetLostDlMapInterval(), InitSubscriberStationNetDevice(), and SetLostDlMapInterval().

EventId ns3::SubscriberStationNetDevice::m_lostUlMapEvent

private

Definition at line 332 of file ss-net-device.h.

Referenced by DoReceive().

Time ns3::SubscriberStationNetDevice::m_lostUlMapInterval

private

Definition at line 305 of file ss-net-device.h.

Referenced by DoReceive(), GetLostUlMapInterval(), InitSubscriberStationNetDevice(), and SetLostUlMapInterval().

uint8_t ns3::SubscriberStationNetDevice::m_maxContentionRangingRetries

private

Definition at line 315 of file ss-net-device.h.

Referenced by GetMaxContentionRangingRetries(), InitSubscriberStationNetDevice(), and SetMaxContentionRangingRetries().

Time ns3::SubscriberStationNetDevice::m_maxDcdInterval

private

Definition at line 306 of file ss-net-device.h.

Referenced by GetMaxDcdInterval(), InitSubscriberStationNetDevice(), and SetMaxDcdInterval().

Time ns3::SubscriberStationNetDevice::m_maxUcdInterval

private

Definition at line 307 of file ss-net-device.h.

Referenced by GetMaxUcdInterval(), InitSubscriberStationNetDevice(), and SetMaxUcdInterval().

WimaxPhy::ModulationType ns3::SubscriberStationNetDevice::m_modulationType

private

Definition at line 344 of file ss-net-device.h.

Referenced by GetModulationType(), InitSubscriberStationNetDevice(), ProcessDcd(), ProcessUcd(), and SetModulationType().

uint32_t ns3::SubscriberStationNetDevice::m_nrDcdRecvd

private

Definition at line 336 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice(), and ProcessDcd().

uint16_t ns3::SubscriberStationNetDevice::m_nrDlMapElements

private

Definition at line 326 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice().

uint32_t ns3::SubscriberStationNetDevice::m_nrDlMapRecvd

private

Definition at line 334 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice(), and ProcessDlMap().

uint32_t ns3::SubscriberStationNetDevice::m_nrUcdRecvd

private

Definition at line 337 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice(), and ProcessUcd().

uint16_t ns3::SubscriberStationNetDevice::m_nrUlMapElements

private

Definition at line 327 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice().

uint32_t ns3::SubscriberStationNetDevice::m_nrUlMapRecvd

private

Definition at line 335 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice(), and ProcessUlMap().

Ptr<WimaxConnection> ns3::SubscriberStationNetDevice::m_primaryConnection

private

Definition at line 330 of file ss-net-device.h.

Referenced by DoDispose(), DoReceive(), GetPrimaryCid(), GetPrimaryConnection(), GetTypeId(), InitSubscriberStationNetDevice(), and SetPrimaryConnection().

EventId ns3::SubscriberStationNetDevice::m_rangOppWaitTimeoutEvent

private

Definition at line 332 of file ss-net-device.h.

Referenced by DoReceive().

Ptr<SSScheduler> ns3::SubscriberStationNetDevice::m_scheduler

private

Definition at line 349 of file ss-net-device.h.

Referenced by DoDispose(), Enqueue(), GetScheduler(), InitSubscriberStationNetDevice(), SendBurst(), and SetScheduler().

Ptr<SsServiceFlowManager> ns3::SubscriberStationNetDevice::m_serviceFlowManager

private

Definition at line 350 of file ss-net-device.h.

Referenced by DoDispose(), GetServiceFlowManager(), InitSubscriberStationNetDevice(), and SetServiceFlowManager().

TracedCallback<Ptr<const Packet> > ns3::SubscriberStationNetDevice::m_ssPromiscRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a promiscuous trace.

See also: class CallBackTraceSource

Definition at line 381 of file ss-net-device.h.

Referenced by DoReceive(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::SubscriberStationNetDevice::m_ssRxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during reception.

See also: class CallBackTraceSource

Definition at line 398 of file ss-net-device.h.

Referenced by DoReceive(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::SubscriberStationNetDevice::m_ssRxTrace

private

The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).

This is a non- promiscuous trace.

See also: class CallBackTraceSource

Definition at line 390 of file ss-net-device.h.

Referenced by DoReceive(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::SubscriberStationNetDevice::m_ssTxDropTrace

private

The trace source fired when packets coming into the "top" of the device are dropped at the MAC layer during transmission.

See also: class CallBackTraceSource

Definition at line 372 of file ss-net-device.h.

Referenced by DoSend(), and GetTypeId().

TracedCallback<Ptr<const Packet> > ns3::SubscriberStationNetDevice::m_ssTxTrace

private

The trace source fired when packets come into the "top" of the device at the L3/L2 transition, before being queued for transmission.

See also: class CallBackTraceSource

Definition at line 364 of file ss-net-device.h.

Referenced by DoSend().

TracedCallback<Ptr<const Packet>, Mac48Address, const Cid &> ns3::SubscriberStationNetDevice::m_traceSSRx

private

Definition at line 353 of file ss-net-device.h.

Referenced by DoReceive().

TracedCallback<Ptr<const PacketBurst>, Mac48Address, const Cid &, WimaxPhy::ModulationType> ns3::SubscriberStationNetDevice::m_traceSSTx

private

Todo:: Remove: this TracedCallback is never invoked.

Definition at line 356 of file ss-net-device.h.

uint8_t ns3::SubscriberStationNetDevice::m_ucdCount

private

Definition at line 322 of file ss-net-device.h.

Referenced by InitSubscriberStationNetDevice(), and ProcessUlMap().

EventId ns3::SubscriberStationNetDevice::m_ucdWaitTimeoutEvent

private

Definition at line 332 of file ss-net-device.h.

Referenced by DoReceive().

OfdmUlBurstProfile* ns3::SubscriberStationNetDevice::m_ulBurstProfile

private

Definition at line 340 of file ss-net-device.h.

Referenced by DoDispose(), InitSubscriberStationNetDevice(), and ProcessUcd().

The documentation for this class was generated from the following files:

src/wimax/model/ss-net-device.h
src/wimax/model/ss-net-device.cc

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::WimaxNetDevice

TraceSources

TraceSources defined in parent class ns3::WimaxNetDevice

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
