ns3::UanTxModeFactory Class Reference

Global database of UanTxMode objects, retrievable by id or name. More...

#include "uan-tx-mode.h"

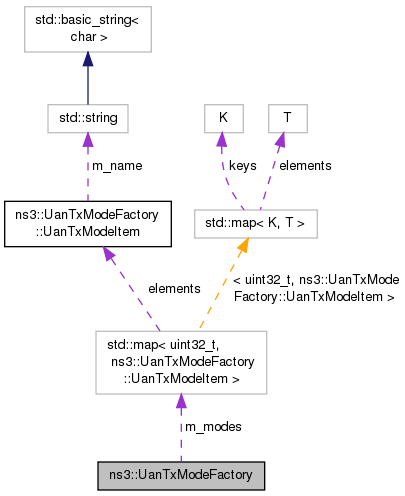

Collaboration diagram for ns3::UanTxModeFactory:

Classes
struct	UanTxModeItem
	Container for the UanTxMode properties. More...

Public Member Functions
	UanTxModeFactory ()
	Constructor. More...
	~UanTxModeFactory ()
	Destructor. More...

Static Public Member Functions
static UanTxMode	CreateMode (UanTxMode::ModulationType type, uint32_t dataRateBps, uint32_t phyRateSps, uint32_t cfHz, uint32_t bwHz, uint32_t constSize, std::string name)
static UanTxMode	GetMode (std::string name)
	Get a mode by name. More...
static UanTxMode	GetMode (uint32_t uid)
	Get a mode by id. More...

Private Member Functions
UanTxModeItem &	GetModeItem (uint32_t uid)
	Get a mode by id. More...
UanTxModeItem &	GetModeItem (std::string name)
	Get a mode by name. More...
UanTxMode	MakeModeFromItem (const UanTxModeItem &item)
	Create a public UanTxMode from an internal UanTxModeItem. More...
bool	NameUsed (std::string name)
	Check if the mode name already exists. More...

Static Private Member Functions
static UanTxModeFactory &	GetFactory (void)
	Construct and get the static global factory instance. More...

Private Attributes
std::map< uint32_t, UanTxModeItem >	m_modes
	Container for modes. More...
uint32_t	m_nextUid
	next id number More...

Friends
class	UanTxMode

Detailed Description

Global database of UanTxMode objects, retrievable by id or name.

Definition at line 138 of file uan-tx-mode.h.

Constructor & Destructor Documentation

ns3::UanTxModeFactory::UanTxModeFactory

(

)

Constructor.

Definition at line 107 of file uan-tx-mode.cc.

ns3::UanTxModeFactory::~UanTxModeFactory

(

)

Destructor.

Definition at line 112 of file uan-tx-mode.cc.

References m_modes.

Member Function Documentation

UanTxMode ns3::UanTxModeFactory::CreateMode ( UanTxMode::ModulationType  type, uint32_t  dataRateBps, uint32_t  phyRateSps, uint32_t  cfHz, uint32_t  bwHz, uint32_t  constSize, std::string  name  )

static

Parameters

type	Modulation type.
dataRateBps	Data rate in BPS.
phyRateSps	Symbol rate in symbols per second.
cfHz	Center frequency in Hz.
bwHz	Bandwidth in Hz.
constSize	Modulation constellation size (2 for BPSK, 4 for QPSK).
name	Unique string name for this transmission mode.

Returns

the transmit mode object

Definition at line 132 of file uan-tx-mode.cc.

References GetFactory(), GetModeItem(), ns3::UanTxModeFactory::UanTxModeItem::m_bwHz, ns3::UanTxModeFactory::UanTxModeItem::m_cfHz, ns3::UanTxModeFactory::UanTxModeItem::m_constSize, ns3::UanTxModeFactory::UanTxModeItem::m_dataRateBps, m_modes, ns3::UanTxModeFactory::UanTxModeItem::m_name, m_nextUid, ns3::UanTxModeFactory::UanTxModeItem::m_phyRateSps, ns3::UanTxModeFactory::UanTxModeItem::m_type, ns3::UanTxModeFactory::UanTxModeItem::m_uid, MakeModeFromItem(), NameUsed(), and NS_LOG_WARN.

Referenced by ns3::UanPhyGen::GetDefaultModes().

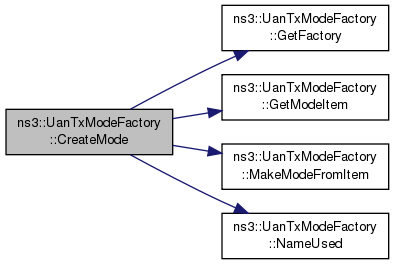

Here is the call graph for this function:

Here is the caller graph for this function:

UanTxModeFactory & ns3::UanTxModeFactory::GetFactory ( void  )

staticprivate

Construct and get the static global factory instance.

Returns

The global instance.

Definition at line 216 of file uan-tx-mode.cc.

Referenced by CreateMode(), ns3::UanTxMode::GetBandwidthHz(), ns3::UanTxMode::GetCenterFreqHz(), ns3::UanTxMode::GetConstellationSize(), ns3::UanTxMode::GetDataRateBps(), GetMode(), ns3::UanTxMode::GetModType(), ns3::UanTxMode::GetName(), and ns3::UanTxMode::GetPhyRateSps().

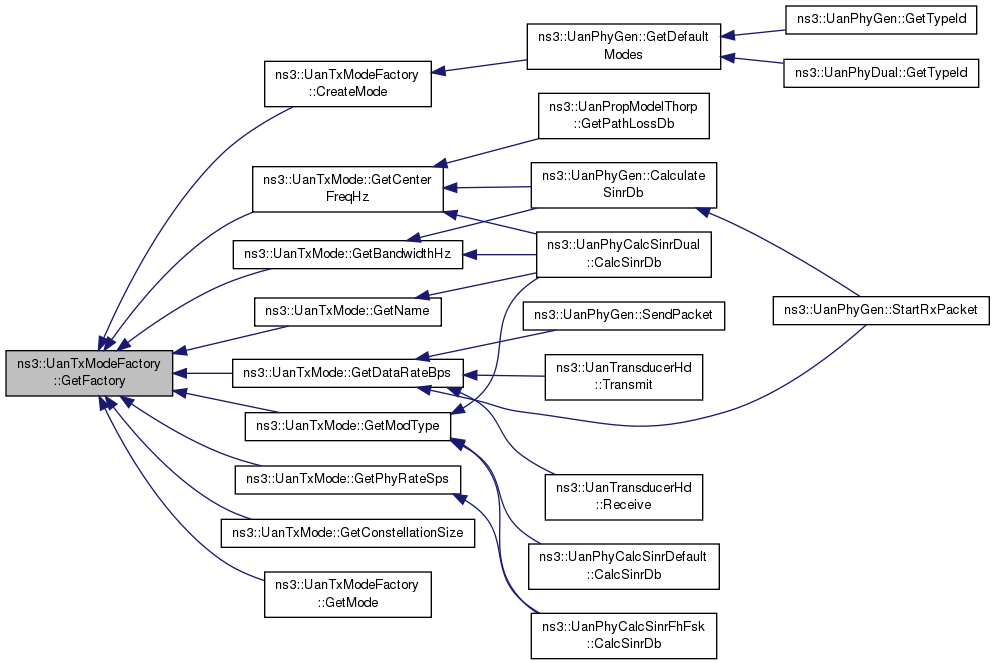

Here is the caller graph for this function:

UanTxMode ns3::UanTxModeFactory::GetMode ( std::string  name )

static

Get a mode by name.

Parameters

name	String name of mode.

Returns

Mode with given name.

Definition at line 194 of file uan-tx-mode.cc.

References GetFactory(), GetModeItem(), and MakeModeFromItem().

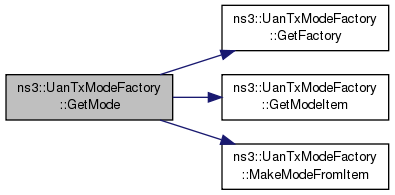

Here is the call graph for this function:

UanTxMode ns3::UanTxModeFactory::GetMode ( uint32_t  uid )

static

Get a mode by id.

Parameters

uid	Unique ID of mode.

Returns

The mode with given uid.

Definition at line 201 of file uan-tx-mode.cc.

References GetFactory(), GetModeItem(), and MakeModeFromItem().

Here is the call graph for this function:

UanTxModeFactory::UanTxModeItem & ns3::UanTxModeFactory::GetModeItem ( uint32_t  uid )

private

Get a mode by id.

Parameters

uid	The unique id to find.

Returns

The corresponding mode.

Definition at line 167 of file uan-tx-mode.cc.

References m_modes, m_nextUid, and NS_FATAL_ERROR.

Referenced by CreateMode(), ns3::UanTxMode::GetBandwidthHz(), ns3::UanTxMode::GetCenterFreqHz(), ns3::UanTxMode::GetConstellationSize(), ns3::UanTxMode::GetDataRateBps(), GetMode(), ns3::UanTxMode::GetModType(), ns3::UanTxMode::GetName(), and ns3::UanTxMode::GetPhyRateSps().

Here is the caller graph for this function:

UanTxModeFactory::UanTxModeItem & ns3::UanTxModeFactory::GetModeItem ( std::string  name )

private

Get a mode by name.

Parameters

name	The mode name to find.

Returns

The corresponding mode.

Definition at line 179 of file uan-tx-mode.cc.

References m_modes, and NS_FATAL_ERROR.

UanTxMode ns3::UanTxModeFactory::MakeModeFromItem ( const UanTxModeItem &  item )

private

Create a public UanTxMode from an internal UanTxModeItem.

Parameters

item	The UanTxModeItem to reference.

Returns

A public UanTxMode.

Definition at line 208 of file uan-tx-mode.cc.

References ns3::UanTxMode::m_uid, and ns3::UanTxModeFactory::UanTxModeItem::m_uid.

Referenced by CreateMode(), and GetMode().

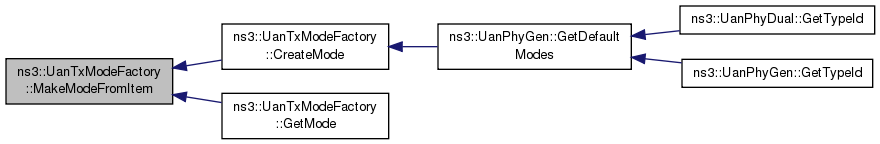

Here is the caller graph for this function:

bool ns3::UanTxModeFactory::NameUsed ( std::string  name )

private

Check if the mode name already exists.

Parameters

name	The mode name to test.

Returns

True if name exists.

Definition at line 117 of file uan-tx-mode.cc.

References m_modes.

Referenced by CreateMode().

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class UanTxMode

friend

Definition at line 180 of file uan-tx-mode.h.

Member Data Documentation

std::map<uint32_t, UanTxModeItem> ns3::UanTxModeFactory::m_modes

private

Container for modes.

Internal:

Accessed internally by uid and name, so a multimap might be more appropriate. If name accesses are predominant, perhaps a map indexed by name, with a find for uid. If accesses by uid dominate then vector (since uid's are sequential), and find by name.

Definition at line 208 of file uan-tx-mode.h.

Referenced by CreateMode(), GetModeItem(), NameUsed(), and ~UanTxModeFactory().

uint32_t ns3::UanTxModeFactory::m_nextUid

private

next id number

Definition at line 181 of file uan-tx-mode.h.

Referenced by CreateMode(), and GetModeItem().

---

The documentation for this class was generated from the following files:

• src/uan/model/uan-tx-mode.h
• src/uan/model/uan-tx-mode.cc
