A WiFi radio energy model. More...

#include "wifi-radio-energy-model.h"

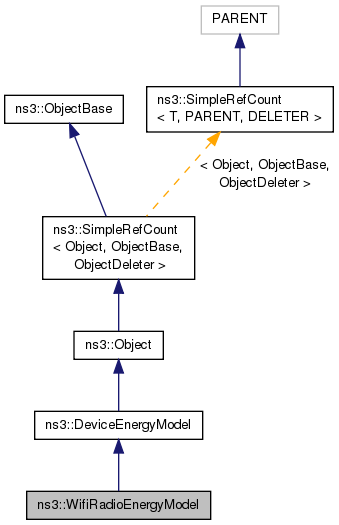

Inheritance diagram for ns3::WifiRadioEnergyModel:

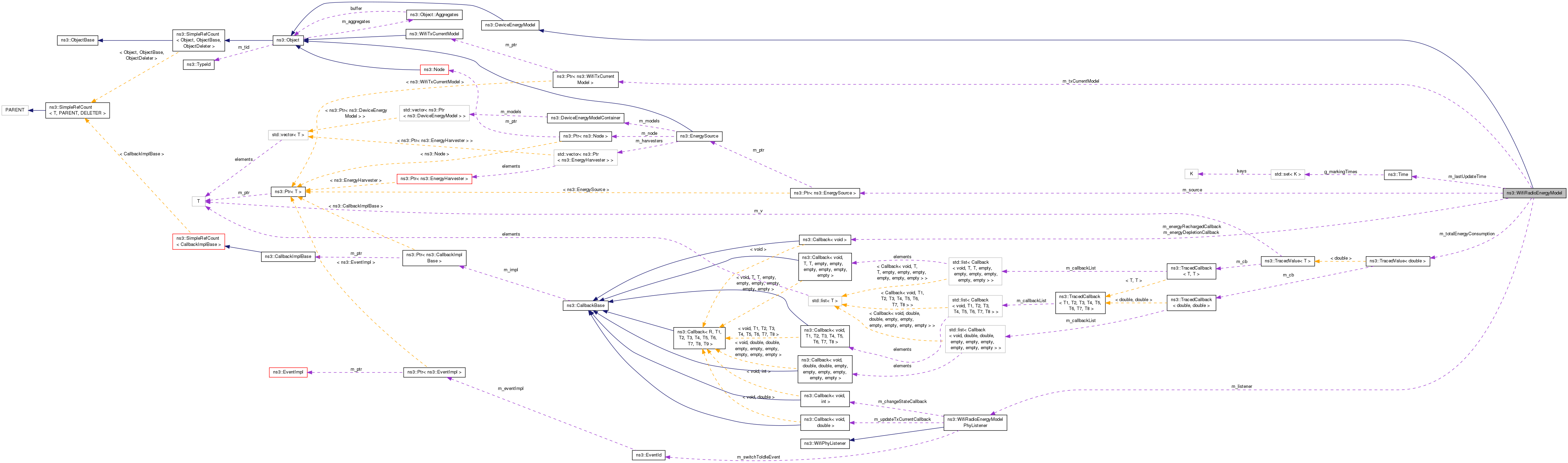

Collaboration diagram for ns3::WifiRadioEnergyModel:

Public Types
typedef Callback< void >	WifiRadioEnergyDepletionCallback
	Callback type for energy depletion handling. More...

typedef Callback< void >	WifiRadioEnergyRechargedCallback
	Callback type for energy recharged handling. More...

Public Types inherited from ns3::DeviceEnergyModel
typedef Callback< void, int >	ChangeStateCallback
	Callback type for ChangeState function. More...

Public Member Functions
	WifiRadioEnergyModel ()

virtual	~WifiRadioEnergyModel ()

virtual void	ChangeState (int newState)
	Changes state of the WifiRadioEnergyMode. More...

double	GetCcaBusyCurrentA (void) const

WifiPhy::State	GetCurrentState (void) const

double	GetIdleCurrentA (void) const

WifiRadioEnergyModelPhyListener *	GetPhyListener (void)

double	GetRxCurrentA (void) const

double	GetSleepCurrentA (void) const

double	GetSwitchingCurrentA (void) const

virtual double	GetTotalEnergyConsumption (void) const

double	GetTxCurrentA (void) const

virtual void	HandleEnergyDepletion (void)
	Handles energy depletion. More...

virtual void	HandleEnergyRecharged (void)
	Handles energy recharged. More...

void	SetCcaBusyCurrentA (double ccaBusyCurrentA)

void	SetEnergyDepletionCallback (WifiRadioEnergyDepletionCallback callback)

void	SetEnergyRechargedCallback (WifiRadioEnergyRechargedCallback callback)

virtual void	SetEnergySource (Ptr< EnergySource > source)
	Sets pointer to EnergySouce installed on node. More...

void	SetIdleCurrentA (double idleCurrentA)

void	SetRxCurrentA (double rxCurrentA)

void	SetSleepCurrentA (double sleepCurrentA)

void	SetSwitchingCurrentA (double switchingCurrentA)

void	SetTxCurrentA (double txCurrentA)

void	SetTxCurrentFromModel (double txPowerDbm)
	Calls the CalcTxCurrent method of the tx current model to compute the tx current based on such model. More...

void	SetTxCurrentModel (Ptr< WifiTxCurrentModel > model)

Public Member Functions inherited from ns3::DeviceEnergyModel
	DeviceEnergyModel ()

virtual	~DeviceEnergyModel ()

double	GetCurrentA (void) const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::DeviceEnergyModel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoDispose (void)
	Destructor implementation. More...

virtual double	DoGetCurrentA (void) const

void	SetWifiRadioState (const WifiPhy::State state)

Private Attributes
double	m_ccaBusyCurrentA

WifiPhy::State	m_currentState

WifiRadioEnergyDepletionCallback	m_energyDepletionCallback

WifiRadioEnergyRechargedCallback	m_energyRechargedCallback

double	m_idleCurrentA

bool	m_isSupersededChangeState

Time	m_lastUpdateTime

WifiRadioEnergyModelPhyListener *	m_listener

uint8_t	m_nPendingChangeState

double	m_rxCurrentA

double	m_sleepCurrentA

Ptr< EnergySource >	m_source

double	m_switchingCurrentA

TracedValue< double >	m_totalEnergyConsumption

double	m_txCurrentA

Ptr< WifiTxCurrentModel >	m_txCurrentModel

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A WiFi radio energy model.

Introspection did not find any typical Config paths.

4 states are defined for the radio: TX, RX, IDLE, SLEEP. Default state is IDLE. The different types of transactions that are defined are:

Tx: State goes from IDLE to TX, radio is in TX state for TX_duration, then state goes from TX to IDLE.
Rx: State goes from IDLE to RX, radio is in RX state for RX_duration, then state goes from RX to IDLE.
Go_to_Sleep: State goes from IDLE to SLEEP.
End_of_Sleep: State goes from SLEEP to IDLE. The class keeps track of what state the radio is currently in.

Energy calculation: For each transaction, this model notifies EnergySource object. The EnergySource object will query this model for the total current. Then the EnergySource object uses the total current to calculate energy.

Default values for power consumption are based on measurements reported in:

Daniel Halperin, Ben Greenstein, Anmol Sheth, David Wetherall, "Demystifying 802.11n power consumption", Proceedings of HotPower'10

Power consumption in Watts (single antenna):

$P_{tx} = 1.14$ (transmit at 0dBm)

$P_{rx} = 0.94$

$P_{idle} = 0.82$

$P_{sleep} = 0.10$

Hence, considering the default supply voltage of 3.0 V for the basic energy source, the default current values in Ampere are:

$I_{tx} = 0.380$

$I_{rx} = 0.313$

$I_{idle} = 0.273$

$I_{sleep} = 0.033$

The dependence of the power consumption in transmission mode on the nominal transmit power can also be achieved through a wifi tx current model.

Attributes

IdleCurrentA: The default radio Idle current in Ampere.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.273
- Flags: construct write read
CcaBusyCurrentA: The default radio CCA Busy State current in Ampere.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.273
- Flags: construct write read
TxCurrentA: The radio Tx current in Ampere.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.38
- Flags: construct write read
RxCurrentA: The radio Rx current in Ampere.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.313
- Flags: construct write read
SwitchingCurrentA: The default radio Channel Switch current in Ampere.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.273
- Flags: construct write read
SleepCurrentA: The radio Sleep current in Ampere.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.033
- Flags: construct write read
TxCurrentModel: A pointer to the attached tx current model.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiTxCurrentModel>
- Initial value: 0
- Flags: construct write read

TraceSources

TotalEnergyConsumption: Total energy consumption of the radio device.
Callback signature: ns3::TracedValueCallback::Double

Size of this type is 168 bytes (on a 64-bit architecture).

Definition at line 202 of file wifi-radio-energy-model.h.

Member Typedef Documentation

typedef Callback<void> ns3::WifiRadioEnergyModel::WifiRadioEnergyDepletionCallback

Callback type for energy depletion handling.

Definition at line 208 of file wifi-radio-energy-model.h.

typedef Callback<void> ns3::WifiRadioEnergyModel::WifiRadioEnergyRechargedCallback

Callback type for energy recharged handling.

Definition at line 213 of file wifi-radio-energy-model.h.

Constructor & Destructor Documentation

ns3::WifiRadioEnergyModel::WifiRadioEnergyModel ( )

Definition at line 91 of file wifi-radio-energy-model.cc.

References ns3::DeviceEnergyModel::ChangeState(), ns3::WifiPhy::IDLE, m_currentState, m_energyDepletionCallback, m_isSupersededChangeState, m_lastUpdateTime, m_listener, m_nPendingChangeState, m_source, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify(), ns3::Seconds(), ns3::WifiRadioEnergyModelPhyListener::SetChangeStateCallback(), SetTxCurrentFromModel(), and ns3::WifiRadioEnergyModelPhyListener::SetUpdateTxCurrentCallback().

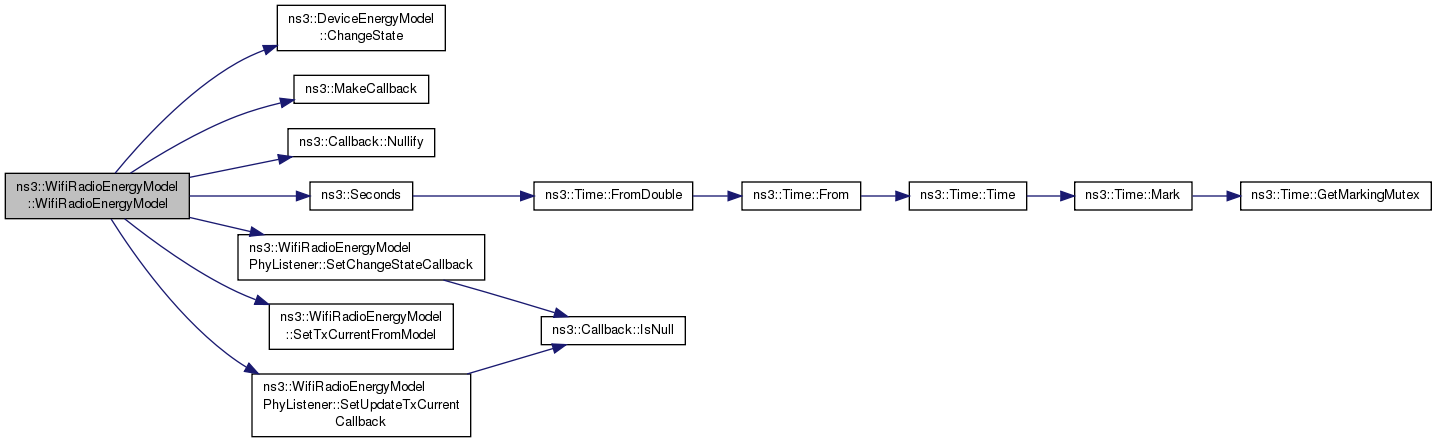

Here is the call graph for this function:

ns3::WifiRadioEnergyModel::~WifiRadioEnergyModel ( )

virtual

Definition at line 107 of file wifi-radio-energy-model.cc.

References m_listener, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::WifiRadioEnergyModel::ChangeState ( int newState )

virtual

Changes state of the WifiRadioEnergyMode.

Parameters

newState New state the wifi radio is in.

Implements DeviceEnergyModel::ChangeState.

Implements ns3::DeviceEnergyModel.

Definition at line 259 of file wifi-radio-energy-model.cc.

References ns3::WifiPhy::CCA_BUSY, ns3::Time::GetNanoSeconds(), ns3::Time::GetSeconds(), ns3::WifiPhy::IDLE, m_ccaBusyCurrentA, m_currentState, m_idleCurrentA, m_isSupersededChangeState, m_lastUpdateTime, m_nPendingChangeState, m_rxCurrentA, m_sleepCurrentA, m_source, m_switchingCurrentA, m_totalEnergyConsumption, m_txCurrentA, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiPhy::RX, SetWifiRadioState(), ns3::WifiPhy::SLEEP, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

Referenced by BasicEnergyUpdateTest::StateSwitchTest().

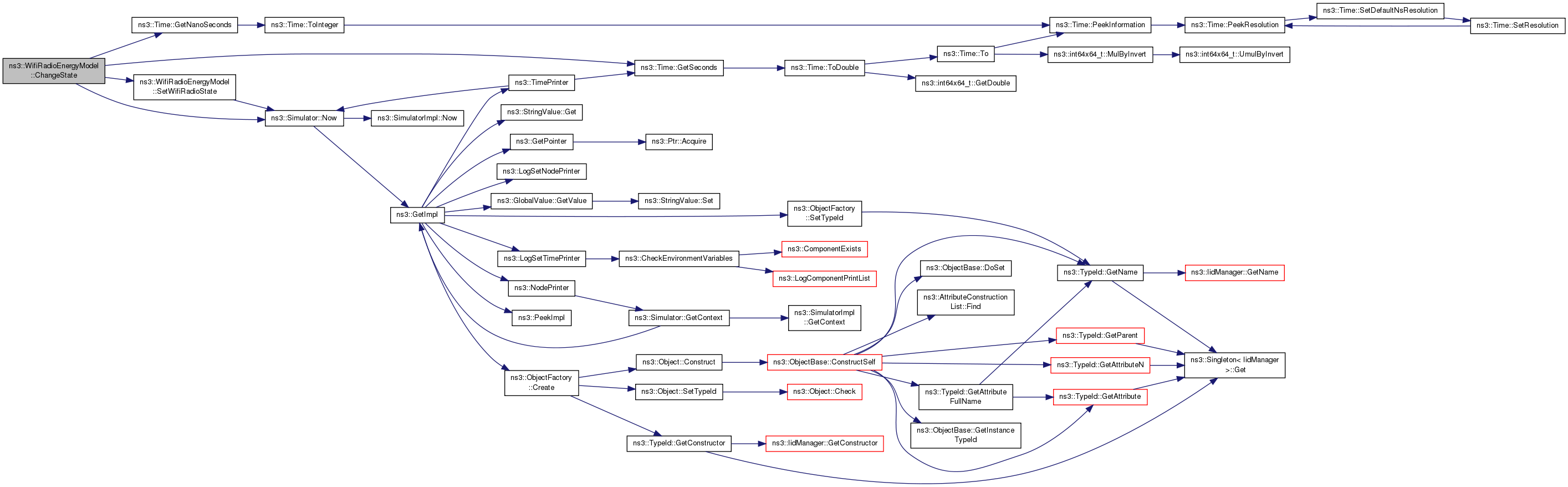

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiRadioEnergyModel::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 362 of file wifi-radio-energy-model.cc.

References m_energyDepletionCallback, m_source, NS_LOG_FUNCTION, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

Here is the call graph for this function:

double ns3::WifiRadioEnergyModel::DoGetCurrentA ( void ) const

privatevirtual

Returns: Current draw of device, at current state.

Implements DeviceEnergyModel::GetCurrentA.

Reimplemented from ns3::DeviceEnergyModel.

Definition at line 370 of file wifi-radio-energy-model.cc.

References ns3::WifiPhy::CCA_BUSY, ns3::WifiPhy::IDLE, m_ccaBusyCurrentA, m_currentState, m_idleCurrentA, m_rxCurrentA, m_sleepCurrentA, m_switchingCurrentA, m_txCurrentA, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::WifiPhy::RX, ns3::WifiPhy::SLEEP, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

double ns3::WifiRadioEnergyModel::GetCcaBusyCurrentA ( void ) const

Definition at line 143 of file wifi-radio-energy-model.cc.

References m_ccaBusyCurrentA, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), and BasicEnergyUpdateTest::StateSwitchTest().

Here is the caller graph for this function:

WifiPhy::State ns3::WifiRadioEnergyModel::GetCurrentState ( void ) const

Returns: Current state.

Definition at line 213 of file wifi-radio-energy-model.cc.

References m_currentState, and NS_LOG_FUNCTION.

Referenced by BasicEnergyUpdateTest::StateSwitchTest().

Here is the caller graph for this function:

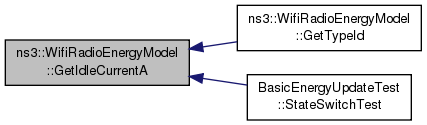

double ns3::WifiRadioEnergyModel::GetIdleCurrentA ( void ) const

Definition at line 129 of file wifi-radio-energy-model.cc.

References m_idleCurrentA, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), and BasicEnergyUpdateTest::StateSwitchTest().

Here is the caller graph for this function:

WifiRadioEnergyModelPhyListener * ns3::WifiRadioEnergyModel::GetPhyListener ( void )

Returns: Pointer to the PHY listener.

Definition at line 351 of file wifi-radio-energy-model.cc.

References m_listener, and NS_LOG_FUNCTION.

double ns3::WifiRadioEnergyModel::GetRxCurrentA ( void ) const

Definition at line 171 of file wifi-radio-energy-model.cc.

References m_rxCurrentA, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), and BasicEnergyUpdateTest::StateSwitchTest().

Here is the caller graph for this function:

double ns3::WifiRadioEnergyModel::GetSleepCurrentA ( void ) const

Definition at line 199 of file wifi-radio-energy-model.cc.

References m_sleepCurrentA, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), and BasicEnergyUpdateTest::StateSwitchTest().

Here is the caller graph for this function:

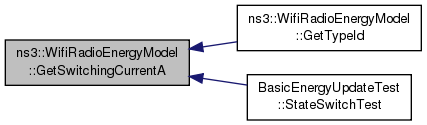

double ns3::WifiRadioEnergyModel::GetSwitchingCurrentA ( void ) const

Definition at line 185 of file wifi-radio-energy-model.cc.

References m_switchingCurrentA, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), and BasicEnergyUpdateTest::StateSwitchTest().

Here is the caller graph for this function:

double ns3::WifiRadioEnergyModel::GetTotalEnergyConsumption ( void ) const

virtual

Returns: Total energy consumption of the wifi device.

Implements DeviceEnergyModel::GetTotalEnergyConsumption.

Implements ns3::DeviceEnergyModel.

Definition at line 122 of file wifi-radio-energy-model.cc.

References m_totalEnergyConsumption, and NS_LOG_FUNCTION.

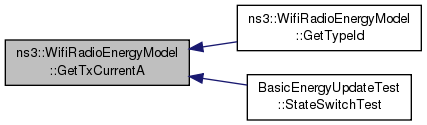

double ns3::WifiRadioEnergyModel::GetTxCurrentA ( void ) const

Definition at line 157 of file wifi-radio-energy-model.cc.

References m_txCurrentA, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), and BasicEnergyUpdateTest::StateSwitchTest().

Here is the caller graph for this function:

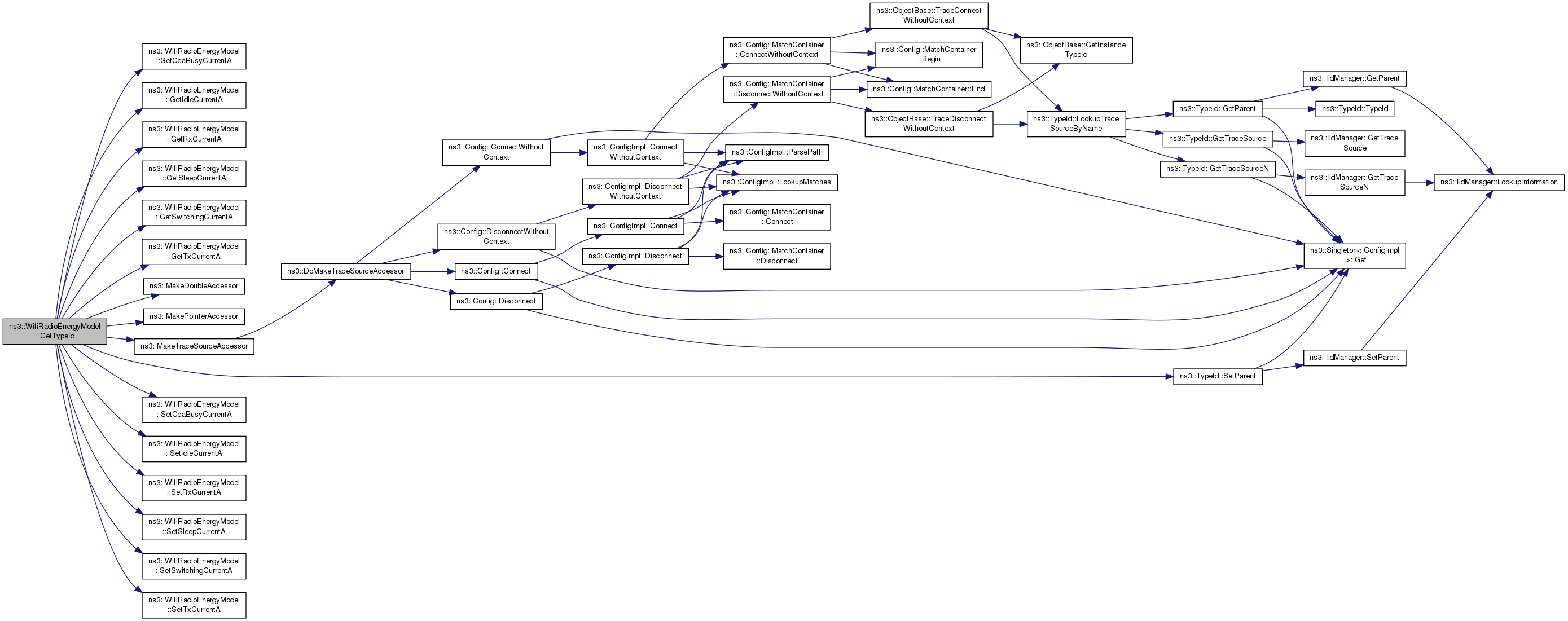

TypeId ns3::WifiRadioEnergyModel::GetTypeId ( void )

static

Definition at line 37 of file wifi-radio-energy-model.cc.

References GetCcaBusyCurrentA(), GetIdleCurrentA(), GetRxCurrentA(), GetSleepCurrentA(), GetSwitchingCurrentA(), GetTxCurrentA(), m_totalEnergyConsumption, m_txCurrentModel, ns3::MakeDoubleAccessor(), ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), SetCcaBusyCurrentA(), SetIdleCurrentA(), ns3::TypeId::SetParent(), SetRxCurrentA(), SetSleepCurrentA(), SetSwitchingCurrentA(), and SetTxCurrentA().

Here is the call graph for this function:

void ns3::WifiRadioEnergyModel::HandleEnergyDepletion ( void )

virtual

Handles energy depletion.

Implements DeviceEnergyModel::HandleEnergyDepletion

Implements ns3::DeviceEnergyModel.

Definition at line 327 of file wifi-radio-energy-model.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_energyDepletionCallback, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::WifiRadioEnergyModel::HandleEnergyRecharged ( void )

virtual

Handles energy recharged.

Implements DeviceEnergyModel::HandleEnergyRecharged

Implements ns3::DeviceEnergyModel.

Definition at line 339 of file wifi-radio-energy-model.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_energyRechargedCallback, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::WifiRadioEnergyModel::SetCcaBusyCurrentA ( double ccaBusyCurrentA )

Definition at line 150 of file wifi-radio-energy-model.cc.

References m_ccaBusyCurrentA, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WifiRadioEnergyModel::SetEnergyDepletionCallback ( WifiRadioEnergyDepletionCallback callback )

Parameters

callback Callback function.

Sets callback for energy depletion handling.

Definition at line 220 of file wifi-radio-energy-model.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_energyDepletionCallback, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::WifiRadioEnergyModel::SetEnergyRechargedCallback ( WifiRadioEnergyRechargedCallback callback )

Parameters

callback Callback function.

Sets callback for energy recharged handling.

Definition at line 232 of file wifi-radio-energy-model.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_energyRechargedCallback, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::WifiRadioEnergyModel::SetEnergySource ( Ptr< EnergySource > source )

virtual

Sets pointer to EnergySouce installed on node.

Parameters

source Pointer to EnergySource installed on node.

Implements DeviceEnergyModel::SetEnergySource.

Implements ns3::DeviceEnergyModel.

Definition at line 114 of file wifi-radio-energy-model.cc.

References m_source, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by BasicEnergyUpdateTest::StateSwitchTest().

Here is the caller graph for this function:

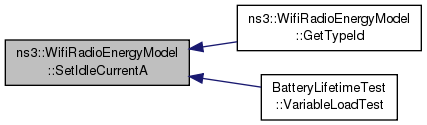

void ns3::WifiRadioEnergyModel::SetIdleCurrentA ( double idleCurrentA )

Definition at line 136 of file wifi-radio-energy-model.cc.

References m_idleCurrentA, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), and BatteryLifetimeTest::VariableLoadTest().

Here is the caller graph for this function:

void ns3::WifiRadioEnergyModel::SetRxCurrentA ( double rxCurrentA )

Definition at line 178 of file wifi-radio-energy-model.cc.

References m_rxCurrentA, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WifiRadioEnergyModel::SetSleepCurrentA ( double sleepCurrentA )

Definition at line 206 of file wifi-radio-energy-model.cc.

References m_sleepCurrentA, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WifiRadioEnergyModel::SetSwitchingCurrentA ( double switchingCurrentA )

Definition at line 192 of file wifi-radio-energy-model.cc.

References m_switchingCurrentA, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WifiRadioEnergyModel::SetTxCurrentA ( double txCurrentA )

Definition at line 164 of file wifi-radio-energy-model.cc.

References m_txCurrentA, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WifiRadioEnergyModel::SetTxCurrentFromModel ( double txPowerDbm )

Calls the CalcTxCurrent method of the tx current model to compute the tx current based on such model.

Parameters

txPowerDbm the nominal tx power in dBm

Definition at line 250 of file wifi-radio-energy-model.cc.

References m_txCurrentA, and m_txCurrentModel.

Referenced by WifiRadioEnergyModel().

Here is the caller graph for this function:

void ns3::WifiRadioEnergyModel::SetTxCurrentModel ( Ptr< WifiTxCurrentModel > model )

Parameters

model the model used to compute the wifi tx current.

Definition at line 244 of file wifi-radio-energy-model.cc.

References m_txCurrentModel.

void ns3::WifiRadioEnergyModel::SetWifiRadioState ( const WifiPhy::State state )

private

Parameters

state New state the radio device is currently in.

Sets current state. This function is private so that only the energy model can change its own state.

Definition at line 393 of file wifi-radio-energy-model.cc.

References ns3::WifiPhy::CCA_BUSY, ns3::WifiPhy::IDLE, m_currentState, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiPhy::RX, ns3::WifiPhy::SLEEP, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

Referenced by ChangeState().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

double ns3::WifiRadioEnergyModel::m_ccaBusyCurrentA

private

Definition at line 336 of file wifi-radio-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetCcaBusyCurrentA(), and SetCcaBusyCurrentA().

WifiPhy::State ns3::WifiRadioEnergyModel::m_currentState

private

Definition at line 345 of file wifi-radio-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetCurrentState(), SetWifiRadioState(), and WifiRadioEnergyModel().

WifiRadioEnergyDepletionCallback ns3::WifiRadioEnergyModel::m_energyDepletionCallback

private

Definition at line 352 of file wifi-radio-energy-model.h.

Referenced by DoDispose(), HandleEnergyDepletion(), SetEnergyDepletionCallback(), and WifiRadioEnergyModel().

WifiRadioEnergyRechargedCallback ns3::WifiRadioEnergyModel::m_energyRechargedCallback

private

Definition at line 355 of file wifi-radio-energy-model.h.

Referenced by HandleEnergyRecharged(), and SetEnergyRechargedCallback().

double ns3::WifiRadioEnergyModel::m_idleCurrentA

private

Definition at line 335 of file wifi-radio-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetIdleCurrentA(), and SetIdleCurrentA().

bool ns3::WifiRadioEnergyModel::m_isSupersededChangeState

private

Definition at line 349 of file wifi-radio-energy-model.h.

Referenced by ChangeState(), and WifiRadioEnergyModel().

Time ns3::WifiRadioEnergyModel::m_lastUpdateTime

private

Definition at line 346 of file wifi-radio-energy-model.h.

Referenced by ChangeState(), and WifiRadioEnergyModel().

WifiRadioEnergyModelPhyListener* ns3::WifiRadioEnergyModel::m_listener

private

Definition at line 358 of file wifi-radio-energy-model.h.

Referenced by GetPhyListener(), WifiRadioEnergyModel(), and ~WifiRadioEnergyModel().

uint8_t ns3::WifiRadioEnergyModel::m_nPendingChangeState

private

Definition at line 348 of file wifi-radio-energy-model.h.

Referenced by ChangeState(), and WifiRadioEnergyModel().

double ns3::WifiRadioEnergyModel::m_rxCurrentA

private

Definition at line 334 of file wifi-radio-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetRxCurrentA(), and SetRxCurrentA().

double ns3::WifiRadioEnergyModel::m_sleepCurrentA

private

Definition at line 338 of file wifi-radio-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetSleepCurrentA(), and SetSleepCurrentA().

Ptr<EnergySource> ns3::WifiRadioEnergyModel::m_source

private

Definition at line 330 of file wifi-radio-energy-model.h.

Referenced by ChangeState(), DoDispose(), SetEnergySource(), and WifiRadioEnergyModel().

double ns3::WifiRadioEnergyModel::m_switchingCurrentA

private

Definition at line 337 of file wifi-radio-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetSwitchingCurrentA(), and SetSwitchingCurrentA().

TracedValue<double> ns3::WifiRadioEnergyModel::m_totalEnergyConsumption

private

Definition at line 342 of file wifi-radio-energy-model.h.

Referenced by ChangeState(), GetTotalEnergyConsumption(), and GetTypeId().

double ns3::WifiRadioEnergyModel::m_txCurrentA

private

Definition at line 333 of file wifi-radio-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetTxCurrentA(), SetTxCurrentA(), and SetTxCurrentFromModel().

Ptr<WifiTxCurrentModel> ns3::WifiRadioEnergyModel::m_txCurrentModel

private

Definition at line 339 of file wifi-radio-energy-model.h.

Referenced by GetTypeId(), SetTxCurrentFromModel(), and SetTxCurrentModel().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-radio-energy-model.h
src/wifi/model/wifi-radio-energy-model.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

TraceSources

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
