ns3::aodv::LoopbackTestCase Class Reference

AODV loopback UDP echo test case. More...

Inheritance diagram for ns3::aodv::LoopbackTestCase:

Collaboration diagram for ns3::aodv::LoopbackTestCase:

Public Member Functions
	LoopbackTestCase ()
void	DoRun ()
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	EchoData (Ptr< Socket > socket)
void	ReceivePkt (Ptr< Socket > socket)
void	SendData (Ptr< Socket > socket)

Private Attributes
uint32_t	m_count
	number of packet received; More...
uint16_t	m_echoReplyPort
uint16_t	m_echoSendPort
Ptr< Socket >	m_echoSocket
Ptr< Socket >	m_rxSocket
Ptr< Socket >	m_txSocket

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

AODV loopback UDP echo test case.

Definition at line 55 of file loopback.cc.

Constructor & Destructor Documentation

ns3::aodv::LoopbackTestCase::LoopbackTestCase

(

)

Definition at line 73 of file loopback.cc.

References m_echoReplyPort, and m_echoSendPort.

Member Function Documentation

void ns3::aodv::LoopbackTestCase::DoRun ( )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 113 of file loopback.cc.

References first::address, ns3::Object::AggregateObject(), ns3::Ipv4AddressHelper::Assign(), ns3::Socket::Bind(), ns3::Socket::Close(), ns3::YansWifiChannelHelper::Create(), ns3::NodeContainer::Create(), ns3::YansWifiChannelHelper::Default(), ns3::NqosWifiMacHelper::Default(), ns3::WifiHelper::Default(), ns3::YansWifiPhyHelper::Default(), ns3::Simulator::Destroy(), first::devices, EchoData(), ns3::NodeContainer::Get(), ns3::Node::GetId(), ns3::Ipv4Address::GetLoopback(), ns3::Socket::GetNode(), ns3::Object::GetObject(), ns3::InternetStackHelper::Install(), ns3::WifiHelper::Install(), first::interfaces, m_count, m_echoReplyPort, m_echoSendPort, m_echoSocket, m_rxSocket, m_txSocket, ns3::MakeCallback(), first::nodes, NS_TEST_ASSERT_MSG_EQ, ReceivePkt(), ns3::Simulator::Run(), ns3::Simulator::ScheduleWithContext(), ns3::Seconds(), SendData(), ns3::Ipv4AddressHelper::SetBase(), ns3::YansWifiPhyHelper::SetChannel(), ns3::MobilityModel::SetPosition(), ns3::Socket::SetRecvCallback(), ns3::WifiHelper::SetRemoteStationManager(), ns3::InternetStackHelper::SetRoutingHelper(), ns3::NqosWifiMacHelper::SetType(), ns3::Simulator::Stop(), and third::wifi.

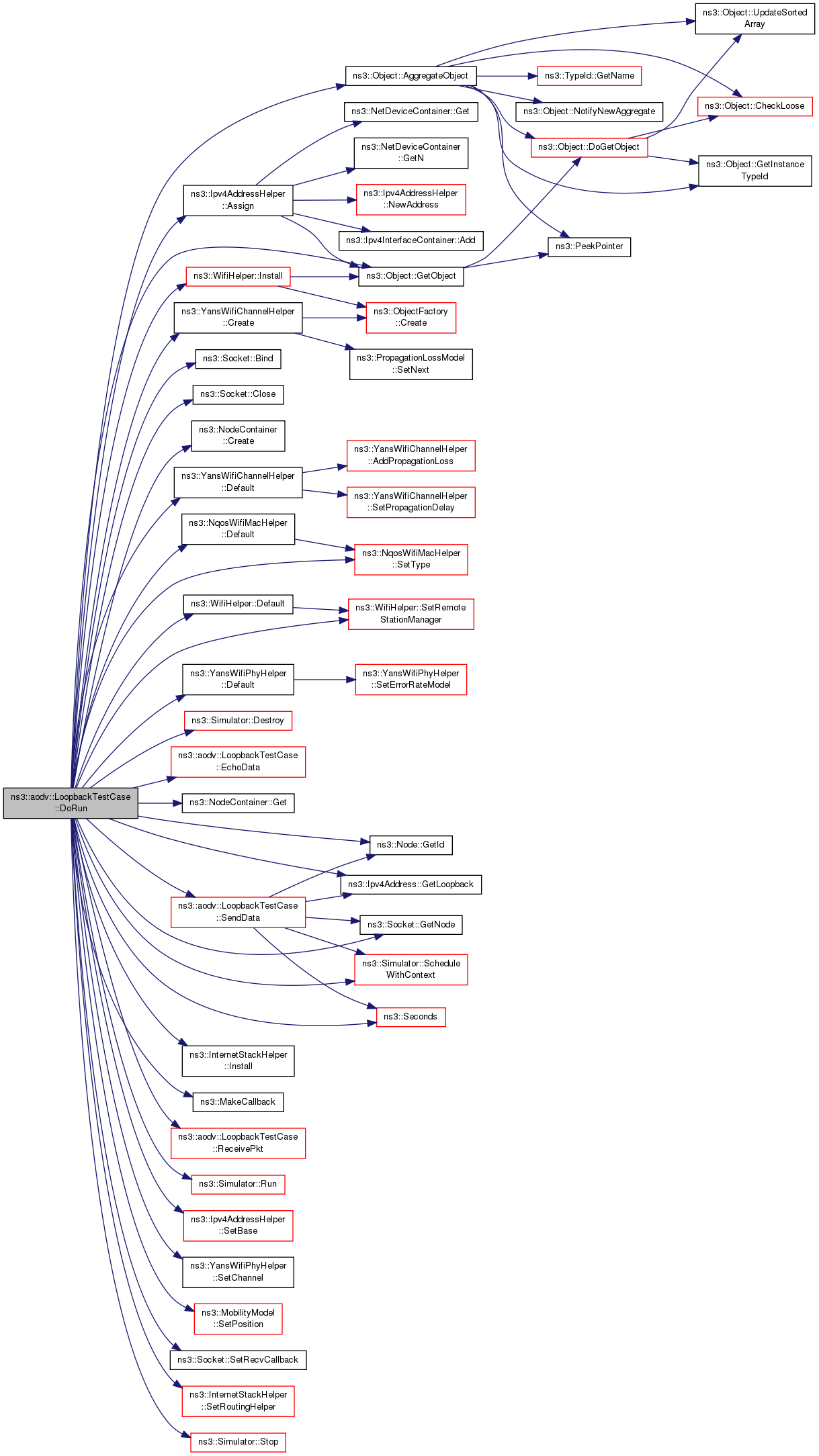

Here is the call graph for this function:

void ns3::aodv::LoopbackTestCase::EchoData ( Ptr< Socket >  socket )

private

Definition at line 88 of file loopback.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), m_echoReplyPort, ns3::Socket::RecvFrom(), ns3::Packet::RemoveAllByteTags(), ns3::Packet::RemoveAllPacketTags(), and ns3::Socket::SendTo().

Referenced by DoRun().

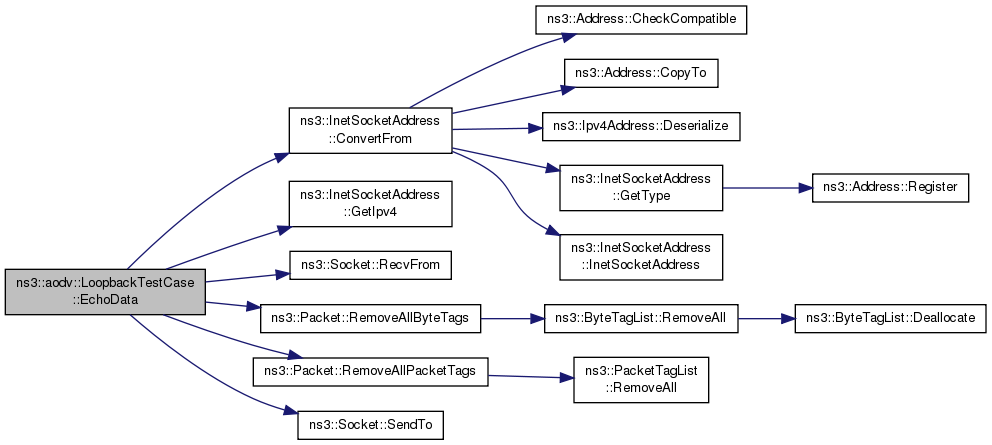

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::LoopbackTestCase::ReceivePkt ( Ptr< Socket >  socket )

private

Definition at line 80 of file loopback.cc.

References m_count, and ns3::Socket::Recv().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::LoopbackTestCase::SendData ( Ptr< Socket >  socket )

private

Definition at line 103 of file loopback.cc.

References ns3::Node::GetId(), ns3::Ipv4Address::GetLoopback(), ns3::Socket::GetNode(), m_echoSendPort, ns3::Simulator::ScheduleWithContext(), ns3::Seconds(), and ns3::Socket::SendTo().

Referenced by DoRun().

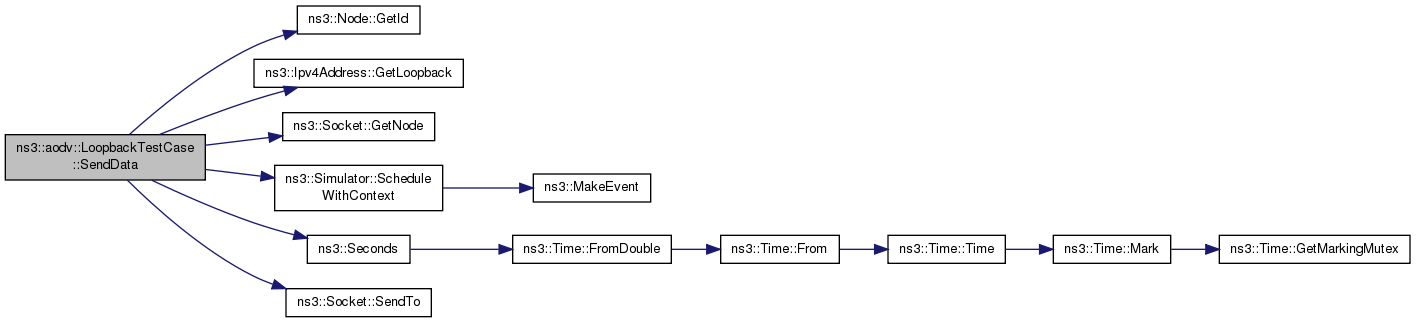

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::aodv::LoopbackTestCase::m_count

private

number of packet received;

Definition at line 57 of file loopback.cc.

Referenced by DoRun(), and ReceivePkt().

uint16_t ns3::aodv::LoopbackTestCase::m_echoReplyPort

private

Definition at line 62 of file loopback.cc.

Referenced by DoRun(), EchoData(), and LoopbackTestCase().

uint16_t ns3::aodv::LoopbackTestCase::m_echoSendPort

private

Definition at line 61 of file loopback.cc.

Referenced by DoRun(), LoopbackTestCase(), and SendData().

Ptr<Socket> ns3::aodv::LoopbackTestCase::m_echoSocket

private

Definition at line 59 of file loopback.cc.

Referenced by DoRun().

Ptr<Socket> ns3::aodv::LoopbackTestCase::m_rxSocket

private

Definition at line 60 of file loopback.cc.

Referenced by DoRun().

Ptr<Socket> ns3::aodv::LoopbackTestCase::m_txSocket

private

Definition at line 58 of file loopback.cc.

Referenced by DoRun().

---

The documentation for this class was generated from the following file:

• src/aodv/test/loopback.cc
