Routing table entry. More...

#include "aodv-rtable.h"

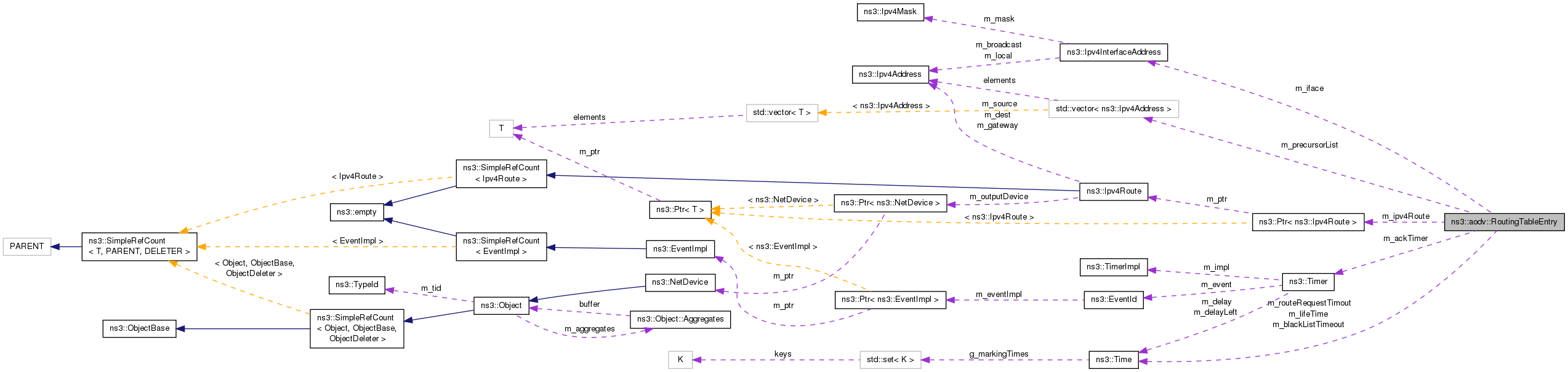

Collaboration diagram for ns3::aodv::RoutingTableEntry:

Public Member Functions
	RoutingTableEntry (Ptr< NetDevice > dev=0, Ipv4Address dst=Ipv4Address(), bool vSeqNo=false, uint32_t m_seqNo=0, Ipv4InterfaceAddress iface=Ipv4InterfaceAddress(), uint16_t hops=0, Ipv4Address nextHop=Ipv4Address(), Time lifetime=Simulator::Now())
	c-to More...

	~RoutingTableEntry ()

Time	GetBlacklistTimeout () const

Ipv4Address	GetDestination () const

RouteFlags	GetFlag () const

uint16_t	GetHop () const

Ipv4InterfaceAddress	GetInterface () const

Time	GetLifeTime () const

Ipv4Address	GetNextHop () const

Ptr< NetDevice >	GetOutputDevice () const

Ptr< Ipv4Route >	GetRoute () const

uint8_t	GetRreqCnt () const

uint32_t	GetSeqNo () const

bool	GetValidSeqNo () const

void	IncrementRreqCnt ()

void	Invalidate (Time badLinkLifetime)
	Mark entry as "down" (i.e. disable it) More...

bool	IsUnidirectional () const

bool	operator== (Ipv4Address const dst) const
	Compare destination address. More...

void	Print (Ptr< OutputStreamWrapper > stream) const

void	SetBalcklistTimeout (Time t)

void	SetFlag (RouteFlags flag)

void	SetHop (uint16_t hop)

void	SetInterface (Ipv4InterfaceAddress iface)

void	SetLifeTime (Time lt)

void	SetNextHop (Ipv4Address nextHop)

void	SetOutputDevice (Ptr< NetDevice > dev)

void	SetRoute (Ptr< Ipv4Route > r)

void	SetRreqCnt (uint8_t n)

void	SetSeqNo (uint32_t sn)

void	SetUnidirectional (bool u)

void	SetValidSeqNo (bool s)

Precursors management
bool	InsertPrecursor (Ipv4Address id)
	Insert precursor in precursor list if it doesn't yet exist in the list. More...

bool	LookupPrecursor (Ipv4Address id)
	Lookup precursor by address. More...

bool	DeletePrecursor (Ipv4Address id)
	Delete precursor. More...

void	DeleteAllPrecursors ()
	Delete all precursors. More...

bool	IsPrecursorListEmpty () const
	Check that precursor list empty. More...

void	GetPrecursors (std::vector< Ipv4Address > &prec) const
	Inserts precursors in vector prec if they does not yet exist in vector. More...

Public Attributes
Timer	m_ackTimer
	RREP_ACK timer. More...

Private Attributes
bool	m_blackListState
	Indicate if this entry is in "blacklist". More...

Time	m_blackListTimeout
	Time for which the node is put into the blacklist. More...

RouteFlags	m_flag
	Routing flags: valid, invalid or in search. More...

uint16_t	m_hops
	Hop Count (number of hops needed to reach destination) More...

Ipv4InterfaceAddress	m_iface
	Output interface address. More...

Ptr< Ipv4Route >	m_ipv4Route
	Ip route, include. More...

Time	m_lifeTime
	Expiration or deletion time of the route Lifetime field in the routing table plays dual role – for an active route it is the expiration time, and for an invalid route it is the deletion time. More...

std::vector< Ipv4Address >	m_precursorList
	List of precursors. More...

uint8_t	m_reqCount
	Number of route requests. More...

Time	m_routeRequestTimout
	When I can send another request. More...

uint32_t	m_seqNo
	Destination Sequence Number, if m_validSeqNo = true. More...

bool	m_validSeqNo
	Valid Destination Sequence Number flag. More...

Detailed Description

Routing table entry.

Definition at line 59 of file aodv-rtable.h.

Constructor & Destructor Documentation

ns3::aodv::RoutingTableEntry::RoutingTableEntry	(	Ptr< NetDevice >	dev = `0`,
		Ipv4Address	dst = `Ipv4Address ()`,
		bool	vSeqNo = `false`,
		uint32_t	m_seqNo = `0`,
		Ipv4InterfaceAddress	iface = `Ipv4InterfaceAddress ()`,
		uint16_t	hops = `0`,
		Ipv4Address	nextHop = `Ipv4Address ()`,
		Time	lifetime = `Simulator::Now ()`
	)

c-to

Definition at line 47 of file aodv-rtable.cc.

References ns3::Ipv4InterfaceAddress::GetLocal(), m_iface, m_ipv4Route, ns3::Ipv4Route::SetDestination(), ns3::Ipv4Route::SetGateway(), ns3::Ipv4Route::SetOutputDevice(), and ns3::Ipv4Route::SetSource().

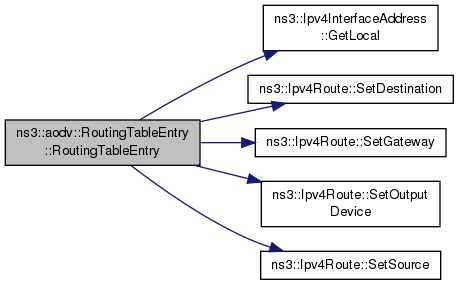

Here is the call graph for this function:

ns3::aodv::RoutingTableEntry::~RoutingTableEntry ( )

Definition at line 61 of file aodv-rtable.cc.

Member Function Documentation

void ns3::aodv::RoutingTableEntry::DeleteAllPrecursors ( )

Delete all precursors.

Definition at line 115 of file aodv-rtable.cc.

References m_precursorList, and NS_LOG_FUNCTION.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun().

Here is the caller graph for this function:

bool ns3::aodv::RoutingTableEntry::DeletePrecursor ( Ipv4Address id )

Delete precursor.

Parameters

id	precursor address

Returns: true on success

Definition at line 96 of file aodv-rtable.cc.

References m_precursorList, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun().

Here is the caller graph for this function:

Time ns3::aodv::RoutingTableEntry::GetBlacklistTimeout ( ) const

inline

Definition at line 131 of file aodv-rtable.h.

References m_blackListTimeout.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun().

Here is the caller graph for this function:

Ipv4Address ns3::aodv::RoutingTableEntry::GetDestination ( ) const

inline

Definition at line 106 of file aodv-rtable.h.

References ns3::Ipv4Route::GetDestination(), and m_ipv4Route.

Referenced by ns3::aodv::RoutingTable::AddRoute(), ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), ns3::aodv::RoutingProtocol::SendReply(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), ns3::aodv::RoutingProtocol::SendRerrMessage(), and ns3::aodv::RoutingTable::Update().

Here is the call graph for this function:

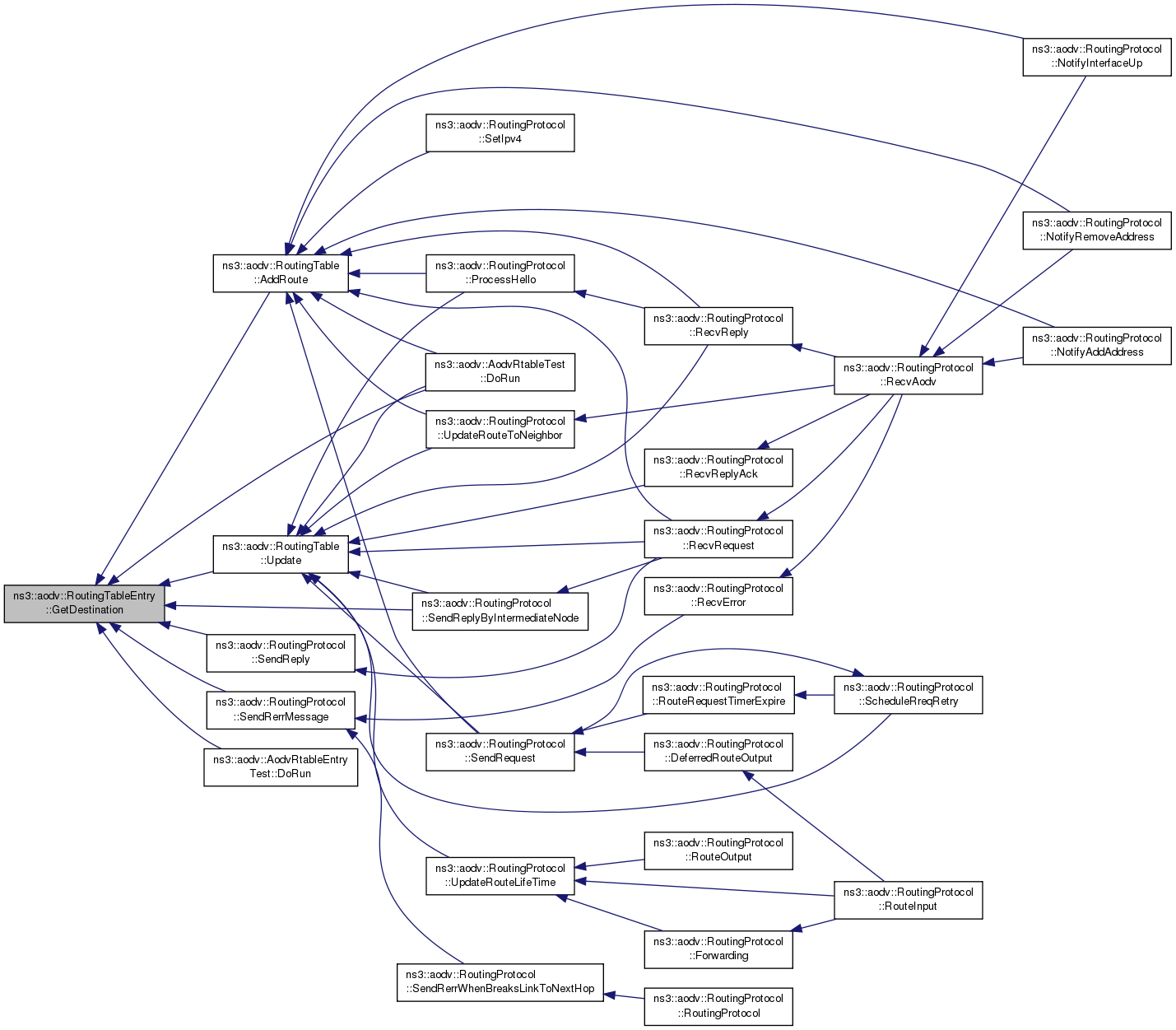

Here is the caller graph for this function:

RouteFlags ns3::aodv::RoutingTableEntry::GetFlag ( ) const

inline

Definition at line 124 of file aodv-rtable.h.

References m_flag.

Referenced by ns3::aodv::RoutingTable::AddRoute(), ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), ns3::aodv::RoutingProtocol::Forwarding(), ns3::aodv::RoutingTable::LookupValidRoute(), ns3::aodv::RoutingProtocol::RecvReply(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::aodv::RoutingProtocol::RouteRequestTimerExpire(), and ns3::aodv::RoutingProtocol::UpdateRouteLifeTime().

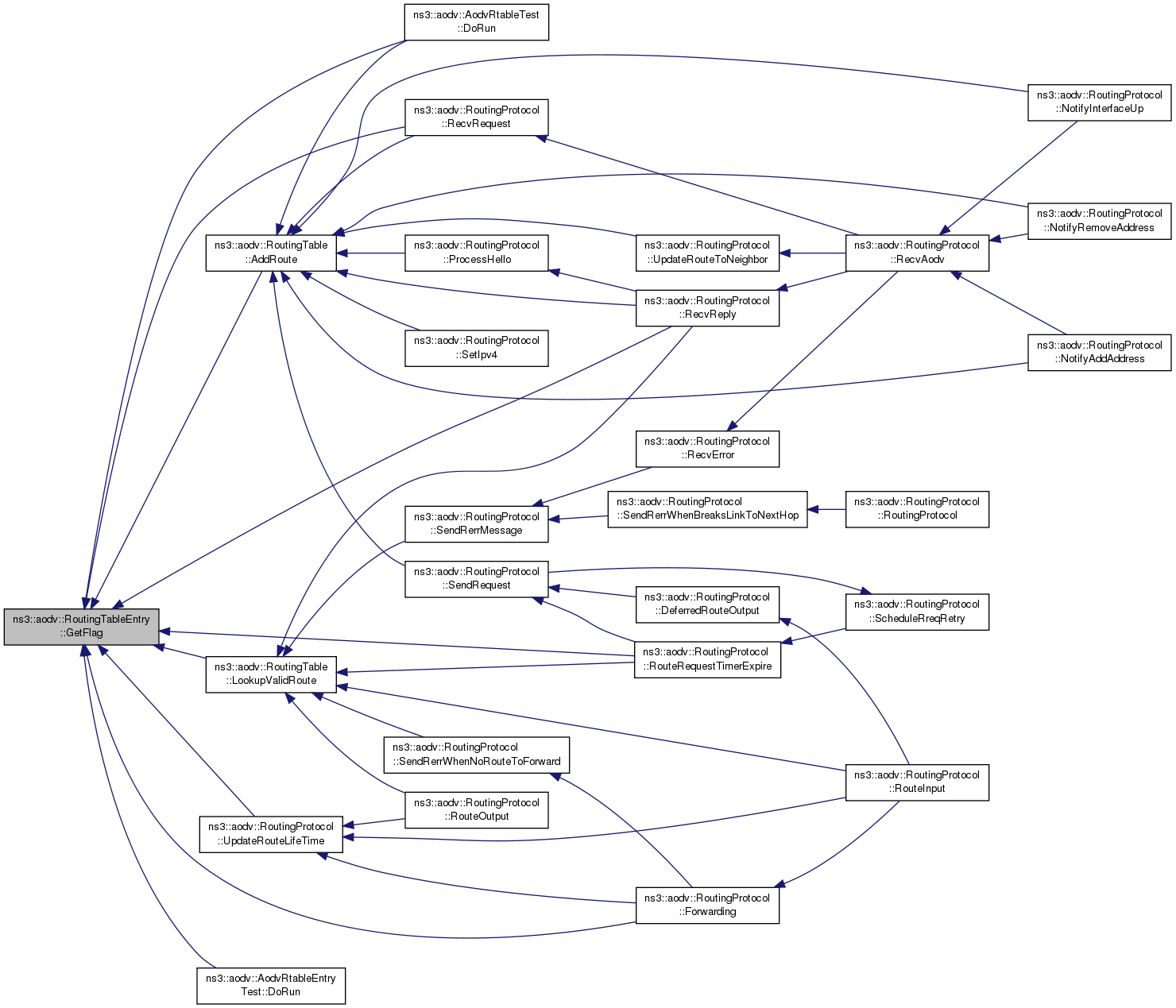

Here is the caller graph for this function:

uint16_t ns3::aodv::RoutingTableEntry::GetHop ( ) const

inline

Definition at line 120 of file aodv-rtable.h.

References m_hops.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), ns3::aodv::RoutingProtocol::SendRequest(), and ns3::aodv::RoutingProtocol::UpdateRouteToNeighbor().

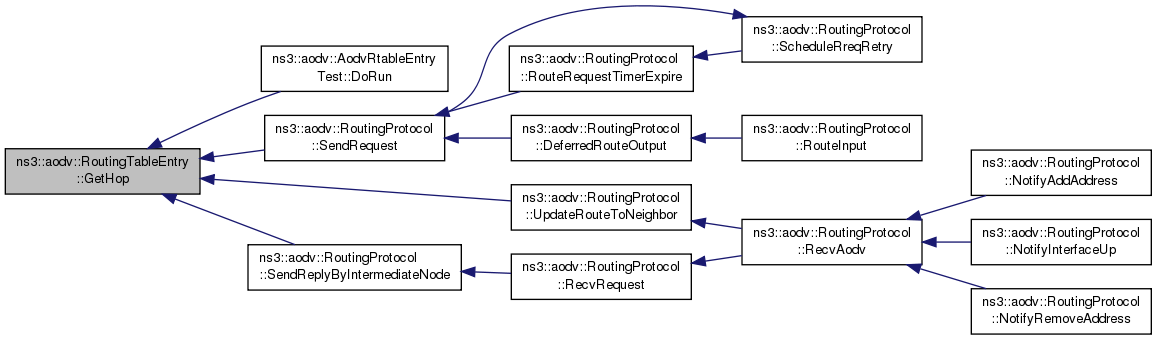

Here is the caller graph for this function:

Ipv4InterfaceAddress ns3::aodv::RoutingTableEntry::GetInterface ( ) const

inline

Definition at line 113 of file aodv-rtable.h.

References m_iface.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::RecvReply(), ns3::aodv::RoutingProtocol::SendReply(), ns3::aodv::RoutingProtocol::SendReplyAck(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), ns3::aodv::RoutingProtocol::SendRerrMessage(), and ns3::aodv::RoutingProtocol::SendRerrWhenNoRouteToForward().

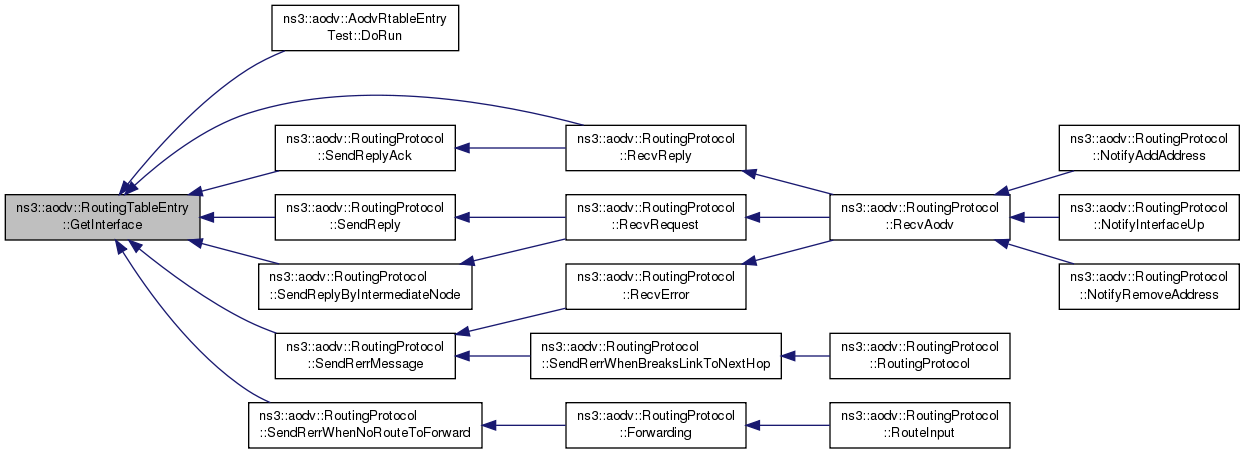

Here is the caller graph for this function:

Time ns3::aodv::RoutingTableEntry::GetLifeTime ( ) const

inline

Definition at line 122 of file aodv-rtable.h.

References m_lifeTime, and ns3::Simulator::Now().

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::RecvReply(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), ns3::aodv::RoutingProtocol::UpdateRouteLifeTime(), and ns3::aodv::RoutingProtocol::UpdateRouteToNeighbor().

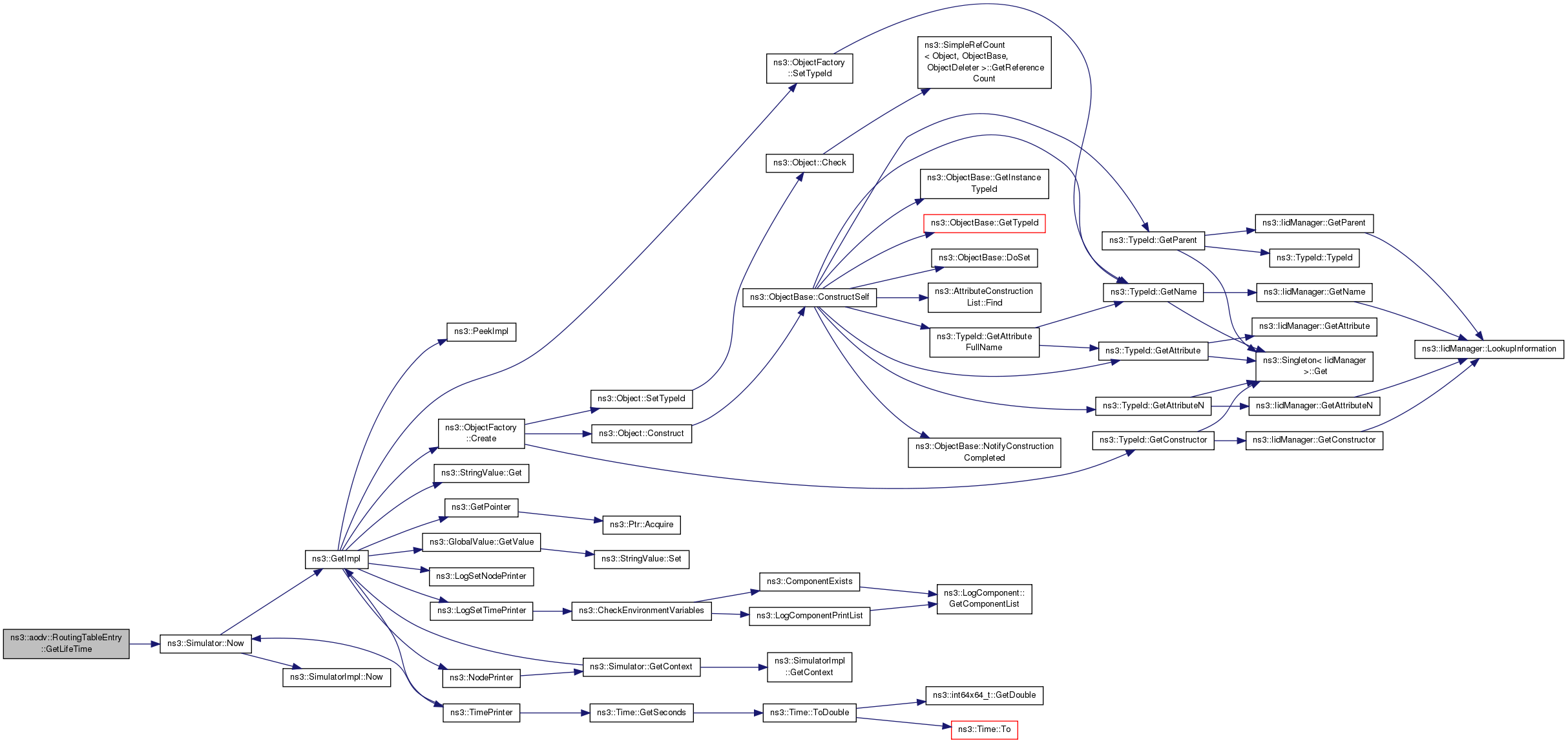

Here is the call graph for this function:

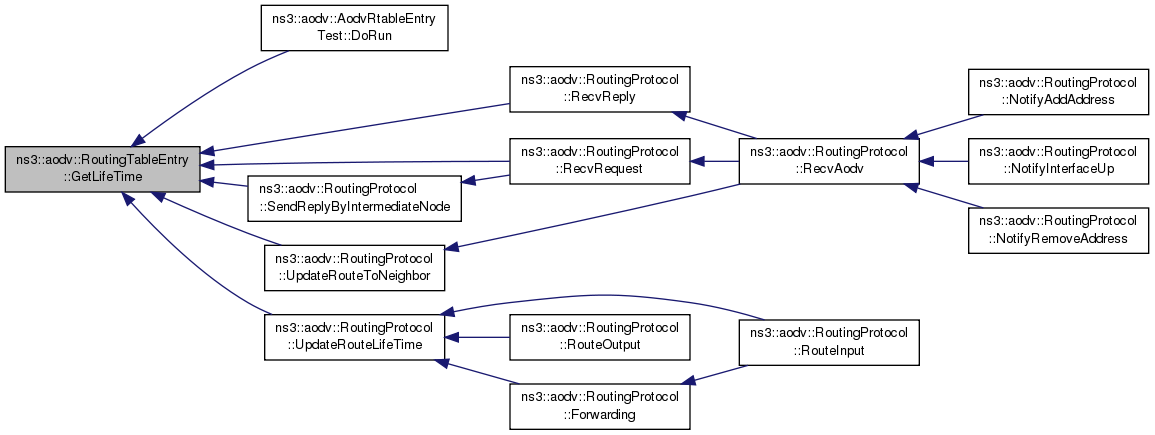

Here is the caller graph for this function:

Ipv4Address ns3::aodv::RoutingTableEntry::GetNextHop ( ) const

inline

Definition at line 110 of file aodv-rtable.h.

References ns3::Ipv4Route::GetGateway(), and m_ipv4Route.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::RecvReply(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::aodv::RoutingProtocol::RouteInput(), ns3::aodv::RoutingProtocol::SendReply(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), and ns3::aodv::RoutingProtocol::SendRerrWhenNoRouteToForward().

Here is the call graph for this function:

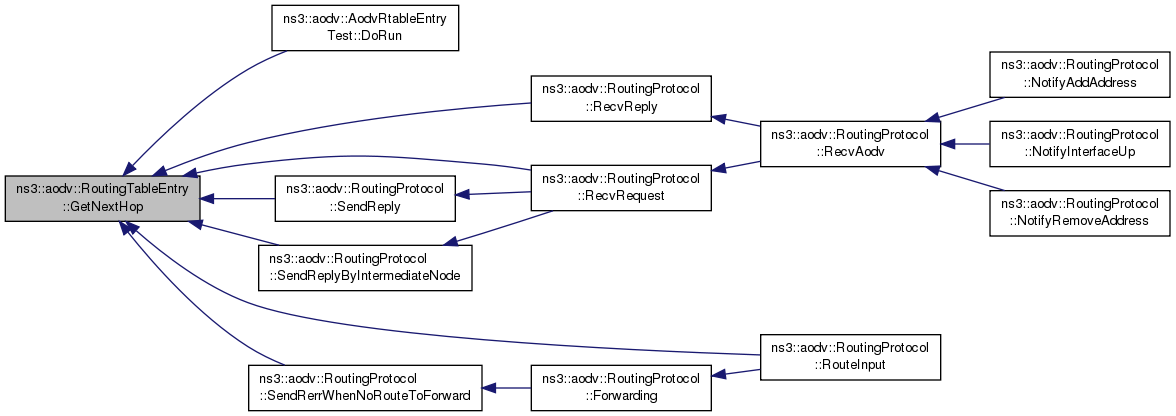

Here is the caller graph for this function:

Ptr<NetDevice> ns3::aodv::RoutingTableEntry::GetOutputDevice ( ) const

inline

Definition at line 112 of file aodv-rtable.h.

References ns3::Ipv4Route::GetOutputDevice(), and m_ipv4Route.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::UpdateRouteToNeighbor().

Here is the call graph for this function:

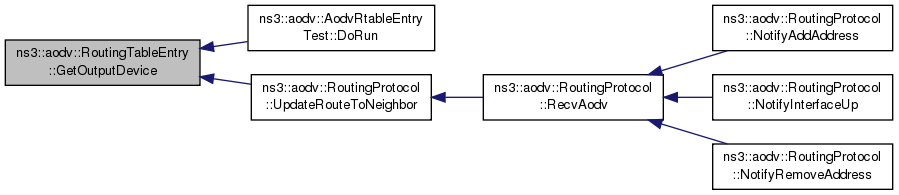

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::GetPrecursors ( std::vector< Ipv4Address > & prec ) const

Inserts precursors in vector prec if they does not yet exist in vector.

Definition at line 128 of file aodv-rtable.cc.

References IsPrecursorListEmpty(), m_precursorList, and NS_LOG_FUNCTION.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::RecvError(), and ns3::aodv::RoutingProtocol::SendRerrWhenBreaksLinkToNextHop().

Here is the call graph for this function:

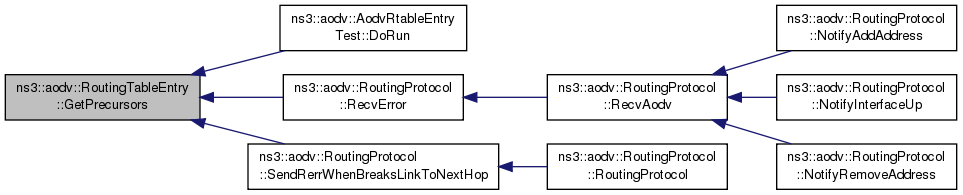

Here is the caller graph for this function:

Ptr<Ipv4Route> ns3::aodv::RoutingTableEntry::GetRoute ( ) const

inline

Definition at line 107 of file aodv-rtable.h.

References m_ipv4Route.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::Forwarding(), ns3::aodv::RoutingProtocol::RouteOutput(), and ns3::aodv::RoutingProtocol::RouteRequestTimerExpire().

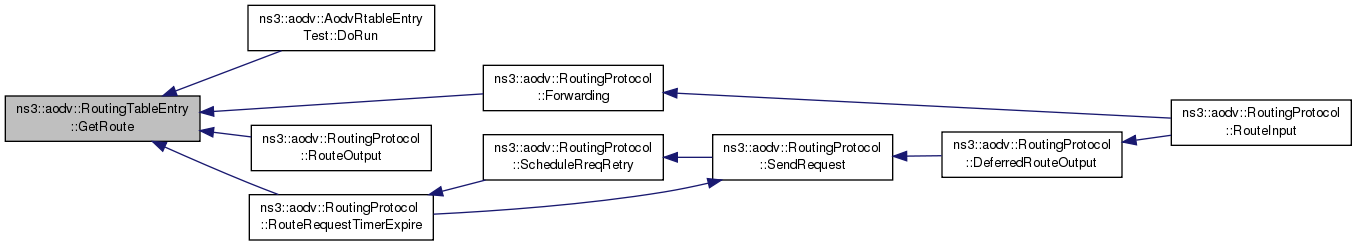

Here is the caller graph for this function:

uint8_t ns3::aodv::RoutingTableEntry::GetRreqCnt ( ) const

inline

Definition at line 126 of file aodv-rtable.h.

References m_reqCount.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::RouteRequestTimerExpire(), and ns3::aodv::RoutingProtocol::ScheduleRreqRetry().

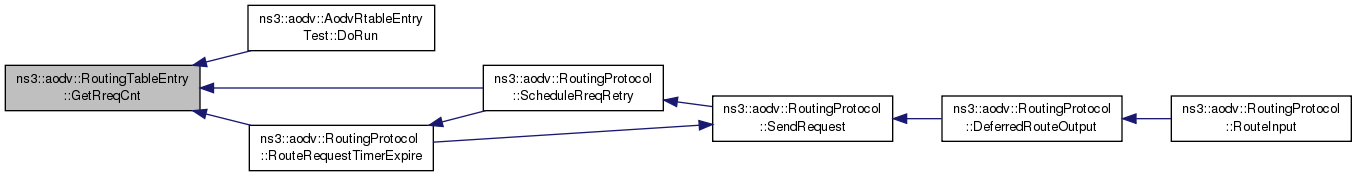

Here is the caller graph for this function:

uint32_t ns3::aodv::RoutingTableEntry::GetSeqNo ( ) const

inline

Definition at line 118 of file aodv-rtable.h.

References m_seqNo.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::Forwarding(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode(), ns3::aodv::RoutingProtocol::SendRequest(), and ns3::aodv::RoutingProtocol::SendRerrWhenBreaksLinkToNextHop().

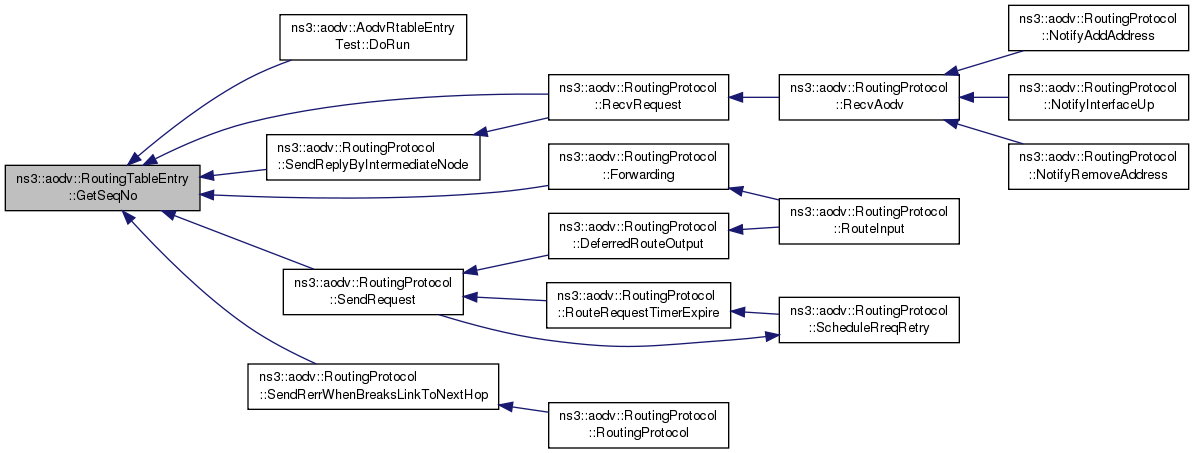

Here is the caller graph for this function:

bool ns3::aodv::RoutingTableEntry::GetValidSeqNo ( ) const

inline

Definition at line 116 of file aodv-rtable.h.

References m_validSeqNo.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::Forwarding(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::aodv::RoutingProtocol::SendRequest(), and ns3::aodv::RoutingProtocol::UpdateRouteToNeighbor().

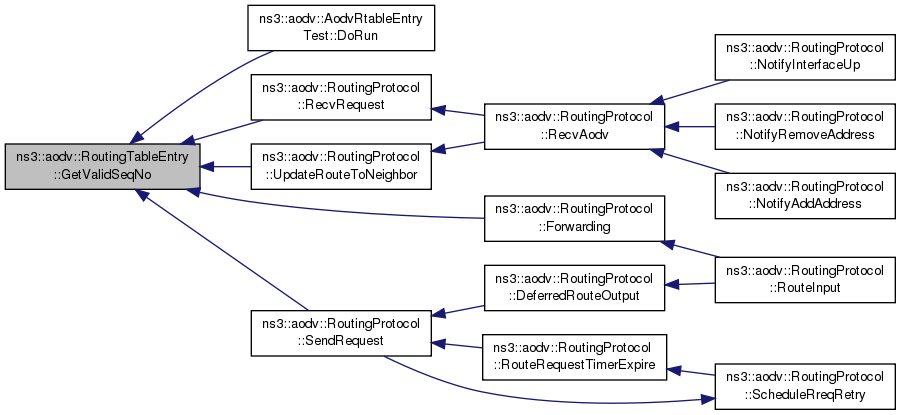

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::IncrementRreqCnt ( )

inline

Definition at line 127 of file aodv-rtable.h.

References m_reqCount.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::ScheduleRreqRetry().

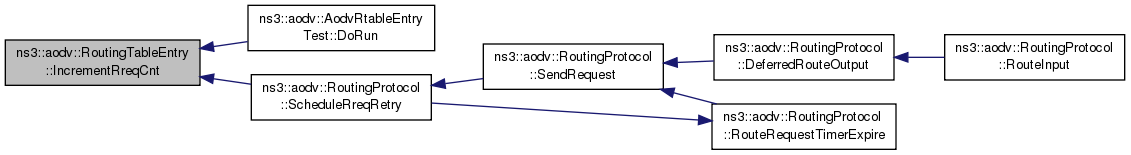

Here is the caller graph for this function:

bool ns3::aodv::RoutingTableEntry::InsertPrecursor ( Ipv4Address id )

Insert precursor in precursor list if it doesn't yet exist in the list.

Parameters

id	precursor address

Returns: true on success

Definition at line 66 of file aodv-rtable.cc.

References LookupPrecursor(), m_precursorList, and NS_LOG_FUNCTION.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), ns3::aodv::RoutingProtocol::RecvReply(), and ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode().

Here is the call graph for this function:

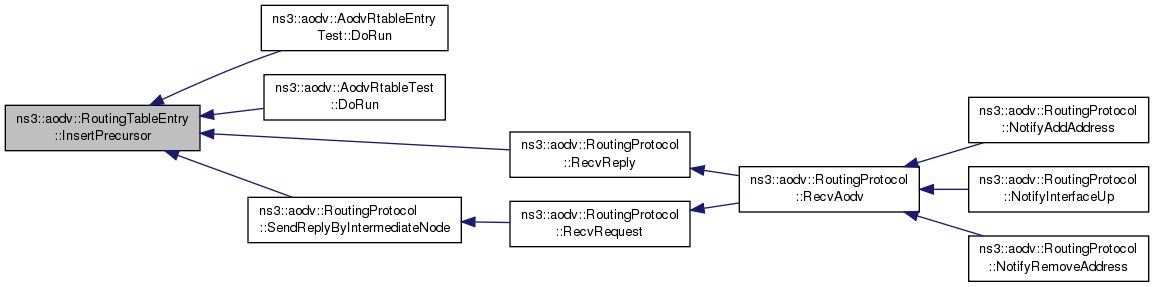

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::Invalidate ( Time badLinkLifetime )

Mark entry as "down" (i.e. disable it)

Definition at line 149 of file aodv-rtable.cc.

References ns3::Time::GetSeconds(), ns3::aodv::INVALID, m_flag, m_lifeTime, m_reqCount, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun().

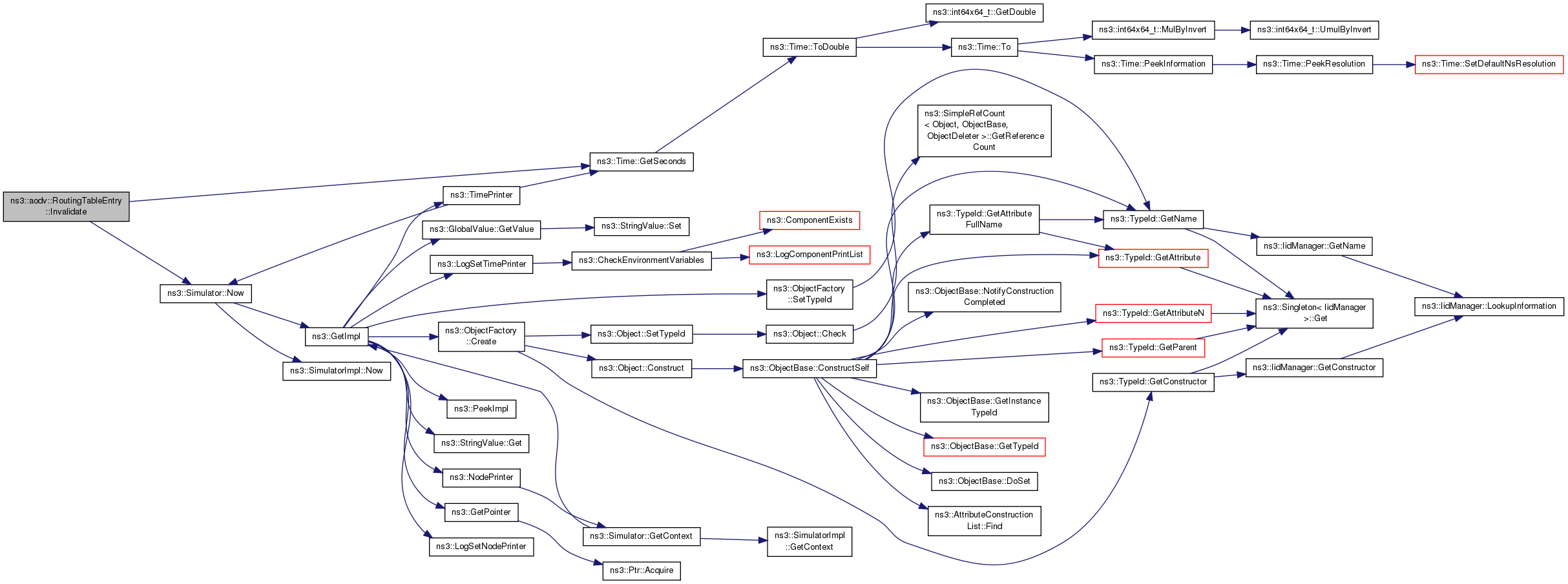

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::aodv::RoutingTableEntry::IsPrecursorListEmpty ( ) const

Check that precursor list empty.

Returns: true if precursor list empty

Definition at line 122 of file aodv-rtable.cc.

References m_precursorList.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and GetPrecursors().

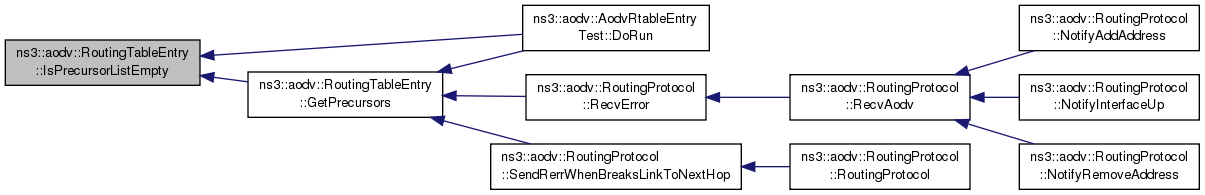

Here is the caller graph for this function:

bool ns3::aodv::RoutingTableEntry::IsUnidirectional ( ) const

inline

Definition at line 129 of file aodv-rtable.h.

References m_blackListState.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

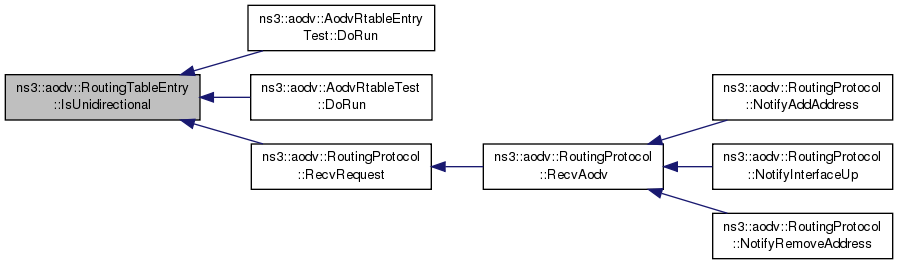

Here is the caller graph for this function:

bool ns3::aodv::RoutingTableEntry::LookupPrecursor ( Ipv4Address id )

Lookup precursor by address.

Parameters

id	precursor address

Returns: true on success

Definition at line 79 of file aodv-rtable.cc.

References m_precursorList, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and InsertPrecursor().

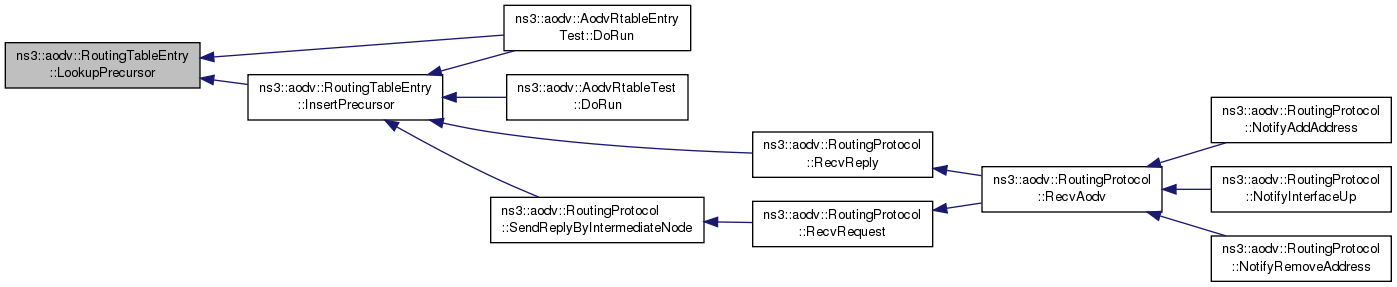

Here is the caller graph for this function:

bool ns3::aodv::RoutingTableEntry::operator== ( Ipv4Address const dst ) const

inline

Compare destination address.

Returns: true if equal

Definition at line 139 of file aodv-rtable.h.

References ns3::Ipv4Route::GetDestination(), and m_ipv4Route.

Here is the call graph for this function:

void ns3::aodv::RoutingTableEntry::Print ( Ptr< OutputStreamWrapper > stream ) const

Definition at line 160 of file aodv-rtable.cc.

References ns3::Ipv4Route::GetDestination(), ns3::Ipv4Route::GetGateway(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::OutputStreamWrapper::GetStream(), ns3::aodv::IN_SEARCH, ns3::aodv::INVALID, m_flag, m_hops, m_iface, m_ipv4Route, m_lifeTime, ns3::Simulator::Now(), and ns3::aodv::VALID.

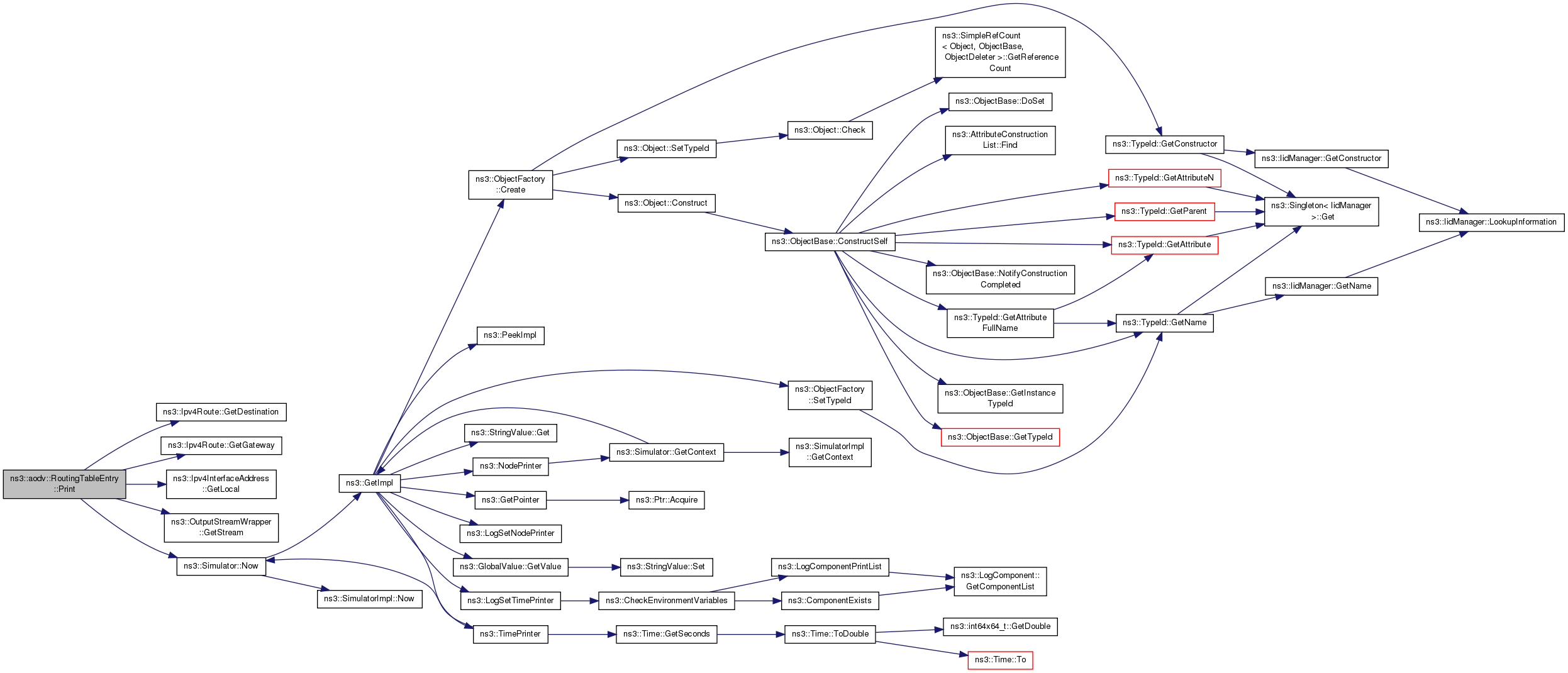

Here is the call graph for this function:

void ns3::aodv::RoutingTableEntry::SetBalcklistTimeout ( Time t )

inline

Definition at line 130 of file aodv-rtable.h.

References m_blackListTimeout.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun().

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetFlag ( RouteFlags flag )

inline

Definition at line 123 of file aodv-rtable.h.

References m_flag.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::RoutingProtocol::RecvReplyAck(), ns3::aodv::RoutingProtocol::RecvRequest(), and ns3::aodv::RoutingProtocol::SendRequest().

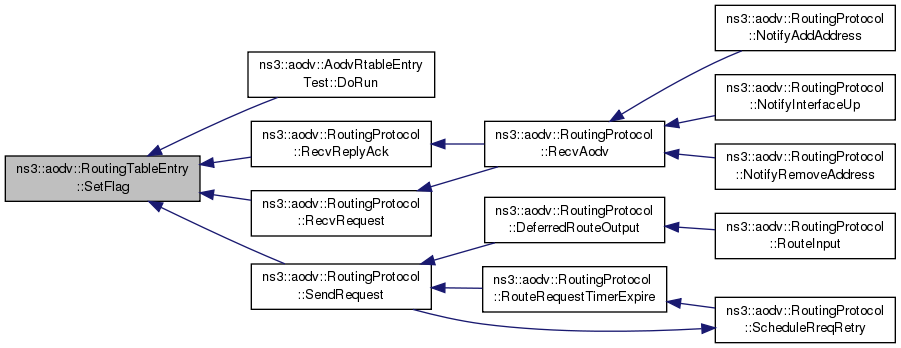

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetHop ( uint16_t hop )

inline

Definition at line 119 of file aodv-rtable.h.

References m_hops.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetInterface ( Ipv4InterfaceAddress iface )

inline

Definition at line 114 of file aodv-rtable.h.

References m_iface.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetLifeTime ( Time lt )

inline

Definition at line 121 of file aodv-rtable.h.

References m_lifeTime, and ns3::Simulator::Now().

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), ns3::aodv::AodvRtableTest::DoRun(), ns3::aodv::RoutingProtocol::RecvReply(), ns3::aodv::RoutingProtocol::RecvRequest(), ns3::aodv::RoutingProtocol::UpdateRouteLifeTime(), and ns3::aodv::RoutingProtocol::UpdateRouteToNeighbor().

Here is the call graph for this function:

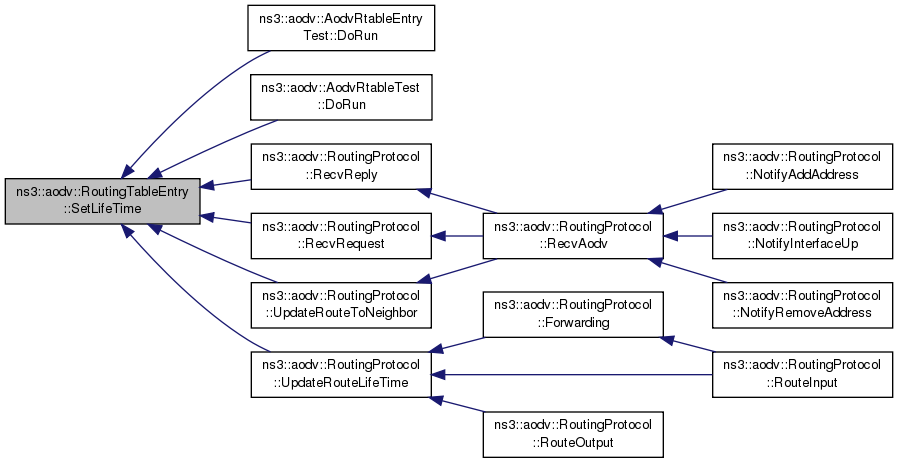

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetNextHop ( Ipv4Address nextHop )

inline

Definition at line 109 of file aodv-rtable.h.

References m_ipv4Route, and ns3::Ipv4Route::SetGateway().

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the call graph for this function:

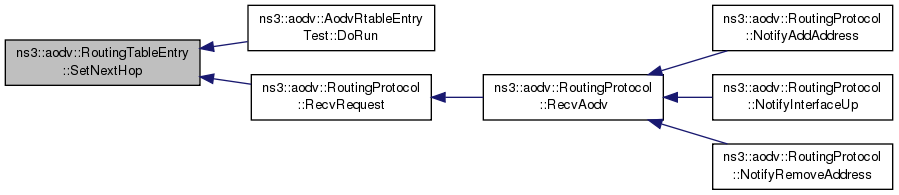

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetOutputDevice ( Ptr< NetDevice > dev )

inline

Definition at line 111 of file aodv-rtable.h.

References m_ipv4Route, and ns3::Ipv4Route::SetOutputDevice().

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetRoute ( Ptr< Ipv4Route > r )

inline

Definition at line 108 of file aodv-rtable.h.

References m_ipv4Route.

void ns3::aodv::RoutingTableEntry::SetRreqCnt ( uint8_t n )

inline

Definition at line 125 of file aodv-rtable.h.

References m_reqCount.

Referenced by ns3::aodv::RoutingTable::AddRoute(), ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::UpdateRouteLifeTime().

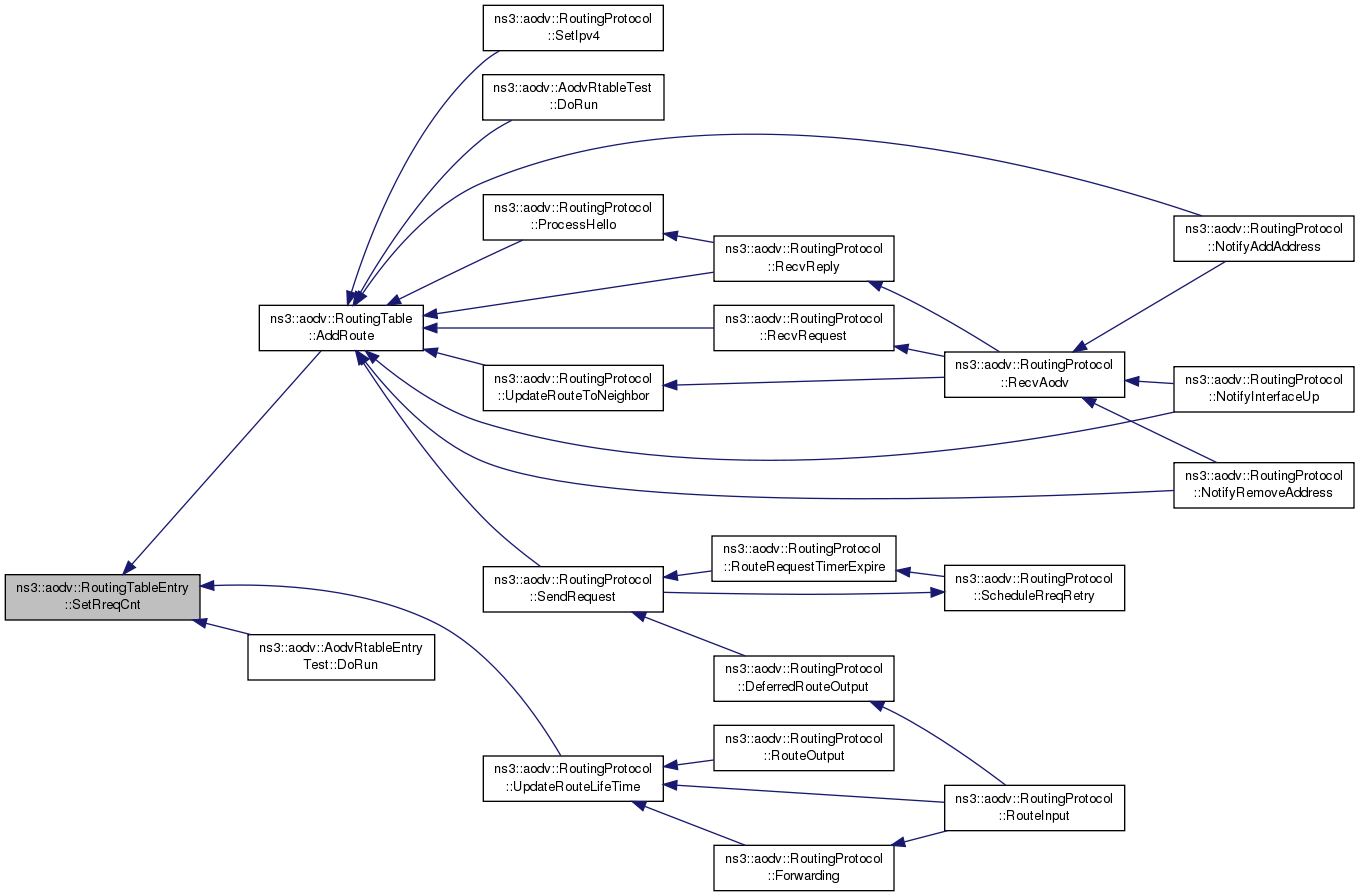

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetSeqNo ( uint32_t sn )

inline

Definition at line 117 of file aodv-rtable.h.

References m_seqNo.

Referenced by ns3::aodv::RoutingProtocol::RecvRequest().

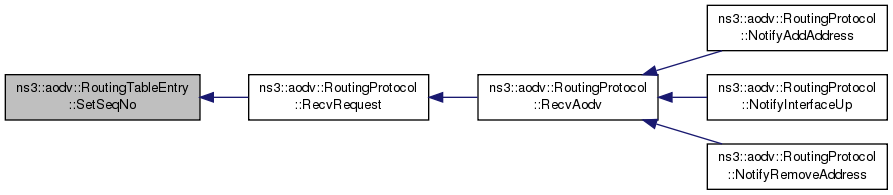

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetUnidirectional ( bool u )

inline

Definition at line 128 of file aodv-rtable.h.

References m_blackListState.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun().

Here is the caller graph for this function:

void ns3::aodv::RoutingTableEntry::SetValidSeqNo ( bool s )

inline

Definition at line 115 of file aodv-rtable.h.

References m_validSeqNo.

Referenced by ns3::aodv::AodvRtableEntryTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvRequest().

Here is the caller graph for this function:

Member Data Documentation

Timer ns3::aodv::RoutingTableEntry::m_ackTimer

RREP_ACK timer.

Definition at line 133 of file aodv-rtable.h.

Referenced by ns3::aodv::RoutingProtocol::RecvReplyAck(), and ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode().

bool ns3::aodv::RoutingTableEntry::m_blackListState

private

Indicate if this entry is in "blacklist".

Definition at line 178 of file aodv-rtable.h.

Referenced by IsUnidirectional(), and SetUnidirectional().

Time ns3::aodv::RoutingTableEntry::m_blackListTimeout

private

Time for which the node is put into the blacklist.

Definition at line 180 of file aodv-rtable.h.

Referenced by GetBlacklistTimeout(), and SetBalcklistTimeout().

RouteFlags ns3::aodv::RoutingTableEntry::m_flag

private

Routing flags: valid, invalid or in search.

Definition at line 169 of file aodv-rtable.h.

Referenced by GetFlag(), Invalidate(), Print(), and SetFlag().

uint16_t ns3::aodv::RoutingTableEntry::m_hops

private

Hop Count (number of hops needed to reach destination)

Definition at line 151 of file aodv-rtable.h.

Referenced by GetHop(), Print(), and SetHop().

Ipv4InterfaceAddress ns3::aodv::RoutingTableEntry::m_iface

private

Output interface address.

Definition at line 167 of file aodv-rtable.h.

Referenced by GetInterface(), Print(), RoutingTableEntry(), and SetInterface().

Ptr<Ipv4Route> ns3::aodv::RoutingTableEntry::m_ipv4Route

private

Ip route, include.

destination address
source address
next hop address (gateway)
output device

Definition at line 165 of file aodv-rtable.h.

Referenced by GetDestination(), GetNextHop(), GetOutputDevice(), GetRoute(), operator==(), Print(), RoutingTableEntry(), SetNextHop(), SetOutputDevice(), and SetRoute().

Time ns3::aodv::RoutingTableEntry::m_lifeTime

private

Expiration or deletion time of the route Lifetime field in the routing table plays dual role – for an active route it is the expiration time, and for an invalid route it is the deletion time.

Definition at line 158 of file aodv-rtable.h.

Referenced by GetLifeTime(), Invalidate(), Print(), and SetLifeTime().

std::vector<Ipv4Address> ns3::aodv::RoutingTableEntry::m_precursorList

private

List of precursors.

Definition at line 172 of file aodv-rtable.h.

Referenced by DeleteAllPrecursors(), DeletePrecursor(), GetPrecursors(), InsertPrecursor(), IsPrecursorListEmpty(), and LookupPrecursor().

uint8_t ns3::aodv::RoutingTableEntry::m_reqCount

private

Number of route requests.

Definition at line 176 of file aodv-rtable.h.

Referenced by GetRreqCnt(), IncrementRreqCnt(), Invalidate(), and SetRreqCnt().

Time ns3::aodv::RoutingTableEntry::m_routeRequestTimout

private

When I can send another request.

Definition at line 174 of file aodv-rtable.h.

uint32_t ns3::aodv::RoutingTableEntry::m_seqNo

private

Destination Sequence Number, if m_validSeqNo = true.

Definition at line 149 of file aodv-rtable.h.

Referenced by GetSeqNo(), and SetSeqNo().

bool ns3::aodv::RoutingTableEntry::m_validSeqNo

private

Valid Destination Sequence Number flag.

Definition at line 147 of file aodv-rtable.h.

Referenced by GetValidSeqNo(), and SetValidSeqNo().

The documentation for this class was generated from the following files:

src/aodv/model/aodv-rtable.h
src/aodv/model/aodv-rtable.cc

Public Member Functions

Public Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
