ns3::dsr::DsrNetworkQueueEntry Class Reference

DSR Network Queue Entry. More...

#include "dsr-network-queue.h"

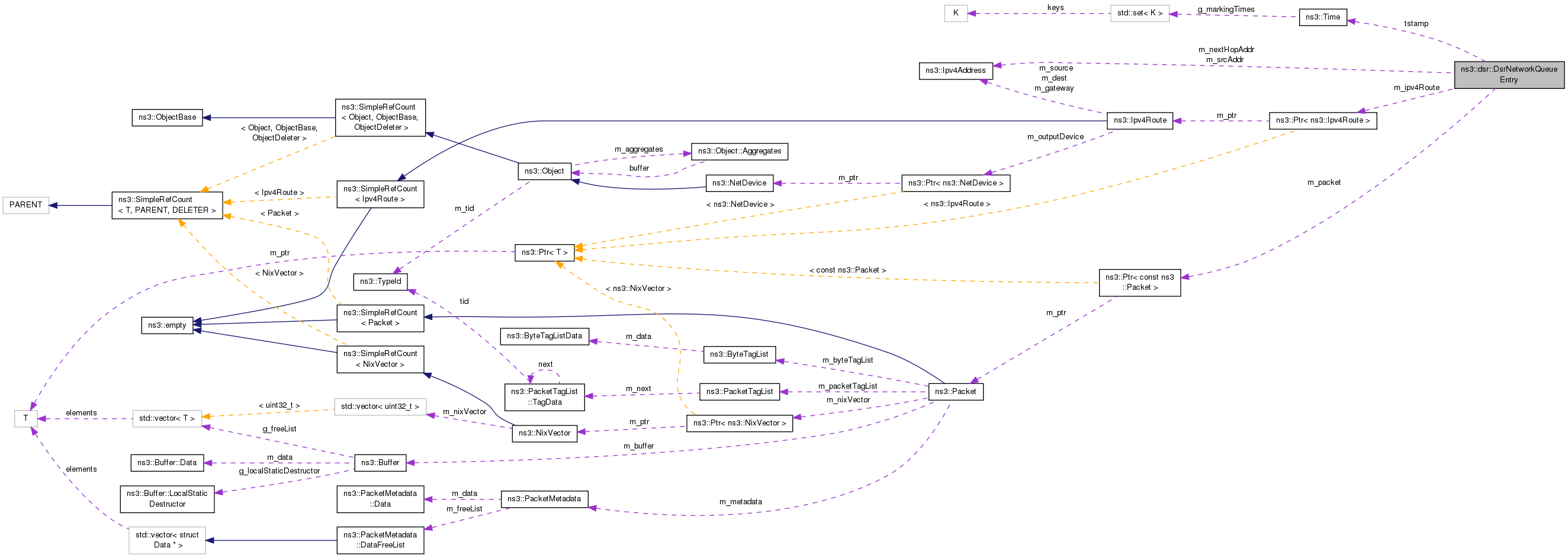

Collaboration diagram for ns3::dsr::DsrNetworkQueueEntry:

Public Member Functions
	DsrNetworkQueueEntry (Ptr< const Packet > pa=0, Ipv4Address s=Ipv4Address(), Ipv4Address n=Ipv4Address(), Time exp=Simulator::Now(), Ptr< Ipv4Route > r=0)
	Construct a DsrNetworkQueueEntry with the given parameters. More...
Time	GetInsertedTimeStamp (void) const
Ptr< Ipv4Route >	GetIpv4Route () const
Ipv4Address	GetNextHopAddress () const
Ptr< const Packet >	GetPacket () const
Ipv4Address	GetSourceAddress () const
bool	operator== (DsrNetworkQueueEntry const &o) const
	Compare send buffer entries. More...
void	SetInsertedTimeStamp (Time time)
void	SetIpv4Route (Ptr< Ipv4Route > route)
void	SetNextHopAddress (Ipv4Address addr)
void	SetPacket (Ptr< const Packet > p)
void	SetSourceAddress (Ipv4Address addr)

Private Attributes
Ptr< Ipv4Route >	m_ipv4Route
	Ipv4Route. More...
Ipv4Address	m_nextHopAddr
Ptr< const Packet >	m_packet
	Data packet. More...
Ipv4Address	m_srcAddr
Time	tstamp

Detailed Description

DSR Network Queue Entry.

Definition at line 53 of file dsr-network-queue.h.

Constructor & Destructor Documentation

ns3::dsr::DsrNetworkQueueEntry::DsrNetworkQueueEntry ( Ptr< const Packet >  pa = 0, Ipv4Address  s = Ipv4Address (), Ipv4Address  n = Ipv4Address (), Time  exp = Simulator::Now (), Ptr< Ipv4Route >  r = 0  )

inline

Construct a DsrNetworkQueueEntry with the given parameters.

Parameters

pa	packet
s	IPv4 address of the source
n	IPv4 address of the next hop node
exp	expiration time
r	Route

Definition at line 65 of file dsr-network-queue.h.

Member Function Documentation

Time ns3::dsr::DsrNetworkQueueEntry::GetInsertedTimeStamp ( void  ) const

inline

Definition at line 118 of file dsr-network-queue.h.

References tstamp.

Ptr<Ipv4Route> ns3::dsr::DsrNetworkQueueEntry::GetIpv4Route ( ) const

inline

Definition at line 94 of file dsr-network-queue.h.

References m_ipv4Route.

Referenced by ns3::dsr::DsrRouting::SendRealDown().

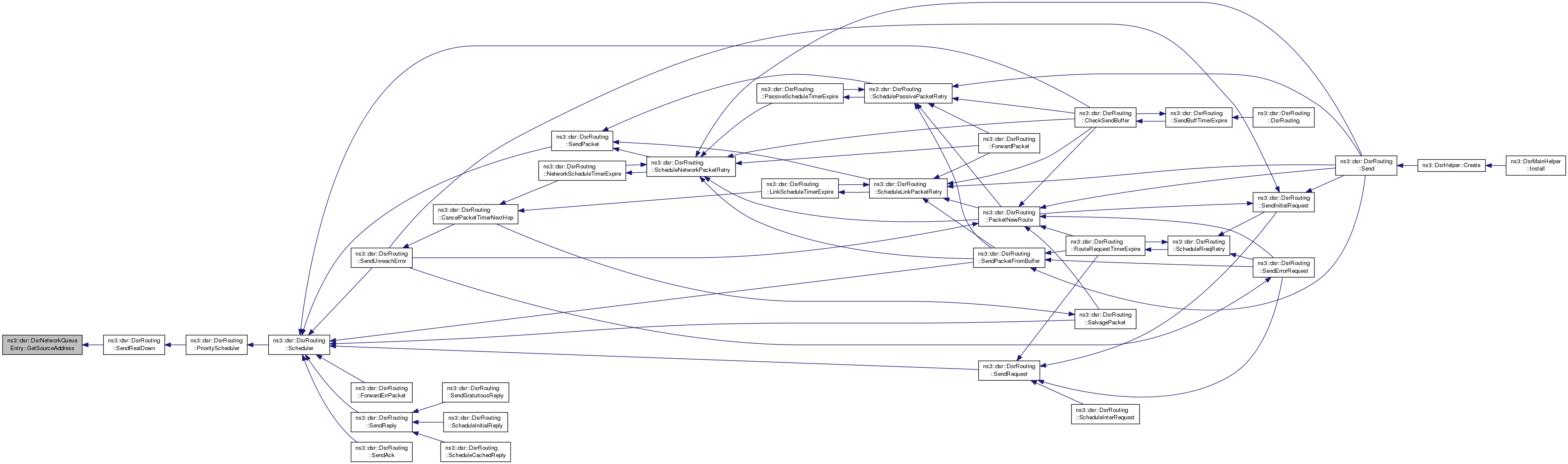

Here is the caller graph for this function:

Ipv4Address ns3::dsr::DsrNetworkQueueEntry::GetNextHopAddress ( ) const

inline

Definition at line 110 of file dsr-network-queue.h.

References m_nextHopAddr.

Referenced by ns3::dsr::DsrRouting::SendRealDown().

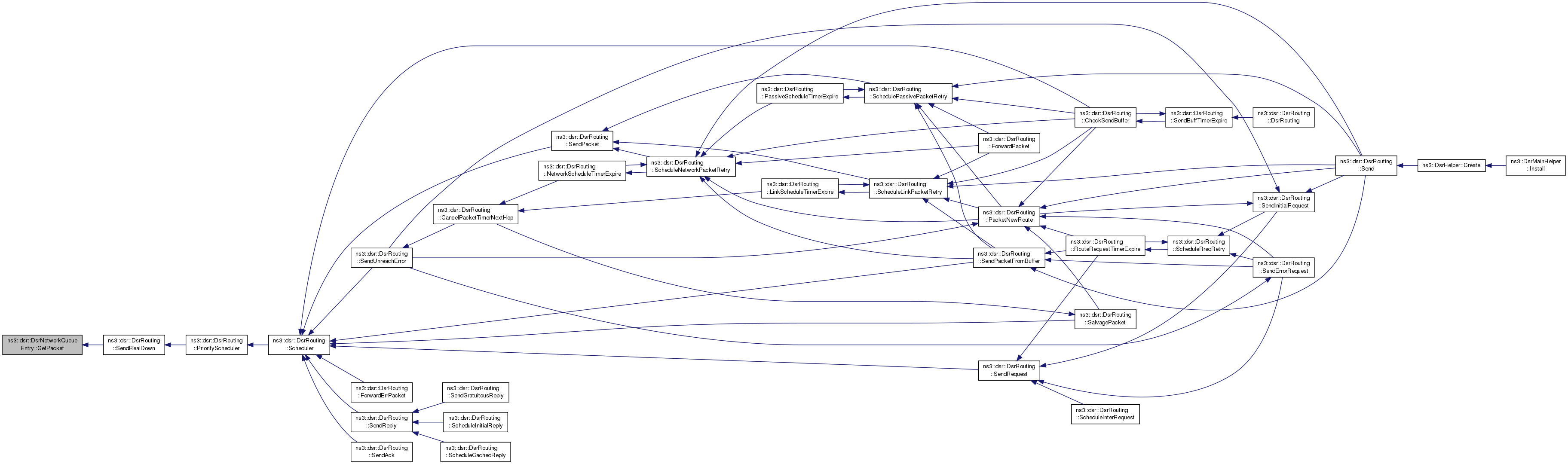

Here is the caller graph for this function:

Ptr<const Packet> ns3::dsr::DsrNetworkQueueEntry::GetPacket ( ) const

inline

Definition at line 86 of file dsr-network-queue.h.

References m_packet.

Referenced by ns3::dsr::DsrRouting::SendRealDown().

Here is the caller graph for this function:

Ipv4Address ns3::dsr::DsrNetworkQueueEntry::GetSourceAddress ( ) const

inline

Definition at line 102 of file dsr-network-queue.h.

References m_srcAddr.

Referenced by ns3::dsr::DsrRouting::SendRealDown().

Here is the caller graph for this function:

bool ns3::dsr::DsrNetworkQueueEntry::operator== ( DsrNetworkQueueEntry const &  o ) const

inline

Compare send buffer entries.

Parameters

o

Returns

true if equal

Definition at line 79 of file dsr-network-queue.h.

References m_ipv4Route, m_nextHopAddr, m_packet, m_srcAddr, and tstamp.

void ns3::dsr::DsrNetworkQueueEntry::SetInsertedTimeStamp ( Time  time )

inline

Definition at line 122 of file dsr-network-queue.h.

References tstamp.

Referenced by ns3::dsr::DsrNetworkQueue::Enqueue().

Here is the caller graph for this function:

void ns3::dsr::DsrNetworkQueueEntry::SetIpv4Route ( Ptr< Ipv4Route >  route )

inline

Definition at line 98 of file dsr-network-queue.h.

References m_ipv4Route.

void ns3::dsr::DsrNetworkQueueEntry::SetNextHopAddress ( Ipv4Address  addr )

inline

Definition at line 114 of file dsr-network-queue.h.

References m_nextHopAddr.

void ns3::dsr::DsrNetworkQueueEntry::SetPacket ( Ptr< const Packet >  p )

inline

Definition at line 90 of file dsr-network-queue.h.

References m_packet.

void ns3::dsr::DsrNetworkQueueEntry::SetSourceAddress ( Ipv4Address  addr )

inline

Definition at line 106 of file dsr-network-queue.h.

References m_srcAddr.

Member Data Documentation

Ptr<Ipv4Route> ns3::dsr::DsrNetworkQueueEntry::m_ipv4Route

private

Ipv4Route.

Definition at line 134 of file dsr-network-queue.h.

Referenced by GetIpv4Route(), operator==(), and SetIpv4Route().

Ipv4Address ns3::dsr::DsrNetworkQueueEntry::m_nextHopAddr

private

Definition at line 131 of file dsr-network-queue.h.

Referenced by GetNextHopAddress(), operator==(), and SetNextHopAddress().

Ptr<const Packet> ns3::dsr::DsrNetworkQueueEntry::m_packet

private

Data packet.

Definition at line 129 of file dsr-network-queue.h.

Referenced by GetPacket(), operator==(), and SetPacket().

Ipv4Address ns3::dsr::DsrNetworkQueueEntry::m_srcAddr

private

Definition at line 130 of file dsr-network-queue.h.

Referenced by GetSourceAddress(), operator==(), and SetSourceAddress().

Time ns3::dsr::DsrNetworkQueueEntry::tstamp

private

Definition at line 132 of file dsr-network-queue.h.

Referenced by GetInsertedTimeStamp(), operator==(), and SetInsertedTimeStamp().

---

The documentation for this class was generated from the following file:

• src/dsr/model/dsr-network-queue.h
