lr-wpan-mac.h File Reference

#include <ns3/object.h>
#include <ns3/traced-callback.h>
#include <ns3/traced-value.h>
#include <ns3/mac16-address.h>
#include <ns3/mac64-address.h>
#include <ns3/sequence-number.h>
#include <ns3/lr-wpan-phy.h>
#include <ns3/event-id.h>
#include <deque>

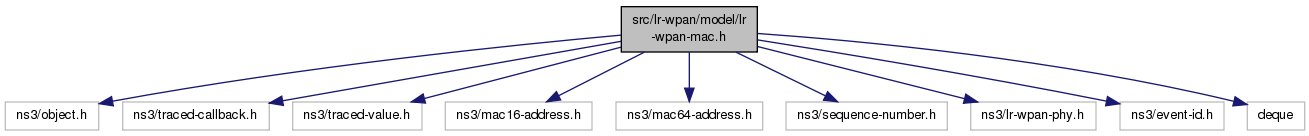

Include dependency graph for lr-wpan-mac.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ns3::LrWpanMac
	Class that implements the LR-WPAN Mac state machine. More...
struct	ns3::McpsDataConfirmParams
	MCPS-DATA.confirm params. More...
struct	ns3::McpsDataIndicationParams
	MCPS-DATA.indication params. More...
struct	ns3::McpsDataRequestParams
	MCPS-DATA.request params. More...
struct	ns3::LrWpanMac::TxQueueElement
	Helper structure for managing transmission queue elements. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.
	ns3::TracedValueCallback
	TracedValue Callback function types.

Typedefs
typedef void(*	ns3::TracedValueCallback::LrWpanMacState) (LrWpanMacState oldValue, LrWpanMacState newValue)
	TracedValue callback signature for LrWpanMacState. More...
typedef Callback< void, McpsDataConfirmParams >	ns3::McpsDataConfirmCallback
	This callback is called after a McpsDataRequest has been called from the higher layer. More...
typedef Callback< void, McpsDataIndicationParams, Ptr< Packet > >	ns3::McpsDataIndicationCallback
	This callback is called after a Mcps has successfully received a frame and wants to deliver it to the higher layer. More...

Enumerations
enum	ns3::LrWpanAddressMode { ns3::NO_PANID_ADDR = 0, ns3::ADDR_MODE_RESERVED = 1, ns3::SHORT_ADDR = 2, ns3::EXT_ADDR = 3 }
	table 80 of 802.15.4 More...
enum	ns3::LrWpanAssociationStatus {   ns3::ASSOCIATED = 0, ns3::PAN_AT_CAPACITY = 1, ns3::PAN_ACCESS_DENIED = 2, ns3::ASSOCIATED_WITHOUT_ADDRESS = 0xfe,   ns3::DISASSOCIATED = 0xff }
	table 83 of 802.15.4 More...
enum	ns3::LrWpanMacState {   ns3::MAC_IDLE, ns3::MAC_CSMA, ns3::MAC_SENDING, ns3::MAC_ACK_PENDING,   ns3::CHANNEL_ACCESS_FAILURE, ns3::CHANNEL_IDLE, ns3::SET_PHY_TX_ON }
	MAC states. More...
enum	ns3::LrWpanMcpsDataConfirmStatus {   ns3::IEEE_802_15_4_SUCCESS = 0, ns3::IEEE_802_15_4_TRANSACTION_OVERFLOW = 1, ns3::IEEE_802_15_4_TRANSACTION_EXPIRED = 2, ns3::IEEE_802_15_4_CHANNEL_ACCESS_FAILURE = 3,   ns3::IEEE_802_15_4_INVALID_ADDRESS = 4, ns3::IEEE_802_15_4_INVALID_GTS = 5, ns3::IEEE_802_15_4_NO_ACK = 6, ns3::IEEE_802_15_4_COUNTER_ERROR = 7,   ns3::IEEE_802_15_4_FRAME_TOO_LONG = 8, ns3::IEEE_802_15_4_UNAVAILABLE_KEY = 9, ns3::IEEE_802_15_4_UNSUPPORTED_SECURITY = 10, ns3::IEEE_802_15_4_INVALID_PARAMETER = 11 }
	Table 42 of 802.15.4-2006. More...
enum	ns3::LrWpanTxOption { ns3::TX_OPTION_NONE = 0, ns3::TX_OPTION_ACK = 1, ns3::TX_OPTION_GTS = 2, ns3::TX_OPTION_INDIRECT = 4 }
	Tx options. More...
