lr-wpan-phy.h File Reference

#include "lr-wpan-interference-helper.h"
#include <ns3/spectrum-phy.h>
#include <ns3/traced-callback.h>
#include <ns3/traced-value.h>
#include <ns3/event-id.h>

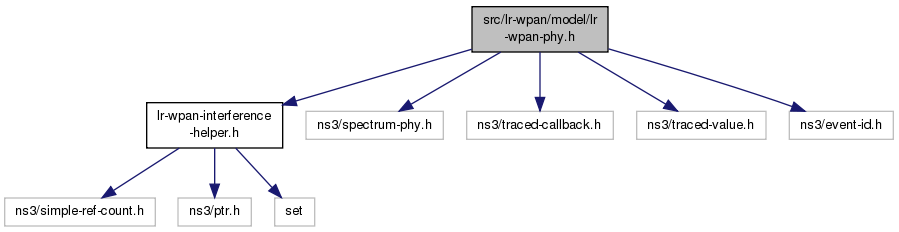

Include dependency graph for lr-wpan-phy.h:

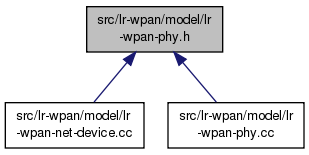

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::LrWpanEdPower
	Helper structure to manage the power measurement during ED. More...
class	ns3::LrWpanPhy
	Make LrWpanPhy a SpectrumPhy so we can enable the eventual modeling of device interference. More...
struct	ns3::LrWpanPhyDataAndSymbolRates
	This data structure provides the Bit rate and Symbol rate for a given channel See IEEE802.15.4-2006 Table 1 and 2 in section 6.1.1 and 6.1.2. More...
struct	ns3::LrWpanPhyPibAttributes
	IEEE802.15.4-2006 PHY PIB Attributes Table 23 in section 6.4.2. More...
struct	ns3::LrWpanPhyPpduHeaderSymbolNumber
	This data structure provides number of symbols for the PPDU headers: SHR and PHR See IEEE802.15.4-2006 Figure 16, Table 19 and 20 in section 6.3. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.
	ns3::TracedValueCallback
	TracedValue Callback function types.

Typedefs
typedef void(*	ns3::TracedValueCallback::LrWpanPhyEnumeration) (LrWpanPhyEnumeration oldValue, LrWpanPhyEnumeration newValue)
	TracedValue callback signature for LrWpanPhyEnumeration. More...
typedef Callback< void, LrWpanPhyEnumeration >	ns3::PdDataConfirmCallback
	This method implements the PD SAP: PdDataConfirm. More...
typedef Callback< void, uint32_t, Ptr< Packet >, uint8_t >	ns3::PdDataIndicationCallback
	This method implements the PD SAP: PdDataIndication. More...
typedef Callback< void, LrWpanPhyEnumeration >	ns3::PlmeCcaConfirmCallback
	This method implements the PD SAP: PlmeCcaConfirm. More...
typedef Callback< void, LrWpanPhyEnumeration, uint8_t >	ns3::PlmeEdConfirmCallback
	This method implements the PD SAP: PlmeEdConfirm. More...
typedef Callback< void, LrWpanPhyEnumeration, LrWpanPibAttributeIdentifier, LrWpanPhyPibAttributes * >	ns3::PlmeGetAttributeConfirmCallback
	This method implements the PD SAP: PlmeGetAttributeConfirm. More...
typedef Callback< void, LrWpanPhyEnumeration, LrWpanPibAttributeIdentifier >	ns3::PlmeSetAttributeConfirmCallback
	This method implements the PD SAP: PlmeSetAttributeConfirm. More...
typedef Callback< void, LrWpanPhyEnumeration >	ns3::PlmeSetTRXStateConfirmCallback
	This method implements the PD SAP: PlmeSetTRXStateConfirm. More...

Enumerations
enum	ns3::LrWpanPhyEnumeration {   ns3::IEEE_802_15_4_PHY_BUSY = 0x00, ns3::IEEE_802_15_4_PHY_BUSY_RX = 0x01, ns3::IEEE_802_15_4_PHY_BUSY_TX = 0x02, ns3::IEEE_802_15_4_PHY_FORCE_TRX_OFF = 0x03,   ns3::IEEE_802_15_4_PHY_IDLE = 0x04, ns3::IEEE_802_15_4_PHY_INVALID_PARAMETER = 0x05, ns3::IEEE_802_15_4_PHY_RX_ON = 0x06, ns3::IEEE_802_15_4_PHY_SUCCESS = 0x07,   ns3::IEEE_802_15_4_PHY_TRX_OFF = 0x08, ns3::IEEE_802_15_4_PHY_TX_ON = 0x09, ns3::IEEE_802_15_4_PHY_UNSUPPORTED_ATTRIBUTE = 0xa, ns3::IEEE_802_15_4_PHY_READ_ONLY = 0xb,   ns3::IEEE_802_15_4_PHY_UNSPECIFIED = 0xc }
	IEEE802.15.4-2006 PHY Emumerations Table 18 in section 6.2.3. More...
enum	ns3::LrWpanPhyOption {   ns3::IEEE_802_15_4_868MHZ_BPSK = 0, ns3::IEEE_802_15_4_915MHZ_BPSK = 1, ns3::IEEE_802_15_4_868MHZ_ASK = 2, ns3::IEEE_802_15_4_915MHZ_ASK = 3,   ns3::IEEE_802_15_4_868MHZ_OQPSK = 4, ns3::IEEE_802_15_4_915MHZ_OQPSK = 5, ns3::IEEE_802_15_4_2_4GHZ_OQPSK = 6, ns3::IEEE_802_15_4_INVALID_PHY_OPTION = 7 }
	This Phy option will be used to index various Tables in IEEE802.15.4-2006. More...
enum	ns3::LrWpanPibAttributeIdentifier {   ns3::phyCurrentChannel = 0x00, ns3::phyChannelsSupported = 0x01, ns3::phyTransmitPower = 0x02, ns3::phyCCAMode = 0x03,   ns3::phyCurrentPage = 0x04, ns3::phyMaxFrameDuration = 0x05, ns3::phySHRDuration = 0x06, ns3::phySymbolsPerOctet = 0x07 }
	IEEE802.15.4-2006 PHY PIB Attribute Identifiers Table 23 in section 6.4.2. More...
