qos-utils.h File Reference

#include "ns3/uinteger.h"
#include "ns3/ptr.h"
#include "ns3/packet.h"

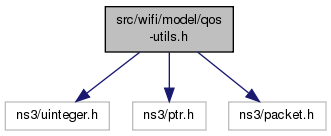

Include dependency graph for qos-utils.h:

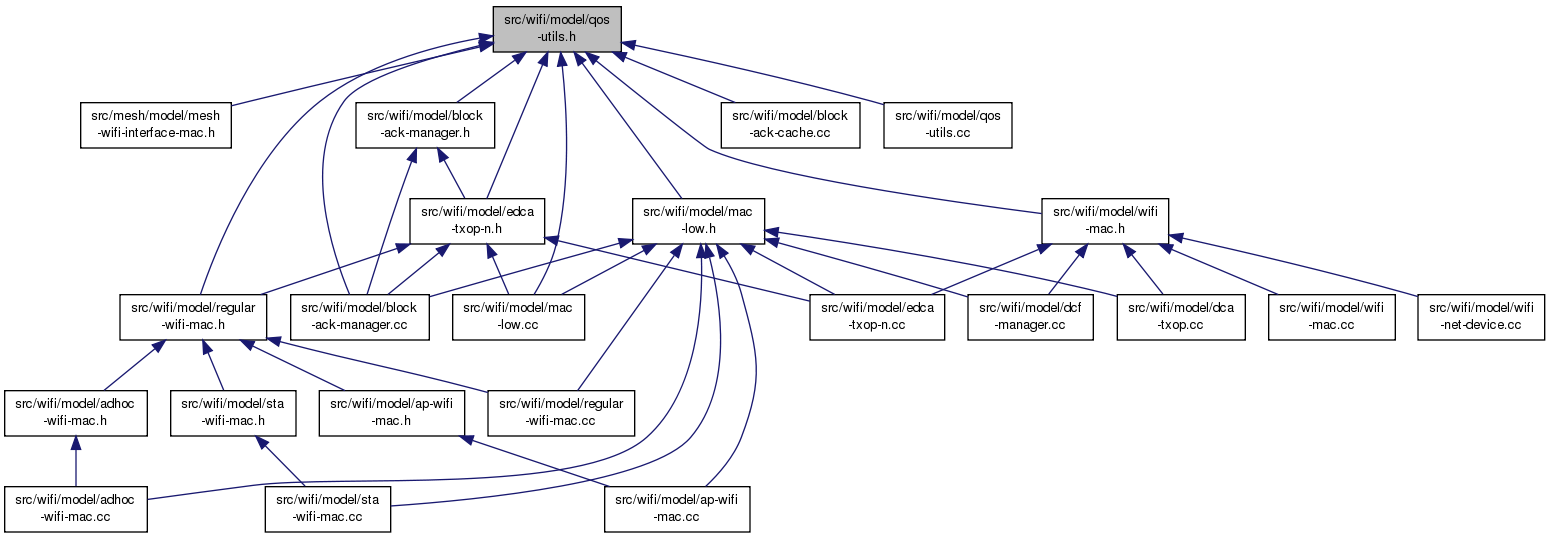

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Enumerations
enum	ns3::AcIndex {   ns3::AC_BE = 0, ns3::AC_BK = 1, ns3::AC_VI = 2, ns3::AC_VO = 3,   ns3::AC_BE_NQOS = 4, ns3::AC_UNDEF }
	This enumeration defines the Access Categories as an enumeration with values corresponding to the AC index (ACI) values specified (Table 8-104 "ACI-to-AC coding"; IEEE 802.11-2012). More...

Functions
uint8_t	ns3::QosUtilsGetTidForPacket (Ptr< const Packet > packet)
	If a qos tag is attached to the packet, returns a value < 8. More...
bool	ns3::QosUtilsIsOldPacket (uint16_t startingSeq, uint16_t seqNumber)
	This function checks if packet with sequence number seqNumber is an "old" packet. More...
uint32_t	ns3::QosUtilsMapSeqControlToUniqueInteger (uint16_t seqControl, uint16_t endSequence)
	Next function is useful to correctly sort buffered packets under block ack. More...
AcIndex	ns3::QosUtilsMapTidToAc (uint8_t tid)
	Maps TID (Traffic ID) to Access classes. More...
