Introspection did not find any typical Config paths. More...

#include "mac-messages.h"

Inheritance diagram for ns3::DsaAck:

Collaboration diagram for ns3::DsaAck:

Public Member Functions
	DsaAck (void)
	This class implements the DSA-ACK message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.12 DSA-ACK message, page 64. More...

	~DsaAck (void)

uint32_t	Deserialize (Buffer::Iterator start)

uint16_t	GetConfirmationCode (void) const

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

std::string	GetName (void) const

uint32_t	GetSerializedSize (void) const

uint16_t	GetTransactionId (void) const

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetConfirmationCode (uint16_t confirmationCode)

void	SetTransactionId (uint16_t transactionId)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_confirmationCode

uint16_t	m_transactionId

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 430 of file mac-messages.h.

Constructor & Destructor Documentation

ns3::DsaAck::DsaAck ( void )

This class implements the DSA-ACK message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.12 DSA-ACK message, page 64.

Definition at line 779 of file mac-messages.cc.

ns3::DsaAck::~DsaAck ( void )

Definition at line 785 of file mac-messages.cc.

Member Function Documentation

uint32_t ns3::DsaAck::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 857 of file mac-messages.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_confirmationCode, m_transactionId, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

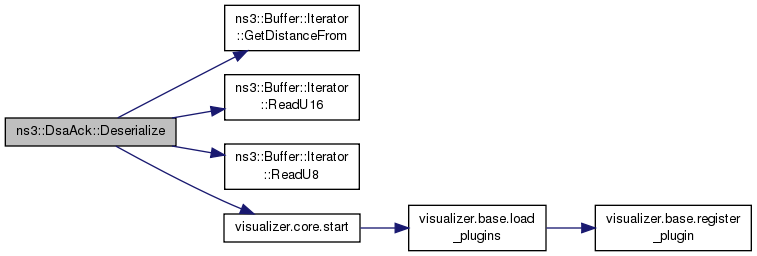

Here is the call graph for this function:

uint16_t ns3::DsaAck::GetConfirmationCode ( void ) const

Definition at line 808 of file mac-messages.cc.

References m_confirmationCode.

TypeId ns3::DsaAck::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 831 of file mac-messages.cc.

References GetTypeId().

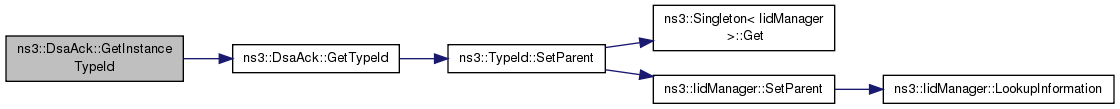

Here is the call graph for this function:

std::string ns3::DsaAck::GetName ( void ) const

Definition at line 814 of file mac-messages.cc.

uint32_t ns3::DsaAck::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 843 of file mac-messages.cc.

uint16_t ns3::DsaAck::GetTransactionId ( void ) const

Definition at line 796 of file mac-messages.cc.

References m_transactionId.

Referenced by ns3::BsServiceFlowManager::ProcessDsaAck().

Here is the caller graph for this function:

TypeId ns3::DsaAck::GetTypeId ( void )

static

Definition at line 820 of file mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

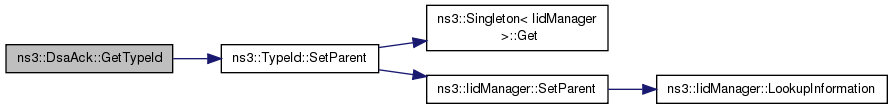

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DsaAck::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 837 of file mac-messages.cc.

References m_confirmationCode, and m_transactionId.

void ns3::DsaAck::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 849 of file mac-messages.cc.

References m_confirmationCode, m_transactionId, visualizer.core::start(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:
