This class implements a tag that carries an address of a packet across the socket interface. More...
#include "socket.h"
Public Member Functions | |
SocketAddressTag () | |
virtual void | Deserialize (TagBuffer i) |
Address | GetAddress (void) const |
Get the tag's address. More... | |
virtual TypeId | GetInstanceTypeId (void) const |
Get the most derived TypeId for this Object. More... | |
virtual uint32_t | GetSerializedSize (void) const |
virtual void | Print (std::ostream &os) const |
virtual void | Serialize (TagBuffer i) const |
void | SetAddress (Address addr) |
Set the tag's address. More... | |
Public Member Functions inherited from ns3::ObjectBase | |
virtual | ~ObjectBase () |
Virtual destructor. More... | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising erros. More... | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. More... | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. More... | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. More... | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. More... | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. More... | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
static TypeId | GetTypeId (void) |
Get the type ID. More... | |
Static Public Member Functions inherited from ns3::Tag | |
static TypeId | GetTypeId (void) |
Get the type ID. More... | |
Static Public Member Functions inherited from ns3::ObjectBase | |
static TypeId | GetTypeId (void) |
Get the type ID. More... | |
Private Attributes | |
Address | m_address |
the address carried by the tag More... | |
Additional Inherited Members | |
Protected Member Functions inherited from ns3::ObjectBase | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. More... | |
virtual void | NotifyConstructionCompleted (void) |
Notifier called once the ObjectBase is fully constructed. More... | |
Related Functions inherited from ns3::ObjectBase | |
static TypeId | GetObjectIid (void) |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
This class implements a tag that carries an address of a packet across the socket interface.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).
ns3::SocketAddressTag::SocketAddressTag | ( | ) |
Definition at line 517 of file socket.cc.
References NS_LOG_FUNCTION.
|
virtual |
i | the buffer to read data from. |
Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.
Implements ns3::Tag.
Definition at line 566 of file socket.cc.
References ns3::Address::Deserialize(), m_address, and NS_LOG_FUNCTION.

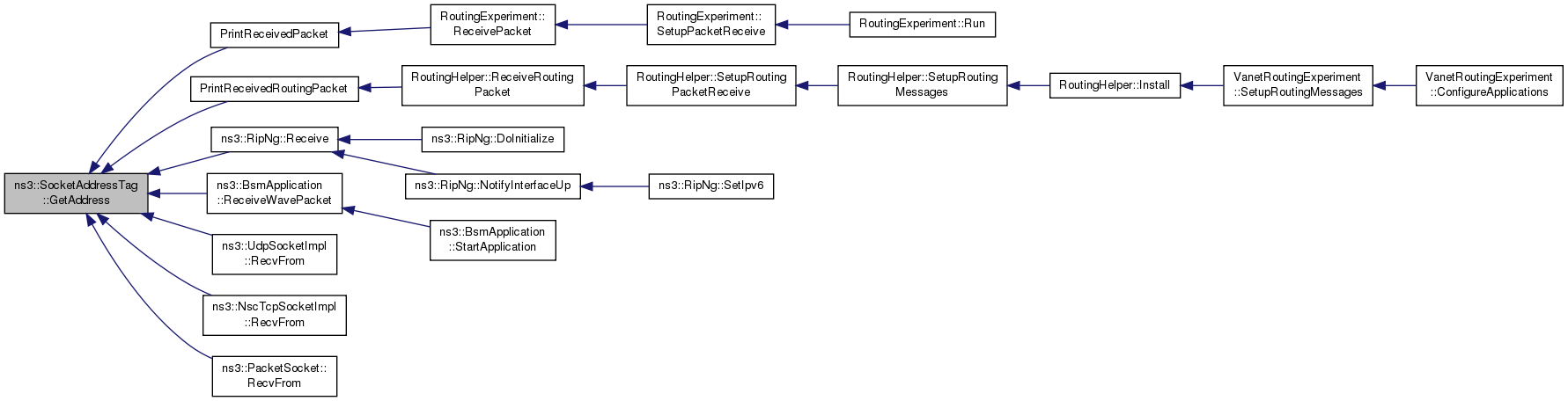

Address ns3::SocketAddressTag::GetAddress | ( | void | ) | const |
Get the tag's address.
Definition at line 530 of file socket.cc.
References m_address, and NS_LOG_FUNCTION.
Referenced by PrintReceivedPacket(), PrintReceivedRoutingPacket(), ns3::RipNg::Receive(), ns3::BsmApplication::ReceiveWavePacket(), ns3::UdpSocketImpl::RecvFrom(), ns3::NscTcpSocketImpl::RecvFrom(), and ns3::PacketSocket::RecvFrom().
|
virtual |

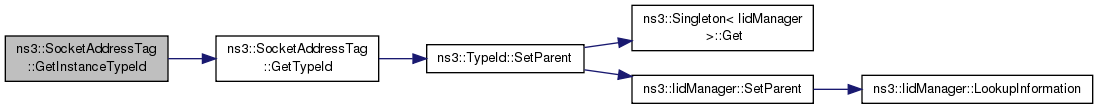

Get the most derived TypeId for this Object.
This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
Implements ns3::ObjectBase.
Definition at line 549 of file socket.cc.
References GetTypeId().
|
virtual |
This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.
Implements ns3::Tag.
Definition at line 554 of file socket.cc.
References ns3::Address::GetSerializedSize(), m_address, and NS_LOG_FUNCTION.
|
static |

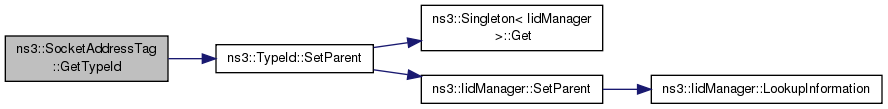

Get the type ID.
Definition at line 539 of file socket.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().
|
virtual |
os | the stream to print to |
This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.
Implements ns3::Tag.
Definition at line 572 of file socket.cc.
References m_address, and NS_LOG_FUNCTION.
|
virtual |
i | the buffer to write data into. |
Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.
Implements ns3::Tag.
Definition at line 560 of file socket.cc.
References m_address, NS_LOG_FUNCTION, and ns3::Address::Serialize().

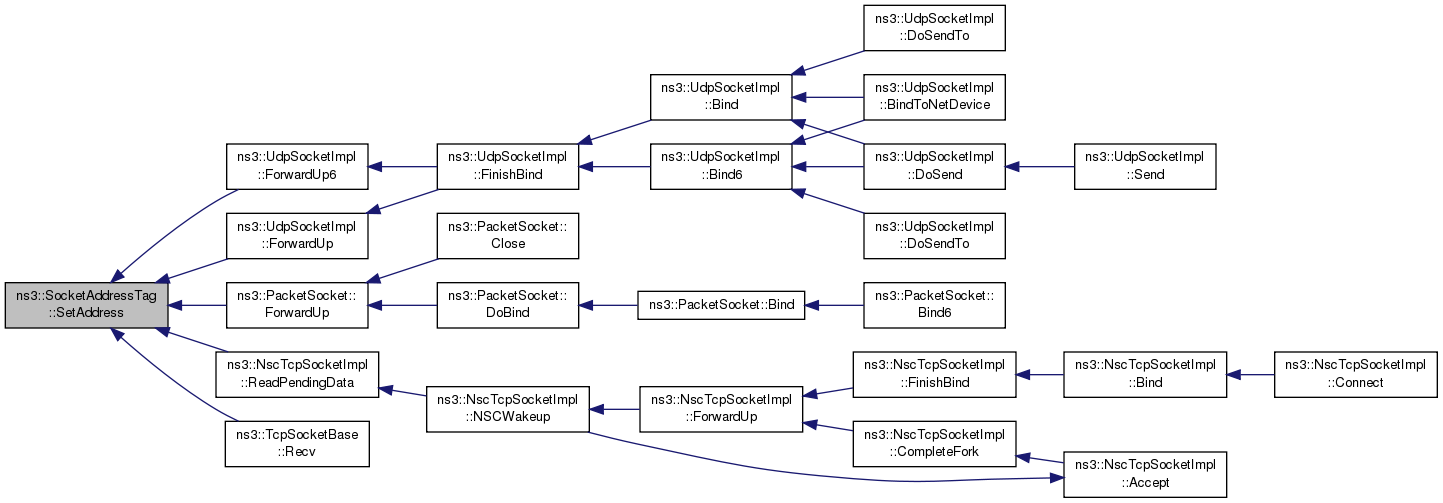

void ns3::SocketAddressTag::SetAddress | ( | Address | addr | ) |
Set the tag's address.
addr | the address |
Definition at line 523 of file socket.cc.
References m_address, and NS_LOG_FUNCTION.
Referenced by ns3::UdpSocketImpl::ForwardUp(), ns3::PacketSocket::ForwardUp(), ns3::UdpSocketImpl::ForwardUp6(), ns3::NscTcpSocketImpl::ReadPendingData(), and ns3::TcpSocketBase::Recv().
|
private |
the address carried by the tag
Definition at line 992 of file socket.h.
Referenced by Deserialize(), GetAddress(), GetSerializedSize(), Print(), Serialize(), and SetAddress().
