A Udp Echo client. More...

#include "udp-echo-client.h"

Inheritance diagram for ns3::UdpEchoClient:

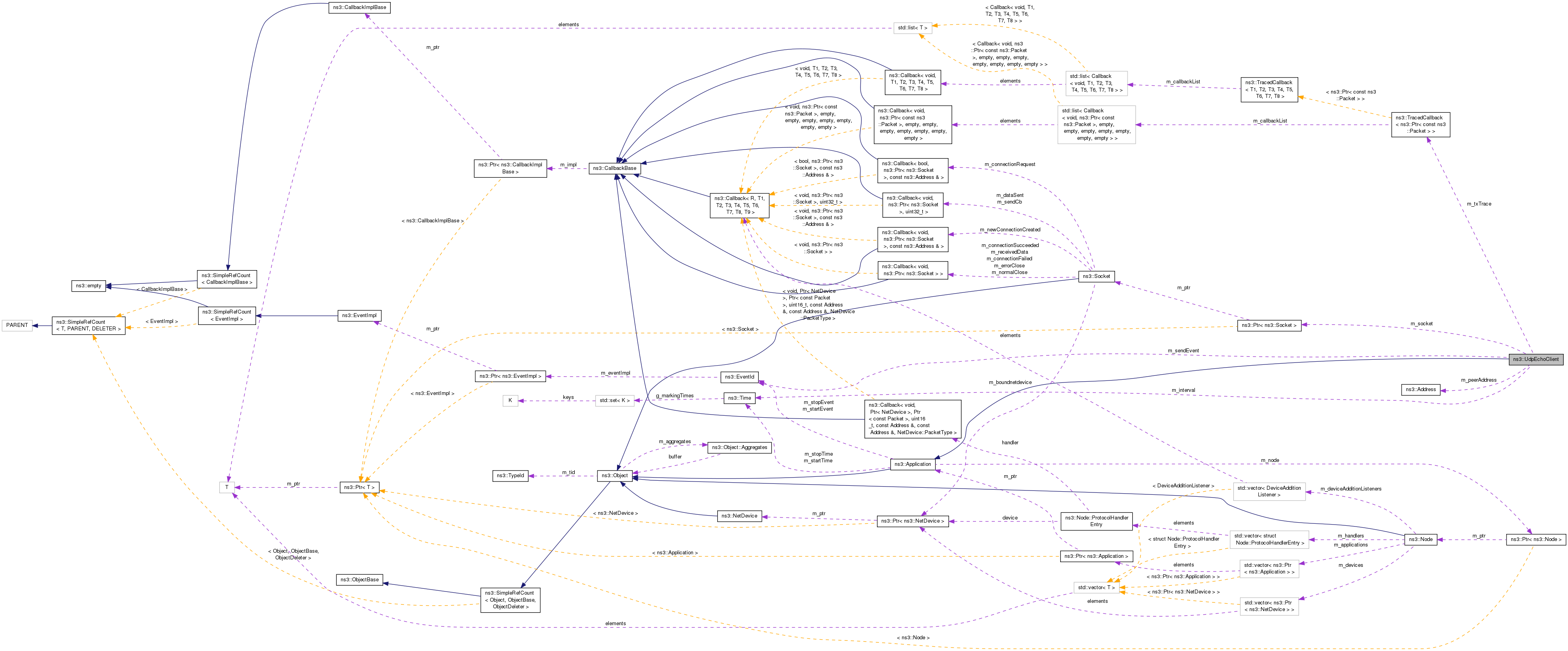

Collaboration diagram for ns3::UdpEchoClient:

Public Member Functions
	UdpEchoClient ()

virtual	~UdpEchoClient ()

uint32_t	GetDataSize (void) const
	Get the number of data bytes that will be sent to the server. More...

void	SetDataSize (uint32_t dataSize)
	Set the data size of the packet (the number of bytes that are sent as data to the server). More...

void	SetFill (std::string fill)
	Set the data fill of the packet (what is sent as data to the server) to the zero-terminated contents of the fill string string. More...

void	SetFill (uint8_t fill, uint32_t dataSize)
	Set the data fill of the packet (what is sent as data to the server) to the repeated contents of the fill byte. More...

void	SetFill (uint8_t *fill, uint32_t fillSize, uint32_t dataSize)
	Set the data fill of the packet (what is sent as data to the server) to the contents of the fill buffer, repeated as many times as is required. More...

void	SetRemote (Ipv4Address ip, uint16_t port)
	set the remote address and port More...

void	SetRemote (Ipv6Address ip, uint16_t port)
	set the remote address and port More...

void	SetRemote (Address ip, uint16_t port)
	set the remote address and port More...

Public Member Functions inherited from ns3::Application
	Application ()

virtual	~Application ()

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	HandleRead (Ptr< Socket > socket)
	Handle a packet reception. More...

void	ScheduleTransmit (Time dt)
	Schedule the next packet transmission. More...

void	Send (void)
	Send a packet. More...

virtual void	StartApplication (void)
	Application specific startup code. More...

virtual void	StopApplication (void)
	Application specific shutdown code. More...

Private Attributes
uint32_t	m_count
	Maximum number of packets the application will send. More...

uint8_t *	m_data
	packet payload data More...

uint32_t	m_dataSize
	packet payload size (must be equal to m_size) More...

Time	m_interval
	Packet inter-send time. More...

Address	m_peerAddress
	Remote peer address. More...

uint16_t	m_peerPort
	Remote peer port. More...

EventId	m_sendEvent
	Event to send the next packet. More...

uint32_t	m_sent
	Counter for sent packets. More...

uint32_t	m_size
	Size of the sent packet. More...

Ptr< Socket >	m_socket
	Socket. More...

TracedCallback< Ptr< const Packet > >	m_txTrace
	Callbacks for tracing the packet Tx events. More...

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A Udp Echo client.

Every packet sent should be returned by the server and received here.

Config Paths

ns3::UdpEchoClient is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/ApplicationList/[i]/$ns3::UdpEchoClient"

Attributes

MaxPackets: The maximum number of packets the application will send
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read
Interval: The time to wait between packets
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read
RemoteAddress: The destination Address of the outbound packets
- Set with class: AddressValue
- Underlying type: Address
- Initial value: 00-00-00
- Flags: construct write read
RemotePort: The destination port of the outbound packets
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write read
PacketSize: Size of echo data in outbound packets
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read

TraceSources

Tx: A new packet is created and is sent
Callback signature: ns3::Packet::TracedCallback

Size of this type is 216 bytes (on a 64-bit architecture).

Definition at line 39 of file udp-echo-client.h.

Constructor & Destructor Documentation

ns3::UdpEchoClient::UdpEchoClient ( )

Definition at line 77 of file udp-echo-client.cc.

References m_data, m_dataSize, m_sendEvent, m_sent, m_socket, and NS_LOG_FUNCTION.

ns3::UdpEchoClient::~UdpEchoClient ( )

virtual

Definition at line 87 of file udp-echo-client.cc.

References m_data, m_dataSize, m_socket, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::UdpEchoClient::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Application.

Definition at line 122 of file udp-echo-client.cc.

References ns3::Application::DoDispose(), and NS_LOG_FUNCTION.

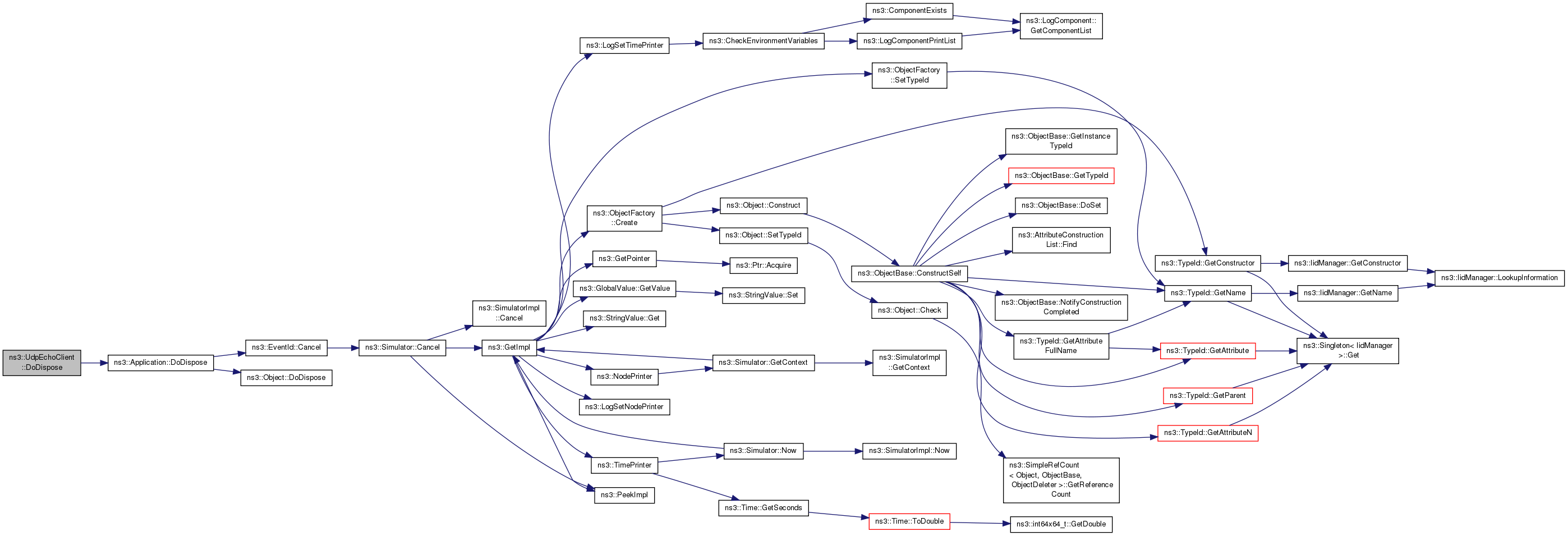

Here is the call graph for this function:

uint32_t ns3::UdpEchoClient::GetDataSize ( void ) const

Get the number of data bytes that will be sent to the server.

Warning: The number of bytes may be modified by calling any one of the SetFill methods. If you have called SetFill, then the number of data bytes will correspond to the size of an initialized data buffer. If you have not called a SetFill method, the number of data bytes will correspond to the number of don't care bytes that will be sent.

Returns: The number of data bytes.

Definition at line 186 of file udp-echo-client.cc.

References m_size, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::UdpEchoClient::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 39 of file udp-echo-client.cc.

References GetDataSize(), m_count, m_interval, m_peerAddress, m_peerPort, m_txTrace, ns3::MakeAddressAccessor(), ns3::MakeAddressChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::Seconds(), SetDataSize(), and ns3::TypeId::SetParent().

Referenced by ns3::UdpEchoClientHelper::UdpEchoClientHelper().

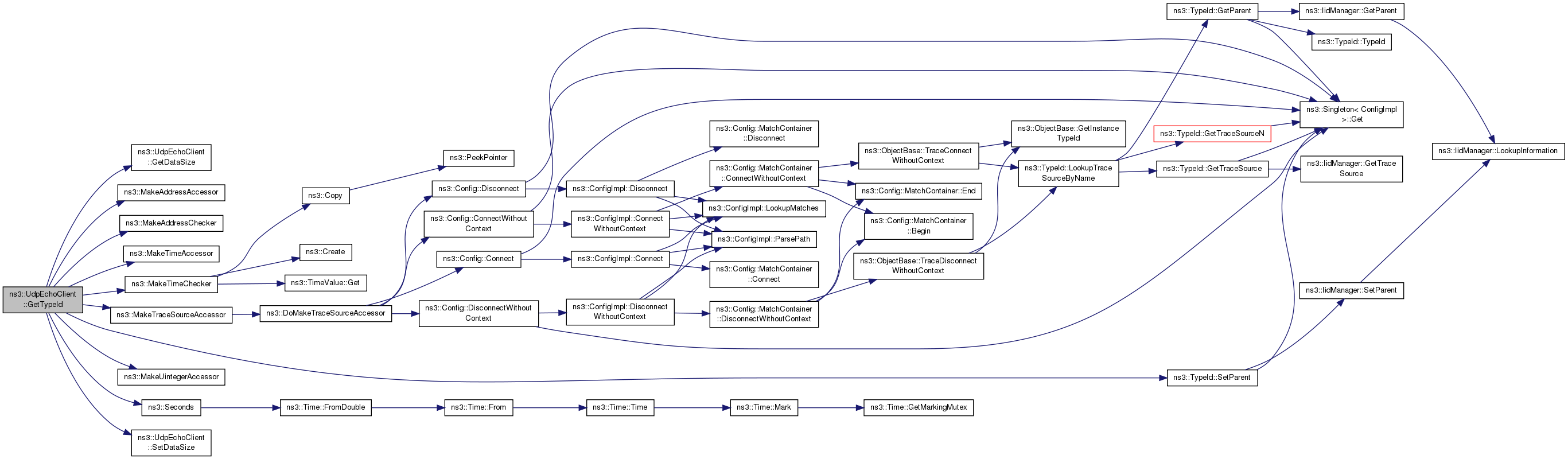

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UdpEchoClient::HandleRead ( Ptr< Socket > socket )

private

Handle a packet reception.

This function is called by lower layers.

Parameters

socket the socket the packet was received to.

Definition at line 335 of file udp-echo-client.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::Inet6SocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), ns3::Inet6SocketAddress::GetIpv6(), ns3::InetSocketAddress::GetPort(), ns3::Inet6SocketAddress::GetPort(), ns3::Packet::GetSize(), ns3::InetSocketAddress::IsMatchingType(), ns3::Inet6SocketAddress::IsMatchingType(), ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::Socket::RecvFrom().

Referenced by StartApplication().

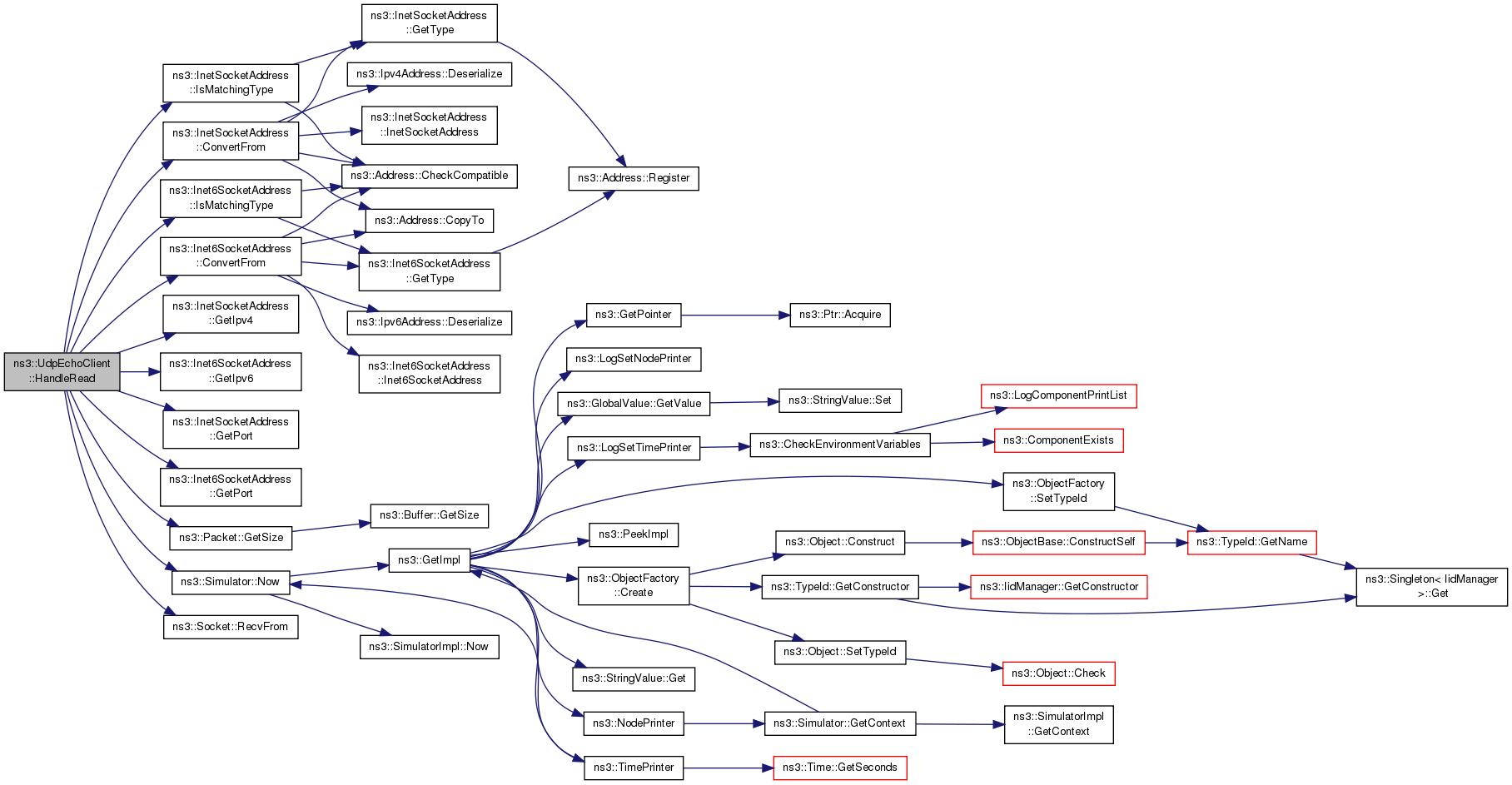

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UdpEchoClient::ScheduleTransmit ( Time dt )

private

Schedule the next packet transmission.

Parameters

dt	time interval between packets.

Definition at line 273 of file udp-echo-client.cc.

References m_sendEvent, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and Send().

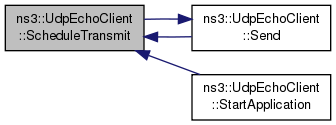

Referenced by Send(), and StartApplication().

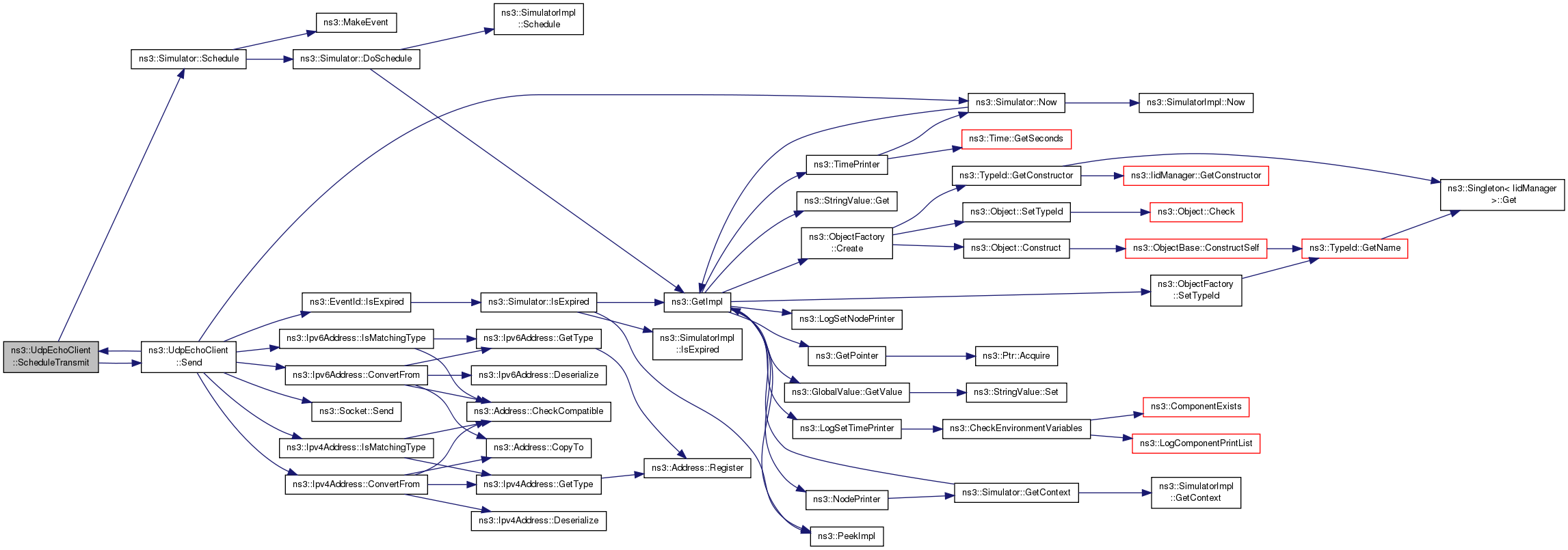

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UdpEchoClient::Send ( void )

private

Send a packet.

Definition at line 280 of file udp-echo-client.cc.

References ns3::Ipv4Address::ConvertFrom(), ns3::Ipv6Address::ConvertFrom(), ns3::EventId::IsExpired(), ns3::Ipv4Address::IsMatchingType(), ns3::Ipv6Address::IsMatchingType(), m_count, m_data, m_dataSize, m_interval, m_peerAddress, m_peerPort, m_sendEvent, m_sent, m_size, m_socket, m_txTrace, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, ScheduleTransmit(), and ns3::Socket::Send().

Referenced by ScheduleTransmit().

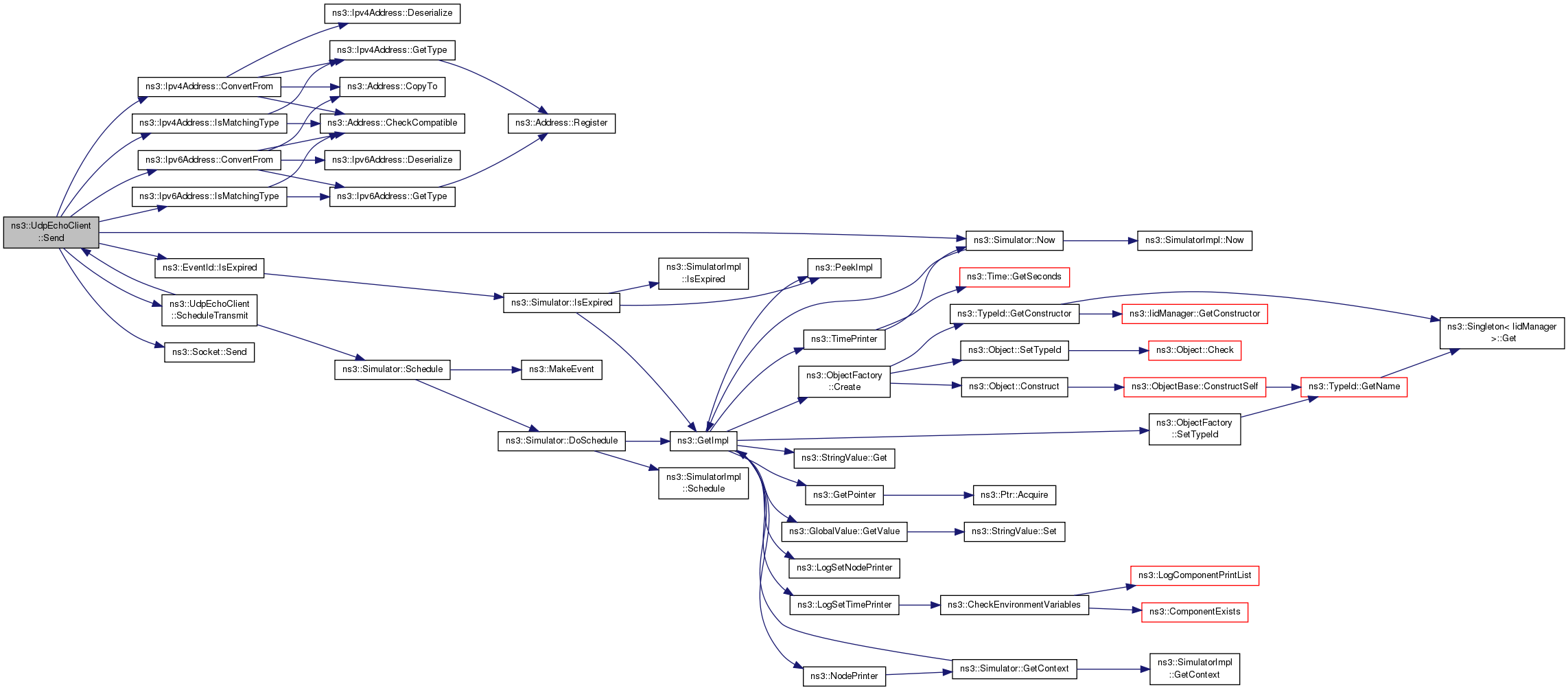

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UdpEchoClient::SetDataSize ( uint32_t dataSize )

Set the data size of the packet (the number of bytes that are sent as data to the server).

The contents of the data are set to unspecified (don't care) by this call.

Warning: If you have set the fill data for the echo client using one of the SetFill calls, this will undo those effects.

Parameters

dataSize The size of the echo data you want to sent.

Definition at line 170 of file udp-echo-client.cc.

References m_data, m_dataSize, m_size, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::UdpEchoClient::SetFill ( std::string fill )

Set the data fill of the packet (what is sent as data to the server) to the zero-terminated contents of the fill string string.

Warning: The size of resulting echo packets will be automatically adjusted to reflect the size of the fill string – this means that the PacketSize attribute may be changed as a result of this call.

Parameters

fill	The string to use as the actual echo data bytes.

Definition at line 193 of file udp-echo-client.cc.

References m_data, m_dataSize, m_size, and NS_LOG_FUNCTION.

void ns3::UdpEchoClient::SetFill	(	uint8_t	fill,
		uint32_t	dataSize
	)

Set the data fill of the packet (what is sent as data to the server) to the repeated contents of the fill byte.

i.e., the fill byte will be used to initialize the contents of the data packet.

Warning: The size of resulting echo packets will be automatically adjusted to reflect the dataSize parameter – this means that the PacketSize attribute may be changed as a result of this call.

Parameters

fill	The byte to be repeated in constructing the packet data..
dataSize	The desired size of the resulting echo packet data.

Definition at line 215 of file udp-echo-client.cc.

References m_data, m_dataSize, m_size, and NS_LOG_FUNCTION.

void ns3::UdpEchoClient::SetFill	(	uint8_t *	fill,
		uint32_t	fillSize,
		uint32_t	dataSize
	)

Set the data fill of the packet (what is sent as data to the server) to the contents of the fill buffer, repeated as many times as is required.

Initializing the packet to the contents of a provided single buffer is accomplished by setting the fillSize set to your desired dataSize (and providing an appropriate buffer).

Warning: The size of resulting echo packets will be automatically adjusted to reflect the dataSize parameter – this means that the PacketSize attribute of the Application may be changed as a result of this call.

Parameters

fill	The fill pattern to use when constructing packets.
fillSize	The number of bytes in the provided fill pattern.
dataSize	The desired size of the final echo data.

Definition at line 234 of file udp-echo-client.cc.

References m_data, m_dataSize, m_size, and NS_LOG_FUNCTION.
