represent a single transmission modeA WifiMode is implemented by a single integer which is used to lookup in a global array the characteristics of the associated transmission mode. More...

#include "wifi-mode.h"

Public Member Functions
	WifiMode ()
	Create an invalid WifiMode. More...

	WifiMode (std::string name)
	Create a WifiMode if the given string represents a valid WifiMode name. More...

enum WifiCodeRate	GetCodeRate (uint8_t nss) const

uint16_t	GetConstellationSize (uint8_t nss) const

uint64_t	GetDataRate (uint32_t channelWidth, bool isShortGuardInterval, uint8_t nss) const

uint8_t	GetMcsValue (void) const

enum WifiModulationClass	GetModulationClass () const

uint64_t	GetPhyRate (uint32_t channelWidth, bool isShortGuardInterval, uint8_t nss) const

uint32_t	GetUid (void) const

std::string	GetUniqueName (void) const

bool	IsMandatory (void) const

Private Member Functions
	WifiMode (uint32_t uid)
	Create a WifiMode from a given unique ID. More...

Private Attributes
uint32_t	m_uid

Friends
class	WifiModeFactory

Detailed Description

represent a single transmission mode

A WifiMode is implemented by a single integer which is used to lookup in a global array the characteristics of the associated transmission mode.

It is thus extremely cheap to keep a WifiMode variable around.

See also: WifiMode Attribute

Definition at line 97 of file wifi-mode.h.

Constructor & Destructor Documentation

ns3::WifiMode::WifiMode ( )

Create an invalid WifiMode.

Calling any method on the instance created will trigger an assert. This is useful to separate the declaration of a WifiMode variable from its initialization.

Definition at line 381 of file wifi-mode.cc.

ns3::WifiMode::WifiMode ( std::string name )

Create a WifiMode if the given string represents a valid WifiMode name.

Parameters

name	std::string of a valid WifiMode name

Definition at line 391 of file wifi-mode.cc.

References ns3::WifiModeFactory::GetFactory(), and ns3::WifiModeFactory::Search().

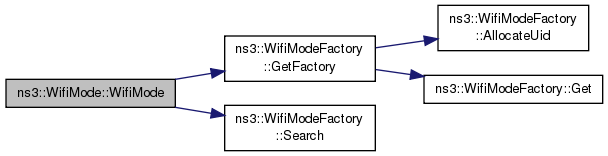

Here is the call graph for this function:

ns3::WifiMode::WifiMode ( uint32_t uid )

private

Create a WifiMode from a given unique ID.

Parameters

uid unique ID

Definition at line 386 of file wifi-mode.cc.

Member Function Documentation

enum WifiCodeRate ns3::WifiMode::GetCodeRate ( uint8_t nss ) const

Parameters

nss	the considered number of streams

Returns: the coding rate of this transmission mode

Definition at line 227 of file wifi-mode.cc.

References ns3::WifiModeFactory::WifiModeItem::codingRate, ns3::WifiModeFactory::Get(), ns3::WifiModeFactory::GetFactory(), m_uid, ns3::WifiModeFactory::WifiModeItem::mcsValue, ns3::WifiModeFactory::WifiModeItem::modClass, NS_ASSERT, ns3::WIFI_CODE_RATE_1_2, ns3::WIFI_CODE_RATE_2_3, ns3::WIFI_CODE_RATE_3_4, ns3::WIFI_CODE_RATE_5_6, ns3::WIFI_CODE_RATE_UNDEFINED, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::NistErrorRateModel::GetChunkSuccessRate(), ns3::YansErrorRateModel::GetChunkSuccessRate(), GetDataRate(), and GetPhyRate().

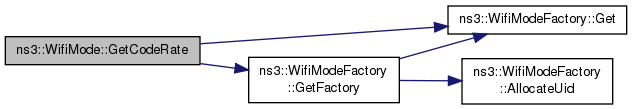

Here is the call graph for this function:

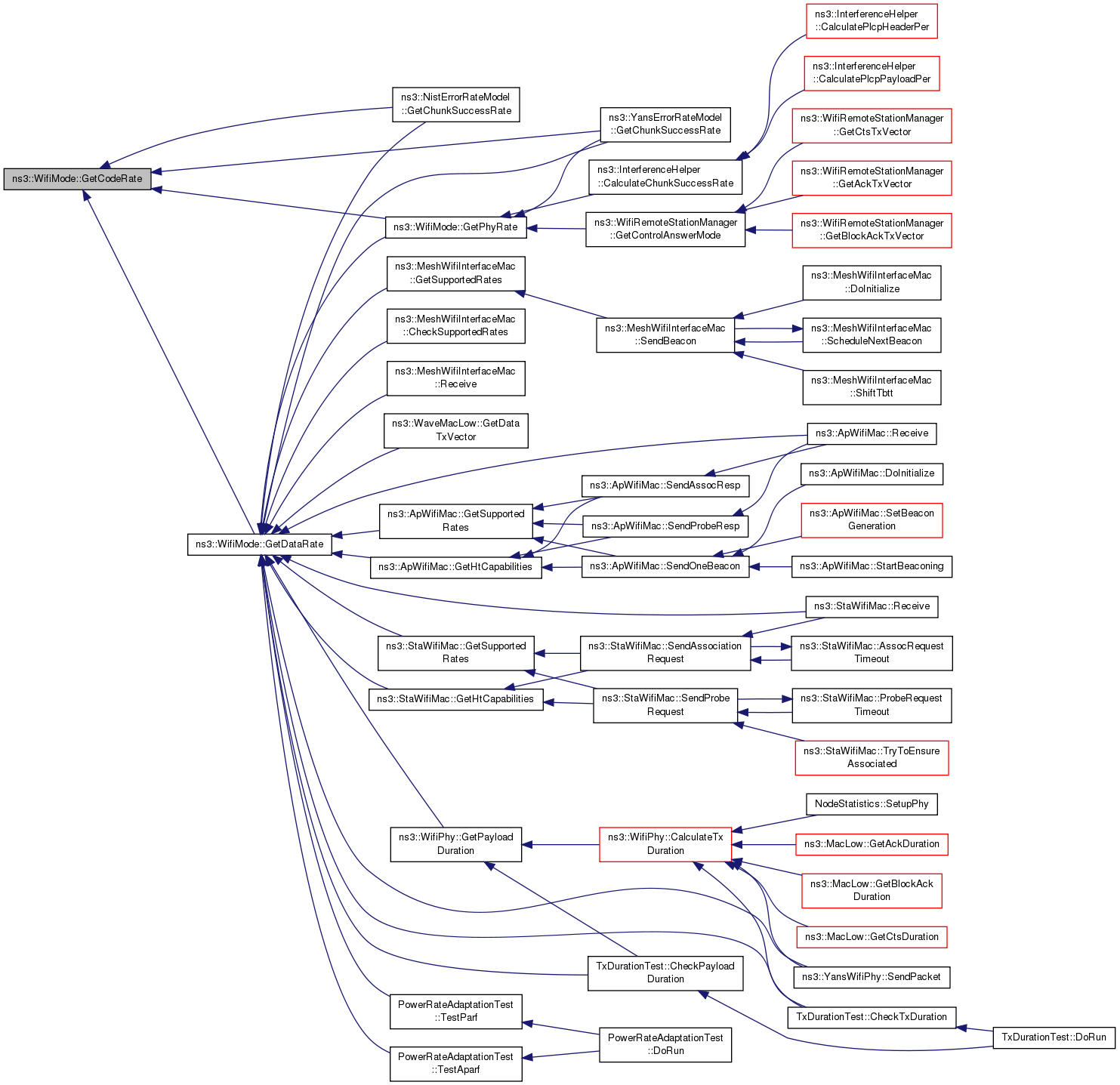

Here is the caller graph for this function:

uint16_t ns3::WifiMode::GetConstellationSize ( uint8_t nss ) const

Parameters

nss	the considered number of streams

Returns: the size of the modulation constellation.

Definition at line 282 of file wifi-mode.cc.

References ns3::WifiModeFactory::WifiModeItem::constellationSize, ns3::WifiModeFactory::Get(), ns3::WifiModeFactory::GetFactory(), m_uid, ns3::WifiModeFactory::WifiModeItem::mcsValue, ns3::WifiModeFactory::WifiModeItem::modClass, NS_ASSERT, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::NistErrorRateModel::GetChunkSuccessRate(), ns3::YansErrorRateModel::GetChunkSuccessRate(), and GetDataRate().

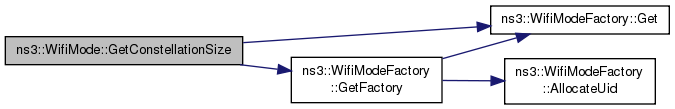

Here is the call graph for this function:

Here is the caller graph for this function:

uint64_t ns3::WifiMode::GetDataRate	(	uint32_t	channelWidth,
		bool	isShortGuardInterval,
		uint8_t	nss
	)		const

Parameters

channelWidth	the considered channel width in MHz
isShortGuardInterval	whether short guard interval is considered or not
nss	the considered number of streams

Returns: the data bit rate of this signal.

Definition at line 100 of file wifi-mode.cc.

References ns3::WifiModeFactory::Get(), GetCodeRate(), GetConstellationSize(), ns3::WifiModeFactory::GetFactory(), m_uid, ns3::WifiModeFactory::WifiModeItem::mcsValue, ns3::WifiModeFactory::WifiModeItem::modClass, NS_ASSERT, NS_FATAL_ERROR, ns3::WIFI_CODE_RATE_1_2, ns3::WIFI_CODE_RATE_2_3, ns3::WIFI_CODE_RATE_3_4, ns3::WIFI_CODE_RATE_5_6, ns3::WIFI_CODE_RATE_UNDEFINED, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HR_DSSS, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by TxDurationTest::CheckPayloadDuration(), ns3::MeshWifiInterfaceMac::CheckSupportedRates(), TxDurationTest::CheckTxDuration(), ns3::NistErrorRateModel::GetChunkSuccessRate(), ns3::YansErrorRateModel::GetChunkSuccessRate(), ns3::WaveMacLow::GetDataTxVector(), ns3::StaWifiMac::GetHtCapabilities(), ns3::ApWifiMac::GetHtCapabilities(), ns3::WifiPhy::GetPayloadDuration(), GetPhyRate(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::YansWifiPhy::SendPacket(), PowerRateAdaptationTest::TestAparf(), and PowerRateAdaptationTest::TestParf().

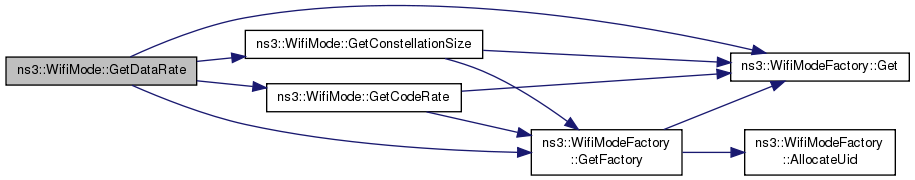

Here is the call graph for this function:

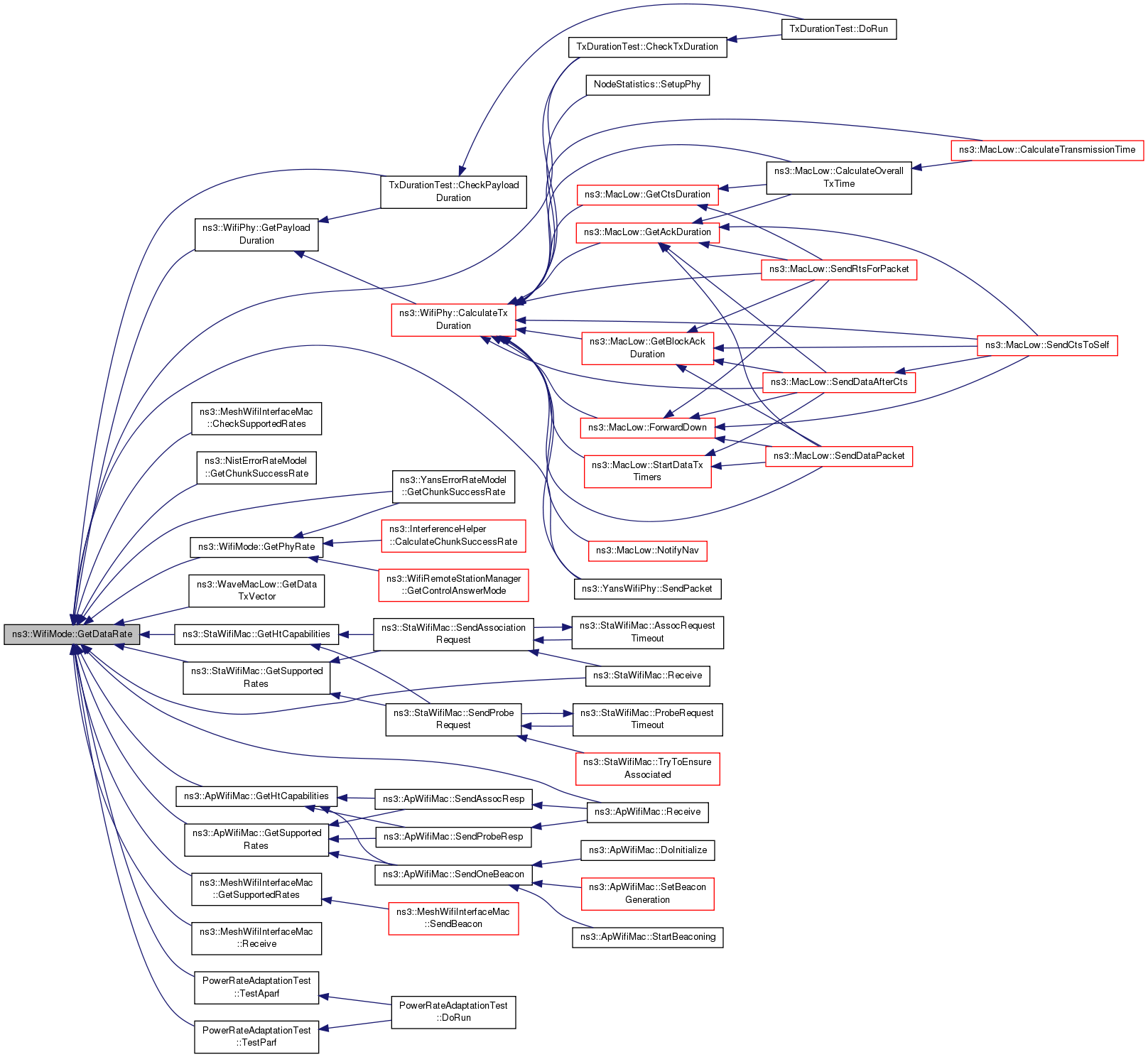

Here is the caller graph for this function:

uint8_t ns3::WifiMode::GetMcsValue ( void ) const

Returns: the MCS value.

Definition at line 353 of file wifi-mode.cc.

References ns3::WifiModeFactory::Get(), ns3::WifiModeFactory::GetFactory(), m_uid, ns3::WifiModeFactory::WifiModeItem::mcsValue, ns3::WifiModeFactory::WifiModeItem::modClass, NS_ASSERT, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::WifiRemoteStationManager::AddBasicMcs(), ns3::StaWifiMac::GetHtCapabilities(), ns3::ApWifiMac::GetHtCapabilities(), ns3::StaWifiMac::GetVhtCapabilities(), ns3::ApWifiMac::GetVhtCapabilities(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), and ns3::YansWifiPhy::SendPacket().

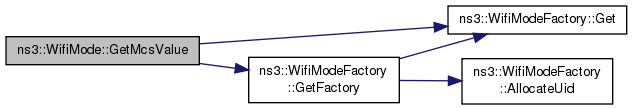

Here is the call graph for this function:

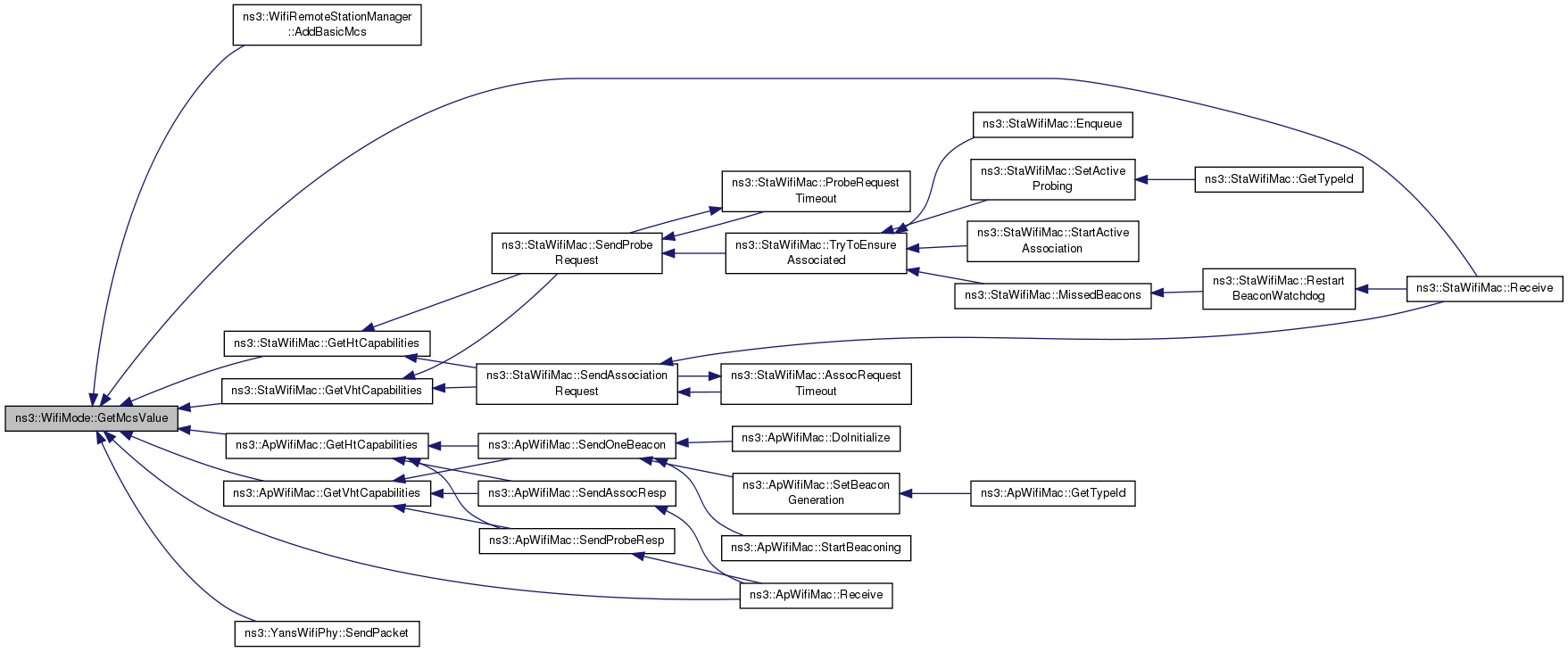

Here is the caller graph for this function:

enum WifiModulationClass ns3::WifiMode::GetModulationClass ( ) const

Returns: the Modulation Class (Section 9.7.8 "Modulation classes"; IEEE 802.11-2012) to which this WifiMode belongs.

Definition at line 375 of file wifi-mode.cc.

References ns3::WifiModeFactory::Get(), ns3::WifiModeFactory::GetFactory(), m_uid, and ns3::WifiModeFactory::WifiModeItem::modClass.

Referenced by ns3::WifiRemoteStationManager::AddBasicMode(), ns3::MacLow::AggregateToAmpdu(), ns3::MacLow::CalculateOverallTxTime(), ns3::MacLow::CalculateTransmissionTime(), TxDurationTest::CheckPayloadDuration(), TxDurationTest::CheckTxDuration(), ns3::MacLow::GetAckDuration(), ns3::MacLow::GetBlockAckDuration(), ns3::NistErrorRateModel::GetChunkSuccessRate(), ns3::YansErrorRateModel::GetChunkSuccessRate(), ns3::WifiRemoteStationManager::GetControlAnswerMode(), ns3::MacLow::GetCtsDuration(), ns3::WifiPhy::GetPayloadDuration(), ns3::WifiPhy::GetPlcpHeaderDuration(), ns3::WifiPhy::GetPlcpHeaderMode(), ns3::WifiPhy::GetPlcpPreambleDuration(), ns3::ApWifiMac::GetSupportedRates(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), ns3::YansWifiPhy::SendPacket(), ns3::MacLow::StartDataTxTimers(), and ns3::MacLow::StopMpduAggregation().

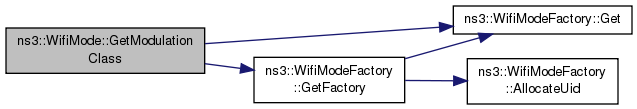

Here is the call graph for this function:

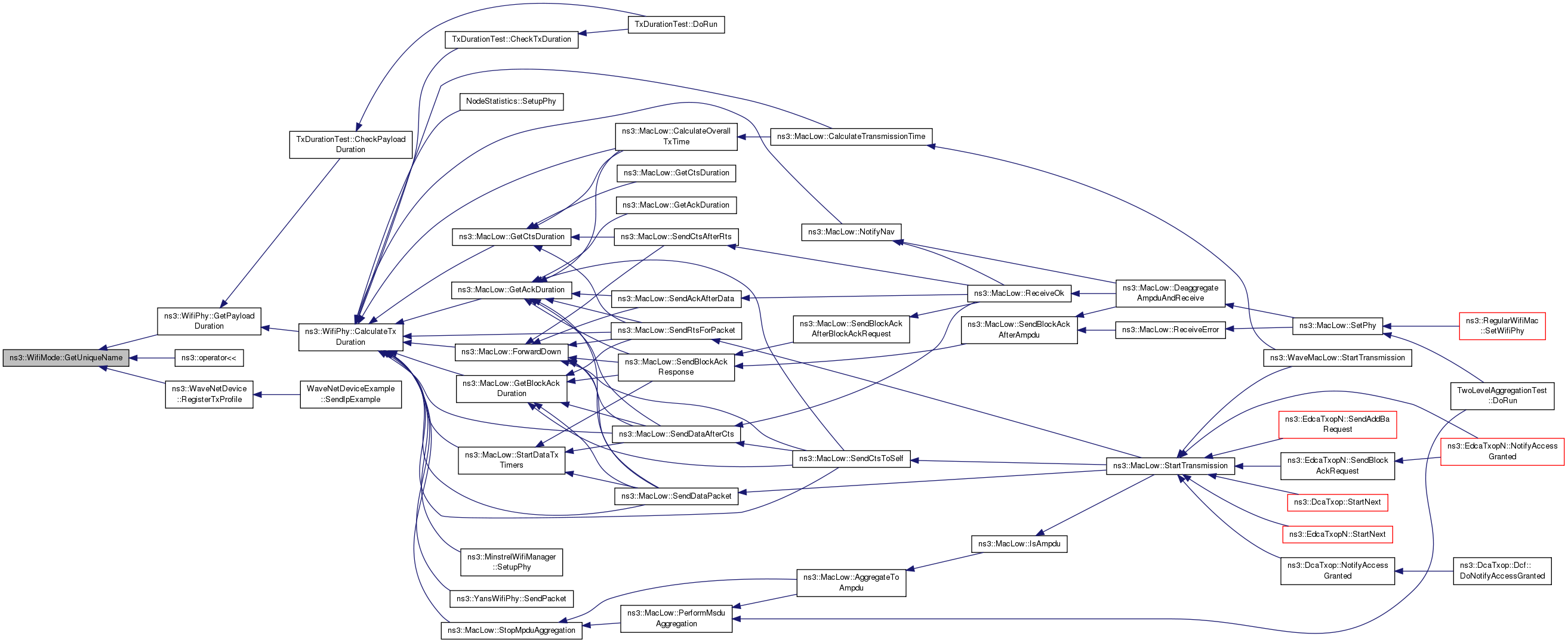

Here is the caller graph for this function:

uint64_t ns3::WifiMode::GetPhyRate	(	uint32_t	channelWidth,
		bool	isShortGuardInterval,
		uint8_t	nss
	)		const

Parameters

channelWidth	the considered channel width in MHz
isShortGuardInterval	whether short guard interval is considered or not
nss	the considered number of streams
