ns3::YansWifiPhyHelper Class Reference

Make it easy to create and manage PHY objects for the yans model. More...

#include "yans-wifi-helper.h"

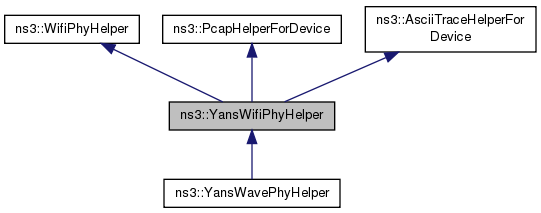

Inheritance diagram for ns3::YansWifiPhyHelper:

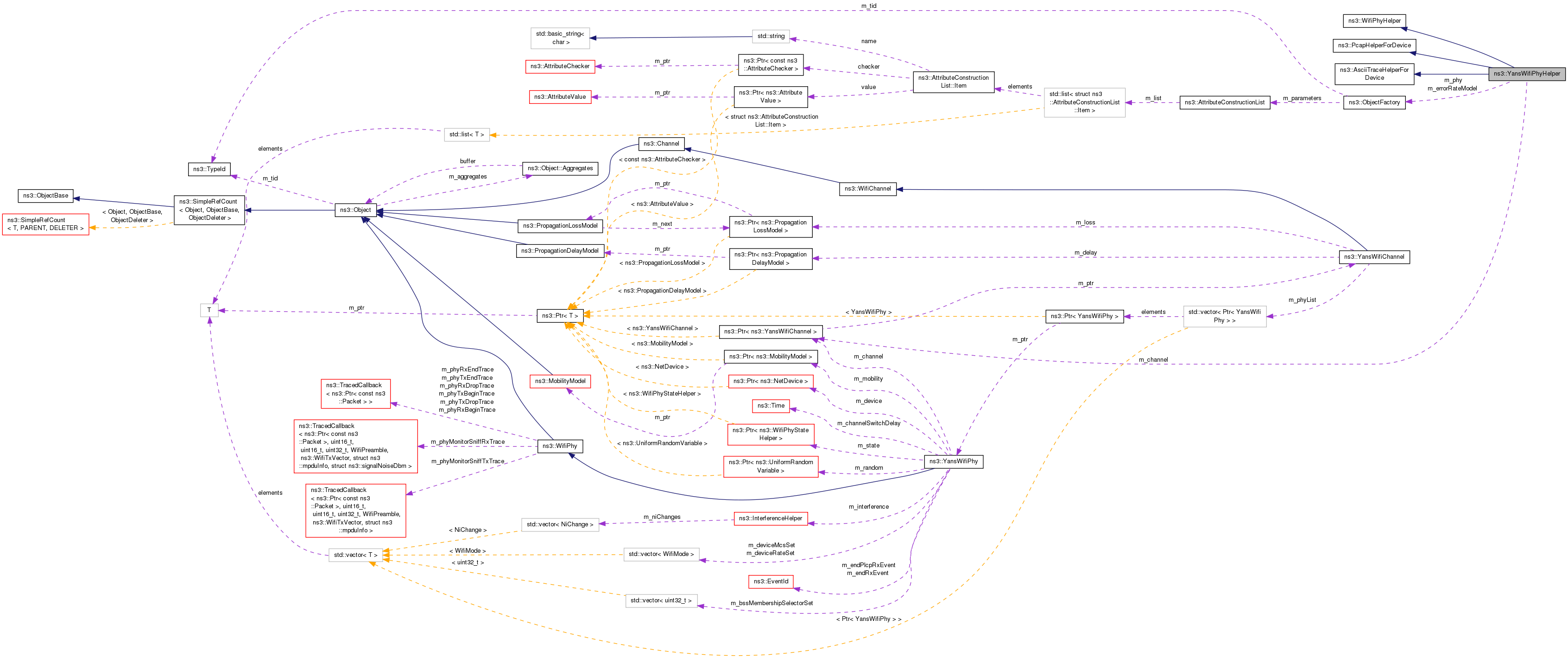

Collaboration diagram for ns3::YansWifiPhyHelper:

Public Types
enum	SupportedPcapDataLinkTypes { DLT_IEEE802_11 = PcapHelper::DLT_IEEE802_11, DLT_PRISM_HEADER = PcapHelper::DLT_PRISM_HEADER, DLT_IEEE802_11_RADIO = PcapHelper::DLT_IEEE802_11_RADIO }
	An enumeration of the pcap data link types (DLTs) which this helper supports. More...

Public Member Functions
	YansWifiPhyHelper ()
	Create a phy helper without any parameter set. More...
uint32_t	GetPcapDataLinkType (void) const
	Get the data link type of PCAP traces to be used. More...
void	Set (std::string name, const AttributeValue &v)
void	SetChannel (Ptr< YansWifiChannel > channel)
void	SetChannel (std::string channelName)
void	SetErrorRateModel (std::string name, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

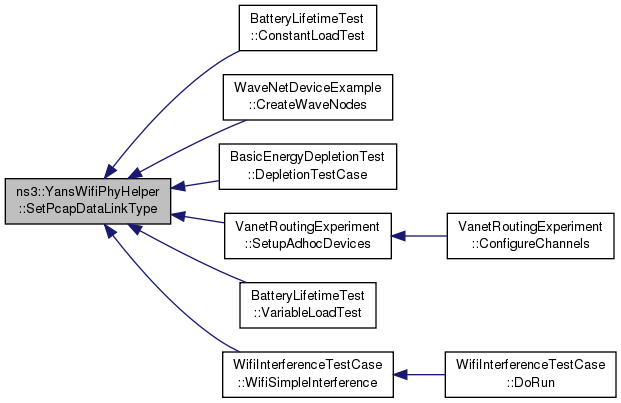

void	SetPcapDataLinkType (enum SupportedPcapDataLinkTypes dlt)
	Set the data link type of PCAP traces to be used. More...
Public Member Functions inherited from ns3::WifiPhyHelper
virtual	~WifiPhyHelper ()
Public Member Functions inherited from ns3::PcapHelperForDevice
	PcapHelperForDevice ()
	Construct a PcapHelperForDevice. More...
virtual	~PcapHelperForDevice ()
	Destroy a PcapHelperForDevice. More...
void	EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device. More...
void	EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device using a device previously named using the ns-3 object name service. More...
void	EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
	Enable pcap output on each device in the container which is of the appropriate type. More...
void	EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container. More...
void	EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
	Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id. More...
void	EnablePcapAll (std::string prefix, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...
Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
	AsciiTraceHelperForDevice ()
	Construct an AsciiTraceHelperForDevice. More...
virtual	~AsciiTraceHelperForDevice ()
	Destroy an AsciiTraceHelperForDevice. More...
void	EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
	Enable ascii trace output on the indicated net device. More...
void	EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
	Enable ascii trace output on the indicated net device. More...
void	EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...
void	EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...
void	EnableAscii (std::string prefix, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...
void	EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...
void	EnableAscii (std::string prefix, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...
void	EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...
void	EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...
void	EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...
void	EnableAsciiAll (std::string prefix)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...
void	EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Static Public Member Functions
static YansWifiPhyHelper	Default (void)
	Create a phy helper in a default working state. More...

Private Member Functions
virtual Ptr< WifiPhy >	Create (Ptr< Node > node, Ptr< NetDevice > device) const
virtual void	EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename)
	Enable ascii trace output on the indicated net device. More...
virtual void	EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename)
	Enable pcap output the indicated net device. More...

Private Attributes
Ptr< YansWifiChannel >	m_channel
ObjectFactory	m_errorRateModel
uint32_t	m_pcapDlt
ObjectFactory	m_phy

Detailed Description

Make it easy to create and manage PHY objects for the yans model.

The yans PHY model is described in "Yet Another Network Simulator", http://cutebugs.net/files/wns2-yans.pdf

The Pcap and ascii traces generated by the EnableAscii and EnablePcap methods defined in this class correspond to PHY-level traces and come to us via WifiPhyHelper

Definition at line 160 of file yans-wifi-helper.h.

Member Enumeration Documentation

enum ns3::YansWifiPhyHelper::SupportedPcapDataLinkTypes

An enumeration of the pcap data link types (DLTs) which this helper supports.

See http://wiki.wireshark.org/Development/LibpcapFileFormat for more information on these formats.

Enumerator
DLT_IEEE802_11	IEEE 802.11 Wireless LAN headers on packets.
DLT_PRISM_HEADER	Include Prism monitor mode information.
DLT_IEEE802_11_RADIO	Include Radiotap link layer information.

Definition at line 231 of file yans-wifi-helper.h.

Constructor & Destructor Documentation

ns3::YansWifiPhyHelper::YansWifiPhyHelper

(

)

Create a phy helper without any parameter set.

The user must set them all to be able to call Install later.

Definition at line 183 of file yans-wifi-helper.cc.

References m_phy, and ns3::ObjectFactory::SetTypeId().

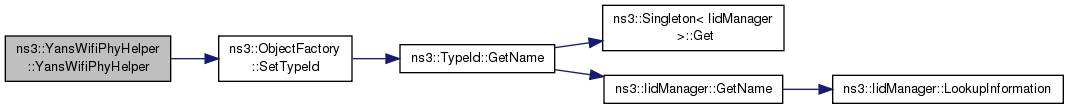

Here is the call graph for this function:

Member Function Documentation

Ptr< WifiPhy > ns3::YansWifiPhyHelper::Create ( Ptr< Node >  node, Ptr< NetDevice >  device  ) const

privatevirtual

Parameters

node	the node on which we wish to create a wifi PHY
device	the device within which this PHY will be created

Returns

a newly-created PHY object.

This method implements the pure virtual method defined in ns3::WifiPhyHelper.

Implements ns3::WifiPhyHelper.

Definition at line 241 of file yans-wifi-helper.cc.

References ns3::ObjectFactory::Create(), m_channel, m_errorRateModel, m_phy, third::phy, ns3::YansWifiPhy::SetChannel(), ns3::YansWifiPhy::SetDevice(), and ns3::YansWifiPhy::SetErrorRateModel().

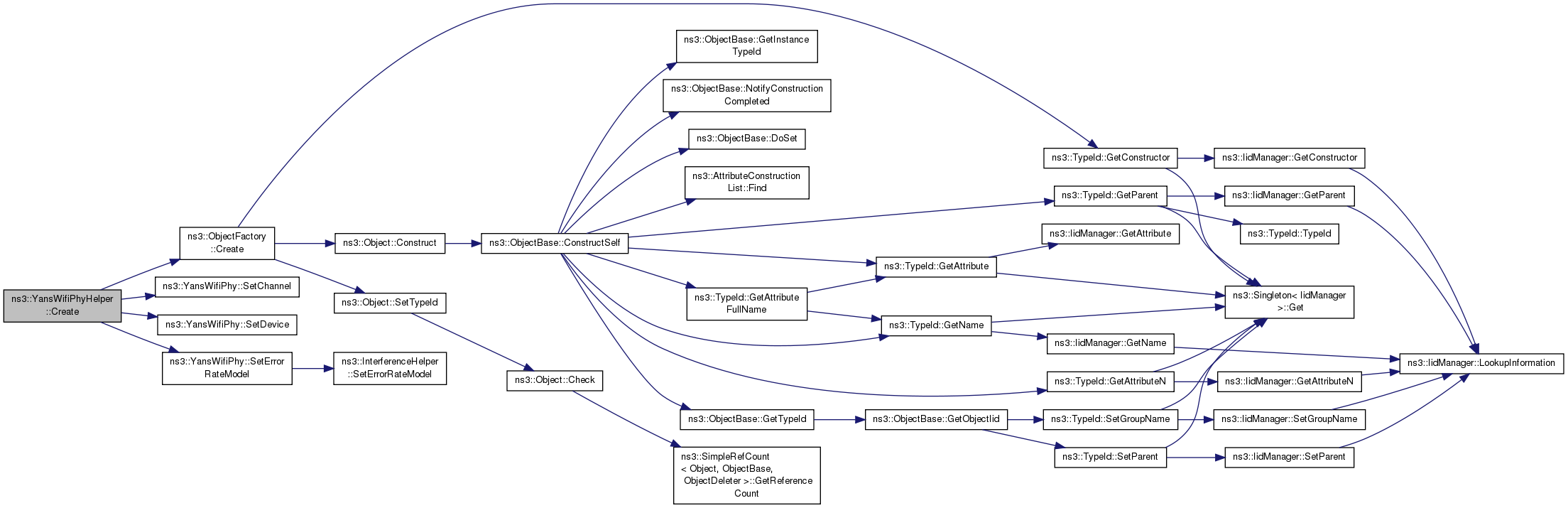

Here is the call graph for this function:

YansWifiPhyHelper ns3::YansWifiPhyHelper::Default ( void  )

static

Create a phy helper in a default working state.

Definition at line 191 of file yans-wifi-helper.cc.

References SetErrorRateModel().

Referenced by BatteryLifetimeTest::ConstantLoadTest(), BasicEnergyDepletionTest::DepletionTestCase(), ns3::aodv::LoopbackTestCase::DoRun(), experiment(), and BatteryLifetimeTest::VariableLoadTest().

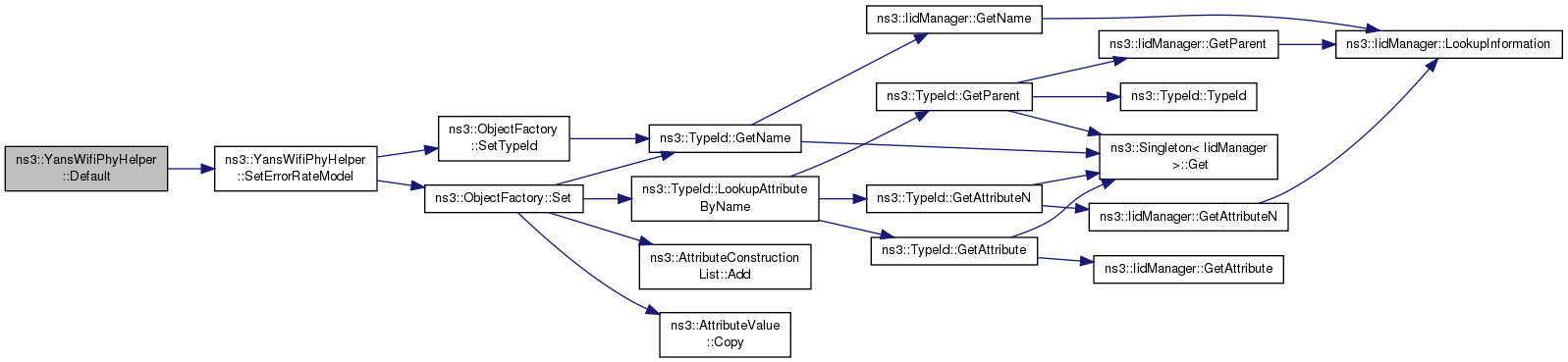

Here is the call graph for this function:

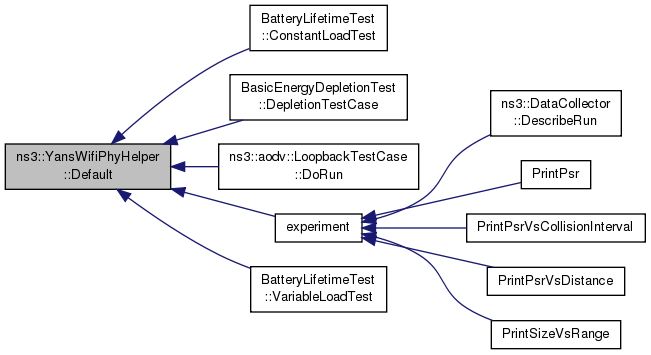

Here is the caller graph for this function:

void ns3::YansWifiPhyHelper::EnableAsciiInternal ( Ptr< OutputStreamWrapper >  stream, std::string  prefix, Ptr< NetDevice >  nd, bool  explicitFilename  )

privatevirtual

Enable ascii trace output on the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

stream	The output stream object to use when logging ascii traces.
prefix	Filename prefix to use for ascii trace files.
nd	Net device for which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::AsciiTraceHelperForDevice.

Reimplemented in ns3::YansWavePhyHelper.

Definition at line 701 of file yans-wifi-helper.cc.

References ns3::AsciiPhyReceiveSinkWithContext(), ns3::AsciiPhyReceiveSinkWithoutContext(), ns3::AsciiPhyTransmitSinkWithContext(), ns3::AsciiPhyTransmitSinkWithoutContext(), ns3::Config::Connect(), ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::Packet::EnablePrinting(), ns3::AsciiTraceHelper::GetFilenameFromDevice(), ns3::MakeBoundCallback(), and NS_LOG_INFO.

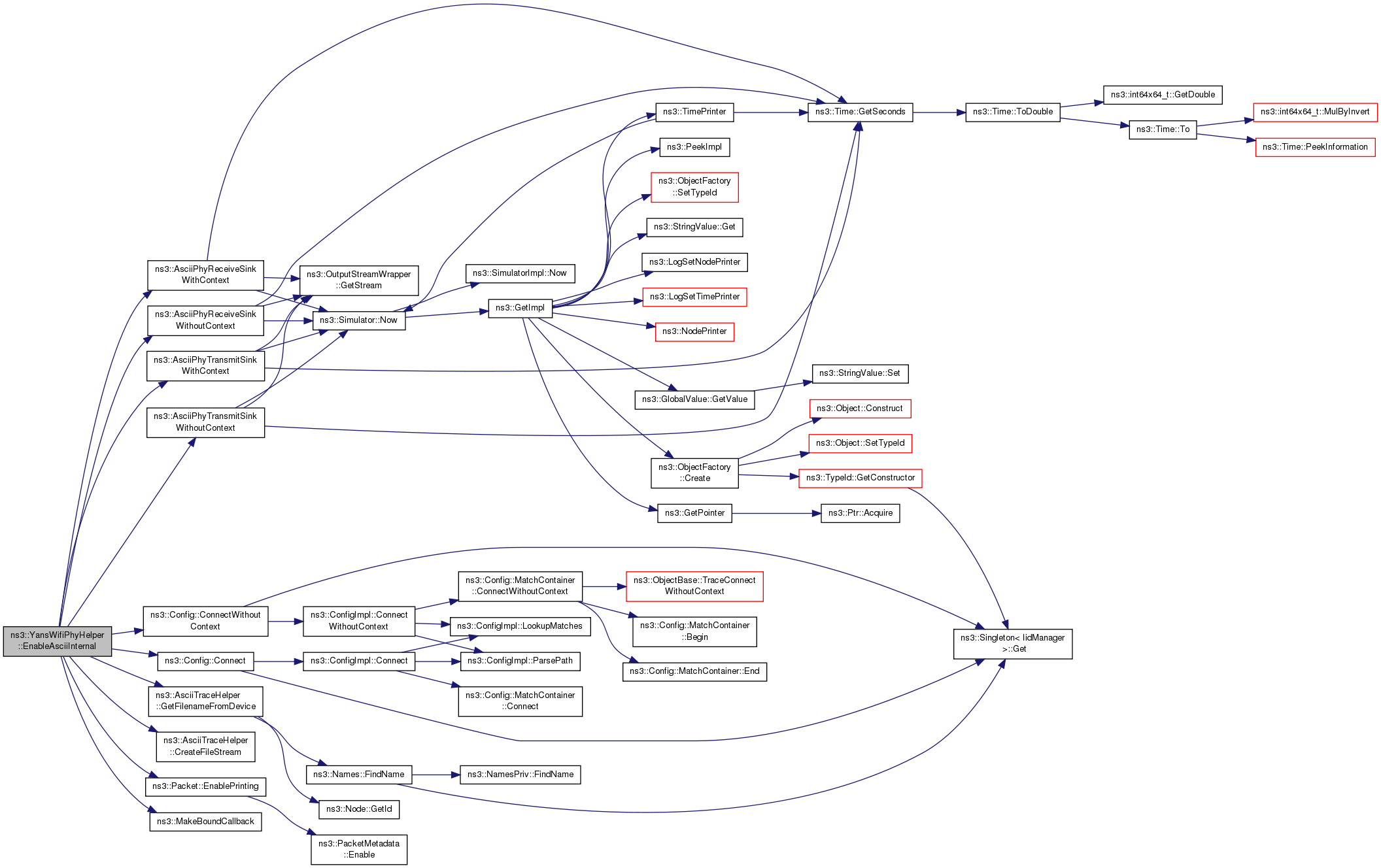

Here is the call graph for this function:

void ns3::YansWifiPhyHelper::EnablePcapInternal ( std::string  prefix, Ptr< NetDevice >  nd, bool  promiscuous, bool  explicitFilename  )

privatevirtual

Enable pcap output the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters

prefix	Filename prefix to use for pcap files.
nd	Net device for which you want to enable tracing.
promiscuous	If true capture all possible packets available at the device.
explicitFilename	Treat the prefix as an explicit filename if true

Implements ns3::PcapHelperForDevice.

Reimplemented in ns3::YansWavePhyHelper.

Definition at line 667 of file yans-wifi-helper.cc.

References ns3::PcapHelper::CreateFile(), ns3::PcapHelper::GetFilenameFromDevice(), m_pcapDlt, ns3::MakeBoundCallback(), NS_ABORT_MSG_IF, NS_LOG_INFO, ns3::PcapSniffRxEvent(), ns3::PcapSniffTxEvent(), third::phy, and ns3::ObjectBase::TraceConnectWithoutContext().

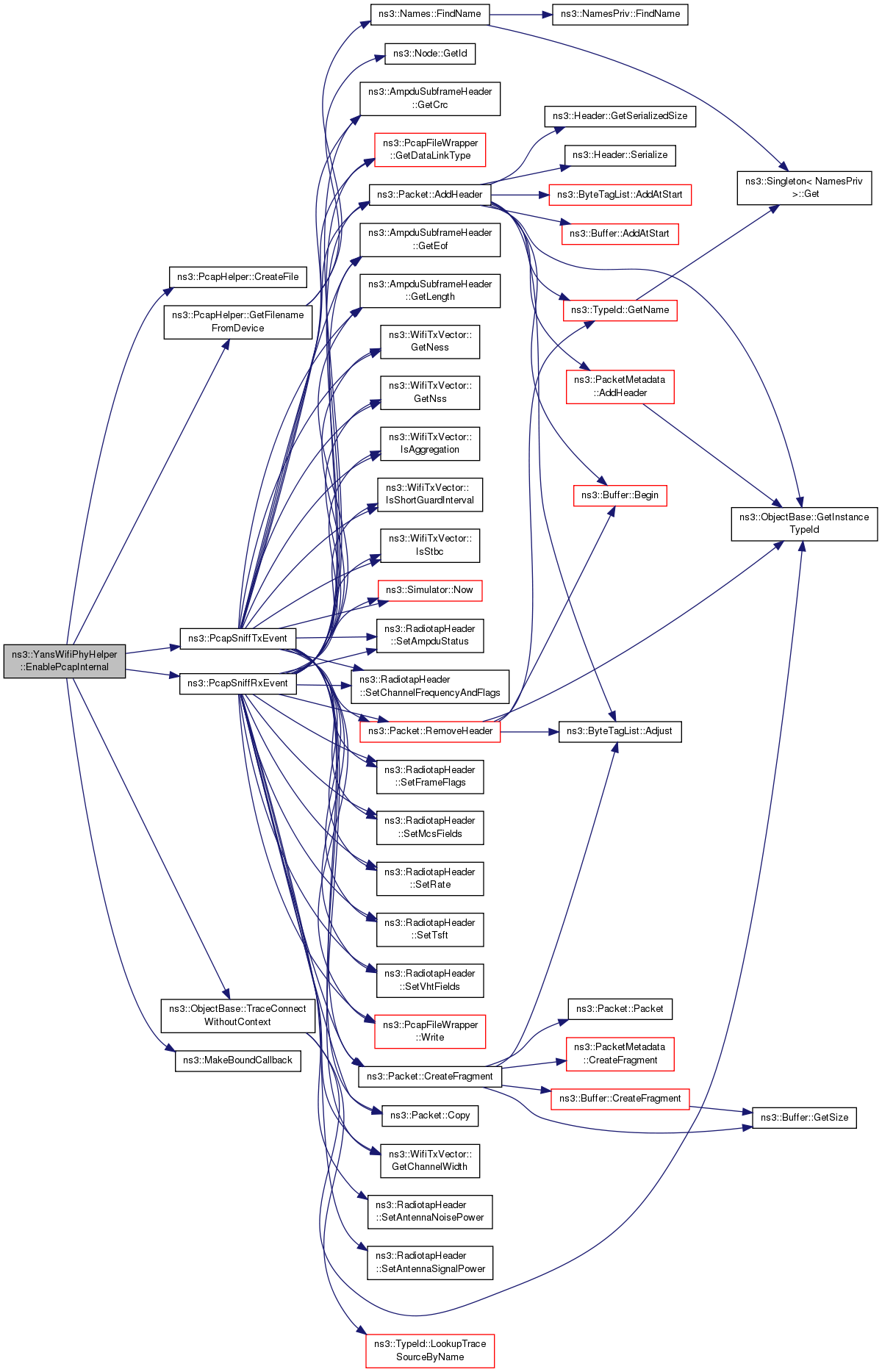

Here is the call graph for this function:

uint32_t ns3::YansWifiPhyHelper::GetPcapDataLinkType

(

void

)

const

Get the data link type of PCAP traces to be used.

See also

SupportedPcapDataLinkTypes

Returns

The data link type of the pcap file (and packets) to be used

Definition at line 661 of file yans-wifi-helper.cc.

References m_pcapDlt.

Referenced by ns3::YansWavePhyHelper::EnablePcapInternal().

Here is the caller graph for this function:

void ns3::YansWifiPhyHelper::Set	(	std::string	name,
		const AttributeValue &	v
	)

Parameters

name	the name of the attribute to set
v	the value of the attribute

Set an attribute of the underlying PHY object.

Definition at line 212 of file yans-wifi-helper.cc.

References m_phy, and ns3::ObjectFactory::Set().

Referenced by BatteryLifetimeTest::ConstantLoadTest(), BasicEnergyDepletionTest::DepletionTestCase(), RoutingExperiment::Run(), VanetRoutingExperiment::SetupAdhocDevices(), BatteryLifetimeTest::VariableLoadTest(), and WifiInterferenceTestCase::WifiSimpleInterference().

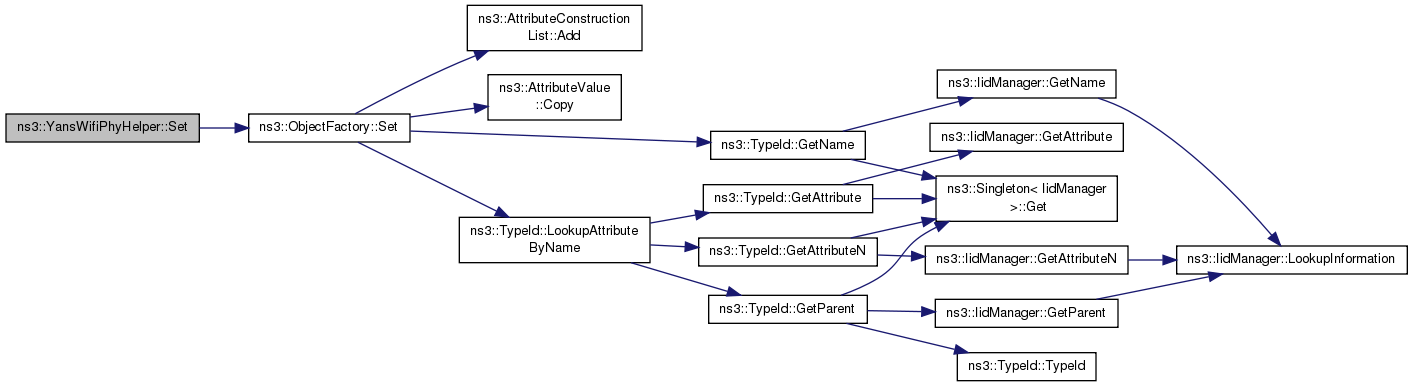

Here is the call graph for this function:

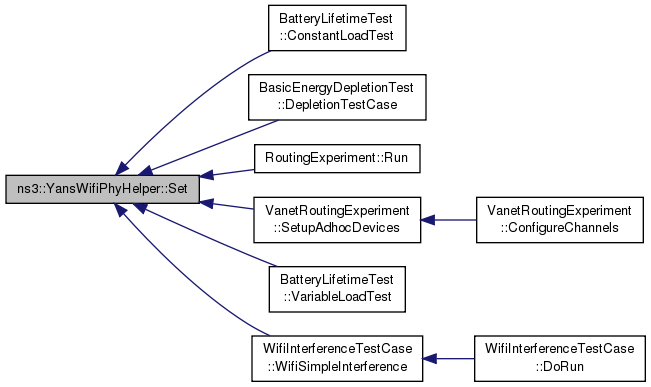

Here is the caller graph for this function:

void ns3::YansWifiPhyHelper::SetChannel

(

Ptr< YansWifiChannel >

channel

)

Parameters

channel

the channel to associate to this helper

Every PHY created by a call to Install is associated to this channel.

Definition at line 199 of file yans-wifi-helper.cc.

References third::channel, and m_channel.

Referenced by OcbWifiMacTestCase::ConfigureAdhocMode(), OcbWifiMacTestCase::ConfigureApStaMode(), OcbWifiMacTestCase::ConfigureOcbMode(), BatteryLifetimeTest::ConstantLoadTest(), PeerManagementProtocolRegressionTest::CreateDevices(), Bug772ChainTest::CreateDevices(), FlameRegressionTest::CreateDevices(), HwmpProactiveRegressionTest::CreateDevices(), AodvExample::CreateDevices(), HwmpDoRfRegressionTest::CreateDevices(), DsdvManetExample::CreateDevices(), HwmpSimplestRegressionTest::CreateDevices(), HwmpReactiveRegressionTest::CreateDevices(), ChainRegressionTest::CreateDevices(), MeshTest::CreateNodes(), WaveNetDeviceExample::CreateWaveNodes(), TestCaseHelper::CreatWaveDevice(), BasicEnergyDepletionTest::DepletionTestCase(), WifiMsduAggregatorThroughputTest::DoRun(), ns3::aodv::LoopbackTestCase::DoRun(), Bug730TestCase::DoRun(), experiment(), Experiment::Run(), RoutingExperiment::Run(), VanetRoutingExperiment::SetupAdhocDevices(), BatteryLifetimeTest::VariableLoadTest(), and WifiInterferenceTestCase::WifiSimpleInterference().

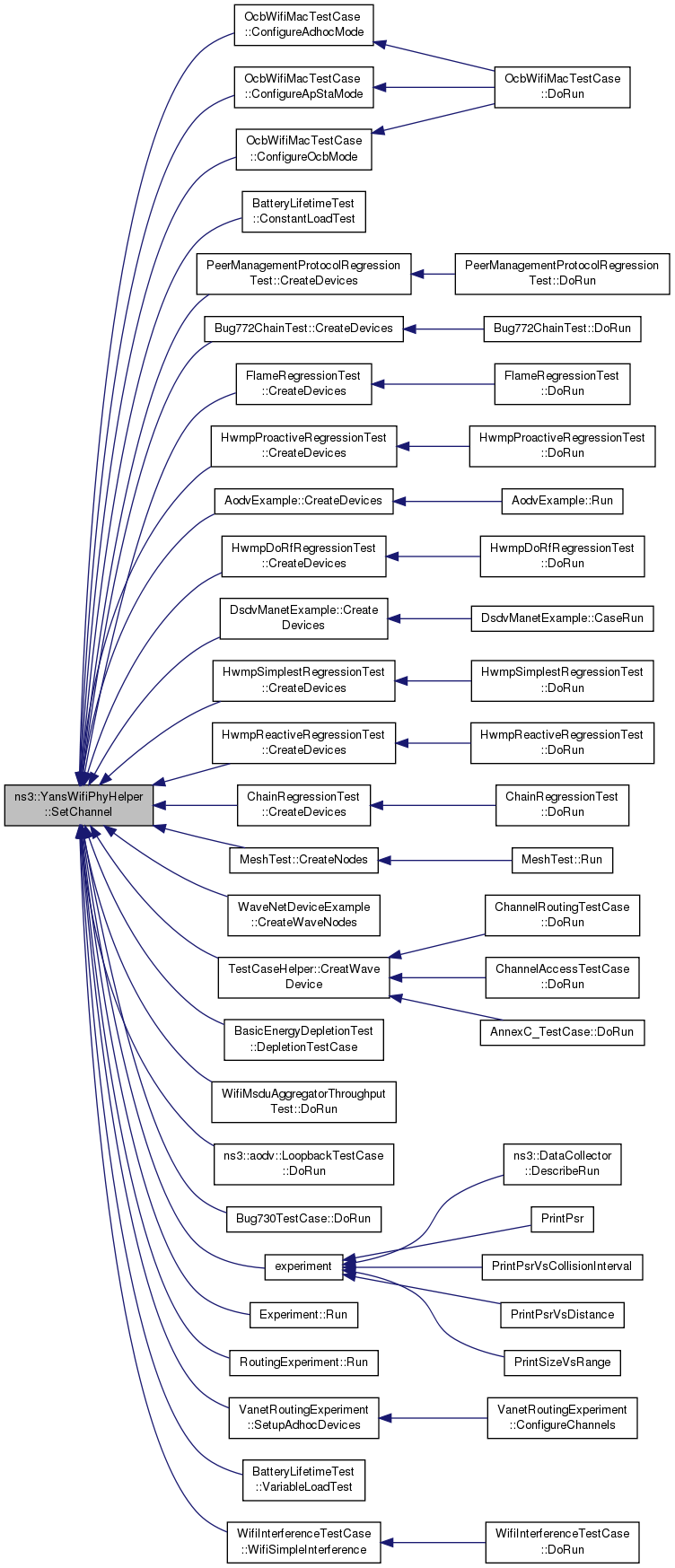

Here is the caller graph for this function:

void ns3::YansWifiPhyHelper::SetChannel

(

std::string

channelName

)

Parameters

channelName

The name of the channel to associate to this helper

Every PHY created by a call to Install is associated to this channel.

Definition at line 205 of file yans-wifi-helper.cc.

References third::channel, and m_channel.

void ns3::YansWifiPhyHelper::SetErrorRateModel	(	std::string	name,
		std::string	n0 = "",
		const AttributeValue &	v0 = EmptyAttributeValue (),
		std::string	n1 = "",
		const AttributeValue &	v1 = EmptyAttributeValue (),
		std::string	n2 = "",
		const AttributeValue &	v2 = EmptyAttributeValue (),
		std::string	n3 = "",
		const AttributeValue &	v3 = EmptyAttributeValue (),
		std::string	n4 = "",
		const AttributeValue &	v4 = EmptyAttributeValue (),
		std::string	n5 = "",
		const AttributeValue &	v5 = EmptyAttributeValue (),
		std::string	n6 = "",
		const AttributeValue &	v6 = EmptyAttributeValue (),
		std::string	n7 = "",
		const AttributeValue &	v7 = EmptyAttributeValue ()
	)

Parameters

name	the name of the error rate model to set.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

Set the error rate model and its attributes to use when Install is called.

Definition at line 218 of file yans-wifi-helper.cc.

References m_errorRateModel, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

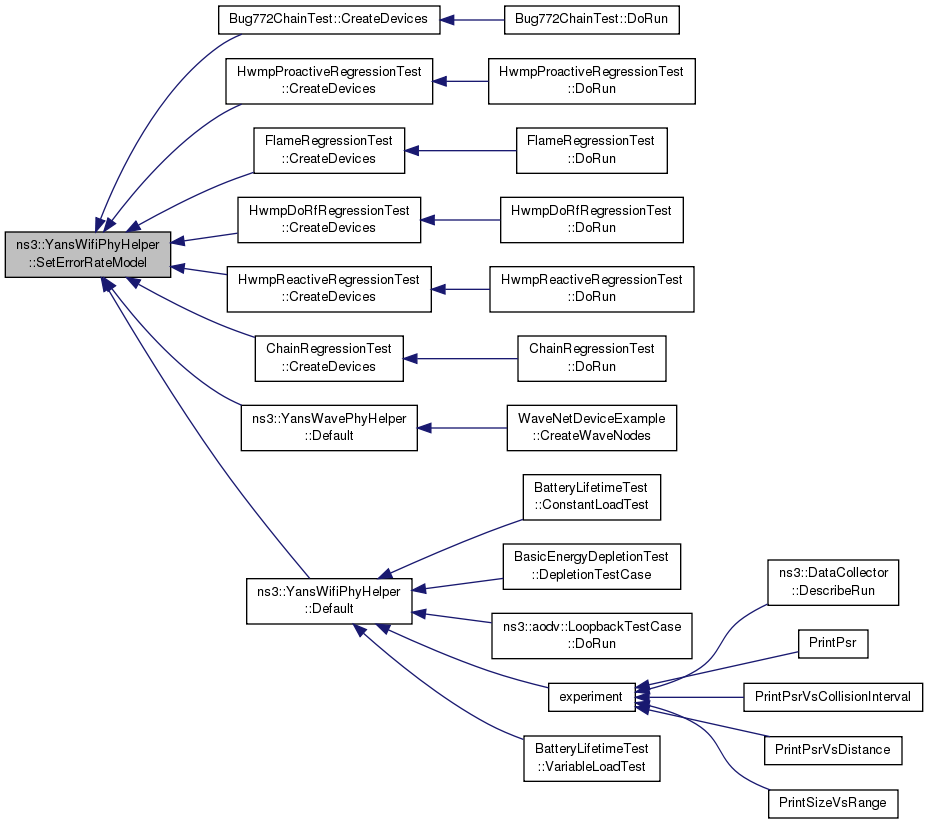

Referenced by Bug772ChainTest::CreateDevices(), HwmpProactiveRegressionTest::CreateDevices(), FlameRegressionTest::CreateDevices(), HwmpDoRfRegressionTest::CreateDevices(), HwmpReactiveRegressionTest::CreateDevices(), ChainRegressionTest::CreateDevices(), ns3::YansWavePhyHelper::Default(), and Default().

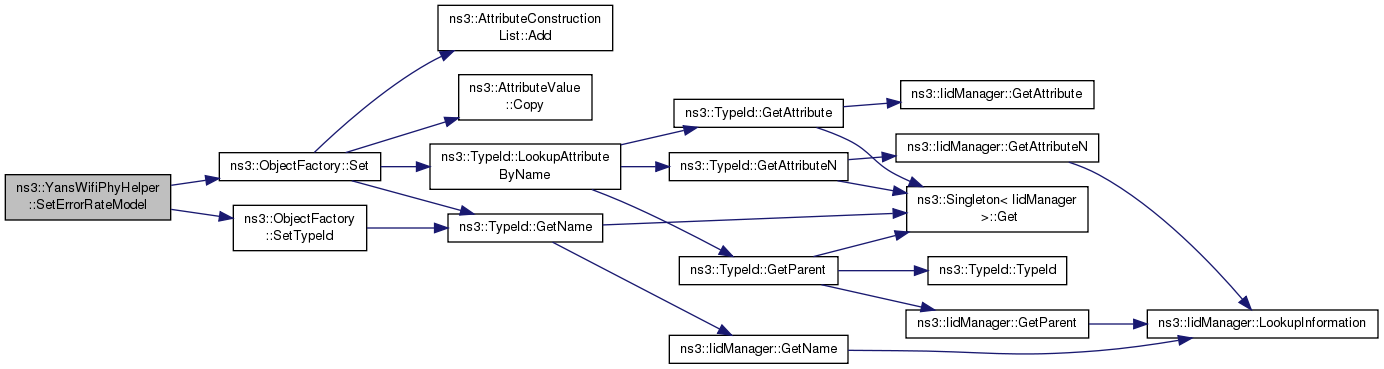

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhyHelper::SetPcapDataLinkType

(

enum SupportedPcapDataLinkTypes

dlt

)

Set the data link type of PCAP traces to be used.

This function has to be called before EnablePcap(), so that the header of the pcap file can be written correctly.

See also

SupportedPcapDataLinkTypes

Parameters

dlt	The data link type of the pcap file (and packets) to be used

Definition at line 642 of file yans-wifi-helper.cc.

References ns3::PcapHelper::DLT_IEEE802_11, DLT_IEEE802_11, ns3::PcapHelper::DLT_IEEE802_11_RADIO, DLT_IEEE802_11_RADIO, ns3::PcapHelper::DLT_PRISM_HEADER, DLT_PRISM_HEADER, m_pcapDlt, and NS_ABORT_MSG.

Referenced by BatteryLifetimeTest::ConstantLoadTest(), WaveNetDeviceExample::CreateWaveNodes(), BasicEnergyDepletionTest::DepletionTestCase(), VanetRoutingExperiment::SetupAdhocDevices(), BatteryLifetimeTest::VariableLoadTest(), and WifiInterferenceTestCase::WifiSimpleInterference().

Here is the caller graph for this function:

Member Data Documentation

Ptr<YansWifiChannel> ns3::YansWifiPhyHelper::m_channel

private

Definition at line 302 of file yans-wifi-helper.h.

Referenced by Create(), and SetChannel().

ObjectFactory ns3::YansWifiPhyHelper::m_errorRateModel

private

Definition at line 301 of file yans-wifi-helper.h.

Referenced by Create(), and SetErrorRateModel().

uint32_t ns3::YansWifiPhyHelper::m_pcapDlt

private

Definition at line 303 of file yans-wifi-helper.h.

Referenced by EnablePcapInternal(), GetPcapDataLinkType(), and SetPcapDataLinkType().

ObjectFactory ns3::YansWifiPhyHelper::m_phy

private

Definition at line 300 of file yans-wifi-helper.h.

Referenced by Create(), Set(), and YansWifiPhyHelper().

---

The documentation for this class was generated from the following files:

• src/wifi/helper/yans-wifi-helper.h
• src/wifi/helper/yans-wifi-helper.cc
