Uinteger Attribute

Attribute implementation for Uinteger. More...

Collaboration diagram for Uinteger Attribute:

Files
file	uinteger.cc
	Uinteger attribute value implementations.
file	uinteger.h
	Unsigned integer attribute value declarations and template implementations.

Classes
class	ns3::UintegerChecker
	AttributeChecker implementation for UintegerValue. More...
class	ns3::UintegerValue
	Hold an unsigned integer type. More...

Functions
template<typename T1 >
Ptr< const AttributeAccessor >	ns3::MakeUintegerAccessor (T1 a1)
	Create an AttributeAccessor for a class data member, or a lone class get functor or set method. More...
template<typename T1 , typename T2 >
Ptr< const AttributeAccessor >	ns3::MakeUintegerAccessor (T1 a1, T2 a2)
	Create an AttributeAccessor using a pair of get functor and set methods from a class. More...
template<typename T >
Ptr< const AttributeChecker >	ns3::MakeUintegerChecker (void)
Ptr< const AttributeChecker >	ns3::internal::MakeUintegerChecker (uint64_t min, uint64_t max, std::string name)
	Make an Uinteger attribute checker with embedded numeric type name. More...

Detailed Description

Attribute implementation for Uinteger.

Function Documentation

template<typename T1 >

ns3::Ptr< const ns3::AttributeAccessor > ns3::MakeUintegerAccessor

(

T1

a1

)

Create an AttributeAccessor for a class data member, or a lone class get functor or set method.

The get functor method should have a signature like

typedef U (T::*getter)(void) const

where T is the class and U is the type of the return value.

The set method should have one of these signatures:

typedef void (T::*setter)(U)
typedef bool (T::*setter)(U)

where T is the class and U is the type of the value to set the attribute to, which should be compatible with the specific AttributeValue type V which holds the value (or the type implied by the name Make<V>Accessor of this function.) In the case of a setter returning bool, the return value should be true if the value could be set successfully.

Template Parameters

V	[explicit] (If present) The specific AttributeValue type to use to represent the Attribute. (If not present, the type V is implicit in the name of this function, as "Make<V>Accessor"
T1	[deduced] The type of the class data member, or the type of the class get functor or set method.

Parameters

[in]

a1

The address of the data member, or the get or set method.

Returns

The AttributeAccessor

See also

AttributeAccessor

Definition at line 45 of file uinteger.h.

Referenced by MyTag::GetTypeId(), ns3::Ipv4RawSocketImpl::GetTypeId(), ns3::Dcf::GetTypeId(), ns3::MpduStandardAggregator::GetTypeId(), ns3::MsduStandardAggregator::GetTypeId(), ns3::LteRadioBearerTag::GetTypeId(), ns3::EpsBearerTag::GetTypeId(), ns3::AmpduTag::GetTypeId(), ns3::LteRlcTm::GetTypeId(), ns3::LteRlcUm::GetTypeId(), ns3::WimaxMacQueue::GetTypeId(), Sender::GetTypeId(), ns3::AarfWifiManager::GetTypeId(), ns3::DropTailQueue::GetTypeId(), ns3::LteFfrDistributedAlgorithm::GetTypeId(), ns3::Building::GetTypeId(), ns3::AarfcdWifiManager::GetTypeId(), ns3::CaraWifiManager::GetTypeId(), ns3::TcpNewReno::GetTypeId(), ns3::AmrrWifiManager::GetTypeId(), ns3::RraaWifiManager::GetTypeId(), ns3::StaWifiMac::GetTypeId(), ns3::TcpReno::GetTypeId(), ns3::dot11s::AirtimeLinkMetricCalculator::GetTypeId(), ns3::OnoeWifiManager::GetTypeId(), ns3::UdpEchoClient::GetTypeId(), ns3::LteHexGridEnbTopologyHelper::GetTypeId(), ns3::PcapFileWrapper::GetTypeId(), ns3::ArfWifiManager::GetTypeId(), ns3::LteFrHardAlgorithm::GetTypeId(), ns3::ParfWifiManager::GetTypeId(), ns3::dot11s::PeerLink::GetTypeId(), ns3::LteFfrSoftAlgorithm::GetTypeId(), ns3::LteFrSoftAlgorithm::GetTypeId(), ns3::LteFrStrictAlgorithm::GetTypeId(), ns3::TcpTahoe::GetTypeId(), ns3::AparfWifiManager::GetTypeId(), ns3::TraceFadingLossModel::GetTypeId(), ns3::dot11s::HwmpProtocol::GetTypeId(), ns3::Channel::GetTypeId(), ns3::V4Ping::GetTypeId(), ns3::UdpEchoServer::GetTypeId(), ns3::LteFfrEnhancedAlgorithm::GetTypeId(), ns3::UdpClient::GetTypeId(), ns3::LteNetDevice::GetTypeId(), ns3::GridBuildingAllocator::GetTypeId(), ns3::Ping6::GetTypeId(), ns3::Ipv6Option::GetTypeId(), ns3::LteFfrSimple::GetTypeId(), ns3::MeshPointDevice::GetTypeId(), ns3::UdpServer::GetTypeId(), ns3::TcpSocket::GetTypeId(), ns3::UdpSocket::GetTypeId(), ns3::dot11s::PeerManagementProtocol::GetTypeId(), ns3::WifiMacQueue::GetTypeId(), ns3::WifiNetDevice::GetTypeId(), ns3::SimpleOfdmWimaxPhy::GetTypeId(), ns3::LteUeNetDevice::GetTypeId(), ns3::LteEnbNetDevice::GetTypeId(), ns3::Ipv6Extension::GetTypeId(), ns3::NdiscCache::GetTypeId(), ns3::aodv::RoutingProtocol::GetTypeId(), ns3::dsdv::RoutingProtocol::GetTypeId(), ns3::UanMacCw::GetTypeId(), ns3::RadioEnvironmentMapHelper::GetTypeId(), ns3::PacketSocketClient::GetTypeId(), ns3::LteEnbMac::GetTypeId(), ns3::LteSignalingRadioBearerInfo::GetTypeId(), ns3::UdpTraceClient::GetTypeId(), ns3::Node::GetTypeId(), ns3::JakesProcess::GetTypeId(), ns3::BaseStationNetDevice::GetTypeId(), ns3::LteFfrAlgorithm::GetTypeId(), ns3::QosTag::GetTypeId(), ns3::IpL4Protocol::GetTypeId(), ns3::WimaxPhy::GetTypeId(), ns3::SubscriberStationNetDevice::GetTypeId(), ns3::CsmaNetDevice::GetTypeId(), ns3::AlohaNoackNetDevice::GetTypeId(), ns3::UanMacRcGw::GetTypeId(), ns3::VirtualNetDevice::GetTypeId(), ns3::LteEnbPhy::GetTypeId(), ns3::Ipv6L3Protocol::GetTypeId(), EpsBearerTagUdpClient::GetTypeId(), ns3::YansWifiPhy::GetTypeId(), ns3::PointToPointEpcHelper::GetTypeId(), ns3::PointToPointNetDevice::GetTypeId(), ns3::CoDelQueue::GetTypeId(), ns3::Ipv6RawSocketImpl::GetTypeId(), ns3::BridgeNetDevice::GetTypeId(), ns3::ArpCache::GetTypeId(), ns3::LteDataRadioBearerInfo::GetTypeId(), ns3::BulkSendApplication::GetTypeId(), Receiver::GetTypeId(), ns3::RrFfMacScheduler::GetTypeId(), ns3::TtaFfMacScheduler::GetTypeId(), ns3::TdMtFfMacScheduler::GetTypeId(), ns3::dsr::DsrOptions::GetTypeId(), ns3::SixLowPanNetDevice::GetTypeId(), ns3::FdMtFfMacScheduler::GetTypeId(), ns3::flame::FlameProtocol::GetTypeId(), ns3::WimaxNetDevice::GetTypeId(), ns3::LteUePhy::GetTypeId(), ns3::PacketSocket::GetTypeId(), ns3::Ipv4L3Protocol::GetTypeId(), ns3::PfFfMacScheduler::GetTypeId(), ns3::RedQueue::GetTypeId(), ns3::A2A4RsrqHandoverAlgorithm::GetTypeId(), ns3::TdBetFfMacScheduler::GetTypeId(), ns3::FdBetFfMacScheduler::GetTypeId(), ns3::CqaFfMacScheduler::GetTypeId(), ns3::WifiRemoteStationManager::GetTypeId(), ns3::FdNetDevice::GetTypeId(), ns3::LteAnr::GetTypeId(), ns3::OnOffApplication::GetTypeId(), ns3::WaypointMobilityModel::GetTypeId(), ns3::FdTbfqFfMacScheduler::GetTypeId(), ns3::TdTbfqFfMacScheduler::GetTypeId(), ns3::EdcaTxopN::GetTypeId(), ns3::PssFfMacScheduler::GetTypeId(), ns3::TcpSocketBase::GetTypeId(), ns3::dsr::DsrRouting::GetTypeId(), AttributeObjectTest::GetTypeId(), ns3::GridPositionAllocator::GetTypeId(), ns3::UeManager::GetTypeId(), ns3::TapBridge::GetTypeId(), ns3::LteUeRrc::GetTypeId(), ns3::WaveNetDevice::GetTypeId(), ns3::UanMacRc::GetTypeId(), ns3::UanPhyCalcSinrFhFsk::GetTypeId(), ns3::LrWpanMac::GetTypeId(), and ns3::LteEnbRrc::GetTypeId().

template<typename T1 , typename T2 >

ns3::Ptr< const ns3::AttributeAccessor > ns3::MakeUintegerAccessor	(	T1	a1,
		T2	a2
	)

Create an AttributeAccessor using a pair of get functor and set methods from a class.

The get functor method should have a signature like

typedef U (T::*getter)(void) const

where T is the class and U is the type of the return value.

The set method should have one of these signatures:

typedef void (T::*setter)(U)
typedef bool (T::*setter)(U)

where T is the class and U is the type of the value to set the attribute to, which should be compatible with the specific AttributeValue type V which holds the value (or the type implied by the name Make<V>Accessor of this function.) In the case of a setter returning bool, the return value should be true if the value could be set successfully.

In practice the setter and getter arguments can appear in either order, but setter first is preferred.

Template Parameters

V	[explicit] (If present) The specific AttributeValue type to use to represent the Attribute. (If not present, the type V is implicit in the name of this function as "Make<V>Accessor"
T1	[deduced] The type of the class data member, or the type of the class get functor or set method.
T2	[deduced] The type of the getter class functor method.

Parameters

[in]	a2	The address of the class method to set the attribute.
[in]	a1	The address of the data member, or the get or set method.

Returns

The AttributeAccessor

See also

AttributeAccessor

Definition at line 45 of file uinteger.h.

template<typename T >

Ptr< const AttributeChecker > ns3::MakeUintegerChecker

(

void

)

Returns

The AttributeChecker.

See also

AttributeChecker

Definition at line 94 of file uinteger.h.

References ns3::internal::MakeUintegerChecker().

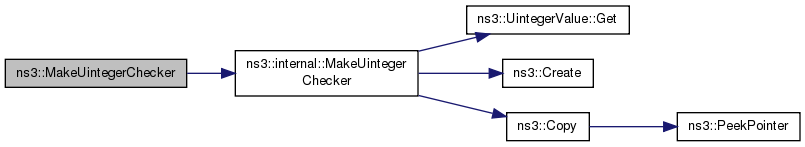

Here is the call graph for this function:

Ptr< const AttributeChecker > ns3::internal::MakeUintegerChecker	(	uint64_t	min,
		uint64_t	max,
		std::string	name
	)

Make an Uinteger attribute checker with embedded numeric type name.

Parameters

[in]	min	The minimum allowed value.
[in]	max	The maximum allowed value.
[in]	name	The original type name ("uint8_t", "uint16_t", etc.).

Returns

The AttributeChecker.

Definition at line 48 of file uinteger.cc.

References ns3::Copy(), ns3::Create(), ns3::UintegerValue::Get(), NS_LOG_FUNCTION, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::MakeUintegerChecker().

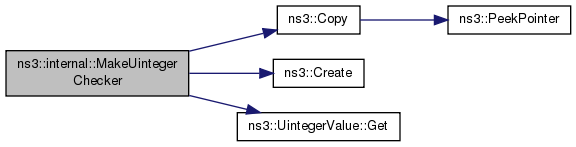

Here is the call graph for this function:

Here is the caller graph for this function:
