The ErpInformation Information ElementThis class knows how to serialise and deserialise the ErpInformation Information Element. More...

#include "erp-information.h"

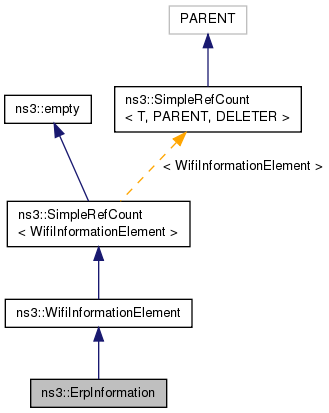

Inheritance diagram for ns3::ErpInformation:

Collaboration diagram for ns3::ErpInformation:

Public Member Functions
	ErpInformation ()

uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

WifiInformationElementId	ElementId () const
	Own unique Element ID. More...

uint8_t	GetBarkerPreambleMode (void) const

uint8_t	GetInformationFieldSize () const
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint8_t	GetNonErpPresent (void) const

uint16_t	GetSerializedSize () const
	Return the serialized size of this ErpInformation information element. More...

uint8_t	GetUseProtection (void) const

Buffer::Iterator	Serialize (Buffer::Iterator start) const
	This information element is a bit special in that it is only included if the STA is an ERP STA. More...

void	SerializeInformationField (Buffer::Iterator start) const
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void	SetBarkerPreambleMode (uint8_t barkerPreambleMode)
	Set the Barker_Preamble_Mode field in the ErpInformation information element. More...

void	SetErpSupported (uint8_t erpSupported)

void	SetNonErpPresent (uint8_t nonErpPresent)
	Set the Non_Erp_Present field in the ErpInformation information element. More...

void	SetUseProtection (uint8_t useProtection)
	Set the Use_Protection field in the ErpInformation information element. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields. More...

virtual bool	operator< (WifiInformationElement const &a) const
	Compare information elements using Element ID. More...

virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint8_t	m_erpInformation

bool	m_erpSupported

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void	Cleanup (void)
	Noop. More...

Detailed Description

The ErpInformation Information Element

This class knows how to serialise and deserialise the ErpInformation Information Element.

Definition at line 37 of file erp-information.h.

Constructor & Destructor Documentation

ns3::ErpInformation::ErpInformation ( )

Definition at line 29 of file erp-information.cc.

Member Function Documentation

uint8_t ns3::ErpInformation::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 120 of file erp-information.cc.

References m_erpInformation, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

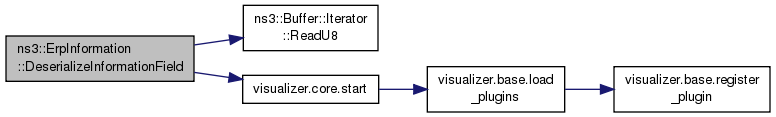

Here is the call graph for this function:

WifiInformationElementId ns3::ErpInformation::ElementId ( ) const

virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 36 of file erp-information.cc.

References IE_ERP_INFORMATION.

uint8_t ns3::ErpInformation::GetBarkerPreambleMode ( void ) const

Definition at line 66 of file erp-information.cc.

References m_erpInformation.

Referenced by ns3::operator<<(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint8_t ns3::ErpInformation::GetInformationFieldSize ( ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 84 of file erp-information.cc.

References m_erpSupported, and NS_ASSERT.

uint8_t ns3::ErpInformation::GetNonErpPresent ( void ) const

Definition at line 78 of file erp-information.cc.

References m_erpInformation.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

uint16_t ns3::ErpInformation::GetSerializedSize ( void ) const

Return the serialized size of this ErpInformation information element.

Returns: the serialized size of this ErpInformation information element

Definition at line 101 of file erp-information.cc.

References ns3::WifiInformationElement::GetSerializedSize(), and m_erpSupported.

Referenced by ns3::MgtAssocResponseHeader::GetSerializedSize(), and ns3::MgtProbeResponseHeader::GetSerializedSize().

Here is the call graph for this function:

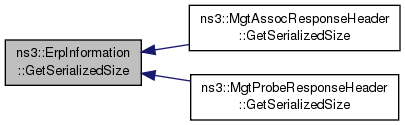

Here is the caller graph for this function:

uint8_t ns3::ErpInformation::GetUseProtection ( void ) const

Definition at line 72 of file erp-information.cc.

References m_erpInformation.

Referenced by ns3::operator<<(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

Buffer::Iterator ns3::ErpInformation::Serialize ( Buffer::Iterator start ) const

This information element is a bit special in that it is only included if the STA is an ERP STA.

To support this we override the Serialize and GetSerializedSize methods of WifiInformationElement.

Parameters

start

Returns: an iterator

Definition at line 91 of file erp-information.cc.

References m_erpSupported, and ns3::WifiInformationElement::Serialize().

Referenced by ns3::MgtAssocResponseHeader::Serialize(), and ns3::MgtProbeResponseHeader::Serialize().

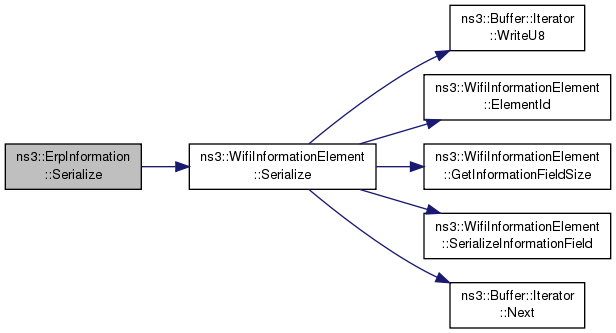

Here is the call graph for this function:

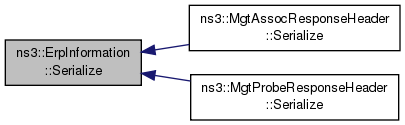

Here is the caller graph for this function:

void ns3::ErpInformation::SerializeInformationField ( Buffer::Iterator start ) const

virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 111 of file erp-information.cc.

References m_erpInformation, m_erpSupported, and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

void ns3::ErpInformation::SetBarkerPreambleMode ( uint8_t barkerPreambleMode )

Set the Barker_Preamble_Mode field in the ErpInformation information element.

Parameters

barkerPreambleMode the Barker_Preamble_Mode field in the ErpInformation information element

Definition at line 48 of file erp-information.cc.

References m_erpInformation.

Referenced by ns3::ApWifiMac::GetErpInformation(), and ns3::operator>>().

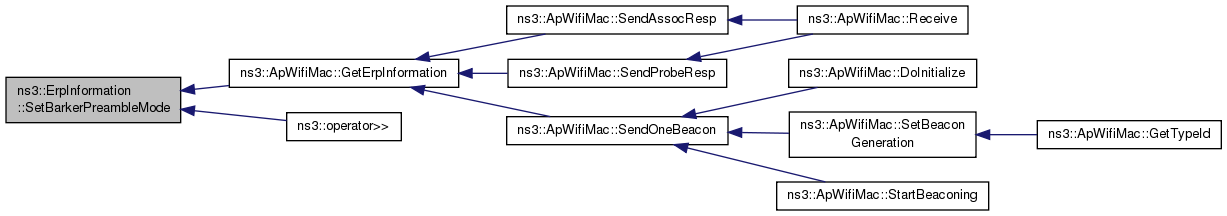

Here is the caller graph for this function:

void ns3::ErpInformation::SetErpSupported ( uint8_t erpSupported )

Definition at line 42 of file erp-information.cc.

References m_erpSupported.

Referenced by ns3::ApWifiMac::GetErpInformation().

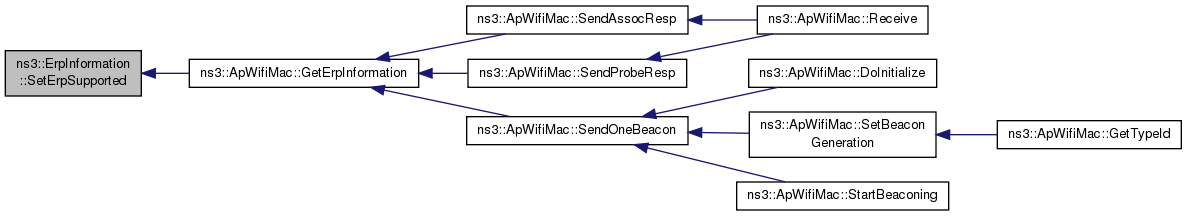

Here is the caller graph for this function:

void ns3::ErpInformation::SetNonErpPresent ( uint8_t nonErpPresent )

Set the Non_Erp_Present field in the ErpInformation information element.

Parameters

nonErpPresent the Non_Erp_Present field in the ErpInformation information element

Definition at line 60 of file erp-information.cc.

References m_erpInformation.

Referenced by ns3::ApWifiMac::GetErpInformation(), and ns3::operator>>().

Here is the caller graph for this function:

void ns3::ErpInformation::SetUseProtection ( uint8_t useProtection )

Set the Use_Protection field in the ErpInformation information element.

Parameters

useProtection the Use_Protection field in the ErpInformation information element

Definition at line 54 of file erp-information.cc.

References m_erpInformation.

Referenced by ns3::ApWifiMac::GetErpInformation(), and ns3::operator>>().

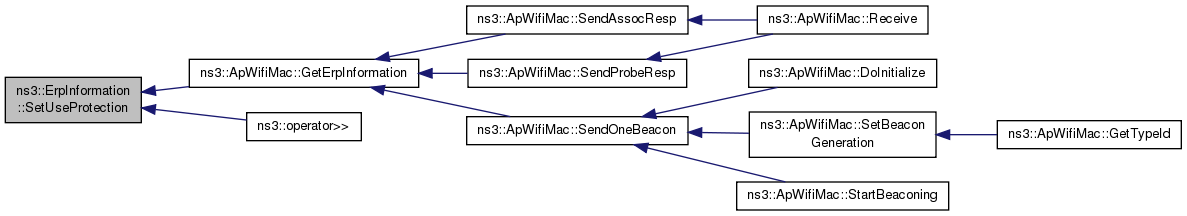

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::ErpInformation::m_erpInformation

private

Definition at line 106 of file erp-information.h.

Referenced by DeserializeInformationField(), GetBarkerPreambleMode(), GetNonErpPresent(), GetUseProtection(), SerializeInformationField(), SetBarkerPreambleMode(), SetNonErpPresent(), and SetUseProtection().

bool ns3::ErpInformation::m_erpSupported

private

Definition at line 109 of file erp-information.h.

Referenced by GetInformationFieldSize(), GetSerializedSize(), Serialize(), SerializeInformationField(), and SetErpSupported().

The documentation for this class was generated from the following files:

src/wifi/model/erp-information.h
src/wifi/model/erp-information.cc
