This class implements a testing RRC entity. More...

#include "lte-test-entities.h"

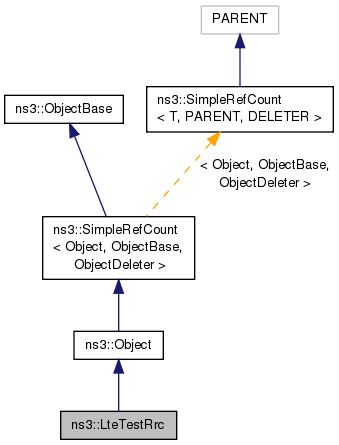

Inheritance diagram for ns3::LteTestRrc:

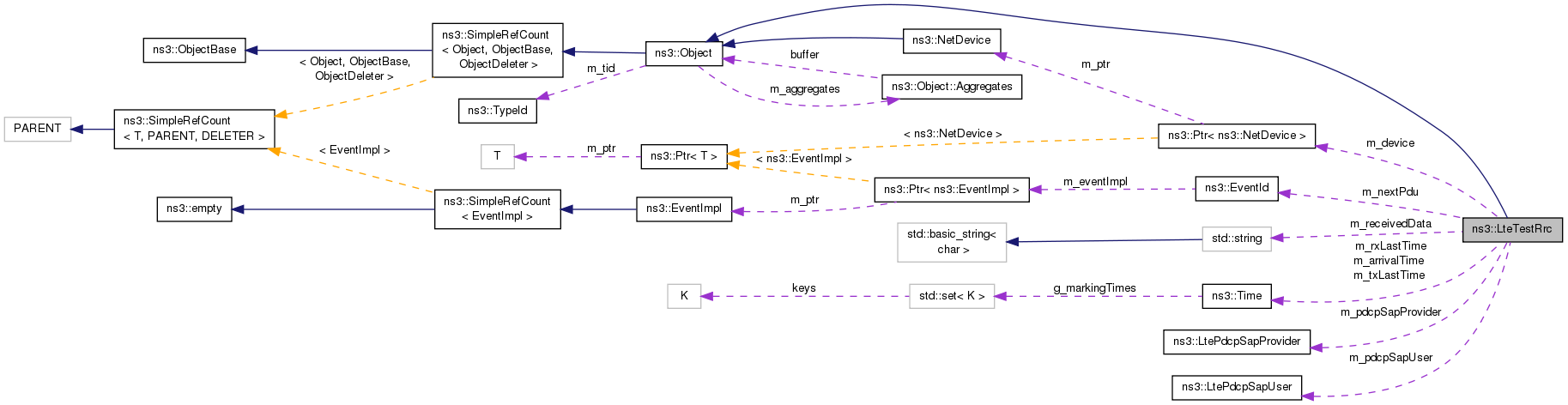

Collaboration diagram for ns3::LteTestRrc:

Public Member Functions
	LteTestRrc (void)

virtual	~LteTestRrc (void)

virtual void	DoDispose (void)
	Destructor implementation. More...

std::string	GetDataReceived (void)

LtePdcpSapUser *	GetLtePdcpSapUser (void)
	Get the PDCP SAP user. More...

uint32_t	GetRxBytes (void)

Time	GetRxLastTime (void)

uint32_t	GetRxPdus (void)

uint32_t	GetTxBytes (void)

Time	GetTxLastTime (void)

uint32_t	GetTxPdus (void)

void	SendData (Time at, std::string dataToSend)

void	SetArrivalTime (Time arrivalTime)

void	SetDevice (Ptr< NetDevice > device)

void	SetLtePdcpSapProvider (LtePdcpSapProvider *s)
	Set the PDCP SAP provider. More...

void	SetPduSize (uint32_t pduSize)

void	Start ()
	START. More...

void	Stop ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual void	DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)
	PDCP SAP. More...

Private Attributes
Time	m_arrivalTime

Ptr< NetDevice >	m_device

EventId	m_nextPdu

LtePdcpSapProvider *	m_pdcpSapProvider

LtePdcpSapUser *	m_pdcpSapUser

uint32_t	m_pduSize

std::string	m_receivedData

uint32_t	m_rxBytes

Time	m_rxLastTime

uint32_t	m_rxPdus

uint32_t	m_txBytes

Time	m_txLastTime

uint32_t	m_txPdus

Friends
class	LtePdcpSpecificLtePdcpSapUser< LteTestRrc >

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class implements a testing RRC entity.

Definition at line 39 of file lte-test-entities.h.

Constructor & Destructor Documentation

ns3::LteTestRrc::LteTestRrc ( void )

Definition at line 48 of file lte-test-entities.cc.

References m_pdcpSapUser, m_rxBytes, m_rxLastTime, m_rxPdus, m_txBytes, m_txLastTime, m_txPdus, and NS_LOG_FUNCTION.

ns3::LteTestRrc::~LteTestRrc ( void )

virtual

Definition at line 63 of file lte-test-entities.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteTestRrc::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 69 of file lte-test-entities.cc.

References m_pdcpSapUser, and NS_LOG_FUNCTION.

void ns3::LteTestRrc::DoReceivePdcpSdu ( LtePdcpSapUser::ReceivePdcpSduParameters params )

privatevirtual

PDCP SAP.

Definition at line 165 of file lte-test-entities.cc.

References ns3::Packet::GetSize(), m_receivedData, m_rxBytes, m_rxLastTime, m_rxPdus, ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::LtePdcpSapUser::ReceivePdcpSduParameters::pdcpSdu.

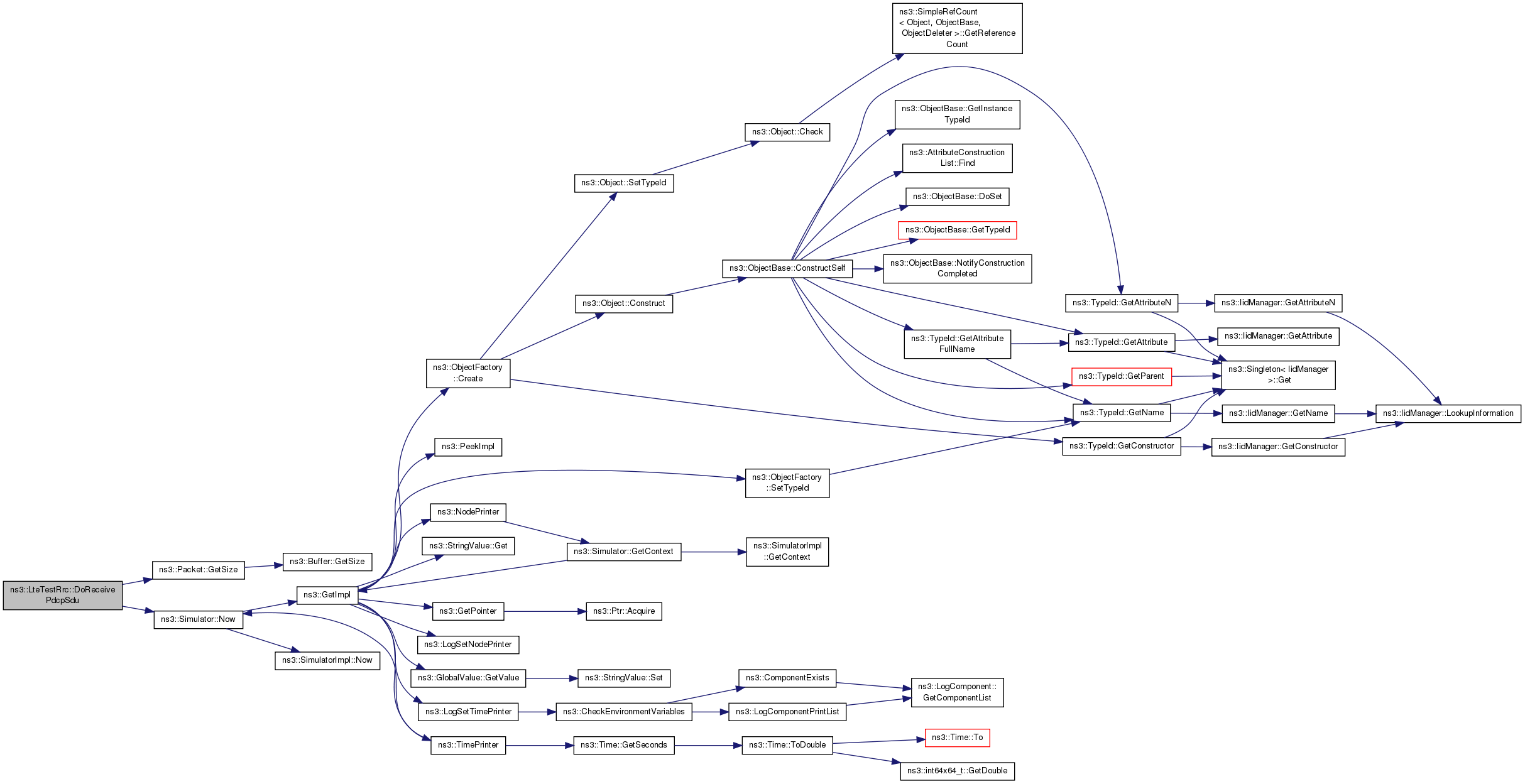

Here is the call graph for this function:
