Abstract class that concrete msdu aggregators have to implement. More...
#include "msdu-aggregator.h"

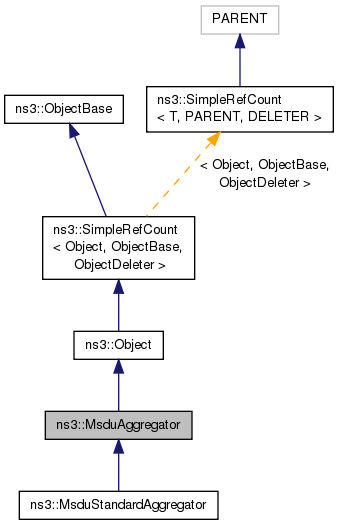

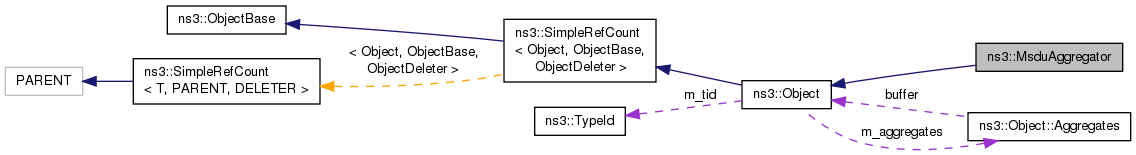

Inheritance diagram for ns3::MsduAggregator: Collaboration diagram for ns3::MsduAggregator:Public Types | |
| typedef std::list< std::pair< Ptr< Packet >, AmsduSubframeHeader > > | DeaggregatedMsdus |
| typedef std::list< std::pair< Ptr< Packet >, AmsduSubframeHeader > >::const_iterator | DeaggregatedMsdusCI |
Public Member Functions | |
| virtual bool | Aggregate (Ptr< const Packet > packet, Ptr< Packet > aggregatedPacket, Mac48Address src, Mac48Address dest)=0 |
| virtual uint32_t | GetMaxAmsduSize (void) const =0 |
| virtual void | SetMaxAmsduSize (uint32_t maxSize)=0 |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. More... | |
| virtual | ~Object () |
| Destructor. More... | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. More... | |
| void | Dispose (void) |
| Dispose of this Object. More... | |
| AggregateIterator | GetAggregateIterator (void) const |
| Get an iterator to the Objects aggregated to this one. More... | |
| virtual TypeId | GetInstanceTypeId (void) const |
| Implement the GetInstanceTypeId method defined in ObjectBase. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| Get a pointer to the requested aggregated Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object by TypeId. More... | |
| void | Initialize (void) |
| Invoke DoInitialize on all Objects aggregated to this one. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising erros. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static DeaggregatedMsdus | Deaggregate (Ptr< Packet > aggregatedPacket) |
| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| static void | Cleanup (void) |
| Noop. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. More... | |
| virtual void | DoDispose (void) |
| Destructor implementation. More... | |
| virtual void | DoInitialize (void) |
| Initialize() implementation. More... | |
| virtual void | NotifyNewAggregate (void) |
| Notify all Objects aggregated to this one of a new Object being aggregated. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted (void) |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid (void) |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
Abstract class that concrete msdu aggregators have to implement.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).
Definition at line 38 of file msdu-aggregator.h.
| typedef std::list<std::pair<Ptr<Packet>, AmsduSubframeHeader> > ns3::MsduAggregator::DeaggregatedMsdus |
Definition at line 41 of file msdu-aggregator.h.
| typedef std::list<std::pair<Ptr<Packet>, AmsduSubframeHeader> >::const_iterator ns3::MsduAggregator::DeaggregatedMsdusCI |
Definition at line 42 of file msdu-aggregator.h.
|
pure virtual |
Implemented in ns3::MsduStandardAggregator.
Referenced by ns3::EdcaTxopN::NotifyAccessGranted().
Here is the caller graph for this function:
|
static |
Definition at line 43 of file msdu-aggregator.cc.
References ns3::Packet::CreateFragment(), ns3::AmsduSubframeHeader::GetLength(), ns3::Packet::GetSize(), NS_LOG_FUNCTION_NOARGS, NS_LOG_INFO, ns3::Packet::RemoveAtStart(), and ns3::Packet::RemoveHeader().
Referenced by ns3::ApWifiMac::DeaggregateAmsduAndForward(), and ns3::RegularWifiMac::DeaggregateAmsduAndForward().

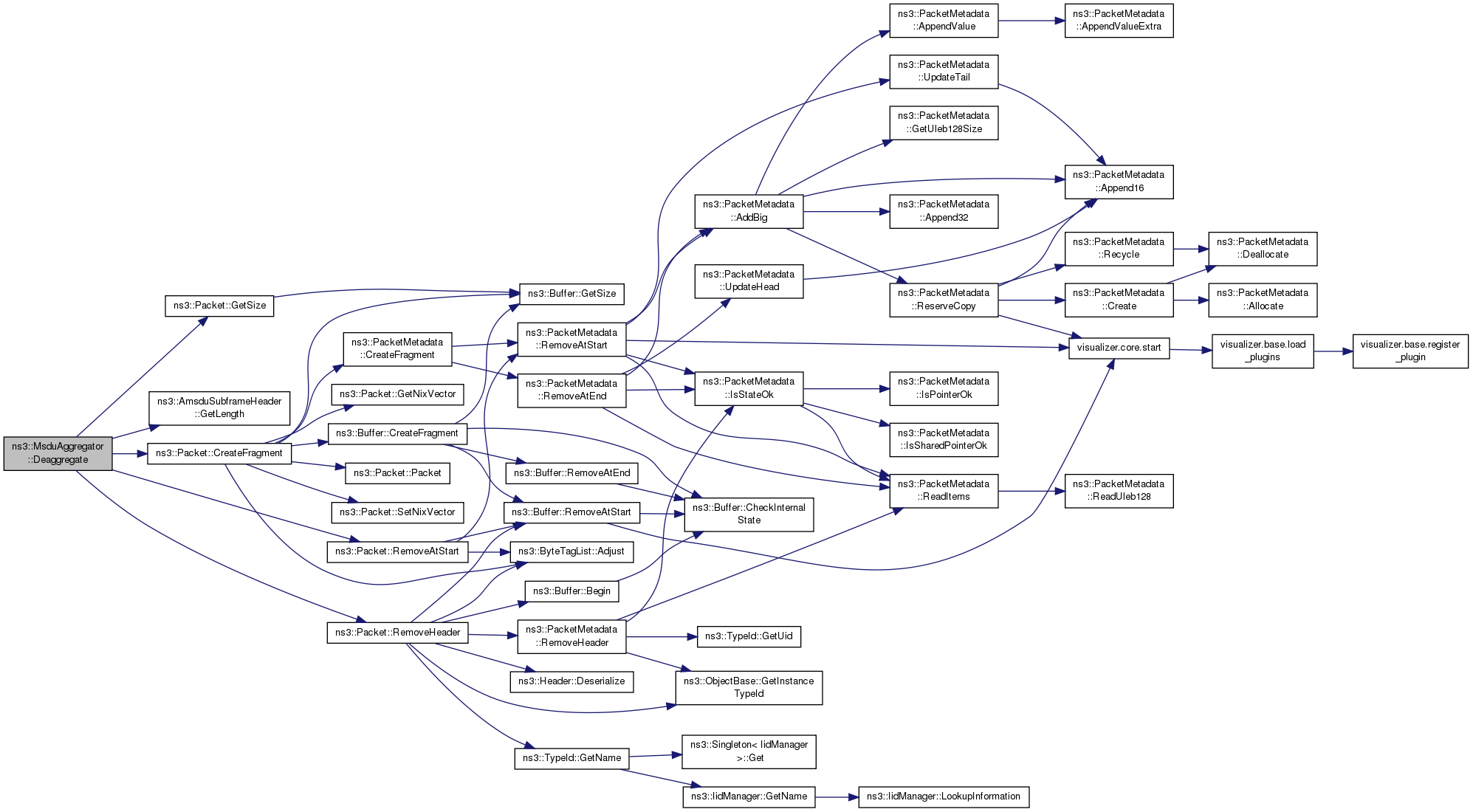

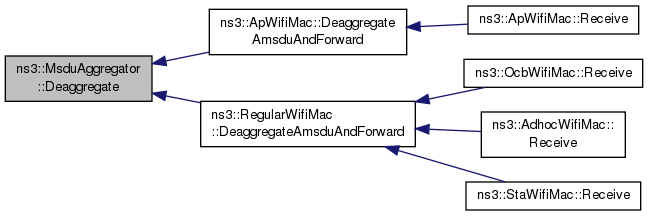

Here is the call graph for this function: Here is the caller graph for this function:
|
pure virtual |
Implemented in ns3::MsduStandardAggregator.
|
static |
Definition at line 33 of file msdu-aggregator.cc.
References ns3::TypeId::SetParent().

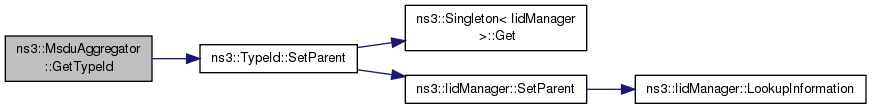

Here is the call graph for this function:
|
pure virtual |
Implemented in ns3::MsduStandardAggregator.
Referenced by ns3::RegularWifiMac::ConfigureAggregation(), and TwoLevelAggregationTest::DoRun().

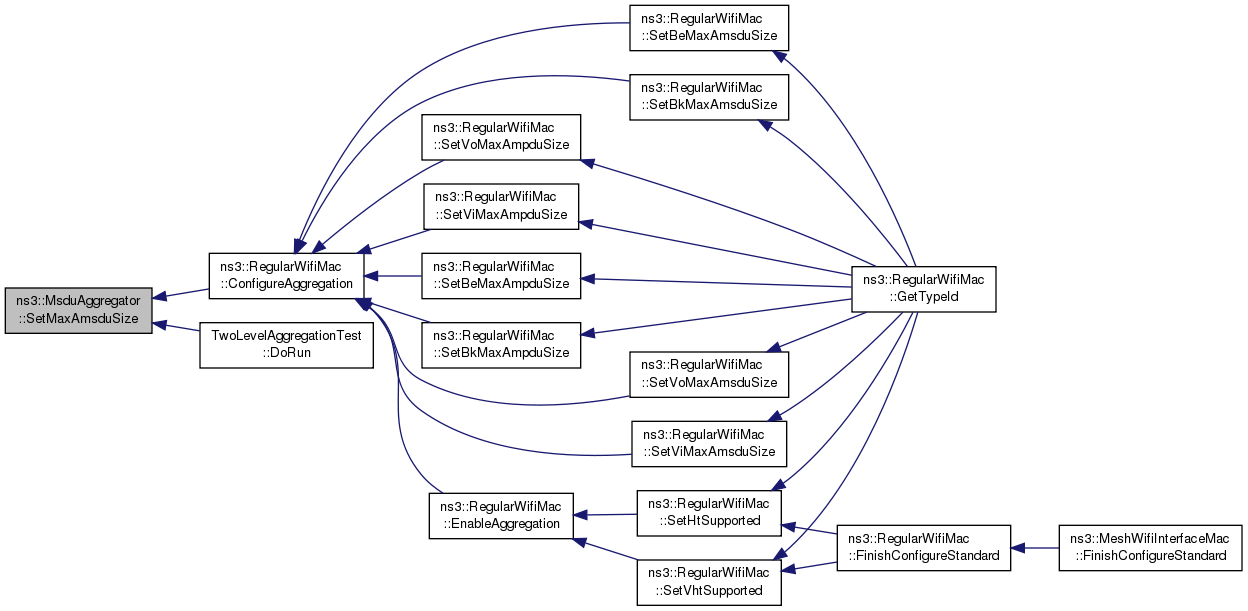

Here is the caller graph for this function:
