Network device transmission queue interface. More...

#include "net-device.h"

Inheritance diagram for ns3::NetDeviceQueueInterface:

Collaboration diagram for ns3::NetDeviceQueueInterface:

Public Types
typedef Callback< uint8_t, Ptr< QueueItem > >	SelectQueueCallback
	Callback invoked to determine the tx queue selected for a given packet. More...

Public Member Functions
	NetDeviceQueueInterface ()
	Constructor. More...

virtual	~NetDeviceQueueInterface ()

uint8_t	GetSelectedQueue (Ptr< QueueItem > item) const
	Get the id of the transmission queue selected for the given packet. More...

Ptr< NetDeviceQueue >	GetTxQueue (uint8_t i) const
	Get the i-th transmission queue of the device. More...

uint8_t	GetTxQueuesN (void) const
	Get the number of device transmission queues. More...

bool	IsQueueDiscInstalled (void) const
	Return true if a queue disc is installed on the device. More...

void	SetQueueDiscInstalled (bool installed)
	Set the member variable indicating whether a queue disc is installed or not. More...

void	SetSelectQueueCallback (SelectQueueCallback cb)
	Set the select queue callback. More...

void	SetTxQueuesN (uint8_t numTxQueues)
	Set the number of device transmission queues. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	Dispose of the object. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Attributes
bool	m_queueDiscInstalled
	Boolean value indicating whether a queue disc is installed or not. More...

SelectQueueCallback	m_selectQueueCallback
	Select queue callback. More...

std::vector< Ptr< NetDeviceQueue > >	m_txQueuesVector
	Device transmission queues. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Network device transmission queue interface.

Introspection did not find any typical Config paths.

This interface is required by the traffic control layer to access the information about the status of the transmission queues of a device. Thus, every NetDevice (but loopback) needs to create this interface. NetDevices supporting flow control can start and stop their device transmission queues and wake the upper layers through this interface. By default, a NetDeviceQueueInterface object is created with a single device transmission queue. Therefore, multi-queue devices need to call SetTxQueuesN to create additional queues (before a root queue disc is installed, i.e., typically before an IPv4/IPv6 address is assigned to the device), implement a GetSelectedQueue method and pass a callback to such a method through the SetSelectedQueueCallback method.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 216 of file net-device.h.

Member Typedef Documentation

typedef Callback< uint8_t, Ptr<QueueItem> > ns3::NetDeviceQueueInterface::SelectQueueCallback

Callback invoked to determine the tx queue selected for a given packet.

Definition at line 259 of file net-device.h.

Constructor & Destructor Documentation

ns3::NetDeviceQueueInterface::NetDeviceQueueInterface ( )

Constructor.

Creates one NetDeviceQueue by default

Definition at line 133 of file net-device.cc.

References m_txQueuesVector, and NS_LOG_FUNCTION.

ns3::NetDeviceQueueInterface::~NetDeviceQueueInterface ( )

virtual

Definition at line 141 of file net-device.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::NetDeviceQueueInterface::DoDispose ( void )

protectedvirtual

Dispose of the object.

Reimplemented from ns3::Object.

Definition at line 160 of file net-device.cc.

References ns3::Object::DoDispose(), m_txQueuesVector, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint8_t ns3::NetDeviceQueueInterface::GetSelectedQueue ( Ptr< QueueItem > item ) const

Get the id of the transmission queue selected for the given packet.

Returns: the id of the transmission queue selected for the given packet

Called by the traffic control when it needs to determine which device transmission queue a given packet must be enqueued into. This function calls the select queue callback, if set by the device. Return 0 otherwise.

Definition at line 195 of file net-device.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), and m_selectQueueCallback.

Here is the call graph for this function:

Ptr< NetDeviceQueue > ns3::NetDeviceQueueInterface::GetTxQueue ( uint8_t i ) const

Get the i-th transmission queue of the device.

Returns: the i-th transmission queue of the device.

The index of the first transmission queue is zero.

Definition at line 147 of file net-device.cc.

References m_txQueuesVector, and NS_ASSERT.

Referenced by SetTxQueuesN().

Here is the caller graph for this function:

uint8_t ns3::NetDeviceQueueInterface::GetTxQueuesN ( void ) const

Get the number of device transmission queues.

Returns: the number of device transmission queues.

Definition at line 154 of file net-device.cc.

References m_txQueuesVector.

TypeId ns3::NetDeviceQueueInterface::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 124 of file net-device.cc.

References ns3::TypeId::SetParent().

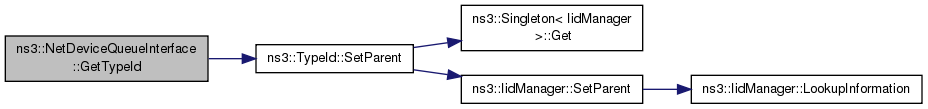

Here is the call graph for this function:

bool ns3::NetDeviceQueueInterface::IsQueueDiscInstalled ( void ) const

Return true if a queue disc is installed on the device.

Returns: true if a queue disc is installed on the device.

Definition at line 205 of file net-device.cc.

References m_queueDiscInstalled.

void ns3::NetDeviceQueueInterface::SetQueueDiscInstalled ( bool installed )

Set the member variable indicating whether a queue disc is installed or not.

Parameters

installed the value for the member variable indicating whether a queue disc is installed or not

Definition at line 211 of file net-device.cc.

References m_queueDiscInstalled, and NS_LOG_FUNCTION.

void ns3::NetDeviceQueueInterface::SetSelectQueueCallback ( SelectQueueCallback cb )

Set the select queue callback.

Parameters

cb	the callback to set

Called by a device to set the select queue callback, i.e., the method used to select a device transmission queue for a given packet

Definition at line 189 of file net-device.cc.

References m_selectQueueCallback.

void ns3::NetDeviceQueueInterface::SetTxQueuesN ( uint8_t numTxQueues )

Set the number of device transmission queues.

Parameters

numTxQueues number of device transmission queues.

Called by a device to set the number of device transmission queues. This method can be called by a NetDevice at initialization time only, because it is not possible to change the number of device transmission queues after the wake callbacks have been set on the device queues.

Definition at line 168 of file net-device.cc.

References GetTxQueue(), m_txQueuesVector, NS_ABORT_MSG_IF, and NS_ASSERT.
