ns3::SpectrumConverter Class Reference

Class which implements a converter between SpectrumValue which are defined over different SpectrumModel. More...

#include "spectrum-converter.h"

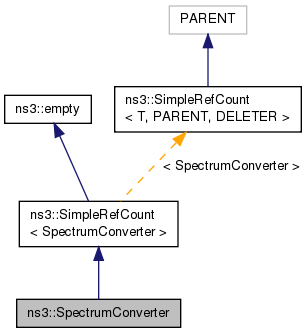

Inheritance diagram for ns3::SpectrumConverter:

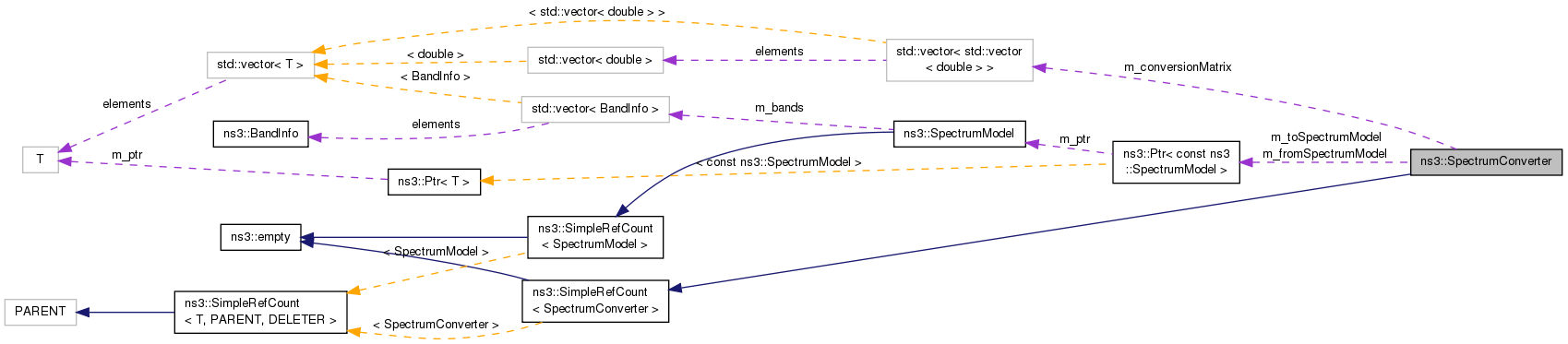

Collaboration diagram for ns3::SpectrumConverter:

Public Member Functions
	SpectrumConverter (Ptr< const SpectrumModel > fromSpectrumModel, Ptr< const SpectrumModel > toSpectrumModel)
	Create a SpectrumConverter class that will be able to convert ValueVsFreq instances defined over one SpectrumModel to corresponding ValueVsFreq instances defined over a diffent SpectrumModel. More...
	SpectrumConverter ()
Ptr< SpectrumValue >	Convert (Ptr< const SpectrumValue > vvf) const
	Convert a particular ValueVsFreq instance to. More...
Public Member Functions inherited from ns3::SimpleRefCount< SpectrumConverter >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
double	GetCoefficient (const BandInfo &from, const BandInfo &to) const
	Calculate the coefficient for value conversion between elements. More...

Private Attributes
std::vector< std::vector< double > >	m_conversionMatrix
	matrix of conversion coefficients More...
Ptr< const SpectrumModel >	m_fromSpectrumModel
	the SpectrumModel this SpectrumConverter instance can convert from More...
Ptr< const SpectrumModel >	m_toSpectrumModel
	the SpectrumModel this SpectrumConverter instance can convert to More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< SpectrumConverter >
static void	Cleanup (void)
	Noop. More...

Detailed Description

Class which implements a converter between SpectrumValue which are defined over different SpectrumModel.

In more formal terms, this class allows conversion between different function spaces. In practical terms, this allows you to mix different spectrum representation within the same channel, such as a device using a coarse spectrum representation (e.g., one frequency for each IEEE 802.11 channel) and devices using a finer representation (e.g., one frequency for each OFDM subcarrier).

Definition at line 42 of file spectrum-converter.h.

Constructor & Destructor Documentation

ns3::SpectrumConverter::SpectrumConverter	(	Ptr< const SpectrumModel >	fromSpectrumModel,
		Ptr< const SpectrumModel >	toSpectrumModel
	)

Create a SpectrumConverter class that will be able to convert ValueVsFreq instances defined over one SpectrumModel to corresponding ValueVsFreq instances defined over a diffent SpectrumModel.

Parameters

fromSpectrumModel	the SpectrumModel to convert from
toSpectrumModel	the SpectrumModel to convert to

Definition at line 36 of file spectrum-converter.cc.

References ns3::SpectrumModel::Begin(), ns3::SpectrumModel::End(), GetCoefficient(), m_conversionMatrix, m_fromSpectrumModel, m_toSpectrumModel, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

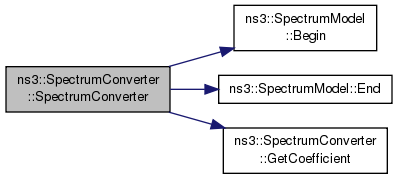

Here is the call graph for this function:

ns3::SpectrumConverter::SpectrumConverter

(

)

Definition at line 32 of file spectrum-converter.cc.

Member Function Documentation

Ptr< SpectrumValue > ns3::SpectrumConverter::Convert

(

Ptr< const SpectrumValue >

vvf

)

const

Convert a particular ValueVsFreq instance to.

Parameters

vvf	the ValueVsFreq instance to be converted

Returns

the converted version of the provided ValueVsFreq

Definition at line 74 of file spectrum-converter.cc.

References m_conversionMatrix, m_fromSpectrumModel, m_toSpectrumModel, NS_ASSERT, ns3::SpectrumValue::ValuesBegin(), and ns3::SpectrumValue::ValuesEnd().

Referenced by SpectrumConverterTestSuite::SpectrumConverterTestSuite().

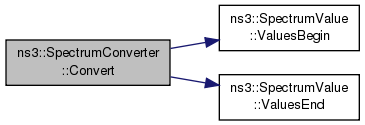

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::SpectrumConverter::GetCoefficient ( const BandInfo &  from, const BandInfo &  to  ) const

private

Calculate the coefficient for value conversion between elements.

Parameters

from	BandInfo to convert from
to	BandInfo to convert to

Returns

the fraction of the value of the "from" BandInfos that is mapped to the "to" BandInfo

Definition at line 62 of file spectrum-converter.cc.

References ns3::BandInfo::fh, ns3::BandInfo::fl, max, min, and NS_LOG_FUNCTION.

Referenced by SpectrumConverter().

Here is the caller graph for this function:

Member Data Documentation

std::vector<std::vector<double> > ns3::SpectrumConverter::m_conversionMatrix

private

matrix of conversion coefficients

Definition at line 81 of file spectrum-converter.h.

Referenced by Convert(), and SpectrumConverter().

Ptr<const SpectrumModel> ns3::SpectrumConverter::m_fromSpectrumModel

private

the SpectrumModel this SpectrumConverter instance can convert from

Definition at line 82 of file spectrum-converter.h.

Referenced by Convert(), and SpectrumConverter().

Ptr<const SpectrumModel> ns3::SpectrumConverter::m_toSpectrumModel

private

the SpectrumModel this SpectrumConverter instance can convert to

Definition at line 83 of file spectrum-converter.h.

Referenced by Convert(), and SpectrumConverter().

---

The documentation for this class was generated from the following files:

• src/spectrum/model/spectrum-converter.h
• src/spectrum/model/spectrum-converter.cc
