Implements the IEEE 802.11 MAC header. More...

#include "wifi-mac-header.h"

Inheritance diagram for ns3::WifiMacHeader:

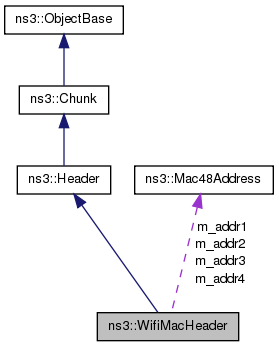

Collaboration diagram for ns3::WifiMacHeader:

Public Types
enum	AddressType { ADDR1, ADDR2, ADDR3, ADDR4 }
	Address types. More...

enum	QosAckPolicy { NORMAL_ACK = 0, NO_ACK = 1, NO_EXPLICIT_ACK = 2, BLOCK_ACK = 3 }
	ACK policy for QoS frames. More...

typedef void(*	TracedCallback) (const WifiMacHeader &header)
	TracedCallback signature for WifiMacHeader. More...

Public Member Functions
	WifiMacHeader ()

	~WifiMacHeader ()

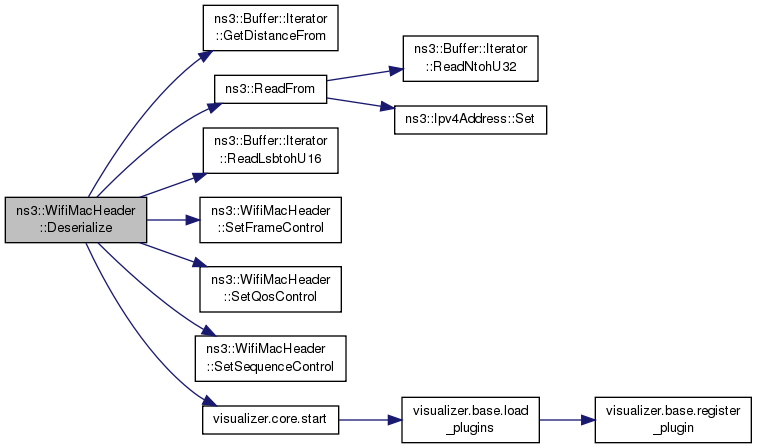

virtual uint32_t	Deserialize (Buffer::Iterator start)

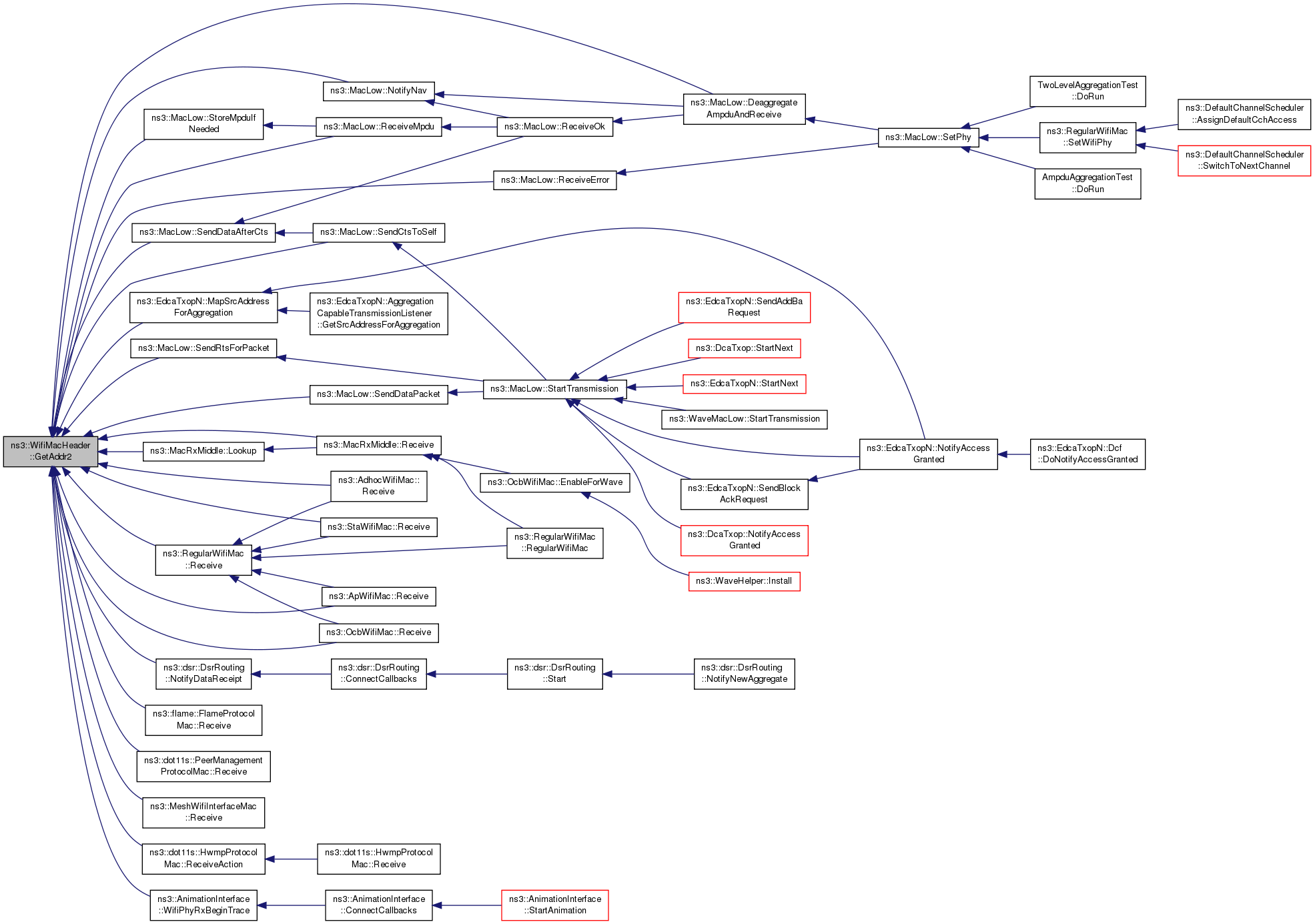

Mac48Address	GetAddr1 (void) const
	Return the address in the Address 1 field. More...

Mac48Address	GetAddr2 (void) const
	Return the address in the Address 2 field. More...

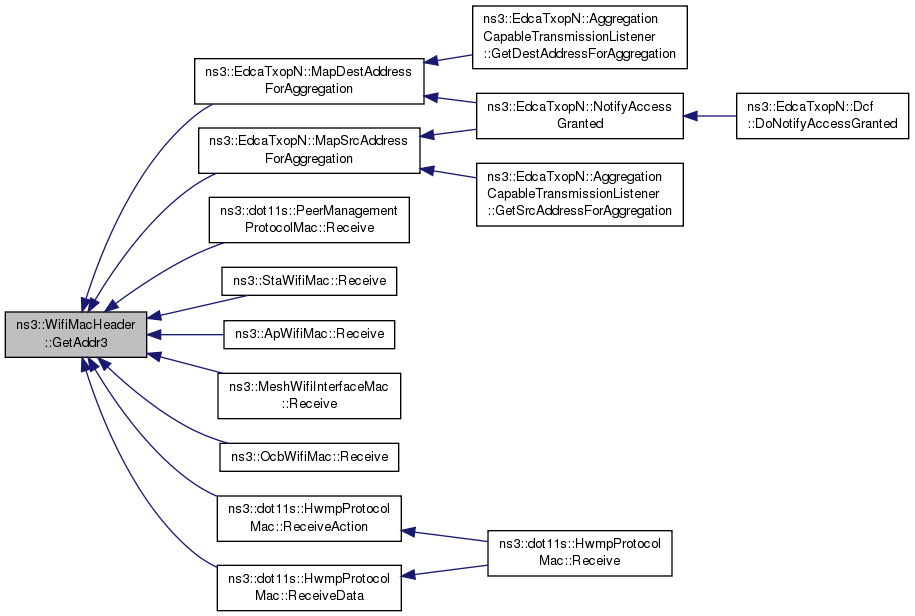

Mac48Address	GetAddr3 (void) const
	Return the address in the Address 3 field. More...

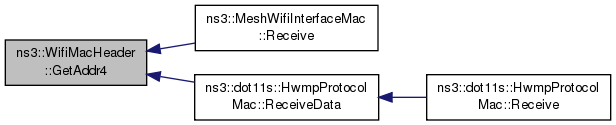

Mac48Address	GetAddr4 (void) const
	Return the address in the Address 4 field. More...

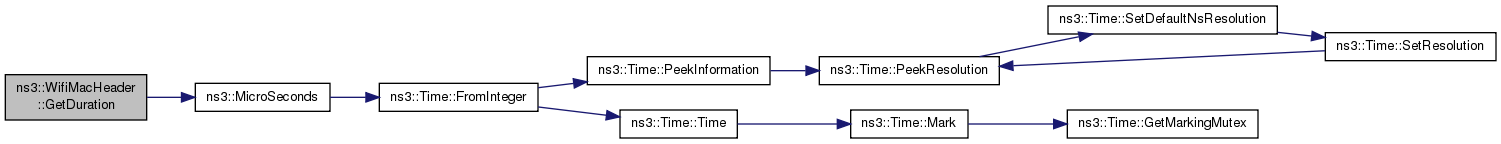

Time	GetDuration (void) const
	Return the duration from the Duration/ID field (Time object). More...

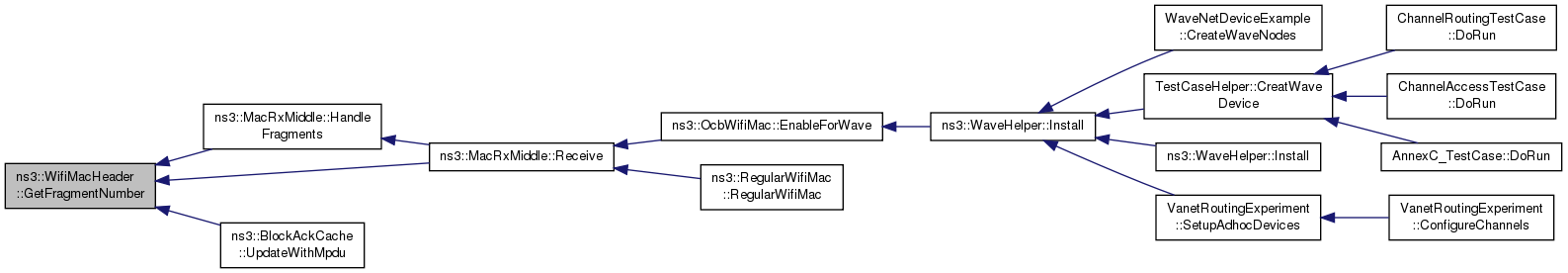

uint16_t	GetFragmentNumber (void) const
	Return the fragment number of the header. More...

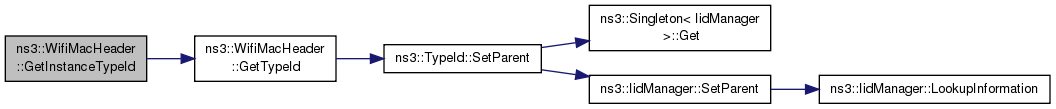

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

enum QosAckPolicy	GetQosAckPolicy (void) const
	Return the QoS ACK Policy of a QoS header. More...

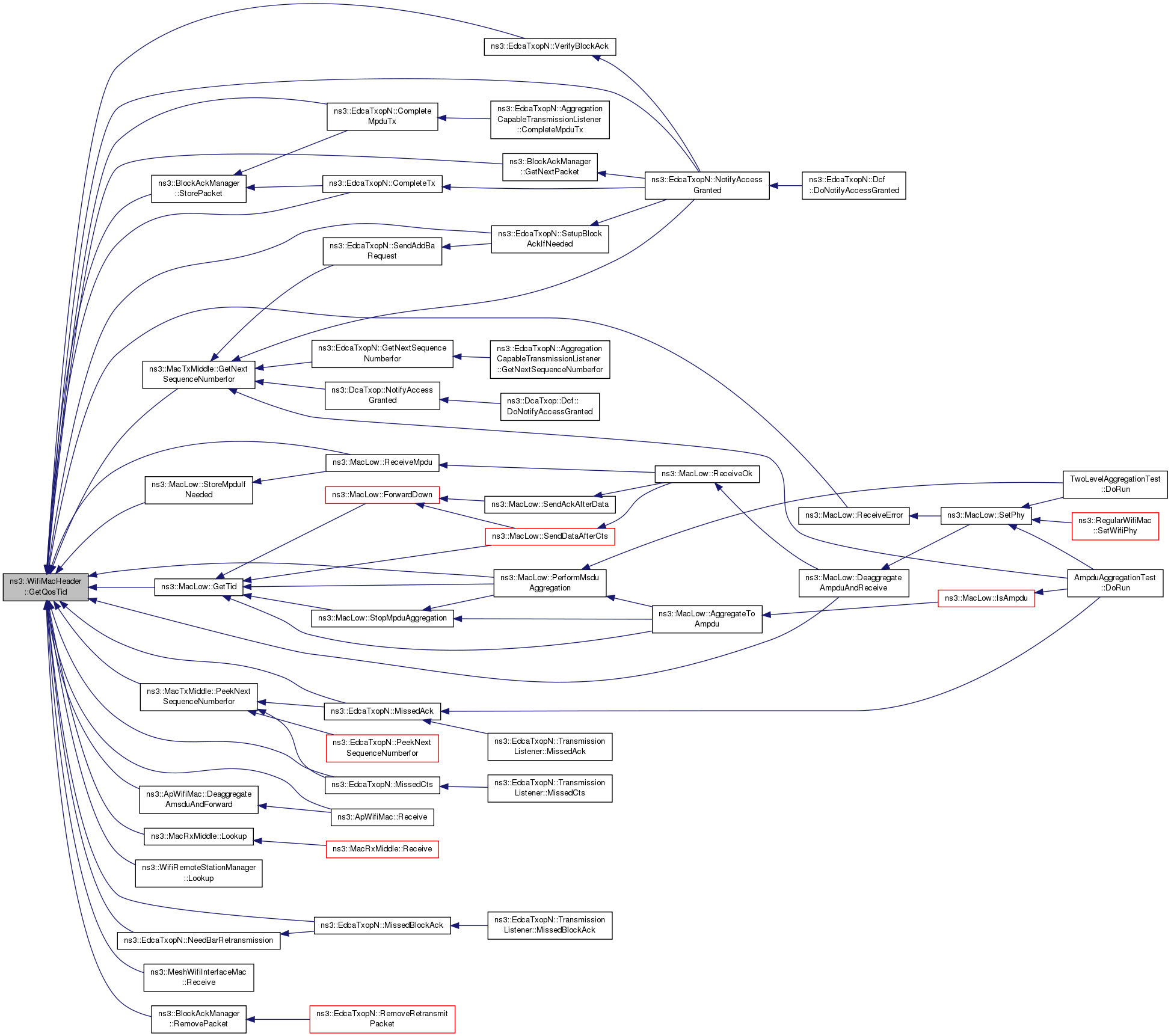

uint8_t	GetQosTid (void) const
	Return the Traffic ID of a QoS header. More...

uint8_t	GetQosTxopLimit (void) const
	Return the TXOP limit. More...

uint16_t	GetRawDuration (void) const
	Return the raw duration from the Duration/ID field. More...

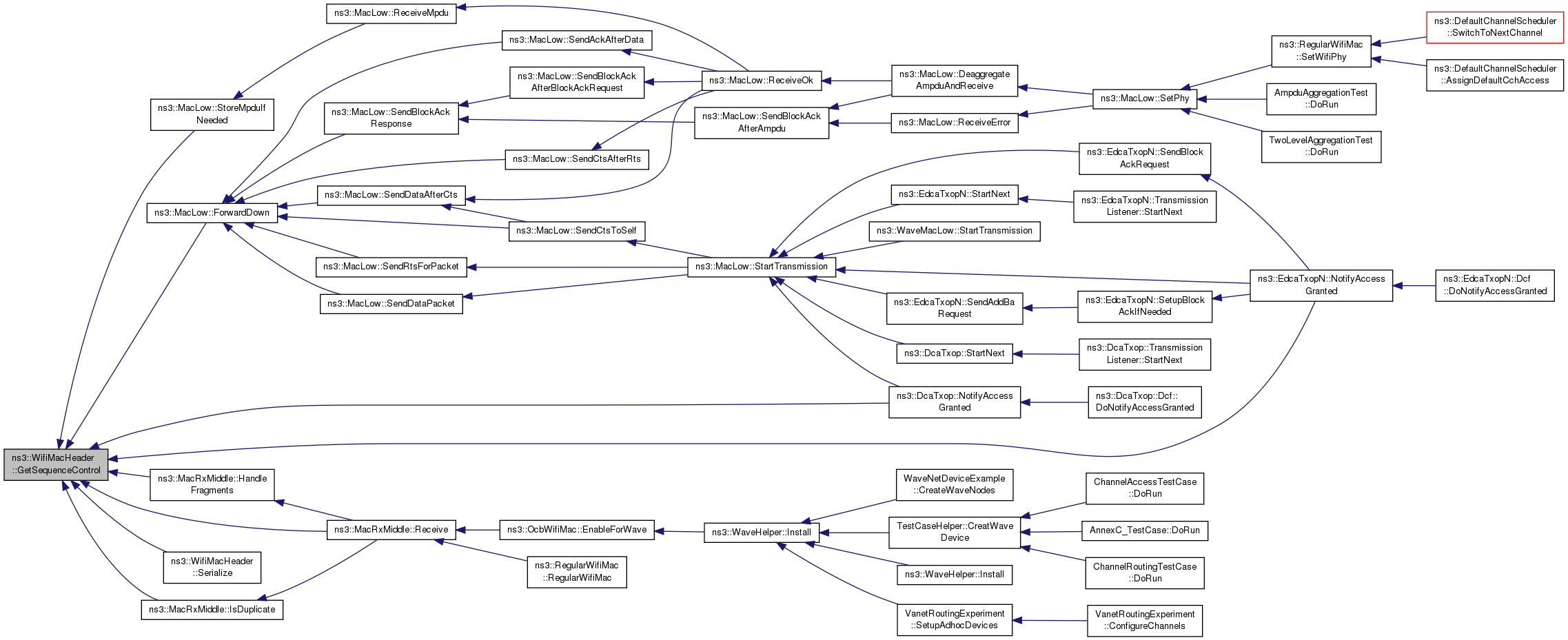

uint16_t	GetSequenceControl (void) const
	Return the raw Sequence Control field. More...

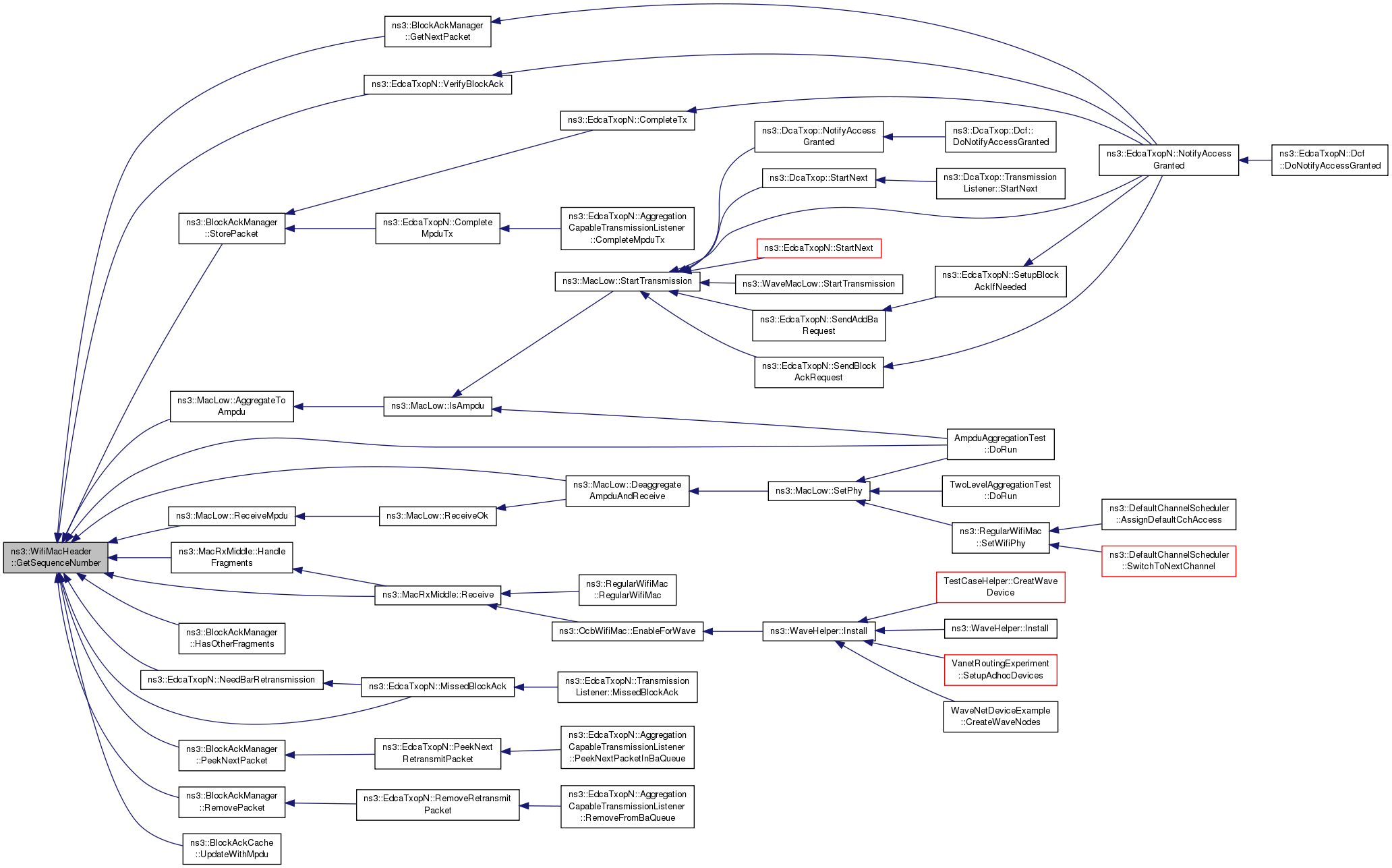

uint16_t	GetSequenceNumber (void) const
	Return the sequence number of the header. More...

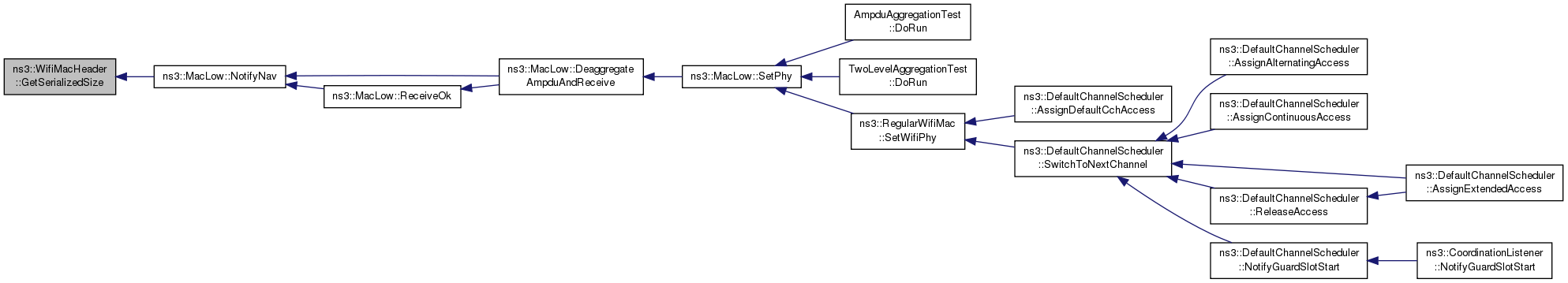

virtual uint32_t	GetSerializedSize (void) const

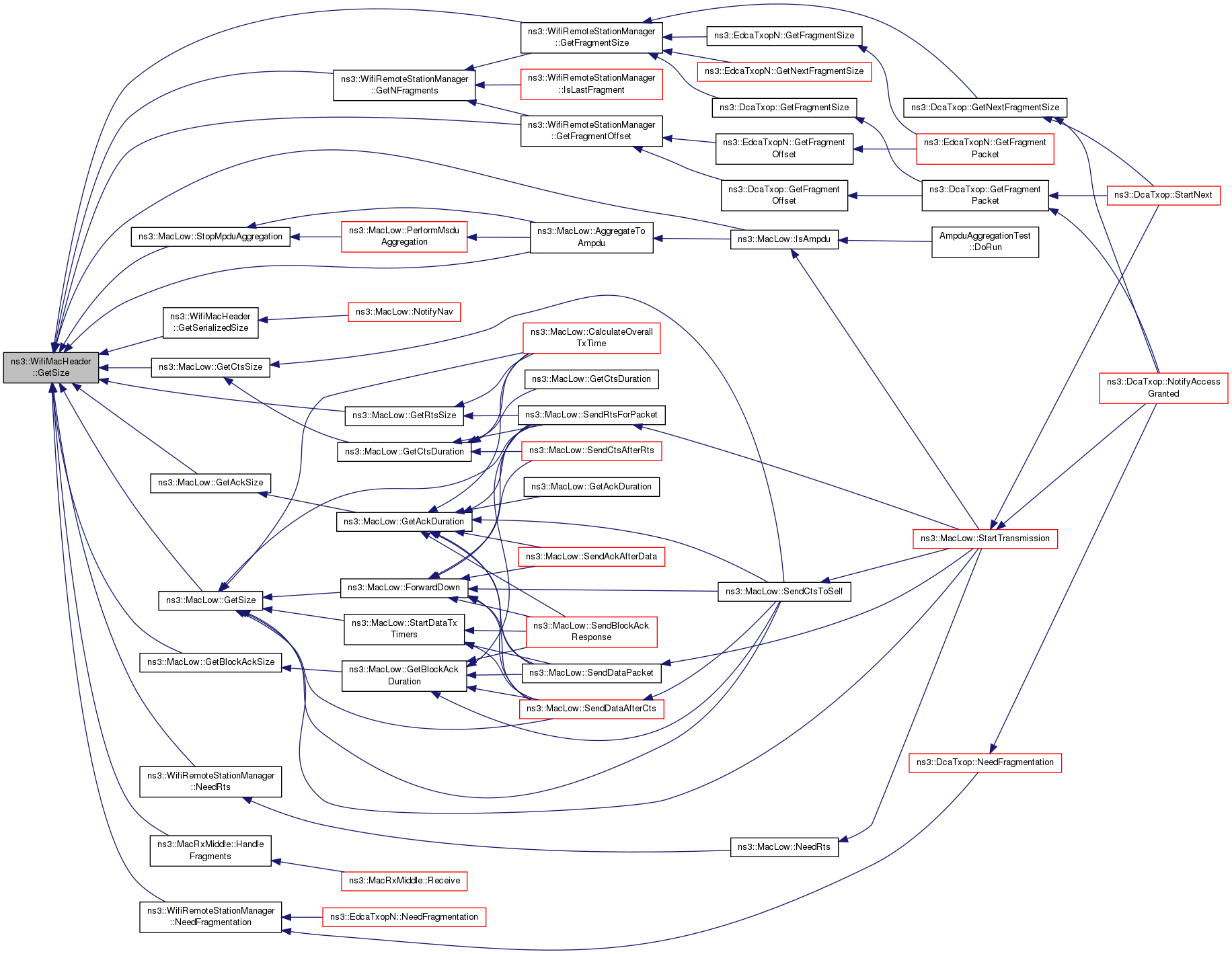

uint32_t	GetSize (void) const
	Return the size of the WifiMacHeader in octets. More...

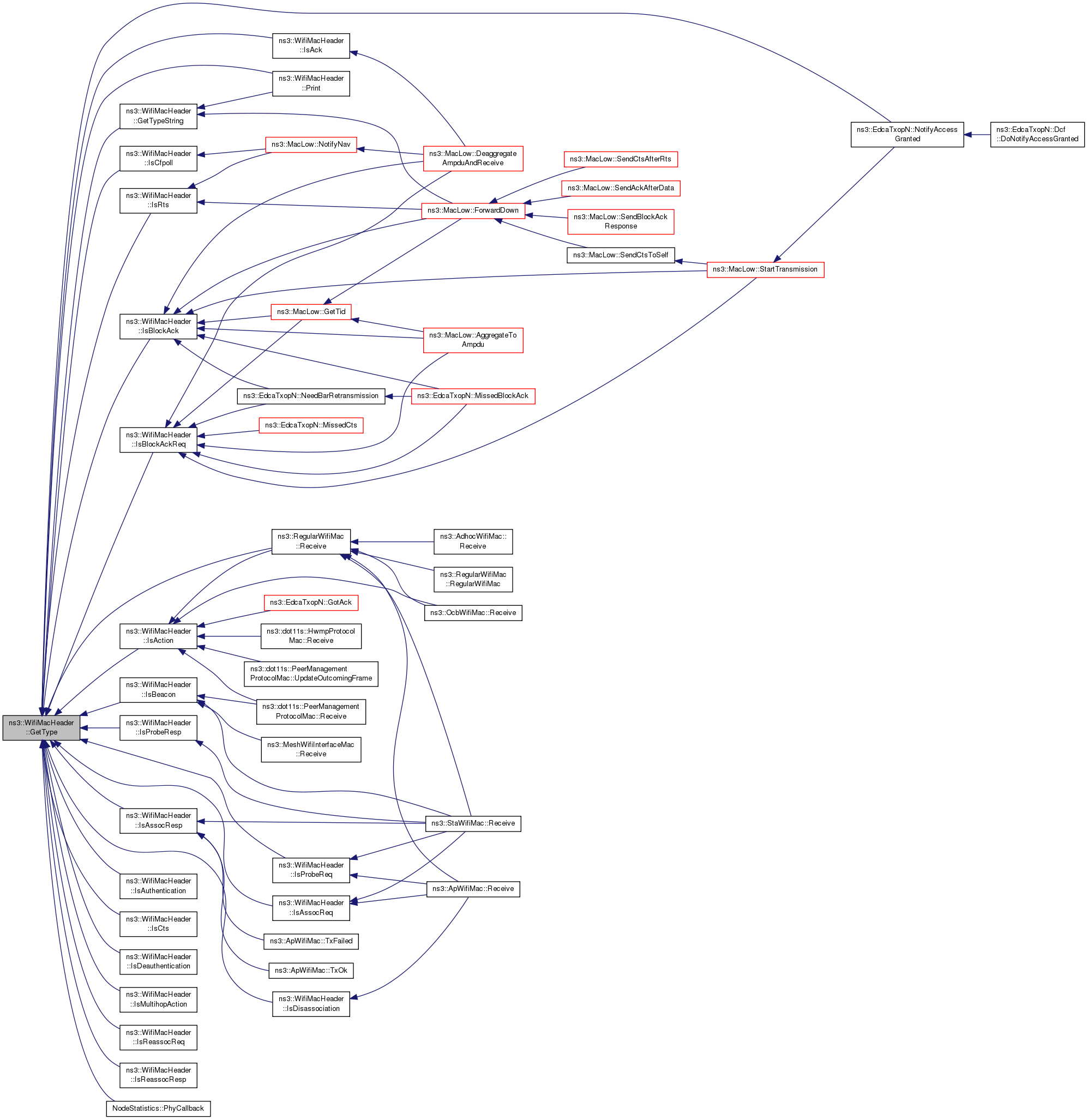

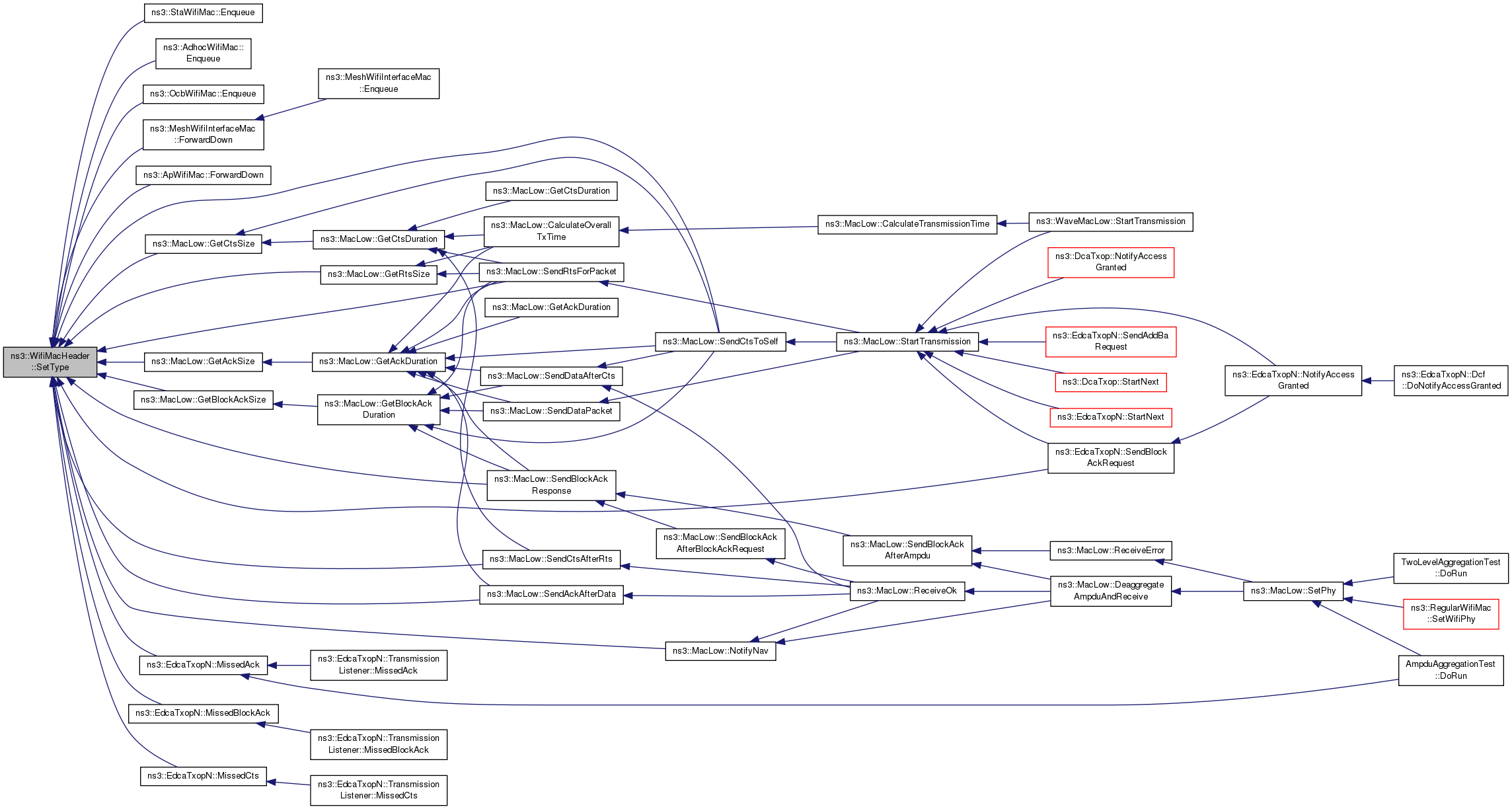

enum WifiMacType	GetType (void) const
	Return the type (enum WifiMacType) More...

const char *	GetTypeString (void) const
	Return a string corresponds to the header type. More...

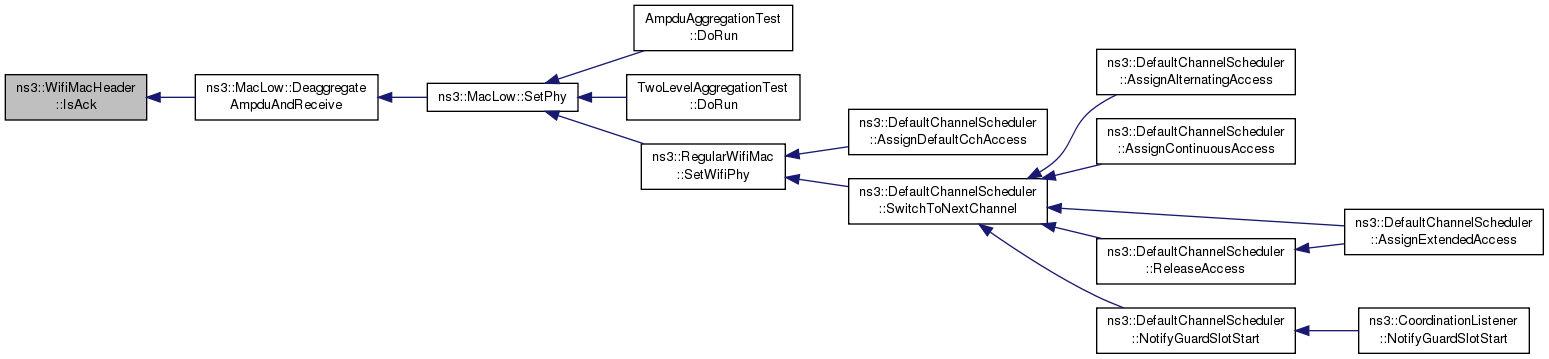

bool	IsAck (void) const
	Return true if the header is an ACK header. More...

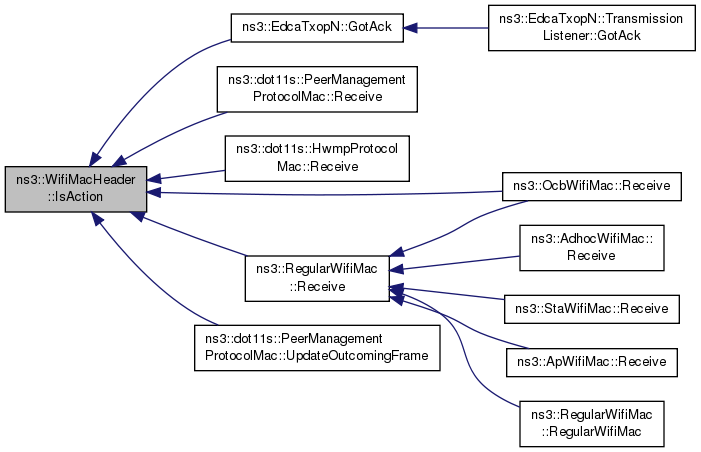

bool	IsAction () const
	Return true if the header is an Action header. More...

bool	IsAssocReq (void) const
	Return true if the header is an Association Request header. More...

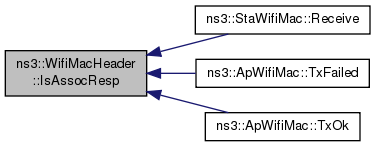

bool	IsAssocResp (void) const
	Return true if the header is an Association Response header. More...

bool	IsAuthentication (void) const
	Return true if the header is an Authentication header. More...

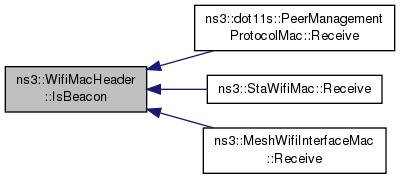

bool	IsBeacon (void) const
	Return true if the header is a Beacon header. More...

bool	IsBlockAck (void) const
	Return true if the header is a Block ACK header. More...

bool	IsBlockAckReq (void) const
	Return true if the header is a Block ACK Request header. More...

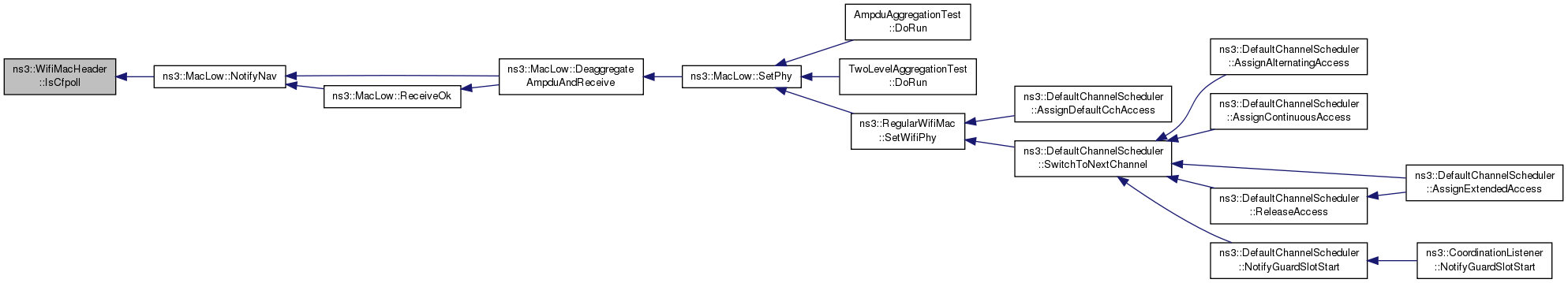

bool	IsCfpoll (void) const
	Return true if the Type/Subtype is one of the possible CF-Poll headers. More...

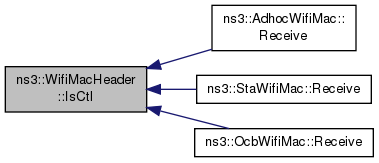

bool	IsCtl (void) const
	Return true if the Type is Control. More...

bool	IsCts (void) const
	Return true if the header is a CTS header. More...

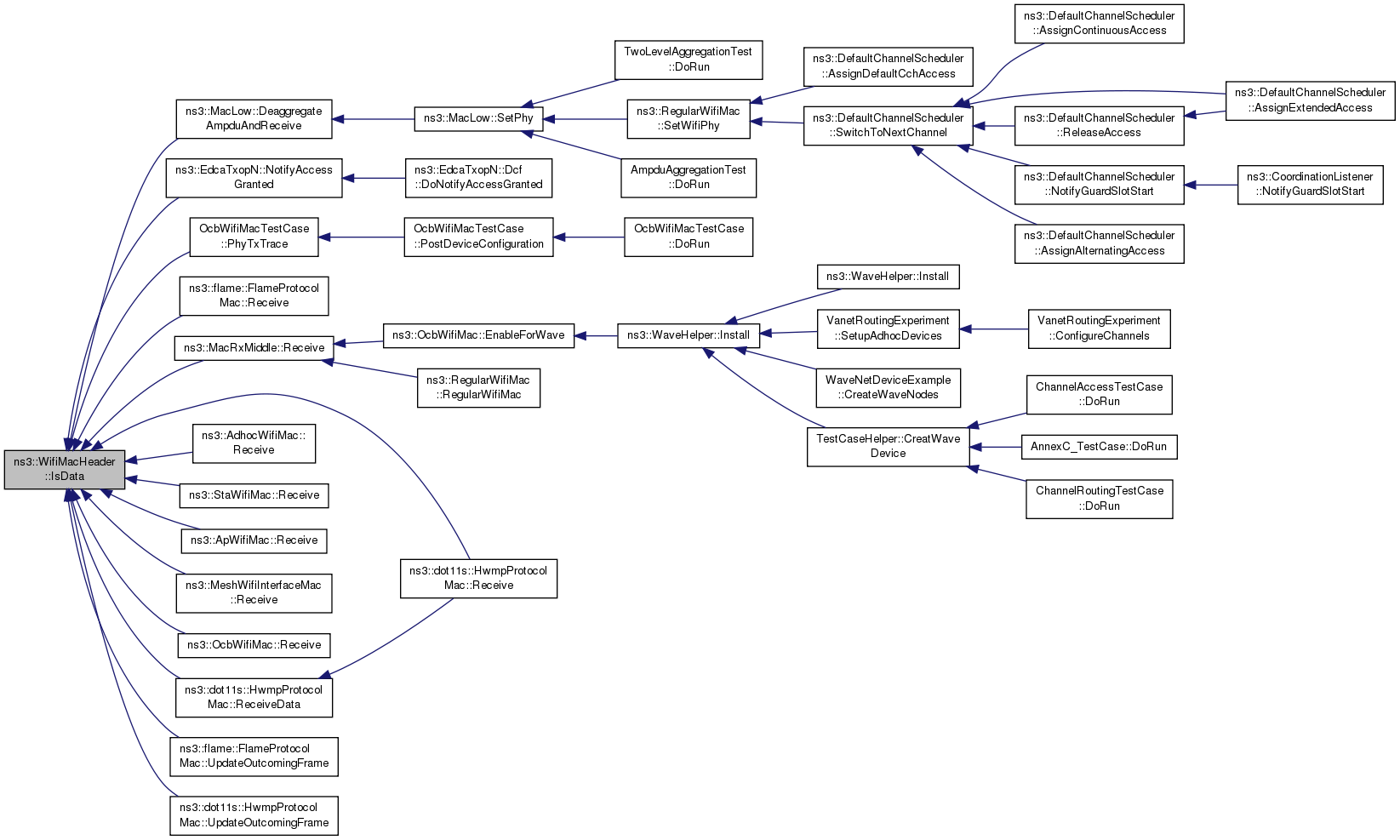

bool	IsData (void) const
	Return true if the Type is DATA. More...

bool	IsDeauthentication (void) const
	Return true if the header is a Deauthentication header. More...

bool	IsDisassociation (void) const
	Return true if the header is a Disassociation header. More...

bool	IsFromDs (void) const

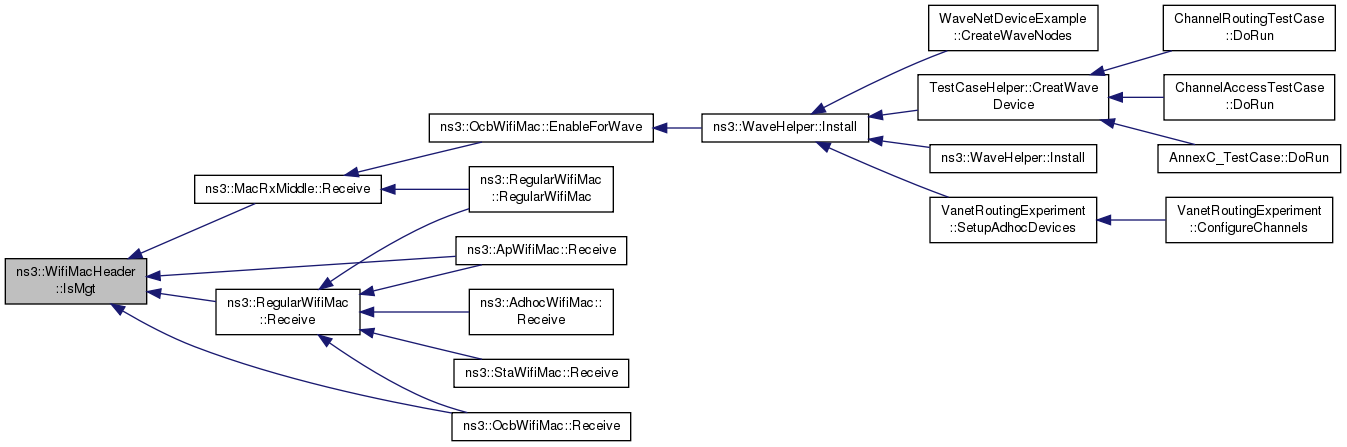

bool	IsMgt (void) const
	Return true if the Type is Management. More...

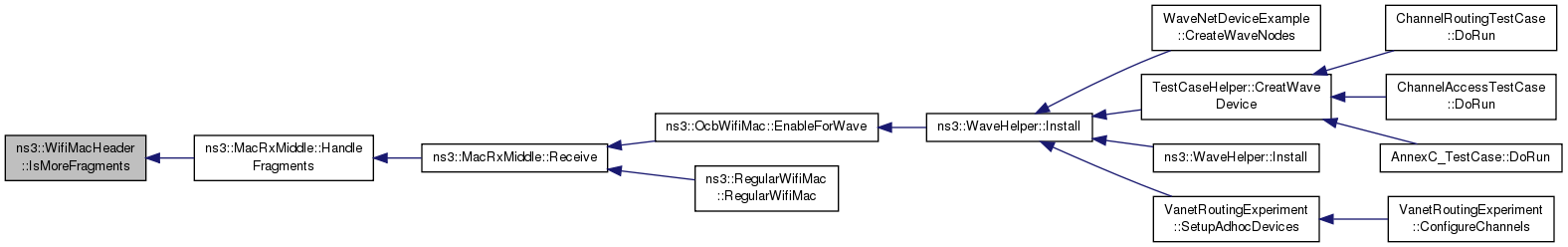

bool	IsMoreFragments (void) const
	Return if the More Fragment bit is set. More...

bool	IsMultihopAction () const
	Check if the header is a Multihop action header. More...

bool	IsProbeReq (void) const
	Return true if the header is a Probe Request header. More...

bool	IsProbeResp (void) const
	Return true if the header is a Probe Response header. More...

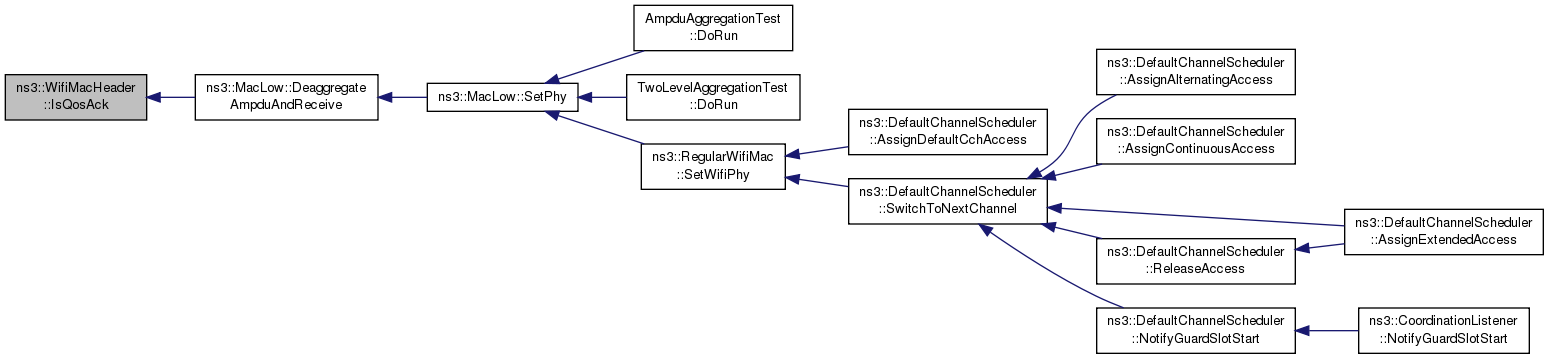

bool	IsQosAck (void) const
	Return if the QoS ACK policy is Normal ACK. More...

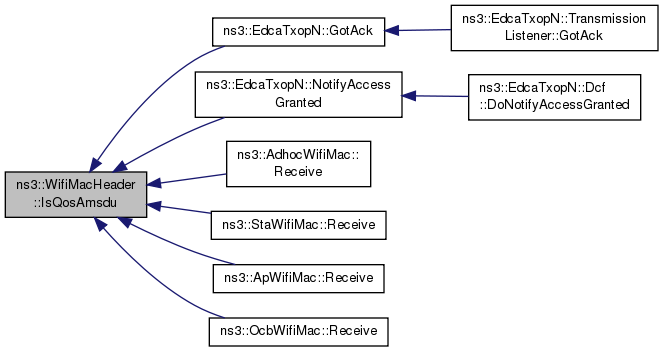

bool	IsQosAmsdu (void) const
	Check if the A-MSDU present bit is set in the QoS control field. More...

bool	IsQosBlockAck (void) const
	Return if the QoS ACK policy is Block ACK. More...

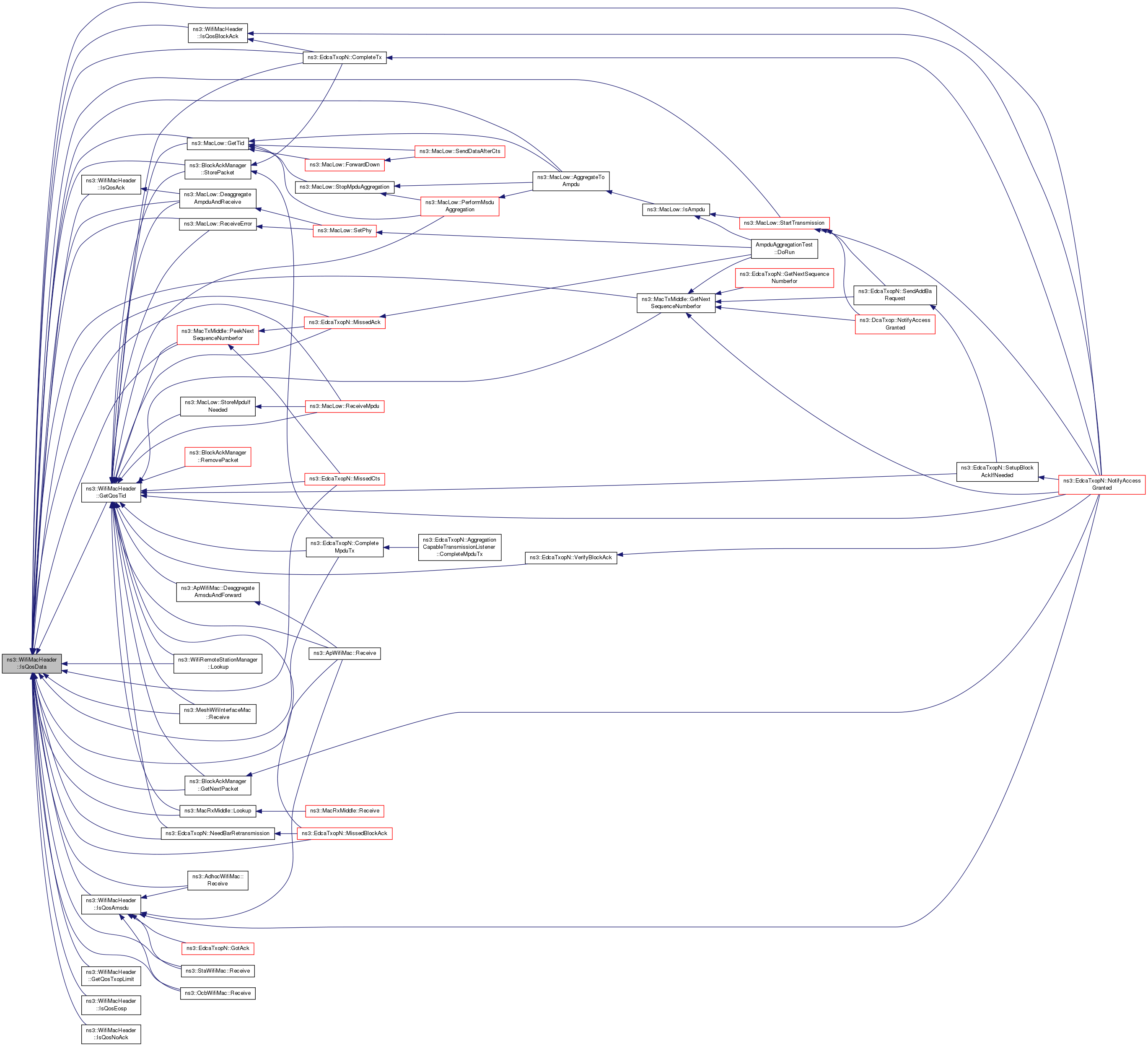

bool	IsQosData (void) const
	Return true if the Type is DATA and Subtype is one of the possible values for QoS DATA. More...

bool	IsQosEosp (void) const
	Return if the end of service period (EOSP) is set. More...

bool	IsQosNoAck (void) const
	Return if the QoS ACK policy is No ACK. More...

bool	IsReassocReq (void) const
	Return true if the header is a Reassociation Request header. More...

bool	IsReassocResp (void) const
	Return true if the header is a Reassociation Response header. More...

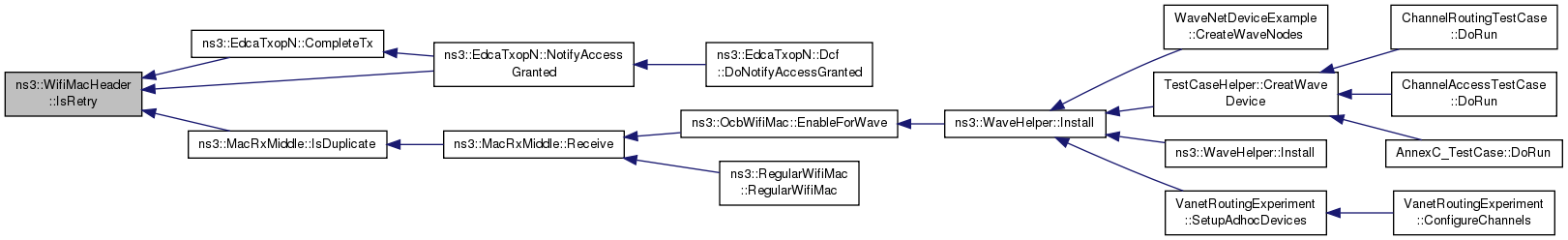

bool	IsRetry (void) const
	Return if the Retry bit is set. More...

bool	IsRts (void) const
	Return true if the header is a RTS header. More...

bool	IsToDs (void) const

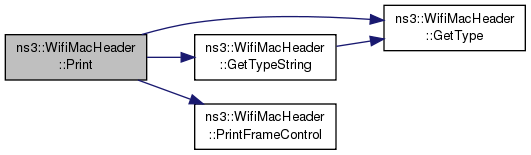

virtual void	Print (std::ostream &os) const

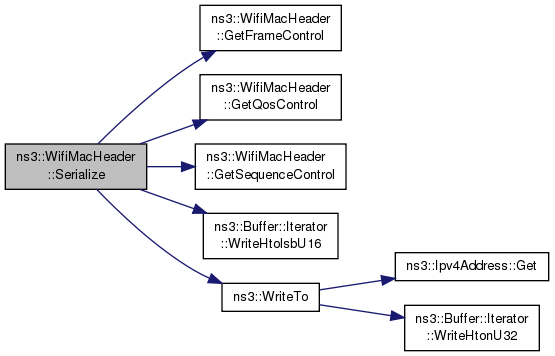

virtual void	Serialize (Buffer::Iterator start) const

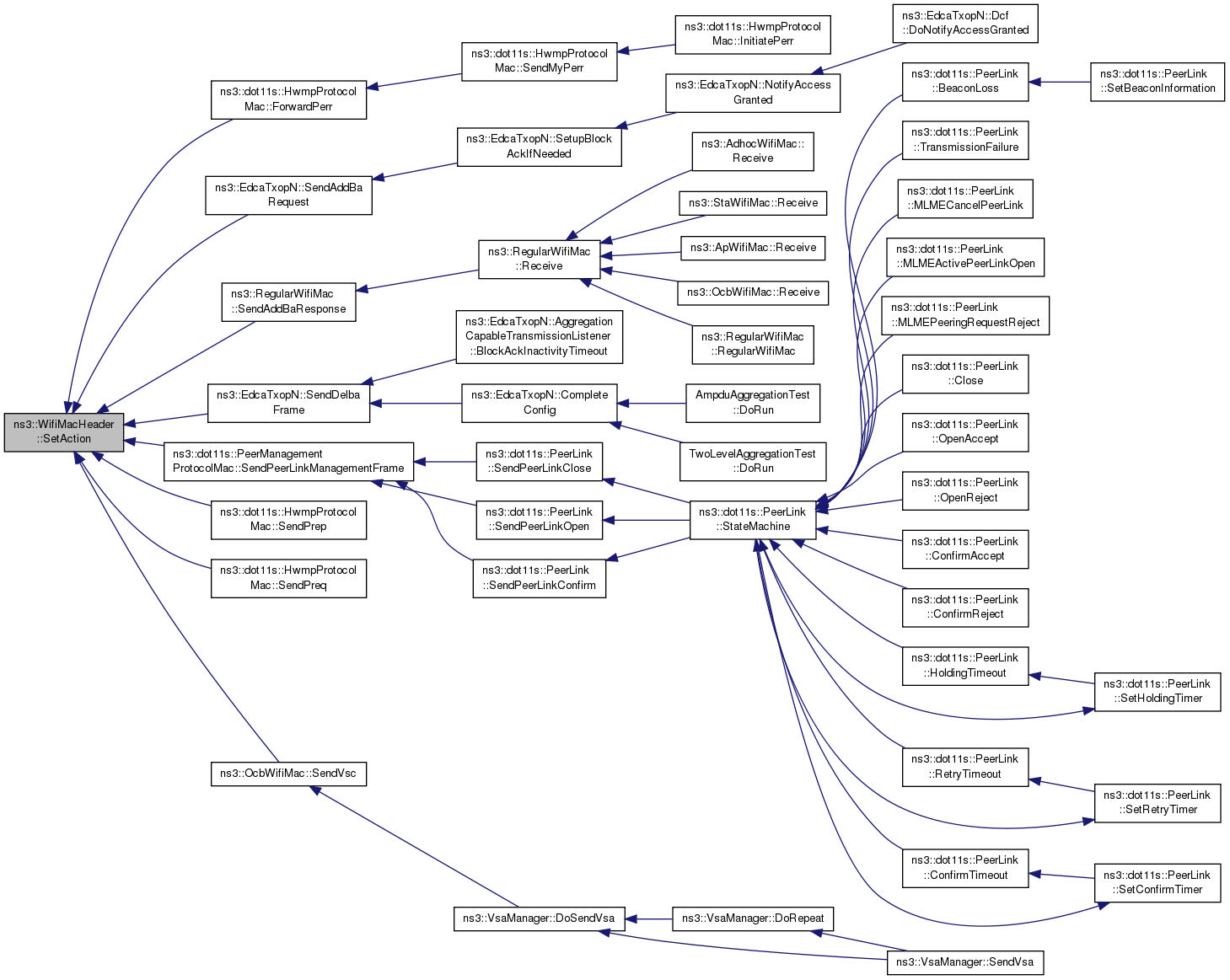

void	SetAction ()
	Set Type/Subtype values for an action header. More...

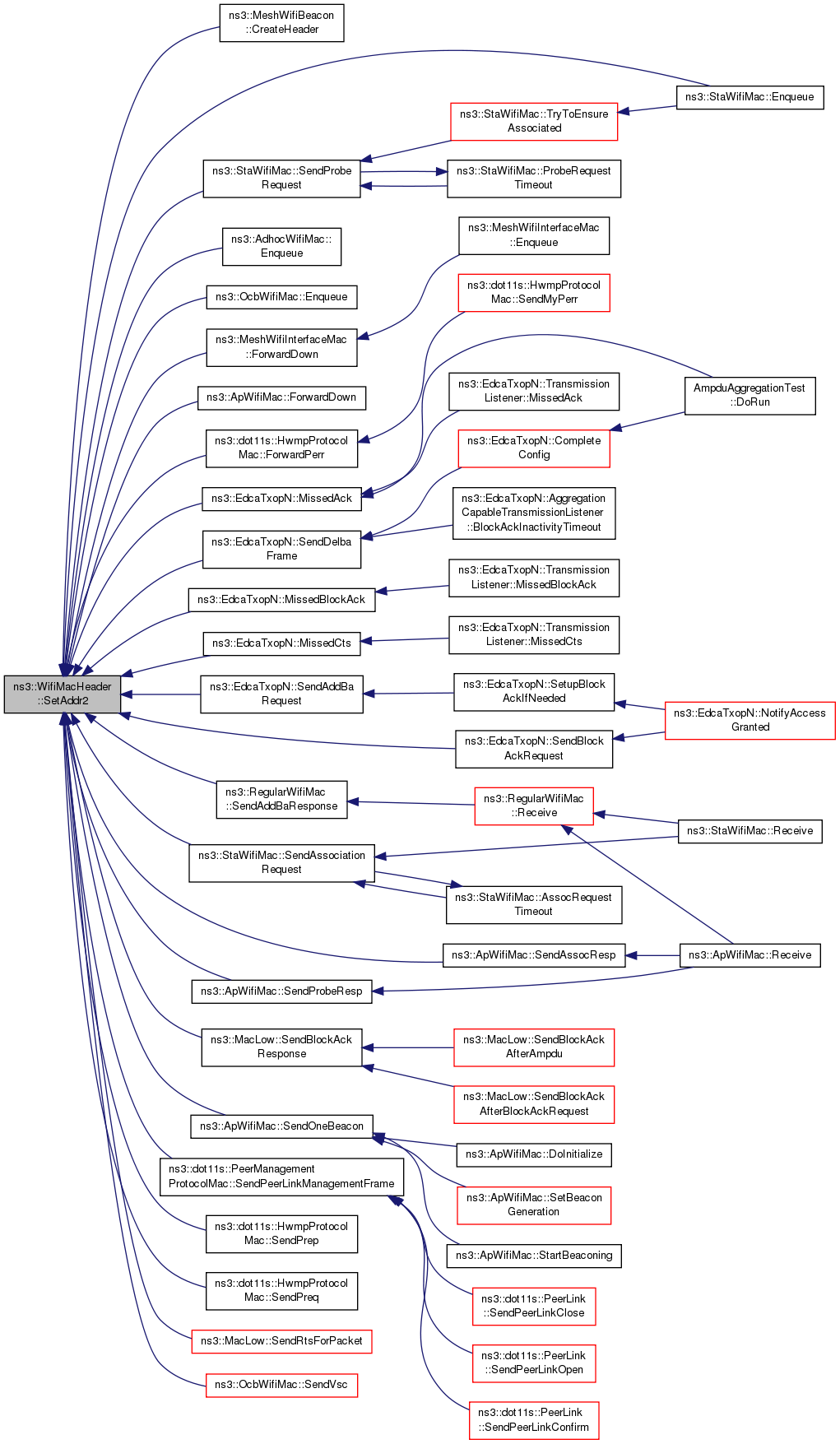

void	SetAddr1 (Mac48Address address)
	Fill the Address 1 field with the given address. More...

void	SetAddr2 (Mac48Address address)
	Fill the Address 2 field with the given address. More...

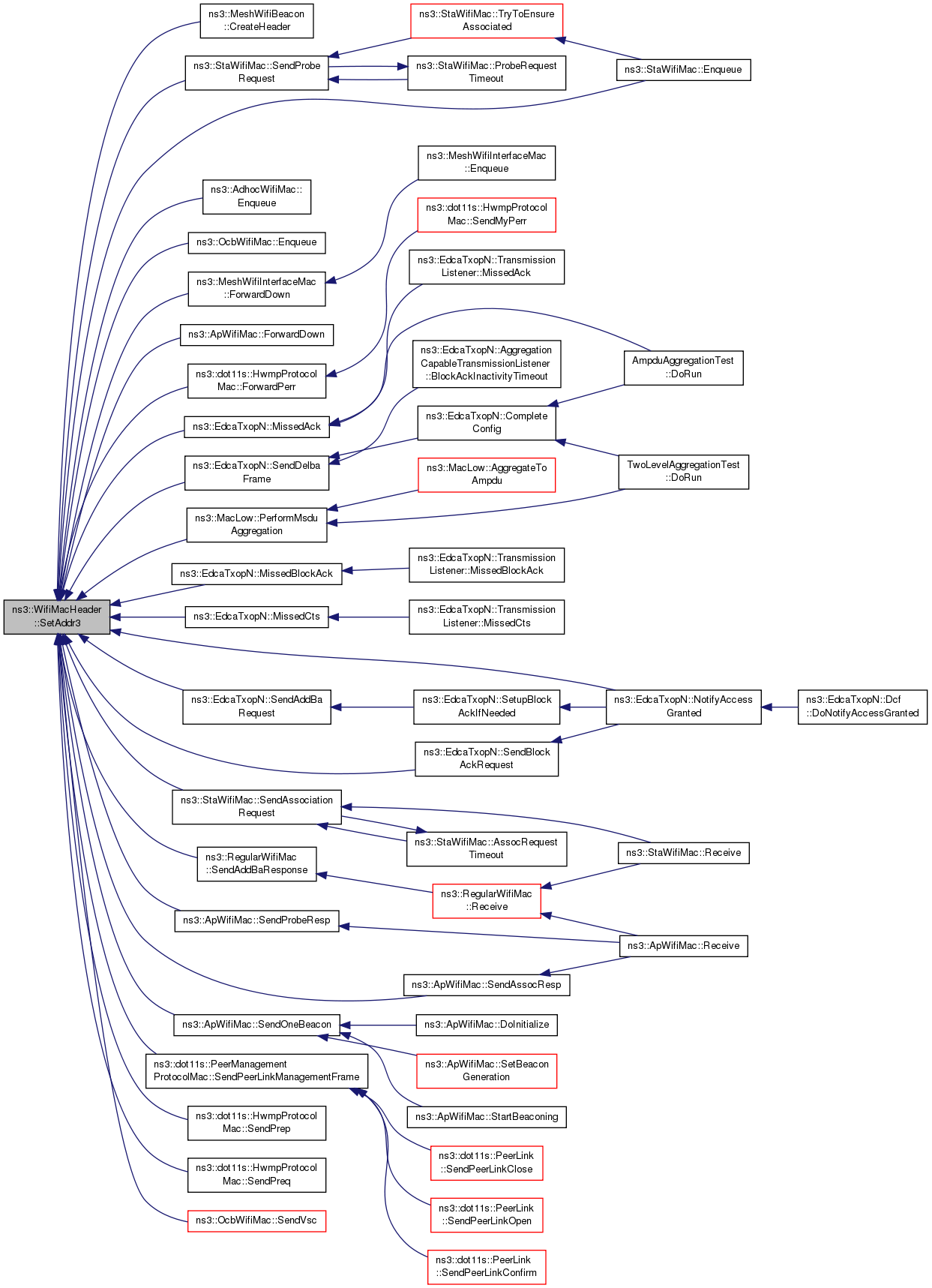

void	SetAddr3 (Mac48Address address)
	Fill the Address 3 field with the given address. More...

void	SetAddr4 (Mac48Address address)
	Fill the Address 4 field with the given address. More...

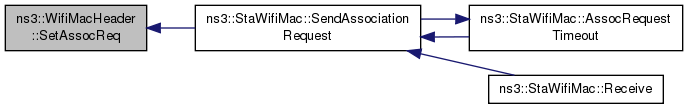

void	SetAssocReq (void)
	Set Type/Subtype values for an association request header. More...

void	SetAssocResp (void)
	Set Type/Subtype values for an association response header. More...

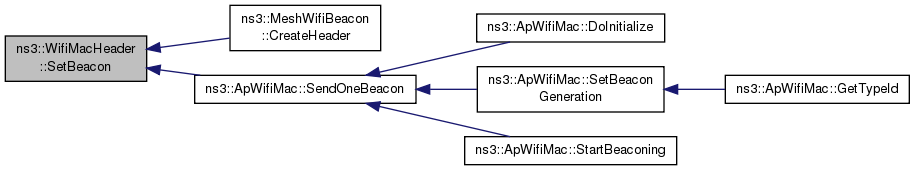

void	SetBeacon (void)
	Set Type/Subtype values for a beacon header. More...

void	SetBlockAck (void)
	Set Type/Subtype values for a Block Ack header. More...

void	SetBlockAckReq (void)
	Set Type/Subtype values for a Block Ack Request header. More...

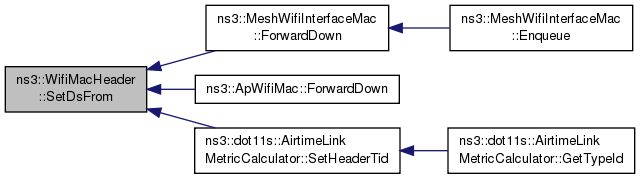

void	SetDsFrom (void)
	Set the From DS bit in the Frame Control field. More...

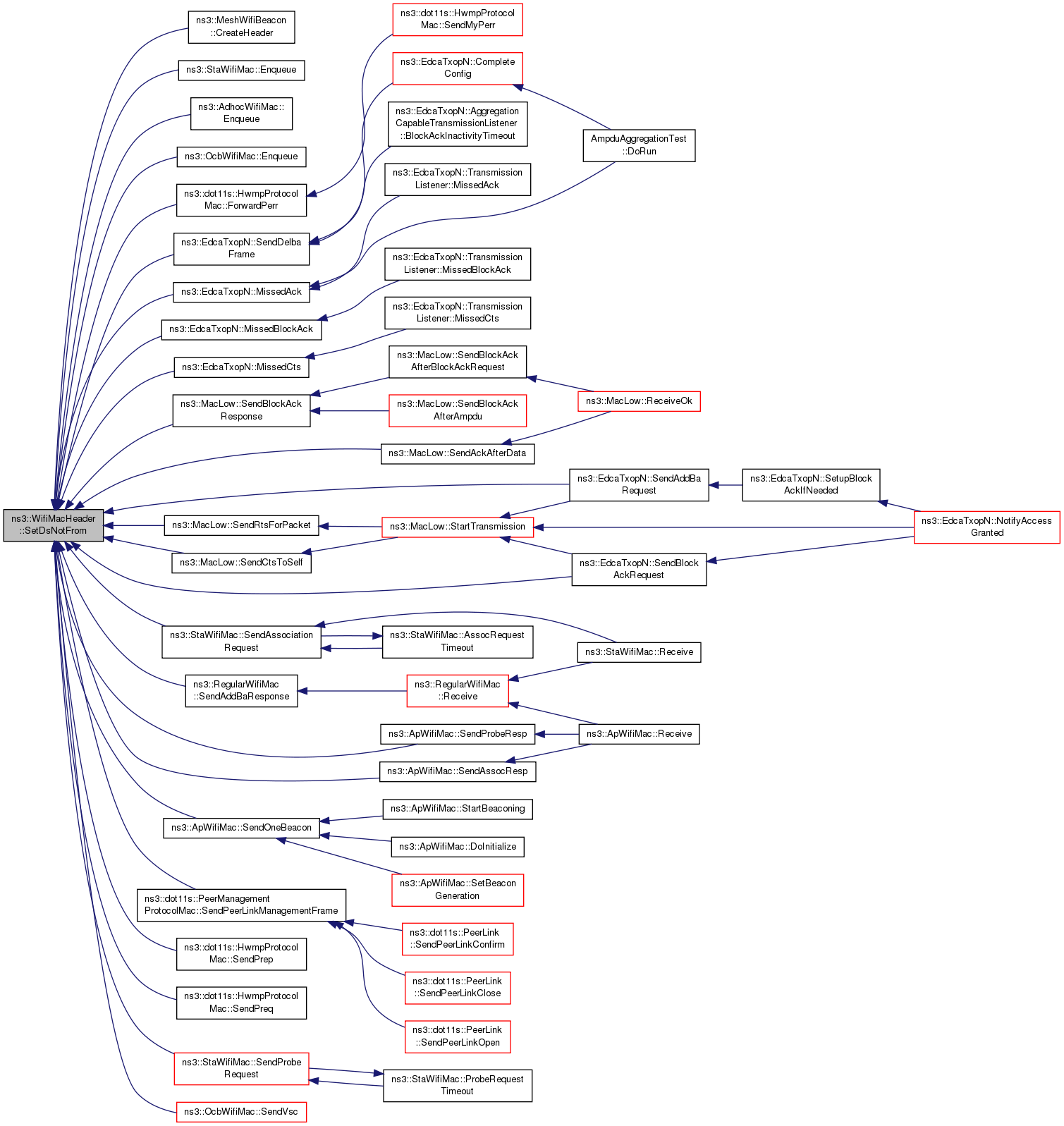

void	SetDsNotFrom (void)
	Un-set the From DS bit in the Frame Control field. More...

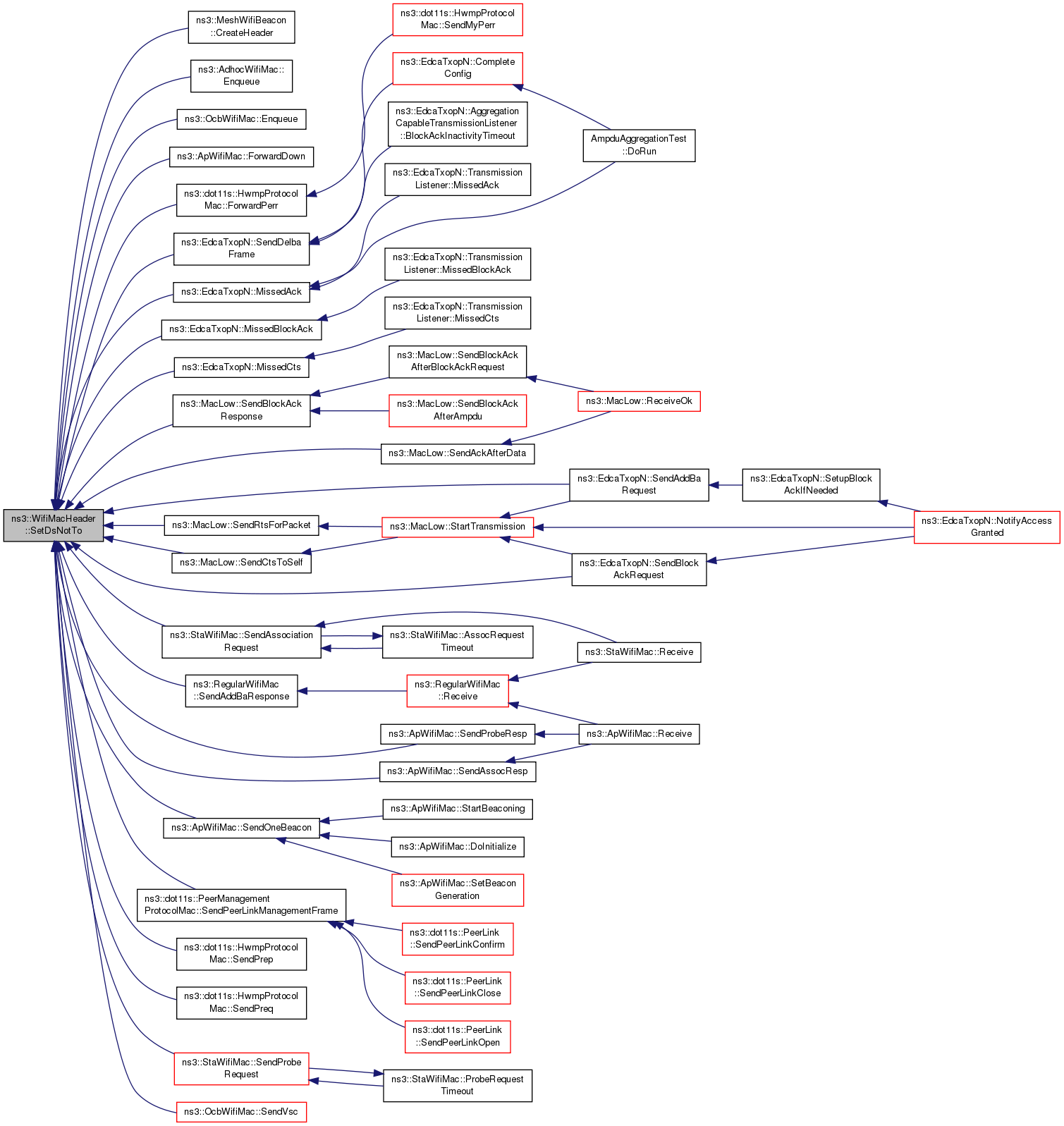

void	SetDsNotTo (void)
	Un-set the To DS bit in the Frame Control field. More...

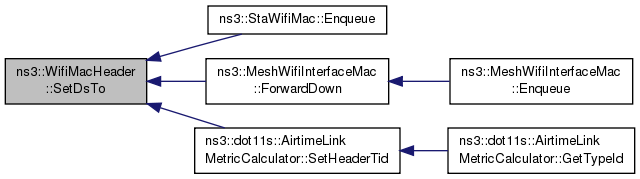

void	SetDsTo (void)
	Set the To DS bit in the Frame Control field. More...

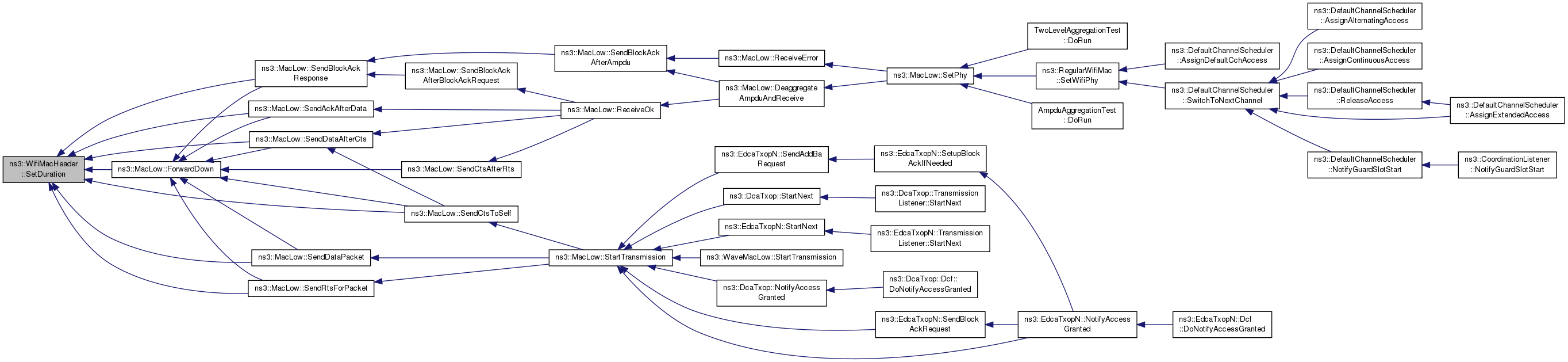

void	SetDuration (Time duration)
	Set the Duration/ID field with the given duration (Time object). More...

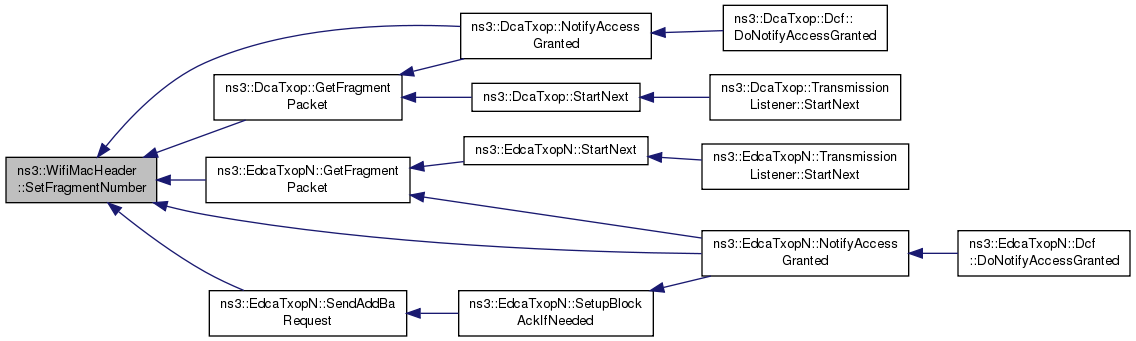

void	SetFragmentNumber (uint8_t frag)
	Set the fragment number of the header. More...

void	SetId (uint16_t id)
	Set the Duration/ID field with the given ID. More...

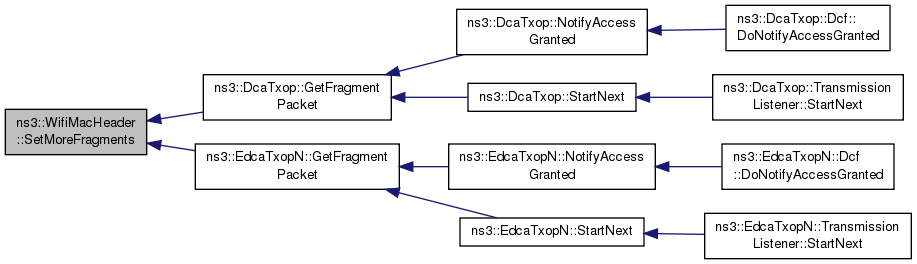

void	SetMoreFragments (void)
	Set the More Fragment bit in the Frame Control field. More...

void	SetMultihopAction ()
	Set Type/Subtype values for a multihop action header. More...

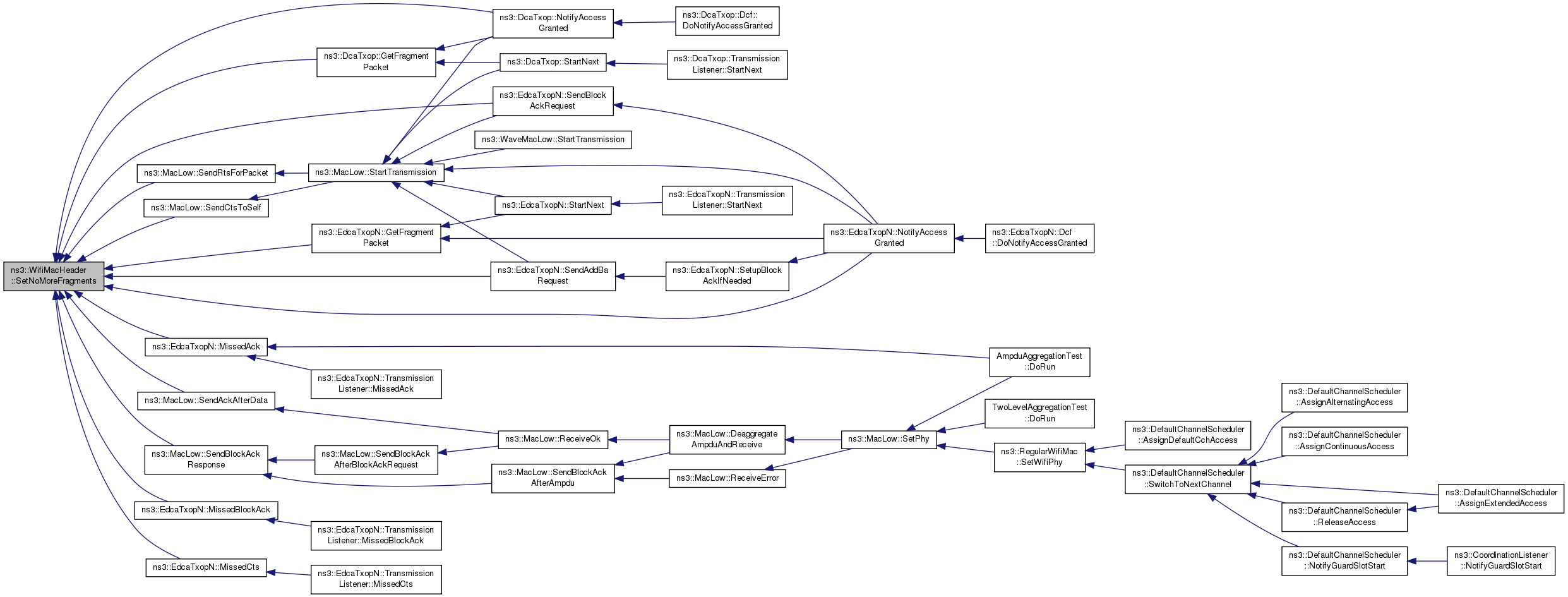

void	SetNoMoreFragments (void)
	Un-set the More Fragment bit in the Frame Control Field. More...

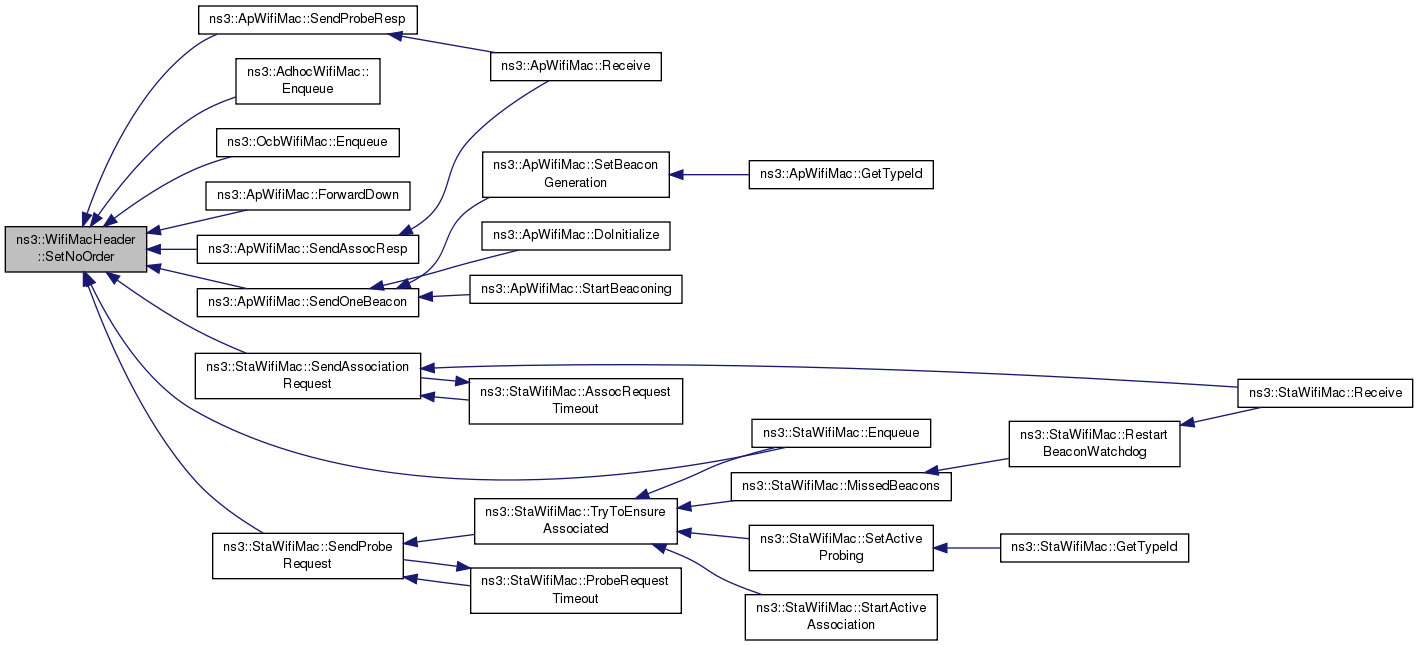

void	SetNoOrder (void)
	Unset order bit in the frame control field. More...

void	SetNoRetry (void)
	Un-set the Retry bit in the Frame Control field. More...

void	SetOrder (void)
	Set order bit in the frame control field. More...

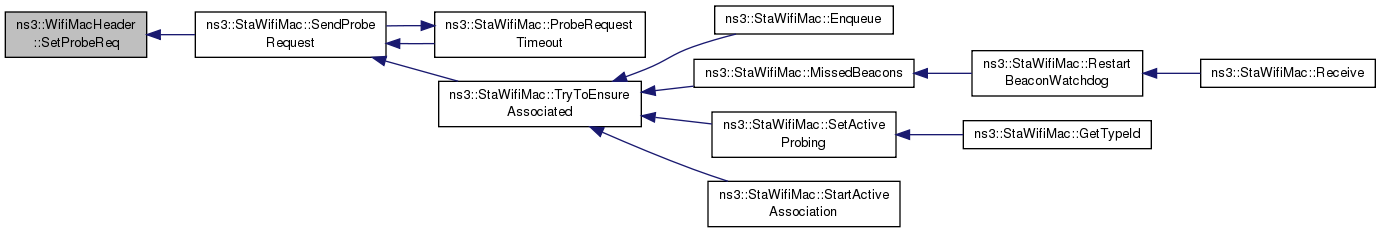

void	SetProbeReq (void)
	Set Type/Subtype values for a probe request header. More...

void	SetProbeResp (void)
	Set Type/Subtype values for a probe response header. More...

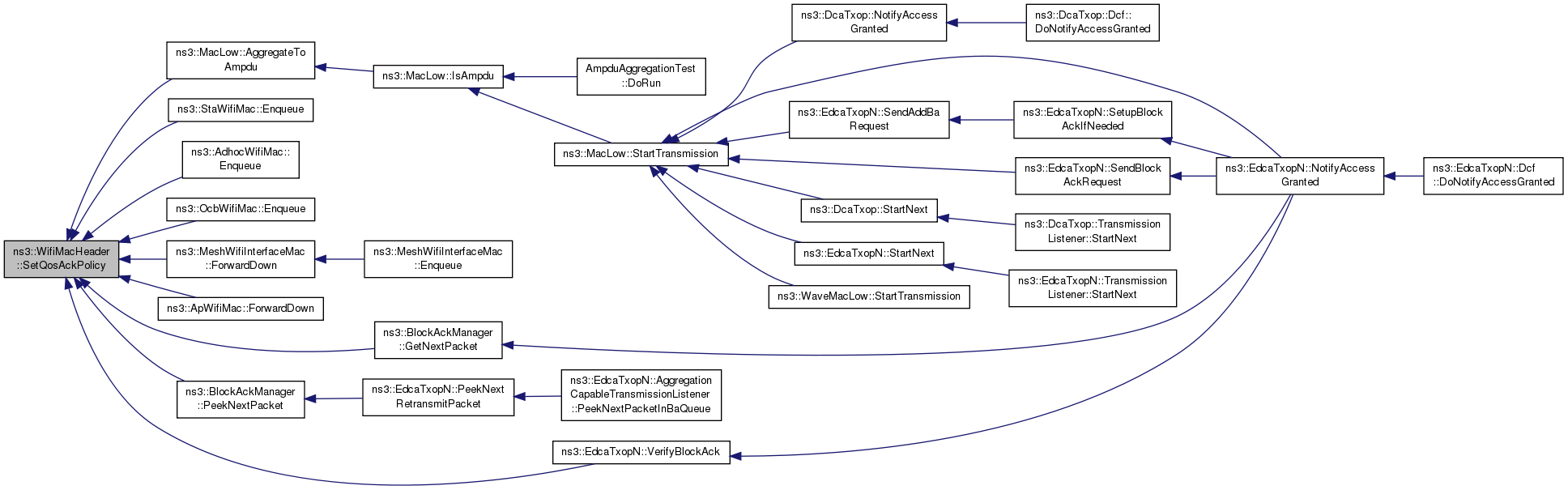

void	SetQosAckPolicy (enum QosAckPolicy policy)
	Set the QoS ACK policy in the QoS control field. More...

void	SetQosAmsdu (void)
	Set that A-MSDU is present. More...

void	SetQosBlockAck (void)
	Set the QoS ACK policy in the QoS control field to block ACK. More...

void	SetQosEosp ()
	Set the end of service period (EOSP) bit in the QoS control field. More...

void	SetQosMeshControlPresent ()
	Set the Mesh Control Present flag for the QoS header. More...

void	SetQosNoAck (void)
	Set the QoS ACK policy in the QoS control field to no ACK. More...

void	SetQosNoAmsdu (void)
	Set that A-MSDU is not present. More...

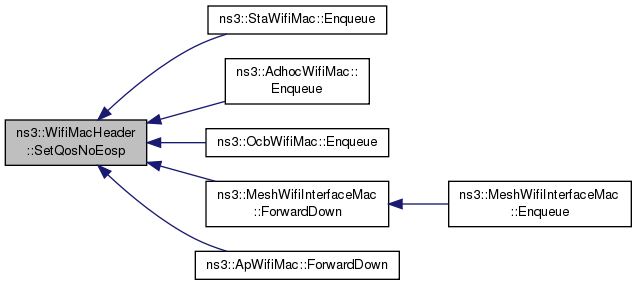

void	SetQosNoEosp ()
	Un-set the end of service period (EOSP) bit in the QoS control field. More...

void	SetQosNoMeshControlPresent ()
	Clear the Mesh Control Present flag for the QoS header. More...

void	SetQosNormalAck (void)
	Set the QoS ACK policy in the QoS control field to normal ACK. More...

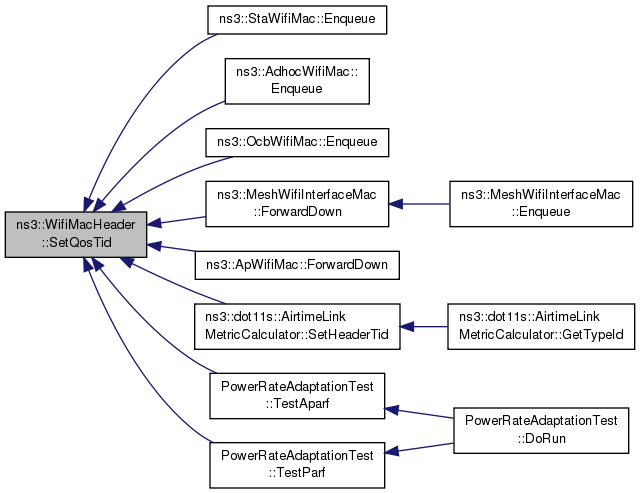

void	SetQosTid (uint8_t tid)
	Set the TID for the QoS header. More...

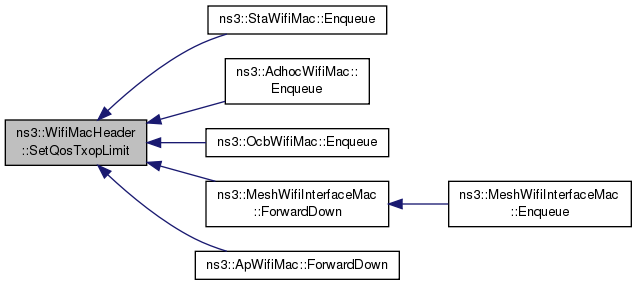

void	SetQosTxopLimit (uint8_t txop)
	Set TXOP limit in the QoS control field. More...

void	SetRawDuration (uint16_t duration)
	Set the Duration/ID field with the given raw uint16_t value. More...

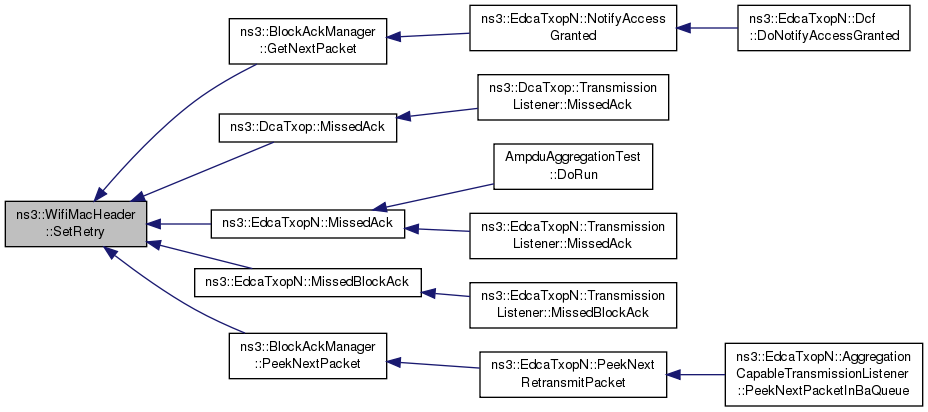

void	SetRetry (void)
	Set the Retry bit in the Frame Control field. More...

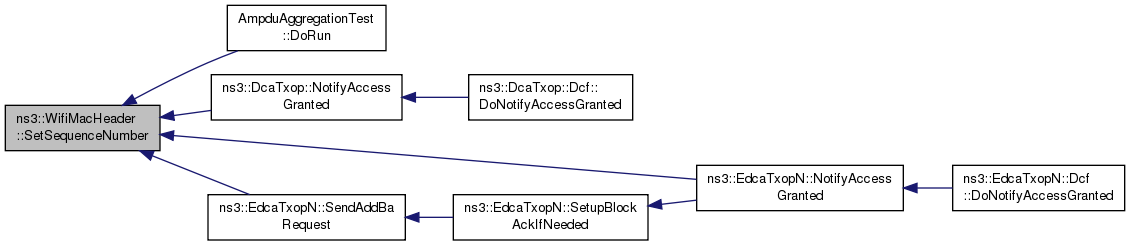

void	SetSequenceNumber (uint16_t seq)
	Set the sequence number of the header. More...

void	SetType (enum WifiMacType type)
	Set Type/Subtype values with the correct values depending on the given type. More...

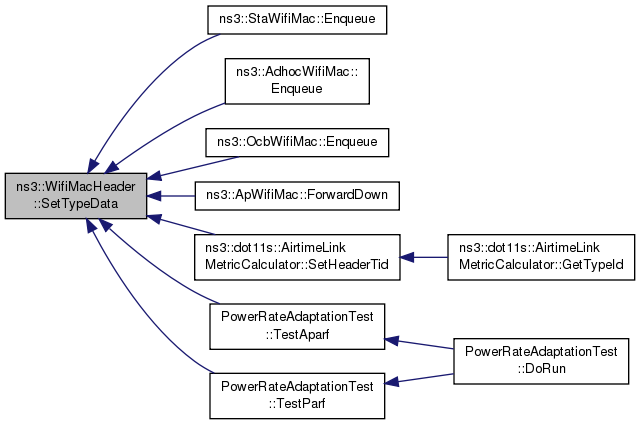

void	SetTypeData (void)
	Set Type/Subtype values for a data packet with no subtype equal to 0. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

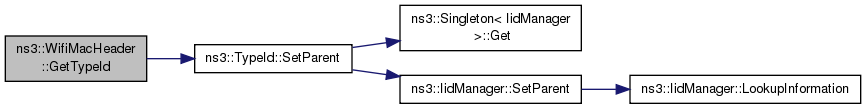

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
uint16_t	GetFrameControl (void) const
	Return the raw Frame Control field. More...

uint16_t	GetQosControl (void) const
	Return the raw QoS Control field. More...

void	PrintFrameControl (std::ostream &os) const
	Print the Frame Control field to the output stream. More...

void	SetFrameControl (uint16_t control)
	Set the Frame Control field with the given raw value. More...

void	SetQosControl (uint16_t qos)
	Set the QoS Control field with the given raw value. More...

void	SetSequenceControl (uint16_t seq)
	Set the Sequence Control field with the given raw value. More...

Private Attributes
Mac48Address	m_addr1

Mac48Address	m_addr2

Mac48Address	m_addr3

Mac48Address	m_addr4

uint8_t	m_amsduPresent

uint8_t	m_ctrlFromDs

uint8_t	m_ctrlMoreData

uint8_t	m_ctrlMoreFrag

uint8_t	m_ctrlOrder

uint8_t	m_ctrlRetry

uint8_t	m_ctrlSubtype

uint8_t	m_ctrlToDs

uint8_t	m_ctrlType

uint8_t	m_ctrlWep

uint16_t	m_duration

uint8_t	m_qosAckPolicy

uint8_t	m_qosEosp

uint16_t	m_qosStuff

uint8_t	m_qosTid

uint8_t	m_seqFrag

uint16_t	m_seqSeq

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implements the IEEE 802.11 MAC header.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 81 of file wifi-mac-header.h.

Member Typedef Documentation

typedef void(* ns3::WifiMacHeader::TracedCallback) (const WifiMacHeader &header)

TracedCallback signature for WifiMacHeader.

Parameters

[in] header The header

Definition at line 598 of file wifi-mac-header.h.

Constructor & Destructor Documentation

ns3::WifiMacHeader::WifiMacHeader ( )

Definition at line 49 of file wifi-mac-header.cc.

ns3::WifiMacHeader::~WifiMacHeader ( )

Definition at line 57 of file wifi-mac-header.cc.

Member Function Documentation

uint32_t ns3::WifiMacHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 1221 of file wifi-mac-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_addr1, m_addr2, m_addr3, m_addr4, m_ctrlFromDs, m_ctrlSubtype, m_ctrlToDs, m_ctrlType, m_duration, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU16(), SetFrameControl(), SetQosControl(), SetSequenceControl(), visualizer.core::start(), ns3::SUBTYPE_CTL_ACK, ns3::SUBTYPE_CTL_BACKREQ, ns3::SUBTYPE_CTL_BACKRESP, ns3::SUBTYPE_CTL_CTS, ns3::SUBTYPE_CTL_RTS, ns3::TYPE_CTL, ns3::TYPE_DATA, and ns3::TYPE_MGT.

Here is the call graph for this function:

Mac48Address ns3::WifiMacHeader::GetAddr1 ( void ) const

Return the address in the Address 1 field.

Returns: the address in the Address 1 field

Definition at line 467 of file wifi-mac-header.cc.

References m_addr1.

Mac48Address ns3::WifiMacHeader::GetAddr2 ( void ) const

Return the address in the Address 2 field.

Returns: the address in the Address 2 field

Definition at line 473 of file wifi-mac-header.cc.

References m_addr2.

Here is the caller graph for this function:

Mac48Address ns3::WifiMacHeader::GetAddr3 ( void ) const

Return the address in the Address 3 field.

Returns: the address in the Address 3 field

Definition at line 479 of file wifi-mac-header.cc.

References m_addr3.

Referenced by ns3::EdcaTxopN::MapDestAddressForAggregation(), ns3::EdcaTxopN::MapSrcAddressForAggregation(), ns3::dot11s::PeerManagementProtocolMac::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::dot11s::HwmpProtocolMac::ReceiveAction(), and ns3::dot11s::HwmpProtocolMac::ReceiveData().

Here is the caller graph for this function:

Mac48Address ns3::WifiMacHeader::GetAddr4 ( void ) const

Return the address in the Address 4 field.

Returns: the address in the Address 4 field

Definition at line 485 of file wifi-mac-header.cc.

References m_addr4.

Referenced by ns3::MeshWifiInterfaceMac::Receive(), and ns3::dot11s::HwmpProtocolMac::ReceiveData().

Here is the caller graph for this function:

Time ns3::WifiMacHeader::GetDuration ( void ) const

Return the duration from the Duration/ID field (Time object).

Returns: the duration from the Duration/ID field (Time object)

Definition at line 782 of file wifi-mac-header.cc.

References m_duration, and ns3::MicroSeconds().

Referenced by ns3::MacLow::DeaggregateAmpduAndReceive(), ns3::MacLow::ForwardDown(), ns3::MacLow::NotifyNav(), and ns3::MacLow::ReceiveError().

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::WifiMacHeader::GetFragmentNumber ( void ) const

Return the fragment number of the header.

Returns: the fragment number of the header

Definition at line 800 of file wifi-mac-header.cc.

References m_seqFrag.

Referenced by ns3::MacRxMiddle::HandleFragments(), ns3::MacRxMiddle::Receive(), and ns3::BlockAckCache::UpdateWithMpdu().

Here is the caller graph for this function:

uint16_t ns3::WifiMacHeader::GetFrameControl ( void ) const

private

Return the raw Frame Control field.

Returns: the raw Frame Control field

Definition at line 890 of file wifi-mac-header.cc.

References m_ctrlFromDs, m_ctrlMoreData, m_ctrlMoreFrag, m_ctrlOrder, m_ctrlRetry, m_ctrlSubtype, m_ctrlToDs, m_ctrlType, and m_ctrlWep.

Referenced by Serialize().

Here is the caller graph for this function:

TypeId ns3::WifiMacHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 1054 of file wifi-mac-header.cc.

References GetTypeId().

Here is the call graph for this function:

enum WifiMacHeader::QosAckPolicy ns3::WifiMacHeader::GetQosAckPolicy ( void ) const

Return the QoS ACK Policy of a QoS header.

Returns: the QoS ACK Policy of a QoS header

Definition at line 860 of file wifi-mac-header.cc.

References BLOCK_ACK, m_qosAckPolicy, NO_ACK, NO_EXPLICIT_ACK, NORMAL_ACK, and NS_ASSERT.

uint16_t ns3::WifiMacHeader::GetQosControl ( void ) const

private

Return the raw QoS Control field.

Returns: the raw QoS Control field

Definition at line 906 of file wifi-mac-header.cc.

References m_amsduPresent, m_qosAckPolicy, m_qosEosp, m_qosStuff, and m_qosTid.

Referenced by Serialize().

Here is the caller graph for this function:

uint8_t ns3::WifiMacHeader::GetQosTid ( void ) const

Return the Traffic ID of a QoS header.

Returns: the Traffic ID of a QoS header

Definition at line 853 of file wifi-mac-header.cc.

References IsQosData(), m_qosTid, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::CompleteMpduTx(), ns3::EdcaTxopN::CompleteTx(), ns3::MacLow::DeaggregateAmpduAndReceive(), ns3::ApWifiMac::DeaggregateAmsduAndForward(), ns3::BlockAckManager::GetNextPacket(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), ns3::MacLow::GetTid(), ns3::MacRxMiddle::Lookup(), ns3::WifiRemoteStationManager::Lookup(), ns3::EdcaTxopN::MissedAck(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::MissedCts(), ns3::EdcaTxopN::NeedBarRetransmission(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::MacTxMiddle::PeekNextSequenceNumberfor(), ns3::MacLow::PerformMsduAggregation(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::MacLow::ReceiveError(), ns3::MacLow::ReceiveMpdu(), ns3::BlockAckManager::RemovePacket(), ns3::EdcaTxopN::SetupBlockAckIfNeeded(), ns3::MacLow::StoreMpduIfNeeded(), ns3::BlockAckManager::StorePacket(), and ns3::EdcaTxopN::VerifyBlockAck().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::WifiMacHeader::GetQosTxopLimit ( void ) const

Return the TXOP limit.

Returns: the TXOP limit

Definition at line 883 of file wifi-mac-header.cc.

References IsQosData(), m_qosStuff, and NS_ASSERT.

Here is the call graph for this function:

uint16_t ns3::WifiMacHeader::GetRawDuration ( void ) const

Return the raw duration from the Duration/ID field.

Returns: the raw duration from the Duration/ID field

Definition at line 776 of file wifi-mac-header.cc.

References m_duration.

uint16_t ns3::WifiMacHeader::GetSequenceControl ( void ) const

Return the raw Sequence Control field.

Returns: the raw Sequence Control field

Definition at line 788 of file wifi-mac-header.cc.

References m_seqFrag, and m_seqSeq.

Referenced by ns3::MacLow::ForwardDown(), ns3::MacRxMiddle::HandleFragments(), ns3::MacRxMiddle::IsDuplicate(), ns3::DcaTxop::NotifyAccessGranted(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::MacRxMiddle::Receive(), Serialize(), and ns3::MacLow::StoreMpduIfNeeded().

Here is the caller graph for this function:

uint16_t ns3::WifiMacHeader::GetSequenceNumber ( void ) const

Return the sequence number of the header.

Returns: the sequence number of the header

Definition at line 794 of file wifi-mac-header.cc.

References m_seqSeq.

Referenced by ns3::MacLow::AggregateToAmpdu(), ns3::MacLow::DeaggregateAmpduAndReceive(), AmpduAggregationTest::DoRun(), ns3::BlockAckManager::GetNextPacket(), ns3::MacRxMiddle::HandleFragments(), ns3::BlockAckManager::HasOtherFragments(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::NeedBarRetransmission(), ns3::BlockAckManager::PeekNextPacket(), ns3::MacRxMiddle::Receive(), ns3::MacLow::ReceiveMpdu(), ns3::BlockAckManager::RemovePacket(), ns3::BlockAckManager::StorePacket(), ns3::BlockAckCache::UpdateWithMpdu(), and ns3::EdcaTxopN::VerifyBlockAck().

Here is the caller graph for this function:

uint32_t ns3::WifiMacHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 1162 of file wifi-mac-header.cc.

References GetSize().

Referenced by ns3::MacLow::NotifyNav().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::WifiMacHeader::GetSize ( void ) const

Return the size of the WifiMacHeader in octets.

GetSerializedSize calls this function.

Returns: the size of the WifiMacHeader in octets

Definition at line 947 of file wifi-mac-header.cc.

References m_ctrlFromDs, m_ctrlSubtype, m_ctrlToDs, m_ctrlType, ns3::SUBTYPE_CTL_ACK, ns3::SUBTYPE_CTL_BACKREQ, ns3::SUBTYPE_CTL_BACKRESP, ns3::SUBTYPE_CTL_CTLWRAPPER, ns3::SUBTYPE_CTL_CTS, ns3::SUBTYPE_CTL_RTS, ns3::TYPE_CTL, ns3::TYPE_DATA, and ns3::TYPE_MGT.

Referenced by ns3::MacLow::AggregateToAmpdu(), ns3::MacLow::GetAckSize(), ns3::MacLow::GetBlockAckSize(), ns3::MacLow::GetCtsSize(), ns3::WifiRemoteStationManager::GetFragmentOffset(), ns3::WifiRemoteStationManager::GetFragmentSize(), ns3::WifiRemoteStationManager::GetNFragments(), ns3::MacLow::GetRtsSize(), GetSerializedSize(), ns3::MacLow::GetSize(), ns3::MacRxMiddle::HandleFragments(), ns3::MacLow::IsAmpdu(), ns3::WifiRemoteStationManager::NeedFragmentation(), ns3::WifiRemoteStationManager::NeedRts(), and ns3::MacLow::StopMpduAggregation().

Here is the caller graph for this function:

enum WifiMacType ns3::WifiMacHeader::GetType ( void ) const

Return the type (enum WifiMacType)

Returns: the type (enum WifiMacType)

Definition at line 491 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, NS_ASSERT, ns3::SUBTYPE_CTL_ACK, ns3::SUBTYPE_CTL_BACKREQ, ns3::SUBTYPE_CTL_BACKRESP, ns3::SUBTYPE_CTL_CTS, ns3::SUBTYPE_CTL_RTS, ns3::TYPE_CTL, ns3::TYPE_DATA, ns3::TYPE_MGT, ns3::WIFI_MAC_CTL_ACK, ns3::WIFI_MAC_CTL_BACKREQ, ns3::WIFI_MAC_CTL_BACKRESP, ns3::WIFI_MAC_CTL_CTS, ns3::WIFI_MAC_CTL_RTS, ns3::WIFI_MAC_DATA, ns3::WIFI_MAC_DATA_CFACK, ns3::WIFI_MAC_DATA_CFACK_CFPOLL, ns3::WIFI_MAC_DATA_CFPOLL, ns3::WIFI_MAC_DATA_NULL, ns3::WIFI_MAC_DATA_NULL_CFACK, ns3::WIFI_MAC_DATA_NULL_CFACK_CFPOLL, ns3::WIFI_MAC_DATA_NULL_CFPOLL, ns3::WIFI_MAC_MGT_ACTION, ns3::WIFI_MAC_MGT_ACTION_NO_ACK, ns3::WIFI_MAC_MGT_ASSOCIATION_REQUEST, ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE, ns3::WIFI_MAC_MGT_AUTHENTICATION, ns3::WIFI_MAC_MGT_BEACON, ns3::WIFI_MAC_MGT_DEAUTHENTICATION, ns3::WIFI_MAC_MGT_DISASSOCIATION, ns3::WIFI_MAC_MGT_MULTIHOP_ACTION, ns3::WIFI_MAC_MGT_PROBE_REQUEST, ns3::WIFI_MAC_MGT_PROBE_RESPONSE, ns3::WIFI_MAC_MGT_REASSOCIATION_REQUEST, ns3::WIFI_MAC_MGT_REASSOCIATION_RESPONSE, ns3::WIFI_MAC_QOSDATA, ns3::WIFI_MAC_QOSDATA_CFACK, ns3::WIFI_MAC_QOSDATA_CFACK_CFPOLL, ns3::WIFI_MAC_QOSDATA_CFPOLL, ns3::WIFI_MAC_QOSDATA_NULL, ns3::WIFI_MAC_QOSDATA_NULL_CFACK_CFPOLL, and ns3::WIFI_MAC_QOSDATA_NULL_CFPOLL.

Referenced by GetTypeString(), IsAck(), IsAction(), IsAssocReq(), IsAssocResp(), IsAuthentication(), IsBeacon(), IsBlockAck(), IsBlockAckReq(), IsCfpoll(), IsCts(), IsDeauthentication(), IsDisassociation(), IsMultihopAction(), IsProbeReq(), IsProbeResp(), IsReassocReq(), IsReassocResp(), IsRts(), ns3::EdcaTxopN::NotifyAccessGranted(), NodeStatistics::PhyCallback(), Print(), and ns3::RegularWifiMac::Receive().

Here is the caller graph for this function:

TypeId ns3::WifiMacHeader::GetTypeId ( void )

static

Definition at line 1043 of file wifi-mac-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

const char * ns3::WifiMacHeader::GetTypeString ( void ) const

Return a string corresponds to the header type.

Returns: a string corresponds to the header type.

Definition at line 990 of file wifi-mac-header.cc.

References ns3::DATA, FOO, and GetType().

Referenced by ns3::MacLow::ForwardDown(), and Print().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsAck ( void ) const

Return true if the header is an ACK header.

Returns: true if the header is an ACK header, false otherwise

Definition at line 686 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_CTL_ACK.

Referenced by ns3::MacLow::DeaggregateAmpduAndReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsAction ( void ) const

Return true if the header is an Action header.

Returns: true if the header is an Action header, false otherwise

Definition at line 752 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_ACTION.

Referenced by ns3::EdcaTxopN::GotAck(), ns3::dot11s::PeerManagementProtocolMac::Receive(), ns3::dot11s::HwmpProtocolMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::RegularWifiMac::Receive(), and ns3::dot11s::PeerManagementProtocolMac::UpdateOutcomingFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsAssocReq ( void ) const

Return true if the header is an Association Request header.

Returns: true if the header is an Association Request header, false otherwise

Definition at line 692 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_ASSOCIATION_REQUEST.

Referenced by ns3::StaWifiMac::Receive(), and ns3::ApWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsAssocResp ( void ) const

Return true if the header is an Association Response header.

Returns: true if the header is an Association Response header, false otherwise

Definition at line 698 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE.

Referenced by ns3::StaWifiMac::Receive(), ns3::ApWifiMac::TxFailed(), and ns3::ApWifiMac::TxOk().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsAuthentication ( void ) const

Return true if the header is an Authentication header.

Returns: true if the header is an Authentication header, false otherwise

Definition at line 740 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_AUTHENTICATION.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsBeacon ( void ) const

Return true if the header is a Beacon header.

Returns: true if the header is a Beacon header, false otherwise

Definition at line 728 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_BEACON.

Referenced by ns3::dot11s::PeerManagementProtocolMac::Receive(), ns3::StaWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsBlockAck ( void ) const

Return true if the header is a Block ACK header.

Returns: true if the header is a Block ACK header, false otherwise

Definition at line 770 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_CTL_BACKRESP.

Referenced by ns3::MacLow::AggregateToAmpdu(), ns3::MacLow::DeaggregateAmpduAndReceive(), ns3::MacLow::ForwardDown(), ns3::MacLow::GetTid(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::NeedBarRetransmission(), and ns3::MacLow::StartTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsBlockAckReq ( void ) const

Return true if the header is a Block ACK Request header.

Returns: true if the header is a Block ACK Request header, false otherwise

Definition at line 764 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_CTL_BACKREQ.

Referenced by ns3::MacLow::AggregateToAmpdu(), ns3::MacLow::DeaggregateAmpduAndReceive(), ns3::MacLow::GetTid(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::MissedCts(), ns3::EdcaTxopN::NeedBarRetransmission(), and ns3::MacLow::StartTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsCfpoll ( void ) const

Return true if the Type/Subtype is one of the possible CF-Poll headers.

Returns: true if the Type/Subtype is one of the possible CF-Poll headers, false otherwise

Definition at line 653 of file wifi-mac-header.cc.

References GetType(), ns3::WIFI_MAC_DATA_CFACK_CFPOLL, ns3::WIFI_MAC_DATA_CFPOLL, ns3::WIFI_MAC_DATA_NULL_CFACK_CFPOLL, ns3::WIFI_MAC_DATA_NULL_CFPOLL, ns3::WIFI_MAC_QOSDATA_CFACK_CFPOLL, ns3::WIFI_MAC_QOSDATA_CFPOLL, ns3::WIFI_MAC_QOSDATA_NULL_CFACK_CFPOLL, and ns3::WIFI_MAC_QOSDATA_NULL_CFPOLL.

Referenced by ns3::MacLow::NotifyNav().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsCtl ( void ) const

Return true if the Type is Control.

Returns: true if Type is Control, false otherwise

Definition at line 641 of file wifi-mac-header.cc.

References m_ctrlType, and ns3::TYPE_CTL.

Referenced by ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), and ns3::OcbWifiMac::Receive().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsCts ( void ) const

Return true if the header is a CTS header.

Returns: true if the header is a CTS header, false otherwise

Definition at line 680 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_CTL_CTS.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsData ( void ) const

Return true if the Type is DATA.

The method does not check the Subtype field. (e.g. the header may be DATA with QoS)

Returns: true if Type is DATA, false otherwise

Definition at line 628 of file wifi-mac-header.cc.

References m_ctrlType, and ns3::TYPE_DATA.

Referenced by ns3::MacLow::DeaggregateAmpduAndReceive(), ns3::EdcaTxopN::NotifyAccessGranted(), OcbWifiMacTestCase::PhyTxTrace(), ns3::flame::FlameProtocolMac::Receive(), ns3::dot11s::HwmpProtocolMac::Receive(), ns3::MacRxMiddle::Receive(), ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::dot11s::HwmpProtocolMac::ReceiveData(), ns3::flame::FlameProtocolMac::UpdateOutcomingFrame(), and ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsDeauthentication ( void ) const

Return true if the header is a Deauthentication header.

Returns: true if the header is a Deauthentication header, false otherwise

Definition at line 746 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_DEAUTHENTICATION.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsDisassociation ( void ) const

Return true if the header is a Disassociation header.

Returns: true if the header is a Disassociation header, false otherwise

Definition at line 734 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_DISASSOCIATION.

Referenced by ns3::ApWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsFromDs ( void ) const

Returns: true if From DS bit is set, false otherwise

Definition at line 616 of file wifi-mac-header.cc.

References m_ctrlFromDs.

Referenced by ns3::StaWifiMac::Receive(), and ns3::ApWifiMac::Receive().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsMgt ( void ) const

Return true if the Type is Management.

Returns: true if Type is Management, false otherwise

Definition at line 647 of file wifi-mac-header.cc.

References m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::MacRxMiddle::Receive(), ns3::ApWifiMac::Receive(), ns3::OcbWifiMac::Receive(), and ns3::RegularWifiMac::Receive().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsMoreFragments ( void ) const

Return if the More Fragment bit is set.

Returns: true if the More Fragment bit is set, false otherwise

Definition at line 812 of file wifi-mac-header.cc.

References m_ctrlMoreFrag.

Referenced by ns3::MacRxMiddle::HandleFragments().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsMultihopAction ( void ) const

Check if the header is a Multihop action header.

Returns: true if the header is a Multihop action header, false otherwise

Definition at line 758 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_MULTIHOP_ACTION.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsProbeReq ( void ) const

Return true if the header is a Probe Request header.

Returns: true if the header is a Probe Request header, false otherwise

Definition at line 716 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_PROBE_REQUEST.

Referenced by ns3::StaWifiMac::Receive(), and ns3::ApWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsProbeResp ( void ) const

Return true if the header is a Probe Response header.

Returns: true if the header is a Probe Response header, false otherwise

Definition at line 722 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_PROBE_RESPONSE.

Referenced by ns3::StaWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsQosAck ( void ) const

Return if the QoS ACK policy is Normal ACK.

Returns: true if the QoS ACK policy is No ACK, false otherwise

Definition at line 832 of file wifi-mac-header.cc.

References IsQosData(), m_qosAckPolicy, and NS_ASSERT.

Referenced by ns3::MacLow::DeaggregateAmpduAndReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsQosAmsdu ( void ) const

Check if the A-MSDU present bit is set in the QoS control field.

Returns: true if the A-MSDU present bit is set, false otherwise

Definition at line 846 of file wifi-mac-header.cc.

References IsQosData(), m_amsduPresent, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::GotAck(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), and ns3::OcbWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsQosBlockAck ( void ) const

Return if the QoS ACK policy is Block ACK.

Returns: true if the QoS ACK policy is Block ACK, false otherwise

Definition at line 818 of file wifi-mac-header.cc.

References IsQosData(), m_qosAckPolicy, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::CompleteTx(), and ns3::EdcaTxopN::NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsQosData ( void ) const

Return true if the Type is DATA and Subtype is one of the possible values for QoS DATA.

Returns: true if Type is QoS DATA, false otherwise

Definition at line 635 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_DATA.

Referenced by ns3::MacLow::AggregateToAmpdu(), ns3::EdcaTxopN::CompleteMpduTx(), ns3::EdcaTxopN::CompleteTx(), ns3::MacLow::DeaggregateAmpduAndReceive(), ns3::BlockAckManager::GetNextPacket(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), GetQosTid(), GetQosTxopLimit(), ns3::MacLow::GetTid(), IsQosAck(), IsQosAmsdu(), IsQosBlockAck(), IsQosEosp(), IsQosNoAck(), ns3::MacRxMiddle::Lookup(), ns3::WifiRemoteStationManager::Lookup(), ns3::EdcaTxopN::MissedAck(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::MissedCts(), ns3::EdcaTxopN::NeedBarRetransmission(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::MacTxMiddle::PeekNextSequenceNumberfor(), ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::MacLow::ReceiveError(), ns3::MacLow::ReceiveMpdu(), ns3::MacLow::StartTransmission(), and ns3::BlockAckManager::StorePacket().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsQosEosp ( void ) const

Return if the end of service period (EOSP) is set.

Returns: true if the end of service period (EOSP) is set, false otherwise

Definition at line 839 of file wifi-mac-header.cc.

References IsQosData(), m_qosEosp, and NS_ASSERT.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsQosNoAck ( void ) const

Return if the QoS ACK policy is No ACK.

Returns: true if the QoS ACK policy is No ACK, false otherwise

Definition at line 825 of file wifi-mac-header.cc.

References IsQosData(), m_qosAckPolicy, and NS_ASSERT.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsReassocReq ( void ) const

Return true if the header is a Reassociation Request header.

Returns: true if the header is a Reassociation Request header, false otherwise

Definition at line 704 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_REASSOCIATION_REQUEST.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsReassocResp ( void ) const

Return true if the header is a Reassociation Response header.

Returns: true if the header is a Reassociation Response header, false otherwise

Definition at line 710 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_REASSOCIATION_RESPONSE.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsRetry ( void ) const

Return if the Retry bit is set.

Returns: true if the Retry bit is set, false otherwise

Definition at line 806 of file wifi-mac-header.cc.

References m_ctrlRetry.

Referenced by ns3::EdcaTxopN::CompleteTx(), ns3::MacRxMiddle::IsDuplicate(), and ns3::EdcaTxopN::NotifyAccessGranted().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsRts ( void ) const

Return true if the header is a RTS header.

Returns: true if the header is a RTS header, false otherwise

Definition at line 674 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_CTL_RTS.

Referenced by ns3::MacLow::ForwardDown(), and ns3::MacLow::NotifyNav().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsToDs ( void ) const

Returns: true if To DS bit is set, false otherwise

Definition at line 622 of file wifi-mac-header.cc.

References m_ctrlToDs.

Referenced by ns3::StaWifiMac::Receive(), and ns3::ApWifiMac::Receive().

Here is the caller graph for this function:

void ns3::WifiMacHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1069 of file wifi-mac-header.cc.

References GetType(), GetTypeString(), m_addr1, m_addr2, m_addr3, m_addr4, m_ctrlFromDs, m_ctrlToDs, m_duration, m_seqFrag, m_seqSeq, NS_FATAL_ERROR, PrintFrameControl(), ns3::WIFI_MAC_CTL_ACK, ns3::WIFI_MAC_CTL_BACKREQ, ns3::WIFI_MAC_CTL_BACKRESP, ns3::WIFI_MAC_CTL_CTLWRAPPER, ns3::WIFI_MAC_CTL_CTS, ns3::WIFI_MAC_CTL_RTS, ns3::WIFI_MAC_DATA, ns3::WIFI_MAC_DATA_CFACK, ns3::WIFI_MAC_DATA_CFACK_CFPOLL, ns3::WIFI_MAC_DATA_CFPOLL, ns3::WIFI_MAC_DATA_NULL, ns3::WIFI_MAC_DATA_NULL_CFACK, ns3::WIFI_MAC_DATA_NULL_CFACK_CFPOLL, ns3::WIFI_MAC_DATA_NULL_CFPOLL, ns3::WIFI_MAC_MGT_ACTION, ns3::WIFI_MAC_MGT_ACTION_NO_ACK, ns3::WIFI_MAC_MGT_ASSOCIATION_REQUEST, ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE, ns3::WIFI_MAC_MGT_AUTHENTICATION, ns3::WIFI_MAC_MGT_BEACON, ns3::WIFI_MAC_MGT_DEAUTHENTICATION, ns3::WIFI_MAC_MGT_DISASSOCIATION, ns3::WIFI_MAC_MGT_MULTIHOP_ACTION, ns3::WIFI_MAC_MGT_PROBE_REQUEST, ns3::WIFI_MAC_MGT_PROBE_RESPONSE, ns3::WIFI_MAC_MGT_REASSOCIATION_REQUEST, ns3::WIFI_MAC_MGT_REASSOCIATION_RESPONSE, ns3::WIFI_MAC_QOSDATA, ns3::WIFI_MAC_QOSDATA_CFACK, ns3::WIFI_MAC_QOSDATA_CFACK_CFPOLL, ns3::WIFI_MAC_QOSDATA_CFPOLL, ns3::WIFI_MAC_QOSDATA_NULL, ns3::WIFI_MAC_QOSDATA_NULL_CFACK_CFPOLL, and ns3::WIFI_MAC_QOSDATA_NULL_CFPOLL.

Here is the call graph for this function:

void ns3::WifiMacHeader::PrintFrameControl ( std::ostream & os ) const

private

Print the Frame Control field to the output stream.

Parameters

os	the output stream to print to

Definition at line 1060 of file wifi-mac-header.cc.

References m_ctrlFromDs, m_ctrlMoreData, m_ctrlMoreFrag, m_ctrlRetry, and m_ctrlToDs.

Referenced by Print().

Here is the caller graph for this function:

void ns3::WifiMacHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 1168 of file wifi-mac-header.cc.

References GetFrameControl(), GetQosControl(), GetSequenceControl(), m_addr1, m_addr2, m_addr3, m_addr4, m_ctrlFromDs, m_ctrlSubtype, m_ctrlToDs, m_ctrlType, m_duration, NS_ASSERT, ns3::SUBTYPE_CTL_ACK, ns3::SUBTYPE_CTL_BACKREQ, ns3::SUBTYPE_CTL_BACKRESP, ns3::SUBTYPE_CTL_CTS, ns3::SUBTYPE_CTL_RTS, ns3::TYPE_CTL, ns3::TYPE_DATA, ns3::TYPE_MGT, ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::WriteTo().

Here is the call graph for this function:

void ns3::WifiMacHeader::SetAction ( void )

Set Type/Subtype values for an action header.

Definition at line 166 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::RegularWifiMac::SendAddBaResponse(), ns3::EdcaTxopN::SendDelbaFrame(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), ns3::dot11s::HwmpProtocolMac::SendPreq(), and ns3::OcbWifiMac::SendVsc().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetAddr1 ( Mac48Address address )

Fill the Address 1 field with the given address.

Parameters

address the address to be used in the Address 1 field

Definition at line 86 of file wifi-mac-header.cc.

References first::address, and m_addr1.

Referenced by ns3::MeshWifiBeacon::CreateHeader(), AmpduAggregationTest::DoRun(), TwoLevelAggregationTest::DoRun(), ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::ForwardDown(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::EdcaTxopN::MissedAck(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::MissedCts(), ns3::MacLow::SendAckAfterData(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::RegularWifiMac::SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsToSelf(), ns3::EdcaTxopN::SendDelbaFrame(), ns3::ApWifiMac::SendOneBeacon(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), ns3::dot11s::HwmpProtocolMac::SendPreq(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::MacLow::SendRtsForPacket(), ns3::OcbWifiMac::SendVsc(), ns3::flame::FlameProtocolMac::UpdateOutcomingFrame(), and ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetAddr2 ( Mac48Address address )

Fill the Address 2 field with the given address.

Parameters

address the address to be used in the Address 2 field

Definition at line 92 of file wifi-mac-header.cc.

References first::address, and m_addr2.

Referenced by ns3::MeshWifiBeacon::CreateHeader(), ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::ForwardDown(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::EdcaTxopN::MissedAck(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::MissedCts(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::RegularWifiMac::SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::EdcaTxopN::SendDelbaFrame(), ns3::ApWifiMac::SendOneBeacon(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), ns3::dot11s::HwmpProtocolMac::SendPreq(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::MacLow::SendRtsForPacket(), and ns3::OcbWifiMac::SendVsc().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetAddr3 ( Mac48Address address )

Fill the Address 3 field with the given address.

Parameters

address the address to be used in the Address 3 field

Definition at line 98 of file wifi-mac-header.cc.

References first::address, and m_addr3.

Referenced by ns3::MeshWifiBeacon::CreateHeader(), ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::ForwardDown(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::EdcaTxopN::MissedAck(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::MissedCts(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::MacLow::PerformMsduAggregation(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::RegularWifiMac::SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::EdcaTxopN::SendDelbaFrame(), ns3::ApWifiMac::SendOneBeacon(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), ns3::dot11s::HwmpProtocolMac::SendPreq(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), and ns3::OcbWifiMac::SendVsc().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetAddr4 ( Mac48Address address )

Fill the Address 4 field with the given address.

Parameters

address the address to be used in the Address 4 field

Definition at line 104 of file wifi-mac-header.cc.

References first::address, and m_addr4.

Referenced by ns3::MeshWifiInterfaceMac::ForwardDown().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetAssocReq ( void )

Set Type/Subtype values for an association request header.

Definition at line 110 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::StaWifiMac::SendAssociationRequest().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetAssocResp ( void )

Set Type/Subtype values for an association response header.

Definition at line 117 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetBeacon ( void )

Set Type/Subtype values for a beacon header.

Definition at line 138 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::MeshWifiBeacon::CreateHeader(), and ns3::ApWifiMac::SendOneBeacon().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetBlockAck ( void )

Set Type/Subtype values for a Block Ack header.

Definition at line 152 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_CTL.

void ns3::WifiMacHeader::SetBlockAckReq ( void )

Set Type/Subtype values for a Block Ack Request header.

Definition at line 145 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_CTL.

void ns3::WifiMacHeader::SetDsFrom ( void )

Set the From DS bit in the Frame Control field.

Definition at line 62 of file wifi-mac-header.cc.

References m_ctrlFromDs.

Referenced by ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::ForwardDown(), and ns3::dot11s::AirtimeLinkMetricCalculator::SetHeaderTid().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetDsNotFrom ( void )

Un-set the From DS bit in the Frame Control field.

Definition at line 68 of file wifi-mac-header.cc.

References m_ctrlFromDs.

Referenced by ns3::MeshWifiBeacon::CreateHeader(), ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::EdcaTxopN::MissedAck(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::MissedCts(), ns3::MacLow::SendAckAfterData(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::RegularWifiMac::SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsToSelf(), ns3::EdcaTxopN::SendDelbaFrame(), ns3::ApWifiMac::SendOneBeacon(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), ns3::dot11s::HwmpProtocolMac::SendPreq(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::MacLow::SendRtsForPacket(), and ns3::OcbWifiMac::SendVsc().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetDsNotTo ( void )

Un-set the To DS bit in the Frame Control field.

Definition at line 80 of file wifi-mac-header.cc.

References m_ctrlToDs.

Referenced by ns3::MeshWifiBeacon::CreateHeader(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::EdcaTxopN::MissedAck(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::MissedCts(), ns3::MacLow::SendAckAfterData(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::RegularWifiMac::SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsToSelf(), ns3::EdcaTxopN::SendDelbaFrame(), ns3::ApWifiMac::SendOneBeacon(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), ns3::dot11s::HwmpProtocolMac::SendPreq(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::MacLow::SendRtsForPacket(), and ns3::OcbWifiMac::SendVsc().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetDsTo ( void )

Set the To DS bit in the Frame Control field.

Definition at line 74 of file wifi-mac-header.cc.

References m_ctrlToDs.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), and ns3::dot11s::AirtimeLinkMetricCalculator::SetHeaderTid().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetDuration ( Time duration )

Set the Duration/ID field with the given duration (Time object).

The method converts the given time to microseconds.

Parameters

duration the duration (Time object)

Definition at line 332 of file wifi-mac-header.cc.

References ns3::Time::GetNanoSeconds(), m_duration, and NS_ASSERT.

Referenced by ns3::MacLow::ForwardDown(), ns3::MacLow::SendAckAfterData(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), and ns3::MacLow::SendRtsForPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetFragmentNumber ( uint8_t frag )

Set the fragment number of the header.

Parameters

frag	the given fragment number

Definition at line 349 of file wifi-mac-header.cc.

References m_seqFrag.

Referenced by ns3::DcaTxop::GetFragmentPacket(), ns3::EdcaTxopN::GetFragmentPacket(), ns3::DcaTxop::NotifyAccessGranted(), ns3::EdcaTxopN::NotifyAccessGranted(), and ns3::EdcaTxopN::SendAddBaRequest().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetFrameControl ( uint16_t control )

private

Set the Frame Control field with the given raw value.

Parameters

control the raw Frame Control field value

Definition at line 918 of file wifi-mac-header.cc.

References m_ctrlFromDs, m_ctrlMoreData, m_ctrlMoreFrag, m_ctrlOrder, m_ctrlRetry, m_ctrlSubtype, m_ctrlToDs, m_ctrlType, and m_ctrlWep.

Referenced by Deserialize().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetId ( uint16_t id )

Set the Duration/ID field with the given ID.

Parameters

id the ID

Definition at line 339 of file wifi-mac-header.cc.

References m_duration.

void ns3::WifiMacHeader::SetMoreFragments ( void )

Set the More Fragment bit in the Frame Control field.

Definition at line 359 of file wifi-mac-header.cc.

References m_ctrlMoreFrag.

Referenced by ns3::DcaTxop::GetFragmentPacket(), and ns3::EdcaTxopN::GetFragmentPacket().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetMultihopAction ( void )

Set Type/Subtype values for a multihop action header.

Definition at line 173 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

void ns3::WifiMacHeader::SetNoMoreFragments ( void )

Un-set the More Fragment bit in the Frame Control Field.

Definition at line 354 of file wifi-mac-header.cc.

References m_ctrlMoreFrag.

Referenced by ns3::DcaTxop::GetFragmentPacket(), ns3::EdcaTxopN::GetFragmentPacket(), ns3::EdcaTxopN::MissedAck(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::MissedCts(), ns3::DcaTxop::NotifyAccessGranted(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::MacLow::SendAckAfterData(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsToSelf(), and ns3::MacLow::SendRtsForPacket().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetNoOrder ( void )

Unset order bit in the frame control field.

Definition at line 369 of file wifi-mac-header.cc.

References m_ctrlOrder.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetNoRetry ( void )

Un-set the Retry bit in the Frame Control field.

Definition at line 379 of file wifi-mac-header.cc.

References m_ctrlRetry.

Referenced by ns3::EdcaTxopN::MissedAck(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::MissedCts(), ns3::DcaTxop::NotifyAccessGranted(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::MacLow::SendAckAfterData(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsToSelf(), and ns3::MacLow::SendRtsForPacket().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetOrder ( void )

Set order bit in the frame control field.

Definition at line 364 of file wifi-mac-header.cc.

References m_ctrlOrder.

void ns3::WifiMacHeader::SetProbeReq ( void )

Set Type/Subtype values for a probe request header.

Definition at line 124 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::StaWifiMac::SendProbeRequest().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetProbeResp ( void )

Set Type/Subtype values for a probe response header.

Definition at line 131 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosAckPolicy ( enum QosAckPolicy policy )

Set the QoS ACK policy in the QoS control field.

Parameters

policy

Definition at line 399 of file wifi-mac-header.cc.

References BLOCK_ACK, m_qosAckPolicy, NO_ACK, NO_EXPLICIT_ACK, and NORMAL_ACK.

Referenced by ns3::MacLow::AggregateToAmpdu(), ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::ForwardDown(), ns3::BlockAckManager::GetNextPacket(), ns3::BlockAckManager::PeekNextPacket(), and ns3::EdcaTxopN::VerifyBlockAck().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosAmsdu ( void )

Set that A-MSDU is present.

Definition at line 436 of file wifi-mac-header.cc.

References m_amsduPresent.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), and ns3::MacLow::PerformMsduAggregation().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosBlockAck ( void )

Set the QoS ACK policy in the QoS control field to block ACK.

Definition at line 425 of file wifi-mac-header.cc.

References m_qosAckPolicy.

void ns3::WifiMacHeader::SetQosControl ( uint16_t qos )

private

Set the QoS Control field with the given raw value.

Parameters

qos	the raw QoS Control field value

Definition at line 937 of file wifi-mac-header.cc.

References m_amsduPresent, m_qosAckPolicy, m_qosEosp, m_qosStuff, and m_qosTid.

Referenced by Deserialize().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosEosp ( )

Set the end of service period (EOSP) bit in the QoS control field.

Definition at line 389 of file wifi-mac-header.cc.

References m_qosEosp.

void ns3::WifiMacHeader::SetQosMeshControlPresent ( void )

Set the Mesh Control Present flag for the QoS header.

Definition at line 451 of file wifi-mac-header.cc.

References m_qosStuff.

Referenced by ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosNoAck ( void )

Set the QoS ACK policy in the QoS control field to no ACK.

Definition at line 431 of file wifi-mac-header.cc.

References m_qosAckPolicy.

void ns3::WifiMacHeader::SetQosNoAmsdu ( void )

Set that A-MSDU is not present.

Definition at line 441 of file wifi-mac-header.cc.

References m_amsduPresent.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), and ns3::ApWifiMac::ForwardDown().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosNoEosp ( )

Un-set the end of service period (EOSP) bit in the QoS control field.

Definition at line 394 of file wifi-mac-header.cc.

References m_qosEosp.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), and ns3::ApWifiMac::ForwardDown().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosNoMeshControlPresent ( )

Clear the Mesh Control Present flag for the QoS header.

Definition at line 458 of file wifi-mac-header.cc.

References m_qosStuff.

void ns3::WifiMacHeader::SetQosNormalAck ( void )

Set the QoS ACK policy in the QoS control field to normal ACK.

Definition at line 419 of file wifi-mac-header.cc.

References m_qosAckPolicy.

void ns3::WifiMacHeader::SetQosTid ( uint8_t tid )

Set the TID for the QoS header.

Parameters

tid	the TID for the QoS header

Definition at line 384 of file wifi-mac-header.cc.

References m_qosTid.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::ForwardDown(), ns3::dot11s::AirtimeLinkMetricCalculator::SetHeaderTid(), PowerRateAdaptationTest::TestAparf(), and PowerRateAdaptationTest::TestParf().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosTxopLimit ( uint8_t txop )

Set TXOP limit in the QoS control field.

Parameters

txop

Definition at line 446 of file wifi-mac-header.cc.

References m_qosStuff.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), and ns3::ApWifiMac::ForwardDown().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetRawDuration ( uint16_t duration )

Set the Duration/ID field with the given raw uint16_t value.

Parameters

duration the raw duration in uint16_t

Definition at line 326 of file wifi-mac-header.cc.

References m_duration.

void ns3::WifiMacHeader::SetRetry ( void )

Set the Retry bit in the Frame Control field.

Definition at line 374 of file wifi-mac-header.cc.

References m_ctrlRetry.

Referenced by ns3::BlockAckManager::GetNextPacket(), ns3::DcaTxop::MissedAck(), ns3::EdcaTxopN::MissedAck(), ns3::EdcaTxopN::MissedBlockAck(), and ns3::BlockAckManager::PeekNextPacket().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetSequenceControl ( uint16_t seq )

private

Set the Sequence Control field with the given raw value.

Parameters

seq	the raw Sequence Control field value

Definition at line 931 of file wifi-mac-header.cc.

References m_seqFrag, and m_seqSeq.

Referenced by Deserialize().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetSequenceNumber ( uint16_t seq )

Set the sequence number of the header.

Parameters

seq	the given sequence number

Definition at line 344 of file wifi-mac-header.cc.

References m_seqSeq.

Referenced by AmpduAggregationTest::DoRun(), ns3::DcaTxop::NotifyAccessGranted(), ns3::EdcaTxopN::NotifyAccessGranted(), and ns3::EdcaTxopN::SendAddBaRequest().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetType ( enum WifiMacType type )

Set Type/Subtype values with the correct values depending on the given type.

Parameters

type	the WifiMacType for the header

Definition at line 180 of file wifi-mac-header.cc.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::ApWifiMac::ForwardDown(), ns3::MacLow::GetAckSize(), ns3::MacLow::GetBlockAckSize(), ns3::MacLow::GetCtsSize(), ns3::MacLow::GetRtsSize(), ns3::EdcaTxopN::MissedAck(), ns3::EdcaTxopN::MissedBlockAck(), ns3::EdcaTxopN::MissedCts(), ns3::MacLow::NotifyNav(), ns3::MacLow::SendAckAfterData(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsAfterRts(), ns3::MacLow::SendCtsToSelf(), and ns3::MacLow::SendRtsForPacket().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetTypeData ( void )

Set Type/Subtype values for a data packet with no subtype equal to 0.

Definition at line 159 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_DATA.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::OcbWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::dot11s::AirtimeLinkMetricCalculator::SetHeaderTid(), PowerRateAdaptationTest::TestAparf(), and PowerRateAdaptationTest::TestParf().

Here is the caller graph for this function:

Member Data Documentation

Mac48Address ns3::WifiMacHeader::m_addr1

private

Definition at line 649 of file wifi-mac-header.h.

Referenced by Deserialize(), GetAddr1(), Print(), Serialize(), and SetAddr1().

Mac48Address ns3::WifiMacHeader::m_addr2

private

Definition at line 650 of file wifi-mac-header.h.

Referenced by Deserialize(), GetAddr2(), Print(), Serialize(), and SetAddr2().

Mac48Address ns3::WifiMacHeader::m_addr3

private

Definition at line 651 of file wifi-mac-header.h.

Referenced by Deserialize(), GetAddr3(), Print(), Serialize(), and SetAddr3().

Mac48Address ns3::WifiMacHeader::m_addr4

private

Definition at line 654 of file wifi-mac-header.h.

Referenced by Deserialize(), GetAddr4(), Print(), Serialize(), and SetAddr4().

uint8_t ns3::WifiMacHeader::m_amsduPresent

private

Definition at line 658 of file wifi-mac-header.h.

Referenced by GetQosControl(), IsQosAmsdu(), SetQosAmsdu(), SetQosControl(), and SetQosNoAmsdu().

uint8_t ns3::WifiMacHeader::m_ctrlFromDs

private

Definition at line 642 of file wifi-mac-header.h.

Referenced by Deserialize(), GetFrameControl(), GetSize(), IsFromDs(), Print(), PrintFrameControl(), Serialize(), SetDsFrom(), SetDsNotFrom(), SetFrameControl(), and SetType().

uint8_t ns3::WifiMacHeader::m_ctrlMoreData

private

Definition at line 645 of file wifi-mac-header.h.

Referenced by GetFrameControl(), PrintFrameControl(), and SetFrameControl().

uint8_t ns3::WifiMacHeader::m_ctrlMoreFrag

private

Definition at line 643 of file wifi-mac-header.h.

Referenced by GetFrameControl(), IsMoreFragments(), PrintFrameControl(), SetFrameControl(), SetMoreFragments(), and SetNoMoreFragments().

uint8_t ns3::WifiMacHeader::m_ctrlOrder

private

Definition at line 647 of file wifi-mac-header.h.

Referenced by GetFrameControl(), SetFrameControl(), SetNoOrder(), and SetOrder().

uint8_t ns3::WifiMacHeader::m_ctrlRetry

private

Definition at line 644 of file wifi-mac-header.h.

Referenced by GetFrameControl(), IsRetry(), PrintFrameControl(), SetFrameControl(), SetNoRetry(), and SetRetry().

uint8_t ns3::WifiMacHeader::m_ctrlSubtype

private

Definition at line 640 of file wifi-mac-header.h.

Referenced by Deserialize(), GetFrameControl(), GetSize(), GetType(), IsQosData(), Serialize(), SetAction(), SetAssocReq(), SetAssocResp(), SetBeacon(), SetBlockAck(), SetBlockAckReq(), SetFrameControl(), SetMultihopAction(), SetProbeReq(), SetProbeResp(), SetType(), and SetTypeData().

uint8_t ns3::WifiMacHeader::m_ctrlToDs

private

Definition at line 641 of file wifi-mac-header.h.

Referenced by Deserialize(), GetFrameControl(), GetSize(), IsToDs(), Print(), PrintFrameControl(), Serialize(), SetDsNotTo(), SetDsTo(), SetFrameControl(), and SetType().

uint8_t ns3::WifiMacHeader::m_ctrlType

private

Definition at line 639 of file wifi-mac-header.h.

Referenced by Deserialize(), GetFrameControl(), GetSize(), GetType(), IsCtl(), IsData(), IsMgt(), IsQosData(), Serialize(), SetAction(), SetAssocReq(), SetAssocResp(), SetBeacon(), SetBlockAck(), SetBlockAckReq(), SetFrameControl(), SetMultihopAction(), SetProbeReq(), SetProbeResp(), SetType(), and SetTypeData().

uint8_t ns3::WifiMacHeader::m_ctrlWep

private

Definition at line 646 of file wifi-mac-header.h.

Referenced by GetFrameControl(), and SetFrameControl().

uint16_t ns3::WifiMacHeader::m_duration

private

Definition at line 648 of file wifi-mac-header.h.

Referenced by Deserialize(), GetDuration(), GetRawDuration(), Print(), Serialize(), SetDuration(), SetId(), and SetRawDuration().

uint8_t ns3::WifiMacHeader::m_qosAckPolicy

private

Definition at line 657 of file wifi-mac-header.h.

Referenced by GetQosAckPolicy(), GetQosControl(), IsQosAck(), IsQosBlockAck(), IsQosNoAck(), SetQosAckPolicy(), SetQosBlockAck(), SetQosControl(), SetQosNoAck(), and SetQosNormalAck().

uint8_t ns3::WifiMacHeader::m_qosEosp

private

Definition at line 656 of file wifi-mac-header.h.

Referenced by GetQosControl(), IsQosEosp(), SetQosControl(), SetQosEosp(), and SetQosNoEosp().

uint16_t ns3::WifiMacHeader::m_qosStuff

private

Definition at line 659 of file wifi-mac-header.h.

Referenced by GetQosControl(), GetQosTxopLimit(), SetQosControl(), SetQosMeshControlPresent(), SetQosNoMeshControlPresent(), and SetQosTxopLimit().

uint8_t ns3::WifiMacHeader::m_qosTid

private

Definition at line 655 of file wifi-mac-header.h.

Referenced by GetQosControl(), GetQosTid(), SetQosControl(), and SetQosTid().

uint8_t ns3::WifiMacHeader::m_seqFrag

private

Definition at line 652 of file wifi-mac-header.h.

Referenced by GetFragmentNumber(), GetSequenceControl(), Print(), SetFragmentNumber(), and SetSequenceControl().

uint16_t ns3::WifiMacHeader::m_seqSeq

private

Definition at line 653 of file wifi-mac-header.h.

Referenced by GetSequenceControl(), GetSequenceNumber(), Print(), SetSequenceControl(), and SetSequenceNumber().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-mac-header.h
src/wifi/model/wifi-mac-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
