802.11 PHY layer model More...

#include "wifi-phy.h"

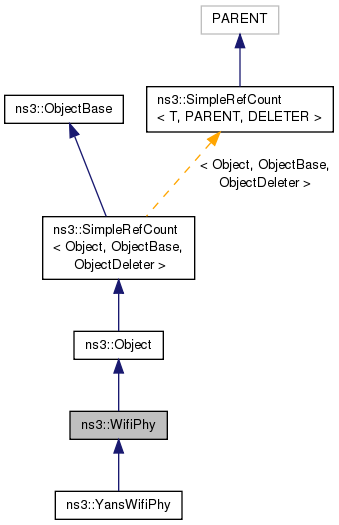

Inheritance diagram for ns3::WifiPhy:

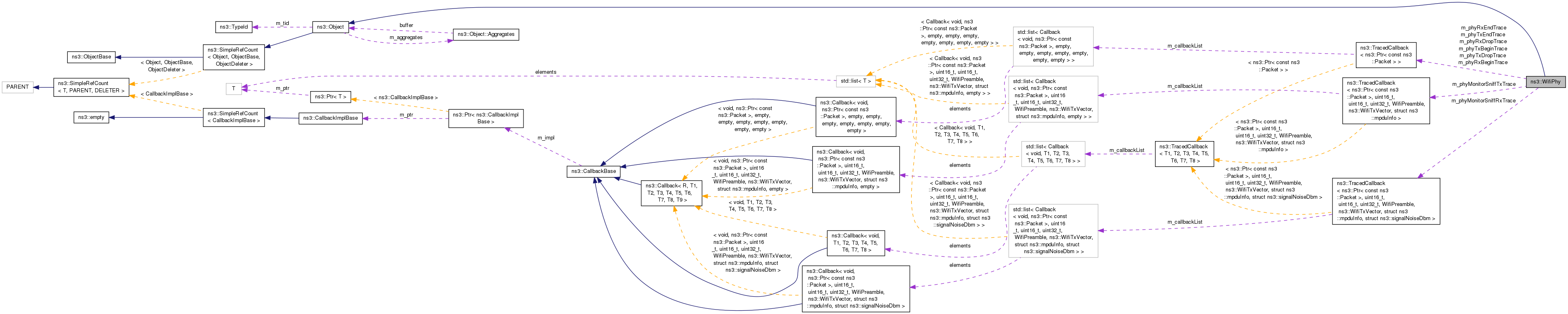

Collaboration diagram for ns3::WifiPhy:

Public Types
typedef void(*	MonitorSnifferRxCallback) (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu, struct signalNoiseDbm signalNoise)
	TracedCallback signature for monitor mode receive events. More...

typedef void(*	MonitorSnifferTxCallback) (const Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu)
	TracedCallback signature for monitor mode transmit events. More...

typedef Callback< void, Ptr< Packet >, double, bool >	RxErrorCallback
	arg1: packet received unsuccessfully arg2: snr of packet arg3: PHY-RXEND flag More...

typedef Callback< void, Ptr< Packet >, double, WifiTxVector, enum WifiPreamble >	RxOkCallback
	arg1: packet received successfully arg2: snr of packet arg3: TXVECTOR of packet arg4: type of preamble used for packet. More...

enum	State { IDLE, CCA_BUSY, TX, RX, SWITCHING, SLEEP }
	The state of the PHY layer. More...

Public Member Functions
	WifiPhy ()

virtual	~WifiPhy ()

virtual void	AddSupportedChannelWidth (uint32_t width)=0

virtual int64_t	AssignStreams (int64_t stream)=0
	Assign a fixed random variable stream number to the random variables used by this model. More...

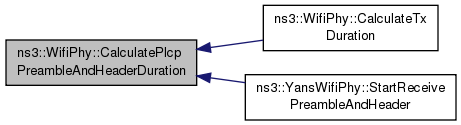

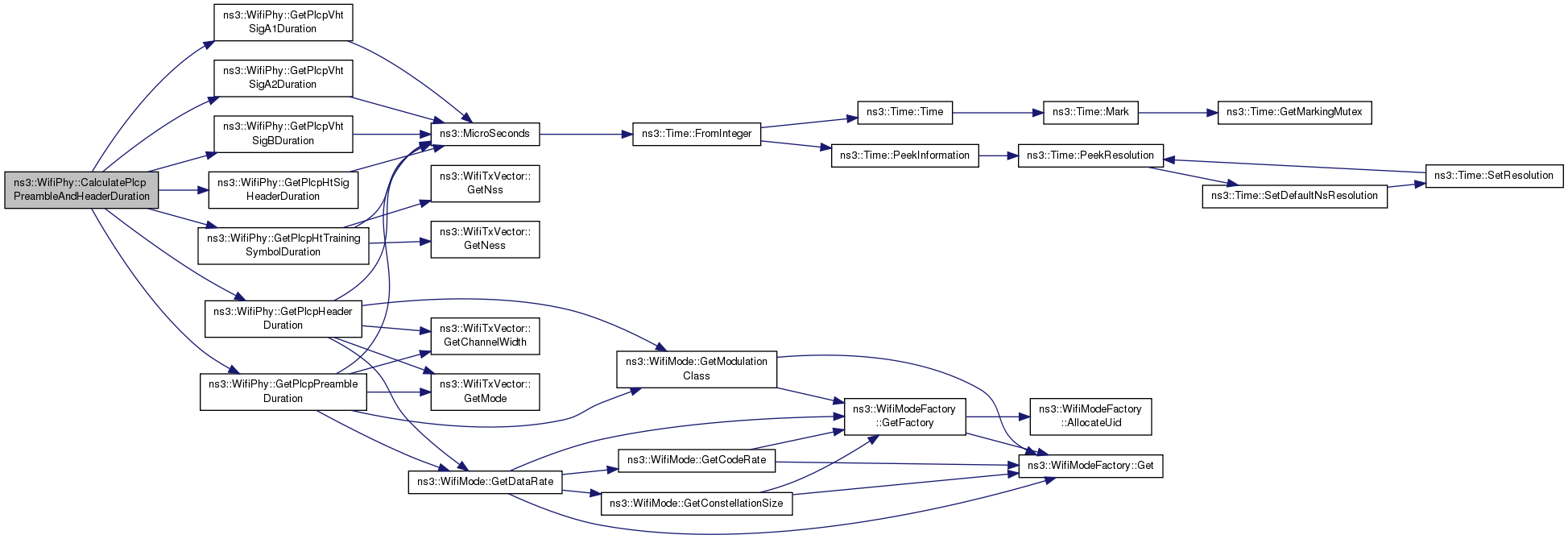

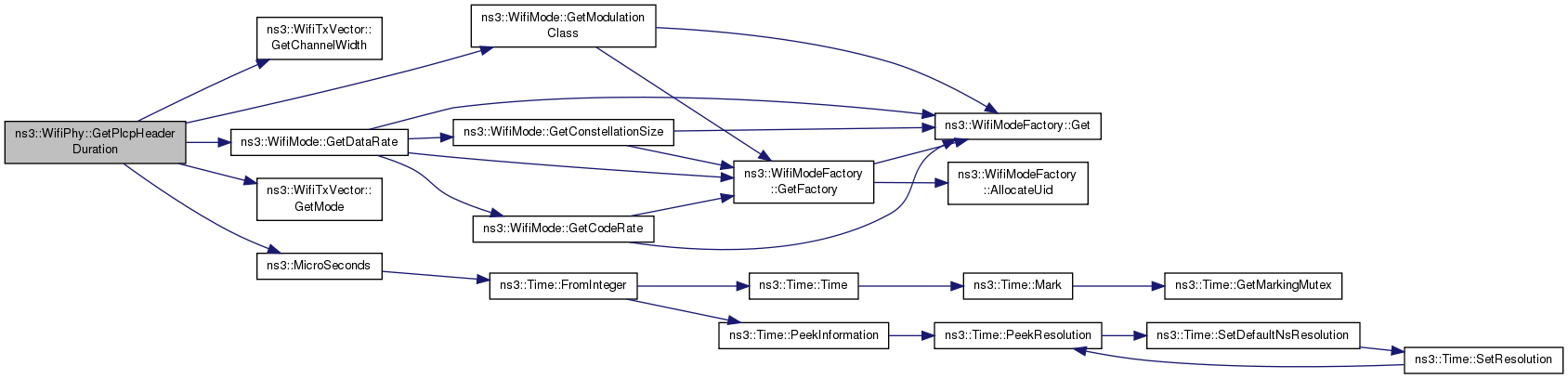

Time	CalculatePlcpPreambleAndHeaderDuration (WifiTxVector txVector, enum WifiPreamble preamble)

virtual double	CalculateSnr (WifiTxVector txVector, double ber) const =0

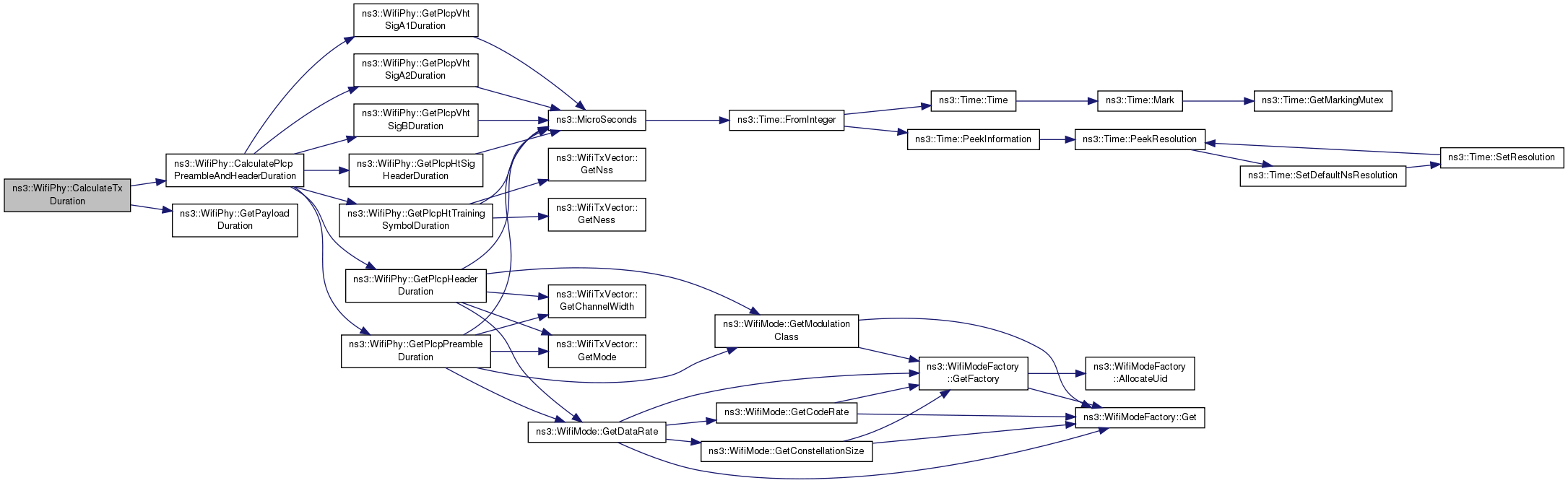

Time	CalculateTxDuration (uint32_t size, WifiTxVector txVector, enum WifiPreamble preamble, double frequency)

Time	CalculateTxDuration (uint32_t size, WifiTxVector txVector, enum WifiPreamble preamble, double frequency, enum mpduType mpdutype, uint8_t incFlag)

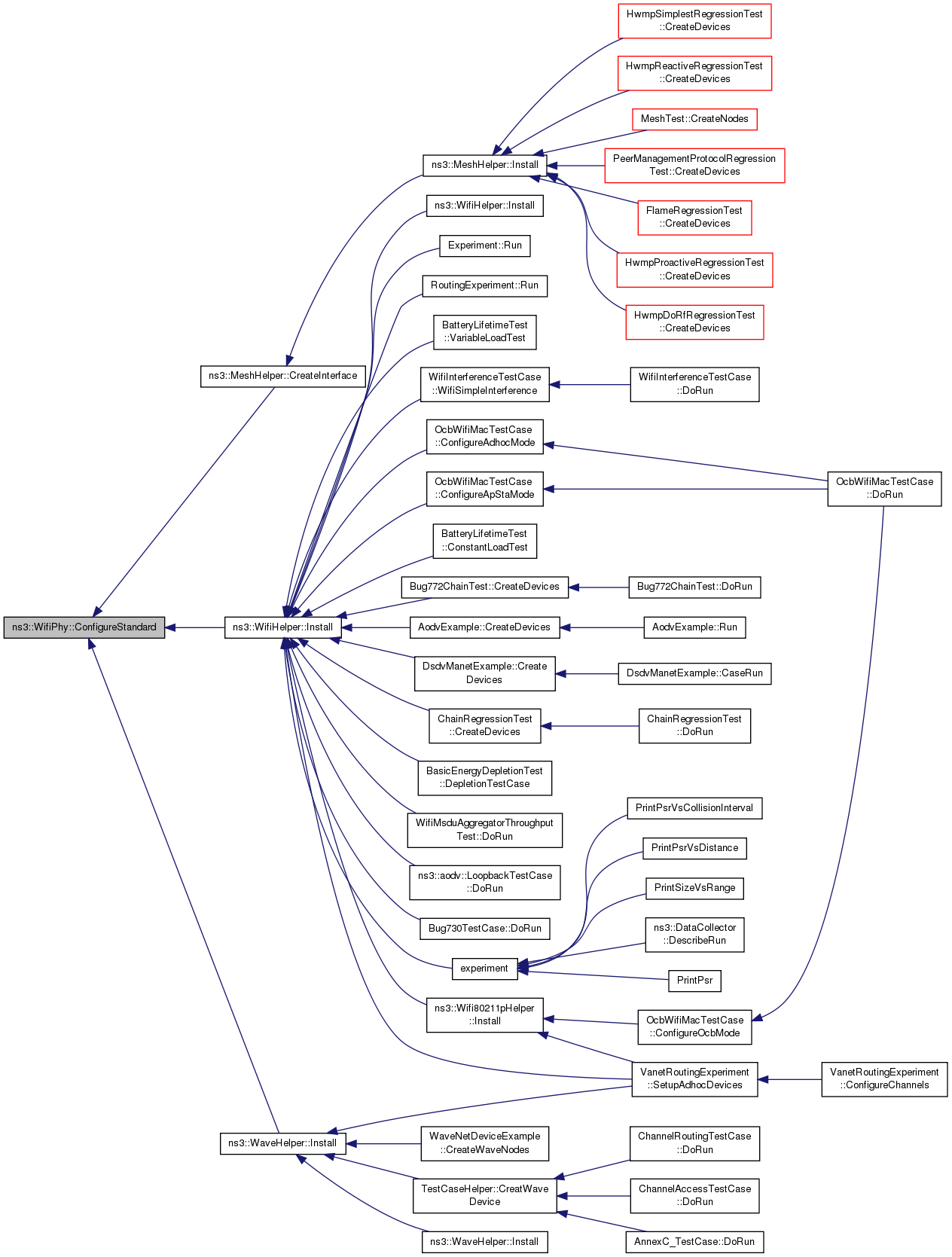

virtual void	ConfigureStandard (enum WifiPhyStandard standard)=0
	Configure the PHY-level parameters for different Wi-Fi standard. More...

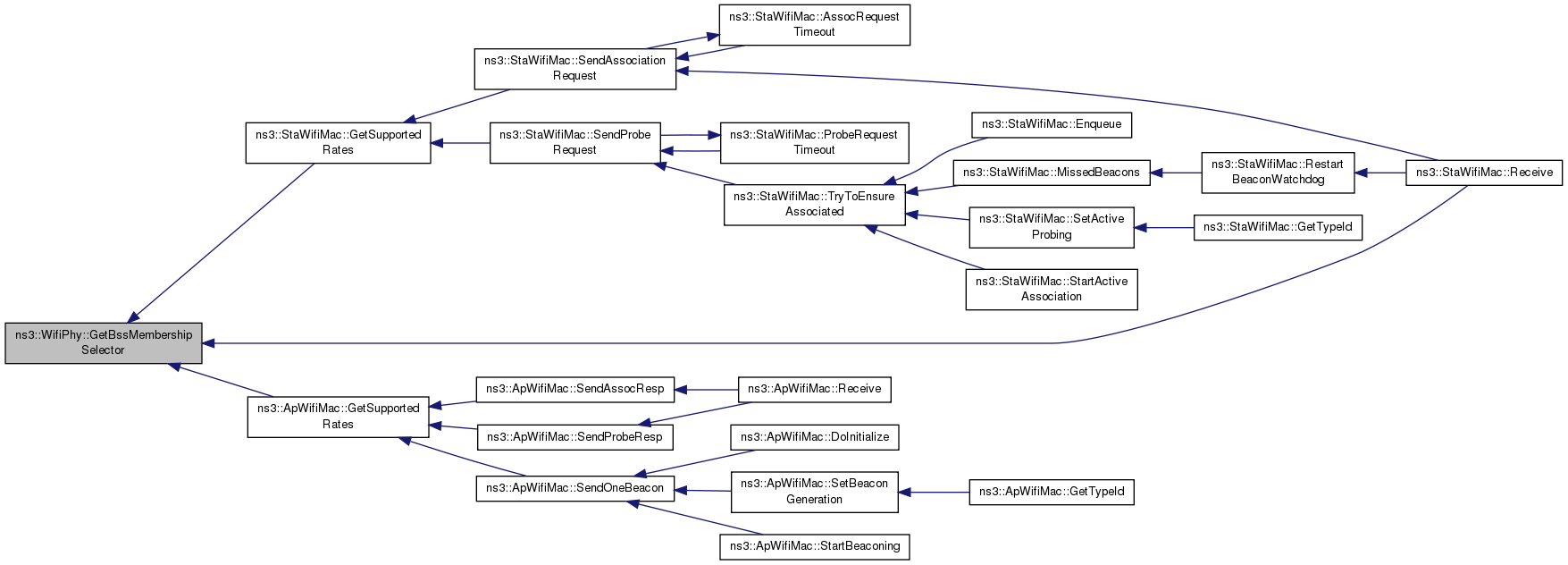

virtual uint32_t	GetBssMembershipSelector (uint32_t selector) const =0
	The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

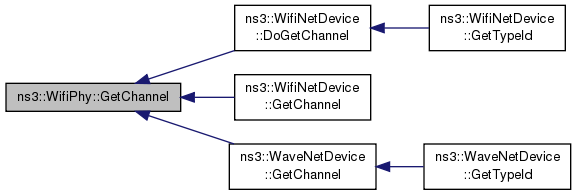

virtual Ptr< WifiChannel >	GetChannel (void) const =0
	Return the WifiChannel this WifiPhy is connected to. More...

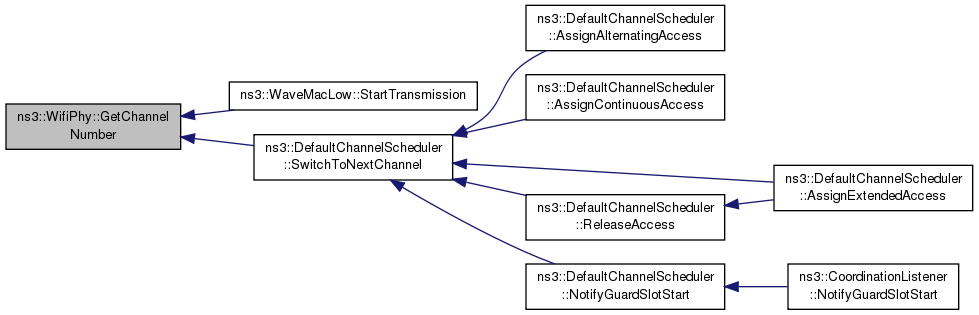

virtual uint16_t	GetChannelNumber (void) const =0
	Return current channel number. More...

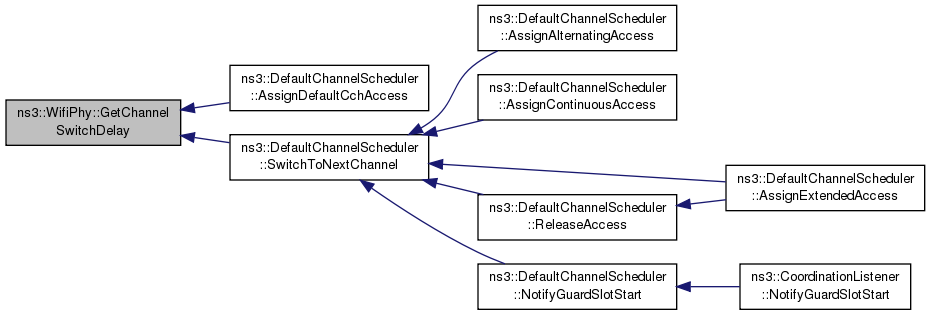

virtual Time	GetChannelSwitchDelay (void) const =0

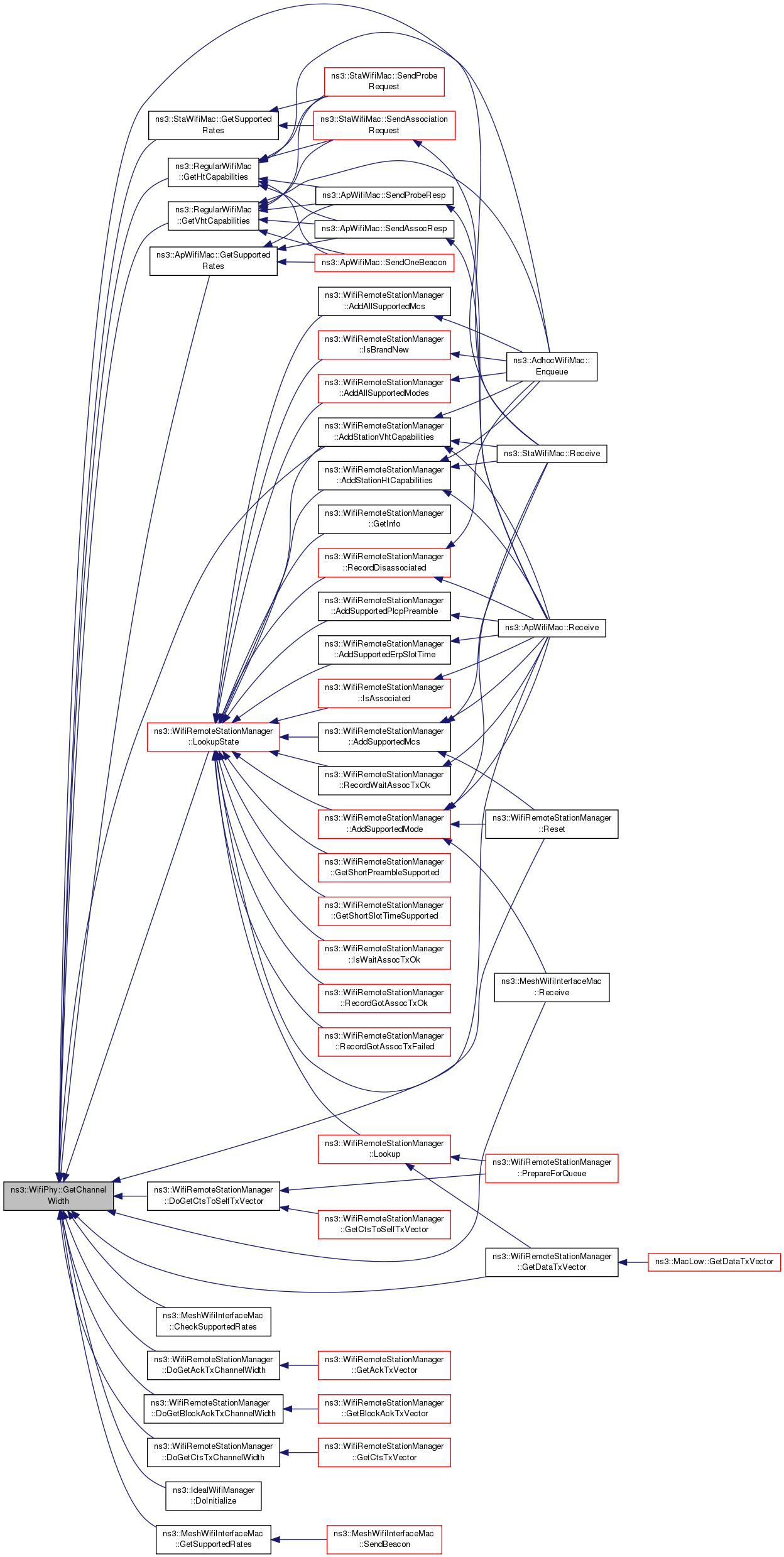

virtual uint32_t	GetChannelWidth (void) const =0

virtual Time	GetDelayUntilIdle (void)=0

virtual uint32_t	GetFrequency (void) const =0

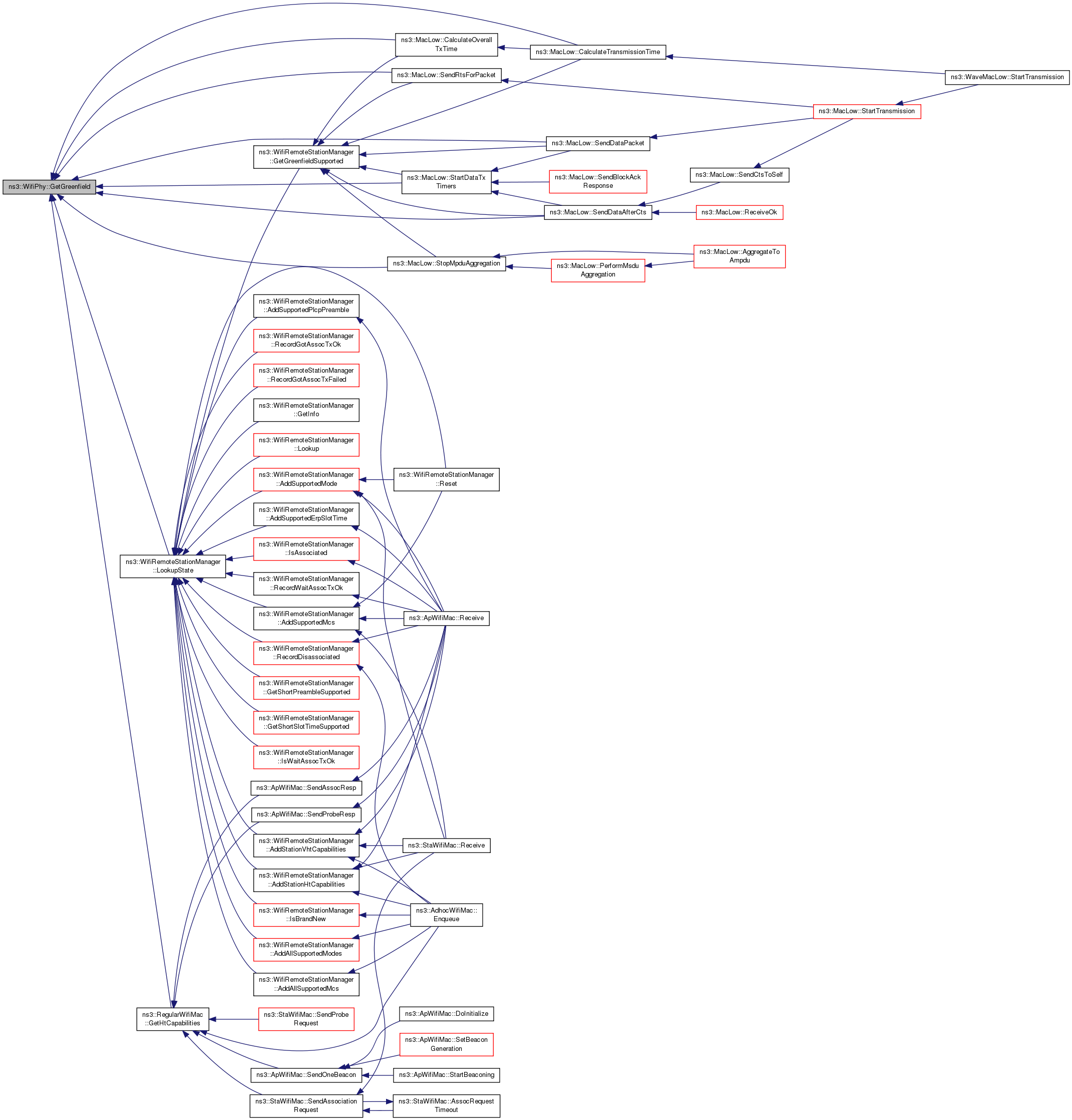

virtual bool	GetGreenfield (void) const =0

virtual bool	GetGuardInterval (void) const =0

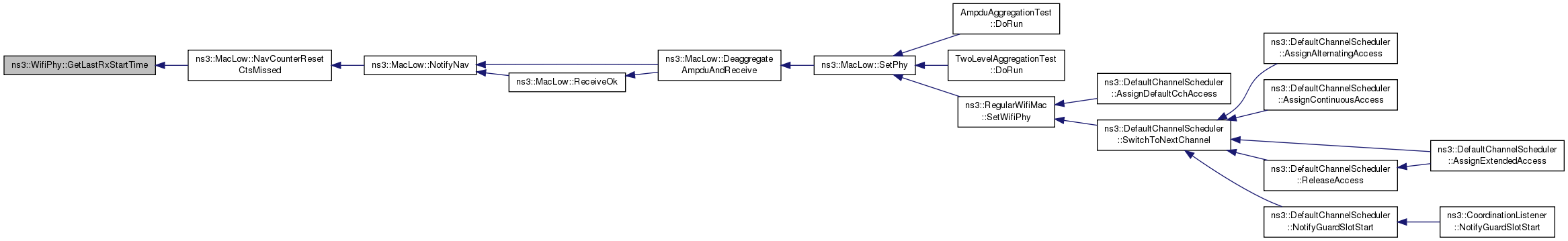

virtual Time	GetLastRxStartTime (void) const =0
	Return the start time of the last received packet. More...

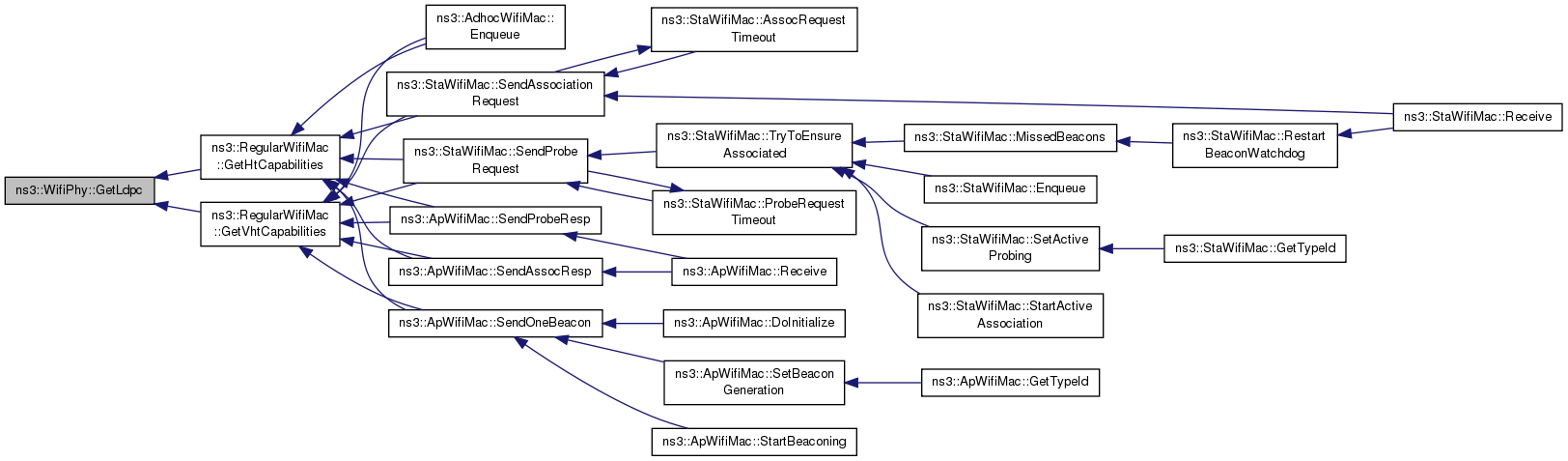

virtual bool	GetLdpc (void) const =0

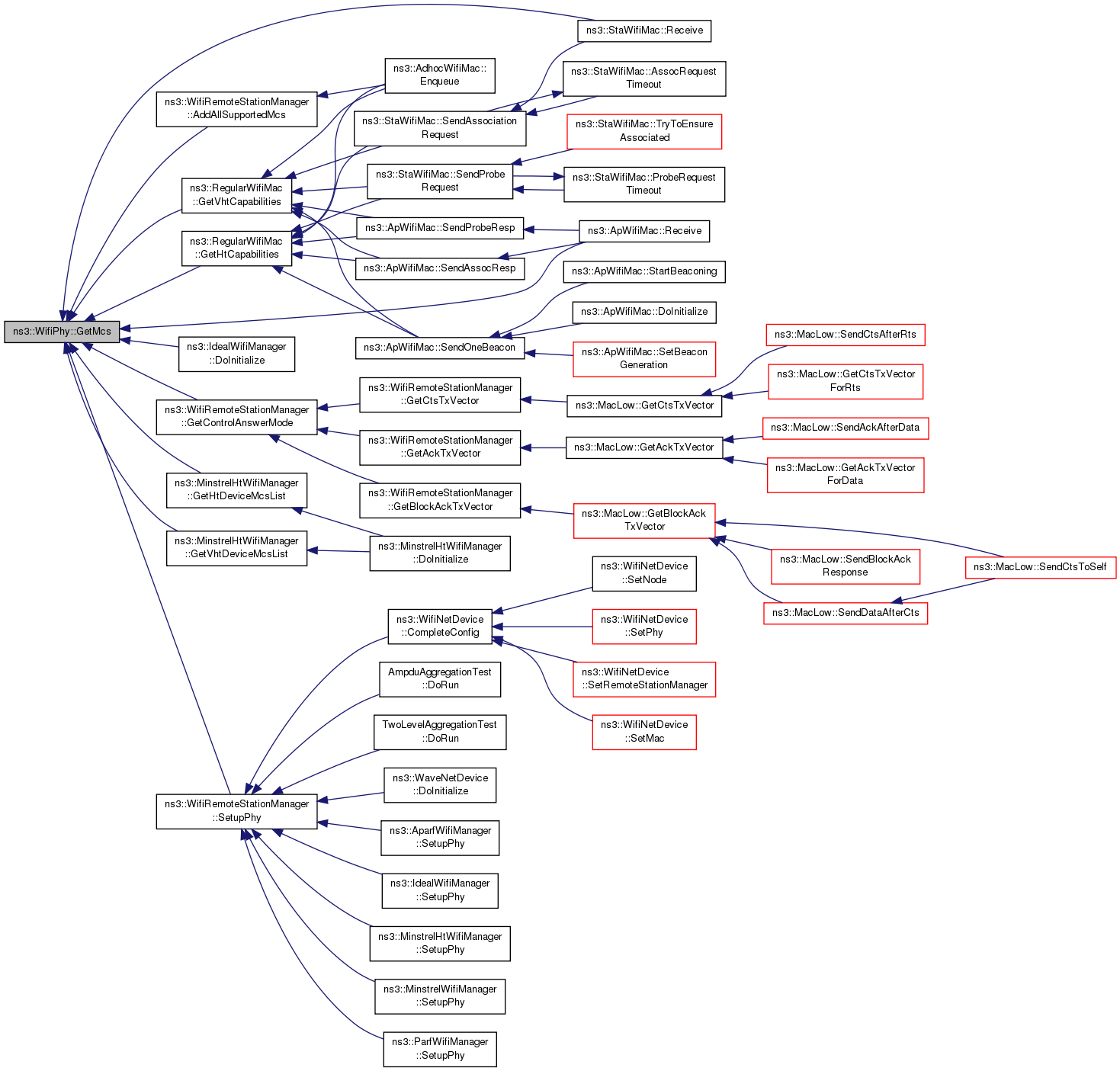

virtual WifiMode	GetMcs (uint8_t mcs) const =0
	The WifiPhy::GetMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet. More...

virtual WifiModeList	GetMembershipSelectorModes (uint32_t selector)=0
	The WifiPhy::GetMembershipSelectorModes() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

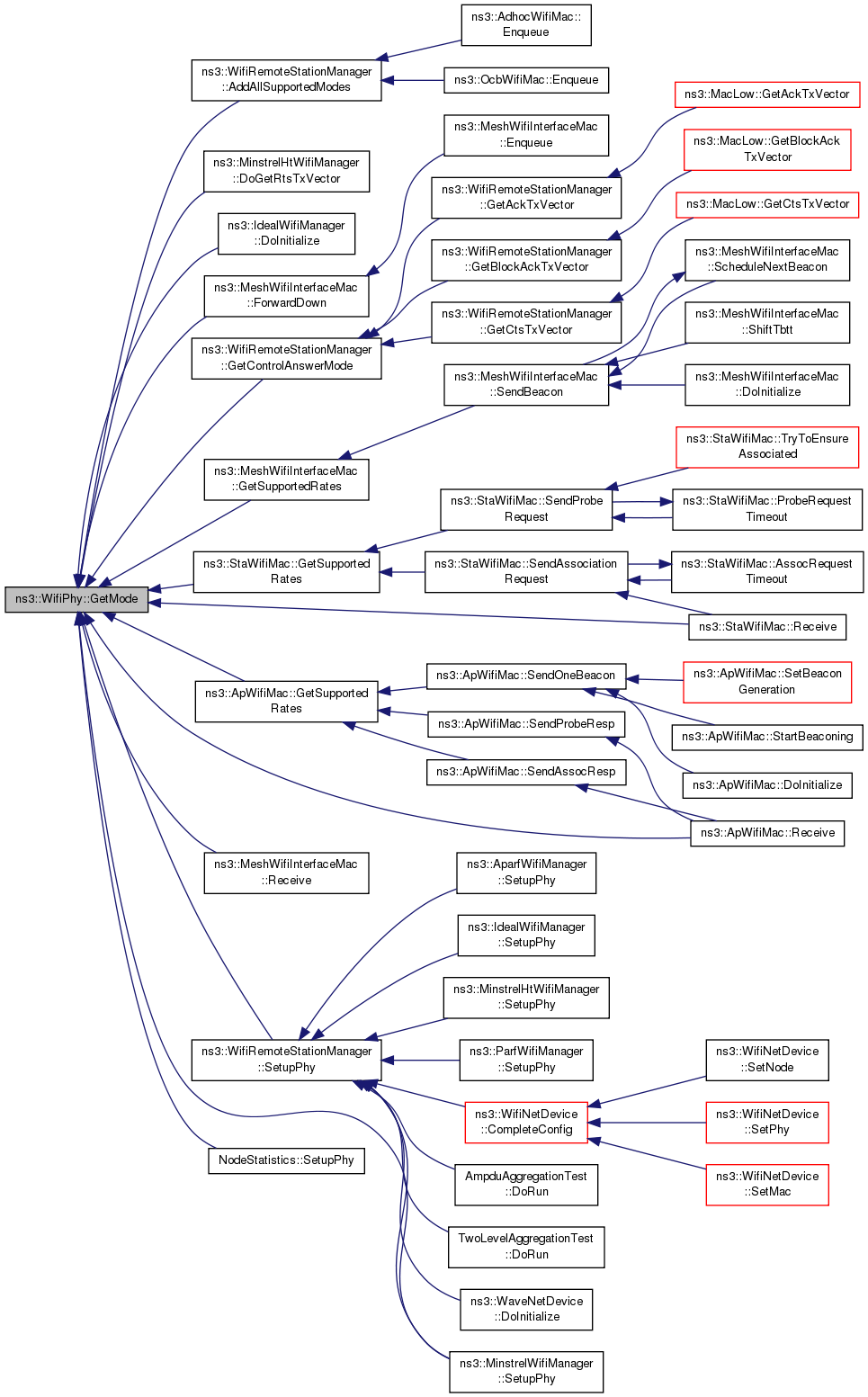

virtual WifiMode	GetMode (uint32_t mode) const =0
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

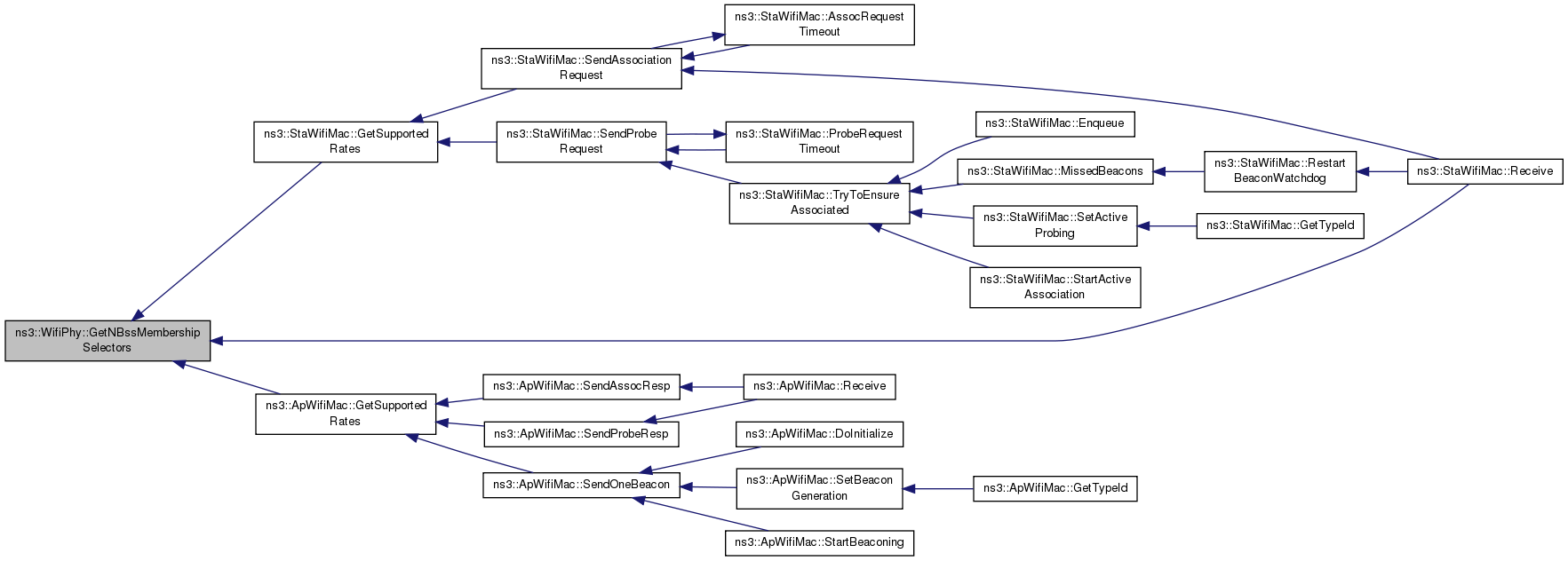

virtual uint32_t	GetNBssMembershipSelectors (void) const =0
	The WifiPhy::NBssMembershipSelectors() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

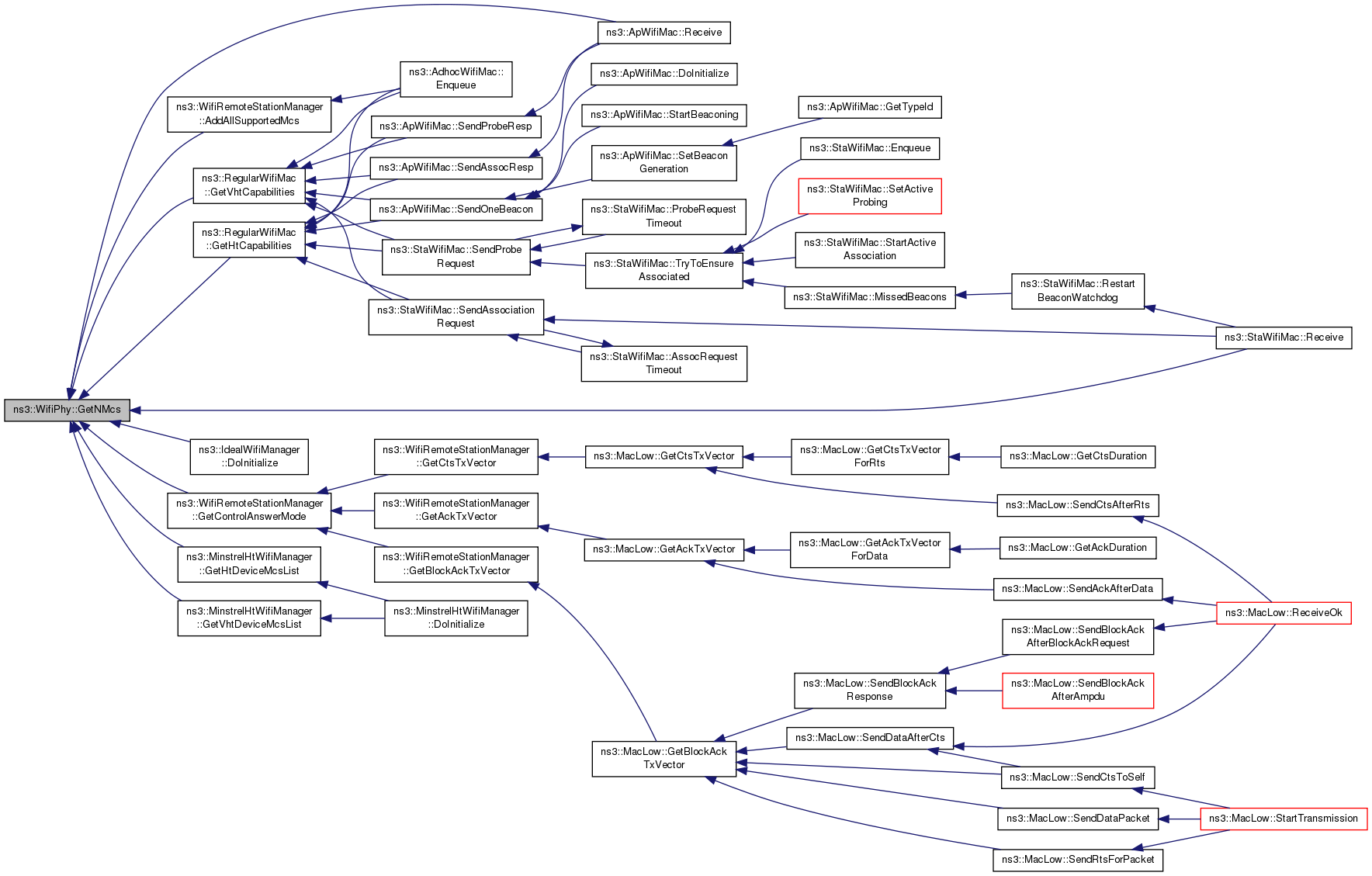

virtual uint8_t	GetNMcs (void) const =0
	The WifiPhy::GetNMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet. More...

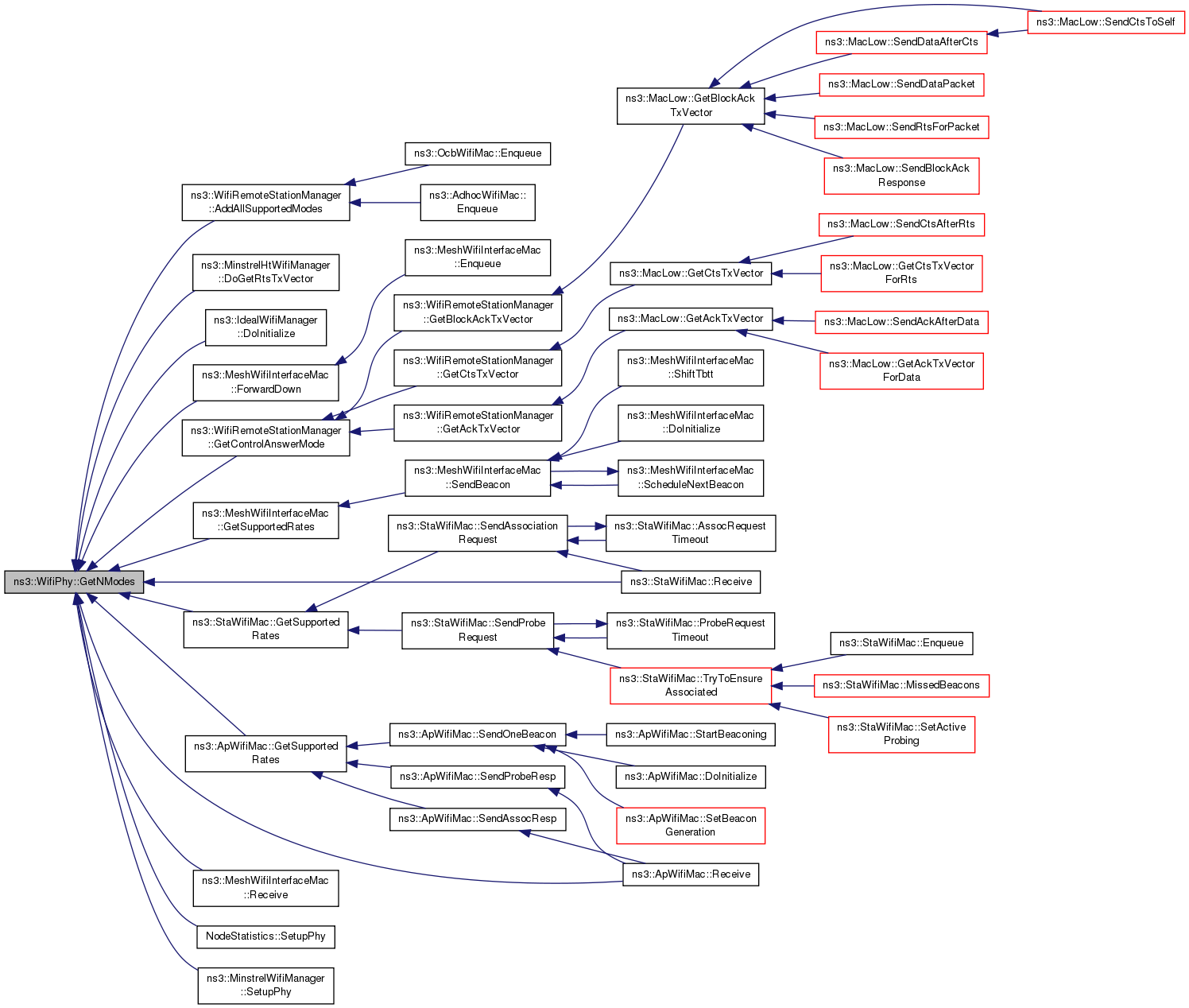

virtual uint32_t	GetNModes (void) const =0
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

virtual uint32_t	GetNTxPower (void) const =0

virtual uint32_t	GetNumberOfReceiveAntennas (void) const =0

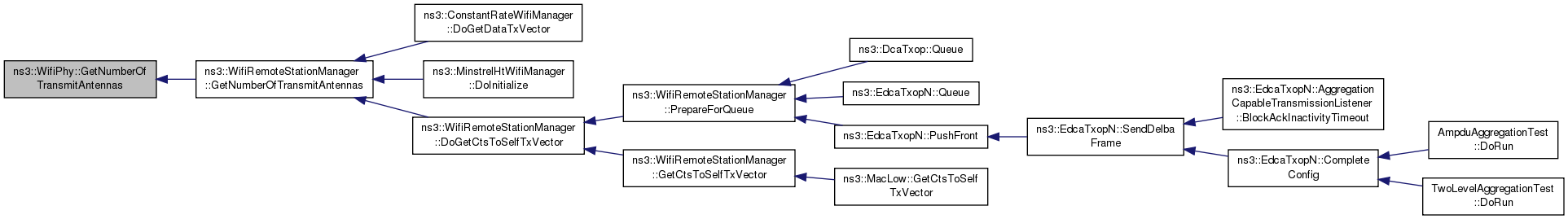

virtual uint32_t	GetNumberOfTransmitAntennas (void) const =0

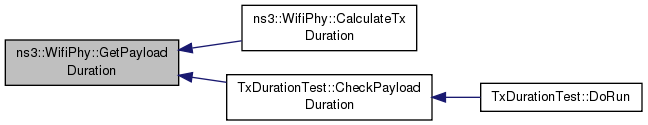

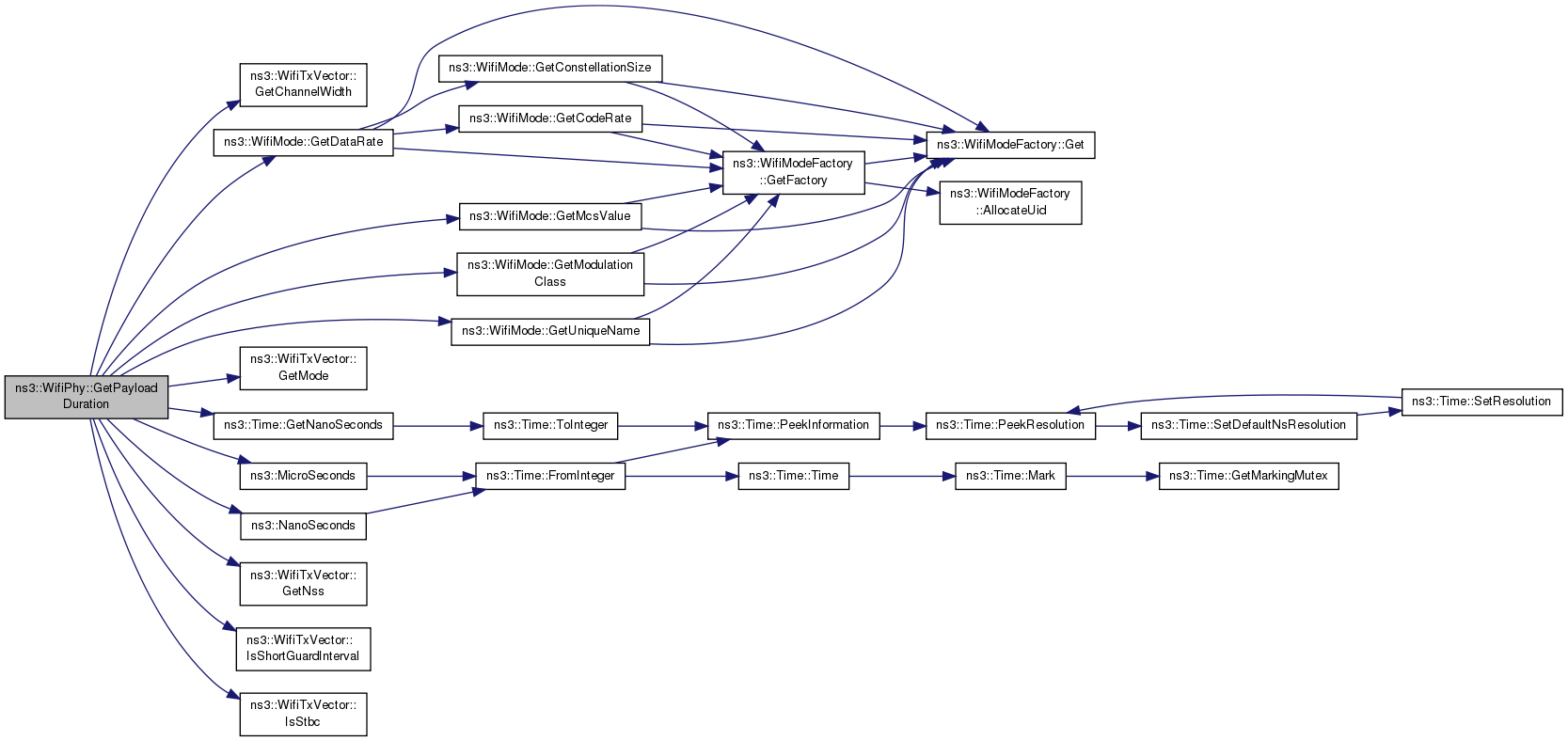

Time	GetPayloadDuration (uint32_t size, WifiTxVector txVector, WifiPreamble preamble, double frequency)

Time	GetPayloadDuration (uint32_t size, WifiTxVector txVector, WifiPreamble preamble, double frequency, enum mpduType mpdutype, uint8_t incFlag)

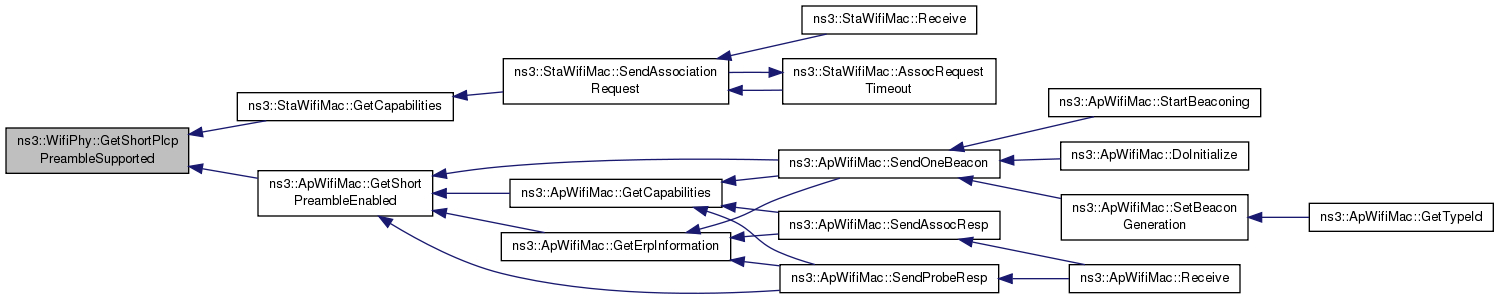

virtual bool	GetShortPlcpPreambleSupported (void) const =0

virtual Time	GetStateDuration (void)=0

virtual bool	GetStbc (void) const =0

virtual std::vector< uint32_t >	GetSupportedChannelWidthSet (void) const =0

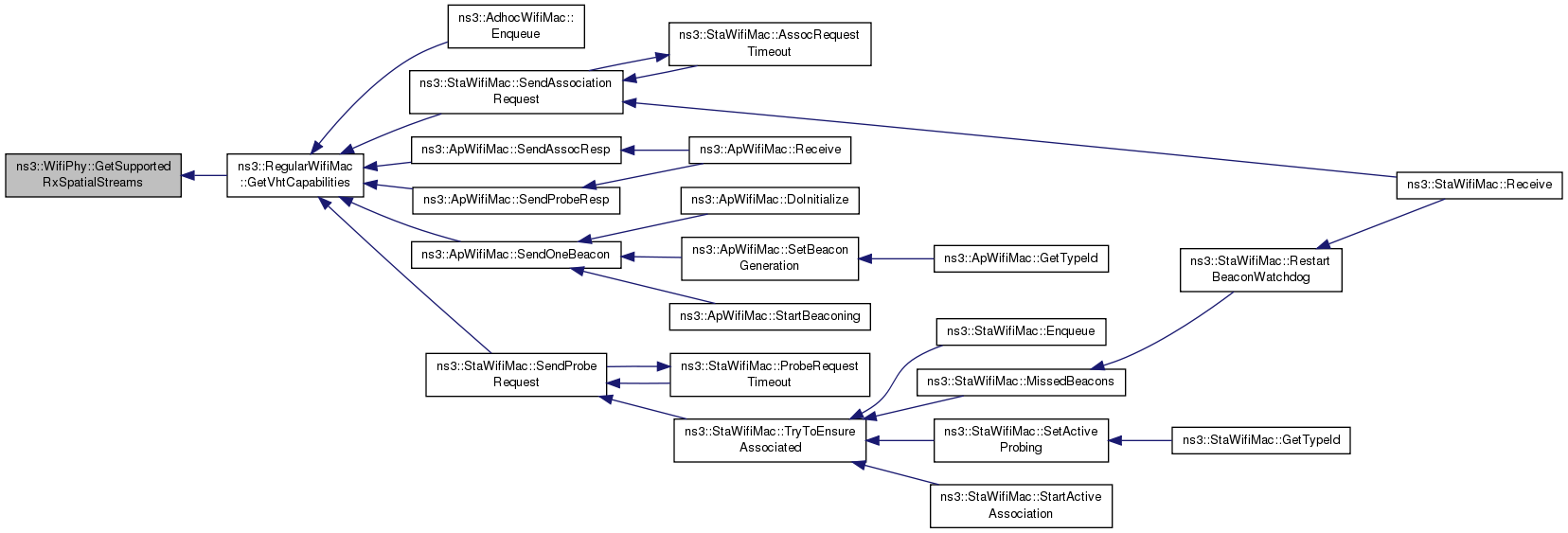

virtual uint8_t	GetSupportedRxSpatialStreams (void) const =0

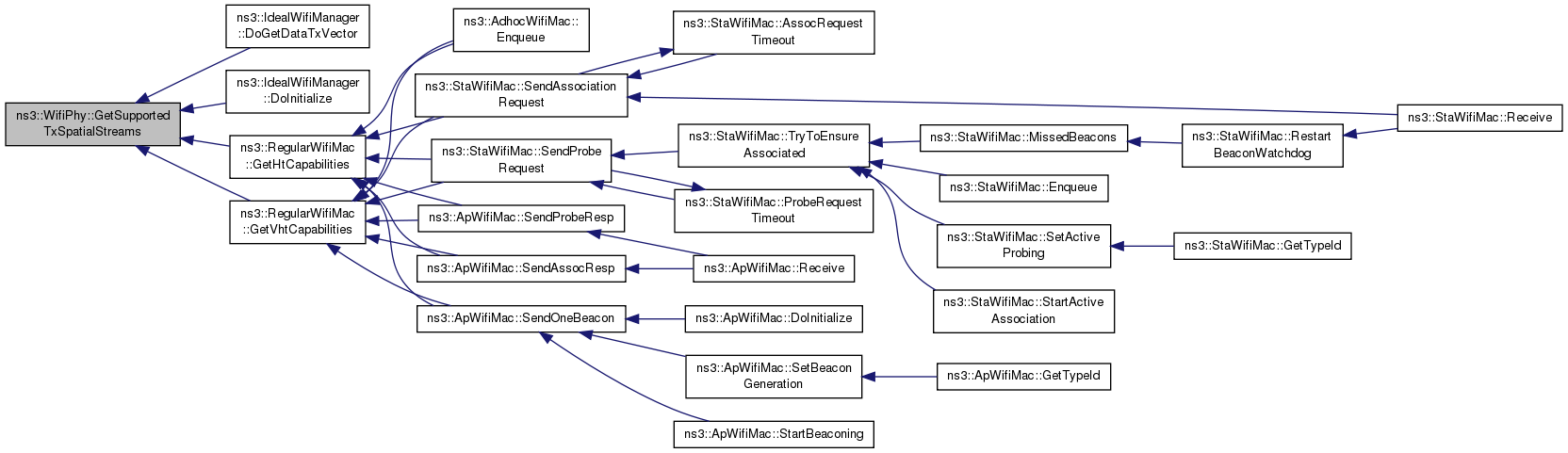

virtual uint8_t	GetSupportedTxSpatialStreams (void) const =0

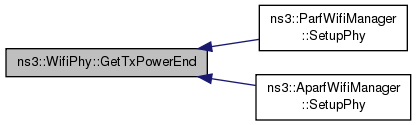

virtual double	GetTxPowerEnd (void) const =0
	Return the maximum available transmission power level (dBm). More...

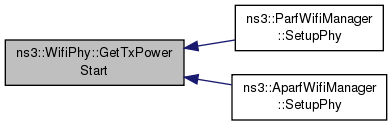

virtual double	GetTxPowerStart (void) const =0
	Return the minimum available transmission power level (dBm). More...

virtual bool	IsModeSupported (WifiMode mode) const =0
	Check if the given WifiMode is supported by the PHY. More...

virtual bool	IsStateBusy (void)=0

virtual bool	IsStateCcaBusy (void)=0

virtual bool	IsStateIdle (void)=0

virtual bool	IsStateRx (void)=0

virtual bool	IsStateSleep (void)=0

virtual bool	IsStateSwitching (void)=0

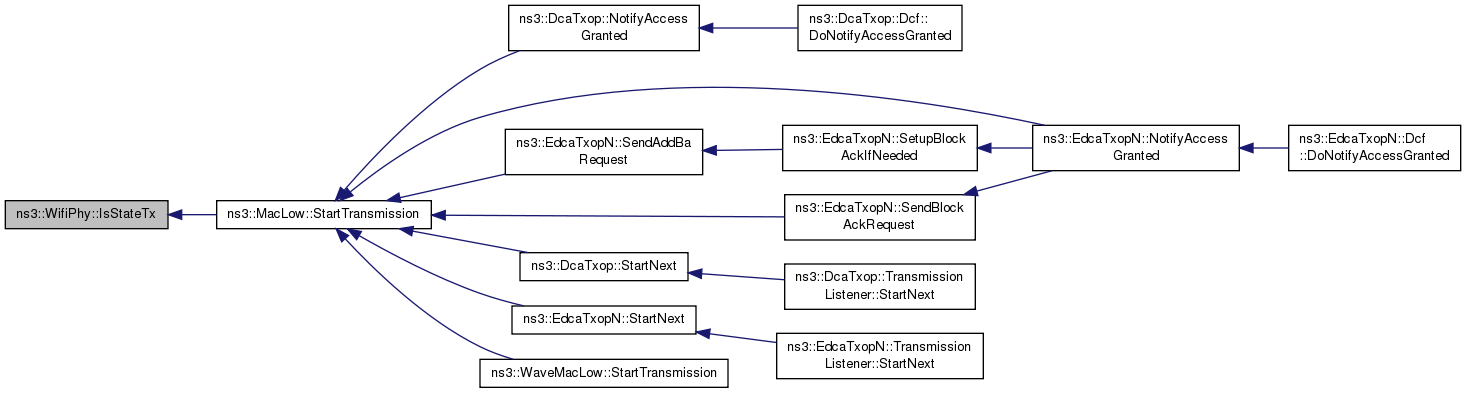

virtual bool	IsStateTx (void)=0

void	NotifyMonitorSniffRx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu, struct signalNoiseDbm signalNoise)
	Public method used to fire a MonitorSniffer trace for a wifi packet being received. More...

void	NotifyMonitorSniffTx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu)
	Public method used to fire a MonitorSniffer trace for a wifi packet being transmitted. More...

void	NotifyRxBegin (Ptr< const Packet > packet)
	Public method used to fire a PhyRxBegin trace. More...

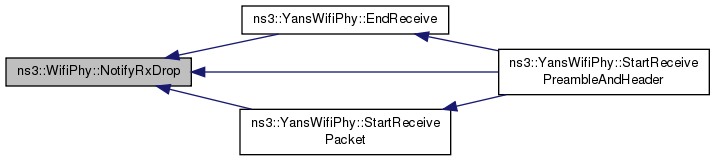

void	NotifyRxDrop (Ptr< const Packet > packet)
	Public method used to fire a PhyRxDrop trace. More...

void	NotifyRxEnd (Ptr< const Packet > packet)
	Public method used to fire a PhyRxEnd trace. More...

void	NotifyTxBegin (Ptr< const Packet > packet)
	Public method used to fire a PhyTxBegin trace. More...

void	NotifyTxDrop (Ptr< const Packet > packet)
	Public method used to fire a PhyTxDrop trace. More...

void	NotifyTxEnd (Ptr< const Packet > packet)
	Public method used to fire a PhyTxEnd trace. More...

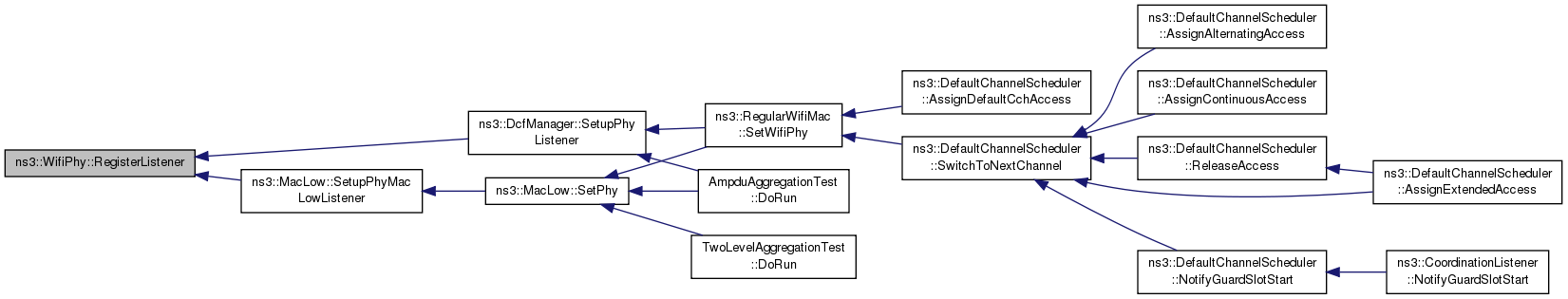

virtual void	RegisterListener (WifiPhyListener *listener)=0

virtual void	ResumeFromSleep (void)=0
	Resume from sleep mode. More...

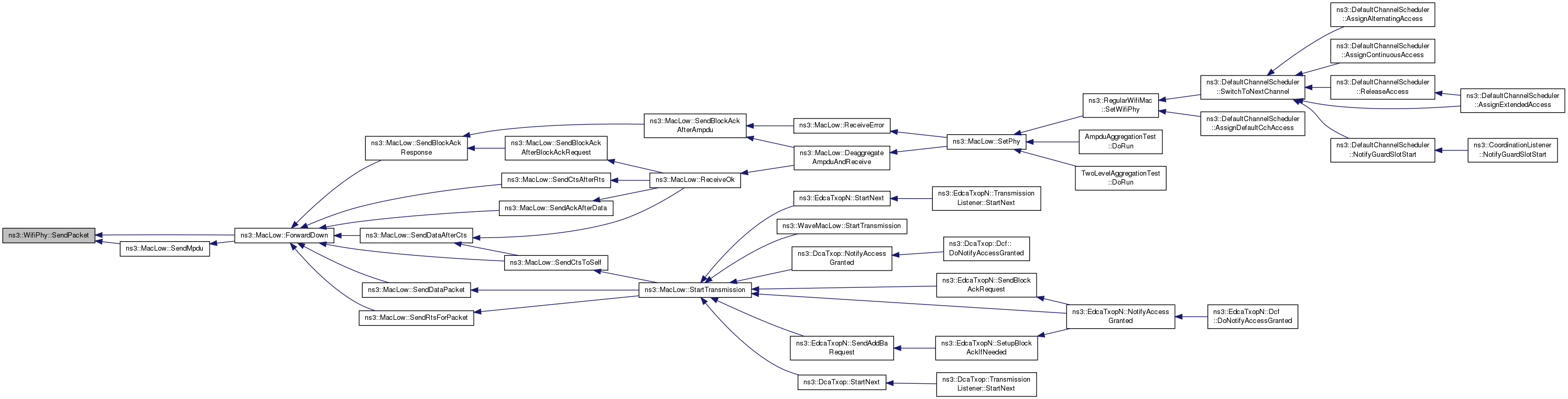

virtual void	SendPacket (Ptr< const Packet > packet, WifiTxVector txVector, enum WifiPreamble preamble)=0

virtual void	SendPacket (Ptr< const Packet > packet, WifiTxVector txVector, enum WifiPreamble preamble, enum mpduType mpdutype)=0

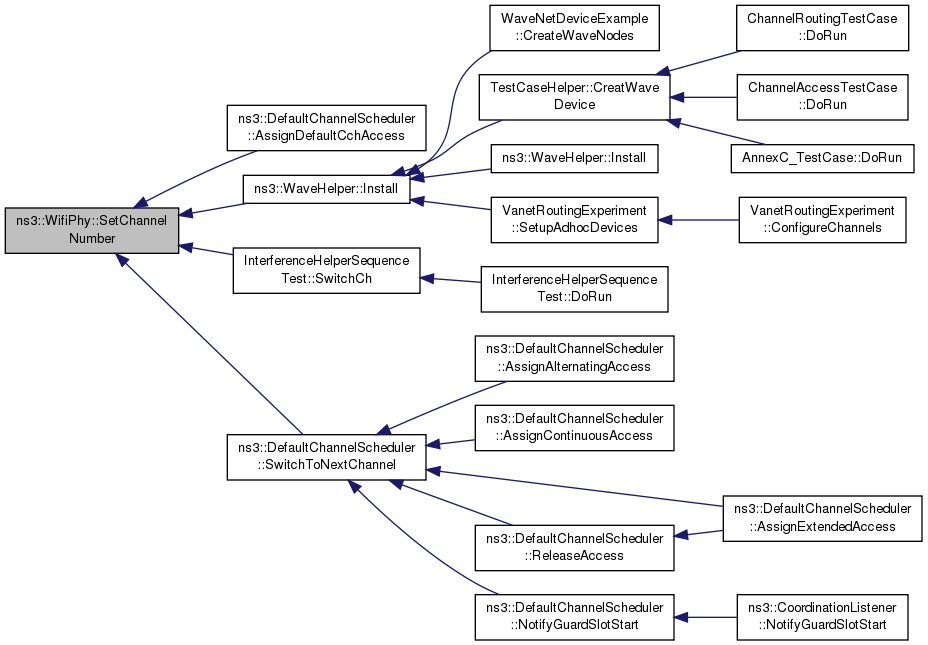

virtual void	SetChannelNumber (uint16_t id)=0
	Set channel number. More...

virtual void	SetChannelWidth (uint32_t channelwidth)=0

virtual void	SetFrequency (uint32_t freq)=0

virtual void	SetGreenfield (bool greenfield)=0

virtual void	SetGuardInterval (bool guardInterval)=0

virtual void	SetLdpc (bool ldpc)=0

virtual void	SetNumberOfReceiveAntennas (uint32_t rx)=0

virtual void	SetNumberOfTransmitAntennas (uint32_t tx)=0

virtual void	SetReceiveErrorCallback (RxErrorCallback callback)=0

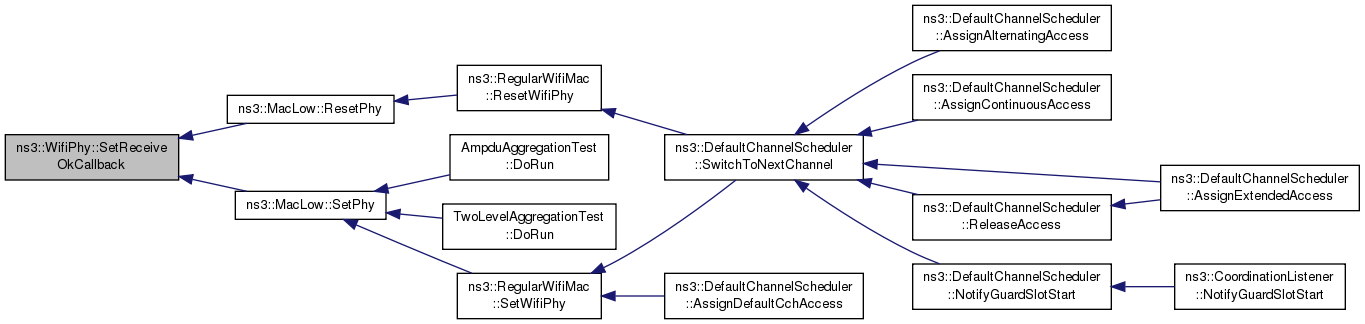

virtual void	SetReceiveOkCallback (RxOkCallback callback)=0

virtual void	SetShortPlcpPreambleSupported (bool preamble)=0

virtual void	SetSleepMode (void)=0
	Put in sleep mode. More...

virtual void	SetStbc (bool stbc)=0

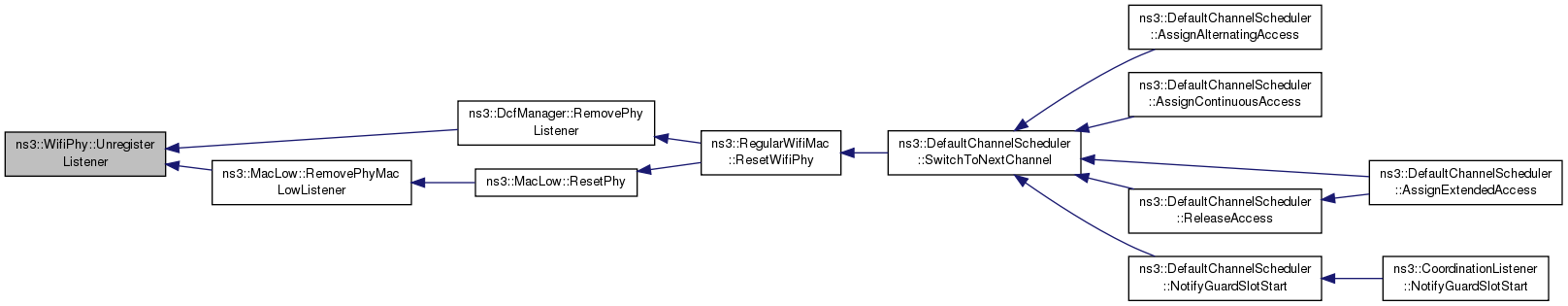

virtual void	UnregisterListener (WifiPhyListener *listener)=0

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

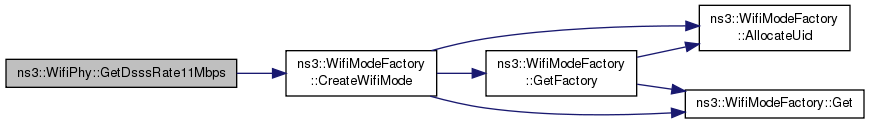

static WifiMode	GetDsssRate11Mbps ()
	Return a WifiMode for DSSS at 11Mbps. More...

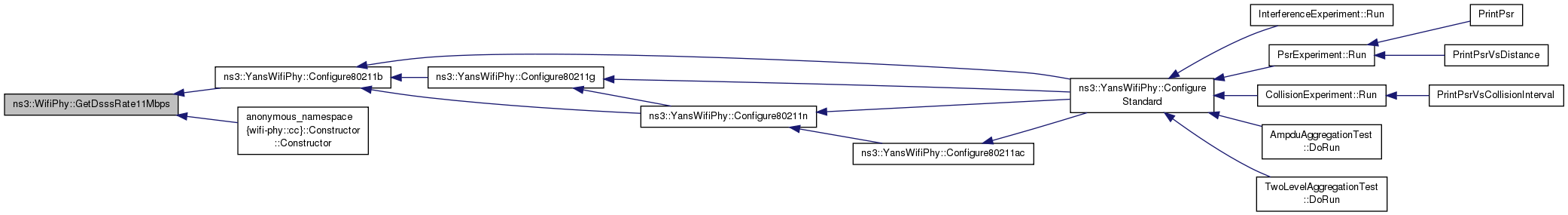

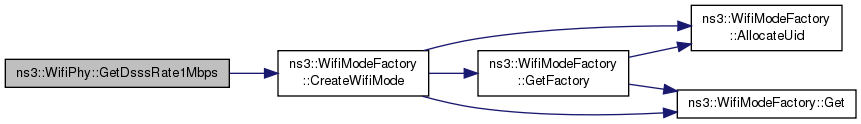

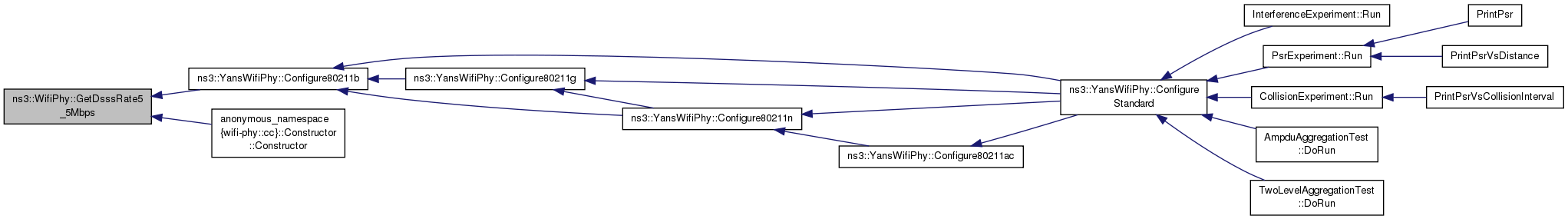

static WifiMode	GetDsssRate1Mbps ()
	Return a WifiMode for DSSS at 1Mbps. More...

static WifiMode	GetDsssRate2Mbps ()
	Return a WifiMode for DSSS at 2Mbps. More...

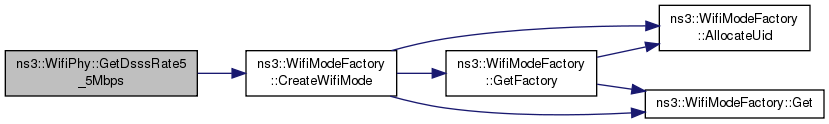

static WifiMode	GetDsssRate5_5Mbps ()
	Return a WifiMode for DSSS at 5.5Mbps. More...

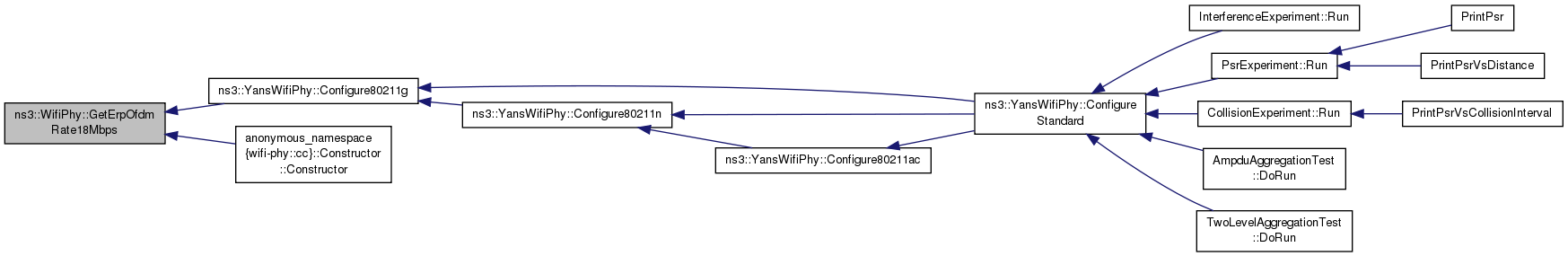

static WifiMode	GetErpOfdmRate12Mbps ()
	Return a WifiMode for ERP-OFDM at 12Mbps. More...

static WifiMode	GetErpOfdmRate18Mbps ()
	Return a WifiMode for ERP-OFDM at 18Mbps. More...

static WifiMode	GetErpOfdmRate24Mbps ()
	Return a WifiMode for ERP-OFDM at 24Mbps. More...

static WifiMode	GetErpOfdmRate36Mbps ()
	Return a WifiMode for ERP-OFDM at 36Mbps. More...

static WifiMode	GetErpOfdmRate48Mbps ()
	Return a WifiMode for ERP-OFDM at 48Mbps. More...

static WifiMode	GetErpOfdmRate54Mbps ()
	Return a WifiMode for ERP-OFDM at 54Mbps. More...

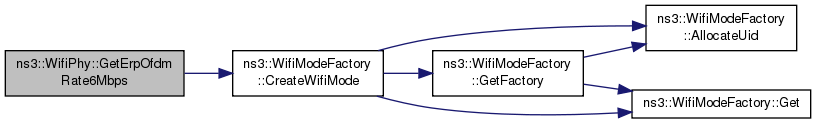

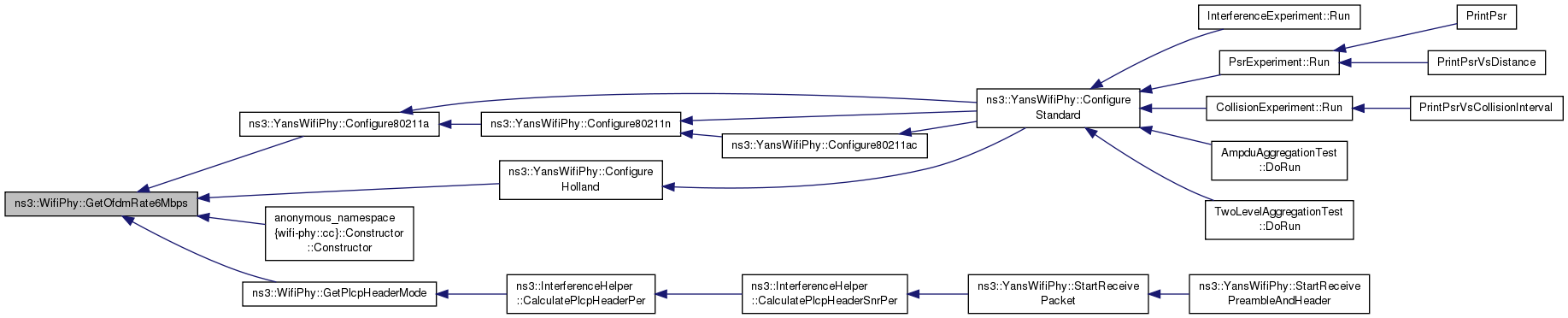

static WifiMode	GetErpOfdmRate6Mbps ()
	Return a WifiMode for ERP-OFDM at 6Mbps. More...

static WifiMode	GetErpOfdmRate9Mbps ()
	Return a WifiMode for ERP-OFDM at 9Mbps. More...

static WifiMode	GetHtMcs0 ()
	Return MCS 0 from HT MCS values. More...

static WifiMode	GetHtMcs1 ()
	Return MCS 1 from HT MCS values. More...

static WifiMode	GetHtMcs10 ()
	Return MCS 10 from HT MCS values. More...

static WifiMode	GetHtMcs11 ()
	Return MCS 11 from HT MCS values. More...

static WifiMode	GetHtMcs12 ()
	Return MCS 12 from HT MCS values. More...

static WifiMode	GetHtMcs13 ()
	Return MCS 13 from HT MCS values. More...

static WifiMode	GetHtMcs14 ()
	Return MCS 14 from HT MCS values. More...

static WifiMode	GetHtMcs15 ()
	Return MCS 15 from HT MCS values. More...

static WifiMode	GetHtMcs16 ()
	Return MCS 16 from HT MCS values. More...

static WifiMode	GetHtMcs17 ()
	Return MCS 17 from HT MCS values. More...

static WifiMode	GetHtMcs18 ()
	Return MCS 18 from HT MCS values. More...

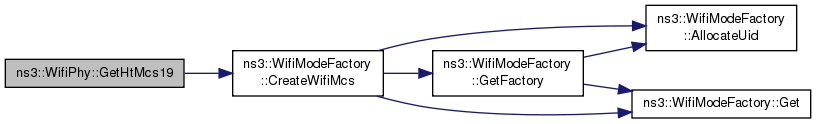

static WifiMode	GetHtMcs19 ()
	Return MCS 19 from HT MCS values. More...

static WifiMode	GetHtMcs2 ()
	Return MCS 2 from HT MCS values. More...

static WifiMode	GetHtMcs20 ()
	Return MCS 20 from HT MCS values. More...

static WifiMode	GetHtMcs21 ()
	Return MCS 21 from HT MCS values. More...

static WifiMode	GetHtMcs22 ()
	Return MCS 22 from HT MCS values. More...

static WifiMode	GetHtMcs23 ()
	Return MCS 23 from HT MCS values. More...

static WifiMode	GetHtMcs24 ()
	Return MCS 24 from HT MCS values. More...

static WifiMode	GetHtMcs25 ()
	Return MCS 25 from HT MCS values. More...

static WifiMode	GetHtMcs26 ()
	Return MCS 26 from HT MCS values. More...

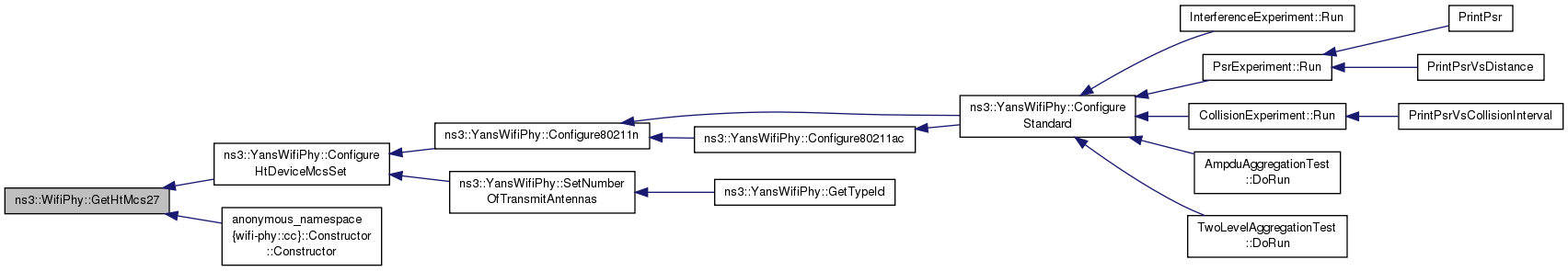

static WifiMode	GetHtMcs27 ()
	Return MCS 27 from HT MCS values. More...

static WifiMode	GetHtMcs28 ()
	Return MCS 28 from HT MCS values. More...

static WifiMode	GetHtMcs29 ()
	Return MCS 29 from HT MCS values. More...

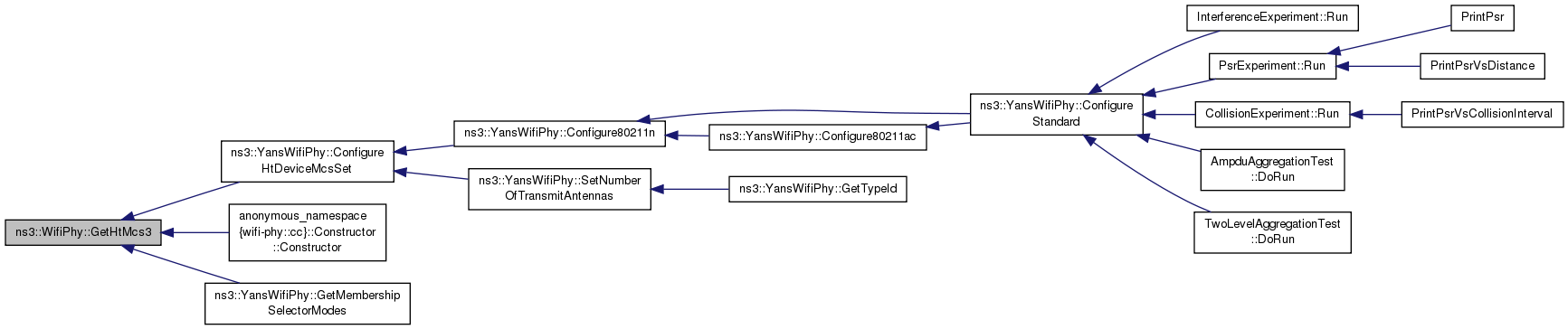

static WifiMode	GetHtMcs3 ()
	Return MCS 3 from HT MCS values. More...

static WifiMode	GetHtMcs30 ()
	Return MCS 30 from HT MCS values. More...

static WifiMode	GetHtMcs31 ()
	Return MCS 31 from HT MCS values. More...

static WifiMode	GetHtMcs4 ()
	Return MCS 4 from HT MCS values. More...

static WifiMode	GetHtMcs5 ()
	Return MCS 5 from HT MCS values. More...

static WifiMode	GetHtMcs6 ()
	Return MCS 6 from HT MCS values. More...

static WifiMode	GetHtMcs7 ()
	Return MCS 7 from HT MCS values. More...

static WifiMode	GetHtMcs8 ()
	Return MCS 8 from HT MCS values. More...

static WifiMode	GetHtMcs9 ()
	Return MCS 9 from HT MCS values. More...

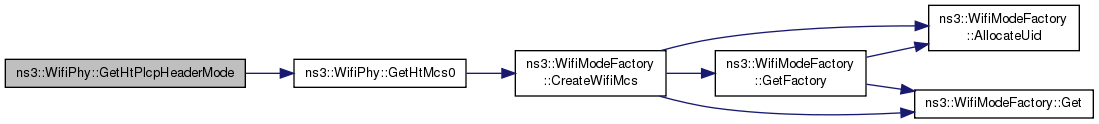

static WifiMode	GetHtPlcpHeaderMode (WifiMode payloadMode)

static WifiMode	GetOfdmRate12Mbps ()
	Return a WifiMode for OFDM at 12Mbps. More...

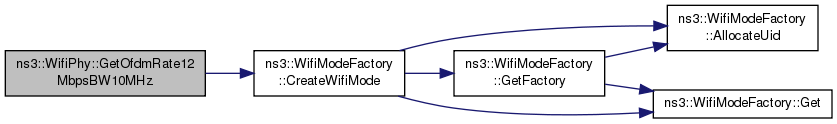

static WifiMode	GetOfdmRate12MbpsBW10MHz ()
	Return a WifiMode for OFDM at 12Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate12MbpsBW5MHz ()
	Return a WifiMode for OFDM at 12Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate13_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 13.5Mbps with 5MHz channel spacing. More...

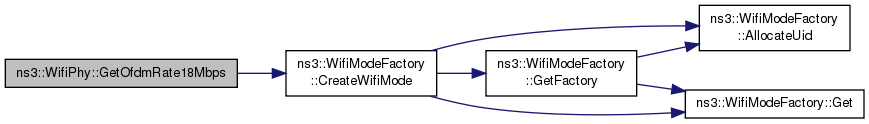

static WifiMode	GetOfdmRate18Mbps ()
	Return a WifiMode for OFDM at 18Mbps. More...

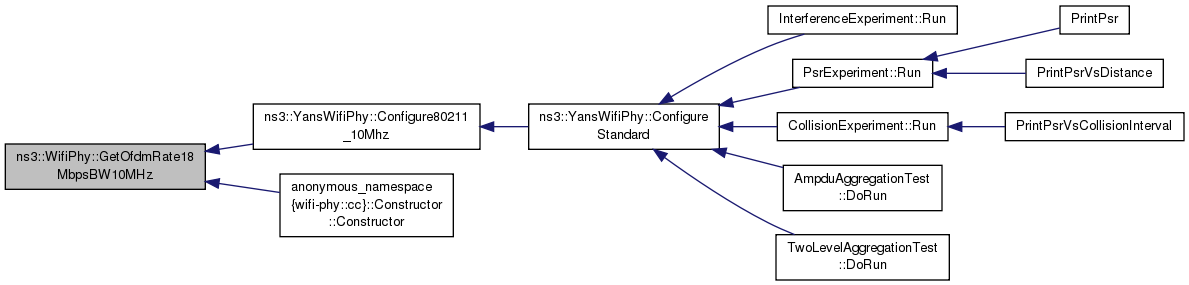

static WifiMode	GetOfdmRate18MbpsBW10MHz ()
	Return a WifiMode for OFDM at 18Mbps with 10MHz channel spacing. More...

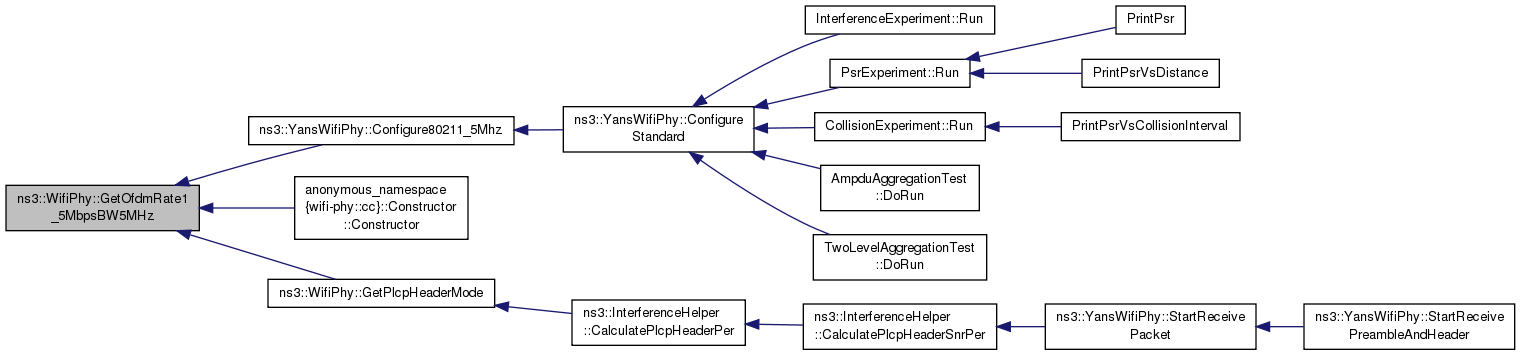

static WifiMode	GetOfdmRate1_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 1.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate24Mbps ()
	Return a WifiMode for OFDM at 24Mbps. More...

static WifiMode	GetOfdmRate24MbpsBW10MHz ()
	Return a WifiMode for OFDM at 24Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate27MbpsBW10MHz ()
	Return a WifiMode for OFDM at 27Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate2_25MbpsBW5MHz ()
	Return a WifiMode for OFDM at 2.25Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate36Mbps ()
	Return a WifiMode for OFDM at 36Mbps. More...

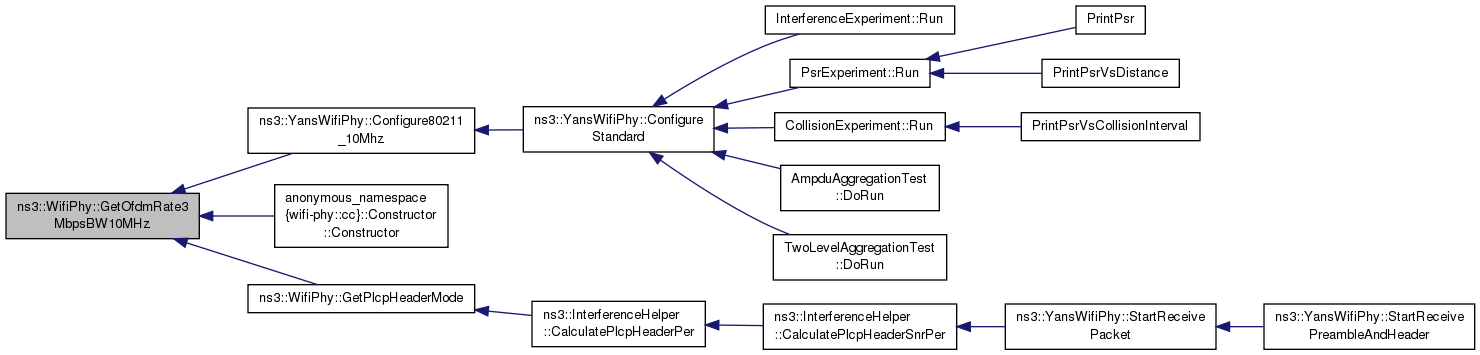

static WifiMode	GetOfdmRate3MbpsBW10MHz ()
	Return a WifiMode for OFDM at 3Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate3MbpsBW5MHz ()
	Return a WifiMode for OFDM at 3Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate48Mbps ()
	Return a WifiMode for OFDM at 48Mbps. More...

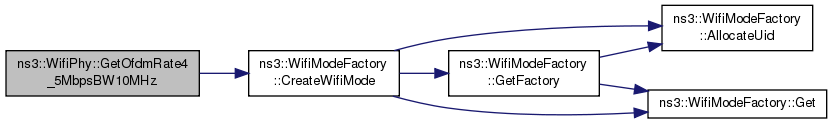

static WifiMode	GetOfdmRate4_5MbpsBW10MHz ()
	Return a WifiMode for OFDM at 4.5Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate4_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 4.5Mbps with 5MHz channel spacing. More...

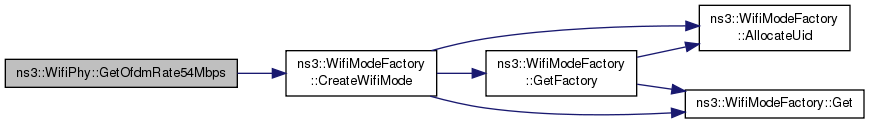

static WifiMode	GetOfdmRate54Mbps ()
	Return a WifiMode for OFDM at 54Mbps. More...

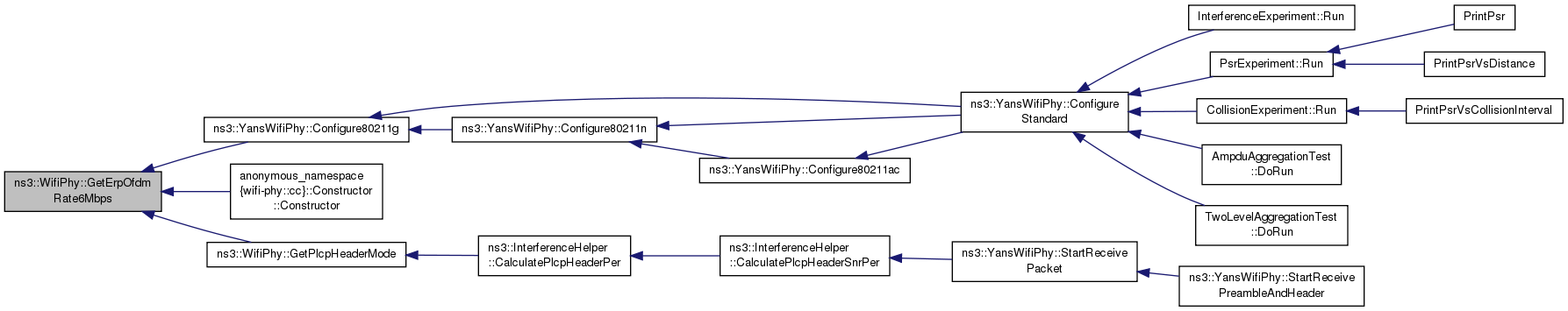

static WifiMode	GetOfdmRate6Mbps ()
	Return a WifiMode for OFDM at 6Mbps. More...

static WifiMode	GetOfdmRate6MbpsBW10MHz ()
	Return a WifiMode for OFDM at 6Mbps with 10MHz channel spacing. More...

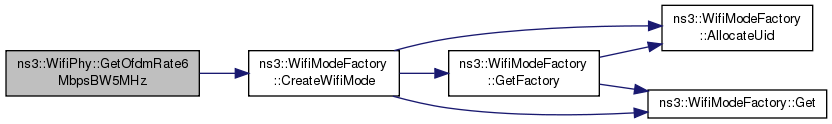

static WifiMode	GetOfdmRate6MbpsBW5MHz ()
	Return a WifiMode for OFDM at 6Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate9Mbps ()
	Return a WifiMode for OFDM at 9Mbps. More...

static WifiMode	GetOfdmRate9MbpsBW10MHz ()
	Return a WifiMode for OFDM at 9Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate9MbpsBW5MHz ()
	Return a WifiMode for OFDM at 9Mbps with 5MHz channel spacing. More...

static Time	GetPlcpHeaderDuration (WifiTxVector txVector, WifiPreamble preamble)

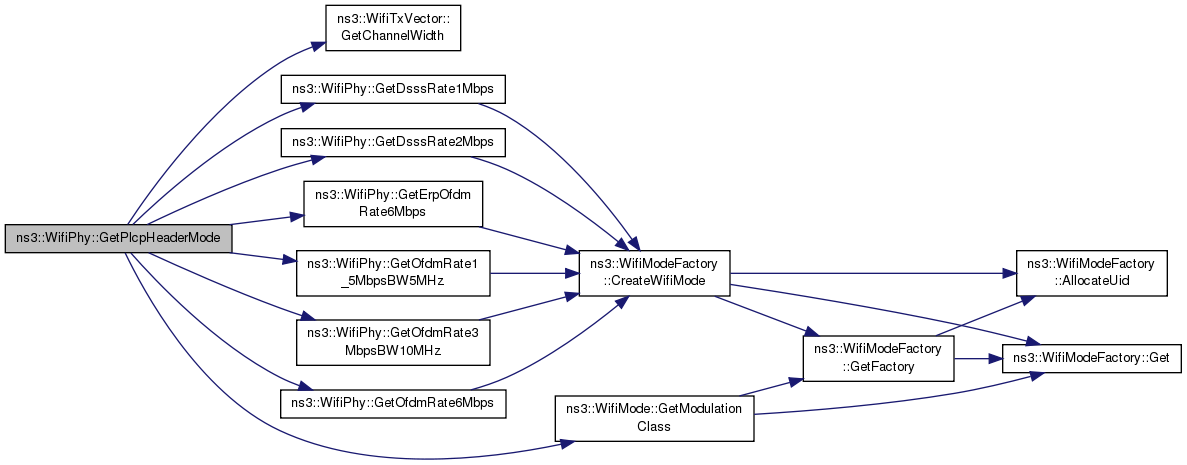

static WifiMode	GetPlcpHeaderMode (WifiMode payloadMode, WifiPreamble preamble, WifiTxVector txVector)

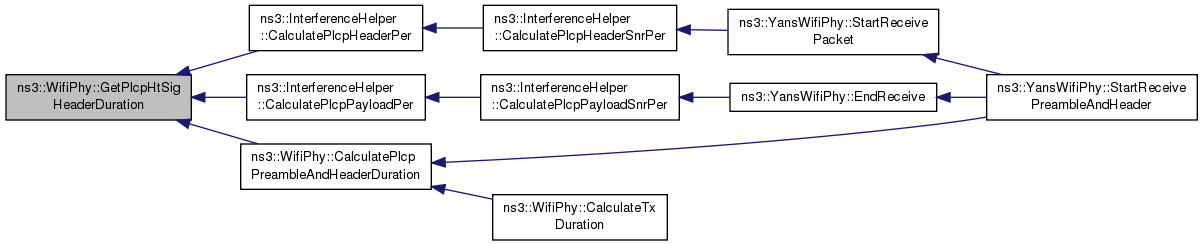

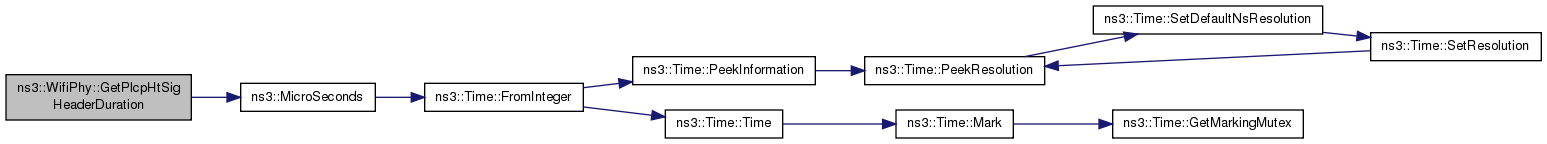

static Time	GetPlcpHtSigHeaderDuration (WifiPreamble preamble)

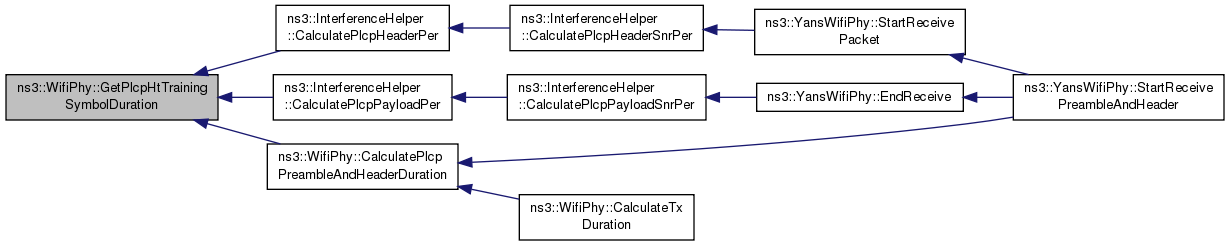

static Time	GetPlcpHtTrainingSymbolDuration (WifiPreamble preamble, WifiTxVector txVector)

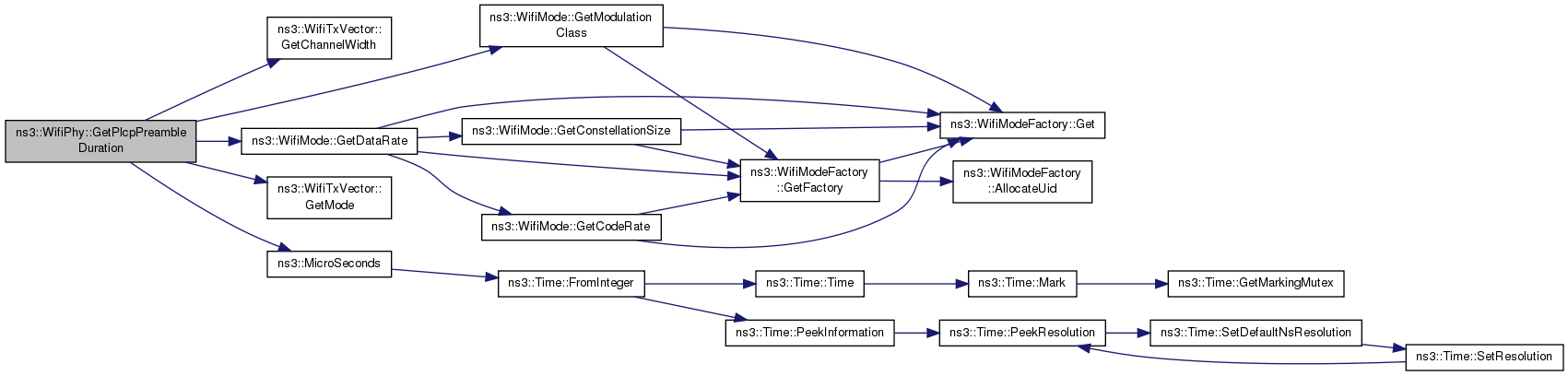

static Time	GetPlcpPreambleDuration (WifiTxVector txVector, WifiPreamble preamble)

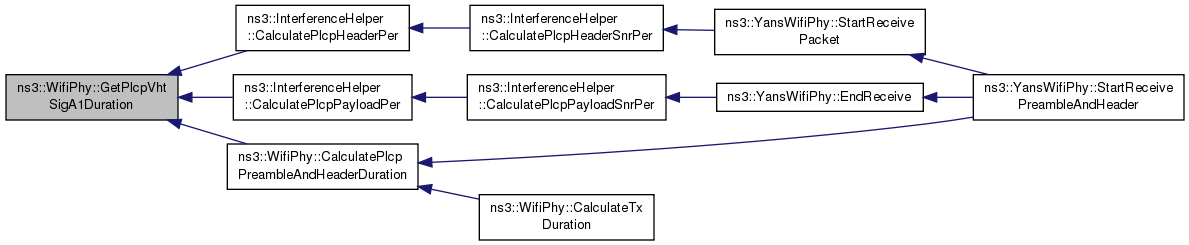

static Time	GetPlcpVhtSigA1Duration (WifiPreamble preamble)

static Time	GetPlcpVhtSigA2Duration (WifiPreamble preamble)

static Time	GetPlcpVhtSigBDuration (WifiPreamble preamble)

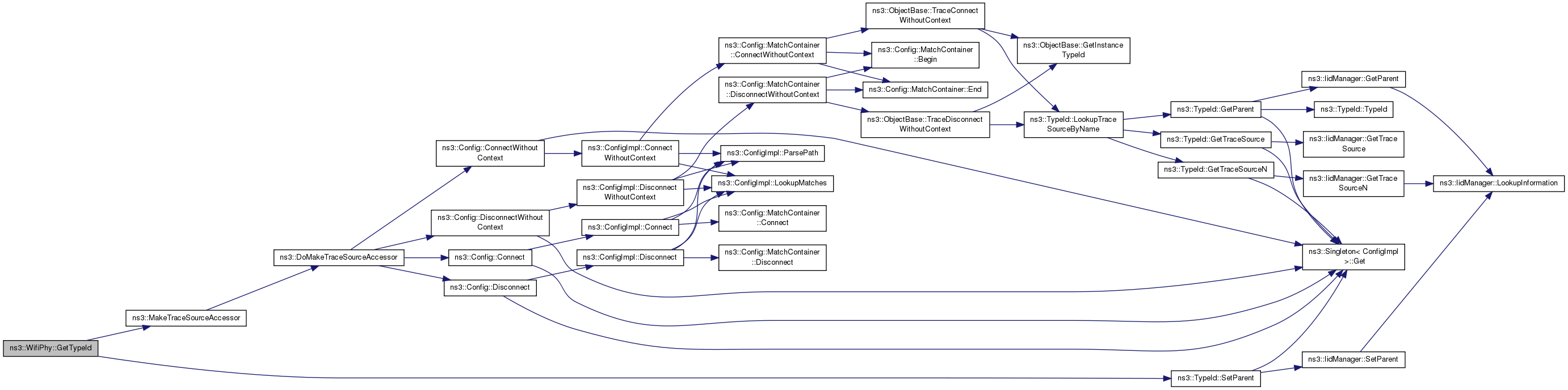

static TypeId	GetTypeId (void)

static WifiMode	GetVhtMcs0 ()
	Return MCS 0 from VHT MCS values. More...

static WifiMode	GetVhtMcs1 ()
	Return MCS 1 from VHT MCS values. More...

static WifiMode	GetVhtMcs2 ()
	Return MCS 2 from VHT MCS values. More...

static WifiMode	GetVhtMcs3 ()
	Return MCS 3 from VHT MCS values. More...

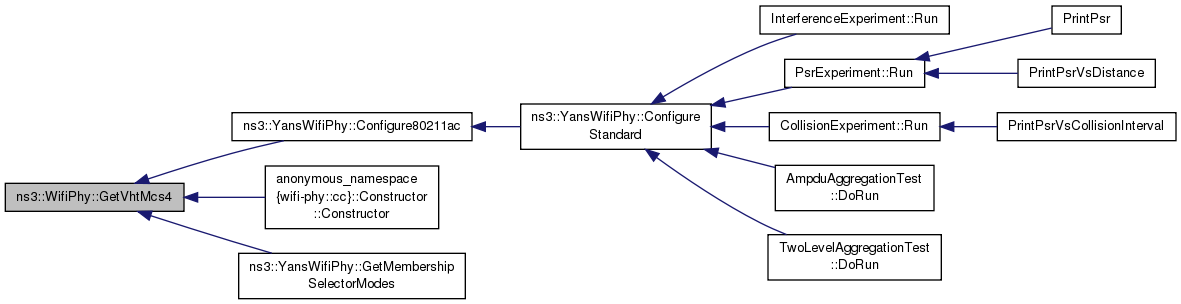

static WifiMode	GetVhtMcs4 ()
	Return MCS 4 from VHT MCS values. More...

static WifiMode	GetVhtMcs5 ()
	Return MCS 5 from VHT MCS values. More...

static WifiMode	GetVhtMcs6 ()
	Return MCS 6 from VHT MCS values. More...

static WifiMode	GetVhtMcs7 ()
	Return MCS 7 from VHT MCS values. More...

static WifiMode	GetVhtMcs8 ()
	Return MCS 8 from VHT MCS values. More...

static WifiMode	GetVhtMcs9 ()
	Return MCS 9 from VHT MCS values. More...

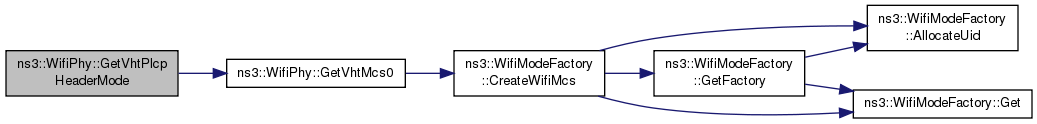

static WifiMode	GetVhtPlcpHeaderMode (WifiMode payloadMode)

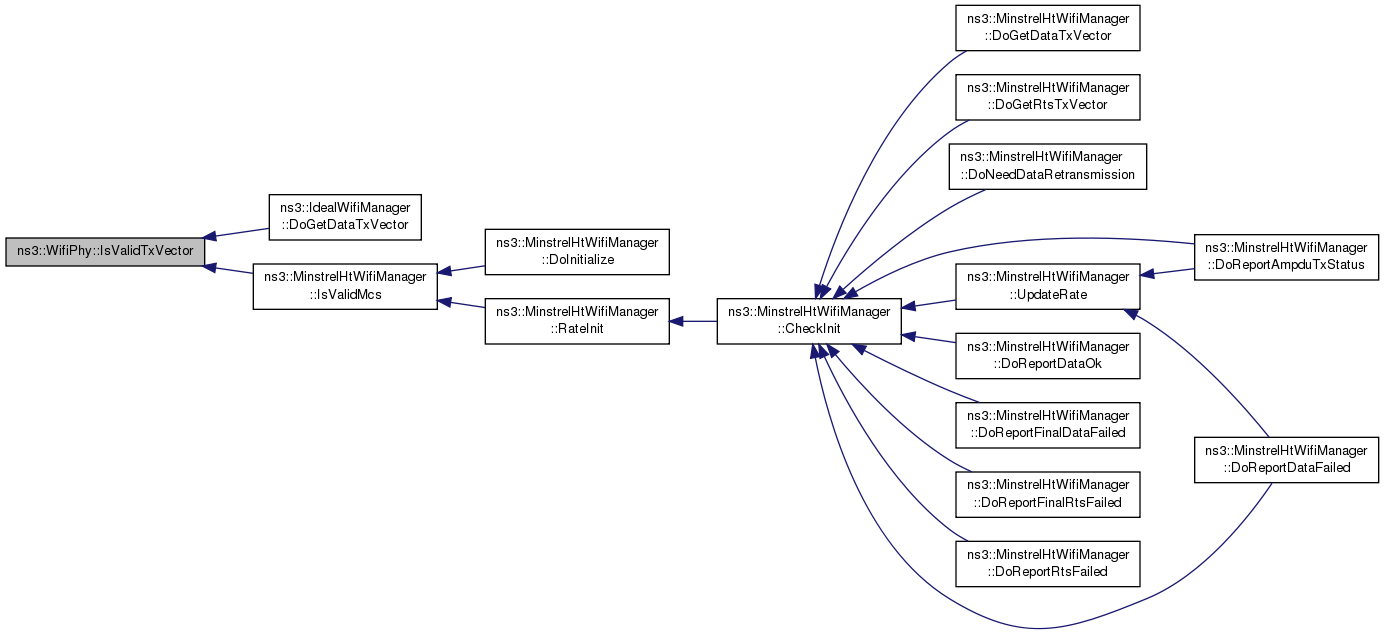

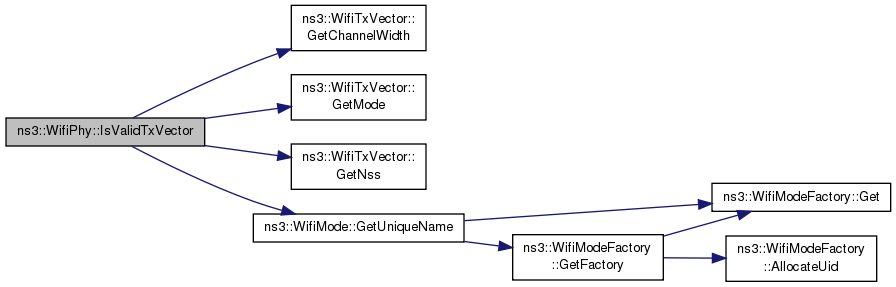

static bool	IsValidTxVector (WifiTxVector txVector)
	The standard disallows certain combinations of WifiMode, number of spatial streams, and channel widths. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
TracedCallback< Ptr< const Packet >, uint16_t, uint16_t, uint32_t, WifiPreamble, WifiTxVector, struct mpduInfo, struct signalNoiseDbm >	m_phyMonitorSniffRxTrace
	A trace source that emulates a wifi device in monitor mode sniffing a packet being received. More...

TracedCallback< Ptr< const Packet >, uint16_t, uint16_t, uint32_t, WifiPreamble, WifiTxVector, struct mpduInfo >	m_phyMonitorSniffTxTrace
	A trace source that emulates a wifi device in monitor mode sniffing a packet being transmitted. More...

TracedCallback< Ptr< const Packet > >	m_phyRxBeginTrace
	The trace source fired when a packet begins the reception process from the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyRxDropTrace
	The trace source fired when the phy layer drops a packet it has received. More...

TracedCallback< Ptr< const Packet > >	m_phyRxEndTrace
	The trace source fired when a packet ends the reception process from the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyTxBeginTrace
	The trace source fired when a packet begins the transmission process on the medium. More...

TracedCallback< Ptr< const Packet > >	m_phyTxDropTrace
	The trace source fired when the phy layer drops a packet as it tries to transmit it. More...

TracedCallback< Ptr< const Packet > >	m_phyTxEndTrace
	The trace source fired when a packet ends the transmission process on the medium. More...

double	m_totalAmpduNumSymbols
	Number of symbols previously transmitted for the MPDUs in an A-MPDU, used for the computation of the number of symbols needed for the last MPDU in the A-MPDU. More...

uint32_t	m_totalAmpduSize
	Total size of the previously transmitted MPDUs in an A-MPDU, used for the computation of the number of symbols needed for the last MPDU in the A-MPDU. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

802.11 PHY layer model

Config Paths

ns3::WifiPhy is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]"

No Attributes are defined for this type.

TraceSources

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
Callback signature: ns3::Packet::TracedCallback
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel. NOTE: the only official WifiPhy implementation available to this date (YansWifiPhy) never fires this trace source.
Callback signature: ns3::Packet::TracedCallback
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
Callback signature: ns3::Packet::TracedCallback
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
Callback signature: ns3::Packet::TracedCallback
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
Callback signature: ns3::Packet::TracedCallback
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
Callback signature: ns3::Packet::TracedCallback
MonitorSnifferRx: Trace source simulating a wifi device in monitor mode sniffing all received frames
Callback signature: ns3::WifiPhy::MonitorSnifferRxTracedCallback
MonitorSnifferTx: Trace source simulating the capability of a wifi device in monitor mode to sniff all frames being transmitted
Callback signature: ns3::WifiPhy::MonitorSnifferTxTracedCallback

Size of this type is 176 bytes (on a 64-bit architecture).

Definition at line 151 of file wifi-phy.h.

Member Typedef Documentation

typedef void(* ns3::WifiPhy::MonitorSnifferRxCallback) (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu, struct signalNoiseDbm signalNoise)

TracedCallback signature for monitor mode receive events.

Parameters

packet	the packet being received
channelFreqMhz	the frequency in MHz at which the packet is received. Note that in real devices this is normally the frequency to which the receiver is tuned, and this can be different than the frequency at which the packet was originally transmitted. This is because it is possible to have the receiver tuned on a given channel and still to be able to receive packets on a nearby channel.
channelNumber	the channel on which the packet is received
rate	the PHY data rate in units of 500kbps (i.e., the same units used both for the radiotap and for the prism header)
preamble	the preamble of the packet
txVector	the TXVECTOR that holds rx parameters
aMpdu	the type of the packet (0 is not A-MPDU, 1 is a MPDU that is part of an A-MPDU and 2 is the last MPDU in an A-MPDU) and the A-MPDU reference number (must be a different value for each A-MPDU but the same for each subframe within one A-MPDU)
signalNoise	signal power and noise power in dBm

Todo:: WifiTxVector should be passed by const reference because of its size.

Definition at line 1160 of file wifi-phy.h.

typedef void(* ns3::WifiPhy::MonitorSnifferTxCallback) (const Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu)

TracedCallback signature for monitor mode transmit events.

Parameters

packet	the packet being transmitted
channelFreqMhz	the frequency in MHz at which the packet is transmitted.
channelNumber	the channel on which the packet is transmitted
rate	the PHY data rate in units of 500kbps (i.e., the same units used both for the radiotap and for the prism header)
preamble	the preamble of the packet
txVector	the TXVECTOR that holds tx parameters
aMpdu	the type of the packet (0 is not A-MPDU, 1 is a MPDU that is part of an A-MPDU and 2 is the last MPDU in an A-MPDU) and the A-MPDU reference number (must be a different value for each A-MPDU but the same for each subframe within one A-MPDU)

Todo:: WifiTxVector should be passed by const reference because of its size.

Definition at line 1199 of file wifi-phy.h.

typedef Callback<void, Ptr<Packet>, double, bool> ns3::WifiPhy::RxErrorCallback

arg1: packet received unsuccessfully arg2: snr of packet arg3: PHY-RXEND flag

Definition at line 197 of file wifi-phy.h.

typedef Callback<void, Ptr<Packet>, double, WifiTxVector, enum WifiPreamble> ns3::WifiPhy::RxOkCallback

arg1: packet received successfully arg2: snr of packet arg3: TXVECTOR of packet arg4: type of preamble used for packet.

Definition at line 191 of file wifi-phy.h.

Constructor & Destructor Documentation

ns3::WifiPhy::WifiPhy ( )

Definition at line 109 of file wifi-phy.cc.

References m_totalAmpduNumSymbols, m_totalAmpduSize, and NS_LOG_FUNCTION.

ns3::WifiPhy::~WifiPhy ( )

virtual

Definition at line 116 of file wifi-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

virtual void ns3::WifiPhy::AddSupportedChannelWidth ( uint32_t width )

pure virtual

Parameters

width channel width (in MHz) to support

Implemented in ns3::YansWifiPhy.

virtual int64_t ns3::WifiPhy::AssignStreams ( int64_t stream )

pure virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implemented in ns3::YansWifiPhy.

Time ns3::WifiPhy::CalculatePlcpPreambleAndHeaderDuration	(	WifiTxVector	txVector,
		enum WifiPreamble	preamble
	)

Parameters

txVector	the transmission parameters used for this packet
preamble	the type of preamble to use for this packet.

Returns: the total amount of time this PHY will stay busy for the transmission of the PLCP preamble and PLCP header.

Definition at line 696 of file wifi-phy.cc.

References GetPlcpHeaderDuration(), GetPlcpHtSigHeaderDuration(), GetPlcpHtTrainingSymbolDuration(), GetPlcpPreambleDuration(), GetPlcpVhtSigA1Duration(), GetPlcpVhtSigA2Duration(), and GetPlcpVhtSigBDuration().

Referenced by CalculateTxDuration(), and ns3::YansWifiPhy::StartReceivePreambleAndHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual double ns3::WifiPhy::CalculateSnr	(	WifiTxVector	txVector,
		double	ber
	)		const

pure virtual

Parameters

txVector	the transmission vector
ber	the probability of bit error rate

Returns: the minimum snr which is required to achieve the requested ber for the specified transmission vector. (W/W)

Implemented in ns3::YansWifiPhy.

Time ns3::WifiPhy::CalculateTxDuration	(	uint32_t	size,
		WifiTxVector	txVector,
		enum WifiPreamble	preamble,
		double	frequency
	)

Parameters

size	the number of bytes in the packet to send
txVector	the TXVECTOR used for the transmission of this packet
preamble	the type of preamble to use for this packet.
frequency	the channel center frequency (MHz)

Returns: the total amount of time this PHY will stay busy for the transmission of these bytes.

Definition at line 717 of file wifi-phy.cc.

References ns3::NORMAL_MPDU.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), ns3::MacLow::CalculateOverallTxTime(), ns3::MacLow::CalculateTransmissionTime(), TxDurationTest::CheckTxDuration(), ns3::MacLow::ForwardDown(), ns3::MacLow::GetAckDuration(), ns3::MacLow::GetBlockAckDuration(), ns3::MacLow::GetCtsDuration(), ns3::MacLow::NotifyNav(), ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), ns3::YansWifiPhy::SendPacket(), ns3::MacLow::SendRtsForPacket(), NodeStatistics::SetupPhy(), ns3::MinstrelWifiManager::SetupPhy(), ns3::MacLow::StartDataTxTimers(), and ns3::MacLow::StopMpduAggregation().

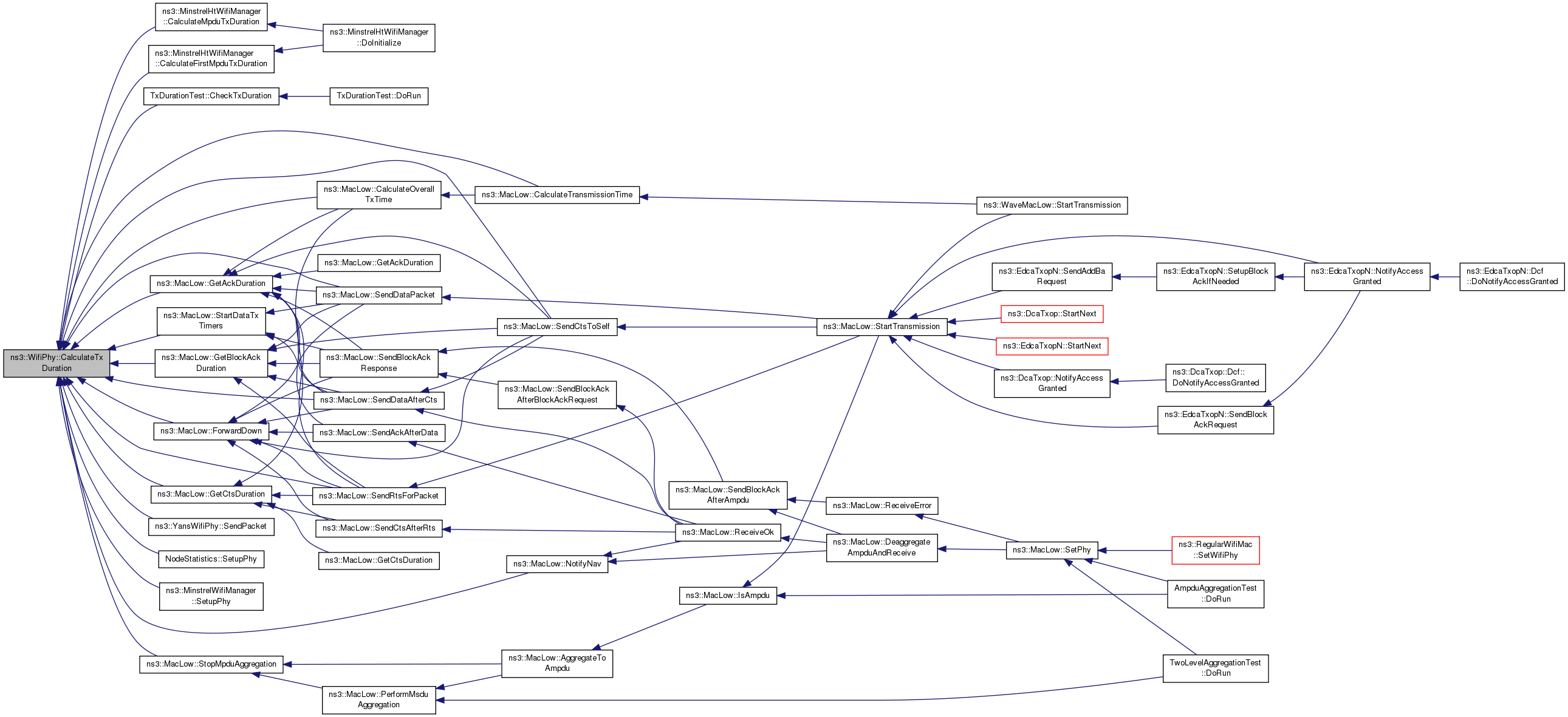

Here is the caller graph for this function:

Time ns3::WifiPhy::CalculateTxDuration	(	uint32_t	size,
		WifiTxVector	txVector,
		enum WifiPreamble	preamble,
		double	frequency,
		enum mpduType	mpdutype,
		uint8_t	incFlag
	)

Parameters

size	the number of bytes in the packet to send
txVector	the TXVECTOR used for the transmission of this packet
preamble	the type of preamble to use for this packet.
frequency	the channel center frequency (MHz)
mpdutype	the type of the MPDU as defined in WifiPhy::mpduType.
incFlag	this flag is used to indicate that the static variables need to be update or not. This function is called a couple of times for the same packet so static variables should not be increased each time.

Returns: the total amount of time this PHY will stay busy for the transmission of these bytes.

Definition at line 709 of file wifi-phy.cc.

References CalculatePlcpPreambleAndHeaderDuration(), and GetPayloadDuration().

Here is the call graph for this function:

virtual void ns3::WifiPhy::ConfigureStandard ( enum WifiPhyStandard standard )

pure virtual

Configure the PHY-level parameters for different Wi-Fi standard.

Parameters

standard the Wi-Fi standard

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MeshHelper::CreateInterface(), ns3::WifiHelper::Install(), and ns3::WaveHelper::Install().

Here is the caller graph for this function:

virtual uint32_t ns3::WifiPhy::GetBssMembershipSelector ( uint32_t selector ) const

pure virtual

The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.

Parameters

selector index in array of supported memberships

Returns: the memebership selector whose index is specified.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

virtual Ptr<WifiChannel> ns3::WifiPhy::GetChannel ( void ) const

pure virtual

Return the WifiChannel this WifiPhy is connected to.

Returns: the WifiChannel this WifiPhy is connected to

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiNetDevice::DoGetChannel(), ns3::WifiNetDevice::GetChannel(), and ns3::WaveNetDevice::GetChannel().

Here is the caller graph for this function:

virtual uint16_t ns3::WifiPhy::GetChannelNumber ( void ) const

pure virtual

Return current channel number.

Returns: the current channel number

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WaveMacLow::StartTransmission(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

Here is the caller graph for this function:

virtual Time ns3::WifiPhy::GetChannelSwitchDelay ( void ) const

pure virtual

Returns: the required time for channel switch operation of this WifiPhy

Implemented in ns3::YansWifiPhy.

Referenced by ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

Here is the caller graph for this function:

virtual uint32_t ns3::WifiPhy::GetChannelWidth ( void ) const

pure virtual

Returns: the channel width

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRemoteStationManager::AddStationVhtCapabilities(), ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::WifiRemoteStationManager::DoGetAckTxChannelWidth(), ns3::WifiRemoteStationManager::DoGetBlockAckTxChannelWidth(), ns3::WifiRemoteStationManager::DoGetCtsToSelfTxVector(), ns3::WifiRemoteStationManager::DoGetCtsTxChannelWidth(), ns3::IdealWifiManager::DoInitialize(), ns3::WifiRemoteStationManager::GetDataTxVector(), ns3::RegularWifiMac::GetHtCapabilities(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::RegularWifiMac::GetVhtCapabilities(), ns3::WifiRemoteStationManager::LookupState(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

Here is the caller graph for this function:

virtual Time ns3::WifiPhy::GetDelayUntilIdle ( void )

pure virtual

Returns: the predicted delay until this PHY can become WifiPhy::IDLE.

The PHY will never become WifiPhy::IDLE before the delay returned by this method but it could become really idle later.

Implemented in ns3::YansWifiPhy.

WifiMode ns3::WifiPhy::GetDsssRate11Mbps ( )

static

Return a WifiMode for DSSS at 11Mbps.

Returns: a WifiMode for DSSS at 11Mbps

Definition at line 813 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_HR_DSSS.

Referenced by ns3::YansWifiPhy::Configure80211b(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

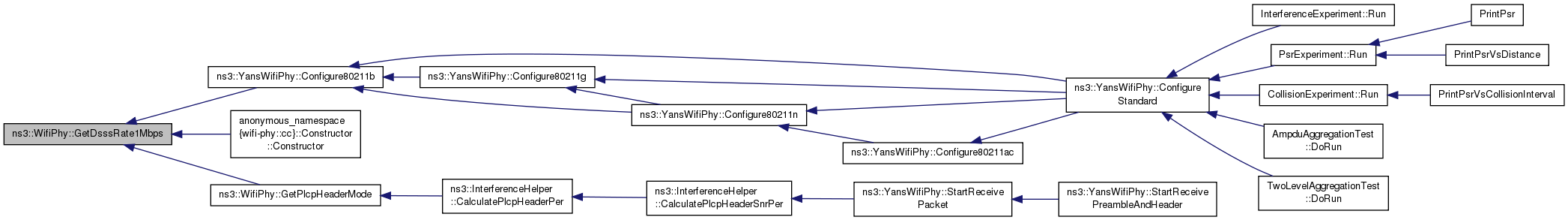

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetDsssRate1Mbps ( )

static

Return a WifiMode for DSSS at 1Mbps.

Returns: a WifiMode for DSSS at 1Mbps

Definition at line 774 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_DSSS.

Referenced by ns3::YansWifiPhy::Configure80211b(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetDsssRate2Mbps ( )

static

Return a WifiMode for DSSS at 2Mbps.

Returns: a WifiMode for DSSS at 2Mbps

Definition at line 786 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_DSSS.

Referenced by ns3::YansWifiPhy::Configure80211b(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetDsssRate5_5Mbps ( )

static

Return a WifiMode for DSSS at 5.5Mbps.

Returns: a WifiMode for DSSS at 5.5Mbps

Definition at line 801 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_HR_DSSS.

Referenced by ns3::YansWifiPhy::Configure80211b(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate12Mbps ( )

static

Return a WifiMode for ERP-OFDM at 12Mbps.

Returns: a WifiMode for ERP-OFDM at 12Mbps

Definition at line 852 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate18Mbps ( )

static

Return a WifiMode for ERP-OFDM at 18Mbps.

Returns: a WifiMode for ERP-OFDM at 18Mbps

Definition at line 864 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate24Mbps ( )

static

Return a WifiMode for ERP-OFDM at 24Mbps.

Returns: a WifiMode for ERP-OFDM at 24Mbps

Definition at line 876 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate36Mbps ( )

static

Return a WifiMode for ERP-OFDM at 36Mbps.

Returns: a WifiMode for ERP-OFDM at 36Mbps

Definition at line 888 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate48Mbps ( )

static

Return a WifiMode for ERP-OFDM at 48Mbps.

Returns: a WifiMode for ERP-OFDM at 48Mbps

Definition at line 900 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate54Mbps ( )

static

Return a WifiMode for ERP-OFDM at 54Mbps.

Returns: a WifiMode for ERP-OFDM at 54Mbps

Definition at line 912 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate6Mbps ( )

static

Return a WifiMode for ERP-OFDM at 6Mbps.

Returns: a WifiMode for ERP-OFDM at 6Mbps

Definition at line 828 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetErpOfdmRate9Mbps ( )

static

Return a WifiMode for ERP-OFDM at 9Mbps.

Returns: a WifiMode for ERP-OFDM at 9Mbps

Definition at line 840 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_ERP_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211g(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual uint32_t ns3::WifiPhy::GetFrequency ( void ) const

pure virtual

Returns: the operating frequency on this node

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), ns3::MacLow::CalculateOverallTxTime(), ns3::MacLow::CalculateTransmissionTime(), ns3::MacLow::ForwardDown(), ns3::MacLow::GetAckDuration(), ns3::MacLow::GetBlockAckDuration(), ns3::MacLow::GetCtsDuration(), ns3::MacLow::NotifyNav(), ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), ns3::MacLow::SendRtsForPacket(), NodeStatistics::SetupPhy(), ns3::MinstrelWifiManager::SetupPhy(), ns3::MacLow::StartDataTxTimers(), and ns3::MacLow::StopMpduAggregation().

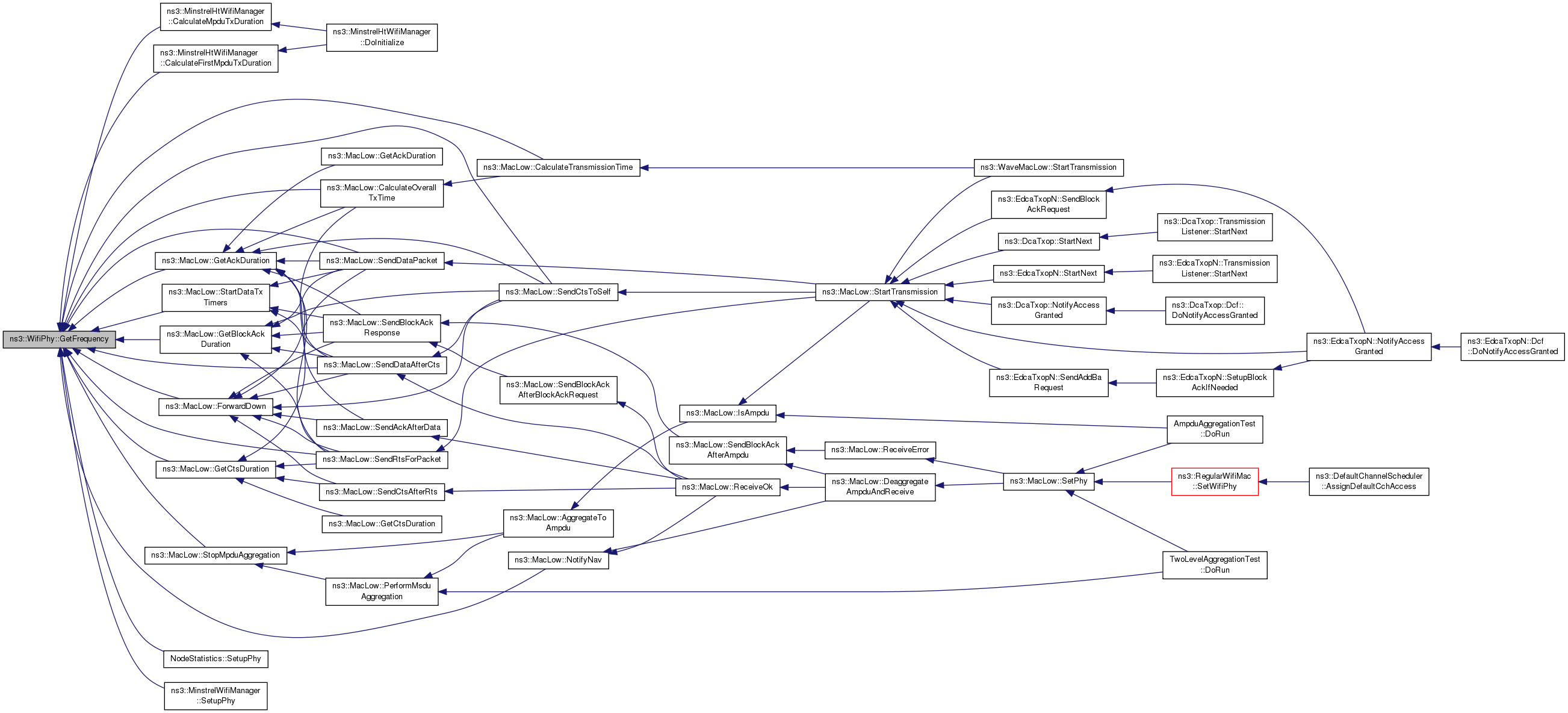

Here is the caller graph for this function:

virtual bool ns3::WifiPhy::GetGreenfield ( void ) const

pure virtual

Returns: true if Greenfield is supported, false otherwise

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::CalculateOverallTxTime(), ns3::MacLow::CalculateTransmissionTime(), ns3::RegularWifiMac::GetHtCapabilities(), ns3::WifiRemoteStationManager::LookupState(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), ns3::MacLow::SendRtsForPacket(), ns3::MacLow::StartDataTxTimers(), and ns3::MacLow::StopMpduAggregation().

Here is the caller graph for this function:

virtual bool ns3::WifiPhy::GetGuardInterval ( void ) const

pure virtual

Returns: true if short guard interval is supported, false otherwise

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::WifiRemoteStationManager::DoGetAckTxGuardInterval(), ns3::WifiRemoteStationManager::DoGetBlockAckTxGuardInterval(), ns3::WifiRemoteStationManager::DoGetCtsToSelfTxVector(), ns3::WifiRemoteStationManager::DoGetCtsTxGuardInterval(), ns3::IdealWifiManager::DoInitialize(), ns3::WifiRemoteStationManager::GetDataTxVector(), ns3::RegularWifiMac::GetHtCapabilities(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::RegularWifiMac::GetVhtCapabilities(), ns3::WifiRemoteStationManager::LookupState(), and ns3::MeshWifiInterfaceMac::Receive().

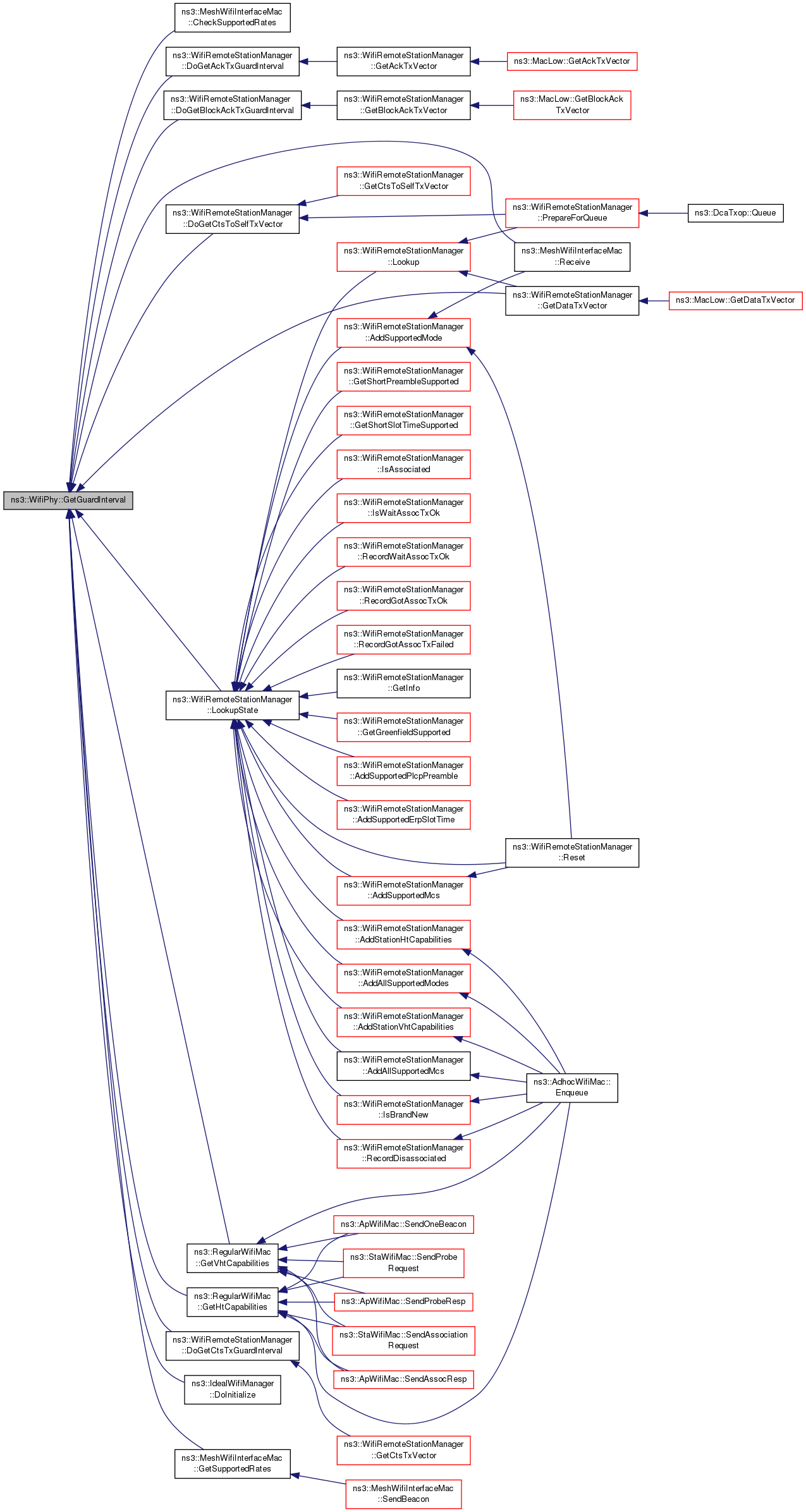

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs0 ( )

static

Return MCS 0 from HT MCS values.

Returns: MCS 0 from HT MCS values

Definition at line 1224 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), GetHtPlcpHeaderMode(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

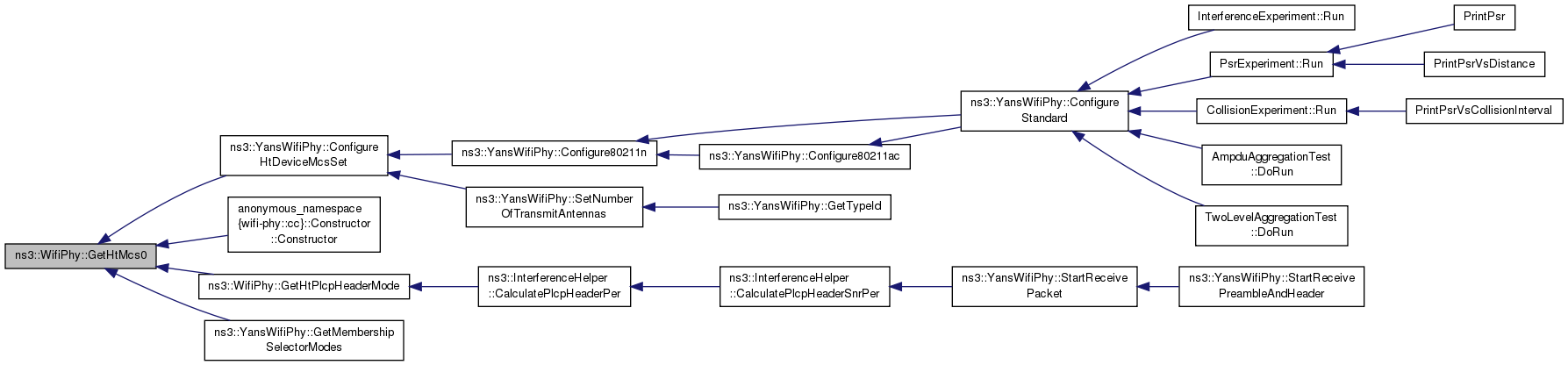

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs1 ( )

static

Return MCS 1 from HT MCS values.

Returns: MCS 1 from HT MCS values

Definition at line 1232 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs10 ( )

static

Return MCS 10 from HT MCS values.

Returns: MCS 10 from HT MCS values

Definition at line 1304 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs11 ( )

static

Return MCS 11 from HT MCS values.

Returns: MCS 11 from HT MCS values

Definition at line 1312 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs12 ( )

static

Return MCS 12 from HT MCS values.

Returns: MCS 12 from HT MCS values

Definition at line 1320 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs13 ( )

static

Return MCS 13 from HT MCS values.

Returns: MCS 13 from HT MCS values

Definition at line 1328 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs14 ( )

static

Return MCS 14 from HT MCS values.

Returns: MCS 14 from HT MCS values

Definition at line 1336 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs15 ( )

static

Return MCS 15 from HT MCS values.

Returns: MCS 15 from HT MCS values

Definition at line 1344 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs16 ( )

static

Return MCS 16 from HT MCS values.

Returns: MCS 16 from HT MCS values

Definition at line 1352 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs17 ( )

static

Return MCS 17 from HT MCS values.

Returns: MCS 17 from HT MCS values

Definition at line 1360 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs18 ( )

static

Return MCS 18 from HT MCS values.

Returns: MCS 18 from HT MCS values

Definition at line 1368 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs19 ( )

static

Return MCS 19 from HT MCS values.

Returns: MCS 19 from HT MCS values

Definition at line 1376 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs2 ( )

static

Return MCS 2 from HT MCS values.

Returns: MCS 2 from HT MCS values

Definition at line 1240 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs20 ( )

static

Return MCS 20 from HT MCS values.

Returns: MCS 20 from HT MCS values

Definition at line 1384 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs21 ( )

static

Return MCS 21 from HT MCS values.

Returns: MCS 21 from HT MCS values

Definition at line 1392 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs22 ( )

static

Return MCS 22 from HT MCS values.

Returns: MCS 22 from HT MCS values

Definition at line 1400 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs23 ( )

static

Return MCS 23 from HT MCS values.

Returns: MCS 23 from HT MCS values

Definition at line 1408 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs24 ( )

static

Return MCS 24 from HT MCS values.

Returns: MCS 24 from HT MCS values

Definition at line 1416 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs25 ( )

static

Return MCS 25 from HT MCS values.

Returns: MCS 25 from HT MCS values

Definition at line 1424 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs26 ( )

static

Return MCS 26 from HT MCS values.

Returns: MCS 26 from HT MCS values

Definition at line 1432 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs27 ( )

static

Return MCS 27 from HT MCS values.

Returns: MCS 27 from HT MCS values

Definition at line 1440 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs28 ( )

static

Return MCS 28 from HT MCS values.

Returns: MCS 28 from HT MCS values

Definition at line 1448 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs29 ( )

static

Return MCS 29 from HT MCS values.

Returns: MCS 29 from HT MCS values

Definition at line 1456 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs3 ( )

static

Return MCS 3 from HT MCS values.

Returns: MCS 3 from HT MCS values

Definition at line 1248 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs30 ( )

static

Return MCS 30 from HT MCS values.

Returns: MCS 30 from HT MCS values

Definition at line 1464 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs31 ( )

static

Return MCS 31 from HT MCS values.

Returns: MCS 31 from HT MCS values

Definition at line 1472 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs4 ( )

static

Return MCS 4 from HT MCS values.

Returns: MCS 4 from HT MCS values

Definition at line 1256 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs5 ( )

static

Return MCS 5 from HT MCS values.

Returns: MCS 5 from HT MCS values

Definition at line 1264 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs6 ( )

static

Return MCS 6 from HT MCS values.

Returns: MCS 6 from HT MCS values

Definition at line 1272 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs7 ( )

static

Return MCS 7 from HT MCS values.

Returns: MCS 7 from HT MCS values

Definition at line 1280 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs8 ( )

static

Return MCS 8 from HT MCS values.

Returns: MCS 8 from HT MCS values

Definition at line 1288 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtMcs9 ( )

static

Return MCS 9 from HT MCS values.

Returns: MCS 9 from HT MCS values

Definition at line 1296 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_HT.

Referenced by ns3::YansWifiPhy::ConfigureHtDeviceMcsSet(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetHtPlcpHeaderMode ( WifiMode payloadMode )

static

Parameters

payloadMode the WifiMode use for the transmission of the payload

Returns: the WifiMode used for the transmission of the HT-SIG and the HT training fields in Mixed Format and greenfield format PLCP header

Definition at line 122 of file wifi-phy.cc.

References GetHtMcs0().

Referenced by ns3::InterferenceHelper::CalculatePlcpHeaderPer().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual Time ns3::WifiPhy::GetLastRxStartTime ( void ) const

pure virtual

Return the start time of the last received packet.

Returns: the start time of the last received packet

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::NavCounterResetCtsMissed().

Here is the caller graph for this function:

virtual bool ns3::WifiPhy::GetLdpc ( void ) const

pure virtual

Returns: true if LDPC is supported, false otherwise

Implemented in ns3::YansWifiPhy.

Referenced by ns3::RegularWifiMac::GetHtCapabilities(), and ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

virtual WifiMode ns3::WifiPhy::GetMcs ( uint8_t mcs ) const

pure virtual

The WifiPhy::GetMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet.

Parameters

mcs	index in array of supported MCS

Returns: the MCS index whose index is specified.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRemoteStationManager::AddAllSupportedMcs(), ns3::IdealWifiManager::DoInitialize(), ns3::WifiRemoteStationManager::GetControlAnswerMode(), ns3::RegularWifiMac::GetHtCapabilities(), ns3::MinstrelHtWifiManager::GetHtDeviceMcsList(), ns3::RegularWifiMac::GetVhtCapabilities(), ns3::MinstrelHtWifiManager::GetVhtDeviceMcsList(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), and ns3::WifiRemoteStationManager::SetupPhy().

Here is the caller graph for this function:

virtual WifiModeList ns3::WifiPhy::GetMembershipSelectorModes ( uint32_t selector )

pure virtual

The WifiPhy::GetMembershipSelectorModes() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.

Parameters

selector index in array of supported memberships

Returns: a WifiModeList that contains the WifiModes associrated with the selected index.

See also: WifiPhy::GetMembershipSelectorModes()

Implemented in ns3::YansWifiPhy.

virtual WifiMode ns3::WifiPhy::GetMode ( uint32_t mode ) const

pure virtual

The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.

It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.

Parameters

mode	index in array of supported modes

Returns: the mode whose index is specified.

See also: WifiPhy::GetNModes()

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRemoteStationManager::AddAllSupportedModes(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoInitialize(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::WifiRemoteStationManager::GetControlAnswerMode(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::WifiRemoteStationManager::SetupPhy(), NodeStatistics::SetupPhy(), and ns3::MinstrelWifiManager::SetupPhy().

Here is the caller graph for this function:

virtual uint32_t ns3::WifiPhy::GetNBssMembershipSelectors ( void ) const

pure virtual

The WifiPhy::NBssMembershipSelectors() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.

Returns: the memebership selector whose index is specified.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), and ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

virtual uint8_t ns3::WifiPhy::GetNMcs ( void ) const

pure virtual

The WifiPhy::GetNMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet.

Returns: the MCS index whose index is specified.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRemoteStationManager::AddAllSupportedMcs(), ns3::IdealWifiManager::DoInitialize(), ns3::WifiRemoteStationManager::GetControlAnswerMode(), ns3::RegularWifiMac::GetHtCapabilities(), ns3::MinstrelHtWifiManager::GetHtDeviceMcsList(), ns3::RegularWifiMac::GetVhtCapabilities(), ns3::MinstrelHtWifiManager::GetVhtDeviceMcsList(), ns3::StaWifiMac::Receive(), and ns3::ApWifiMac::Receive().

Here is the caller graph for this function:

virtual uint32_t ns3::WifiPhy::GetNModes ( void ) const

pure virtual

The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.

It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.

Returns: the number of transmission modes supported by this PHY.

See also: WifiPhy::GetMode()

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRemoteStationManager::AddAllSupportedModes(), ns3::MinstrelHtWifiManager::DoGetRtsTxVector(), ns3::IdealWifiManager::DoInitialize(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::WifiRemoteStationManager::GetControlAnswerMode(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), NodeStatistics::SetupPhy(), and ns3::MinstrelWifiManager::SetupPhy().

Here is the caller graph for this function:

virtual uint32_t ns3::WifiPhy::GetNTxPower ( void ) const

pure virtual

Returns: the number of tx power levels available for this PHY.

Implemented in ns3::YansWifiPhy.

virtual uint32_t ns3::WifiPhy::GetNumberOfReceiveAntennas ( void ) const

pure virtual

Returns: the number of receivers on this node.

Implemented in ns3::YansWifiPhy.

virtual uint32_t ns3::WifiPhy::GetNumberOfTransmitAntennas ( void ) const

pure virtual

Returns: the number of transmit antenna on this device

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas().

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate12Mbps ( )

static

Return a WifiMode for OFDM at 12Mbps.

Returns: a WifiMode for OFDM at 12Mbps

Definition at line 951 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate12MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 12Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 12Mbps with 10MHz channel spacing

Definition at line 1074 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate12MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 12Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 12Mbps with 5MHz channel spacing

Definition at line 1197 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate13_5MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 13.5Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 13.5Mbps with 5MHz channel spacing

Definition at line 1209 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate18Mbps ( )

static

Return a WifiMode for OFDM at 18Mbps.

Returns: a WifiMode for OFDM at 18Mbps

Definition at line 963 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate18MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 18Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 18Mbps with 10MHz channel spacing

Definition at line 1086 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate1_5MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 1.5Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 1.5Mbps with 5MHz channel spacing

Definition at line 1125 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate24Mbps ( )

static

Return a WifiMode for OFDM at 24Mbps.

Returns: a WifiMode for OFDM at 24Mbps

Definition at line 975 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate24MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 24Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 24Mbps with 10MHz channel spacing

Definition at line 1098 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate27MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 27Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 27Mbps with 10MHz channel spacing

Definition at line 1110 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate2_25MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 2.25Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 2.25Mbps with 5MHz channel spacing

Definition at line 1137 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate36Mbps ( )

static

Return a WifiMode for OFDM at 36Mbps.

Returns: a WifiMode for OFDM at 36Mbps

Definition at line 987 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate3MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 3Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 3Mbps with 10MHz channel spacing

Definition at line 1026 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate3MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 3Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 3Mbps with 5MHz channel spacing

Definition at line 1149 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate48Mbps ( )

static

Return a WifiMode for OFDM at 48Mbps.

Returns: a WifiMode for OFDM at 48Mbps

Definition at line 999 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_2_3, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate4_5MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 4.5Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 4.5Mbps with 10MHz channel spacing

Definition at line 1038 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate4_5MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 4.5Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 4.5Mbps with 5MHz channel spacing

Definition at line 1161 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate54Mbps ( )

static

Return a WifiMode for OFDM at 54Mbps.

Returns: a WifiMode for OFDM at 54Mbps

Definition at line 1011 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate6Mbps ( )

static

Return a WifiMode for OFDM at 6Mbps.

Returns: a WifiMode for OFDM at 6Mbps

Definition at line 927 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), ns3::YansWifiPhy::ConfigureHolland(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and GetPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate6MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 6Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 6Mbps with 10MHz channel spacing

Definition at line 1050 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate6MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 6Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 6Mbps with 5MHz channel spacing

Definition at line 1173 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_1_2, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate9Mbps ( )

static

Return a WifiMode for OFDM at 9Mbps.

Returns: a WifiMode for OFDM at 9Mbps

Definition at line 939 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211a(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate9MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 9Mbps with 10MHz channel spacing.

Returns: a WifiMode for OFDM at 9Mbps with 10MHz channel spacing

Definition at line 1062 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_10Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetOfdmRate9MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 9Mbps with 5MHz channel spacing.

Returns: a WifiMode for OFDM at 9Mbps with 5MHz channel spacing

Definition at line 1185 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_MOD_CLASS_OFDM.

Referenced by ns3::YansWifiPhy::Configure80211_5Mhz(), and anonymous_namespace{wifi-phy.cc}::Constructor::Constructor().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiPhy::GetPayloadDuration	(	uint32_t	size,
		WifiTxVector	txVector,
		WifiPreamble	preamble,
		double	frequency
	)

Parameters

size	the number of bytes in the packet to send
txVector	the TXVECTOR used for the transmission of this packet
preamble	the type of preamble to use for this packet
frequency	the channel center frequency (MHz)

Returns: the duration of the payload

Definition at line 398 of file wifi-phy.cc.

References ns3::NORMAL_MPDU.

Referenced by CalculateTxDuration(), and TxDurationTest::CheckPayloadDuration().

Here is the caller graph for this function:

Time ns3::WifiPhy::GetPayloadDuration	(	uint32_t	size,
		WifiTxVector	txVector,
		WifiPreamble	preamble,
		double	frequency,
		enum mpduType	mpdutype,
		uint8_t	incFlag
	)

Parameters

size	the number of bytes in the packet to send
txVector	the TXVECTOR used for the transmission of this packet
preamble	the type of preamble to use for this packet
frequency	the channel center frequency (MHz)
mpdutype	the type of the MPDU as defined in WifiPhy::mpduType.
incFlag	this flag is used to indicate that the static variables need to be update or not. This function is called a couple of times for the same packet so static variables should not be increased each time

Returns: the duration of the payload

Definition at line 404 of file wifi-phy.cc.

References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::Time::GetNanoSeconds(), ns3::WifiTxVector::GetNss(), ns3::WifiMode::GetUniqueName(), ns3::WifiTxVector::IsShortGuardInterval(), ns3::WifiTxVector::IsStbc(), ns3::LAST_MPDU_IN_AGGREGATE, m_totalAmpduNumSymbols, m_totalAmpduSize, ns3::MicroSeconds(), ns3::MPDU_IN_AGGREGATE, ns3::NanoSeconds(), ns3::NORMAL_MPDU, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HR_DSSS, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, ns3::WIFI_MOD_CLASS_VHT, and ns3::WIFI_PREAMBLE_NONE.

Here is the call graph for this function:

Time ns3::WifiPhy::GetPlcpHeaderDuration	(	WifiTxVector	txVector,
		WifiPreamble	preamble
	)

static

Parameters

txVector	the transmission parameters used for this packet
preamble	the type of preamble

Returns: the duration of the PLCP header

Definition at line 282 of file wifi-phy.cc.

References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::MicroSeconds(), NS_FATAL_ERROR, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HR_DSSS, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, ns3::WIFI_MOD_CLASS_VHT, ns3::WIFI_PREAMBLE_HT_GF, ns3::WIFI_PREAMBLE_HT_MF, ns3::WIFI_PREAMBLE_NONE, and ns3::WIFI_PREAMBLE_SHORT.

Referenced by ns3::InterferenceHelper::CalculatePlcpHeaderPer(), ns3::InterferenceHelper::CalculatePlcpPayloadPer(), and CalculatePlcpPreambleAndHeaderDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetPlcpHeaderMode	(	WifiMode	payloadMode,
		WifiPreamble	preamble,
		WifiTxVector	txVector
	)

static

Parameters

payloadMode	the WifiMode use for the transmission of the payload
preamble	the type of preamble
txVector	the transmission parameters used for this packet

Returns: the WifiMode used for the transmission of the PLCP header

Definition at line 237 of file wifi-phy.cc.

References ns3::WifiTxVector::GetChannelWidth(), GetDsssRate1Mbps(), GetDsssRate2Mbps(), GetErpOfdmRate6Mbps(), ns3::WifiMode::GetModulationClass(), GetOfdmRate1_5MbpsBW5MHz(), GetOfdmRate3MbpsBW10MHz(), GetOfdmRate6Mbps(), NS_FATAL_ERROR, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HR_DSSS, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, ns3::WIFI_MOD_CLASS_VHT, and ns3::WIFI_PREAMBLE_LONG.

Referenced by ns3::InterferenceHelper::CalculatePlcpHeaderPer().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiPhy::GetPlcpHtSigHeaderDuration ( WifiPreamble preamble )

static

Parameters

preamble the type of preamble

Returns: the duration of the HT-SIG in Mixed Format and greenfield format PLCP header

Definition at line 180 of file wifi-phy.cc.

References ns3::MicroSeconds(), ns3::WIFI_PREAMBLE_HT_GF, and ns3::WIFI_PREAMBLE_HT_MF.

Referenced by ns3::InterferenceHelper::CalculatePlcpHeaderPer(), ns3::InterferenceHelper::CalculatePlcpPayloadPer(), and CalculatePlcpPreambleAndHeaderDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiPhy::GetPlcpHtTrainingSymbolDuration	(	WifiPreamble	preamble,
		WifiTxVector	txVector
	)

static

Parameters

preamble	the type of preamble
txVector	the transmission parameters used for this packet

Returns: the training symbol duration

Definition at line 134 of file wifi-phy.cc.

References ns3::WifiTxVector::GetNess(), ns3::WifiTxVector::GetNss(), ns3::MicroSeconds(), ns3::WIFI_PREAMBLE_HT_GF, ns3::WIFI_PREAMBLE_HT_MF, and ns3::WIFI_PREAMBLE_VHT.

Referenced by ns3::InterferenceHelper::CalculatePlcpHeaderPer(), ns3::InterferenceHelper::CalculatePlcpPayloadPer(), and CalculatePlcpPreambleAndHeaderDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiPhy::GetPlcpPreambleDuration	(	WifiTxVector	txVector,
		WifiPreamble	preamble
	)

static

Parameters

txVector	the transmission parameters used for this packet
preamble	the type of preamble

Returns: the duration of the PLCP preamble

Definition at line 346 of file wifi-phy.cc.

References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::MicroSeconds(), NS_FATAL_ERROR, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, ns3::WIFI_MOD_CLASS_HR_DSSS, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, ns3::WIFI_MOD_CLASS_VHT, ns3::WIFI_PREAMBLE_NONE, and ns3::WIFI_PREAMBLE_SHORT.

Referenced by ns3::InterferenceHelper::CalculatePlcpHeaderPer(), ns3::InterferenceHelper::CalculatePlcpPayloadPer(), and CalculatePlcpPreambleAndHeaderDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiPhy::GetPlcpVhtSigA1Duration ( WifiPreamble preamble )

static

Parameters

preamble the type of preamble

Returns: the duration of the VHT-SIG-A1 in PLCP header

Definition at line 195 of file wifi-phy.cc.

References ns3::MicroSeconds(), and ns3::WIFI_PREAMBLE_VHT.

Referenced by ns3::InterferenceHelper::CalculatePlcpHeaderPer(), ns3::InterferenceHelper::CalculatePlcpPayloadPer(), and CalculatePlcpPreambleAndHeaderDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiPhy::GetPlcpVhtSigA2Duration ( WifiPreamble preamble )

static

Parameters

preamble the type of preamble

Returns: the duration of the VHT-SIG-A2 in PLCP header

Definition at line 209 of file wifi-phy.cc.

References ns3::MicroSeconds(), and ns3::WIFI_PREAMBLE_VHT.

Referenced by ns3::InterferenceHelper::CalculatePlcpHeaderPer(), ns3::InterferenceHelper::CalculatePlcpPayloadPer(), and CalculatePlcpPreambleAndHeaderDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::WifiPhy::GetPlcpVhtSigBDuration ( WifiPreamble preamble )

static

Parameters

preamble the type of preamble

Returns: the duration of the VHT-SIG-B in PLCP header

Definition at line 223 of file wifi-phy.cc.

References ns3::MicroSeconds(), and ns3::WIFI_PREAMBLE_VHT.

Referenced by ns3::InterferenceHelper::CalculatePlcpHeaderPer(), ns3::InterferenceHelper::CalculatePlcpPayloadPer(), and CalculatePlcpPreambleAndHeaderDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual bool ns3::WifiPhy::GetShortPlcpPreambleSupported ( void ) const

pure virtual

Returns: true if short PLCP preamble is supported, false otherwise

Implemented in ns3::YansWifiPhy.

Referenced by ns3::StaWifiMac::GetCapabilities(), and ns3::ApWifiMac::GetShortPreambleEnabled().

Here is the caller graph for this function:

virtual Time ns3::WifiPhy::GetStateDuration ( void )

pure virtual

Returns: the amount of time since the current state has started.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::GetStbc ( void ) const

pure virtual

Returns: true if STBC is supported, false otherwise

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MinstrelHtWifiManager::CalculateFirstMpduTxDuration(), ns3::MinstrelHtWifiManager::CalculateMpduTxDuration(), ns3::WifiRemoteStationManager::DoGetAckTxStbc(), ns3::WifiRemoteStationManager::DoGetBlockAckTxStbc(), and ns3::WifiRemoteStationManager::DoGetCtsTxStbc().

Here is the caller graph for this function:

virtual std::vector<uint32_t> ns3::WifiPhy::GetSupportedChannelWidthSet ( void ) const

pure virtual

Returns: a vector containing the supported channel widths, values in MHz

Implemented in ns3::YansWifiPhy.

virtual uint8_t ns3::WifiPhy::GetSupportedRxSpatialStreams ( void ) const

pure virtual

Returns: the maximum number of supported Rx spatial streams

Implemented in ns3::YansWifiPhy.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

virtual uint8_t ns3::WifiPhy::GetSupportedTxSpatialStreams ( void ) const

pure virtual

Returns: the maximum number of supported Tx spatial streams

Implemented in ns3::YansWifiPhy.

Referenced by ns3::IdealWifiManager::DoGetDataTxVector(), ns3::IdealWifiManager::DoInitialize(), ns3::RegularWifiMac::GetHtCapabilities(), and ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

virtual double ns3::WifiPhy::GetTxPowerEnd ( void ) const

pure virtual

Return the maximum available transmission power level (dBm).

Returns: the maximum available transmission power level in dBm

Implemented in ns3::YansWifiPhy.

Referenced by ns3::ParfWifiManager::SetupPhy(), and ns3::AparfWifiManager::SetupPhy().

Here is the caller graph for this function:

virtual double ns3::WifiPhy::GetTxPowerStart ( void ) const

pure virtual

Return the minimum available transmission power level (dBm).

Returns: the minimum available transmission power level in dBm

Implemented in ns3::YansWifiPhy.

Referenced by ns3::ParfWifiManager::SetupPhy(), and ns3::AparfWifiManager::SetupPhy().

Here is the caller graph for this function:

TypeId ns3::WifiPhy::GetTypeId ( void )

static

Definition at line 55 of file wifi-phy.cc.

References m_phyMonitorSniffRxTrace, m_phyMonitorSniffTxTrace, m_phyRxBeginTrace, m_phyRxDropTrace, m_phyRxEndTrace, m_phyTxBeginTrace, m_phyTxDropTrace, m_phyTxEndTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

WifiMode ns3::WifiPhy::GetVhtMcs0 ( )

static

Return MCS 0 from VHT MCS values.

Returns: MCS 0 from VHT MCS values

Definition at line 1483 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::YansWifiPhy::Configure80211ac(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), ns3::YansWifiPhy::GetMembershipSelectorModes(), and GetVhtPlcpHeaderMode().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetVhtMcs1 ( )

static

Return MCS 1 from VHT MCS values.

Returns: MCS 1 from VHT MCS values

Definition at line 1491 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::YansWifiPhy::Configure80211ac(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetVhtMcs2 ( )

static

Return MCS 2 from VHT MCS values.

Returns: MCS 2 from VHT MCS values

Definition at line 1499 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::YansWifiPhy::Configure80211ac(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetVhtMcs3 ( )

static

Return MCS 3 from VHT MCS values.

Returns: MCS 3 from VHT MCS values

Definition at line 1507 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::YansWifiPhy::Configure80211ac(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetVhtMcs4 ( )

static

Return MCS 4 from VHT MCS values.

Returns: MCS 4 from VHT MCS values

Definition at line 1515 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::YansWifiPhy::Configure80211ac(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetVhtMcs5 ( )

static

Return MCS 5 from VHT MCS values.

Returns: MCS 5 from VHT MCS values

Definition at line 1523 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::YansWifiPhy::Configure80211ac(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetVhtMcs6 ( )

static

Return MCS 6 from VHT MCS values.

Returns: MCS 6 from VHT MCS values

Definition at line 1531 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::YansWifiPhy::Configure80211ac(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetVhtMcs7 ( )

static

Return MCS 7 from VHT MCS values.

Returns: MCS 7 from VHT MCS values

Definition at line 1539 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::YansWifiPhy::Configure80211ac(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetVhtMcs8 ( )

static

Return MCS 8 from VHT MCS values.

Returns: MCS 8 from VHT MCS values

Definition at line 1547 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::YansWifiPhy::Configure80211ac(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetVhtMcs9 ( )

static

Return MCS 9 from VHT MCS values.

Returns: MCS 9 from VHT MCS values

Definition at line 1555 of file wifi-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), and ns3::WIFI_MOD_CLASS_VHT.

Referenced by ns3::YansWifiPhy::Configure80211ac(), anonymous_namespace{wifi-phy.cc}::Constructor::Constructor(), and ns3::YansWifiPhy::GetMembershipSelectorModes().

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiPhy::GetVhtPlcpHeaderMode ( WifiMode payloadMode )

static

Parameters

payloadMode the WifiMode use for the transmission of the payload

Returns: the WifiMode used for the transmission of the VHT-STF, VHT-LTF and VHT-SIG-B fields

Definition at line 128 of file wifi-phy.cc.

References GetVhtMcs0().

Referenced by ns3::InterferenceHelper::CalculatePlcpHeaderPer().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual bool ns3::WifiPhy::IsModeSupported ( WifiMode mode ) const

pure virtual

Check if the given WifiMode is supported by the PHY.

Parameters

mode	the wifi mode to check

Returns: true if the given mode is supported, false otherwise

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateBusy ( void )

pure virtual

Returns: true of the current state of the PHY layer is not WifiPhy::IDLE, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateCcaBusy ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::CCA_BUSY, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateIdle ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::IDLE, false otherwise.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::FastAckTimeout(), and ns3::MacLow::SuperFastAckTimeout().

Here is the caller graph for this function:

virtual bool ns3::WifiPhy::IsStateRx ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::RX, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateSleep ( void )

pure virtual

Returns: true if the current state of the PHY layer is WifiPhy::SLEEP, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateSwitching ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::SWITCHING, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateTx ( void )

pure virtual

Returns: true of the current state of the PHY layer is WifiPhy::TX, false otherwise.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::StartTransmission().

Here is the caller graph for this function:

bool ns3::WifiPhy::IsValidTxVector ( WifiTxVector txVector )

static

The standard disallows certain combinations of WifiMode, number of spatial streams, and channel widths.

This method can be used to check whether this WifiTxVector contains an invalid combination.

Parameters

txVector the WifiTxVector to inspect

Returns: true if the WifiTxVector parameters are allowed by the standard

Definition at line 1563 of file wifi-phy.cc.

References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetNss(), and ns3::WifiMode::GetUniqueName().

Referenced by ns3::IdealWifiManager::DoGetDataTxVector(), and ns3::MinstrelHtWifiManager::IsValidMcs().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyMonitorSniffRx	(	Ptr< const Packet >	packet,
		uint16_t	channelFreqMhz,
		uint16_t	channelNumber,
		uint32_t	rate,
		WifiPreamble	preamble,
		WifiTxVector	txVector,
		struct mpduInfo	aMpdu,
		struct signalNoiseDbm	signalNoise
	)

Public method used to fire a MonitorSniffer trace for a wifi packet being received.

Implemented for encapsulation purposes.

Parameters

packet	the packet being received
channelFreqMhz	the frequency in MHz at which the packet is received. Note that in real devices this is normally the frequency to which the receiver is tuned, and this can be different than the frequency at which the packet was originally transmitted. This is because it is possible to have the receiver tuned on a given channel and still to be able to receive packets on a nearby channel.
channelNumber	the channel on which the packet is received
rate	the PHY data rate in units of 500kbps (i.e., the same units used both for the radiotap and for the prism header)
preamble	the preamble of the packet
txVector	the TXVECTOR that holds rx parameters
aMpdu	the type of the packet (0 is not A-MPDU, 1 is a MPDU that is part of an A-MPDU and 2 is the last MPDU in an A-MPDU) and the A-MPDU reference number (must be a different value for each A-MPDU but the same for each subframe within one A-MPDU)
signalNoise	signal power and noise power in dBm

Definition at line 759 of file wifi-phy.cc.

References m_phyMonitorSniffRxTrace.

Referenced by ns3::YansWifiPhy::EndReceive().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyMonitorSniffTx	(	Ptr< const Packet >	packet,
		uint16_t	channelFreqMhz,
		uint16_t	channelNumber,
		uint32_t	rate,
		WifiPreamble	preamble,
		WifiTxVector	txVector,
		struct mpduInfo	aMpdu
	)

Public method used to fire a MonitorSniffer trace for a wifi packet being transmitted.

Implemented for encapsulation purposes.

Parameters

packet	the packet being transmitted
channelFreqMhz	the frequency in MHz at which the packet is transmitted.
channelNumber	the channel on which the packet is transmitted
rate	the PHY data rate in units of 500kbps (i.e., the same units used both for the radiotap and for the prism header)
preamble	the preamble of the packet
txVector	the TXVECTOR that holds tx parameters
aMpdu	the type of the packet (0 is not A-MPDU, 1 is a MPDU that is part of an A-MPDU and 2 is the last MPDU in an A-MPDU) and the A-MPDU reference number (must be a different value for each A-MPDU but the same for each subframe within one A-MPDU)

Definition at line 765 of file wifi-phy.cc.

References m_phyMonitorSniffTxTrace.

Referenced by ns3::YansWifiPhy::SendPacket().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyRxBegin ( Ptr< const Packet > packet )

Public method used to fire a PhyRxBegin trace.

Implemented for encapsulation purposes.

Parameters

packet the packet being received

Definition at line 741 of file wifi-phy.cc.

References m_phyRxBeginTrace.

Referenced by ns3::YansWifiPhy::StartReceivePreambleAndHeader().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyRxDrop ( Ptr< const Packet > packet )

Public method used to fire a PhyRxDrop trace.

Implemented for encapsulation purposes.

Parameters

packet the packet that was not successfully received

Definition at line 753 of file wifi-phy.cc.

References m_phyRxDropTrace.

Referenced by ns3::YansWifiPhy::EndReceive(), ns3::YansWifiPhy::StartReceivePacket(), and ns3::YansWifiPhy::StartReceivePreambleAndHeader().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyRxEnd ( Ptr< const Packet > packet )

Public method used to fire a PhyRxEnd trace.

Implemented for encapsulation purposes.

Parameters

packet the packet received

Definition at line 747 of file wifi-phy.cc.

References m_phyRxEndTrace.

Referenced by ns3::YansWifiPhy::EndReceive().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyTxBegin ( Ptr< const Packet > packet )

Public method used to fire a PhyTxBegin trace.

Implemented for encapsulation purposes.

Parameters

packet the packet being transmitted

Definition at line 723 of file wifi-phy.cc.

References m_phyTxBeginTrace.

Referenced by ns3::YansWifiPhy::SendPacket().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyTxDrop ( Ptr< const Packet > packet )

Public method used to fire a PhyTxDrop trace.

Implemented for encapsulation purposes.

Parameters

packet the packet that was failed to transmitted

Definition at line 735 of file wifi-phy.cc.

References m_phyTxDropTrace.

Referenced by ns3::YansWifiPhy::SendPacket().

Here is the caller graph for this function:

void ns3::WifiPhy::NotifyTxEnd ( Ptr< const Packet > packet )

Public method used to fire a PhyTxEnd trace.

Implemented for encapsulation purposes.

Parameters

packet the packet that was transmitted

Definition at line 729 of file wifi-phy.cc.

References m_phyTxEndTrace.

virtual void ns3::WifiPhy::RegisterListener ( WifiPhyListener * listener )

pure virtual

Parameters

listener the new listener

Add the input listener to the list of objects to be notified of PHY-level events.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::DcfManager::SetupPhyListener(), and ns3::MacLow::SetupPhyMacLowListener().

Here is the caller graph for this function:

virtual void ns3::WifiPhy::ResumeFromSleep ( void )

pure virtual

Resume from sleep mode.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRadioEnergyModelHelper::DoInstall().

Here is the caller graph for this function:

virtual void ns3::WifiPhy::SendPacket	(	Ptr< const Packet >	packet,
		WifiTxVector	txVector,
		enum WifiPreamble	preamble
	)

pure virtual

Parameters

packet	the packet to send
txVector	the TXVECTOR that has tx parameters such as mode, the transmission mode to use to send this packet, and txPowerLevel, a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels
preamble	the type of preamble to use to send this packet.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::ForwardDown(), and ns3::MacLow::SendMpdu().

Here is the caller graph for this function:

virtual void ns3::WifiPhy::SendPacket	(	Ptr< const Packet >	packet,
		WifiTxVector	txVector,
		enum WifiPreamble	preamble,
		enum mpduType	mpdutype
	)

pure virtual

Parameters

packet	the packet to send
txVector	the TXVECTOR that has tx parameters such as mode, the transmission mode to use to send this packet, and txPowerLevel, a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels
preamble	the type of preamble to use to send this packet.
mpdutype	the type of the MPDU as defined in WifiPhy::mpduType.

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetChannelNumber ( uint16_t id )

pure virtual

Set channel number.

Channel center frequency = Channel starting frequency + 5 MHz * (nch - 1)

where Starting channel frequency is standard-dependent, see SetStandard() as defined in (Section 18.3.8.4.2 "Channel numbering"; IEEE Std 802.11-2012).

Parameters

id	the channel number

Implemented in ns3::YansWifiPhy.

Referenced by ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), ns3::WaveHelper::Install(), InterferenceHelperSequenceTest::SwitchCh(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

Here is the caller graph for this function:

virtual void ns3::WifiPhy::SetChannelWidth ( uint32_t channelwidth )

pure virtual

Parameters

channelwidth channel width

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetFrequency ( uint32_t freq )

pure virtual

Parameters

freq	the operating frequency on this node.

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetGreenfield ( bool greenfield )

pure virtual

Parameters

greenfield Enable or disable GreenField

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetGuardInterval ( bool guardInterval )

pure virtual

Parameters

guardInterval Enable or disable short guard interval

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetLdpc ( bool ldpc )

pure virtual

Parameters

ldpc	Enable or disable LDPC

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetNumberOfReceiveAntennas ( uint32_t rx )

pure virtual

Parameters

rx	the number of receivers on this node.

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetNumberOfTransmitAntennas ( uint32_t tx )

pure virtual

Parameters

tx	the number of transmitters on this node.

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetReceiveErrorCallback ( RxErrorCallback callback )

pure virtual

Parameters

callback the callback to invoke upon erroneous packet reception.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::ResetPhy(), and ns3::MacLow::SetPhy().

Here is the caller graph for this function:

virtual void ns3::WifiPhy::SetReceiveOkCallback ( RxOkCallback callback )

pure virtual

Parameters

callback the callback to invoke upon successful packet reception.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::MacLow::ResetPhy(), and ns3::MacLow::SetPhy().

Here is the caller graph for this function:

virtual void ns3::WifiPhy::SetShortPlcpPreambleSupported ( bool preamble )

pure virtual

Parameters

preamble sets whether short PLCP preamble is supported or not

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetSleepMode ( void )

pure virtual

Put in sleep mode.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::WifiRadioEnergyModelHelper::DoInstall().

Here is the caller graph for this function:

virtual void ns3::WifiPhy::SetStbc ( bool stbc )

pure virtual

Parameters

stbc	Enable or disable STBC is supported

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::UnregisterListener ( WifiPhyListener * listener )

pure virtual

Parameters

listener the listener to be unregistered

Remove the input listener from the list of objects to be notified of PHY-level events.

Implemented in ns3::YansWifiPhy.

Referenced by ns3::DcfManager::RemovePhyListener(), and ns3::MacLow::RemovePhyMacLowListener().

Here is the caller graph for this function:

Member Data Documentation

TracedCallback<Ptr<const Packet>, uint16_t, uint16_t, uint32_t, WifiPreamble, WifiTxVector, struct mpduInfo, struct signalNoiseDbm> ns3::WifiPhy::m_phyMonitorSniffRxTrace

private

A trace source that emulates a wifi device in monitor mode sniffing a packet being received.

As a reference with the real world, firing this trace corresponds in the madwifi driver to calling the function ieee80211_input_monitor()

See also: class CallBackTraceSource

Todo:: WifiTxVector and signalNoiseDbm should be be passed as const references because of their sizes.

Definition at line 1363 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyMonitorSniffRx().

TracedCallback<Ptr<const Packet>, uint16_t, uint16_t, uint32_t, WifiPreamble, WifiTxVector, struct mpduInfo> ns3::WifiPhy::m_phyMonitorSniffTxTrace

private

A trace source that emulates a wifi device in monitor mode sniffing a packet being transmitted.

As a reference with the real world, firing this trace corresponds in the madwifi driver to calling the function ieee80211_input_monitor()

See also: class CallBackTraceSource

Todo:: WifiTxVector should be passed by const reference because of its size.

Definition at line 1378 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyMonitorSniffTx().

TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyRxBeginTrace

private

The trace source fired when a packet begins the reception process from the medium.

See also: class CallBackTraceSource

Definition at line 1333 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyRxBegin().

TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyRxDropTrace

private

The trace source fired when the phy layer drops a packet it has received.

See also: class CallBackTraceSource

Definition at line 1348 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyRxDrop().

TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyRxEndTrace

private

The trace source fired when a packet ends the reception process from the medium.

See also: class CallBackTraceSource

Definition at line 1341 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyRxEnd().

TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyTxBeginTrace

private

The trace source fired when a packet begins the transmission process on the medium.

See also: class CallBackTraceSource

Definition at line 1309 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyTxBegin().

TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyTxDropTrace

private

The trace source fired when the phy layer drops a packet as it tries to transmit it.

See also: class CallBackTraceSource

Definition at line 1325 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyTxDrop().

TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyTxEndTrace

private

The trace source fired when a packet ends the transmission process on the medium.

See also: class CallBackTraceSource

Definition at line 1317 of file wifi-phy.h.

Referenced by GetTypeId(), and NotifyTxEnd().

double ns3::WifiPhy::m_totalAmpduNumSymbols

private

Number of symbols previously transmitted for the MPDUs in an A-MPDU, used for the computation of the number of symbols needed for the last MPDU in the A-MPDU.

Definition at line 1380 of file wifi-phy.h.

Referenced by GetPayloadDuration(), and WifiPhy().

uint32_t ns3::WifiPhy::m_totalAmpduSize

private

Total size of the previously transmitted MPDUs in an A-MPDU, used for the computation of the number of symbols needed for the last MPDU in the A-MPDU.

Definition at line 1381 of file wifi-phy.h.

Referenced by GetPayloadDuration(), and WifiPhy().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-phy.h
src/wifi/model/wifi-phy.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

TraceSources

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
