Collaboration diagram for RNG Implementation.:

Files
file	rng-stream.cc
	Class RngStream and MRG32k3a implementation.

file	rng-stream.h
	Declaration of class RngStream.

Namespaces
	anonymous_namespace{rng-stream.cc}
	Unnamed namespace for MRG32k3a implementation details.

Classes
struct	anonymous_namespace{rng-stream.cc}::Precalculated
	The transition matrices of the two MRG components (in matrix form), raised to all powers of 2 from 1 to 191. More...

class	ns3::RngStream
	Combined Multiple-Recursive Generator MRG32k3a. More...

Typedefs
typedef double	anonymous_namespace{rng-stream.cc}::Matrix[3][3]
	Type for 3x3 matrix of doubles. More...

Functions
void	anonymous_namespace{rng-stream.cc}::MatMatModM (const Matrix A, const Matrix B, Matrix C, double m)
	Compute the matrix C = A*B MOD m. More...

void	anonymous_namespace{rng-stream.cc}::MatTwoPowModM (const Matrix src, Matrix dst, double m, int32_t e)
	Compute the matrix B = (A^(2^e) Mod m); works also if A = B. More...

void	anonymous_namespace{rng-stream.cc}::MatVecModM (const Matrix A, const double s[3], double v[3], double m)
	Compute the vector v = A*s MOD m. More...

double	anonymous_namespace{rng-stream.cc}::MultModM (double a, double s, double c, double m)
	Return (a*s + c) MOD m; a, s, c and m must be < 2^35. More...

Variables
const double	anonymous_namespace{rng-stream.cc}::a12 = 1403580.0
	First component multiplier of n - 2 value. More...

const double	anonymous_namespace{rng-stream.cc}::a13n = 810728.0
	First component multiplier of n - 3 value. More...

const Matrix	anonymous_namespace{rng-stream.cc}::A1p0
	First component transition matrix. More...

const double	anonymous_namespace{rng-stream.cc}::a21 = 527612.0
	Second component multiplier of n - 1 value. More...

const double	anonymous_namespace{rng-stream.cc}::a23n = 1370589.0
	Second component multiplier of n - 3 value. More...

const Matrix	anonymous_namespace{rng-stream.cc}::A2p0
	Second component transition matrix. More...

const double	anonymous_namespace{rng-stream.cc}::m1 = 4294967087.0
	First component modulus, 2³² - 209. More...

const double	anonymous_namespace{rng-stream.cc}::m2 = 4294944443.0
	Second component modulus, 2³² - 22853. More...

const double	anonymous_namespace{rng-stream.cc}::norm = 1.0 / (m1 + 1.0)
	Normalization to obtain randoms on [0,1). More...

const double	anonymous_namespace{rng-stream.cc}::two17 = 131072.0
	Decomposition factor for computing a*s in less than 53 bits, 2¹⁷ More...

const double	anonymous_namespace{rng-stream.cc}::two53 = 9007199254740992.0
	IEEE-754 floating point precision, 2⁵³ More...

Detailed Description

Typedef Documentation

typedef double anonymous_namespace{rng-stream.cc}::Matrix[3][3]

Type for 3x3 matrix of doubles.

Definition at line 50 of file rng-stream.cc.

Function Documentation

void anonymous_namespace{rng-stream.cc}::MatMatModM	(	const Matrix	A,
		const Matrix	B,
		Matrix	C,
		double	m
	)

Compute the matrix C = A*B MOD m.

Assume that -m < s[i] < m. Note: works also if A = C or B = C or A = B = C.

Parameters

[in]	A	First matrix argument.
[in]	B	Second matrix argument.
[out]	C	Result matrix.
[in]	m	Modulus.

Definition at line 187 of file rng-stream.cc.

References anonymous_namespace{rng-stream.cc}::MatVecModM().

Referenced by anonymous_namespace{rng-stream.cc}::MatTwoPowModM().

Here is the call graph for this function:

Here is the caller graph for this function:

void anonymous_namespace{rng-stream.cc}::MatTwoPowModM	(	const Matrix	src,
		Matrix	dst,
		double	m,
		int32_t	e
	)

Compute the matrix B = (A^(2^e) Mod m); works also if A = B.

Parameters

[in]	src	Matrix input argument `A`.
[out]	dst	Matrix output `B`.
[in]	m	Modulus.
[in]	e	The exponent.

Definition at line 225 of file rng-stream.cc.

References anonymous_namespace{rng-stream.cc}::MatMatModM().

Referenced by anonymous_namespace{rng-stream.cc}::PowerOfTwoConstants().

Here is the call graph for this function:

Here is the caller graph for this function:

void anonymous_namespace{rng-stream.cc}::MatVecModM	(	const Matrix	A,
		const double	s[3],
		double	v[3],
		double	m
	)

Compute the vector v = A*s MOD m.

Assume that -m < s[i] < m. Works also when v = s.

Parameters

[in]	A	Matrix argument, 3x3.
[in]	s	Three component input vector.
[out]	v	Three component output vector.
[in]	m	Modulus.

Definition at line 158 of file rng-stream.cc.

References anonymous_namespace{rng-stream.cc}::MultModM(), and sample-rng-plot::x.

Referenced by ns3::RngStream::AdvanceNthBy(), and anonymous_namespace{rng-stream.cc}::MatMatModM().

Here is the call graph for this function:

Here is the caller graph for this function:

double anonymous_namespace{rng-stream.cc}::MultModM	(	double	a,
		double	s,
		double	c,
		double	m
	)

Return (a*s + c) MOD m; a, s, c and m must be < 2^35.

This computes the result exactly, without exceeding the 53 bit precision of doubles.

Parameters

[in]	a	First multiplicative argument.
[in]	s	Second multiplicative argument.
[in]	c	Additive argument.
[in]	m	Modulus.

Returns: (a*s +c) MOD m

Definition at line 118 of file rng-stream.cc.

References anonymous_namespace{rng-stream.cc}::two17.

Referenced by anonymous_namespace{rng-stream.cc}::MatVecModM().

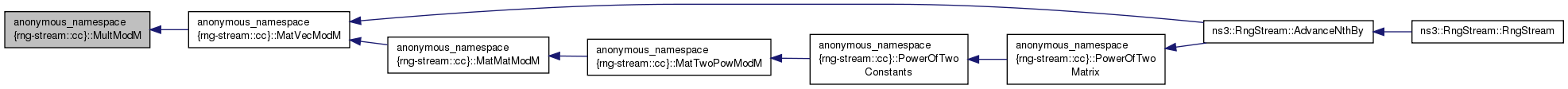

Here is the caller graph for this function:

Variable Documentation

const double anonymous_namespace{rng-stream.cc}::a12 = 1403580.0

First component multiplier of n - 2 value.

Definition at line 66 of file rng-stream.cc.

Referenced by ns3::RngStream::RandU01().

const double anonymous_namespace{rng-stream.cc}::a13n = 810728.0

First component multiplier of n - 3 value.

Definition at line 70 of file rng-stream.cc.

Referenced by ns3::RngStream::RandU01().

const Matrix anonymous_namespace{rng-stream.cc}::A1p0

Initial value:

= {
  {       0.0,        1.0,       0.0 },
  {       0.0,        0.0,       1.0 },
  { -810728.0,  1403580.0,       0.0 }
}

First component transition matrix.

Definition at line 90 of file rng-stream.cc.

const double anonymous_namespace{rng-stream.cc}::a21 = 527612.0

Second component multiplier of n - 1 value.

Definition at line 74 of file rng-stream.cc.

Referenced by ns3::RngStream::RandU01().

const double anonymous_namespace{rng-stream.cc}::a23n = 1370589.0

Second component multiplier of n - 3 value.

Definition at line 78 of file rng-stream.cc.

Referenced by ns3::RngStream::RandU01().

const Matrix anonymous_namespace{rng-stream.cc}::A2p0

Initial value:

= {
  {        0.0,        1.0,       0.0 },
  {        0.0,        0.0,       1.0 },
  { -1370589.0,        0.0,  527612.0 }
}

Second component transition matrix.

Definition at line 98 of file rng-stream.cc.

const double anonymous_namespace{rng-stream.cc}::m1 = 4294967087.0

First component modulus, 2³² - 209.

Definition at line 54 of file rng-stream.cc.

Referenced by ns3::RngStream::AdvanceNthBy(), UanTest::DoPhyTests(), TracedCallbackTypedefTestCase::Checker< T1, T2, T3, T4, T5 >::Invoke(), TracedCallbackTypedefTestCase::Checker< T1, T2, T3, T4, empty >::Invoke(), TracedCallbackTypedefTestCase::Checker< T1, T2, T3, empty, empty >::Invoke(), TracedCallbackTypedefTestCase::Checker< T1, T2, empty, empty, empty >::Invoke(), TracedCallbackTypedefTestCase::Checker< T1, empty, empty, empty, empty >::Invoke(), PbbTestSuite::PbbTestSuite(), ns3::RngStream::RandU01(), and ns3::RngStream::RngStream().

const double anonymous_namespace{rng-stream.cc}::m2 = 4294944443.0

Second component modulus, 2³² - 22853.

Definition at line 58 of file rng-stream.cc.

Referenced by ns3::RngStream::AdvanceNthBy(), TracedCallbackTypedefTestCase::Checker< T1, T2, T3, T4, T5 >::Invoke(), TracedCallbackTypedefTestCase::Checker< T1, T2, T3, T4, empty >::Invoke(), TracedCallbackTypedefTestCase::Checker< T1, T2, T3, empty, empty >::Invoke(), TracedCallbackTypedefTestCase::Checker< T1, T2, empty, empty, empty >::Invoke(), PbbTestSuite::PbbTestSuite(), ns3::RngStream::RandU01(), and ns3::RngStream::RngStream().

const double anonymous_namespace{rng-stream.cc}::norm = 1.0 / (m1 + 1.0)

Normalization to obtain randoms on [0,1).

Definition at line 62 of file rng-stream.cc.

Referenced by ns3::RngStream::RandU01().

const double anonymous_namespace{rng-stream.cc}::two17 = 131072.0

Decomposition factor for computing a*s in less than 53 bits, 2¹⁷

Definition at line 82 of file rng-stream.cc.

Referenced by anonymous_namespace{rng-stream.cc}::MultModM().

const double anonymous_namespace{rng-stream.cc}::two53 = 9007199254740992.0

IEEE-754 floating point precision, 2⁵³

Definition at line 86 of file rng-stream.cc.
