CoDelQueueDiscBasicDrop Class Reference

Inheritance diagram for CoDelQueueDiscBasicDrop:

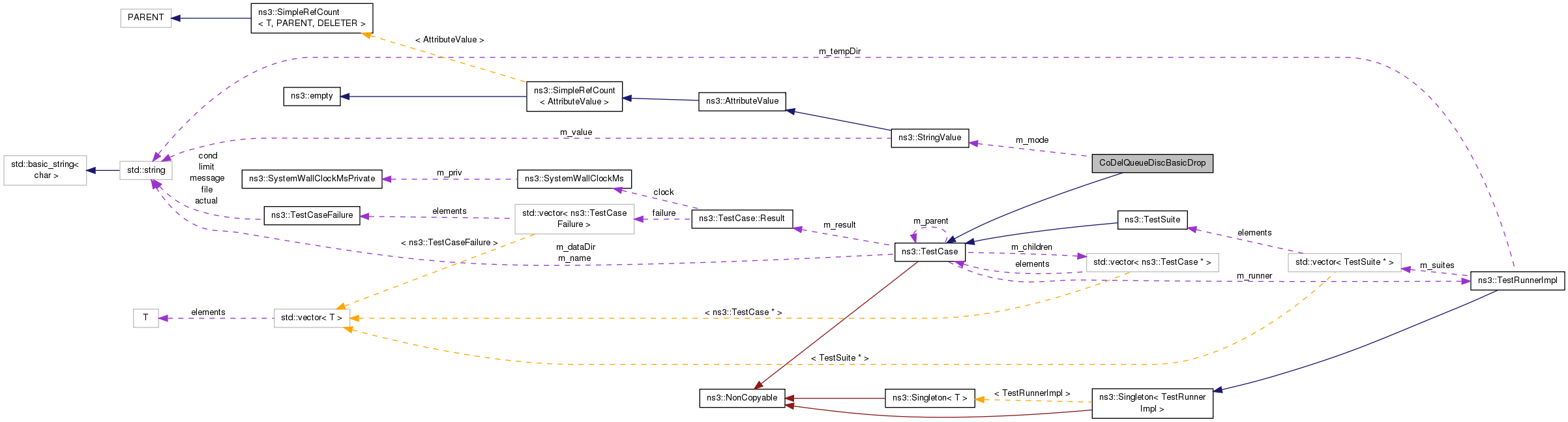

Collaboration diagram for CoDelQueueDiscBasicDrop:

Public Member Functions
	CoDelQueueDiscBasicDrop (std::string mode)
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
void	QueueTestSize (Ptr< CoDelQueueDisc > queue, uint32_t size, std::string error)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	Dequeue (Ptr< CoDelQueueDisc > queue, uint32_t modeSize)
void	DropNextTracer (uint32_t oldVal, uint32_t newVal)
void	Enqueue (Ptr< CoDelQueueDisc > queue, uint32_t size, uint32_t nPkt)

Private Attributes
uint32_t	m_dropNextCount
StringValue	m_mode

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Definition at line 382 of file codel-queue-disc-test-suite.cc.

Constructor & Destructor Documentation

CoDelQueueDiscBasicDrop::CoDelQueueDiscBasicDrop

(

std::string

mode

)

Definition at line 410 of file codel-queue-disc-test-suite.cc.

References m_dropNextCount, and m_mode.

Member Function Documentation

void CoDelQueueDiscBasicDrop::Dequeue ( Ptr< CoDelQueueDisc >  queue, uint32_t  modeSize  )

private

Definition at line 479 of file codel-queue-disc-test-suite.cc.

References ns3::QueueDisc::Dequeue(), DropNextTracer(), ns3::CoDelQueueDisc::GetDropCount(), ns3::CoDelQueueDisc::GetDropNext(), ns3::CoDelQueueDisc::GetInterval(), ns3::Time::GetMicroSeconds(), ns3::CoDelQueueDisc::GetQueueSize(), ns3::CoDelQueueDisc::GetTarget(), m_dropNextCount, ns3::MakeCallback(), ns3::Now(), NS_TEST_EXPECT_MSG_EQ, QueueTestSize(), and ns3::ObjectBase::TraceConnectWithoutContext().

Referenced by DoRun().

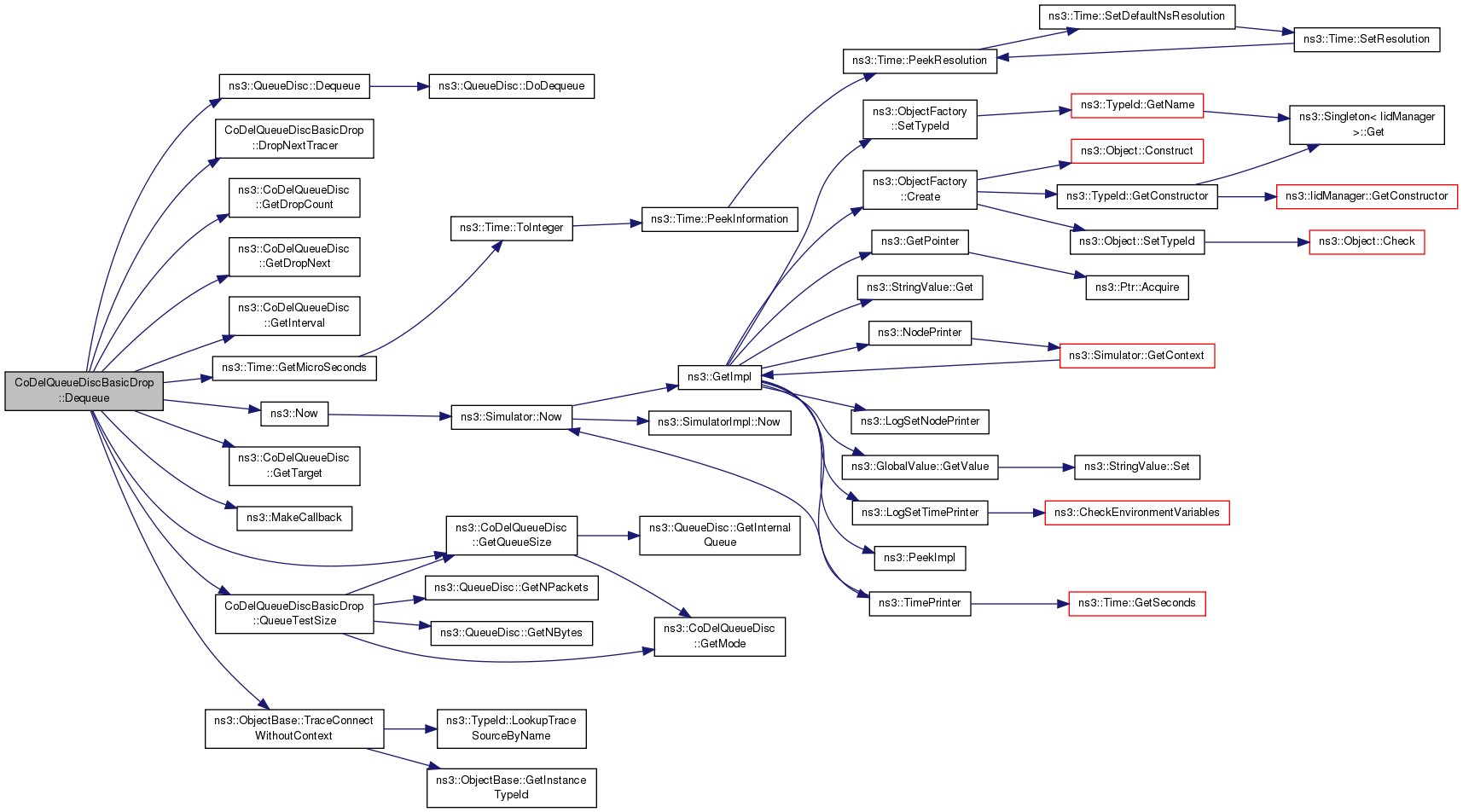

Here is the call graph for this function:

Here is the caller graph for this function:

void CoDelQueueDiscBasicDrop::DoRun ( void  )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 424 of file codel-queue-disc-test-suite.cc.

References Dequeue(), Enqueue(), ns3::CoDelQueueDisc::GetInterval(), ns3::CoDelQueueDisc::GetMode(), ns3::CoDelQueueDisc::GetQueueSize(), ns3::CoDelQueueDisc::GetTarget(), ns3::Object::Initialize(), m_mode, NS_TEST_EXPECT_MSG_EQ, and ns3::ObjectBase::SetAttributeFailSafe().

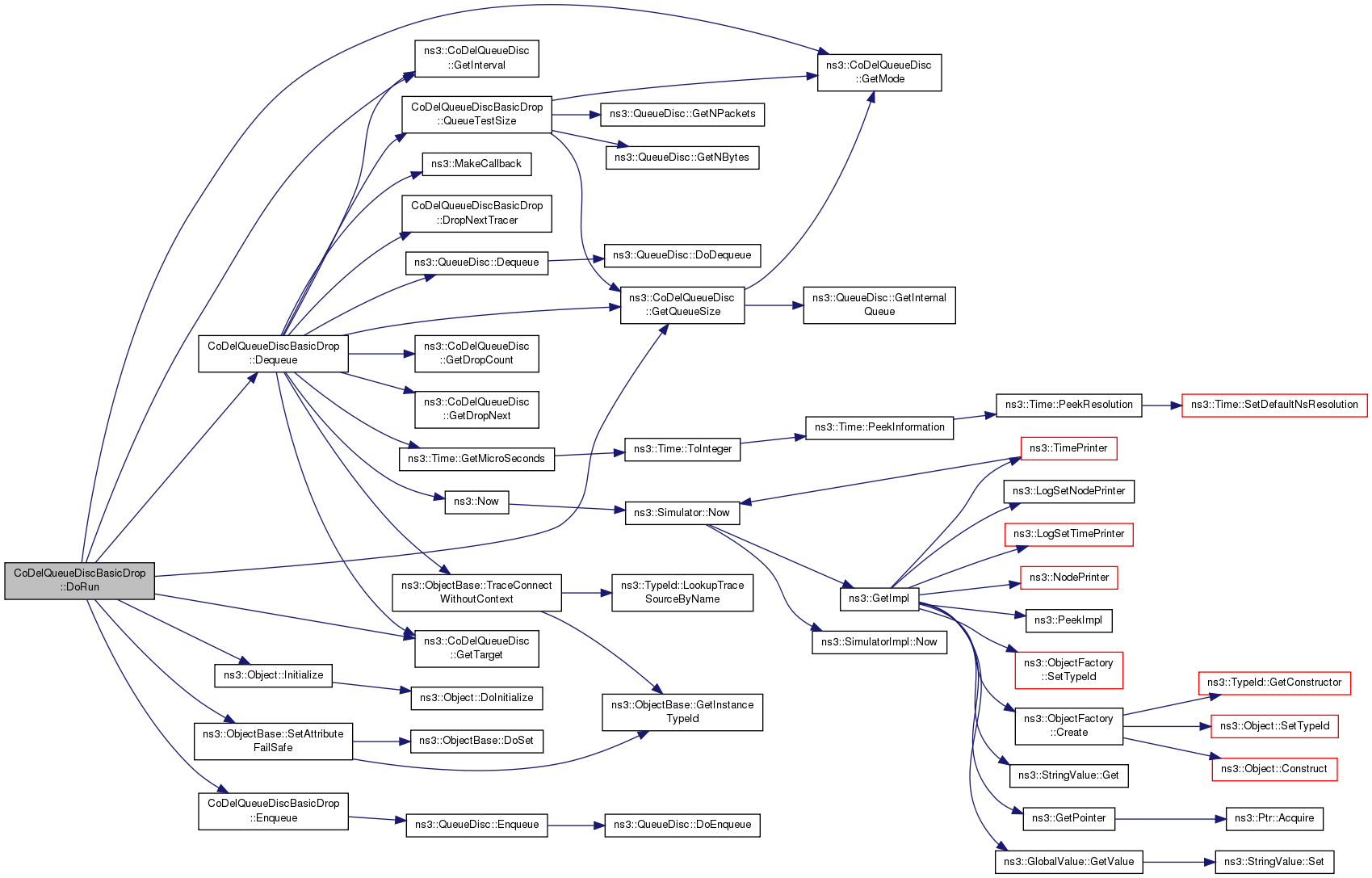

Here is the call graph for this function:

void CoDelQueueDiscBasicDrop::DropNextTracer ( uint32_t  oldVal, uint32_t  newVal  )

private

Definition at line 418 of file codel-queue-disc-test-suite.cc.

References m_dropNextCount.

Referenced by Dequeue().

Here is the caller graph for this function:

void CoDelQueueDiscBasicDrop::Enqueue ( Ptr< CoDelQueueDisc >  queue, uint32_t  size, uint32_t  nPkt  )

private

Definition at line 469 of file codel-queue-disc-test-suite.cc.

References ns3::QueueDisc::Enqueue().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

void CoDelQueueDiscBasicDrop::QueueTestSize ( Ptr< CoDelQueueDisc >  queue, uint32_t  size, std::string  error  )

inline

Definition at line 388 of file codel-queue-disc-test-suite.cc.

References ns3::CoDelQueueDisc::GetMode(), ns3::QueueDisc::GetNBytes(), ns3::QueueDisc::GetNPackets(), ns3::CoDelQueueDisc::GetQueueSize(), and NS_TEST_EXPECT_MSG_EQ.

Referenced by Dequeue().

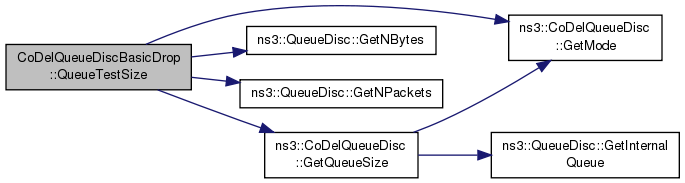

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint32_t CoDelQueueDiscBasicDrop::m_dropNextCount

private

Definition at line 407 of file codel-queue-disc-test-suite.cc.

Referenced by CoDelQueueDiscBasicDrop(), Dequeue(), and DropNextTracer().

StringValue CoDelQueueDiscBasicDrop::m_mode

private

Definition at line 406 of file codel-queue-disc-test-suite.cc.

Referenced by CoDelQueueDiscBasicDrop(), and DoRun().

---

The documentation for this class was generated from the following file:

• src/traffic-control/test/codel-queue-disc-test-suite.cc
