LteDownlinkDataSinrTestCase Class Reference

#include "lte-test-downlink-sinr.h"

+ Inheritance diagram for LteDownlinkDataSinrTestCase:
+ Collaboration diagram for LteDownlinkDataSinrTestCase:

Public Member Functions

 LteDownlinkDataSinrTestCase (Ptr< SpectrumValue > sv, Ptr< SpectrumValue > sinr, std::string name)
 TestCase Data. More...
virtual ~LteDownlinkDataSinrTestCase ()
- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...
std::string GetName (void) const

Private Member Functions

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...

Private Attributes

Ptr< SpectrumValuem_expectedSinr
Ptr< const SpectrumModelm_sm
Ptr< SpectrumValuem_sv

Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...
- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...
void AddTestCase (TestCase *testCase, enum TestDuration duration)
 Add an individual child TestCase to this test suite. More...
TestCaseGetParent () const
 Get the parent of this TestCsse. More...
bool IsStatusFailure (void) const
 Check if any tests failed. More...
bool IsStatusSuccess (void) const
 Check if all tests passed. More...
void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...
void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...
bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...
bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...
std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...
std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...

Detailed Description

Definition at line 42 of file lte-test-downlink-sinr.h.

Constructor & Destructor Documentation

LteDownlinkDataSinrTestCase::LteDownlinkDataSinrTestCase ( Ptr< SpectrumValue sv,
Ptr< SpectrumValue sinr,
std::string  name

TestCase Data.

Definition at line 111 of file lte-test-downlink-sinr.cc.

References NS_LOG_INFO.

LteDownlinkDataSinrTestCase::~LteDownlinkDataSinrTestCase ( )

Definition at line 120 of file lte-test-downlink-sinr.cc.

Member Function Documentation

void LteDownlinkDataSinrTestCase::DoRun ( void  )

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Instantiate a single receiving LteSpectrumPhy

Generate several calls to LteSpectrumPhy::StartRx corresponding to several signals. One will be the signal of interest, i.e., the LteSpectrumSignalParametersDataFrame of the Packet burst will have the same CellId of the receiving PHY; the others will have a different CellId and hence will be the interfering signals

Build packet burst

Schedule the reception of the data signal plus the interference signals

Implements ns3::TestCase.

Definition at line 126 of file lte-test-downlink-sinr.cc.

References ns3::LteChunkProcessor::AddCallback(), ns3::PacketBurst::AddPacket(), ns3::LteSpectrumSignalParametersDataFrame::cellId, ns3::SpectrumSignalParameters::duration, m_expectedSinr, m_sm, m_sv, ns3::MakeCallback(), NS_LOG_INFO, NS_TEST_ASSERT_MSG_SPECTRUM_VALUE_EQ_TOL, ns3::LteSpectrumSignalParametersDataFrame::packetBurst, ns3::SpectrumSignalParameters::psd, ns3::Seconds(), ns3::Config::SetDefault(), and ns3::SpectrumSignalParameters::txPhy.

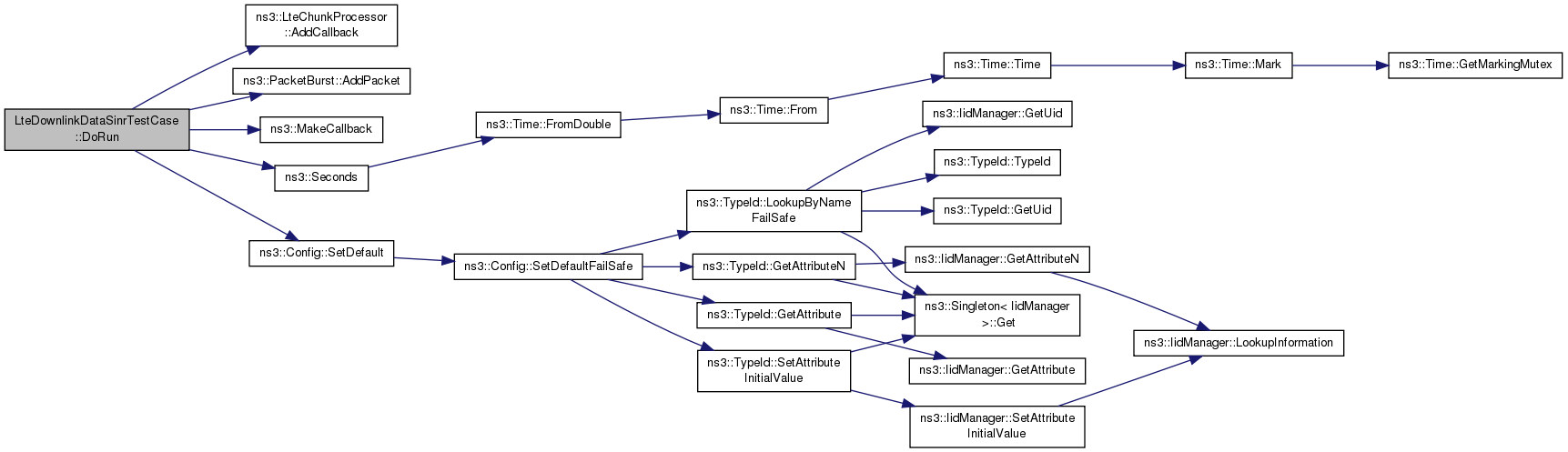

+ Here is the call graph for this function:

Member Data Documentation

Ptr<SpectrumValue> LteDownlinkDataSinrTestCase::m_expectedSinr

Definition at line 53 of file lte-test-downlink-sinr.h.

Referenced by DoRun().

Ptr<const SpectrumModel> LteDownlinkDataSinrTestCase::m_sm

Definition at line 52 of file lte-test-downlink-sinr.h.

Referenced by DoRun().

Ptr<SpectrumValue> LteDownlinkDataSinrTestCase::m_sv

Definition at line 51 of file lte-test-downlink-sinr.h.

Referenced by DoRun().

The documentation for this class was generated from the following files:
