MyTag Class Reference

Inheritance diagram for MyTag:

Collaboration diagram for MyTag:

Public Member Functions
virtual void	Deserialize (TagBuffer i)
virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...
virtual uint32_t	GetSerializedSize (void) const
uint8_t	GetSimpleValue (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (TagBuffer i) const
void	SetSimpleValue (uint8_t value)
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...
bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...
void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_simpleValue

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...
virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Definition at line 28 of file main-packet-tag.cc.

Member Function Documentation

void MyTag::Deserialize ( TagBuffer  i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 75 of file main-packet-tag.cc.

References ns3::TagBuffer::ReadU8().

Here is the call graph for this function:

TypeId MyTag::GetInstanceTypeId ( void  ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns

The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 60 of file main-packet-tag.cc.

uint32_t MyTag::GetSerializedSize ( void  ) const

virtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 65 of file main-packet-tag.cc.

uint8_t MyTag::GetSimpleValue

(

void

)

const

Definition at line 90 of file main-packet-tag.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId MyTag::GetTypeId ( void  )

static

Definition at line 46 of file main-packet-tag.cc.

References GetSimpleValue(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

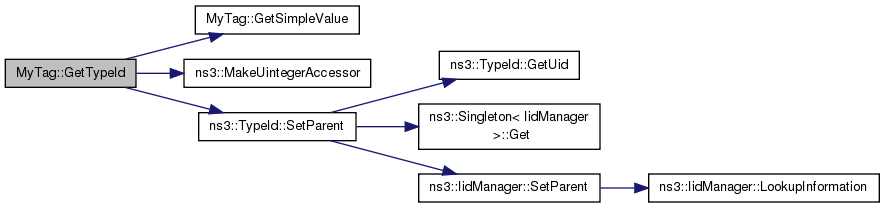

Here is the call graph for this function:

void MyTag::Print ( std::ostream &  os ) const

virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 80 of file main-packet-tag.cc.

void MyTag::Serialize ( TagBuffer  i ) const

virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 70 of file main-packet-tag.cc.

References ns3::TagBuffer::WriteU8().

Here is the call graph for this function:

void MyTag::SetSimpleValue

(

uint8_t

value

)

Definition at line 85 of file main-packet-tag.cc.

Member Data Documentation

uint8_t MyTag::m_simpleValue

private

Definition at line 42 of file main-packet-tag.cc.

---

The documentation for this class was generated from the following file:

• src/network/examples/main-packet-tag.cc
