SpectrumWifiPhyBasicTest Class Reference

Inheritance diagram for SpectrumWifiPhyBasicTest:

Collaboration diagram for SpectrumWifiPhyBasicTest:

Public Member Functions
	SpectrumWifiPhyBasicTest ()
	SpectrumWifiPhyBasicTest (std::string name)
virtual	~SpectrumWifiPhyBasicTest ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Protected Member Functions
virtual void	DoSetup (void)
	Implementation to do any local setup required for this TestCase. More...
Ptr< SpectrumSignalParameters >	MakeSignal (double txPowerWatts)
void	SendSignal (double txPowerWatts)
void	SpectrumWifiPhyReceiver (bool rxSucceeded)
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Protected Attributes
uint32_t	m_count
Ptr< SpectrumWifiPhy >	m_phy

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Detailed Description

Definition at line 40 of file spectrum-wifi-phy-test.cc.

Constructor & Destructor Documentation

SpectrumWifiPhyBasicTest::SpectrumWifiPhyBasicTest

(

)

Definition at line 57 of file spectrum-wifi-phy-test.cc.

SpectrumWifiPhyBasicTest::SpectrumWifiPhyBasicTest

(

std::string

name

)

Definition at line 63 of file spectrum-wifi-phy-test.cc.

SpectrumWifiPhyBasicTest::~SpectrumWifiPhyBasicTest ( )

virtual

Definition at line 115 of file spectrum-wifi-phy-test.cc.

Member Function Documentation

void SpectrumWifiPhyBasicTest::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Reimplemented in SpectrumWifiPhyListenerTest.

Definition at line 137 of file spectrum-wifi-phy-test.cc.

References m_count, ns3::MicroSeconds(), NS_TEST_ASSERT_MSG_EQ, ns3::Seconds(), and SendSignal().

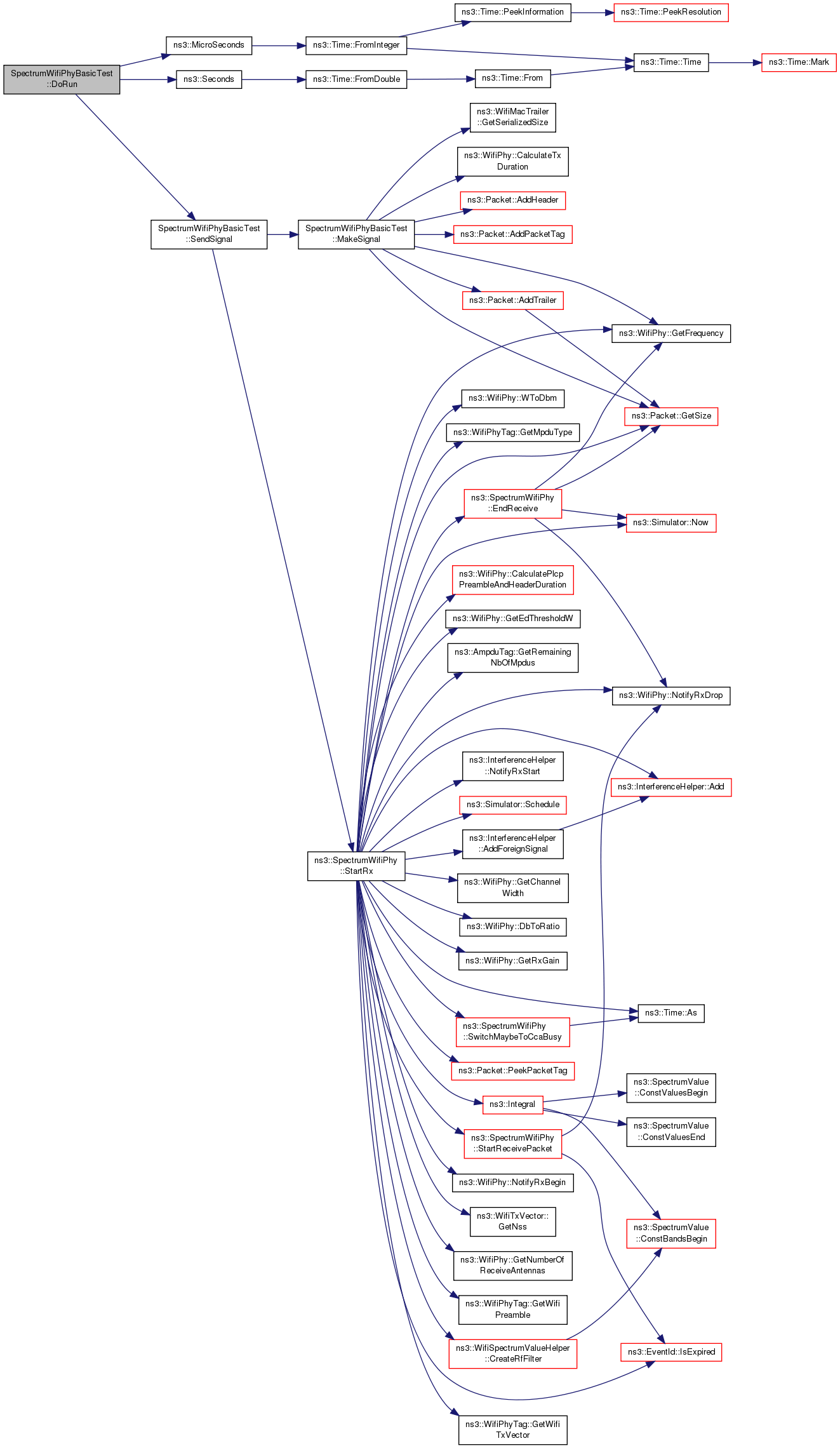

Here is the call graph for this function:

void SpectrumWifiPhyBasicTest::DoSetup ( void  )

protectedvirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Reimplemented in SpectrumWifiPhyListenerTest.

Definition at line 122 of file spectrum-wifi-phy-test.cc.

References CHANNEL_NUMBER, ns3::WifiPhy::ConfigureStandard(), FREQUENCY, m_phy, ns3::MakeCallback(), ns3::WifiPhy::SetCcaMode1Threshold(), ns3::WifiPhy::SetChannelNumber(), ns3::WifiPhy::SetErrorRateModel(), ns3::WifiPhy::SetFrequency(), ns3::SpectrumWifiPhy::SetPacketReceivedCallback(), SpectrumWifiPhyReceiver(), and ns3::WIFI_PHY_STANDARD_80211n_5GHZ.

Referenced by SpectrumWifiPhyListenerTest::DoSetup().

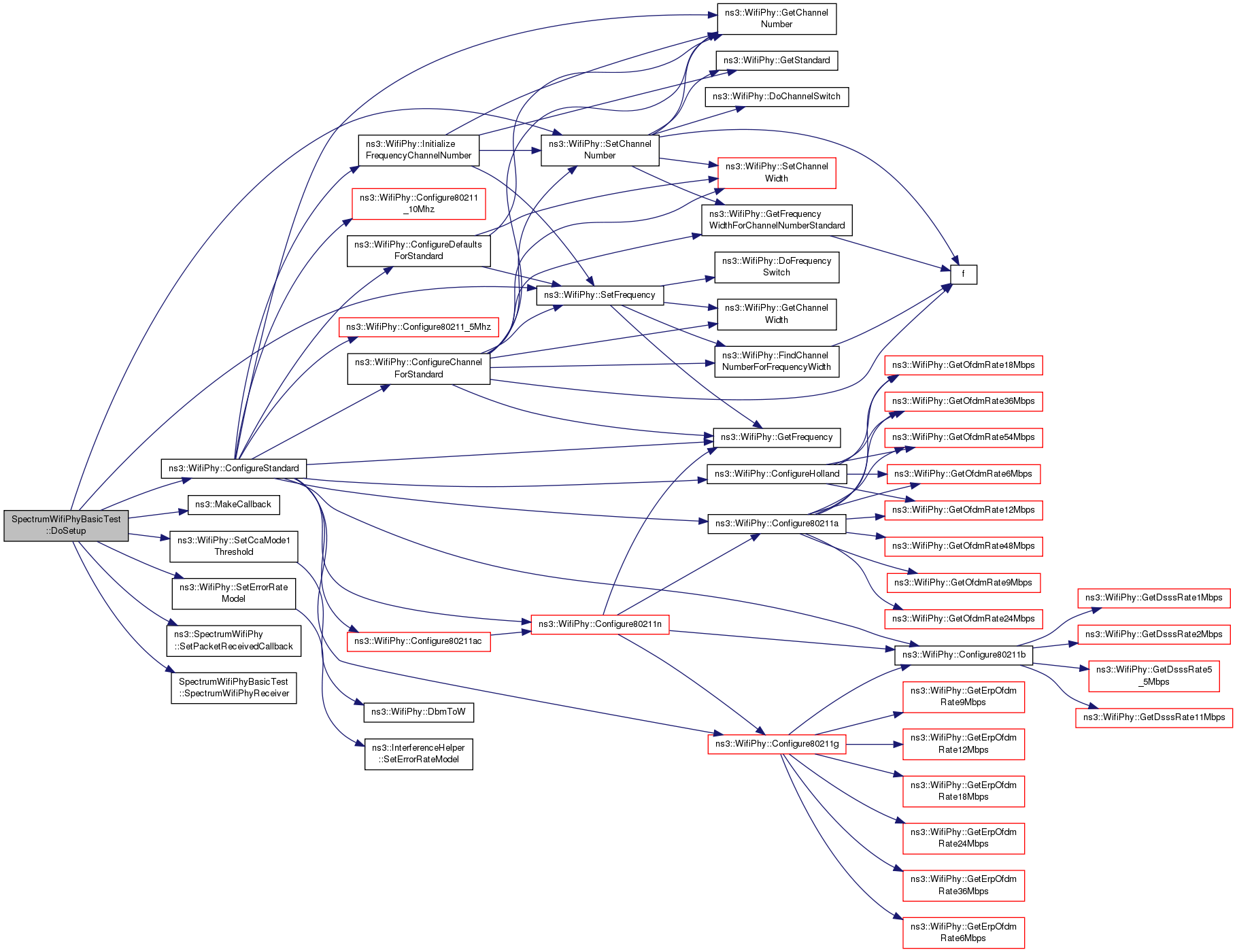

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< SpectrumSignalParameters > SpectrumWifiPhyBasicTest::MakeSignal ( double  txPowerWatts )

protected

Definition at line 71 of file spectrum-wifi-phy-test.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::Packet::AddTrailer(), ns3::WifiPhy::CalculateTxDuration(), CHANNEL_WIDTH, ns3::SpectrumSignalParameters::duration, FREQUENCY, ns3::WifiPhy::GetFrequency(), ns3::WifiMacTrailer::GetSerializedSize(), ns3::Packet::GetSize(), m_phy, ns3::NORMAL_MPDU, ns3::WifiSpectrumSignalParameters::packet, ns3::SpectrumSignalParameters::psd, ns3::SpectrumSignalParameters::txPhy, ns3::WIFI_MAC_QOSDATA, and ns3::WIFI_PREAMBLE_LONG.

Referenced by SendSignal().

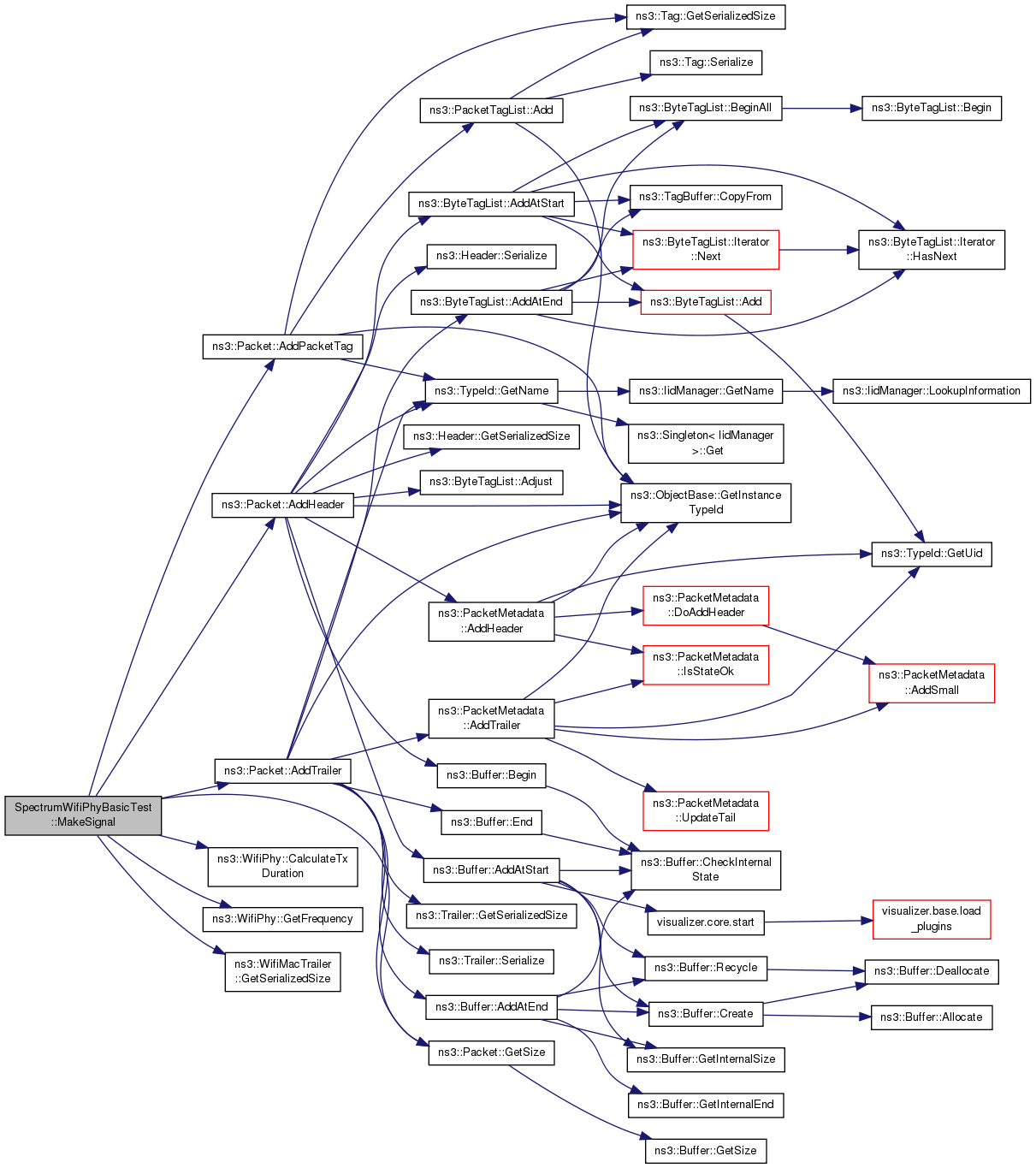

Here is the call graph for this function:

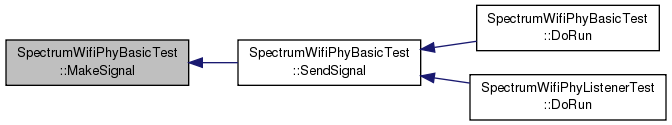

Here is the caller graph for this function:

void SpectrumWifiPhyBasicTest::SendSignal ( double  txPowerWatts )

protected

Definition at line 104 of file spectrum-wifi-phy-test.cc.

References m_phy, MakeSignal(), and ns3::SpectrumWifiPhy::StartRx().

Referenced by DoRun(), and SpectrumWifiPhyListenerTest::DoRun().

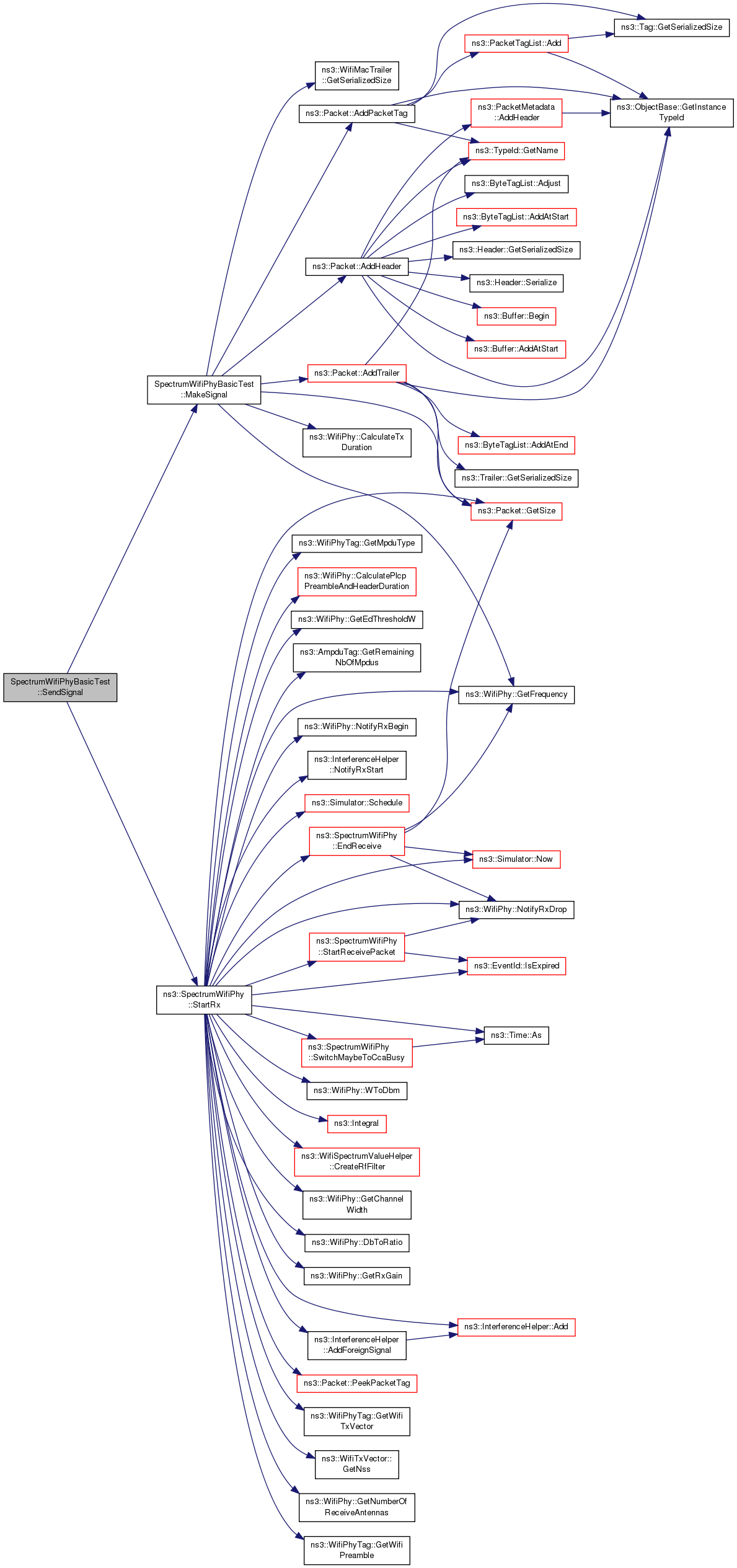

Here is the call graph for this function:

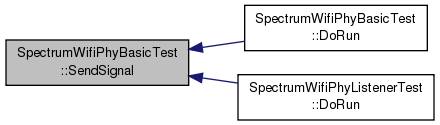

Here is the caller graph for this function:

void SpectrumWifiPhyBasicTest::SpectrumWifiPhyReceiver ( bool  rxSucceeded )

protected

Definition at line 110 of file spectrum-wifi-phy-test.cc.

References m_count.

Referenced by DoSetup().

Here is the caller graph for this function:

Member Data Documentation

uint32_t SpectrumWifiPhyBasicTest::m_count

protected

Definition at line 52 of file spectrum-wifi-phy-test.cc.

Referenced by DoRun(), SpectrumWifiPhyListenerTest::DoRun(), and SpectrumWifiPhyReceiver().

Ptr<SpectrumWifiPhy> SpectrumWifiPhyBasicTest::m_phy

protected

Definition at line 48 of file spectrum-wifi-phy-test.cc.

Referenced by DoSetup(), SpectrumWifiPhyListenerTest::DoSetup(), MakeSignal(), and SendSignal().

---

The documentation for this class was generated from the following file:

• src/wifi/test/spectrum-wifi-phy-test.cc
